National Inspection Services
Report: 343587
09/17/2026
09/17/2026
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888

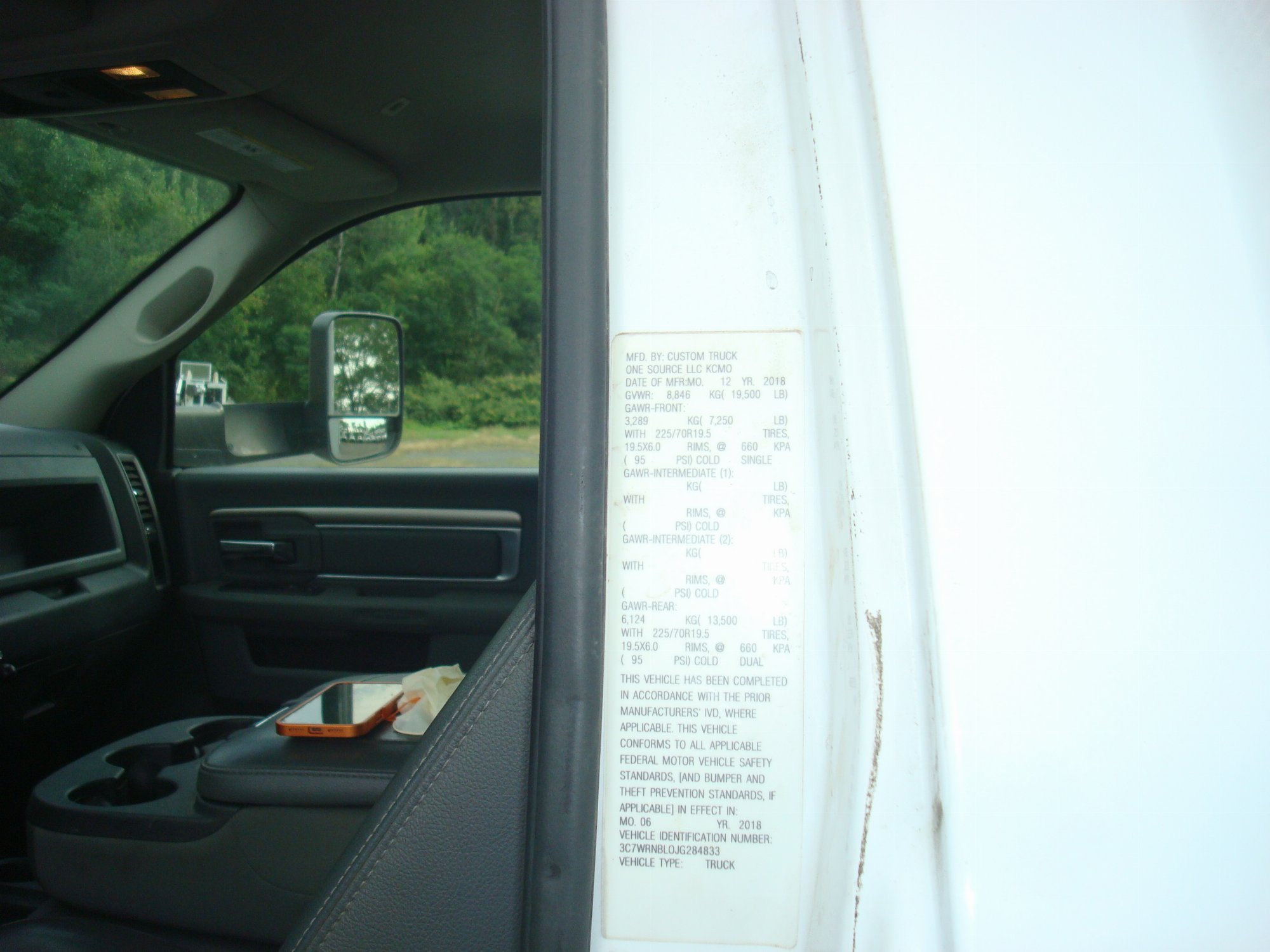

VIN: 3C7WRNBL0JG284833
PO #: 0000
PO #: 0000

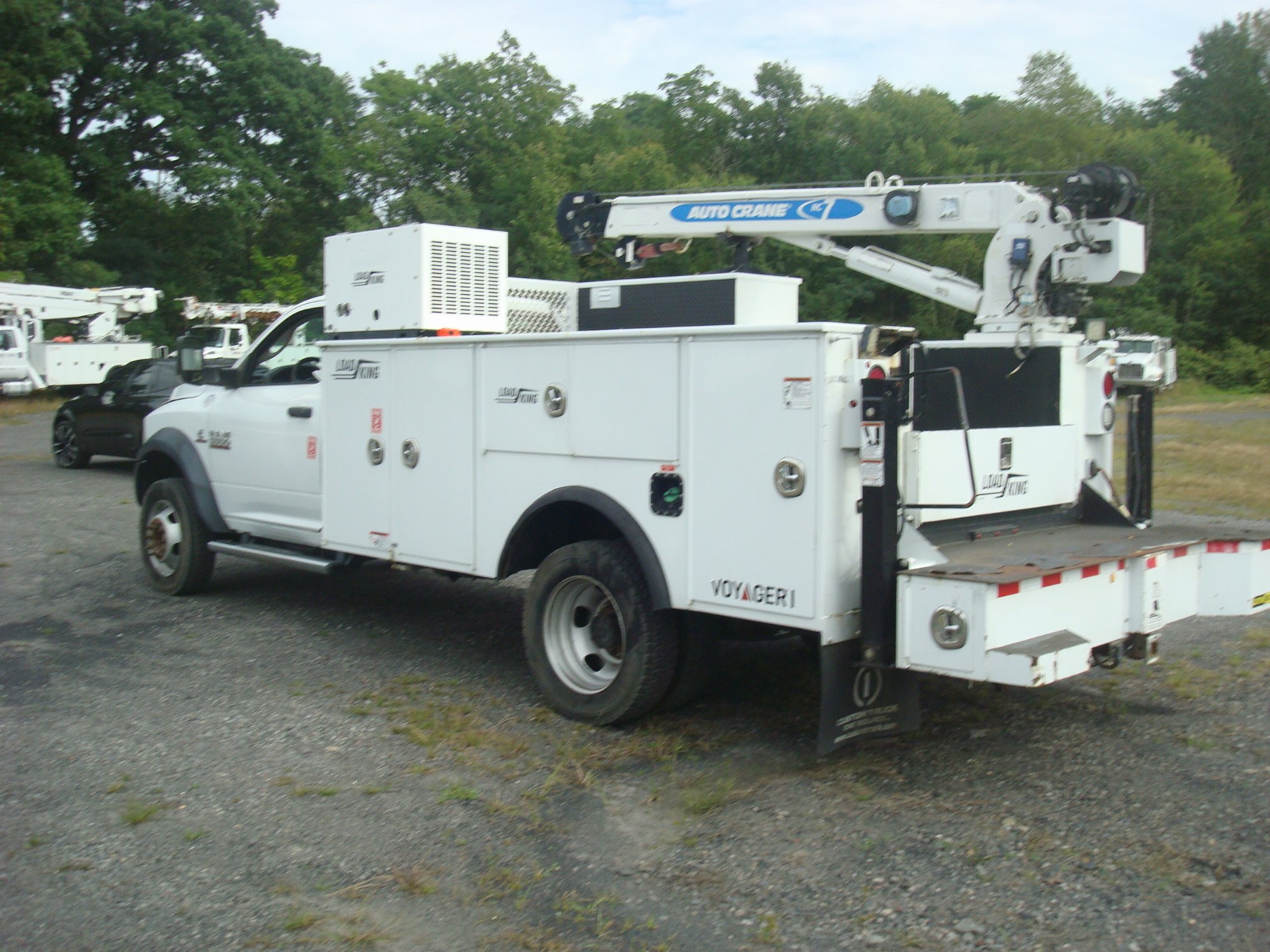

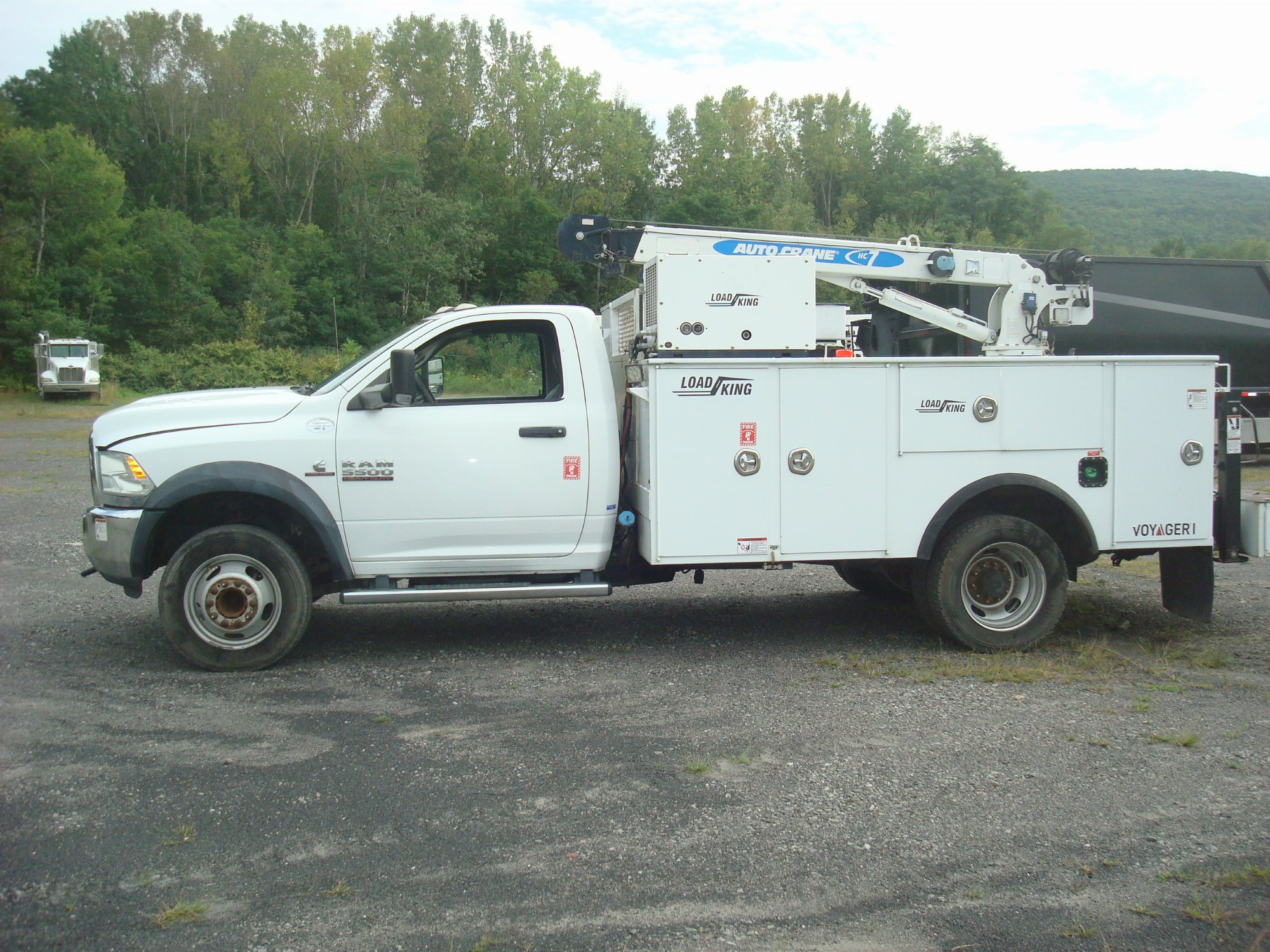

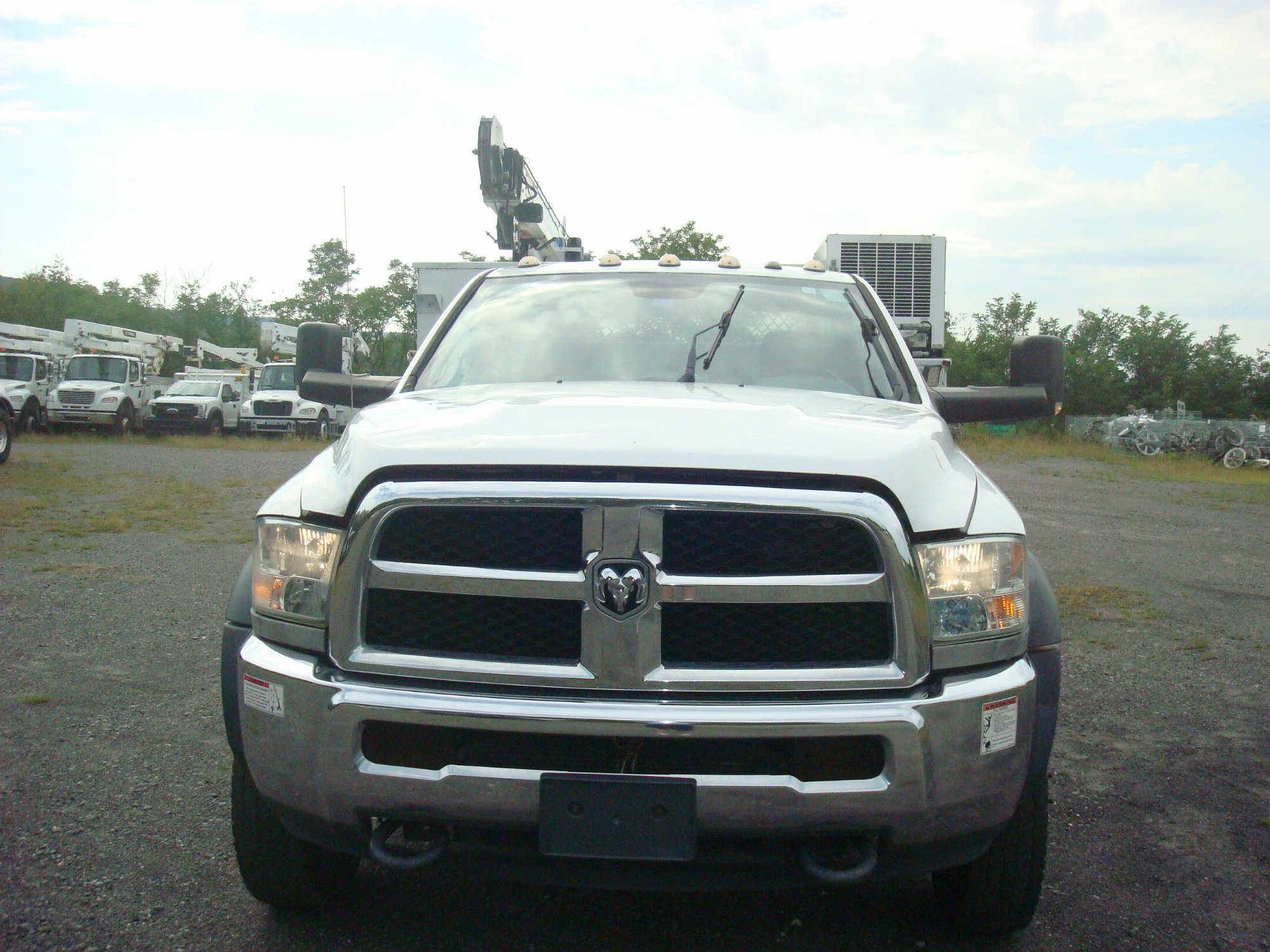

| 2018 RAM 5500 4X4 |
|---|
| Specifications | |
|---|---|

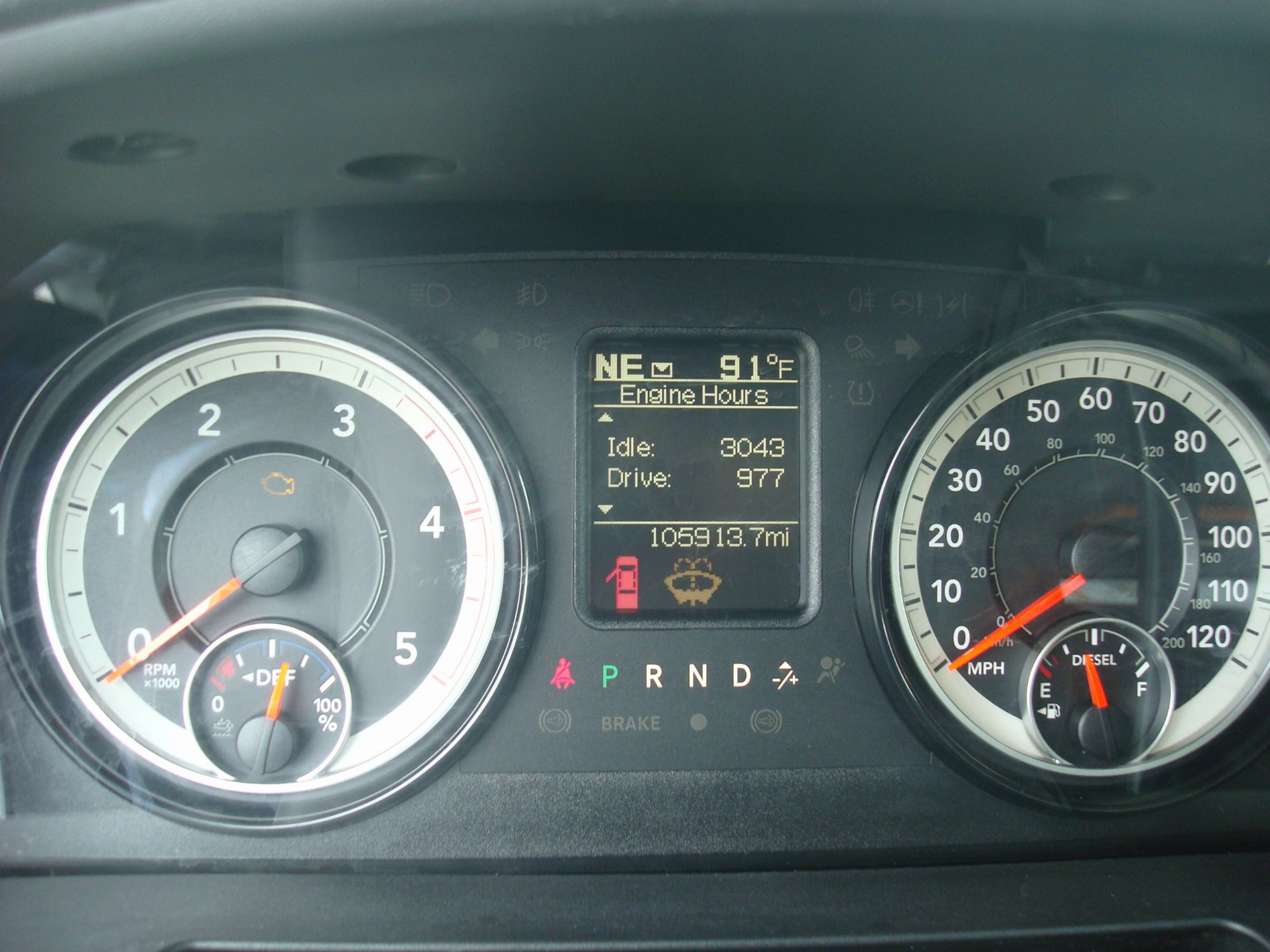

| Mileage | 105,913 |
| Engine Hours | 3,043 |

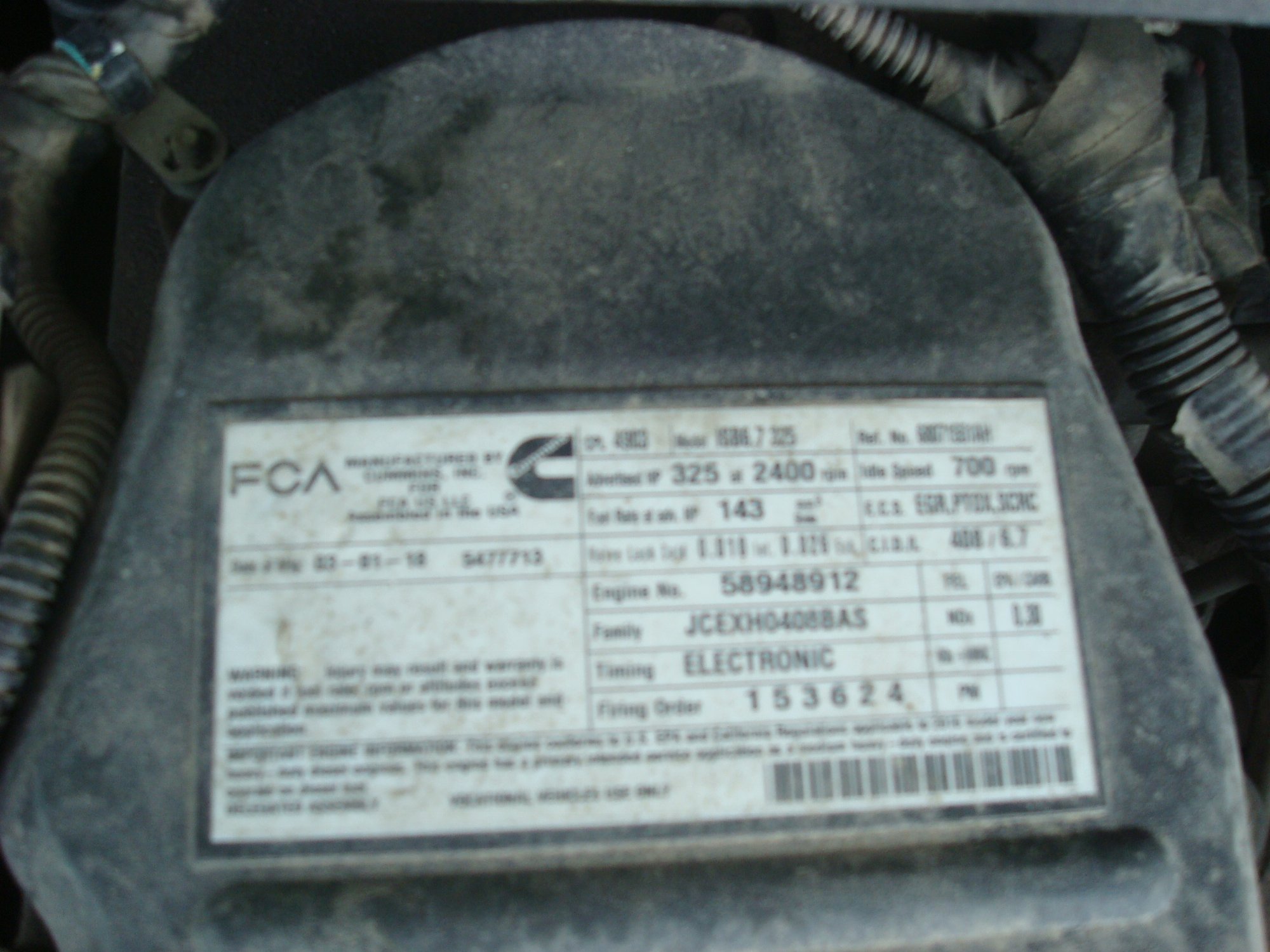

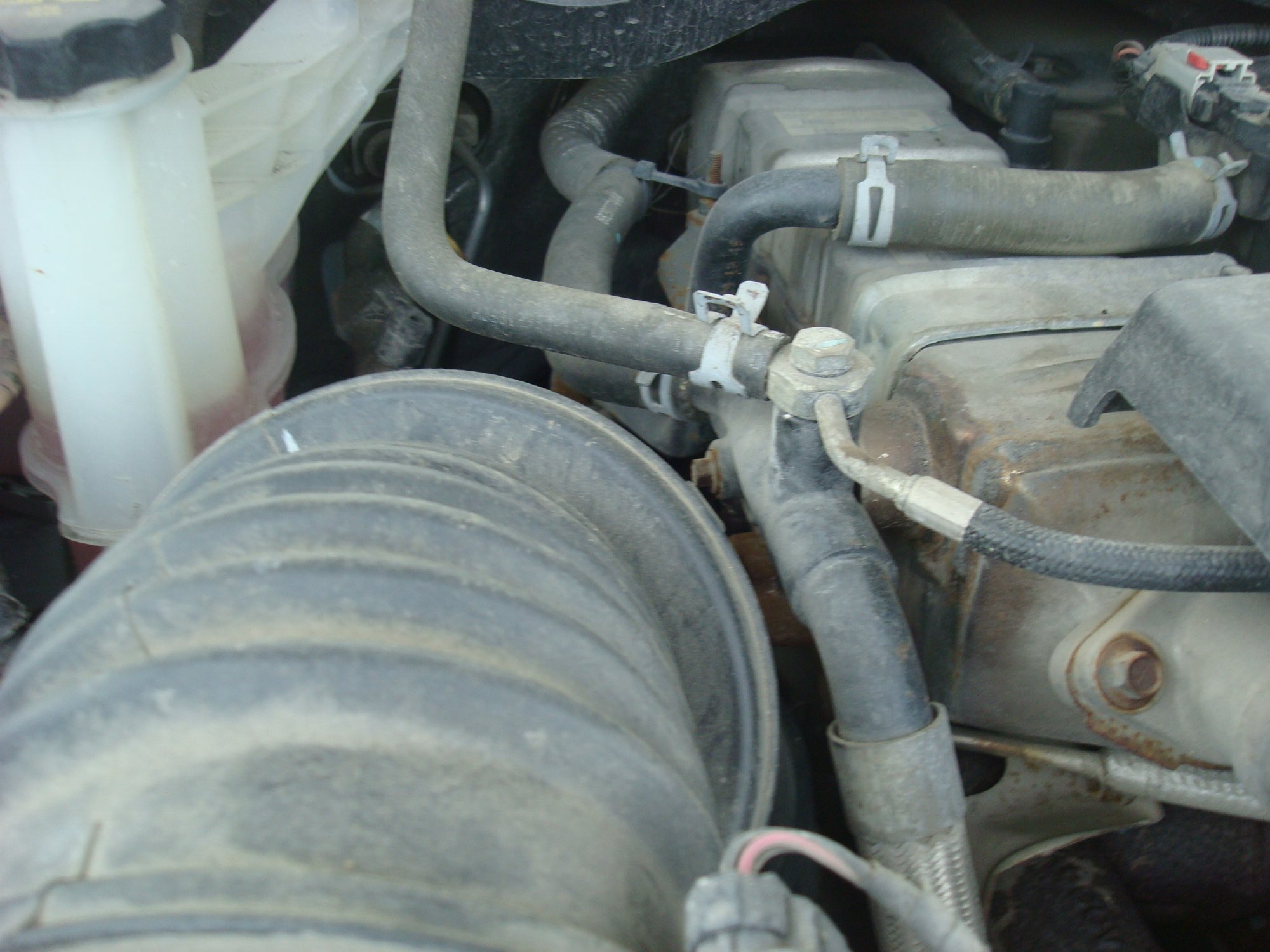

| Engine | CUMMINS 6.7L TURBOCHARGED 325 HP |
| Eng Serial | 58948912 |

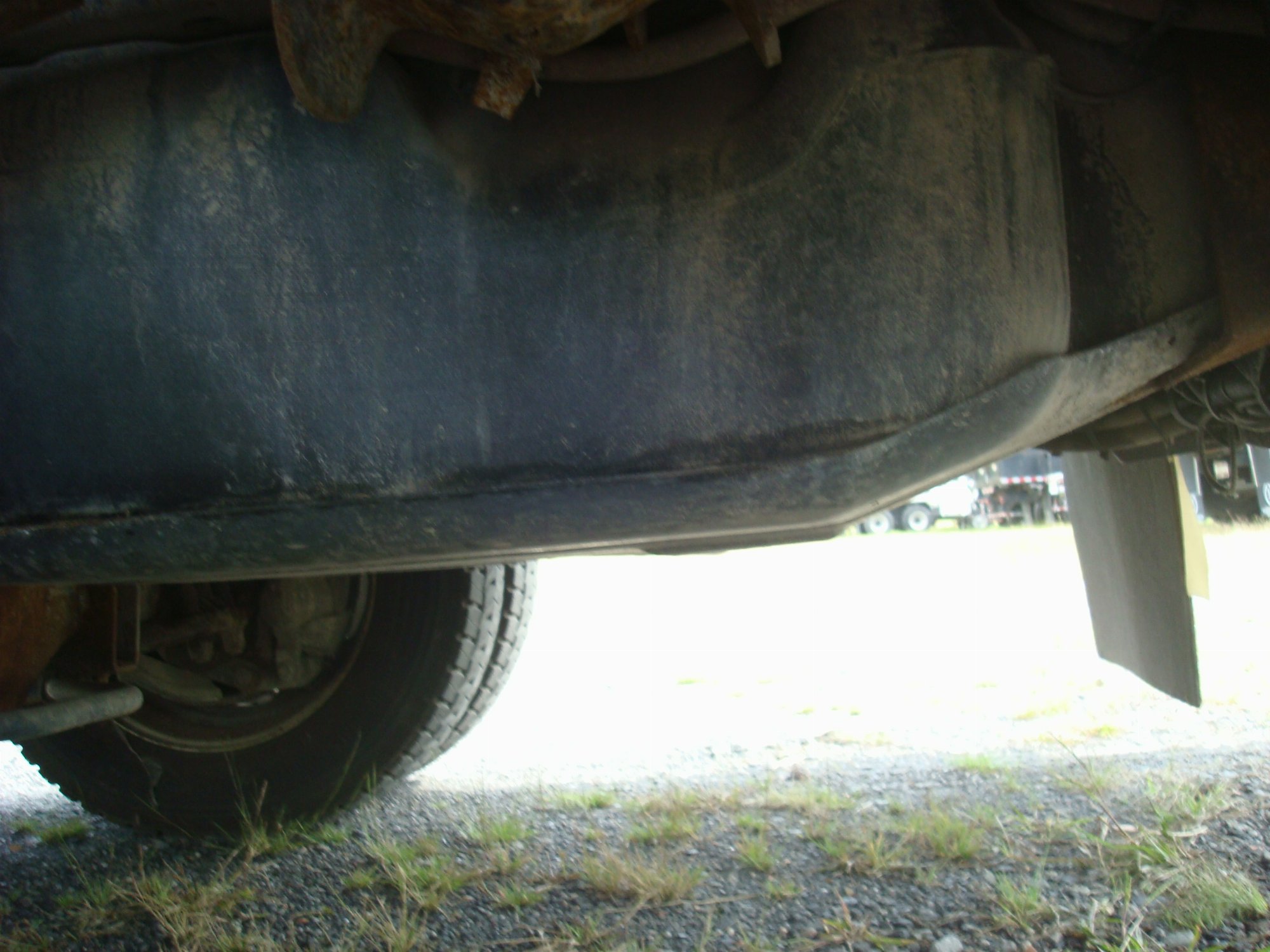

| Fuel / Tanks | DIESEL - 1 STEEL 52 GAL TOTAL |
| Transmission | AISIN AS69RC HD 6 SPD AUTO |
| Drive Opts | POWER STEERING, CRUISE |

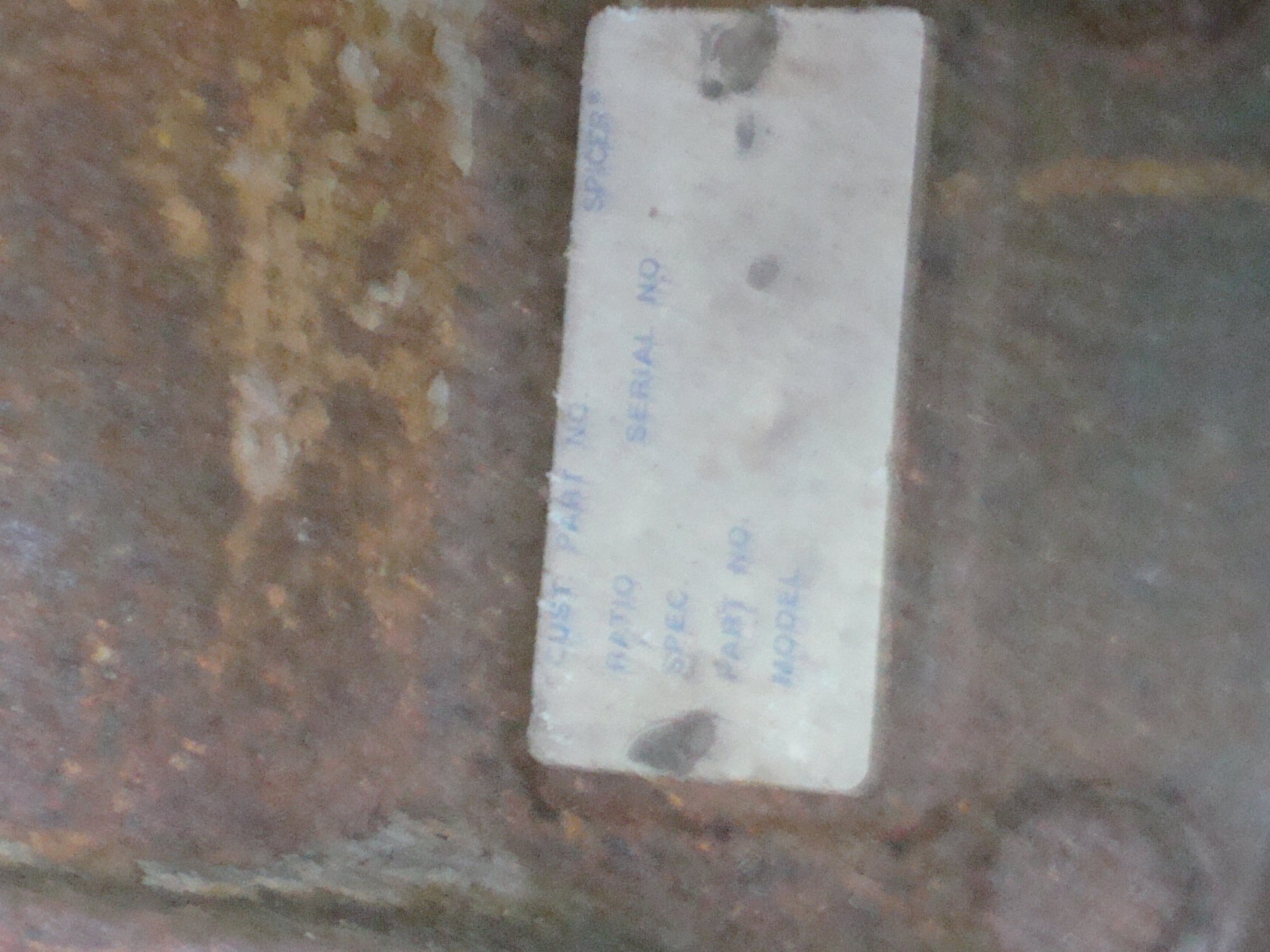

| Rear End | SPICER 4.88 |
| Axle Type | SINGLE - F 7,250 LB / R 13,500 LB |
| GVWR | 19,500 |
| Frame | STEEL |

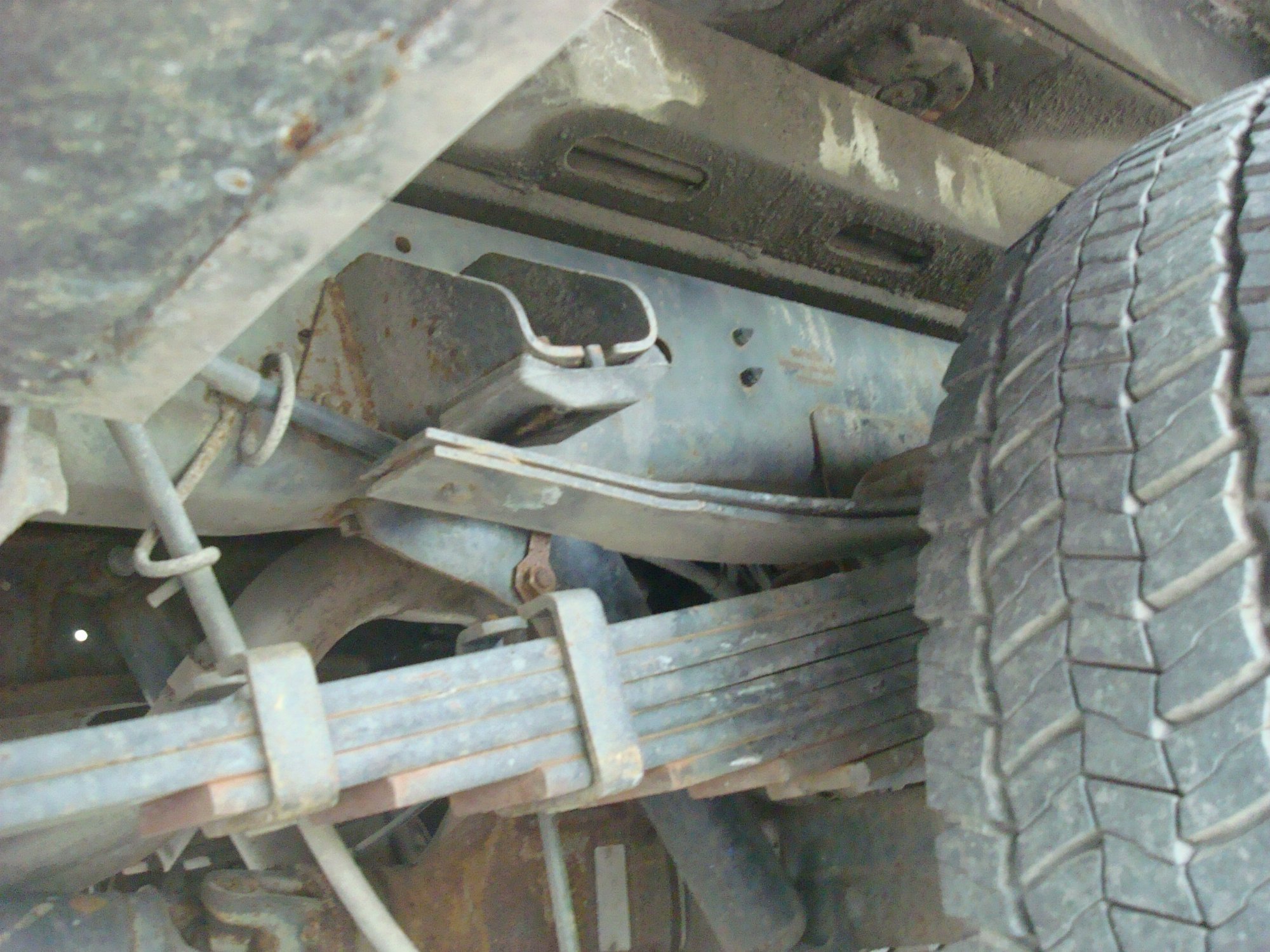

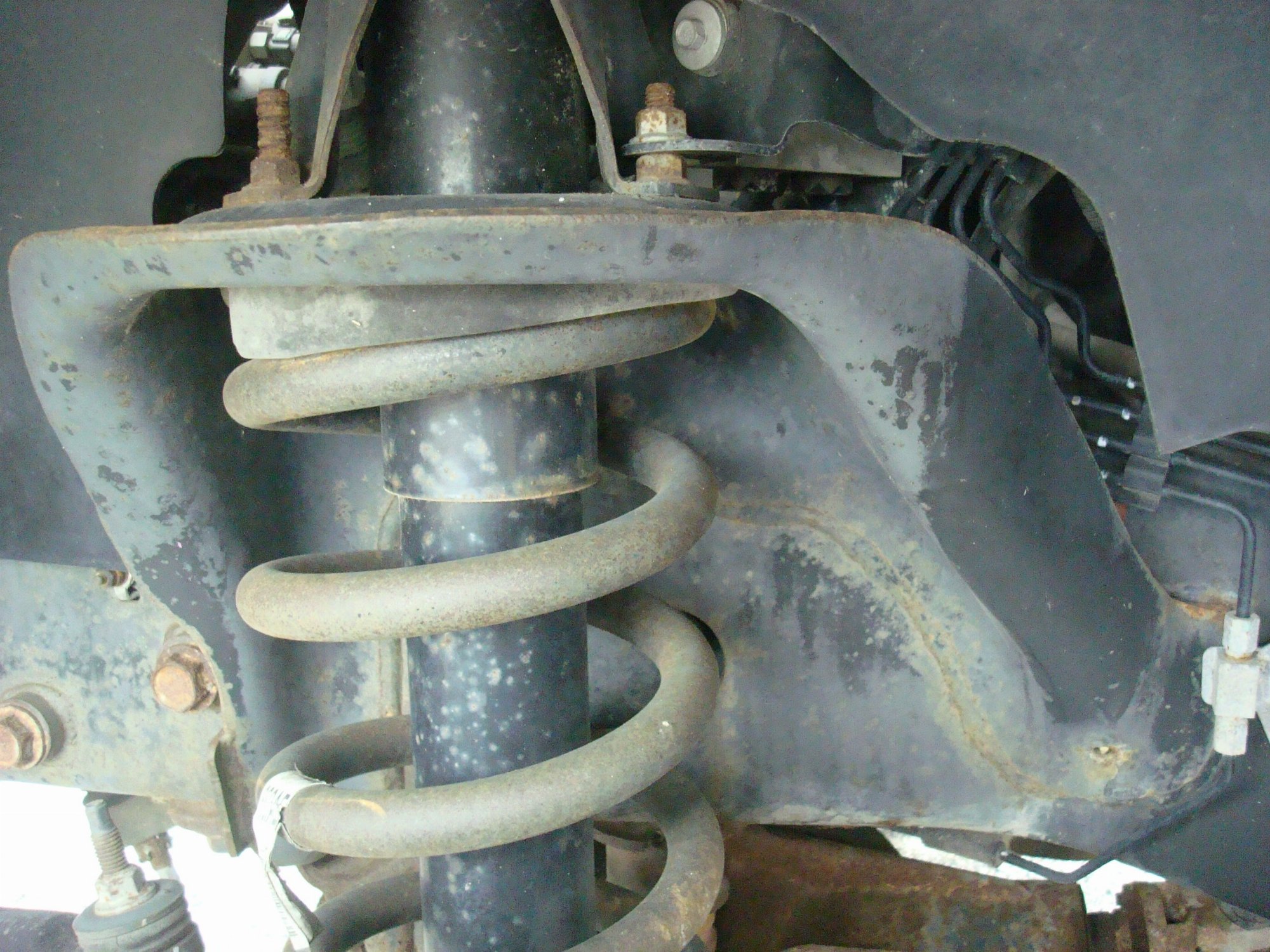

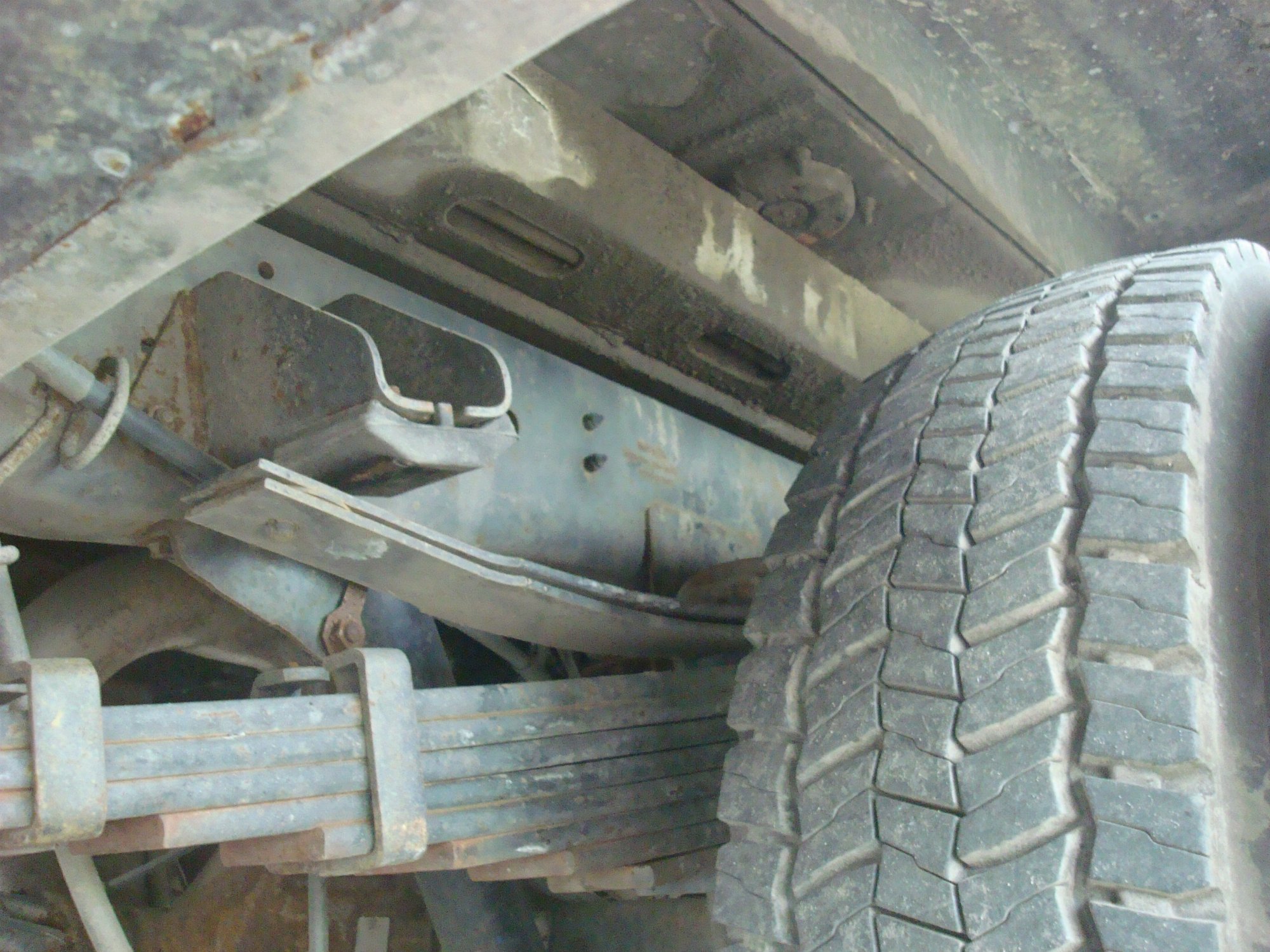

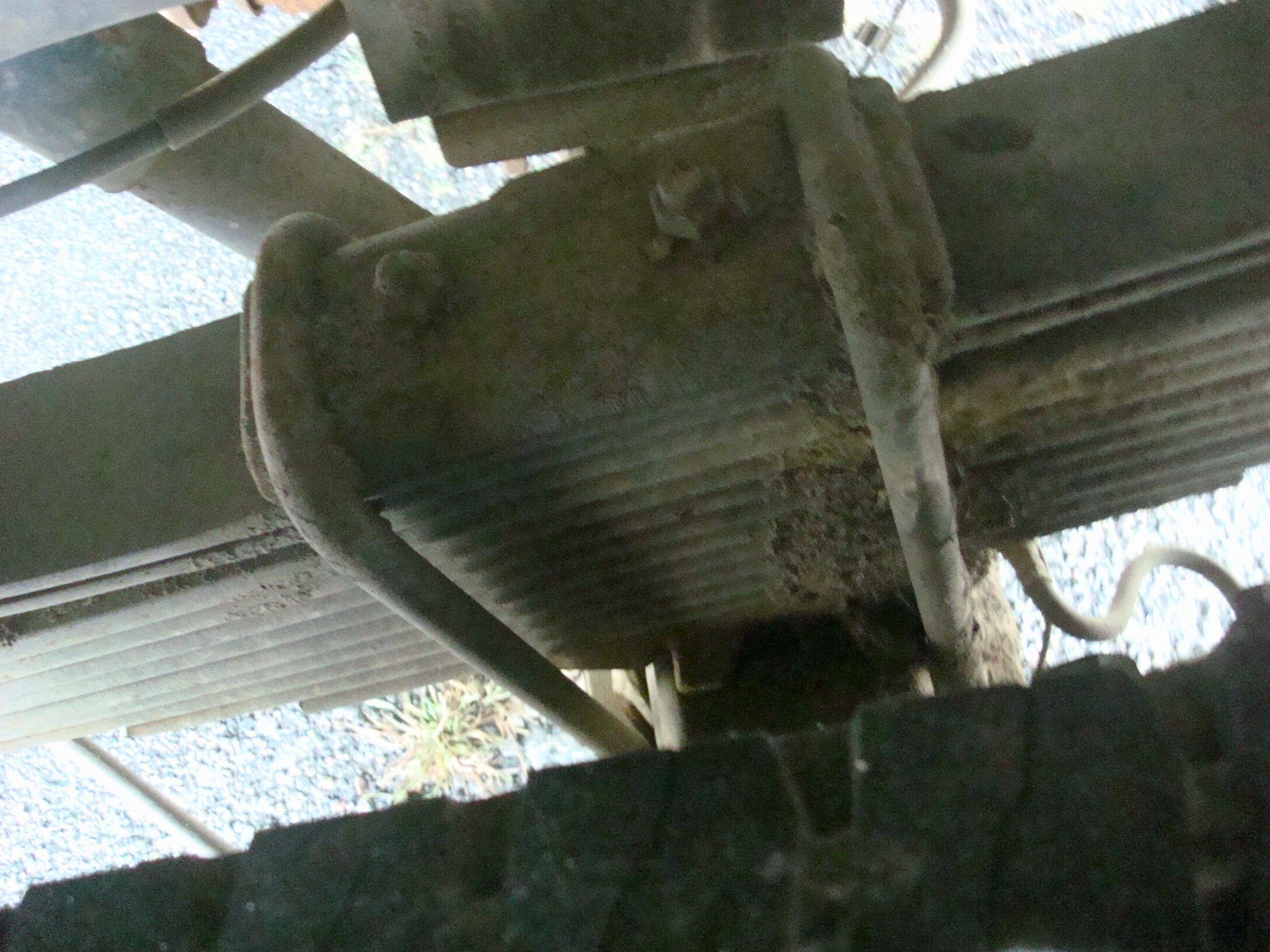

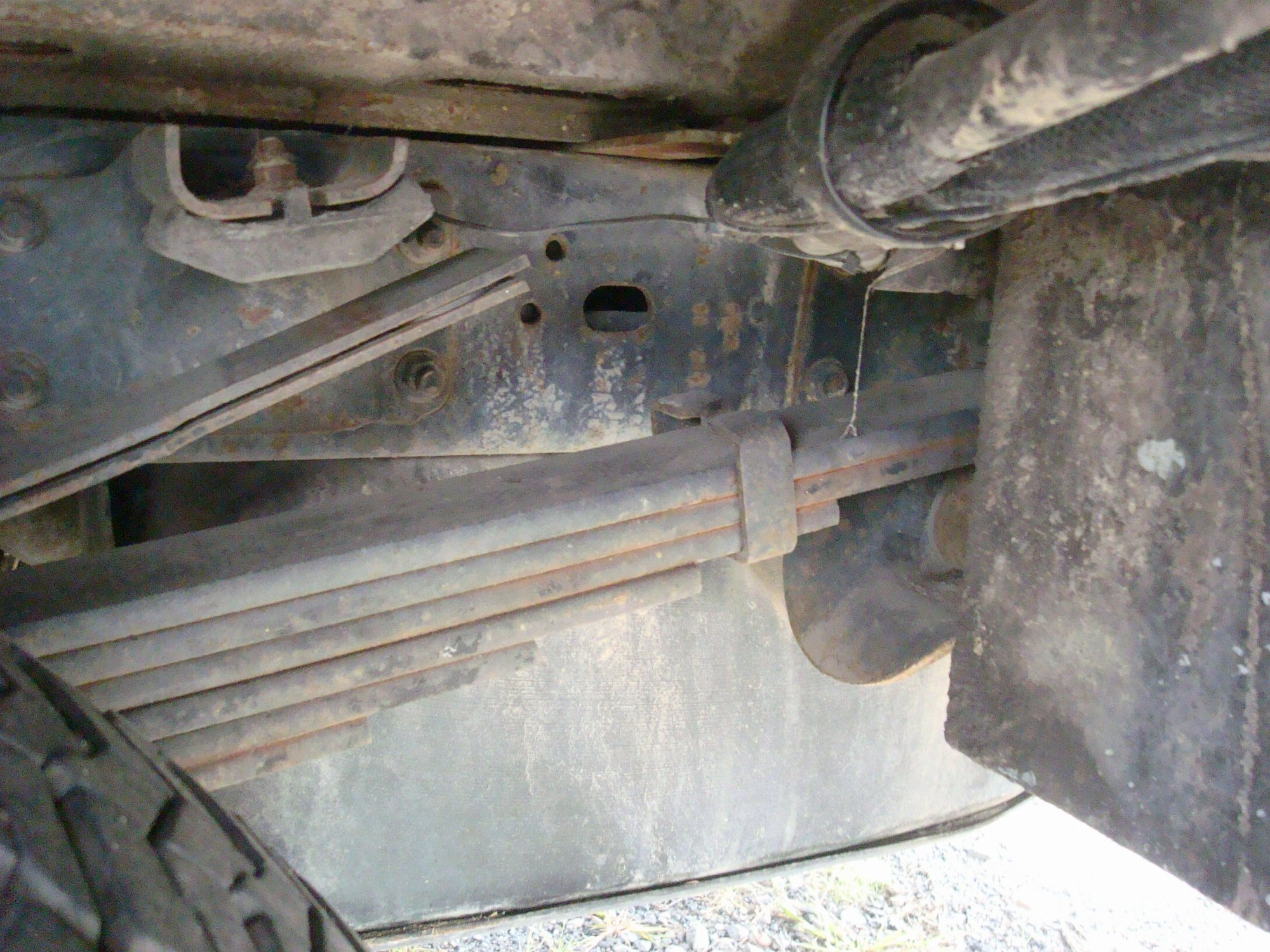

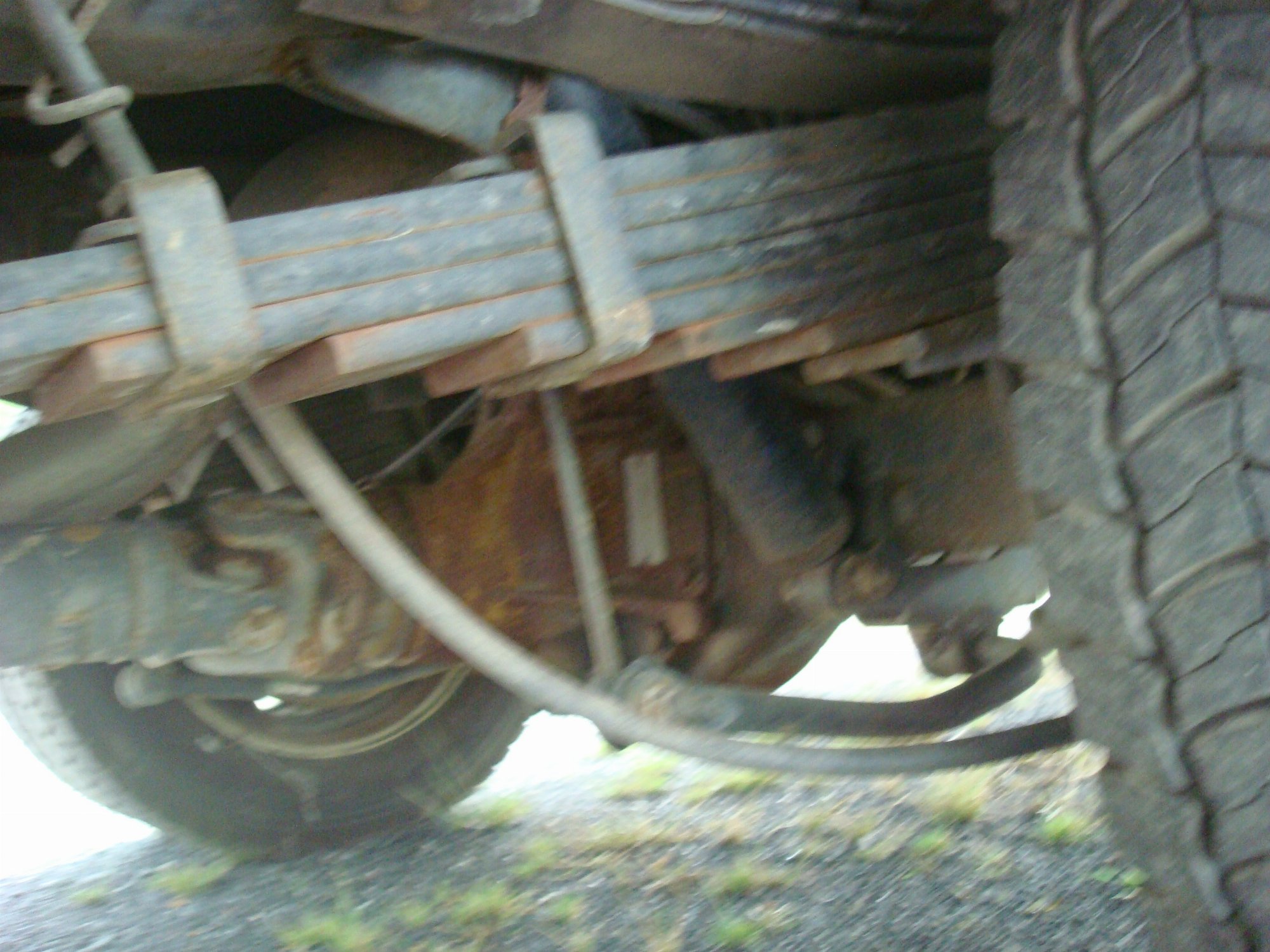

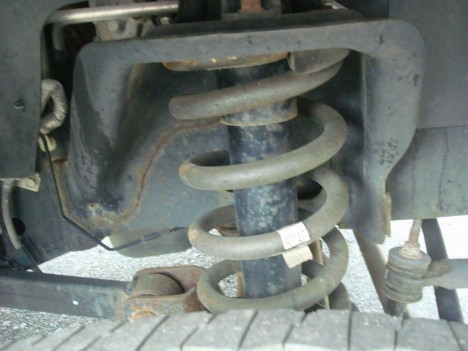

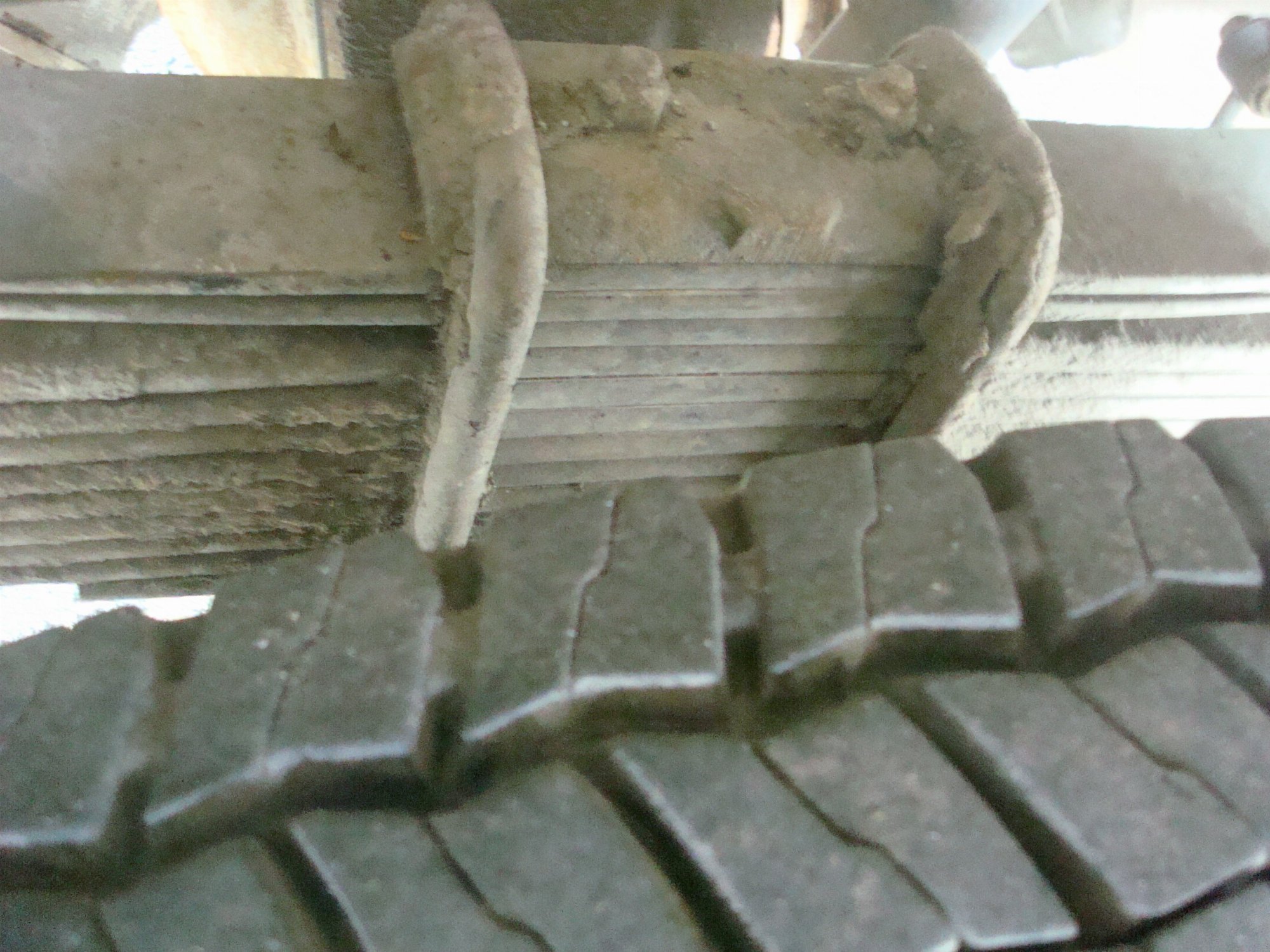

| Suspension | SPRING |
| Wheelbase | 168" |
| Tire Size | 225/70R19.5 |
| Wheels | F STEEL / R STEEL |
| Air Cond | YES, OPERATIONAL |
| Interior Color | GRAY |
| Radio | AM/FM / BLUETOOTH, OPERATIONAL |
| Mirrors | DUAL POWER |
| High Back Seats | DUAL |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | CHROME | Exterior Opts | HEATED MIRRORS |

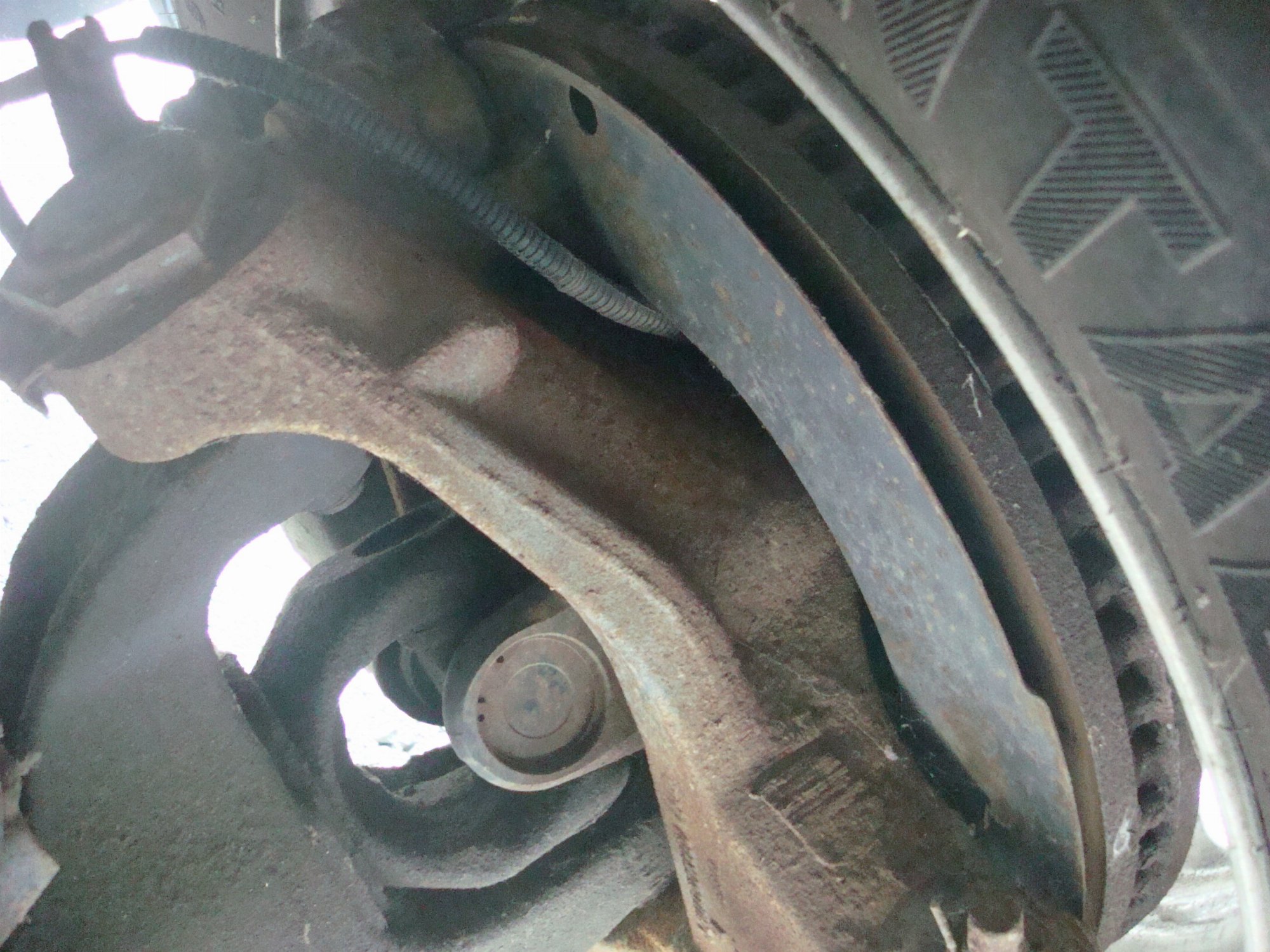

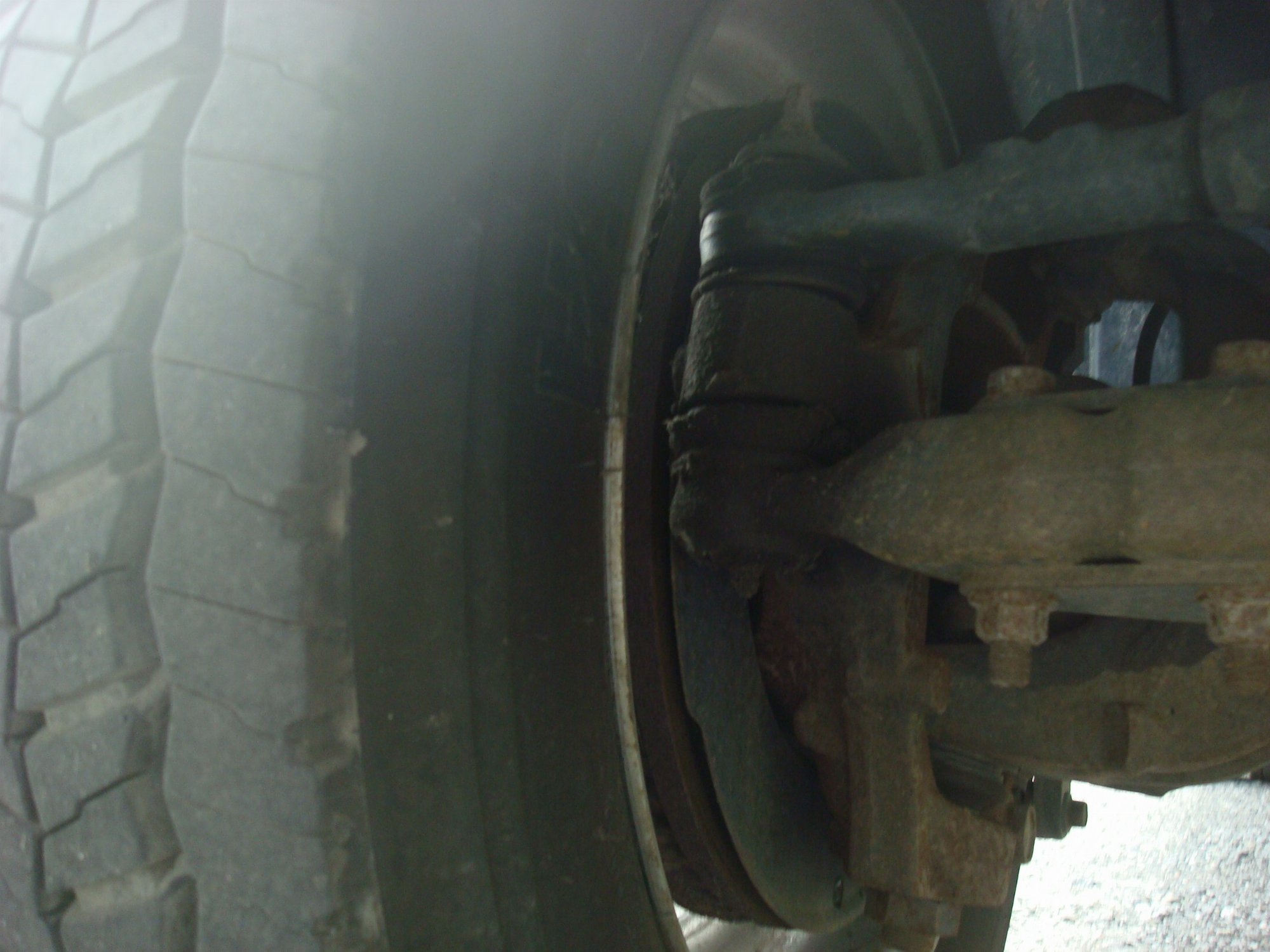

| Brakes | |
|---|---|

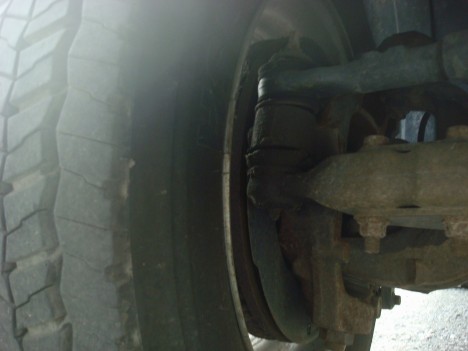

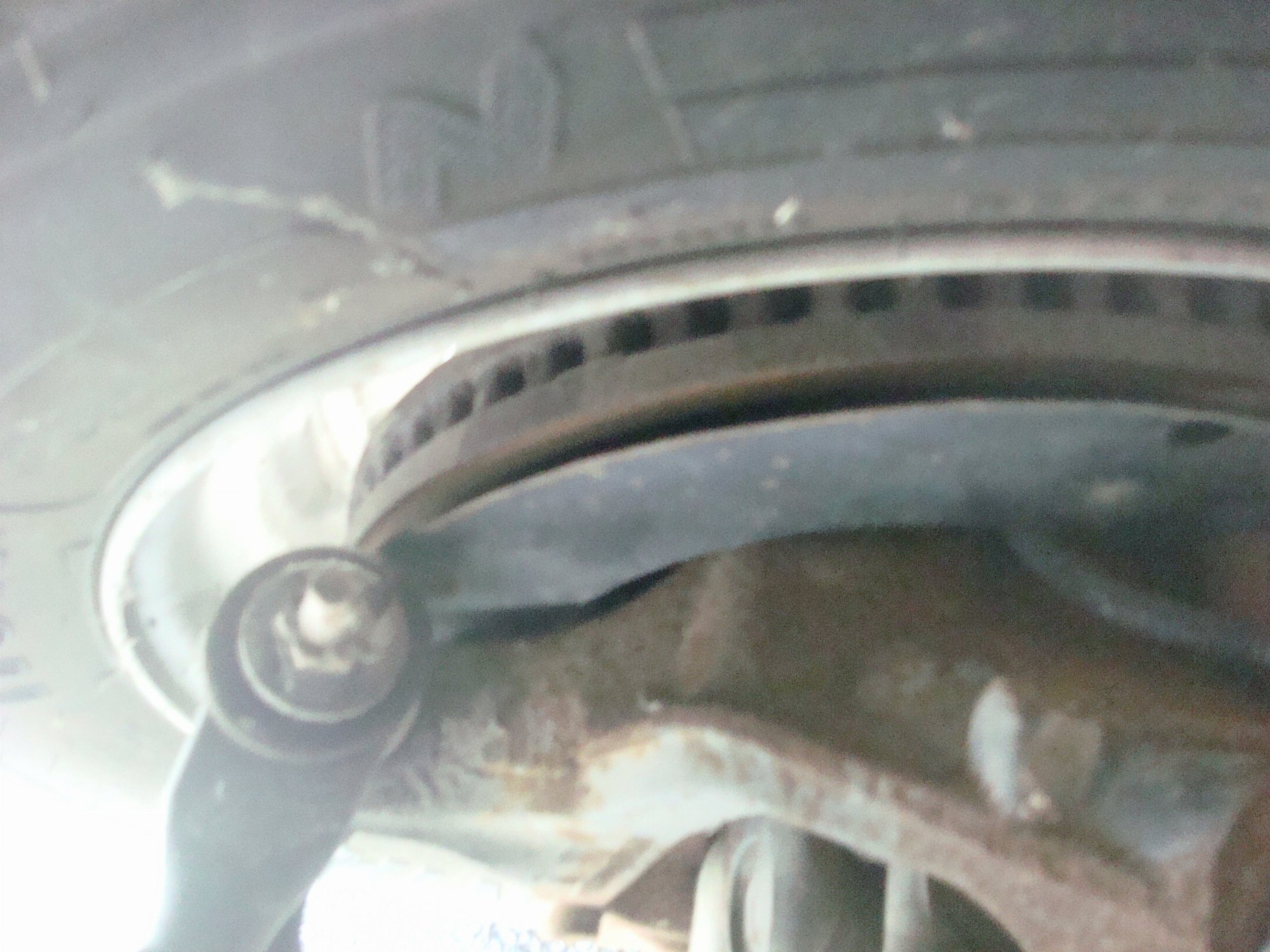

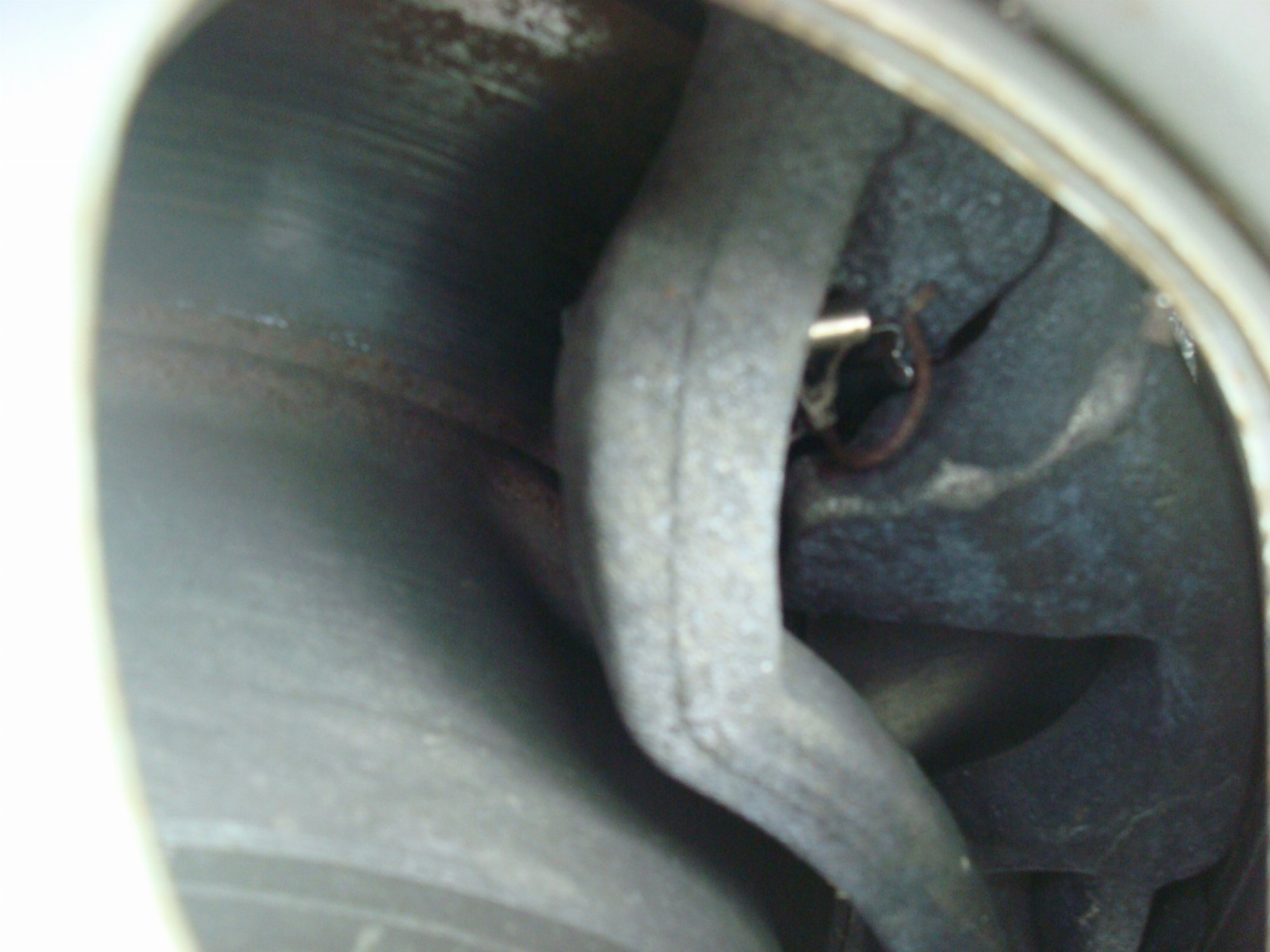

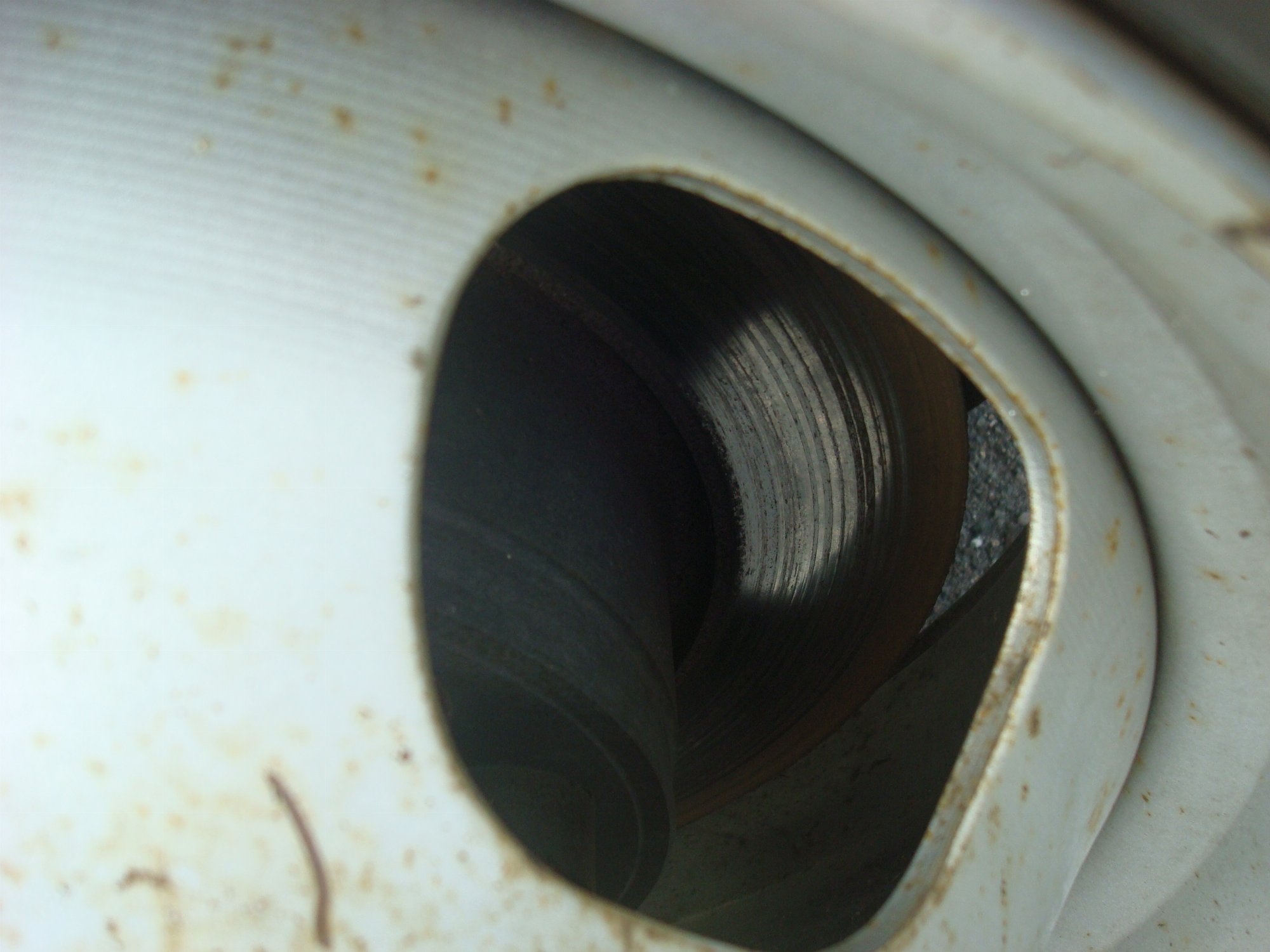

| Left FrontDisc | Right FrontDisc |
| Left Rear 1Disc | Right Rear 1Disc |

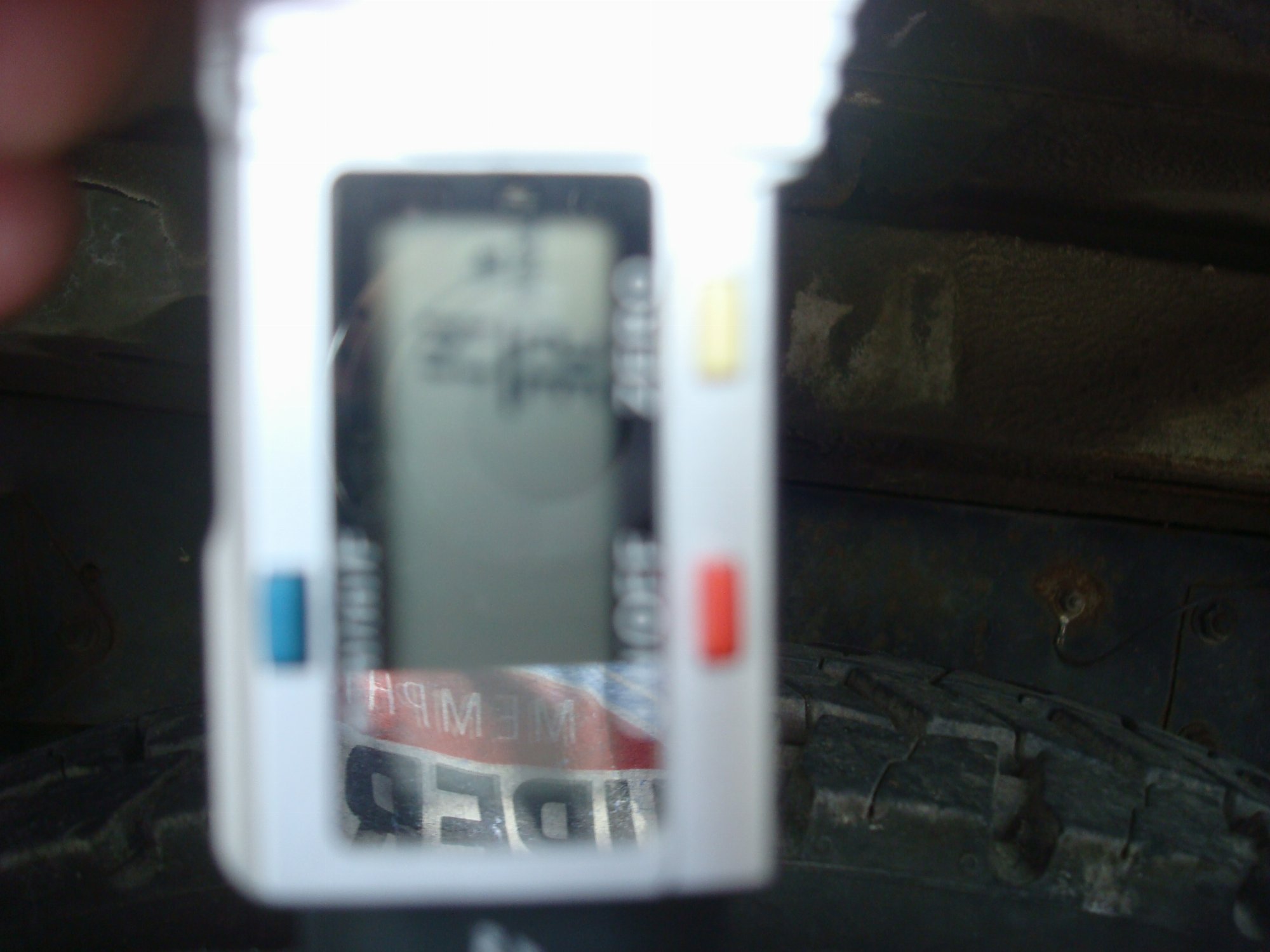

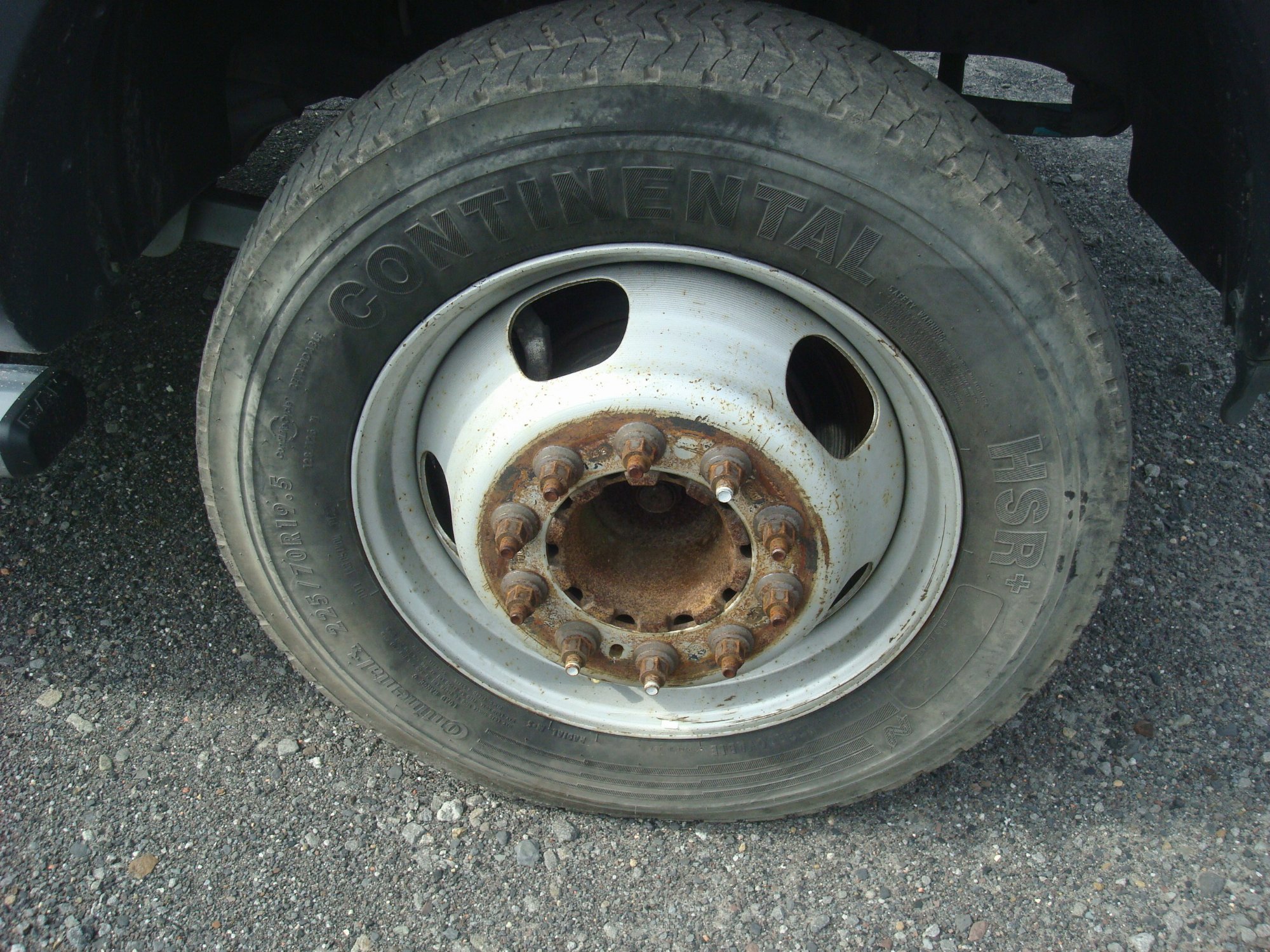

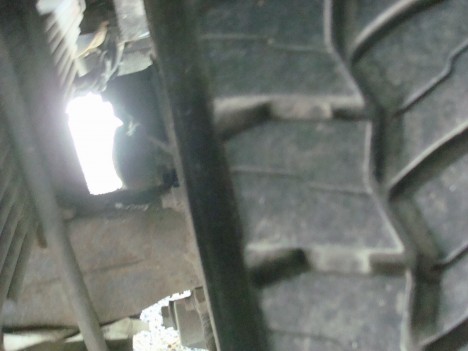

| Tires & Wheels | |||
|---|---|---|---|
|

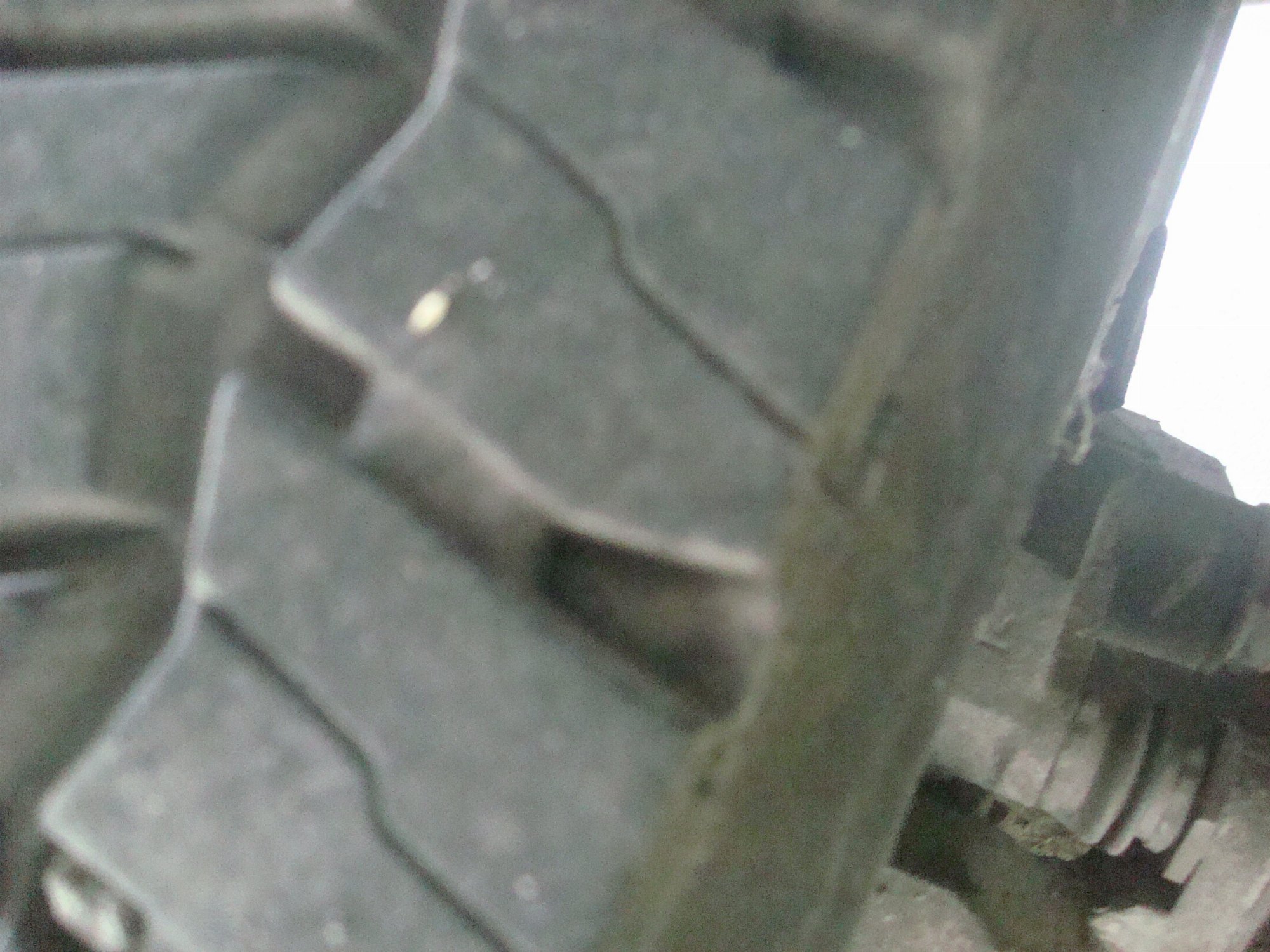

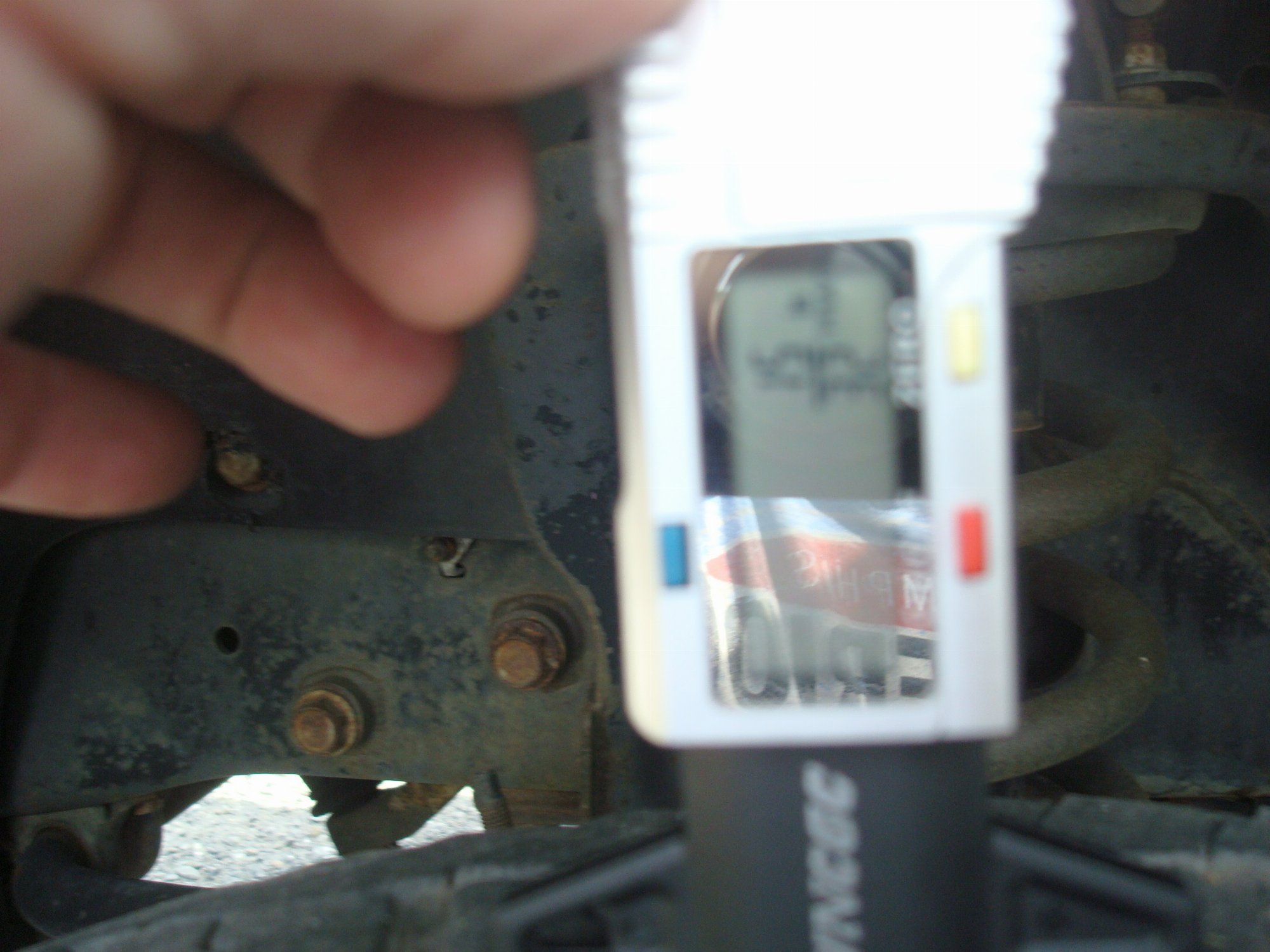

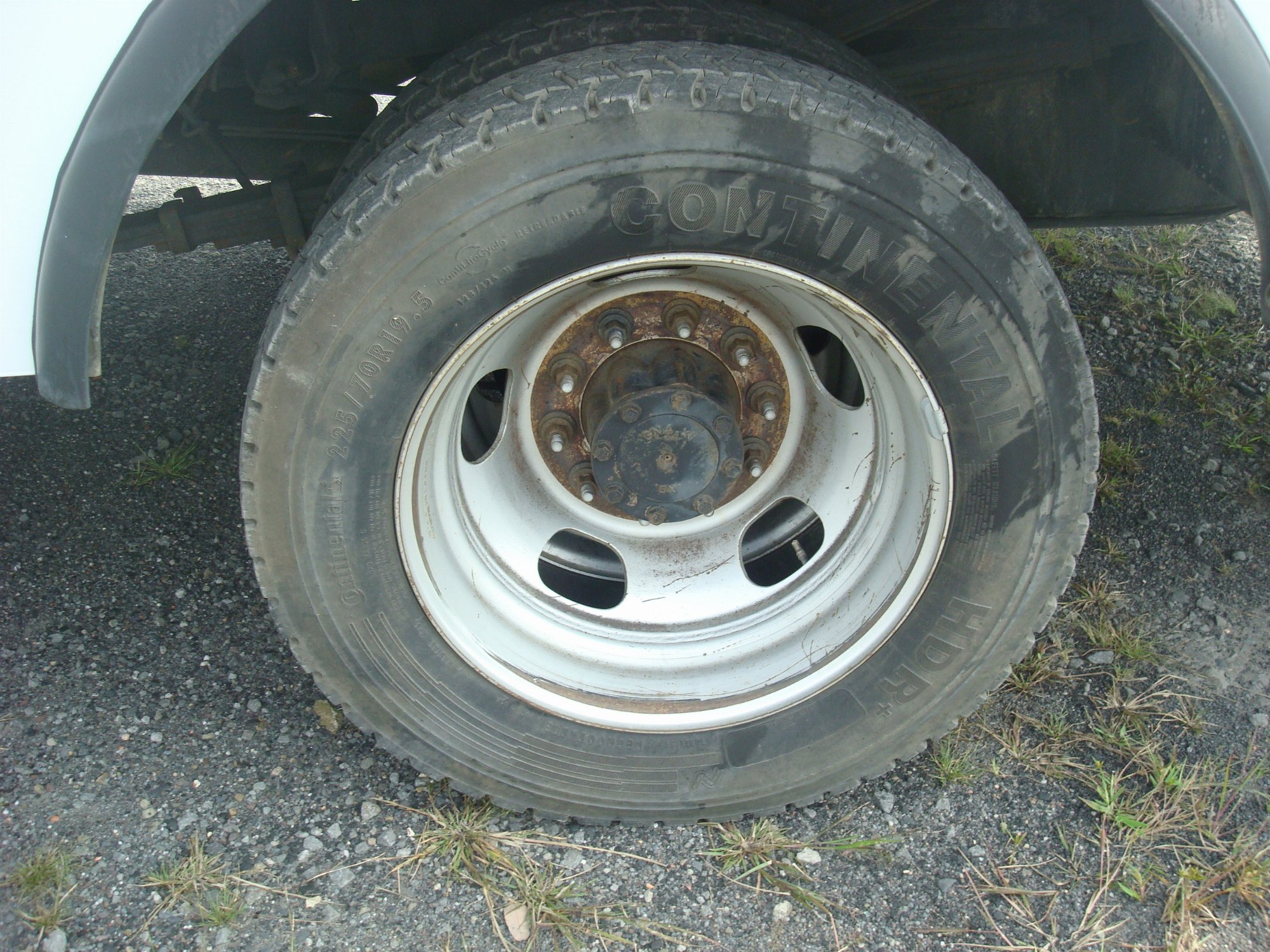

Left Front15 / 32 Continental Steel |
Right Front14 / 32 Continental Steel |
||
|
Left Outer 114 / 32 Continental Steel |
Left Inner 114 / 32 Continental Steel |
Right Inner 113 / 32 Continental Steel |
Right Outer 113 / 32 Continental Steel |
| FRONT TIRES: 225/70R19.5 | REAR TIRES: 225/70R19.5 | ||
| General Observations |
|---|

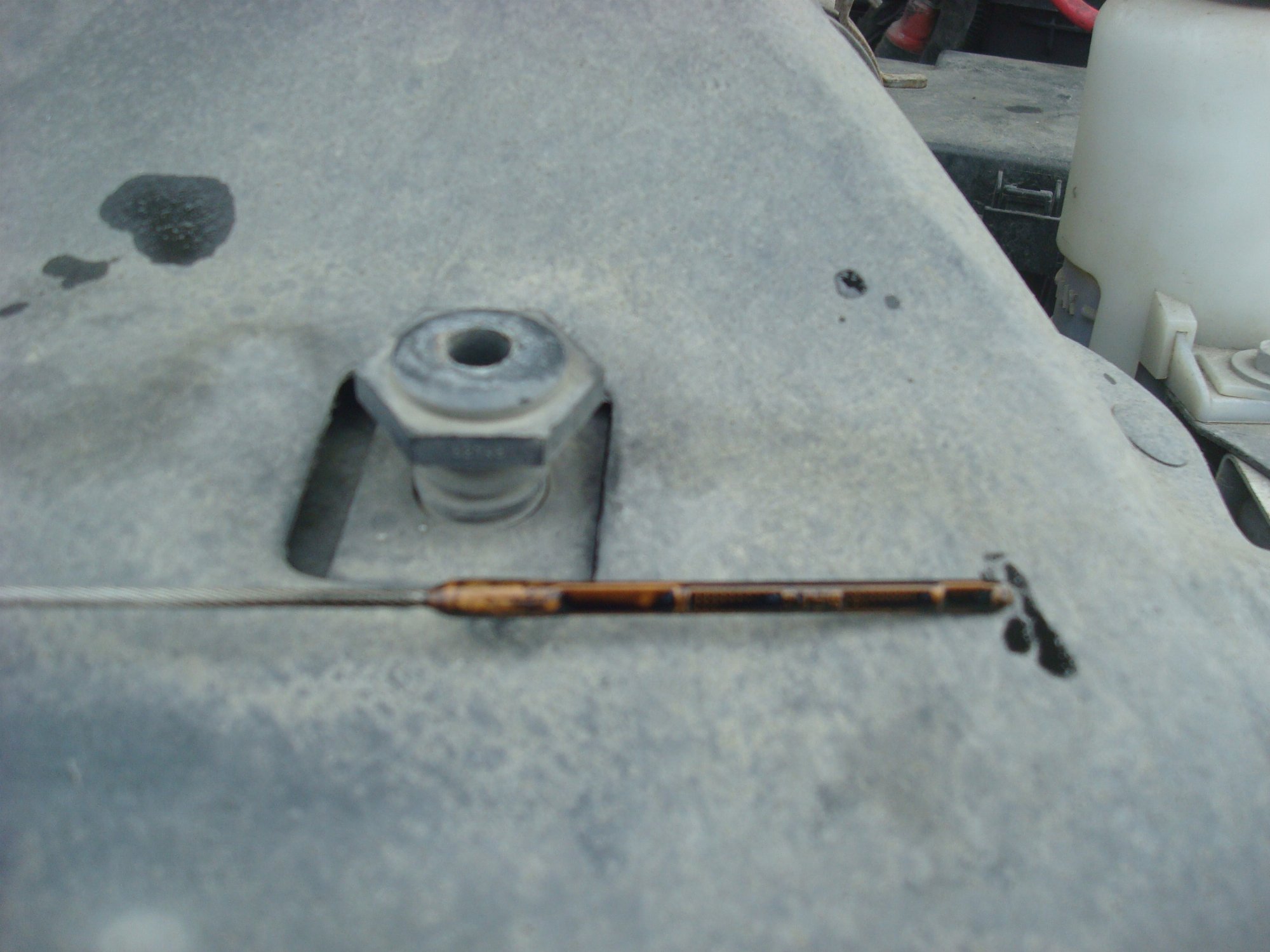

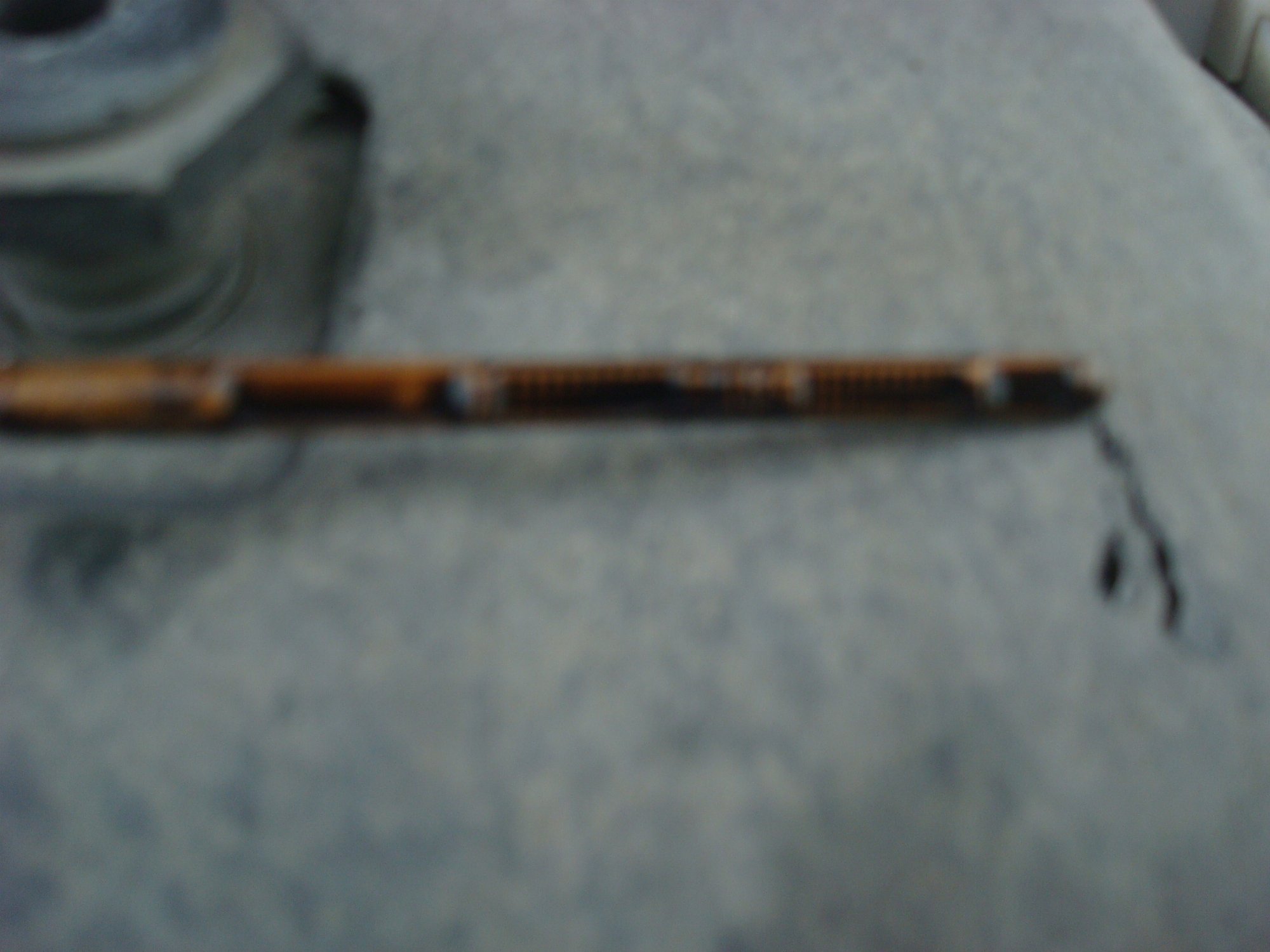

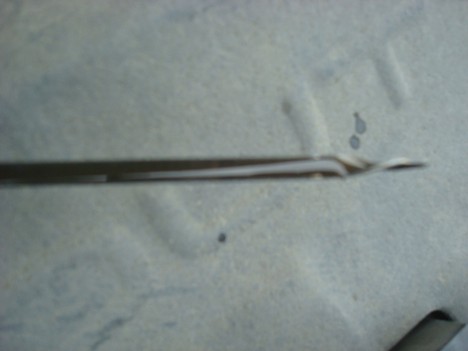

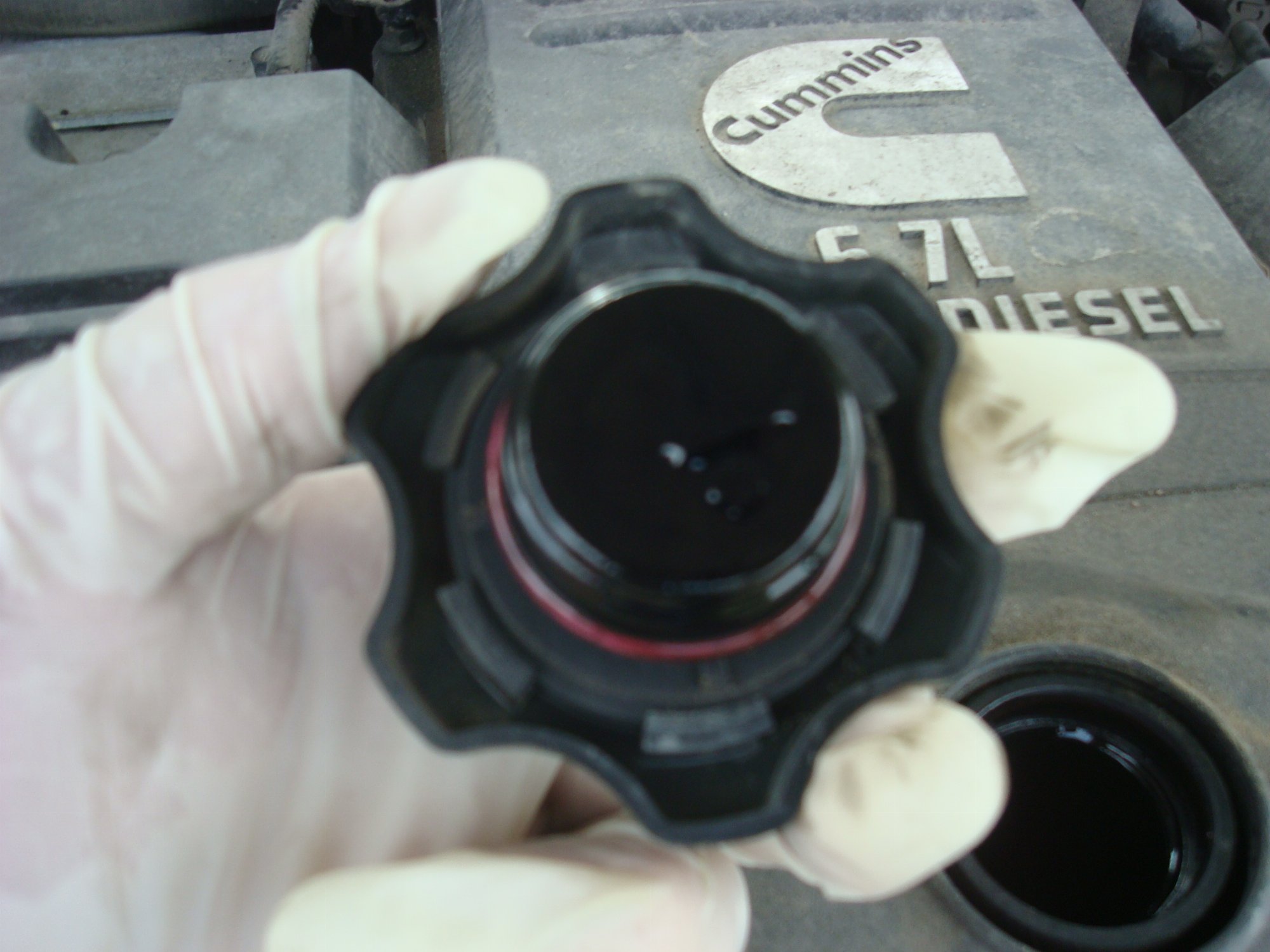

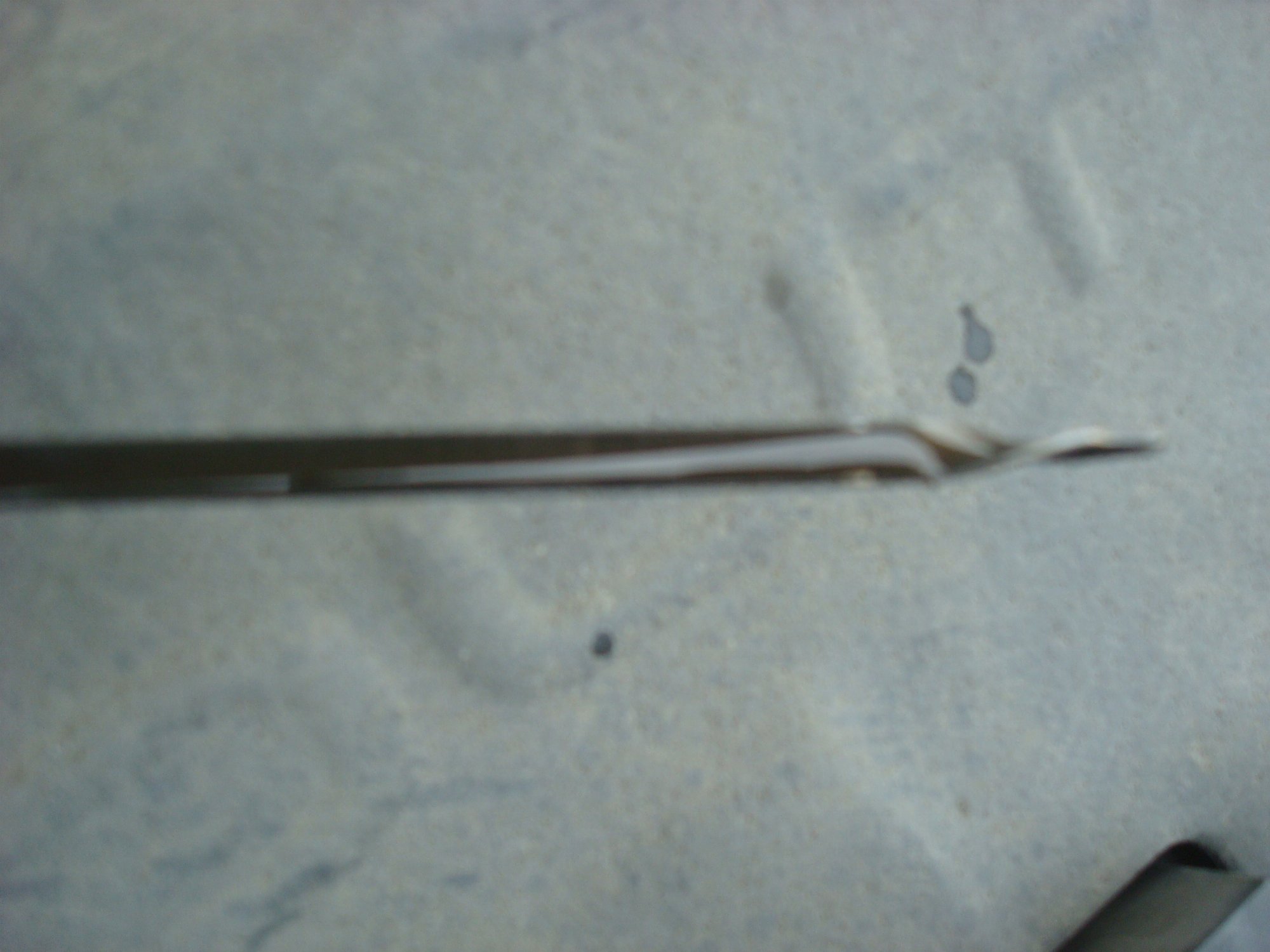

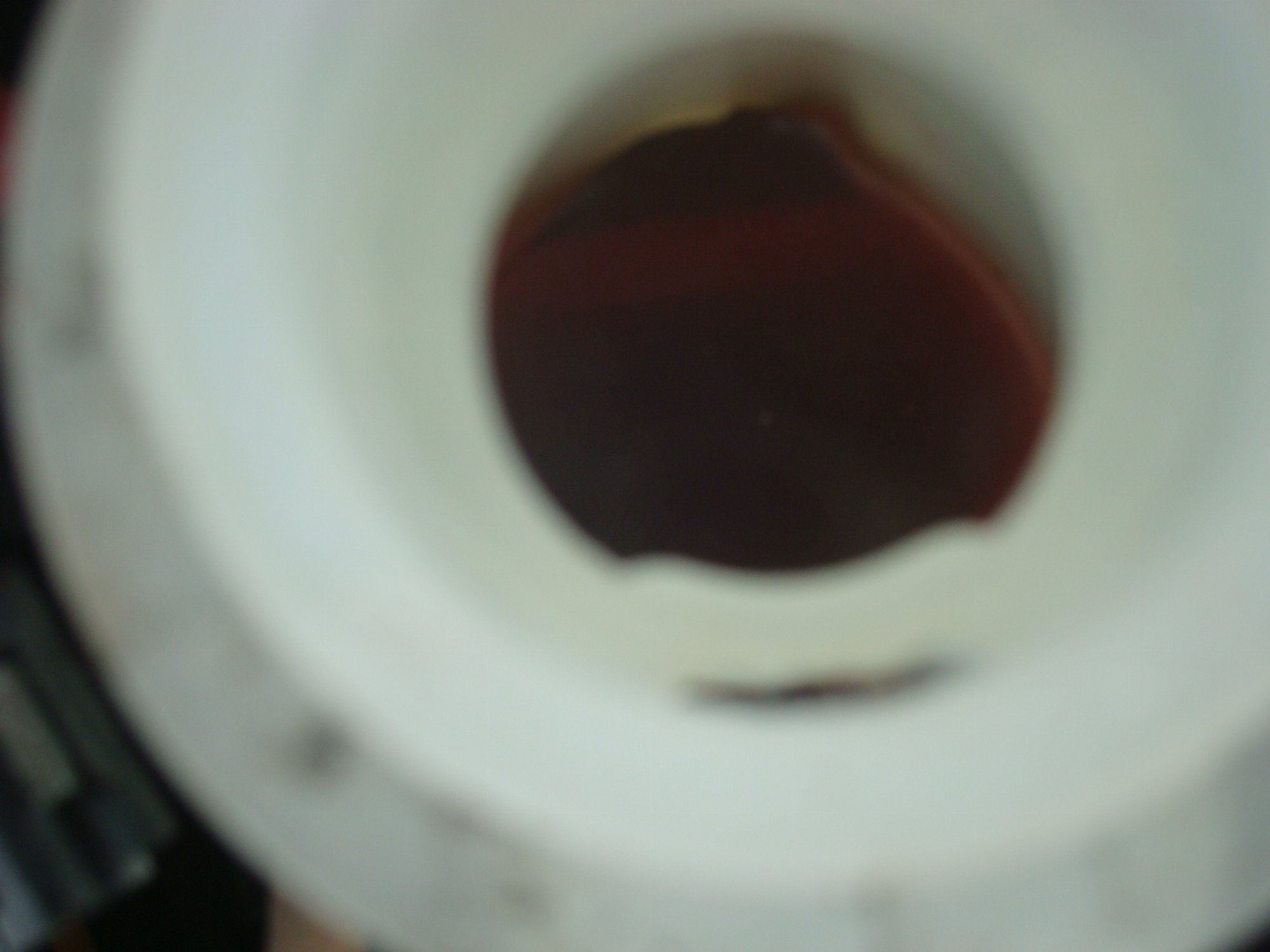

| Oil Milky? | No |
|---|---|
| Oil Leaks? | See Notes |
| Coolant Leaks? | No |
| Oil in Coolant? | No |
| Clutch Play? | NA |
| Starts? | Yes |
| Drives | Yes |
| Lights Work? | Yes - All |
|---|---|
| Wipers Work? | Yes |

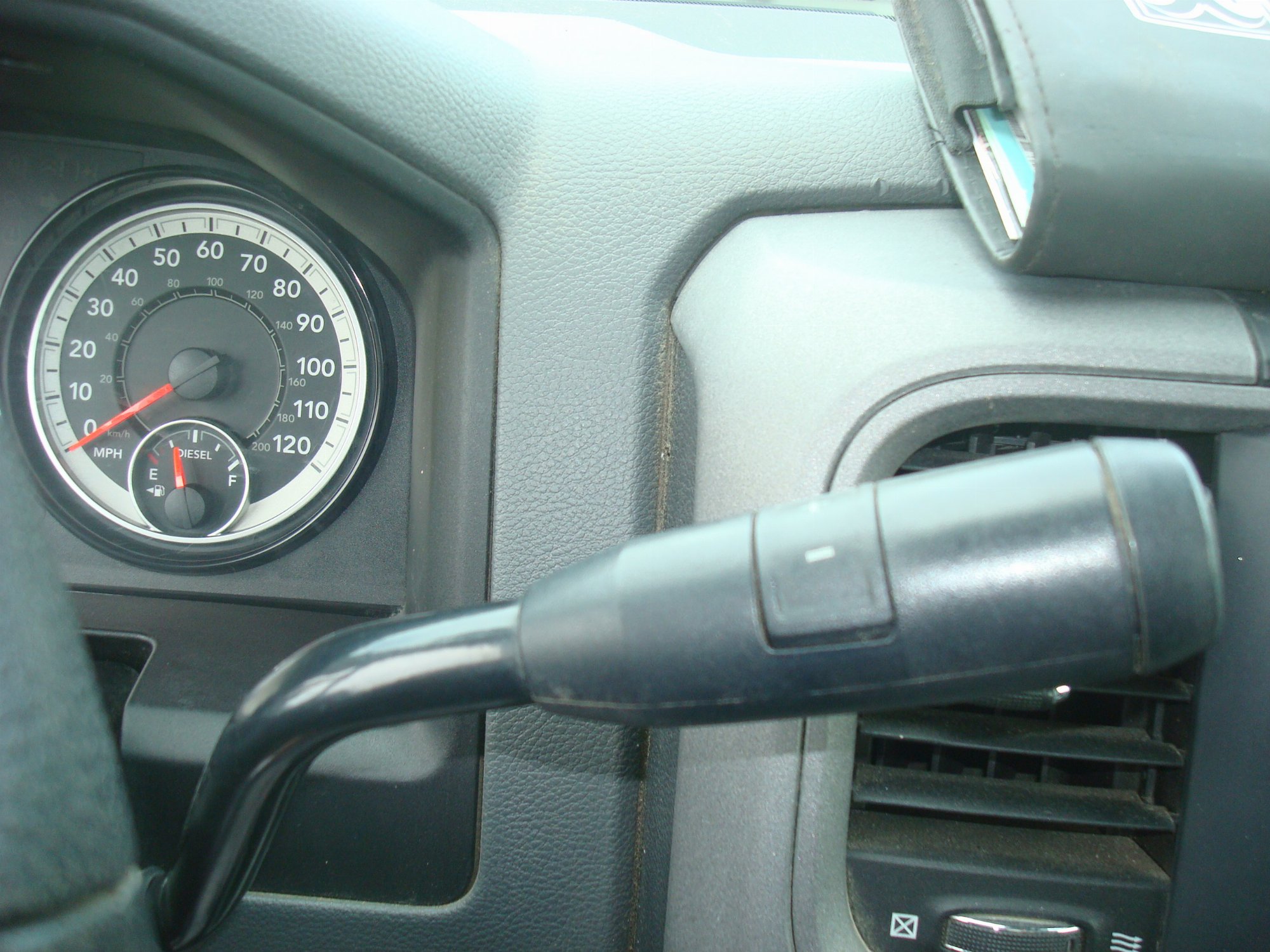

| Gauges Work? | Yes - All |
| Air Horn Works? | NA |
| City Horn Works? | Yes |
| Aftertreatment System | PASS |
|---|
| Additional Observations |
|---|

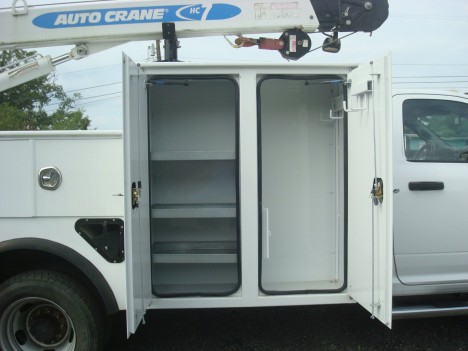

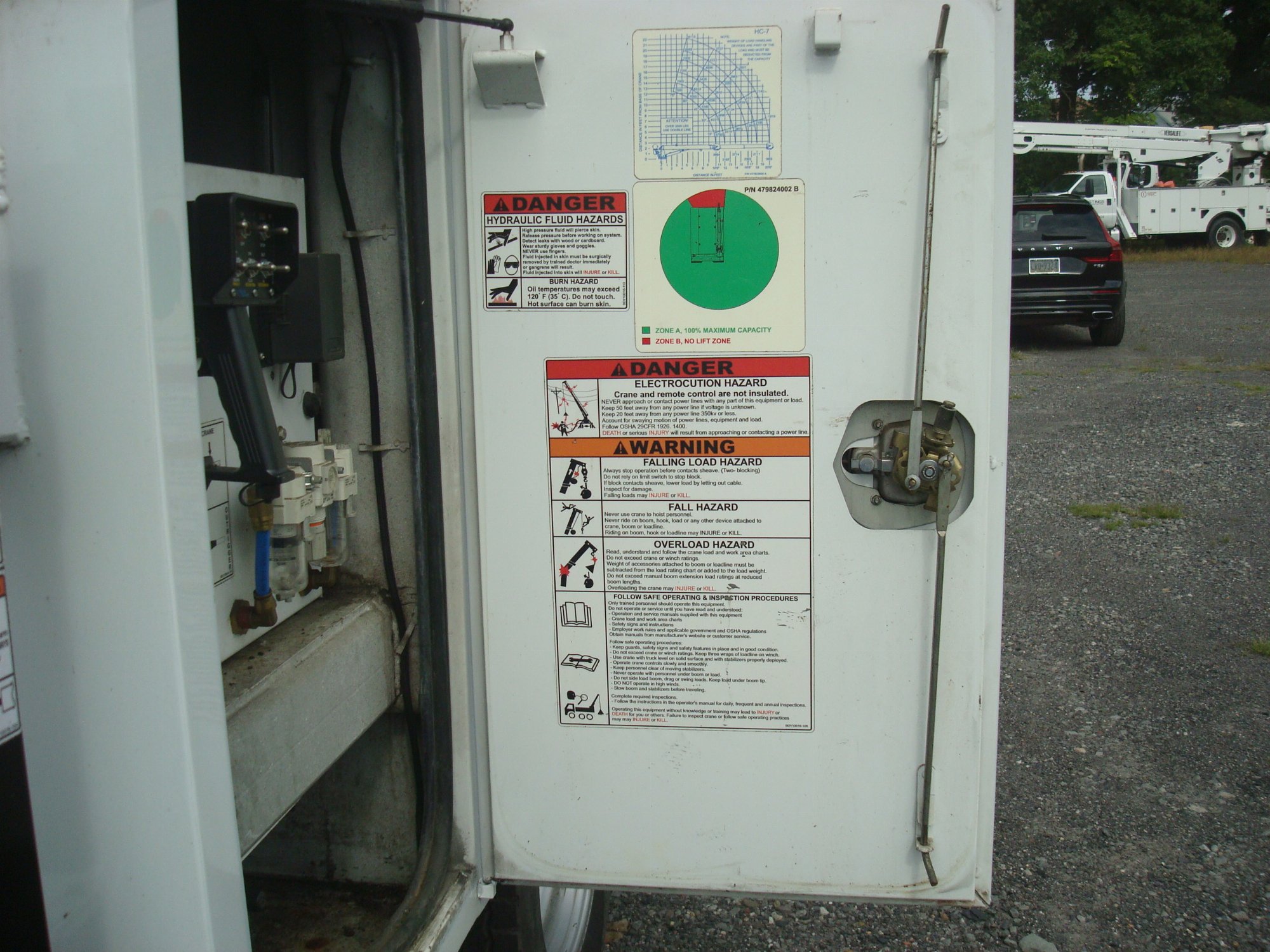

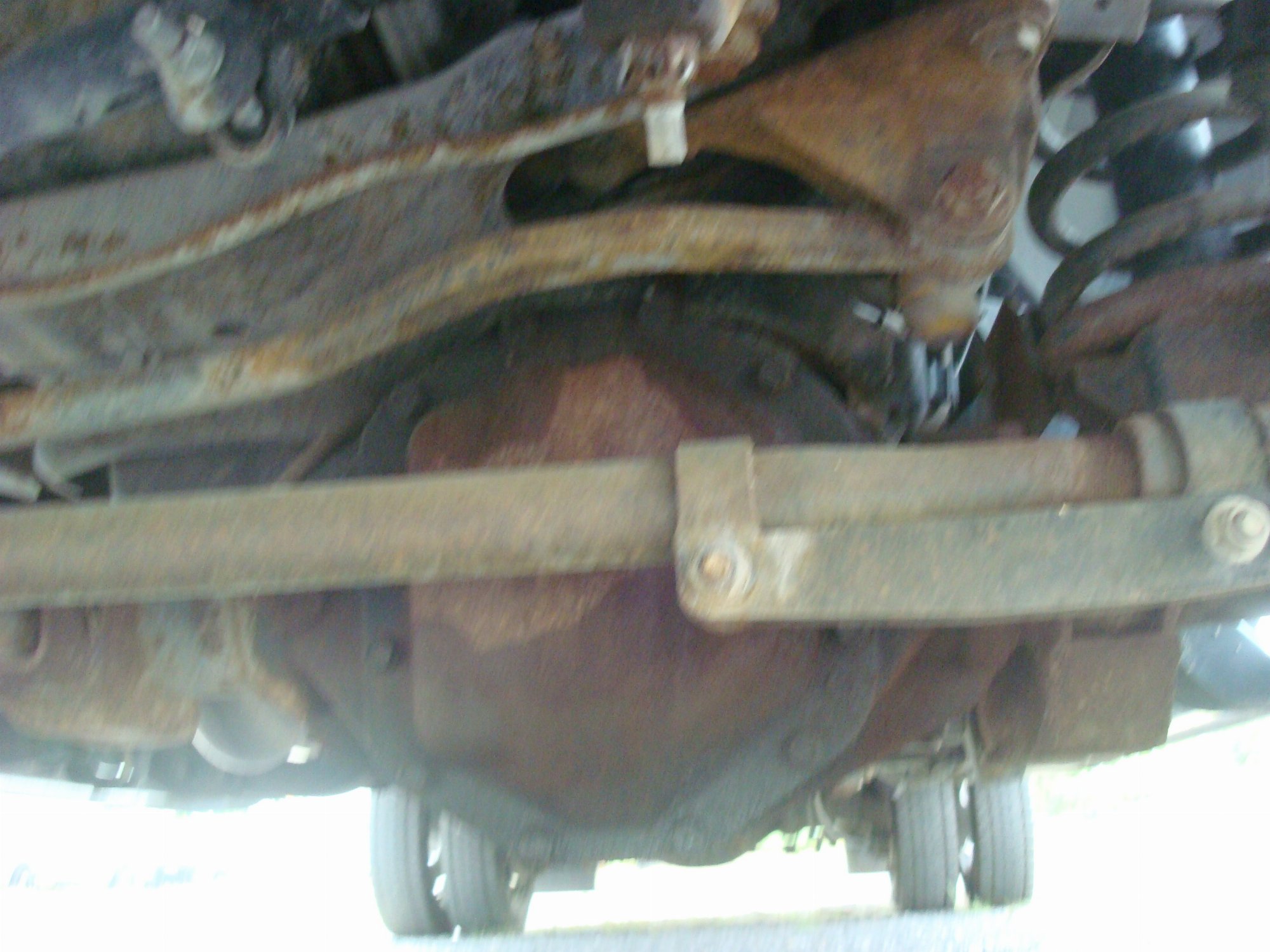

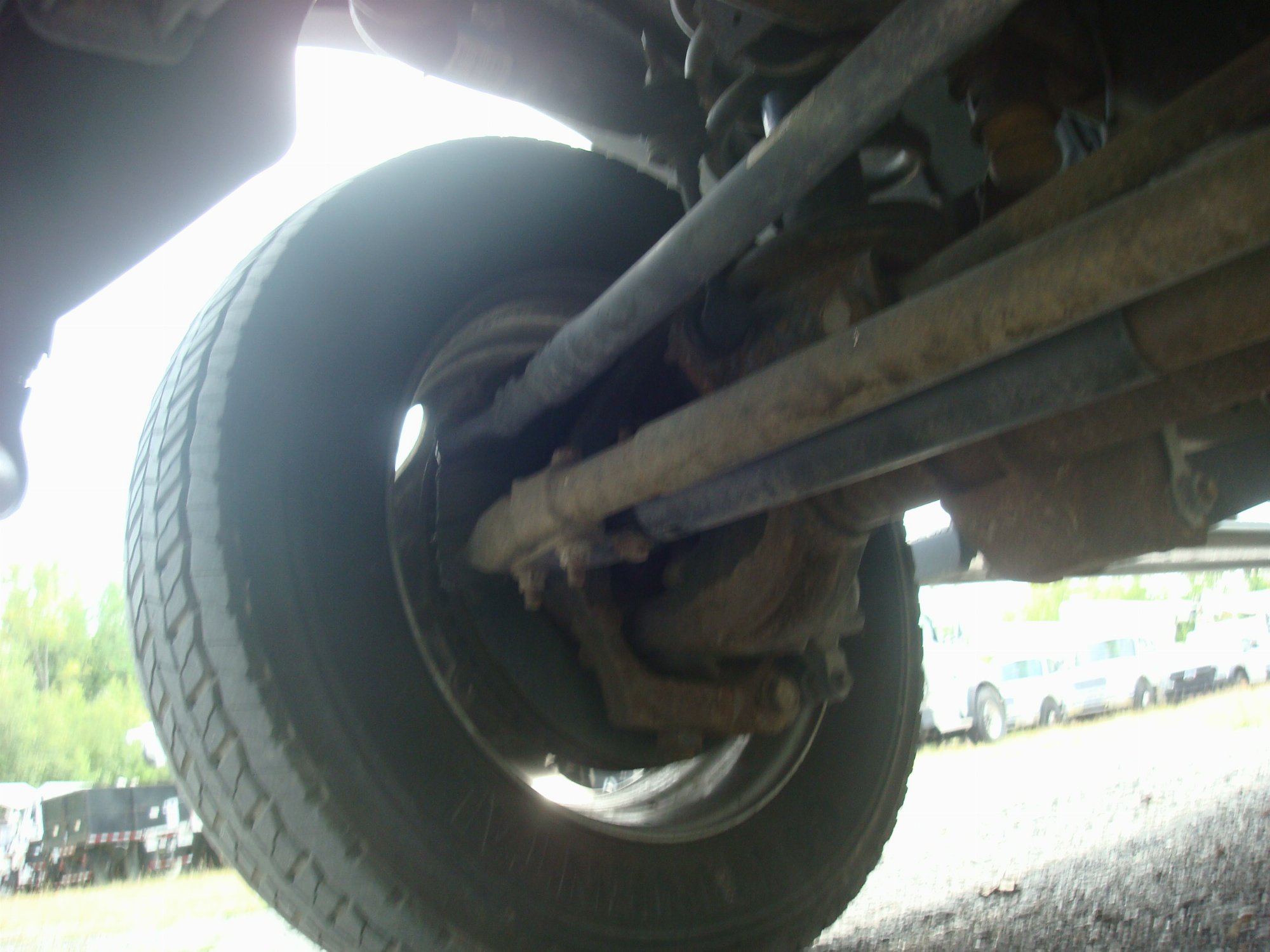

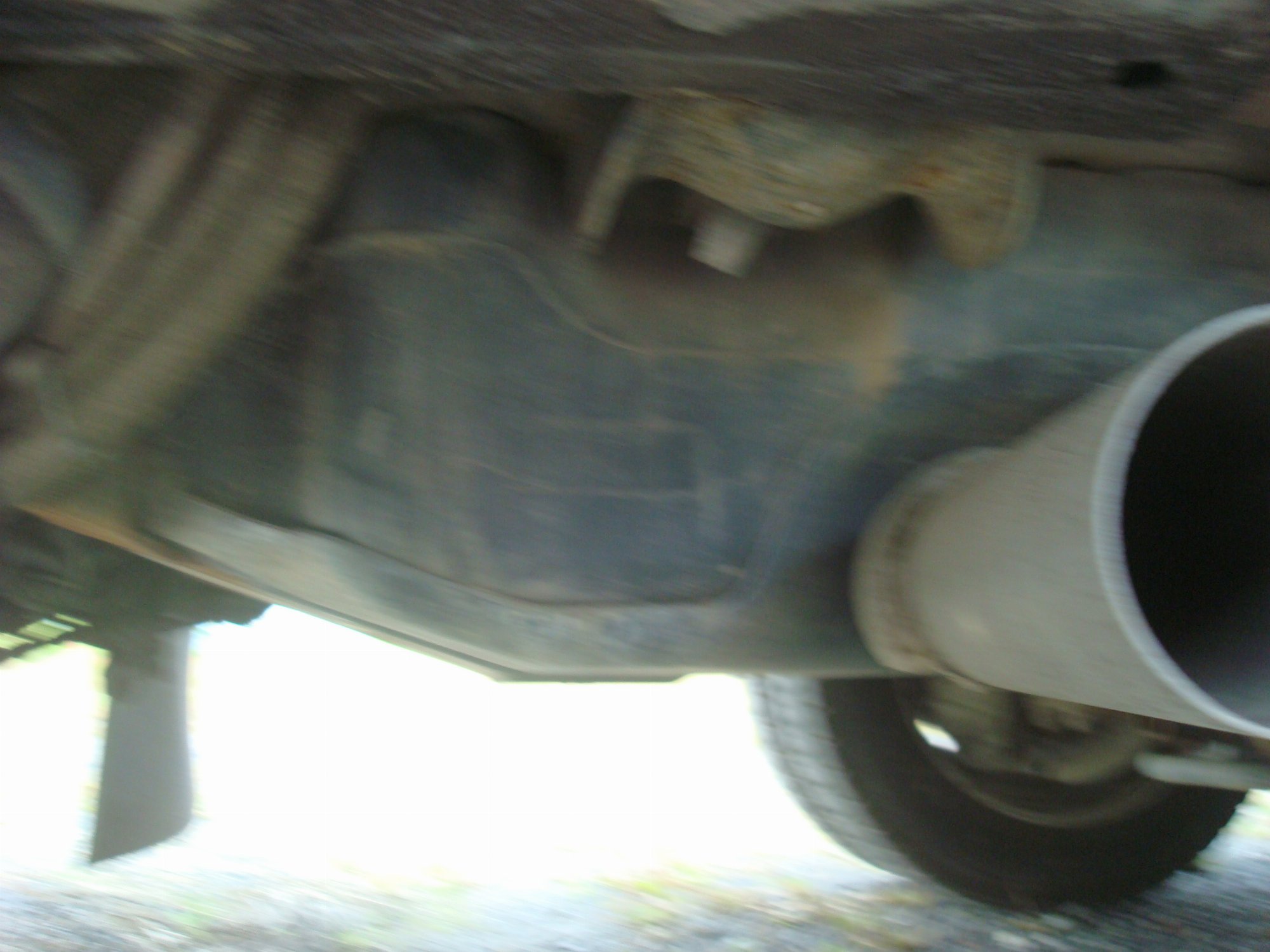

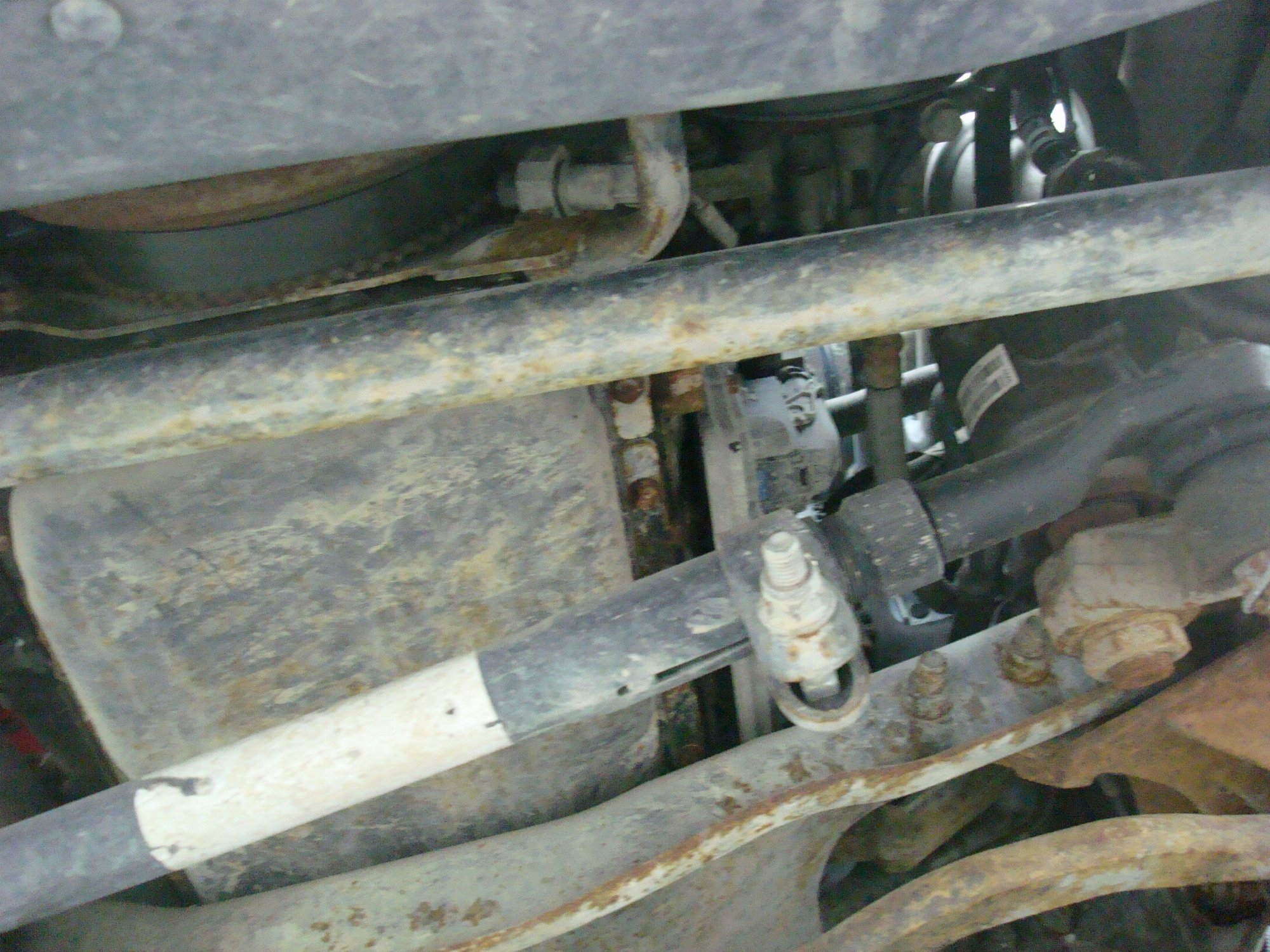

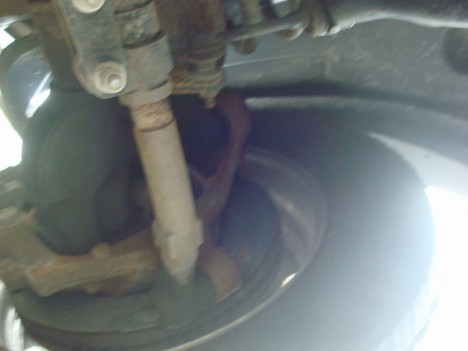

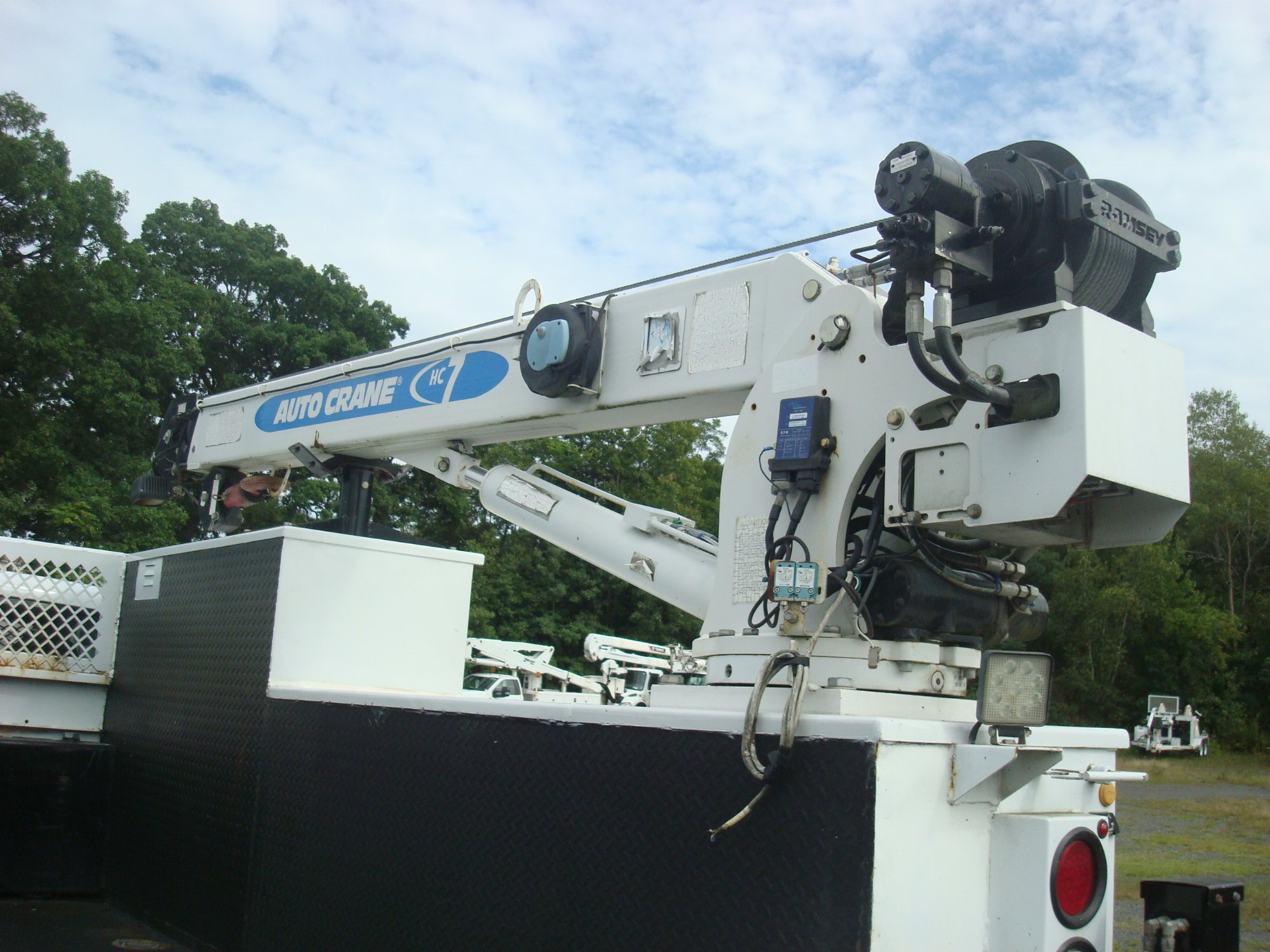

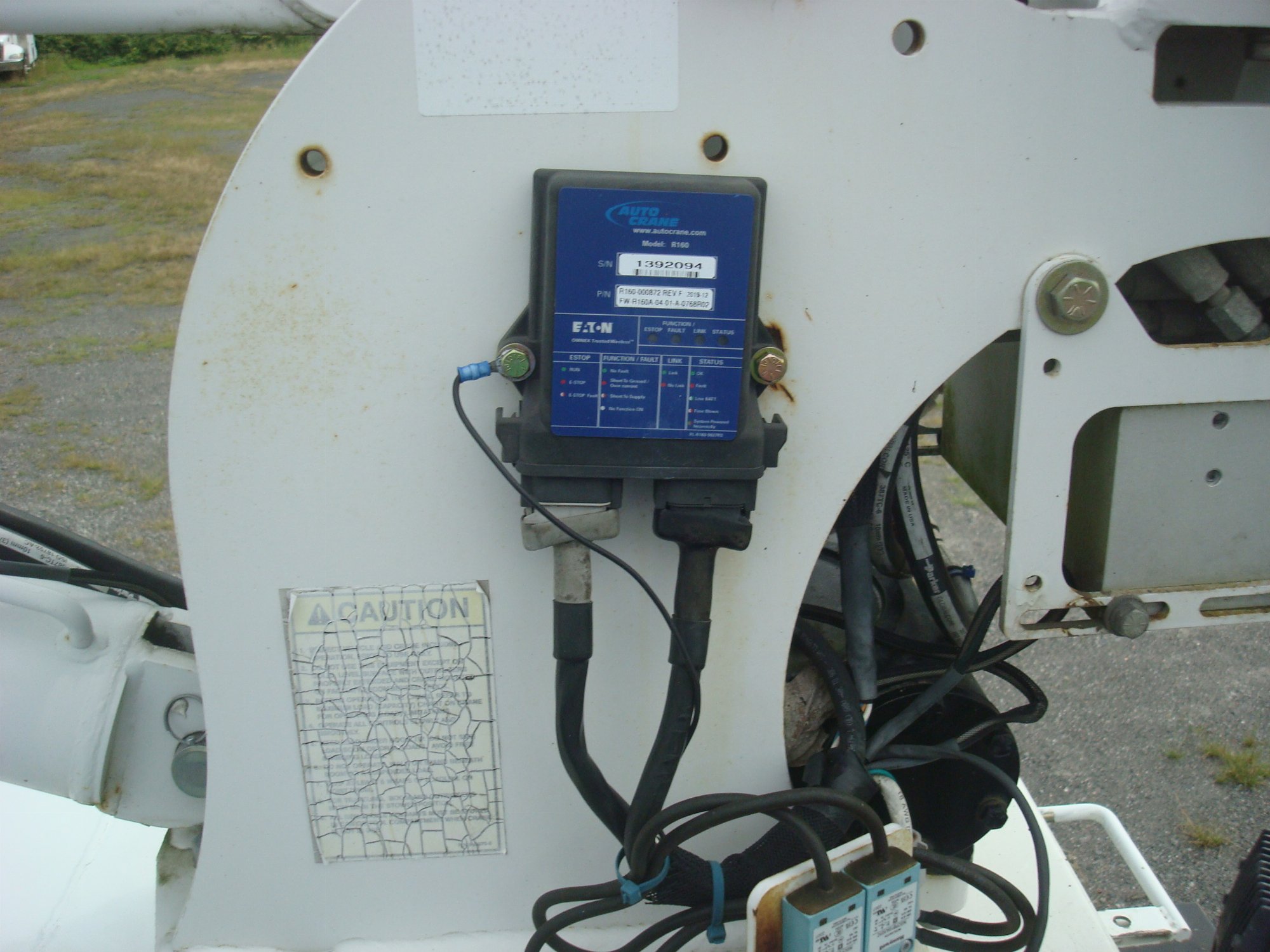

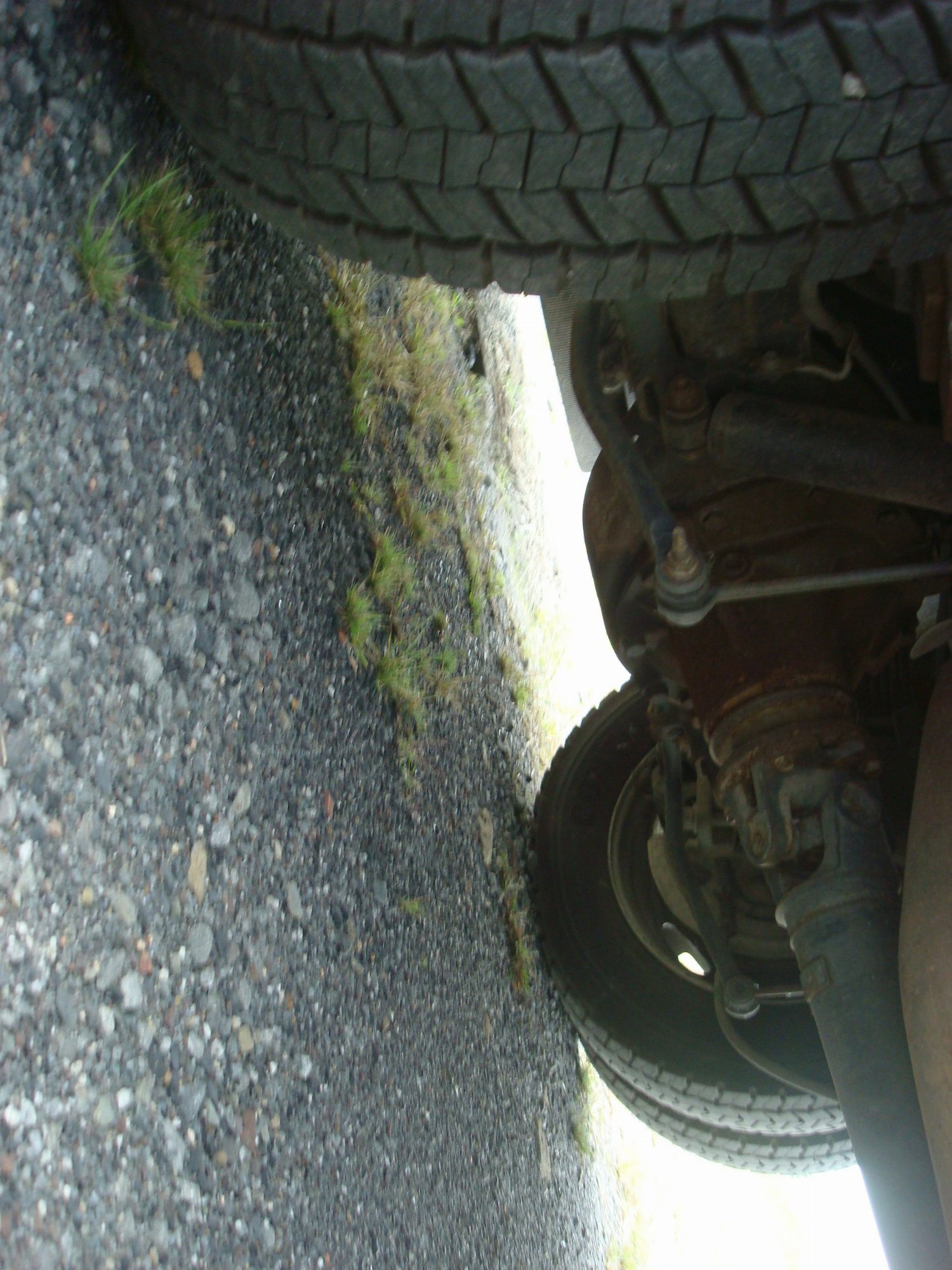

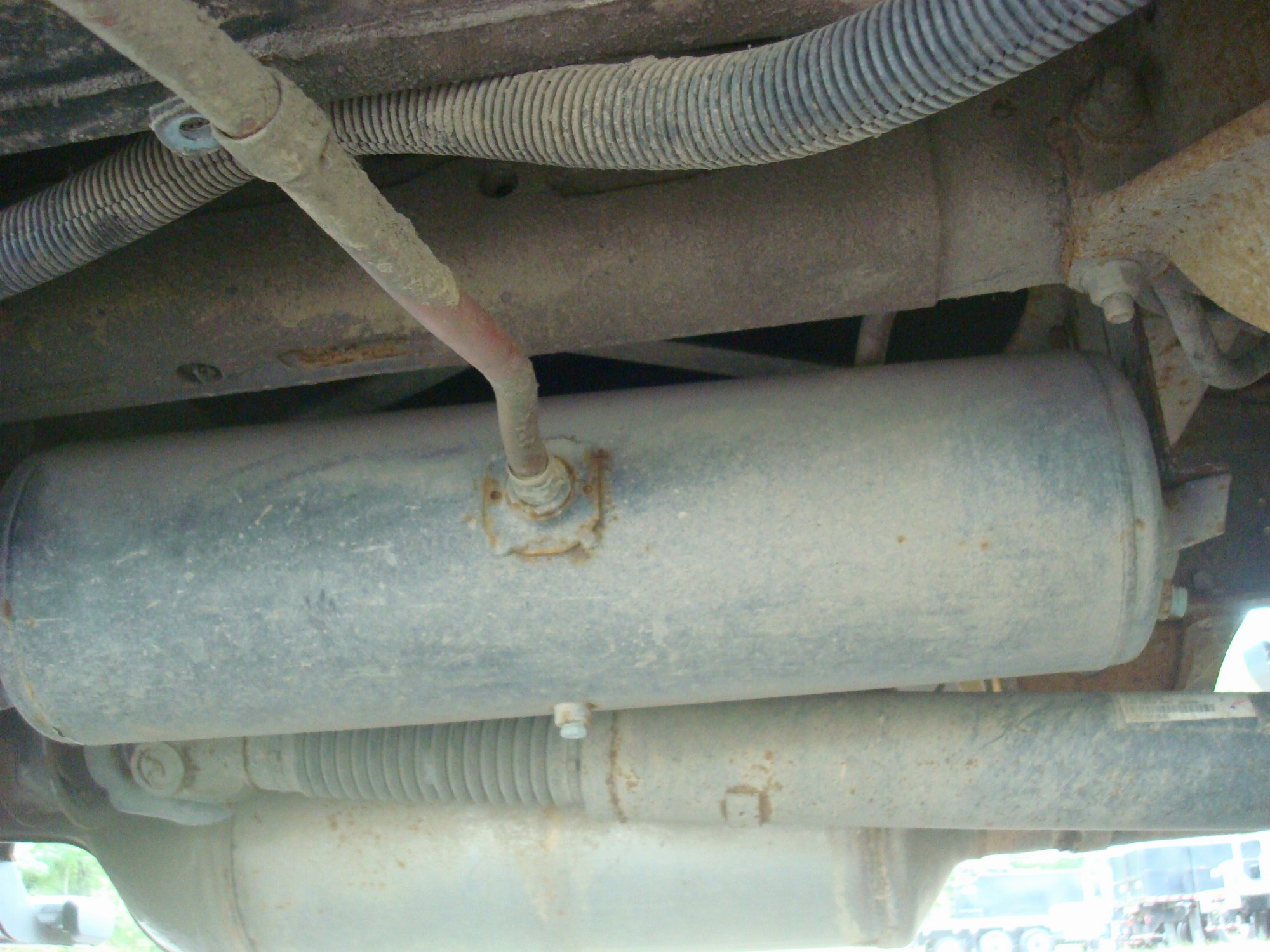

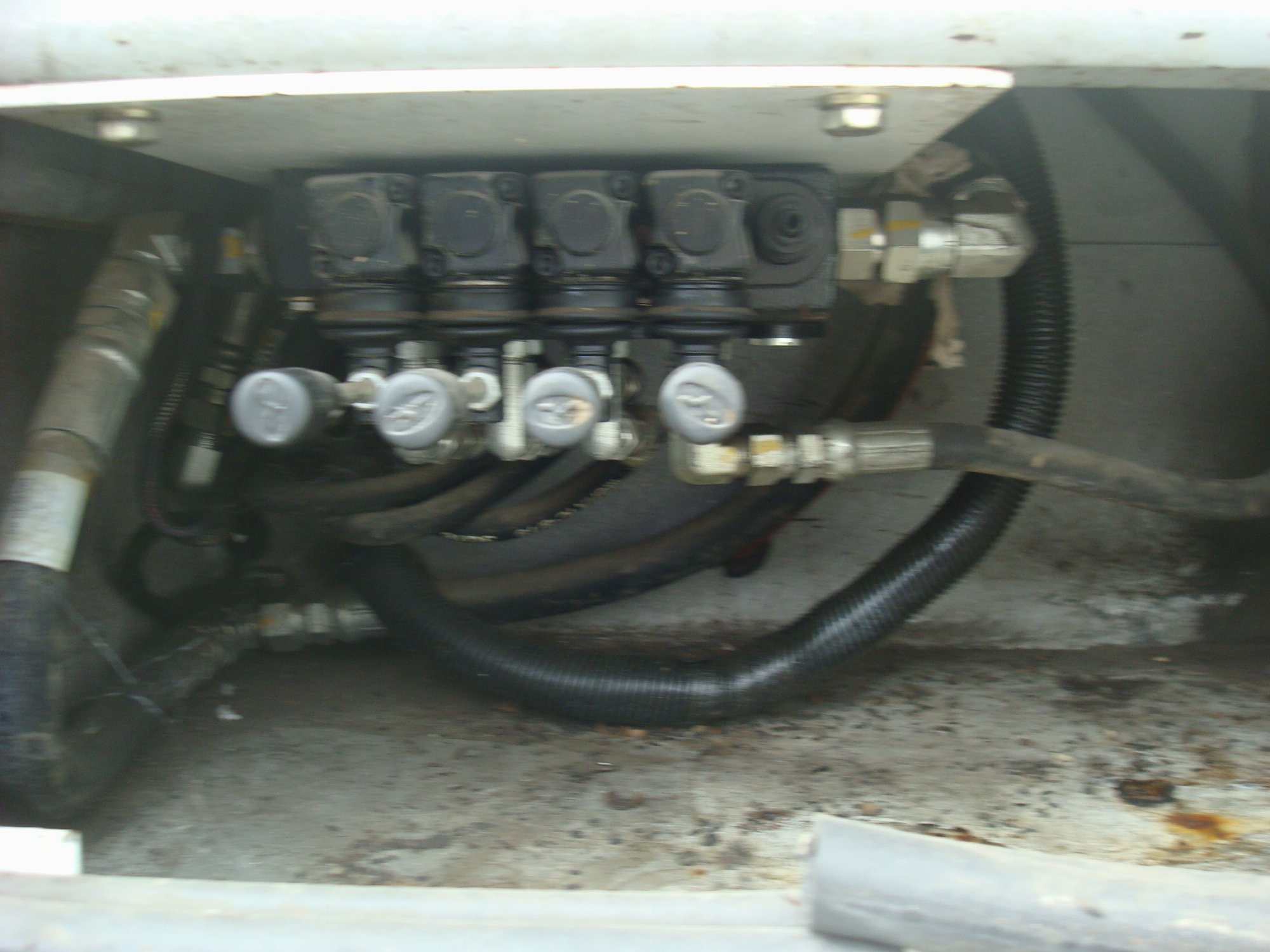

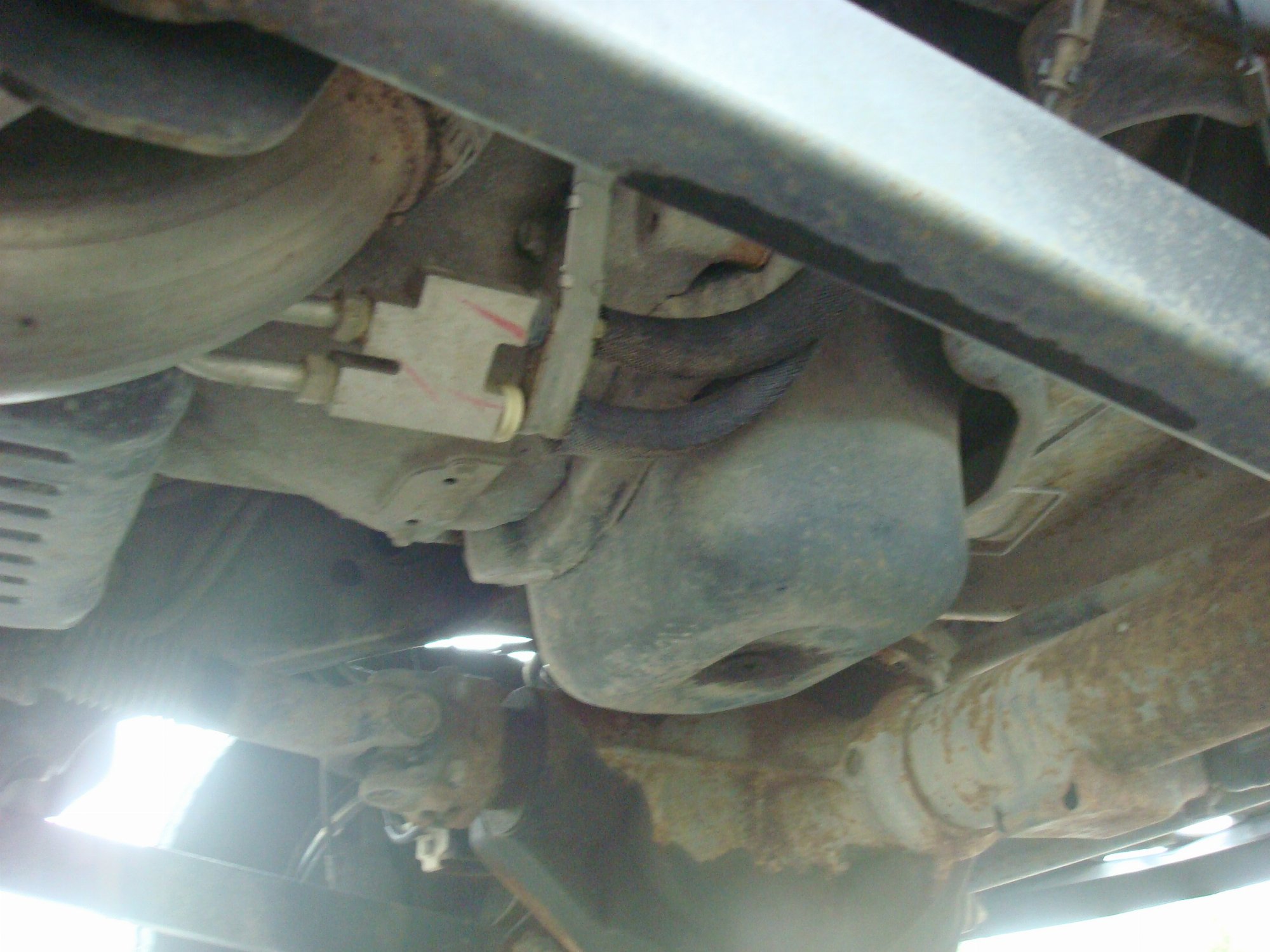

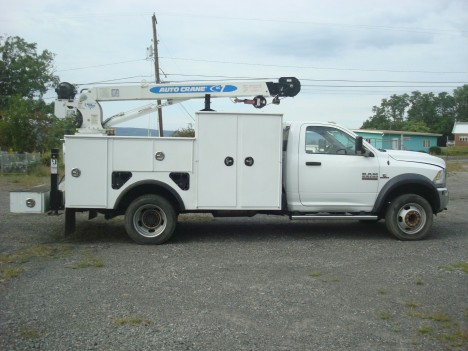

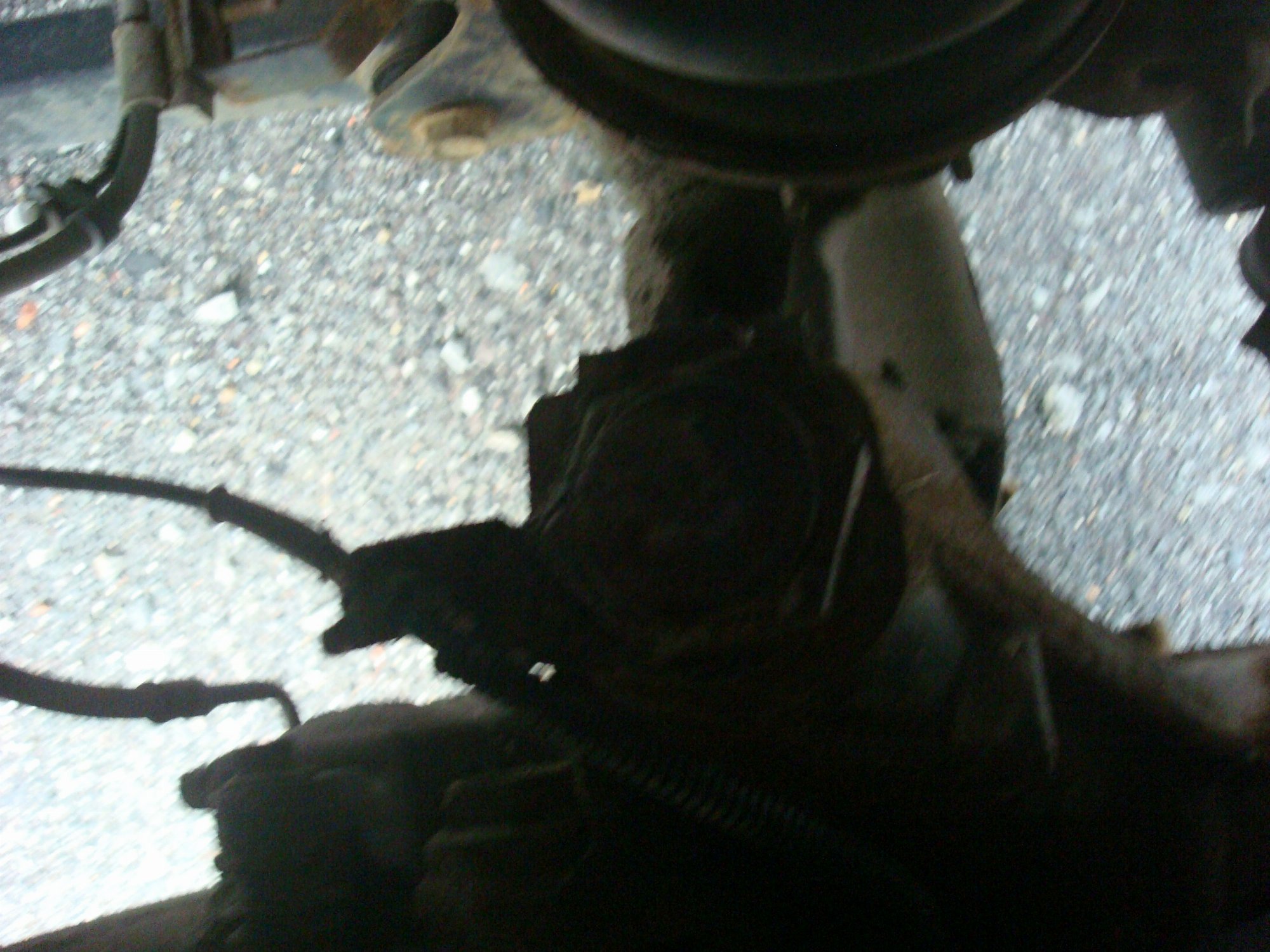

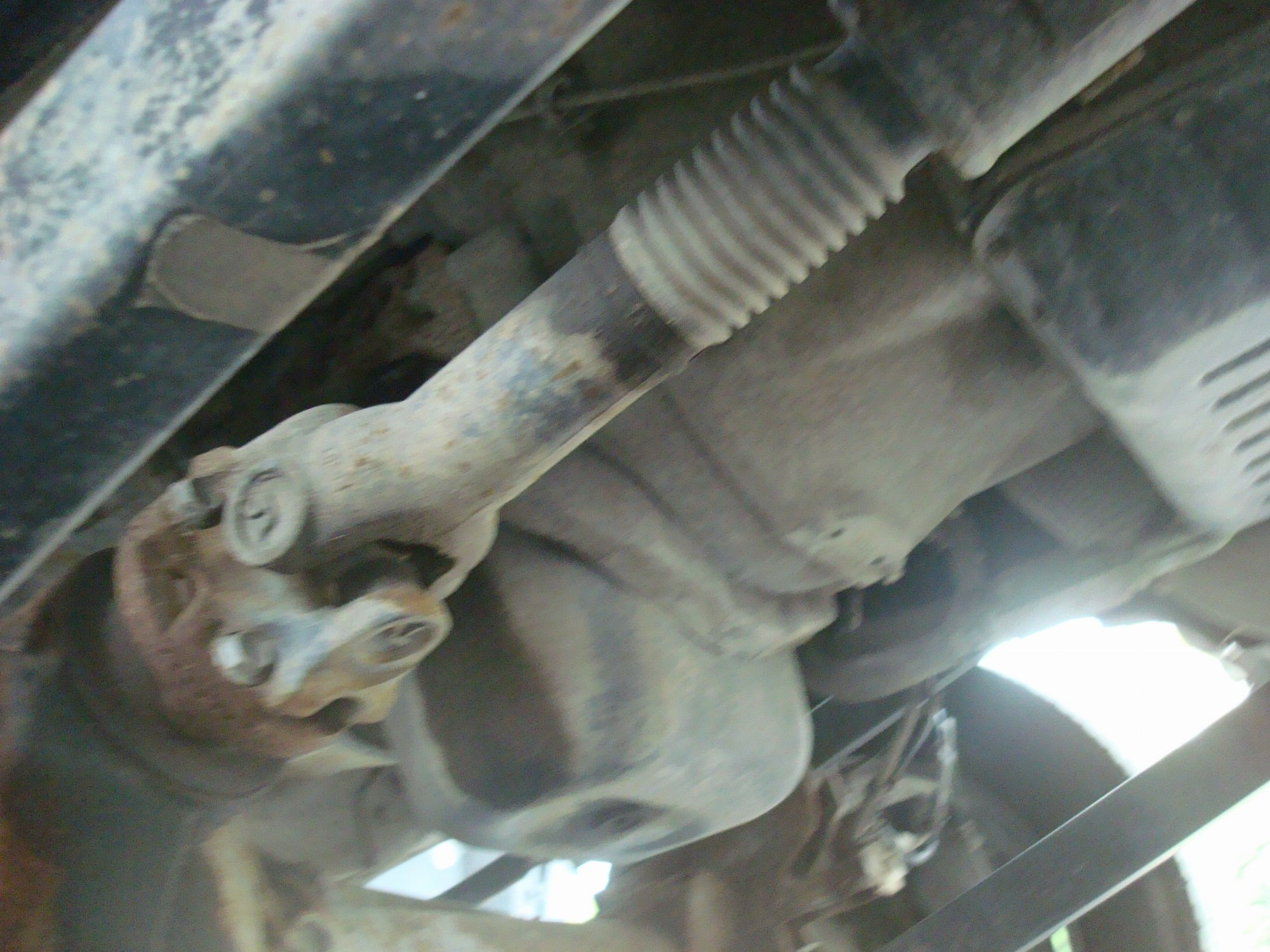

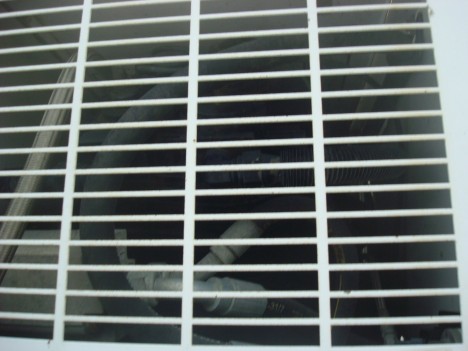

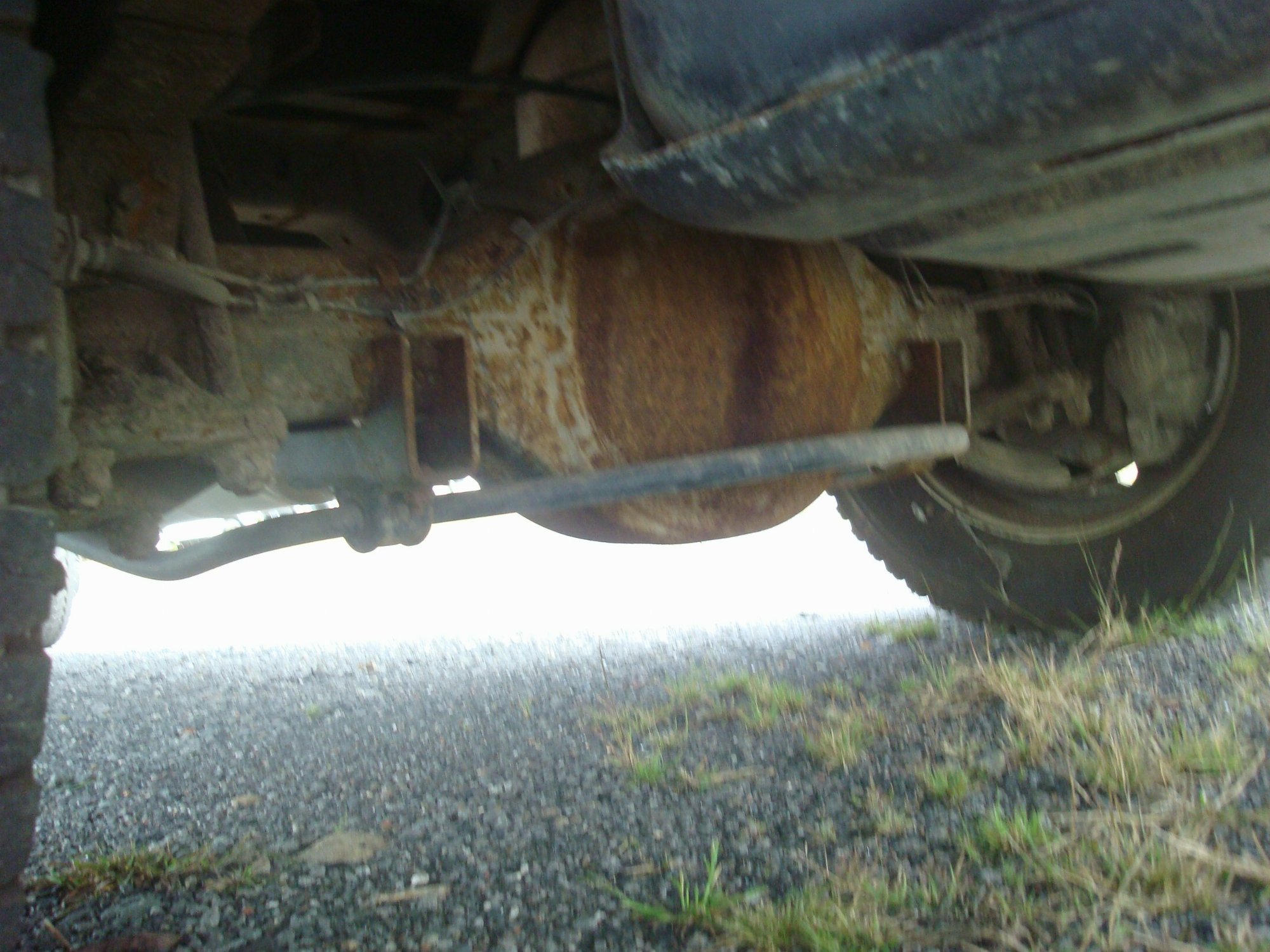

| 1- The crane and air compressor are not operational. 2-no data plate found on the crane. oil seepage around front axle seal area and d/s oil pan. |
| Wear & Tear Detail | ||
|---|---|---|

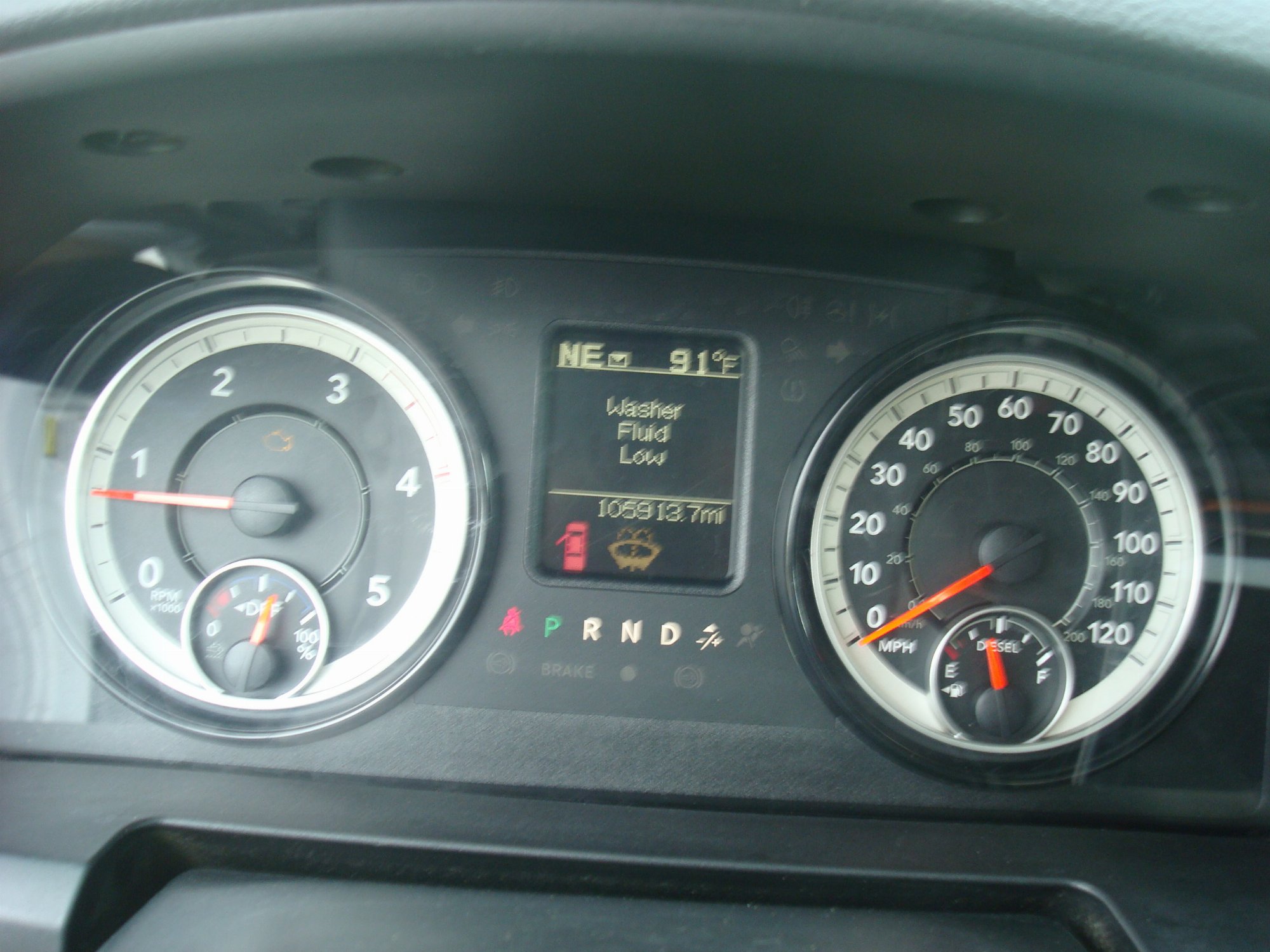

| DIAGNOSTICS | CHECK ENGINE LIGHT AND LOW WIPER FLUID LIGHTS ARE ON-3 ACTIVE SEE ECM REPORT. | |
| STEERING WHEEL | SURFACES HAVE WEAR. | |

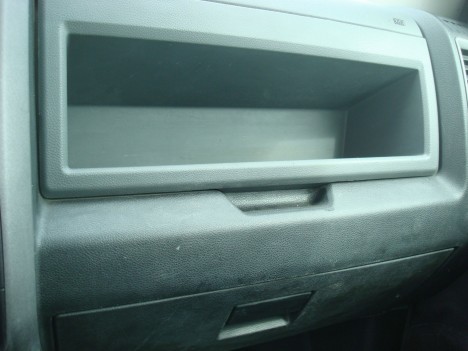

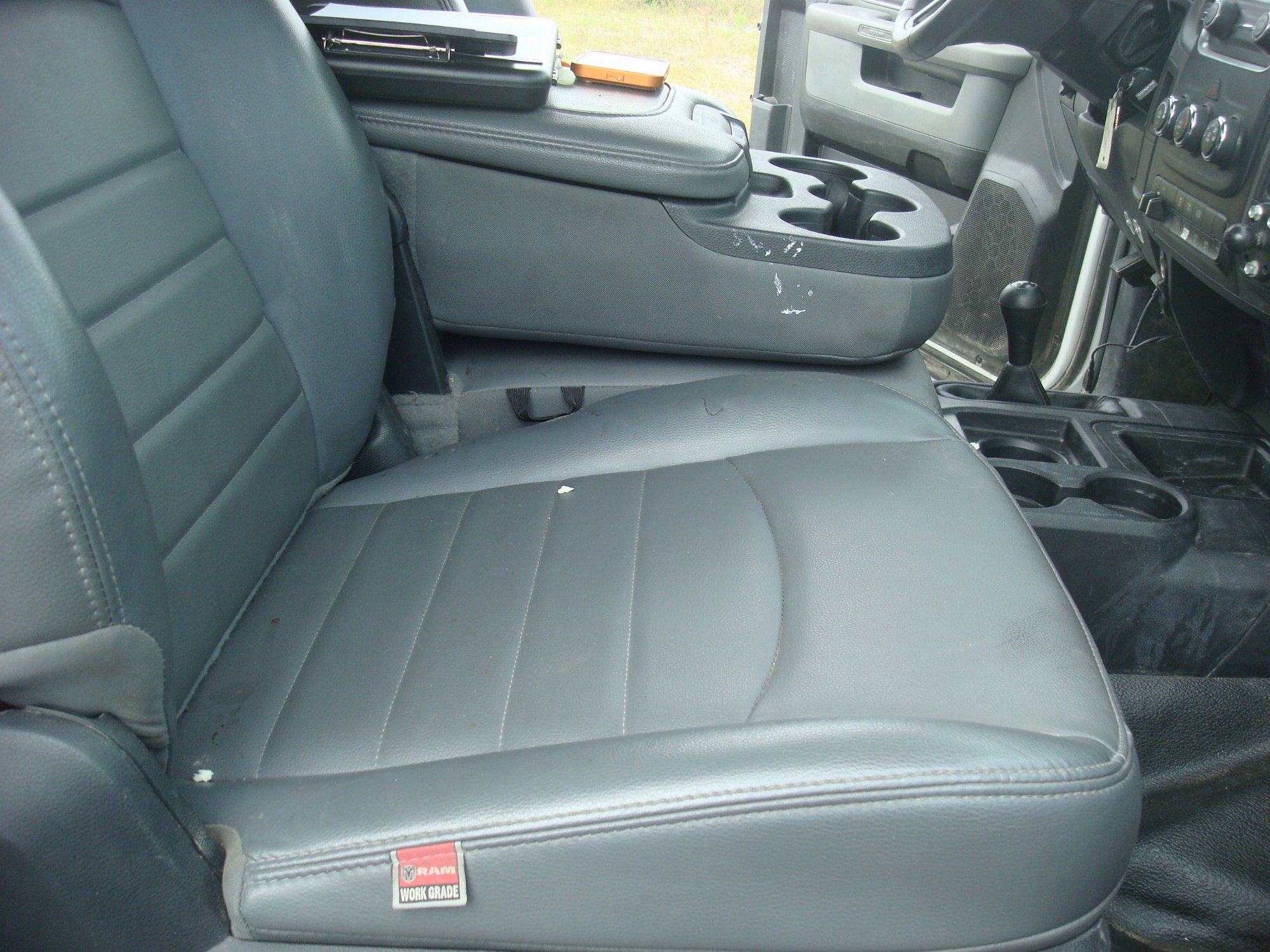

| CONSOLE | CENTER CONSOLE STAINS ON P/S SIDE. | |

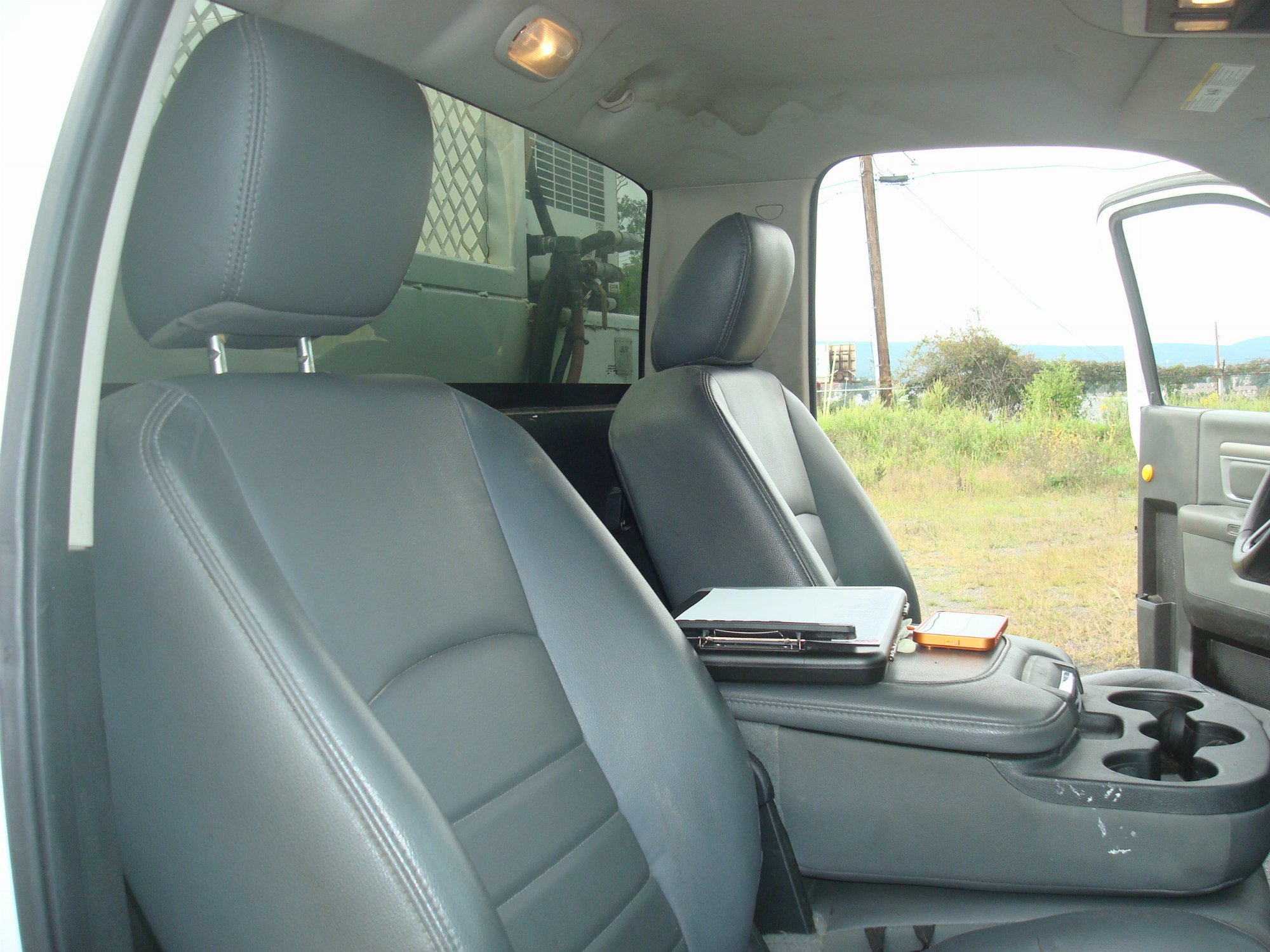

| SEAT | P/S SEAT HAS STAINS. | |
| HEADLIGHT | P/S HEADLIGHT HAS MOISTURE IN LENS. | |
| FENDER | PAINT CHIPS ABOVE P/S HEADLIGHT. | |
| DASH | LOOSE WIRE UNDER D/S DASH. | |

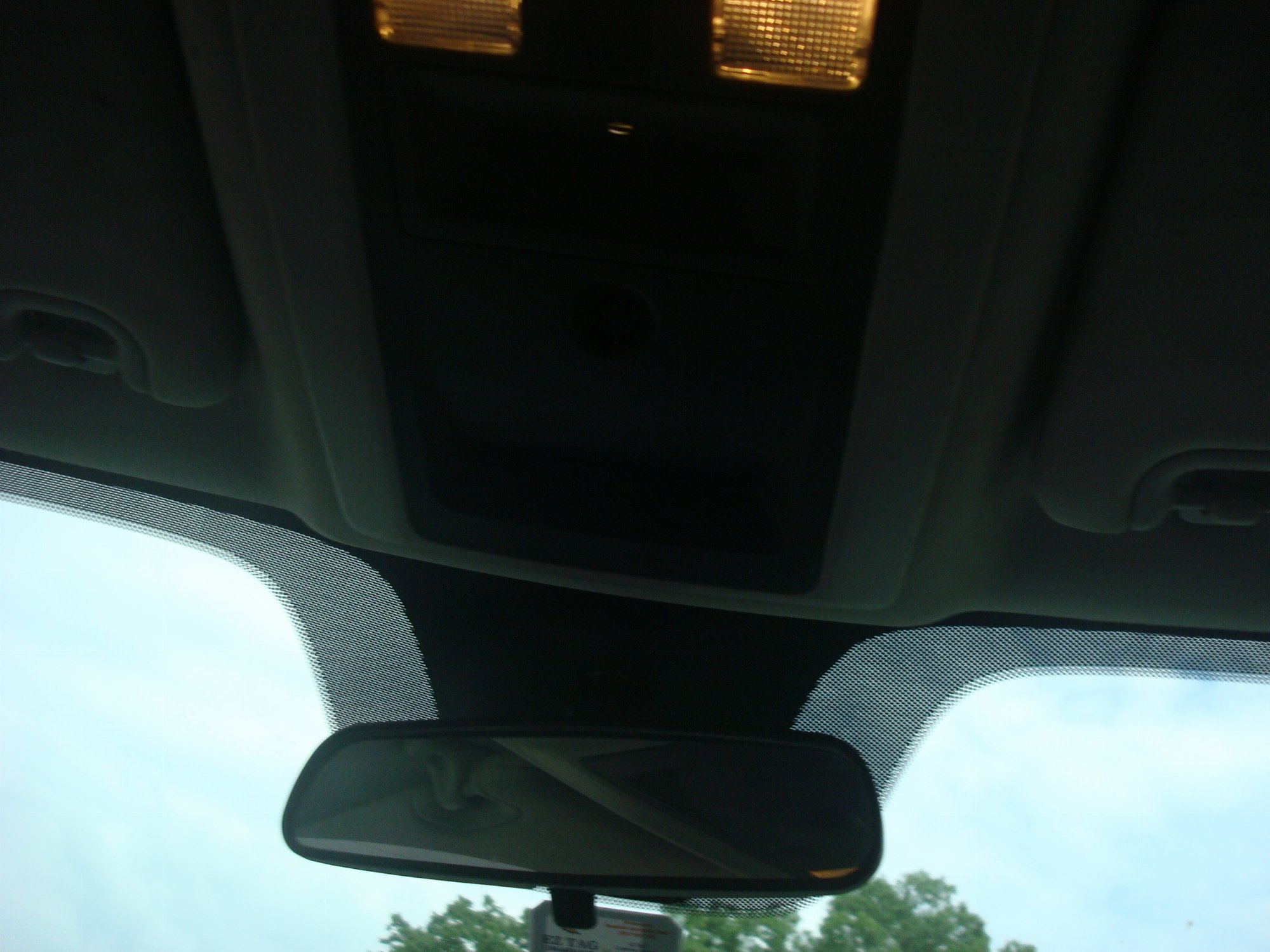

| HEADLINER | FABRIC HAS STAINS | |

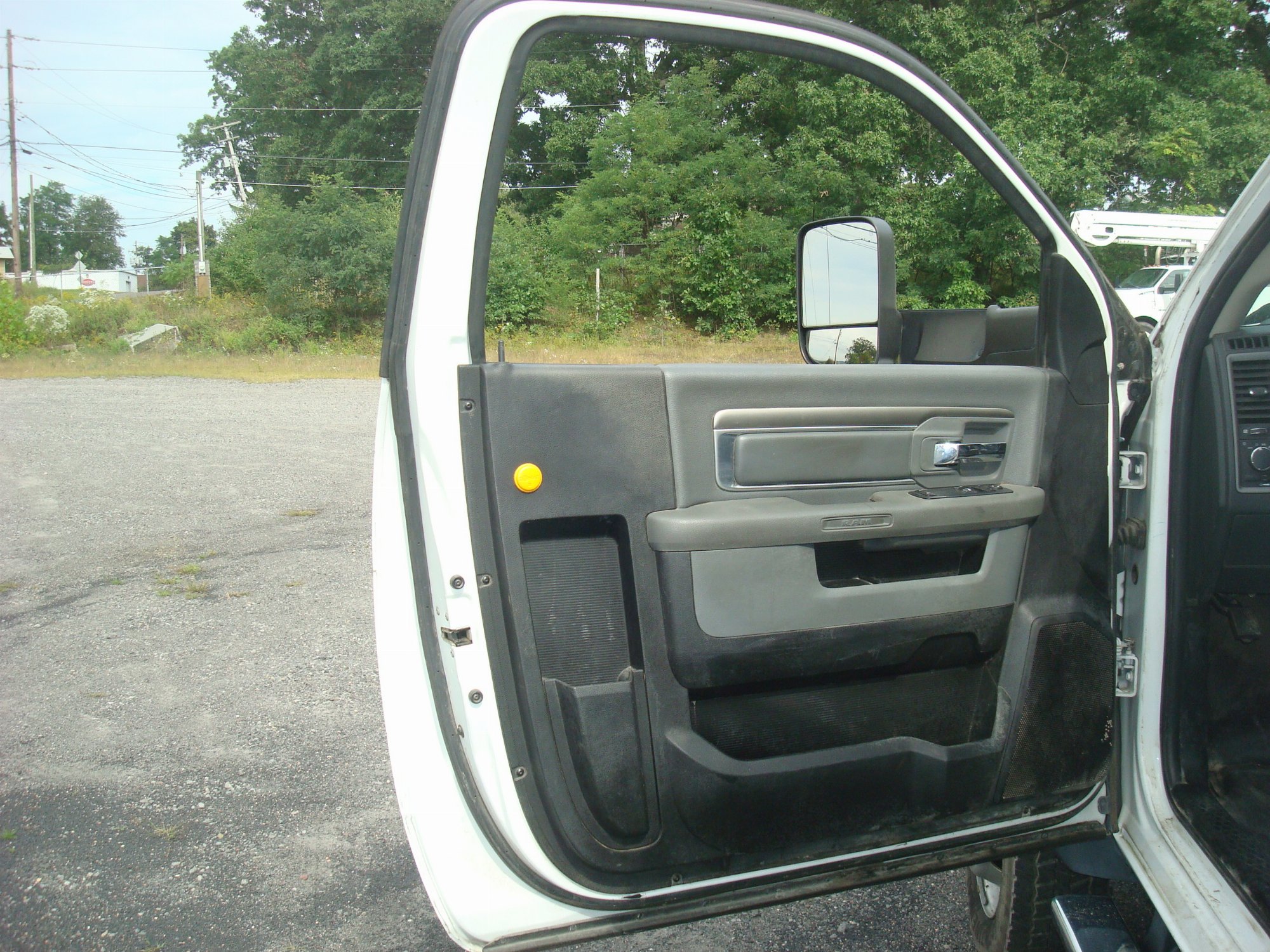

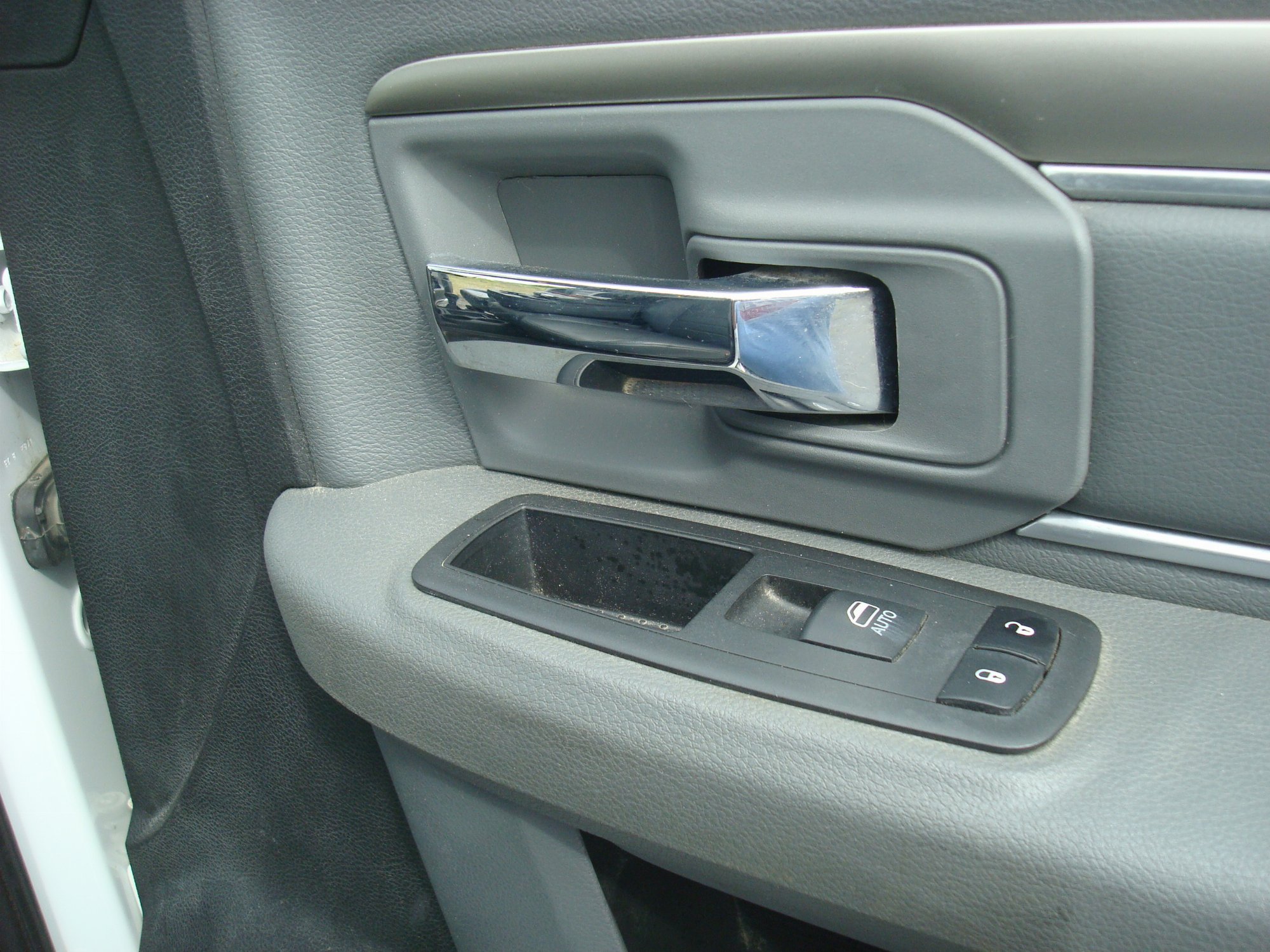

| DOOR | BOTH DOOR PANELS HAVE WEAR AND STAINS. | |

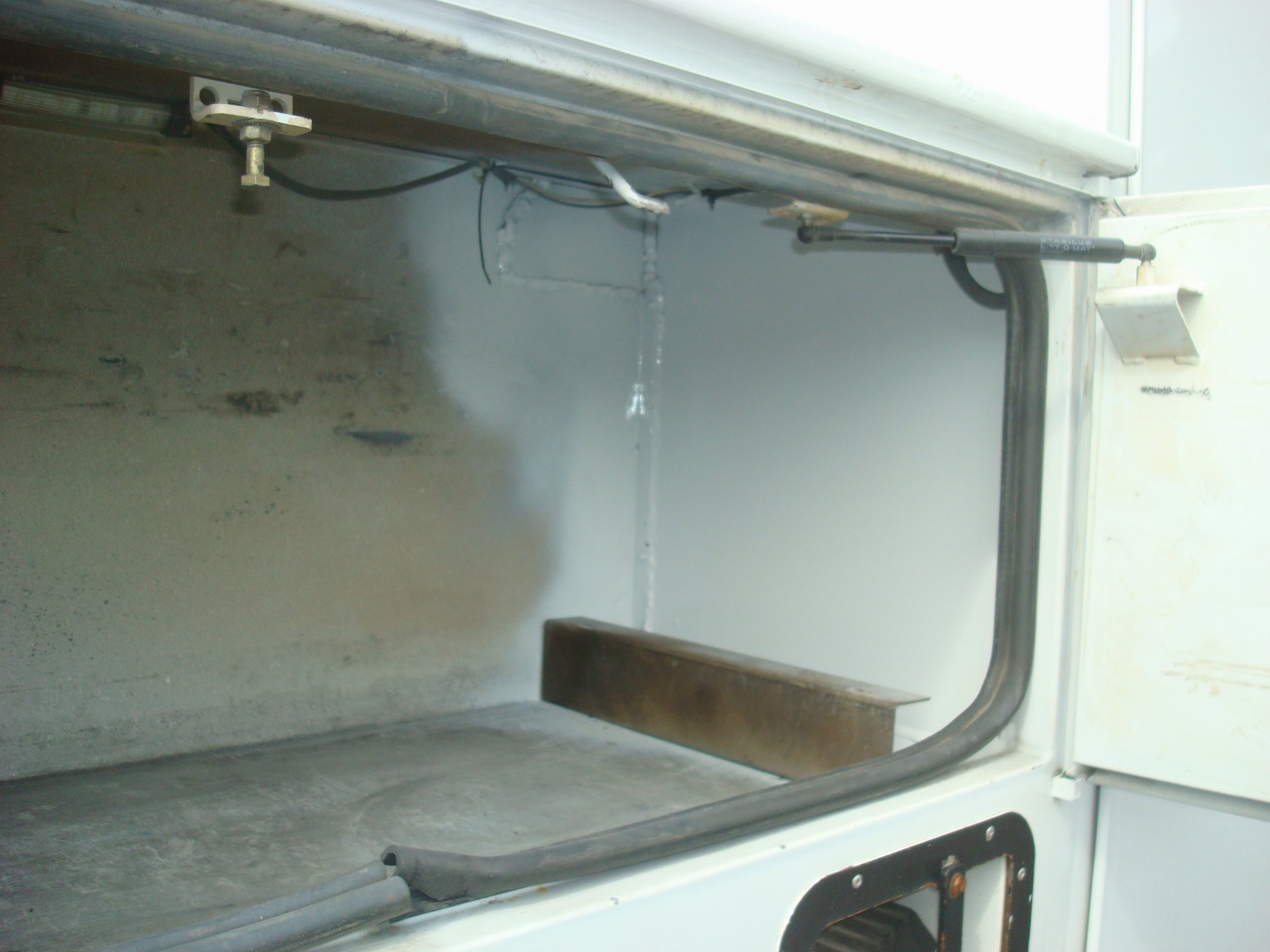

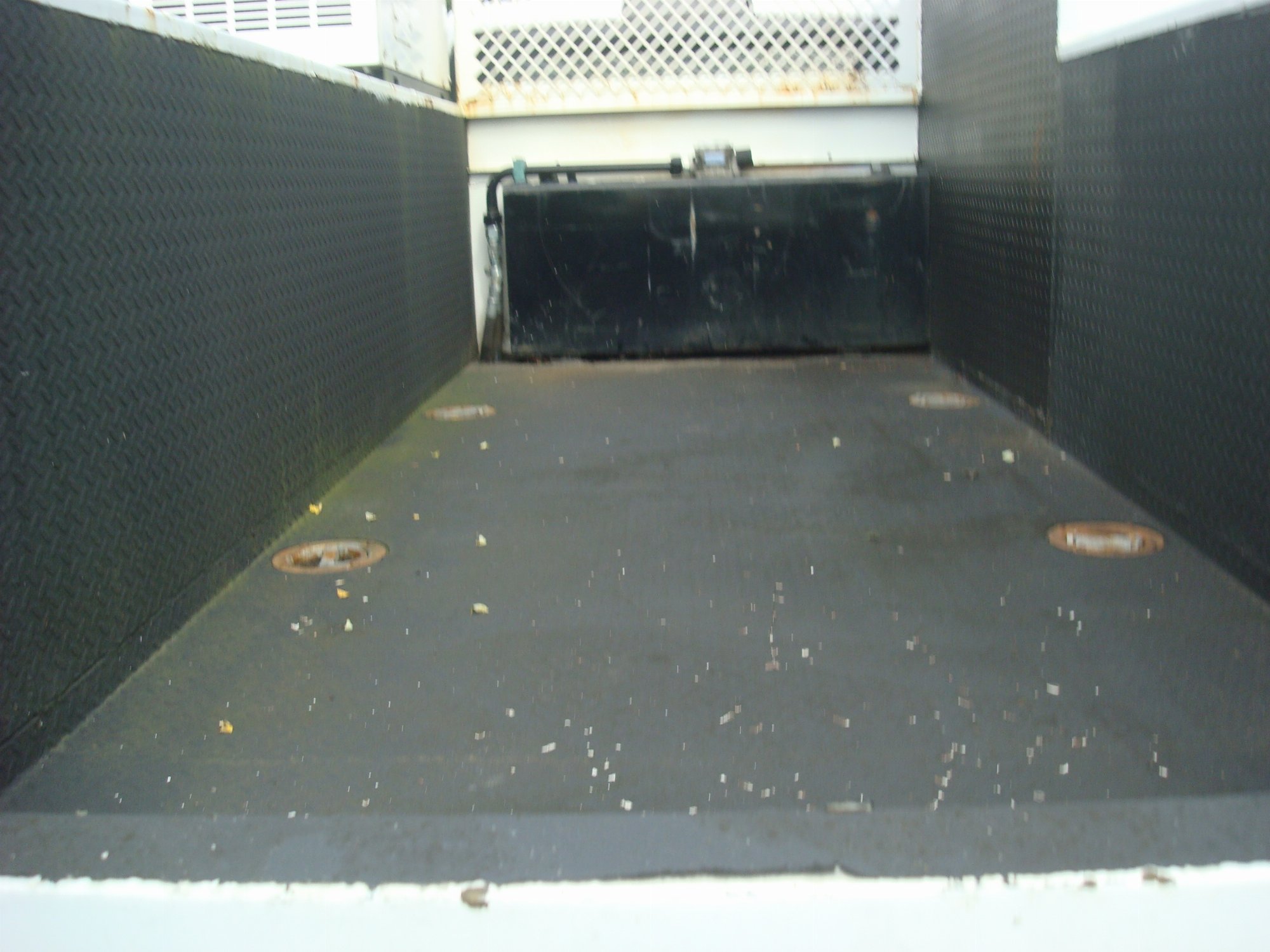

| REAR | REAR DECK FLOOR PEELING HAS WEAR. | |
| Report Videos |
|---|
| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
15F
16A
16B
16C
16D
16E
16F
17A
17B
17C
17D
17E
17F
18A
18B
18C
18D
18E
18F
19A
19B
19C
19D
19E
19F
20A
20B
20C
20D
20E
20F
21A
21B
21C
21D
21E
21F
22A
22B
22C
22D
22E
22F
23A
23B
23C
23D
23E
23F
24A
24B
24C
24D
24E
24F
25A
25B
25C
25D
25E
25F
26A
26B
26C
26D
26E
26F
27A
27B
27C
27D
27E
27F
28A
28B
28C
28D
28E
| Report Documents |
|---|
Condition report only. National Inspection Services does not guarantee mechanical reliability.
