National Inspection Services
Report: 343341
09/17/2026
09/17/2026
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888

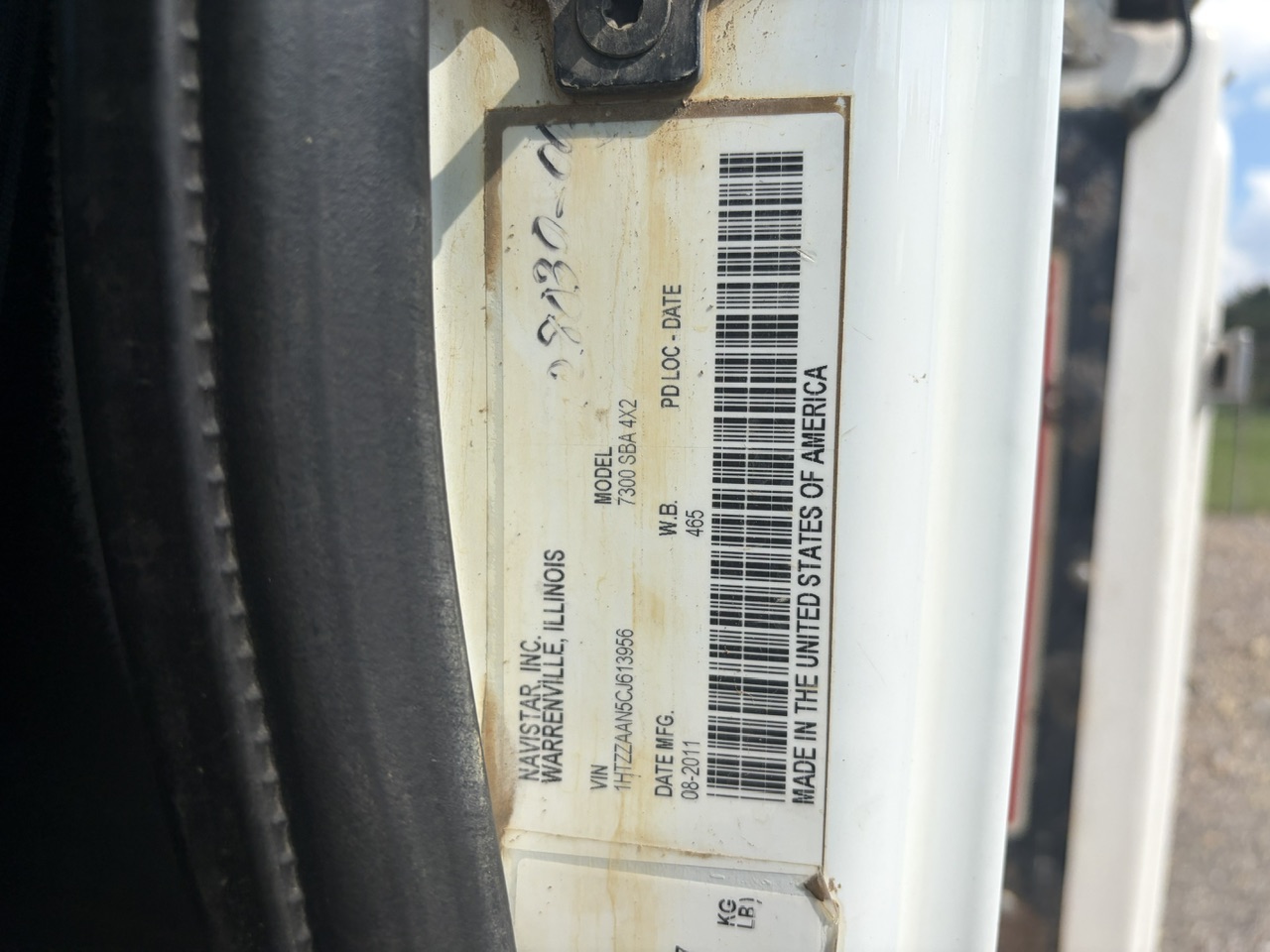

VIN: 1HTZZAAN5CJ613956
PO #: 0000
PO #: 0000
| 2012 INTERNATIONAL WORKSTAR 7300 4X2 |
|---|
| Specifications | |
|---|---|
| Mileage | 90,664 / 90,533 (ECM) |
| Engine Hours | 7,354 |

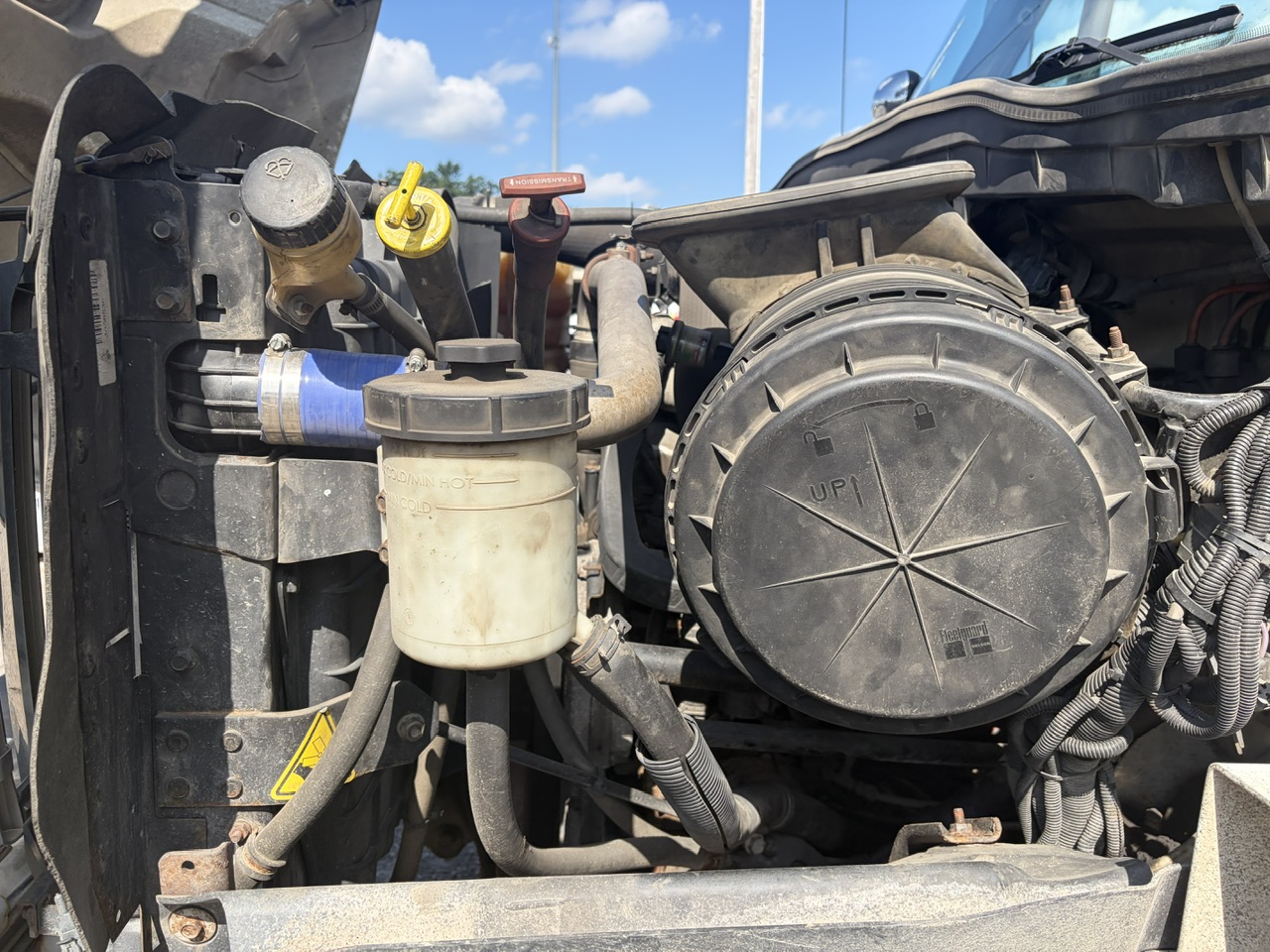

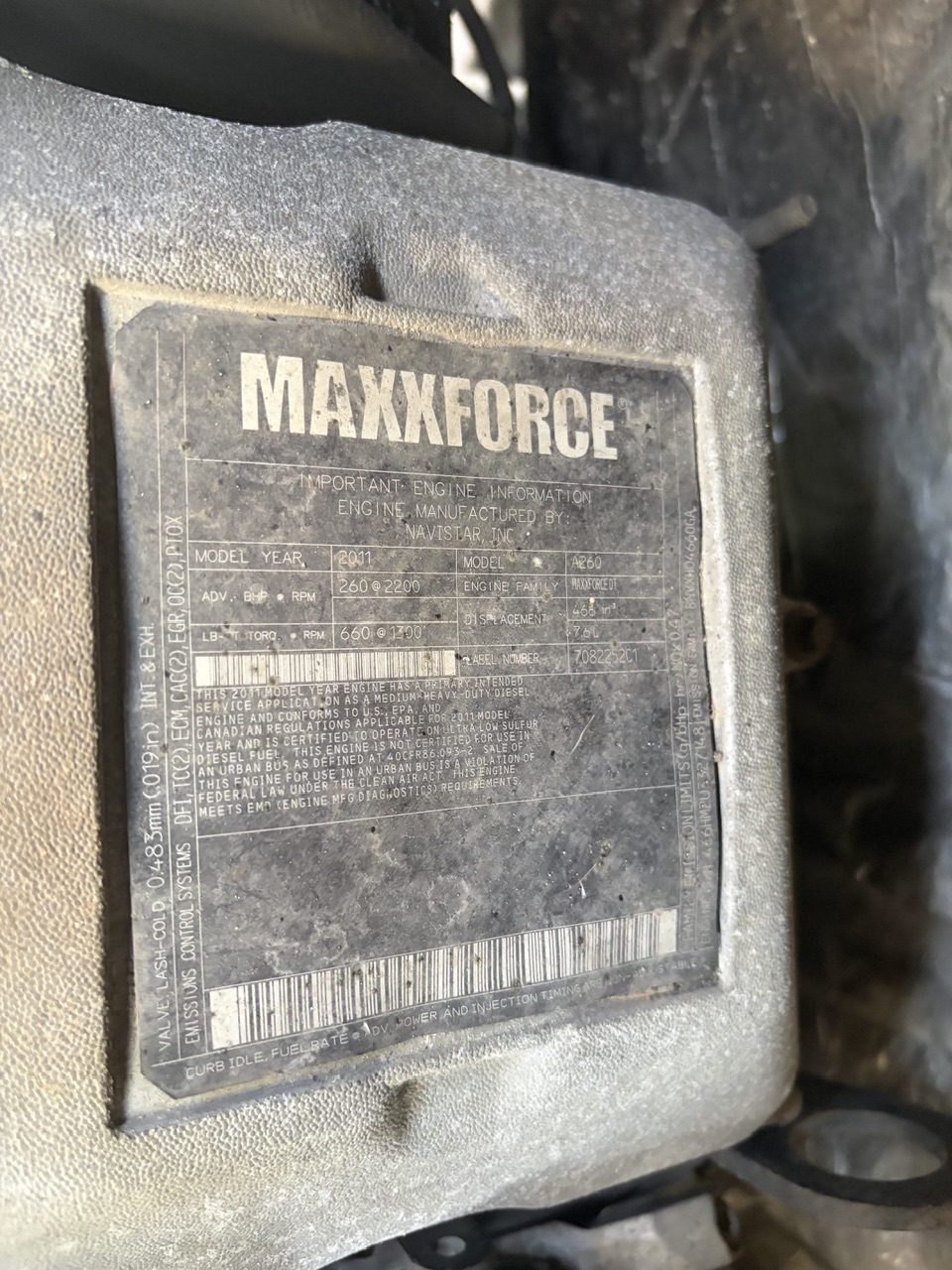

| Engine | INTERNATIONAL MAXXFORCE 7.6L 260 HP |
| Eng Serial | 466HM2U3327148 |
| Fuel / Tanks | DIESEL - 1 ALUM 50 GAL TOTAL |

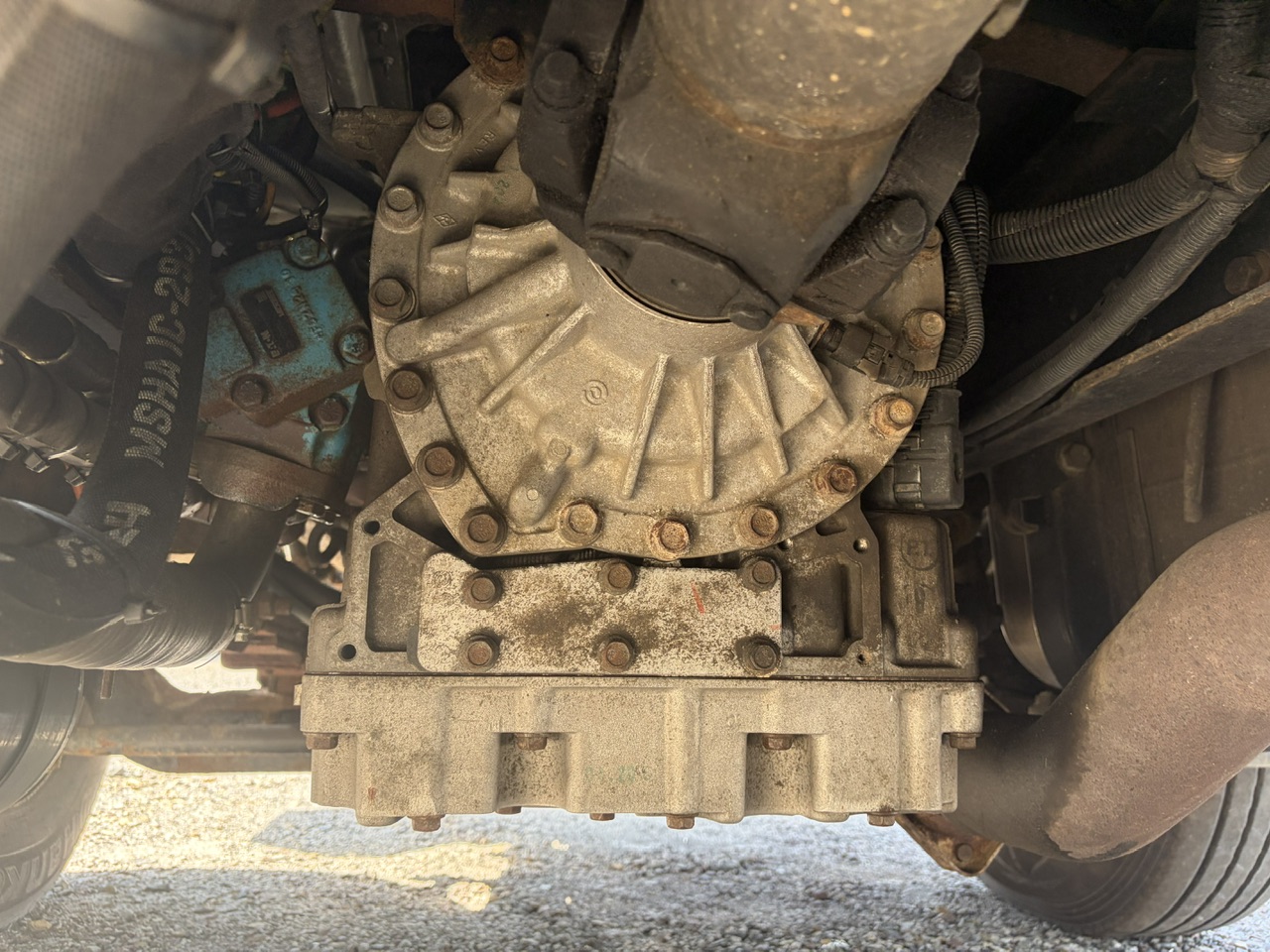

| Transmission | ALLISON 3500 RDS 5 SPD AUTO |

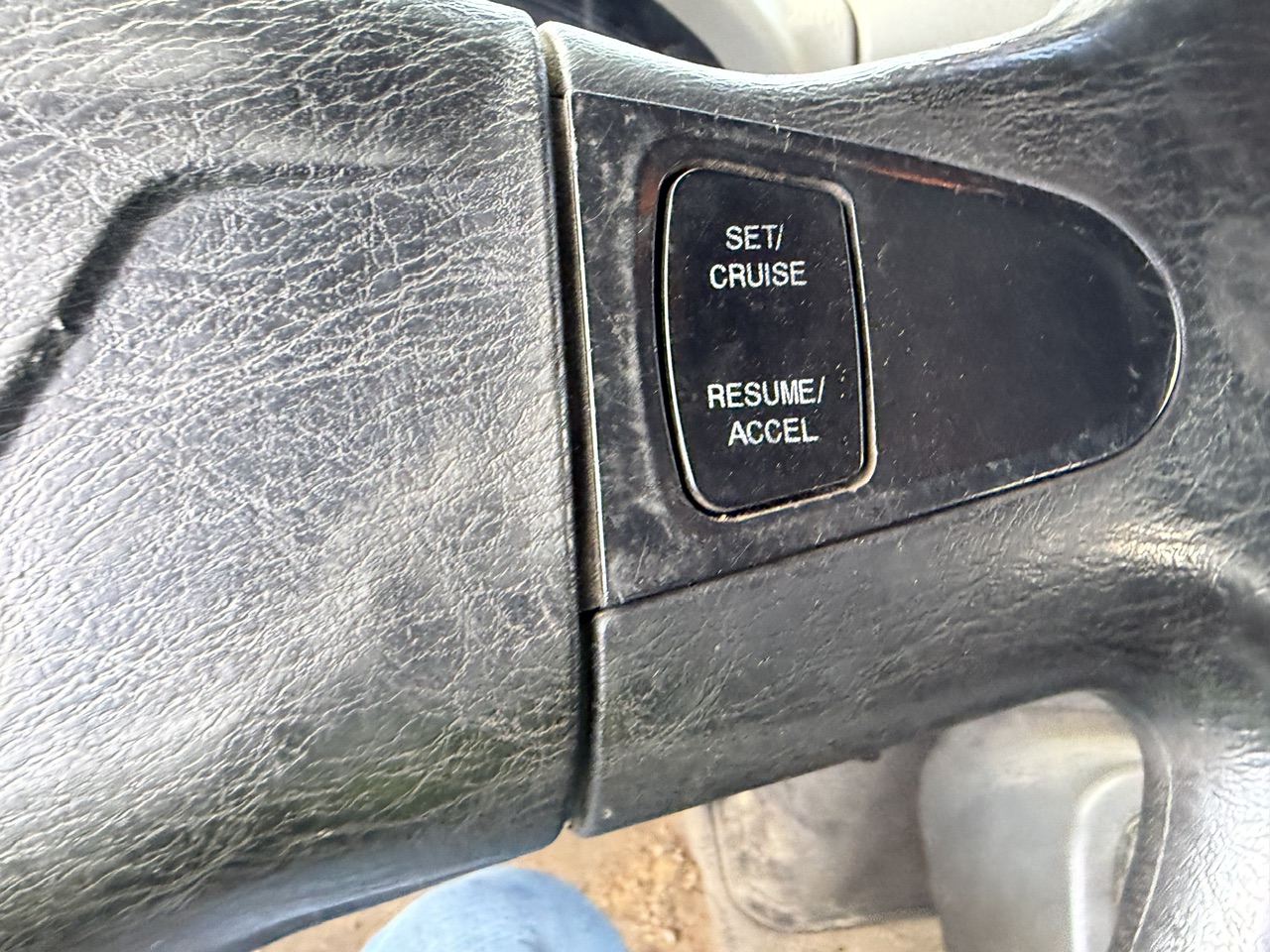

| Drive Opts | POWER STEERING, OVERDRIVE, CRUISE |
| Rear End | MERITOR 5.57 |
| Axle Type | SINGLE - F 14,000 LB / R 19,000 LB |
| GVWR | 33,000 |
| Frame | STEEL |

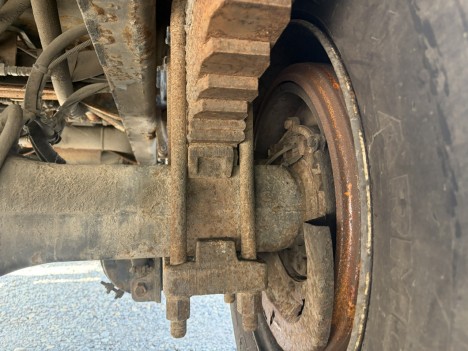

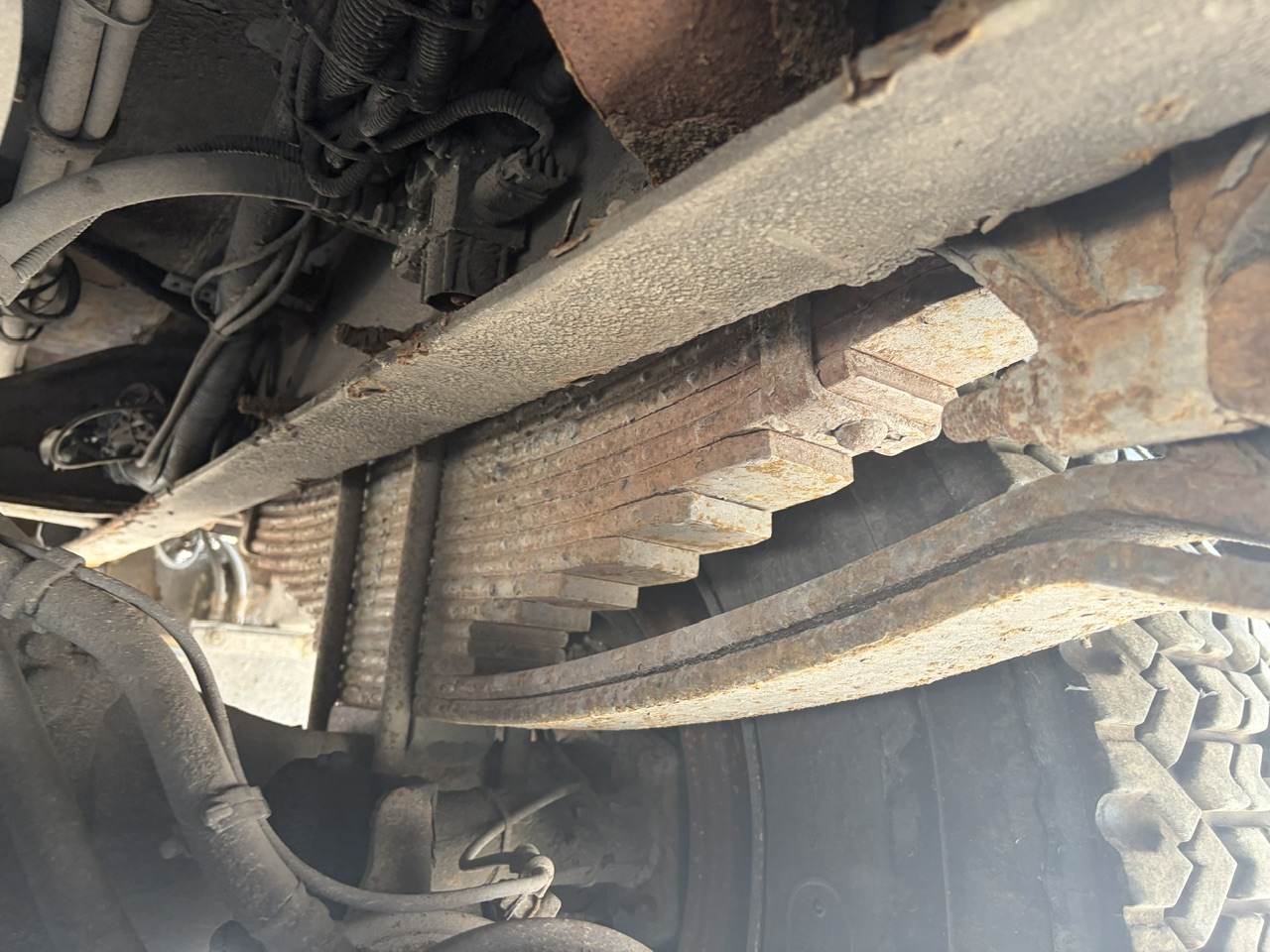

| Suspension | SPRING |
| Wheelbase | 183" |
| Tire Size | 11R22.5 |
| Wheels | F STEEL / R STEEL |
| Air Cond | YES |
| Interior Color | GRAY |
| Radio | AM/FM, OPERATIONAL |
| High Back Seats | DUAL |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | PAINTED |

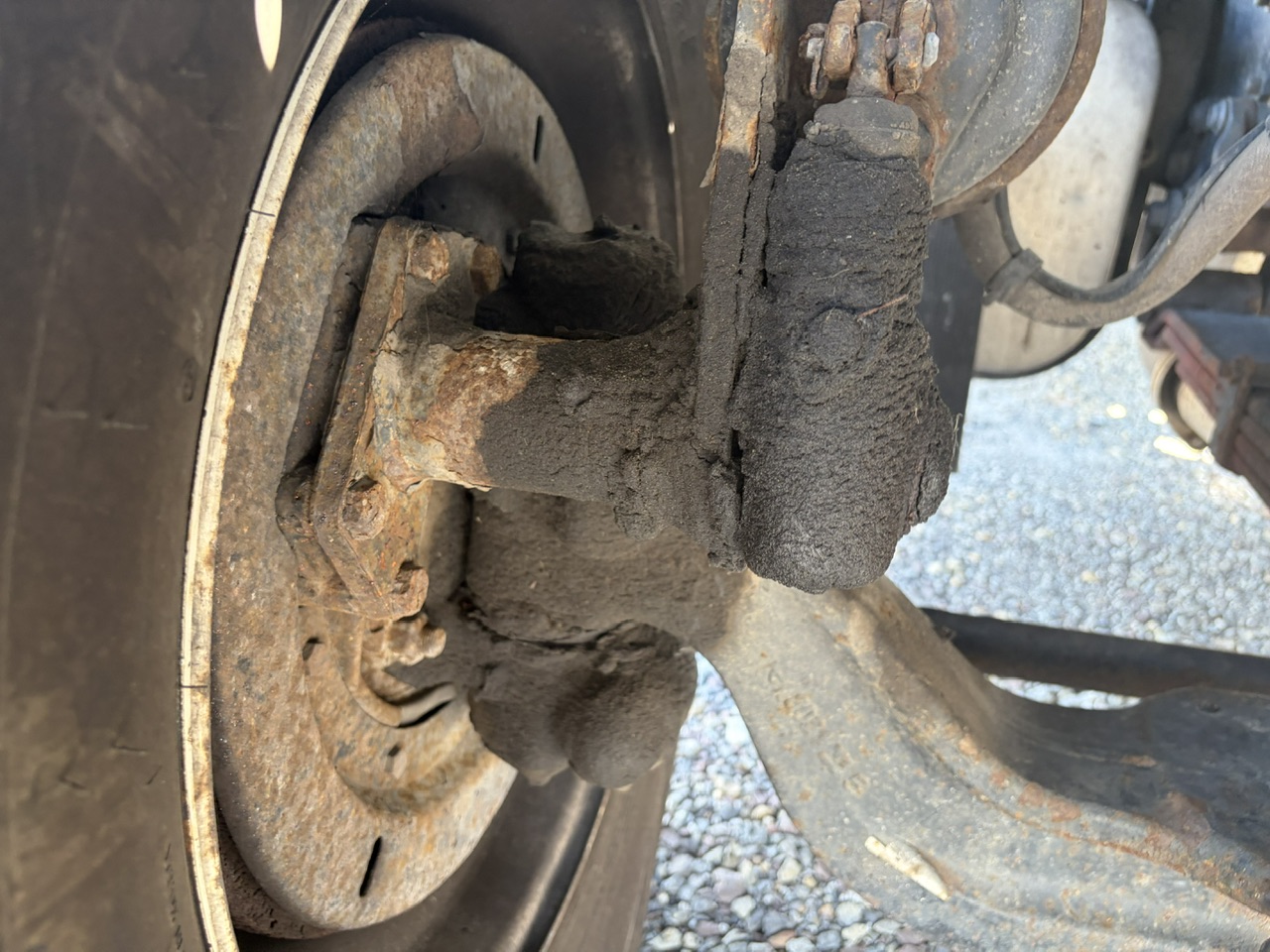

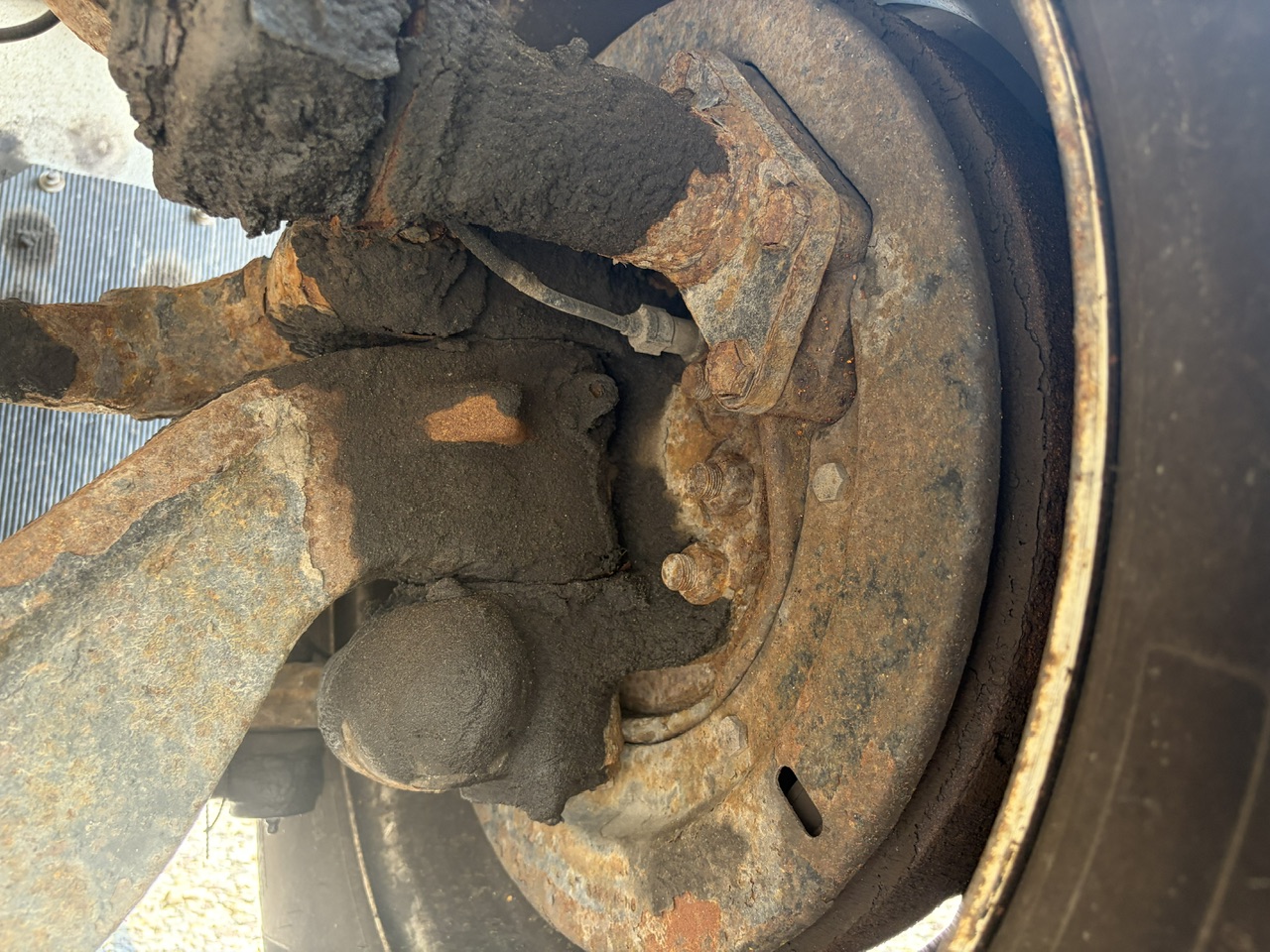

| Brakes | |
|---|---|
| Left Rear 122 | Right Rear 122 |

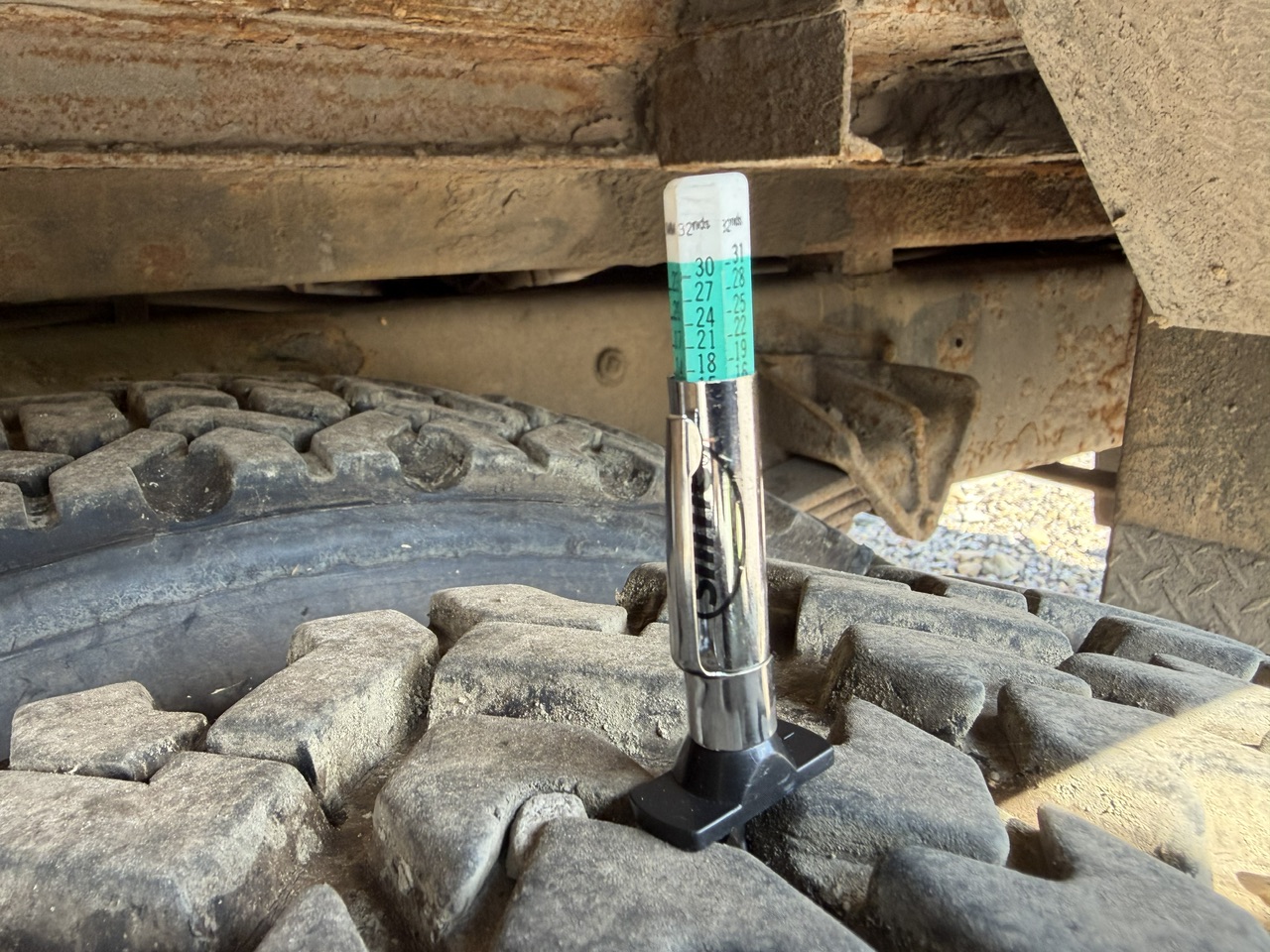

| Tires & Wheels | |||
|---|---|---|---|
|

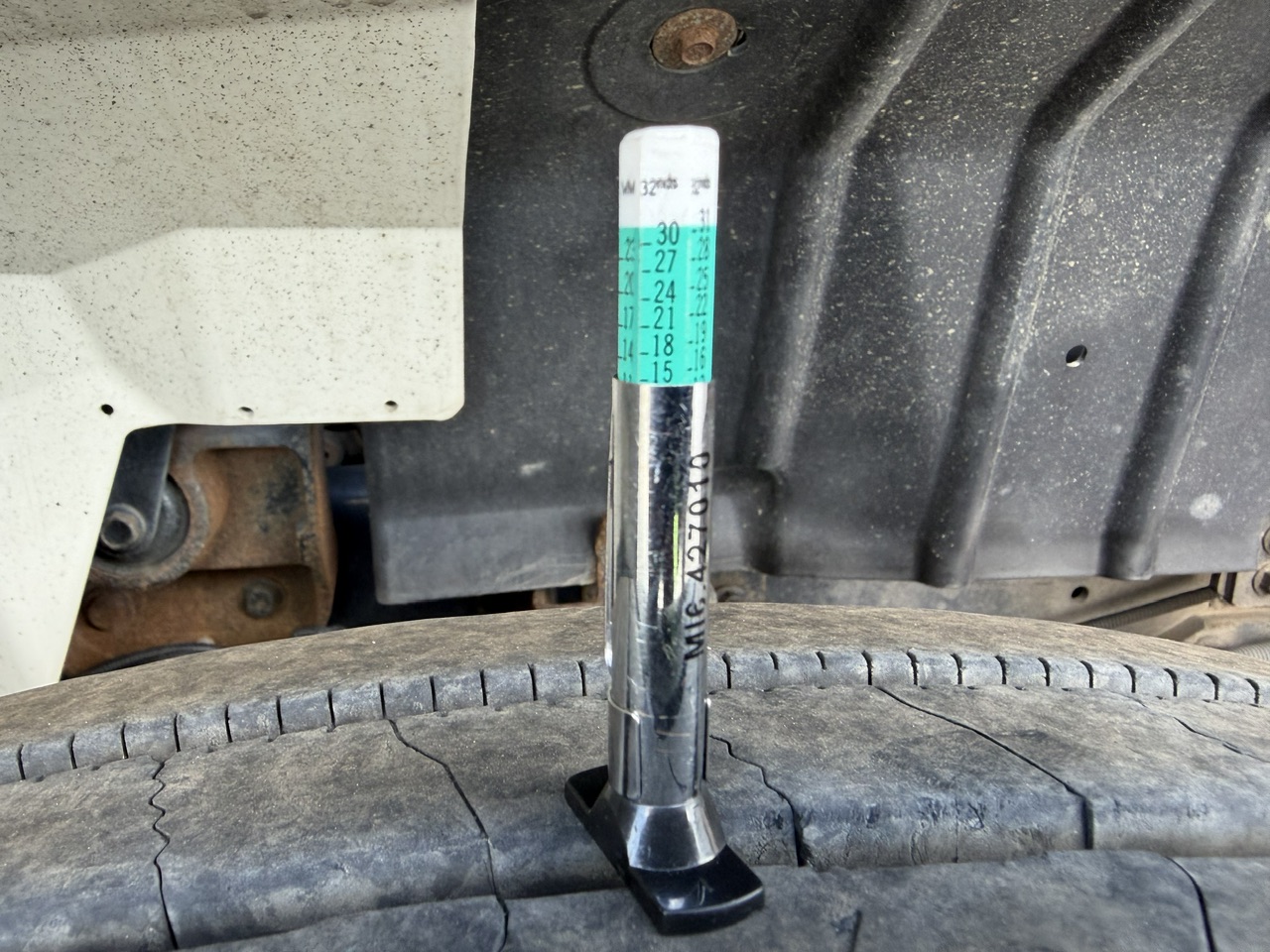

Left Front12 / 32 Hankook Steel |
Right Front15 / 32 Hankook Steel |
||
|

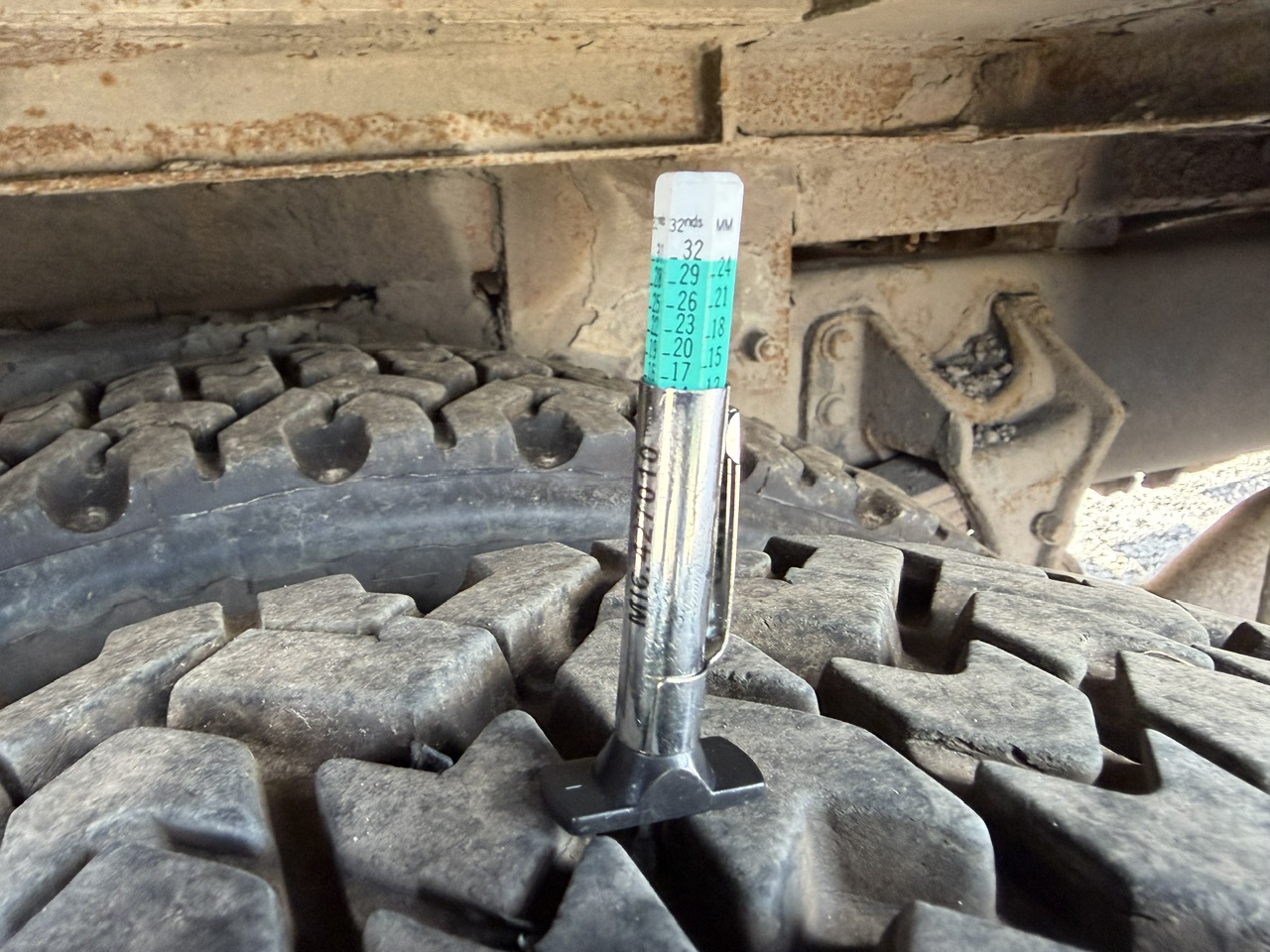

Left Outer 118 / 32 Kelly Steel |
Left Inner 116 / 32 Kelly Steel |
Right Inner 120 / 32 Kelly Steel |
Right Outer 117 / 32 Kelly Steel |
| FRONT TIRES: 11R22.5 | REAR TIRES: 11R22.5 | ||
| General Observations |
|---|
| Oil Milky? | No |
|---|---|
| Oil Leaks? | See Notes |

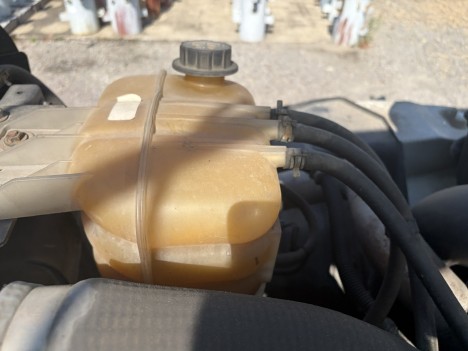

| Coolant Leaks? | No |
| Oil in Coolant? | No |
| Clutch Play? | NA |
| Starts? | See Notes |
| Drives | See Notes |
| Lights Work? | Yes - All |
|---|---|
| Wipers Work? | Yes |

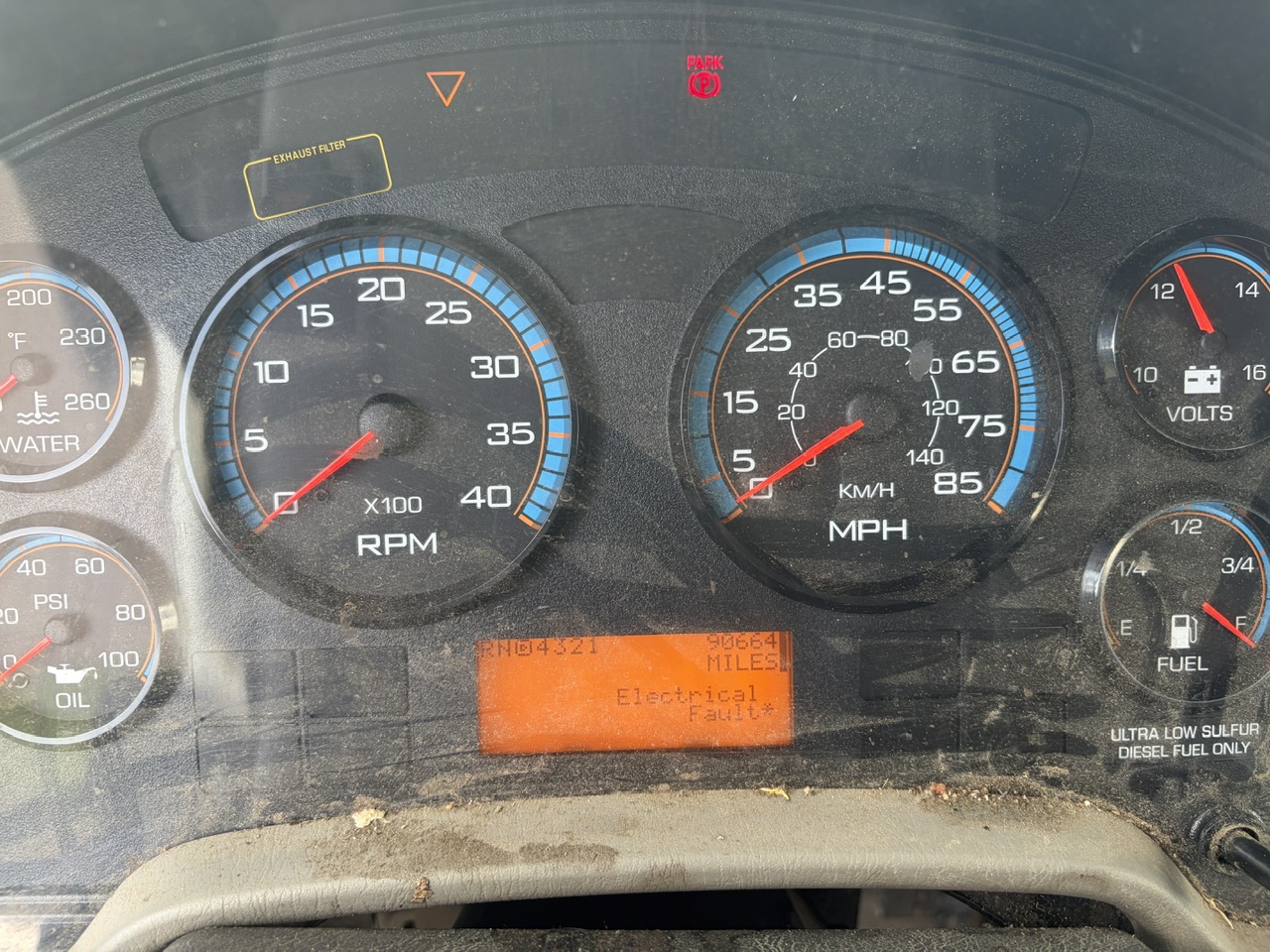

| Gauges Work? | Yes - All |

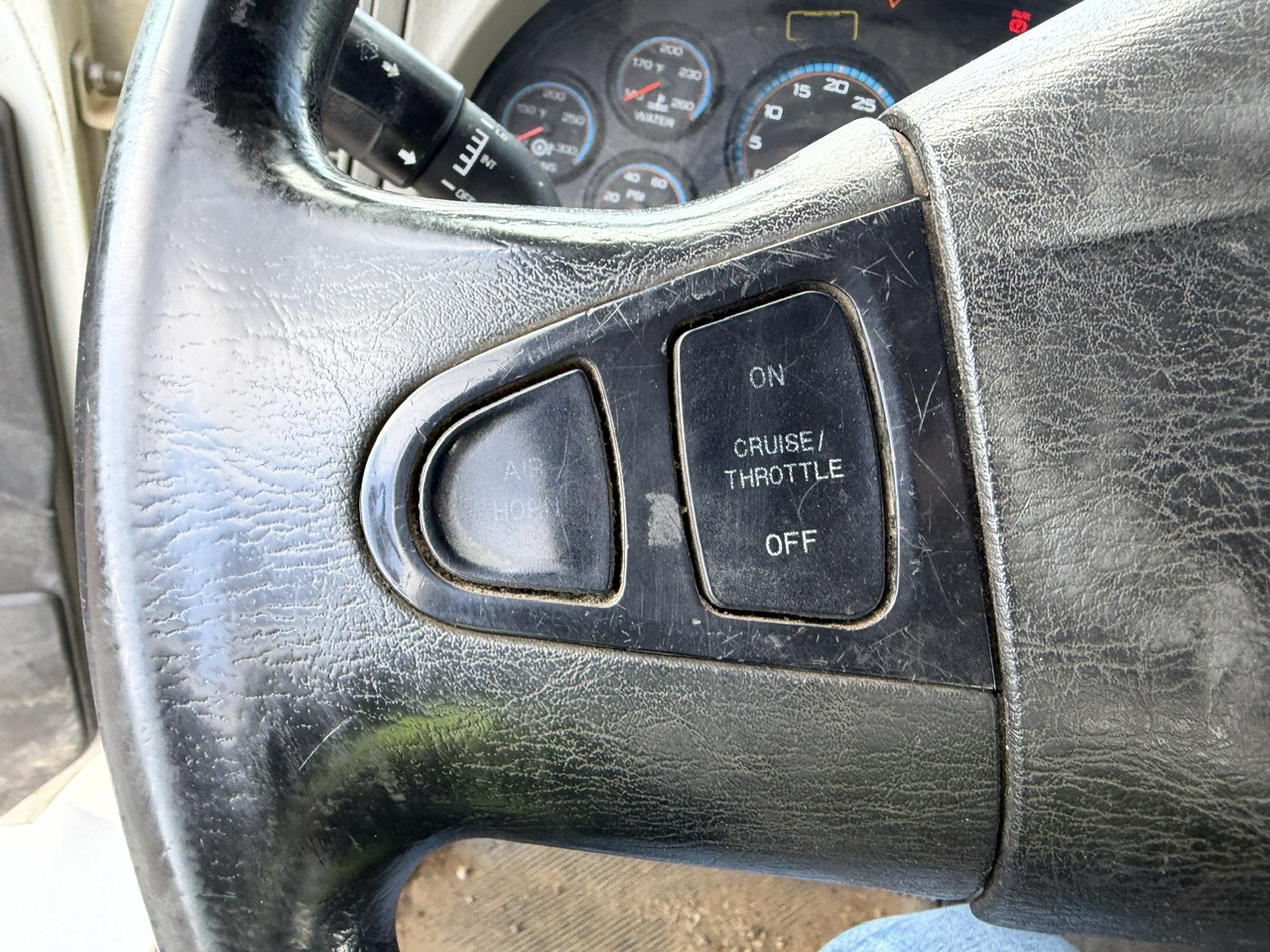

| Air Horn Works? | See Notes |
| City Horn Works? | See Notes |

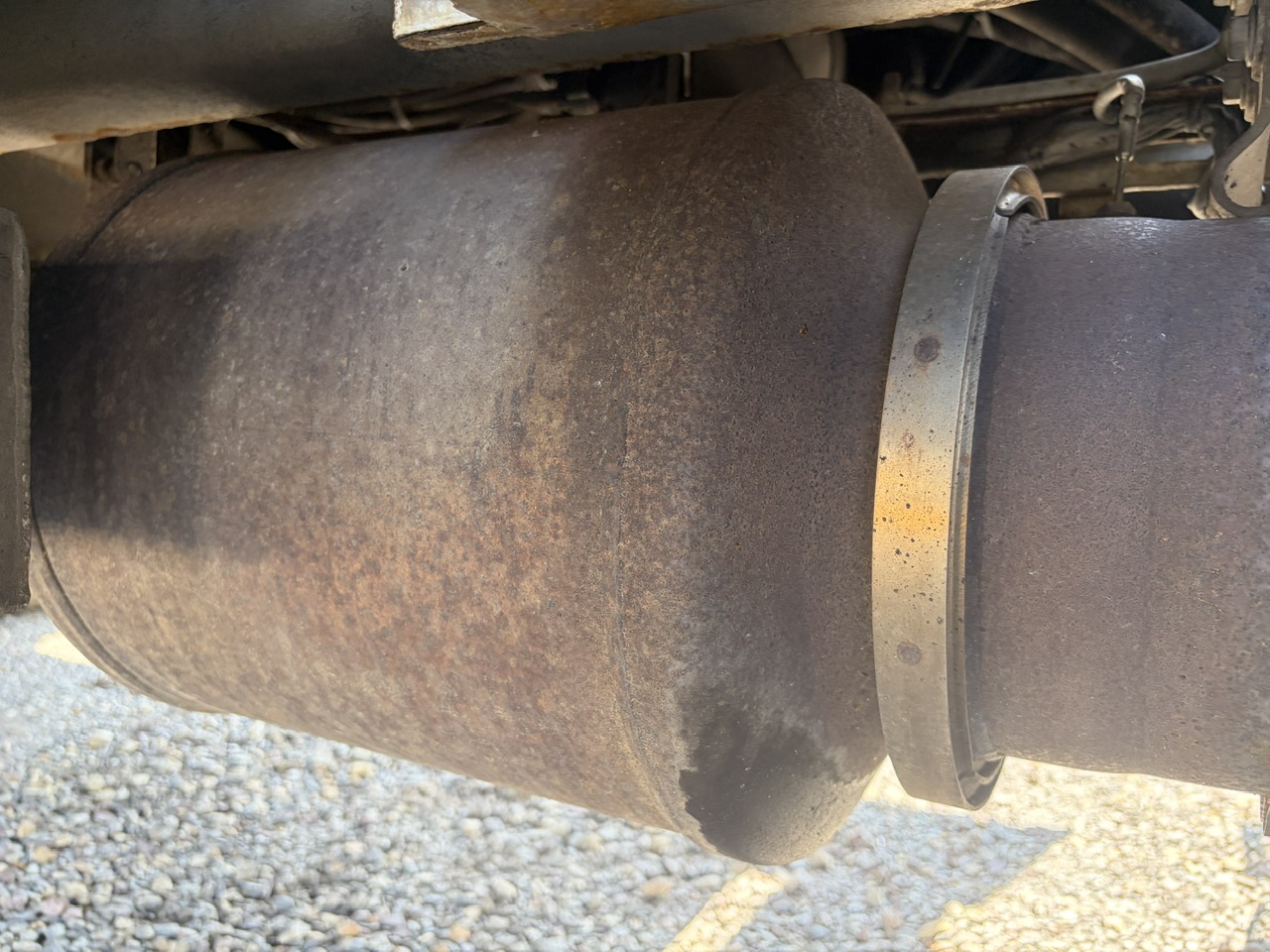

| Aftertreatment System | PASS |
|---|
| Additional Observations |
|---|

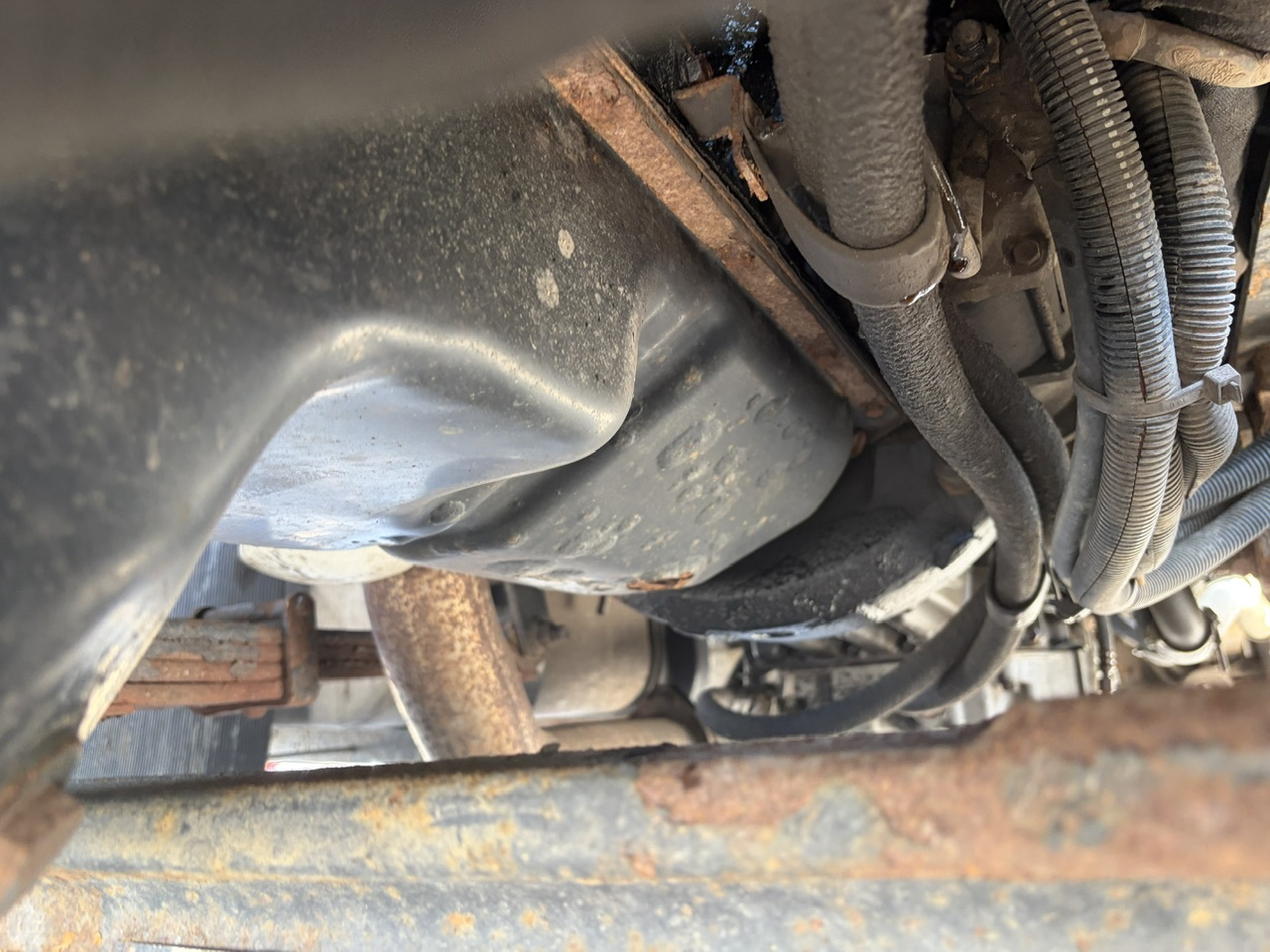

| On site contact informed inspector- Mechanical Issues, Unable to start, video and test. Oil seepage from oil pan gasket. Certified Clean Idle sticker is missing |
| Wear & Tear Detail | ||
|---|---|---|
| DIAGNOSTICS | 3 ACTIVE FAULTS / 14 INACTIVE FAULTS FOUND - (SEE ECM REPORT) | |

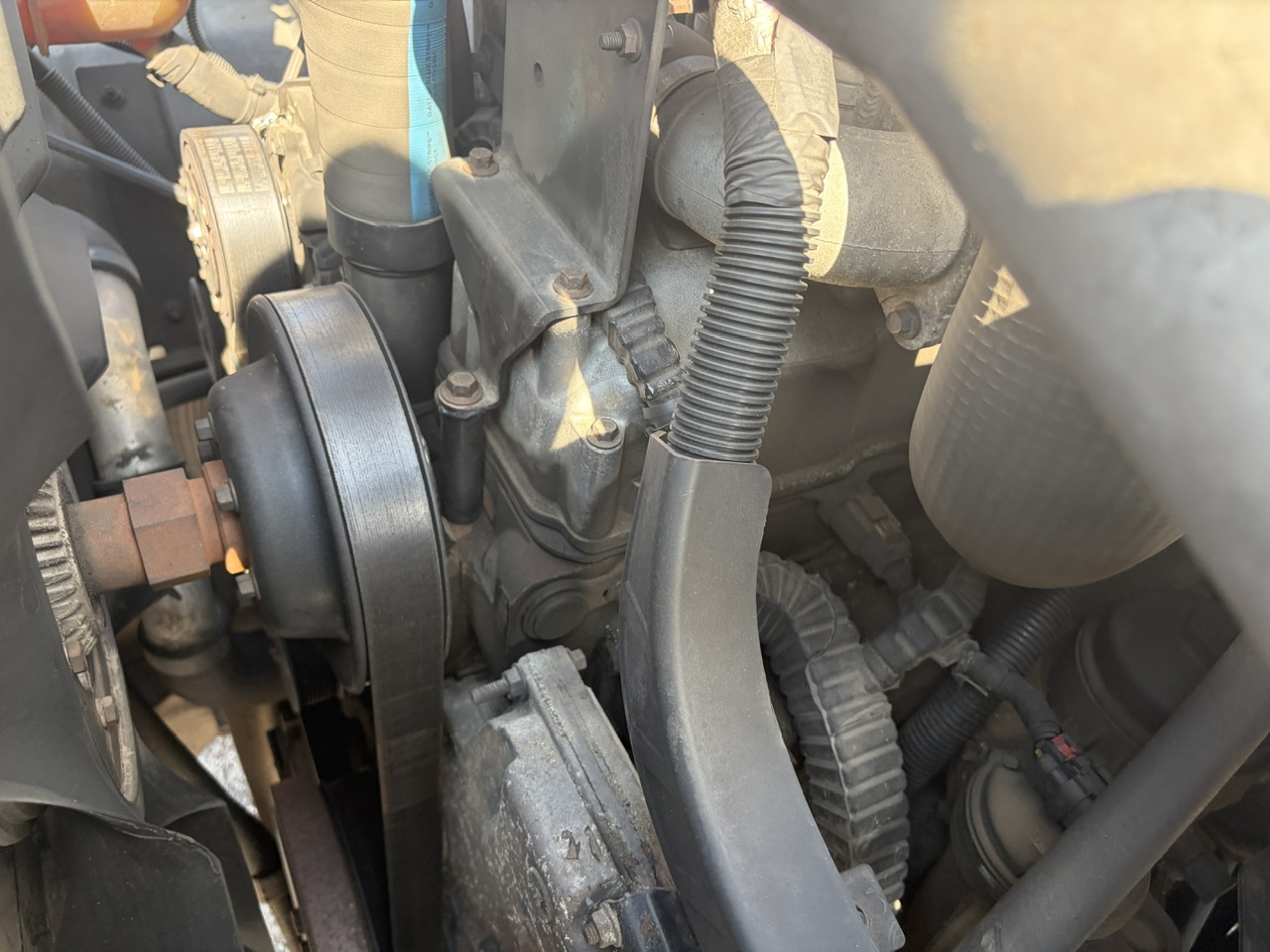

| ENGINE | UNIT DOES NOT RUN | |

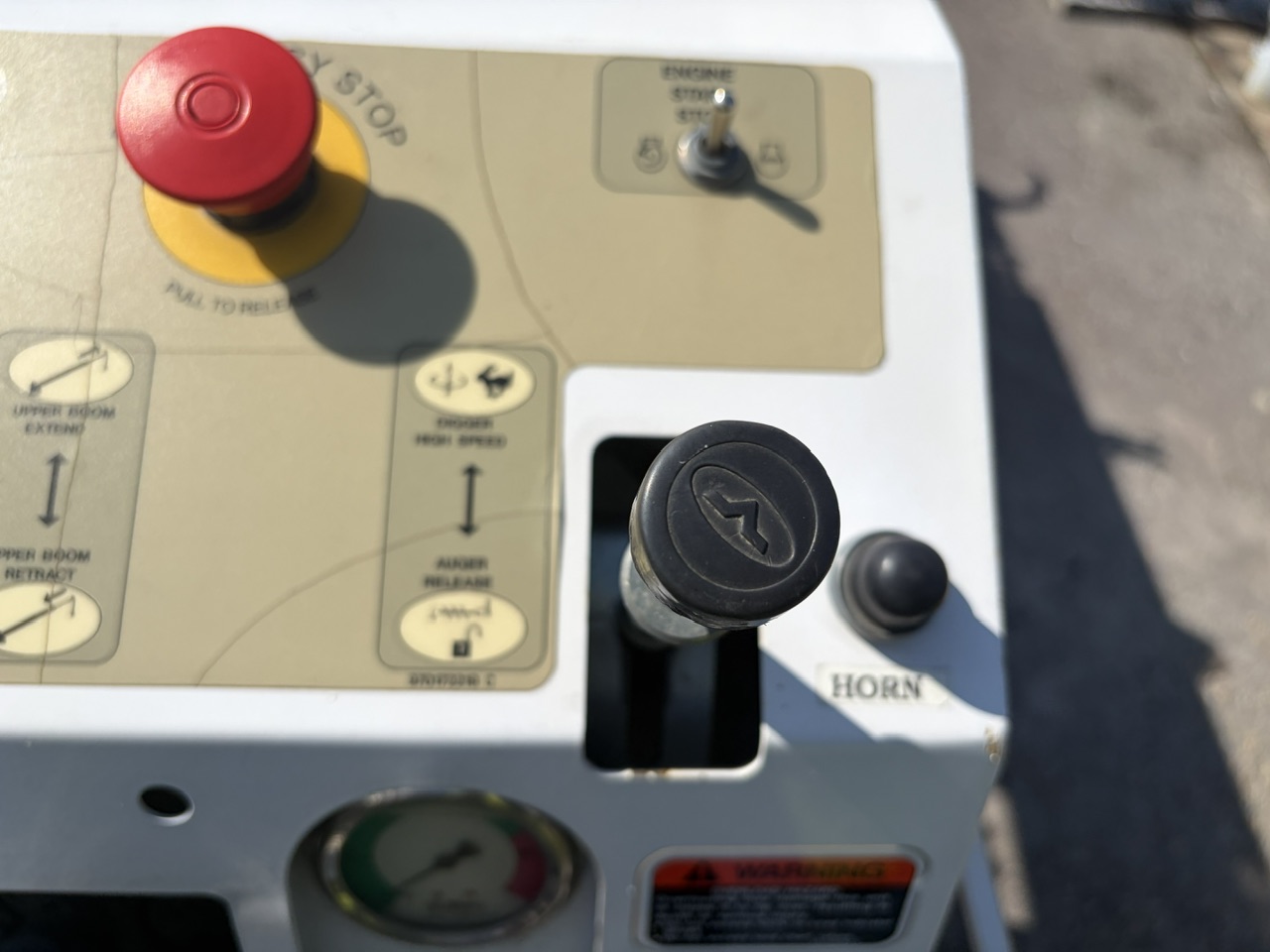

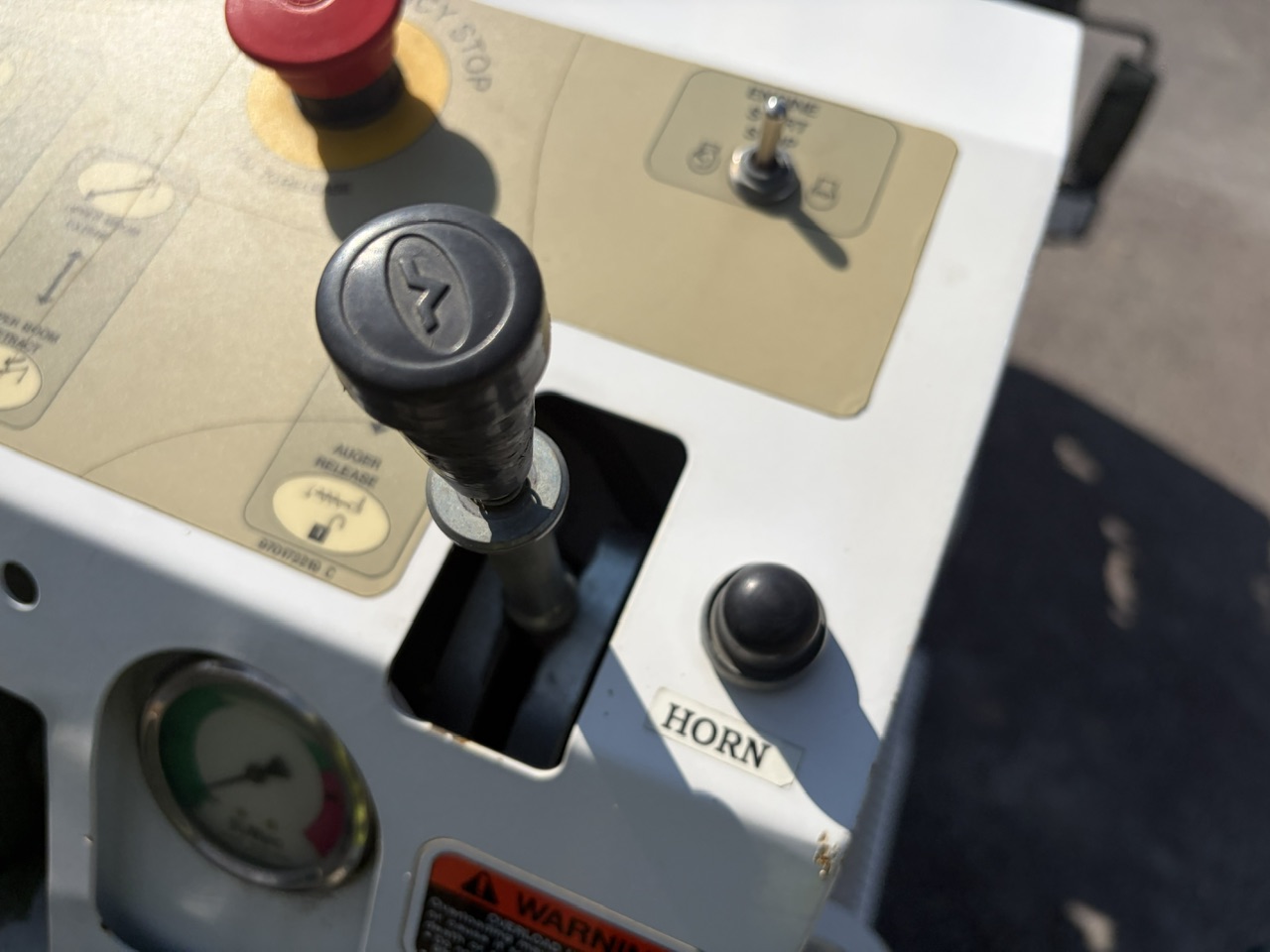

| HORN | CITY HORN INOP | |
| LIGHTING | SPOT LIGHT COVER IS DAMAGED | |

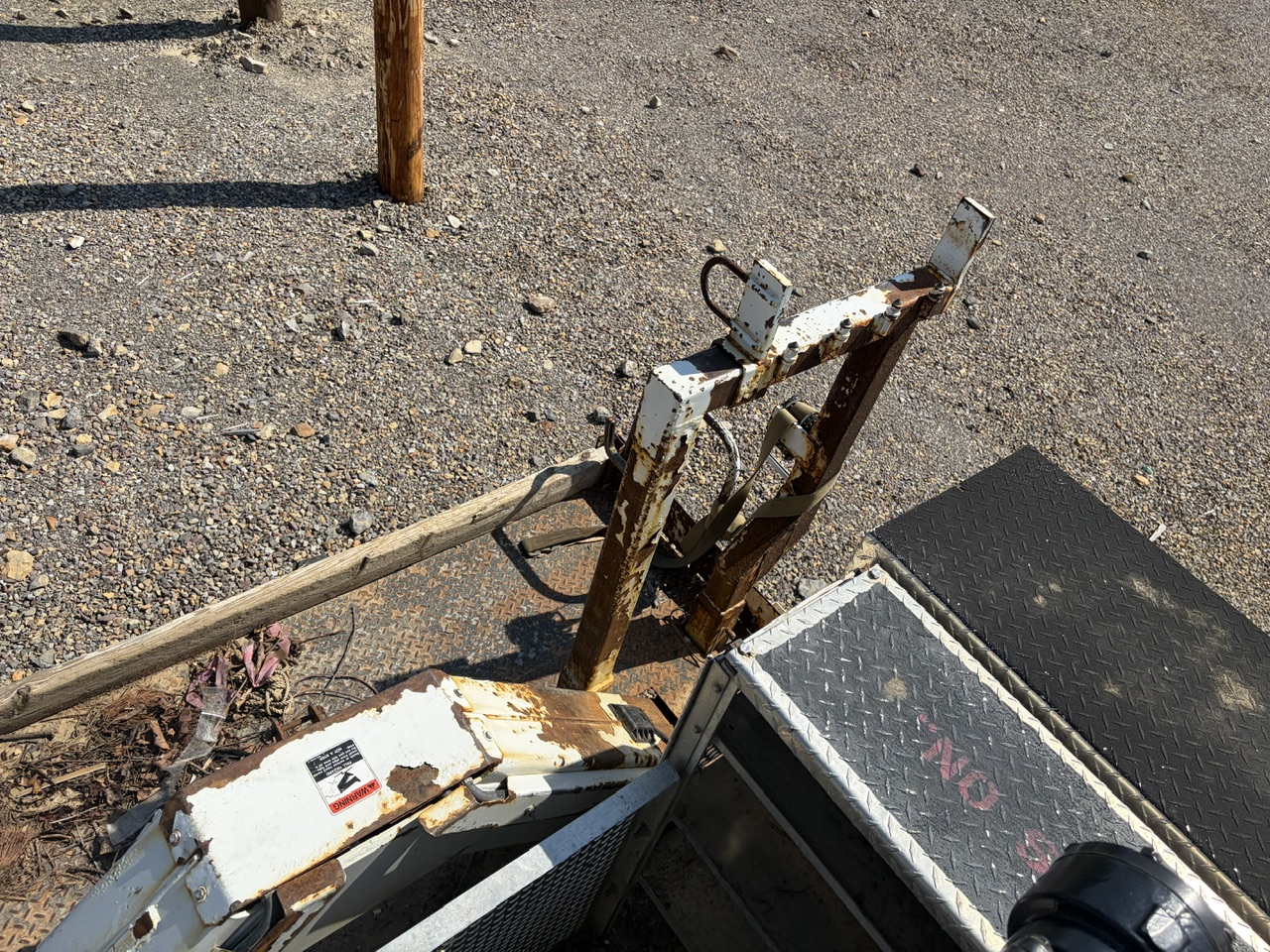

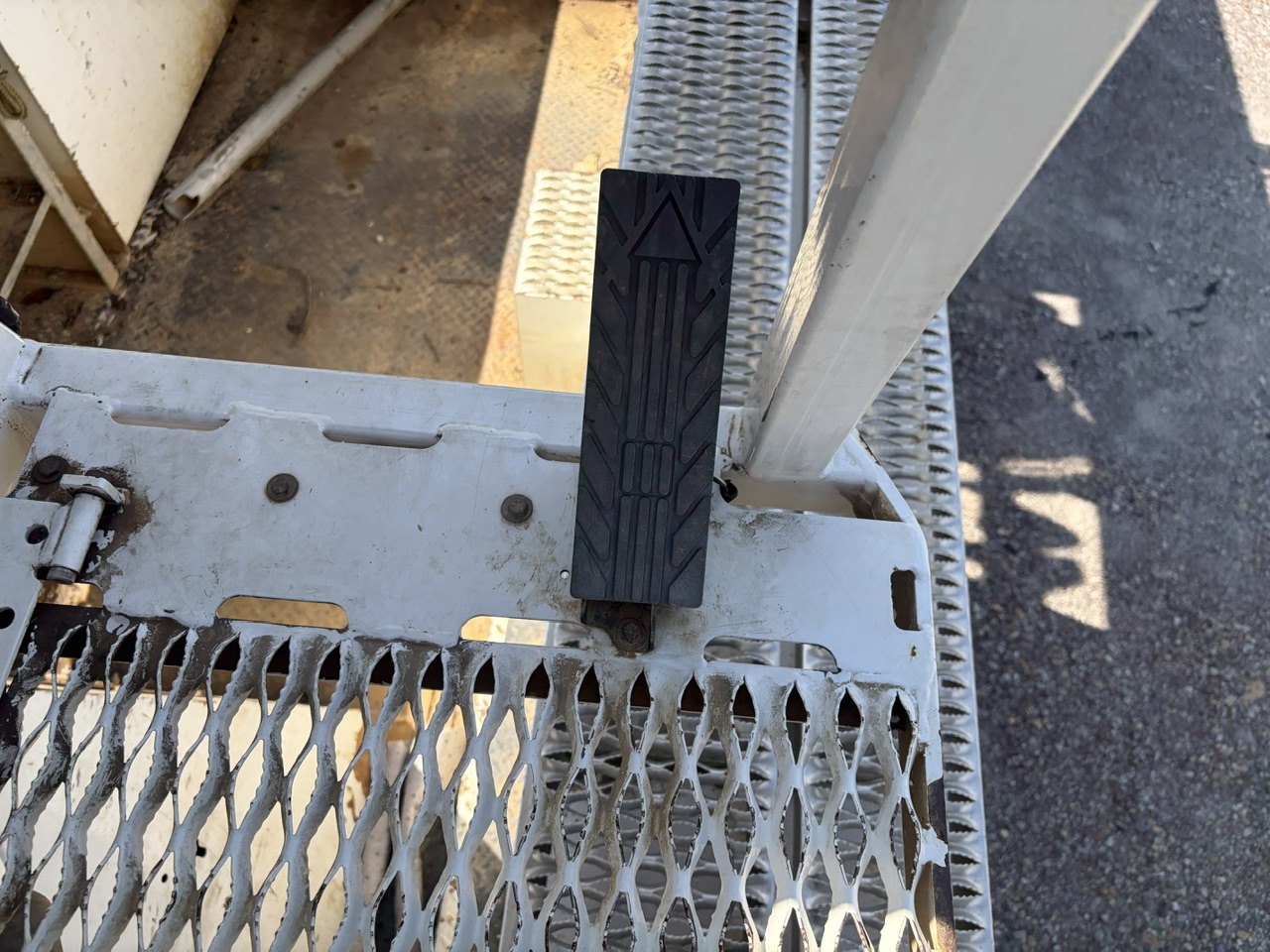

| WORK PLATFORM BUMPER | BOTH REAR RUBBER BUMPER MOUNTS ARE BENT | |
| DOOR | D/S DOOR HANDLE TRIM DAMAGED | |
| HEADLIGHT BEZEL | RIGHT HEADLIGHT BEZEL IS BROKEN | |

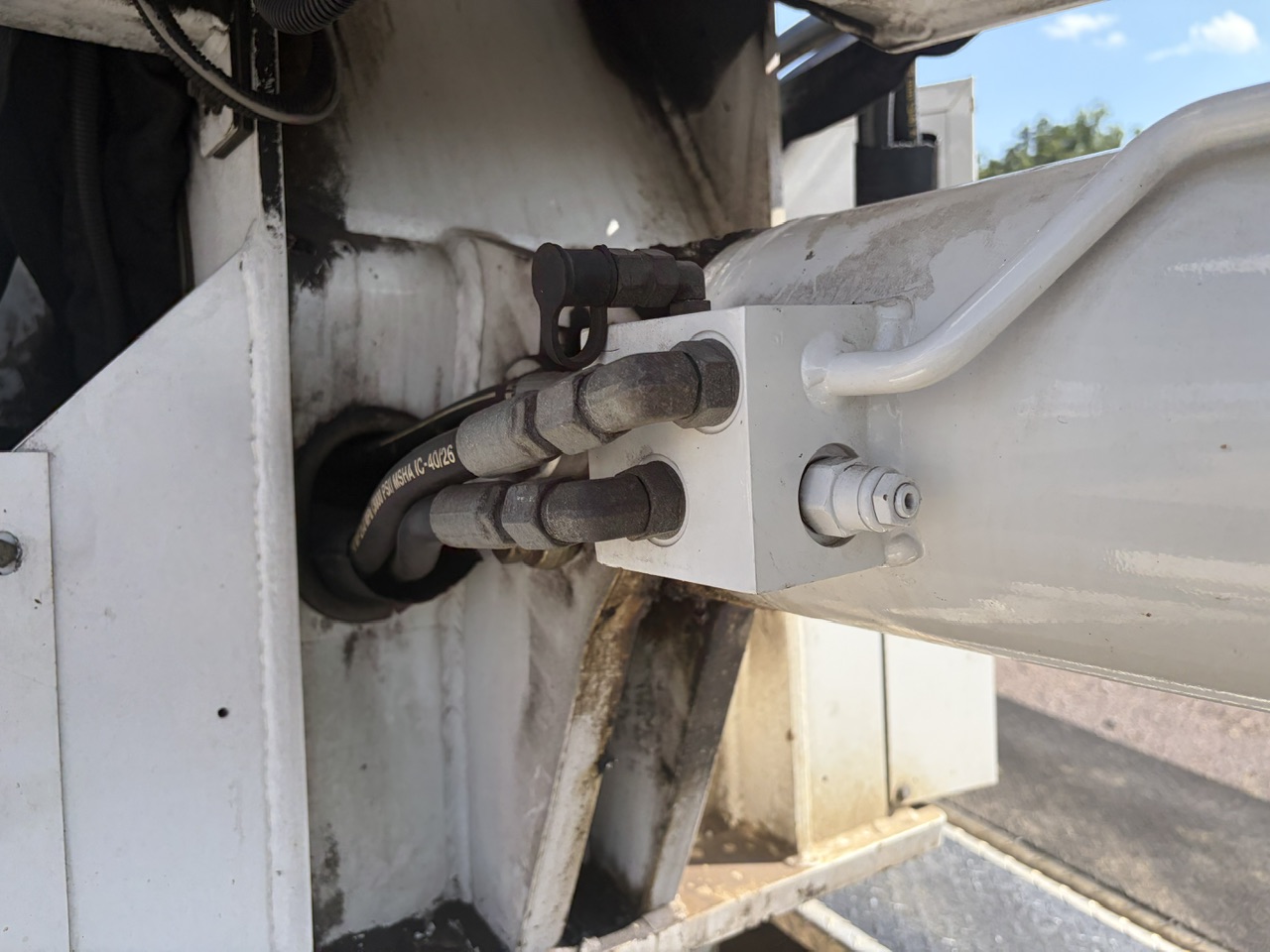

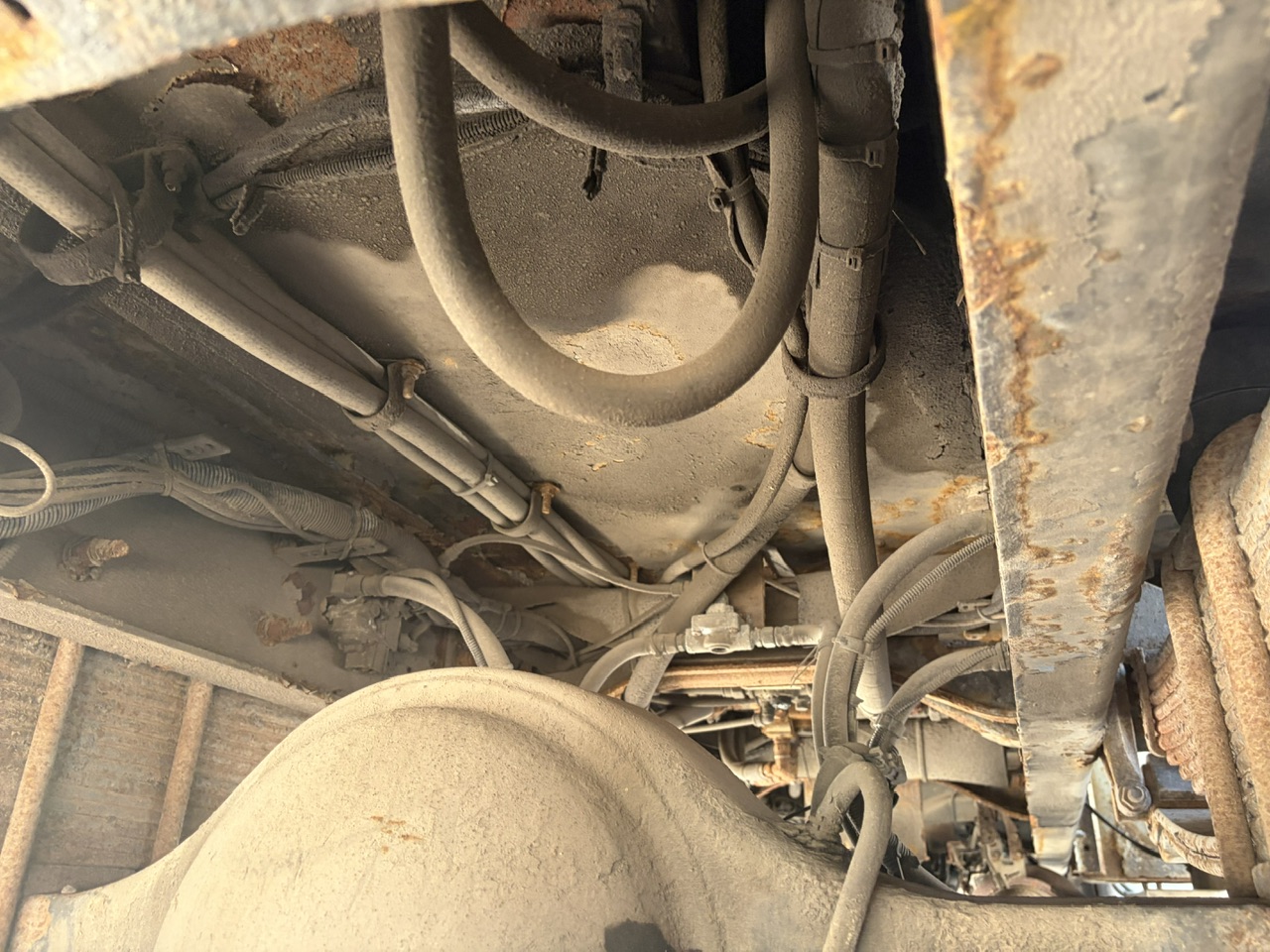

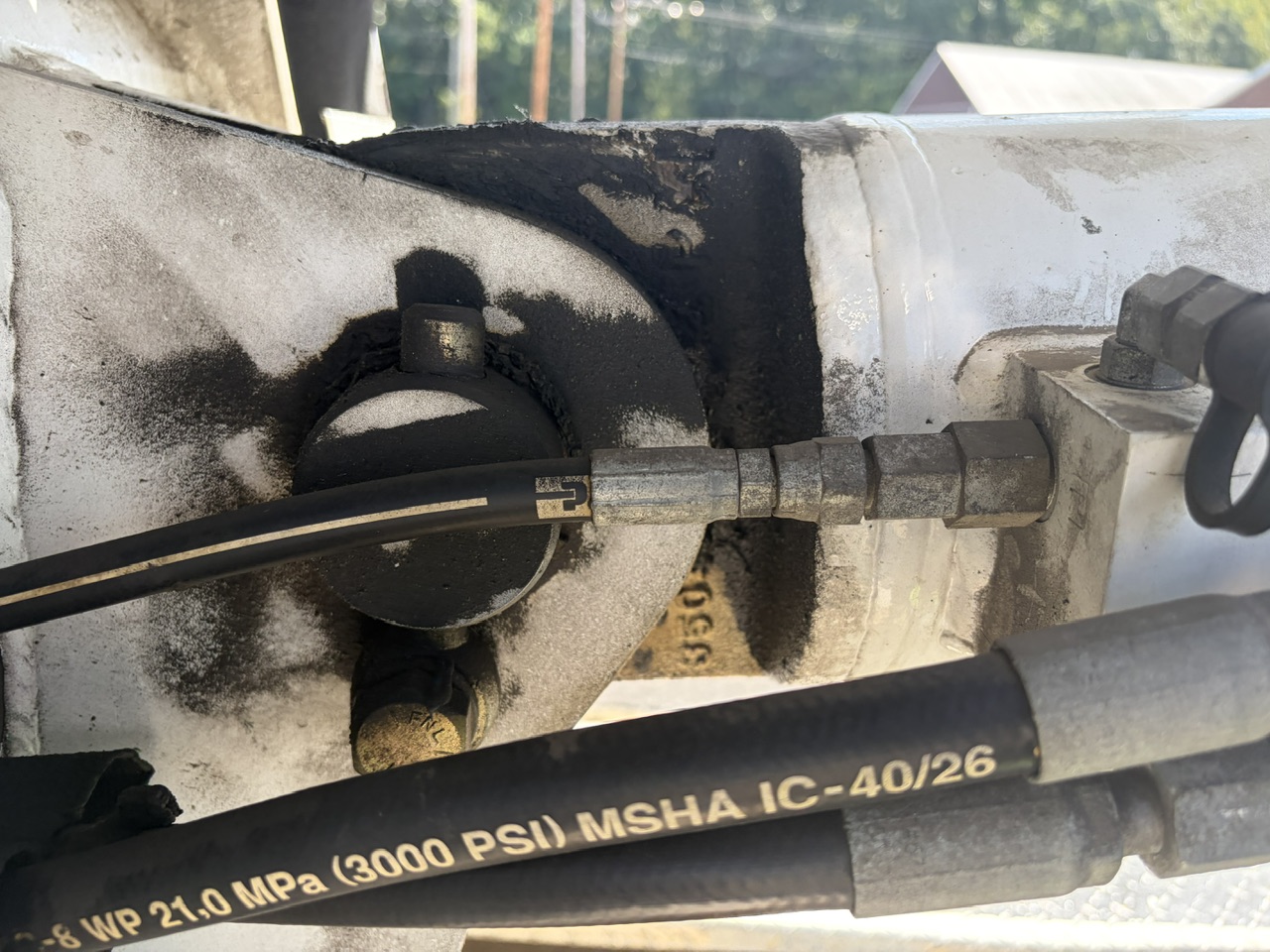

| HYDRAULIC LINES | HYDRAULIC LINES UNDER BED ARE LEAKING FLUID | |

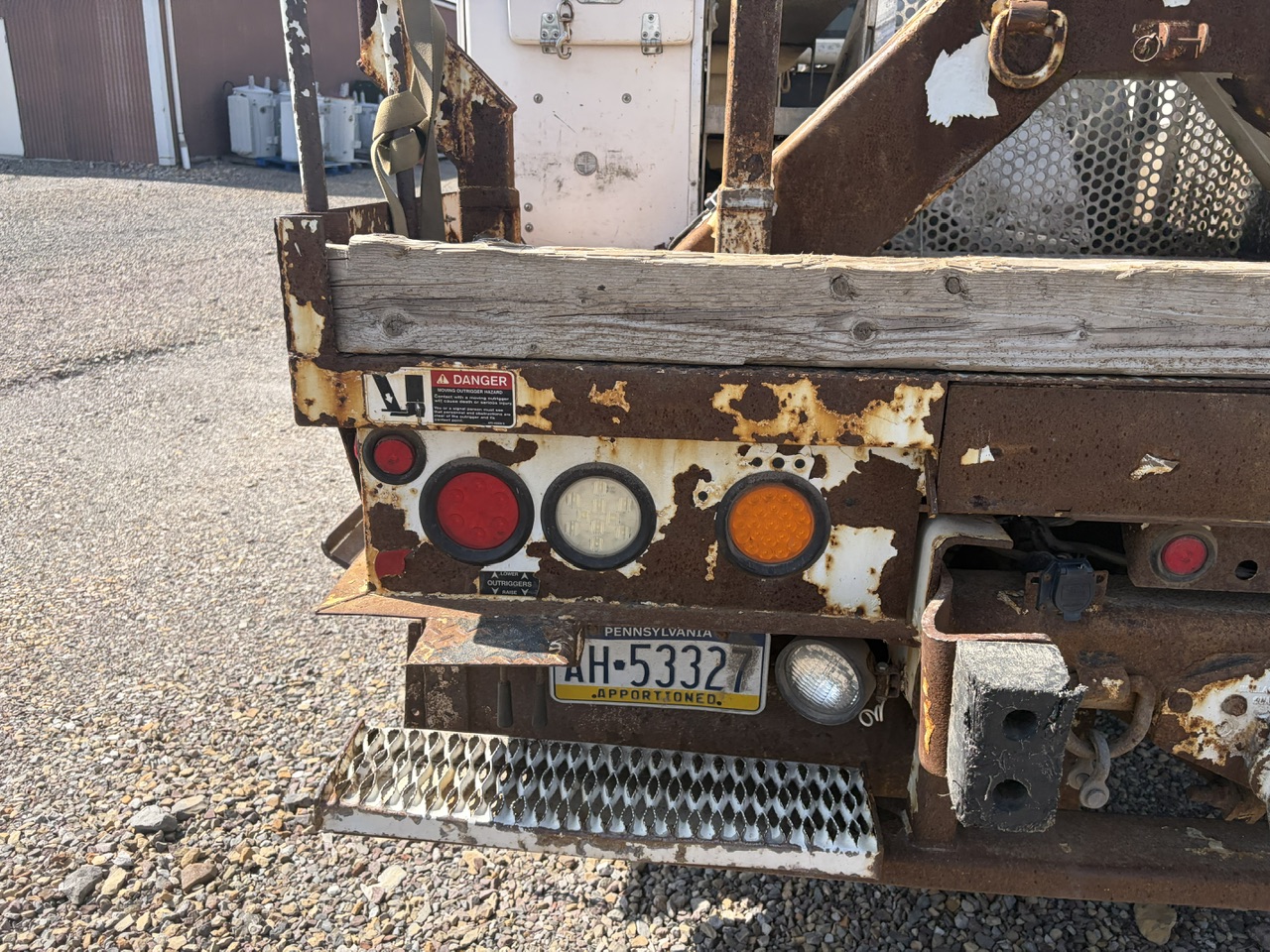

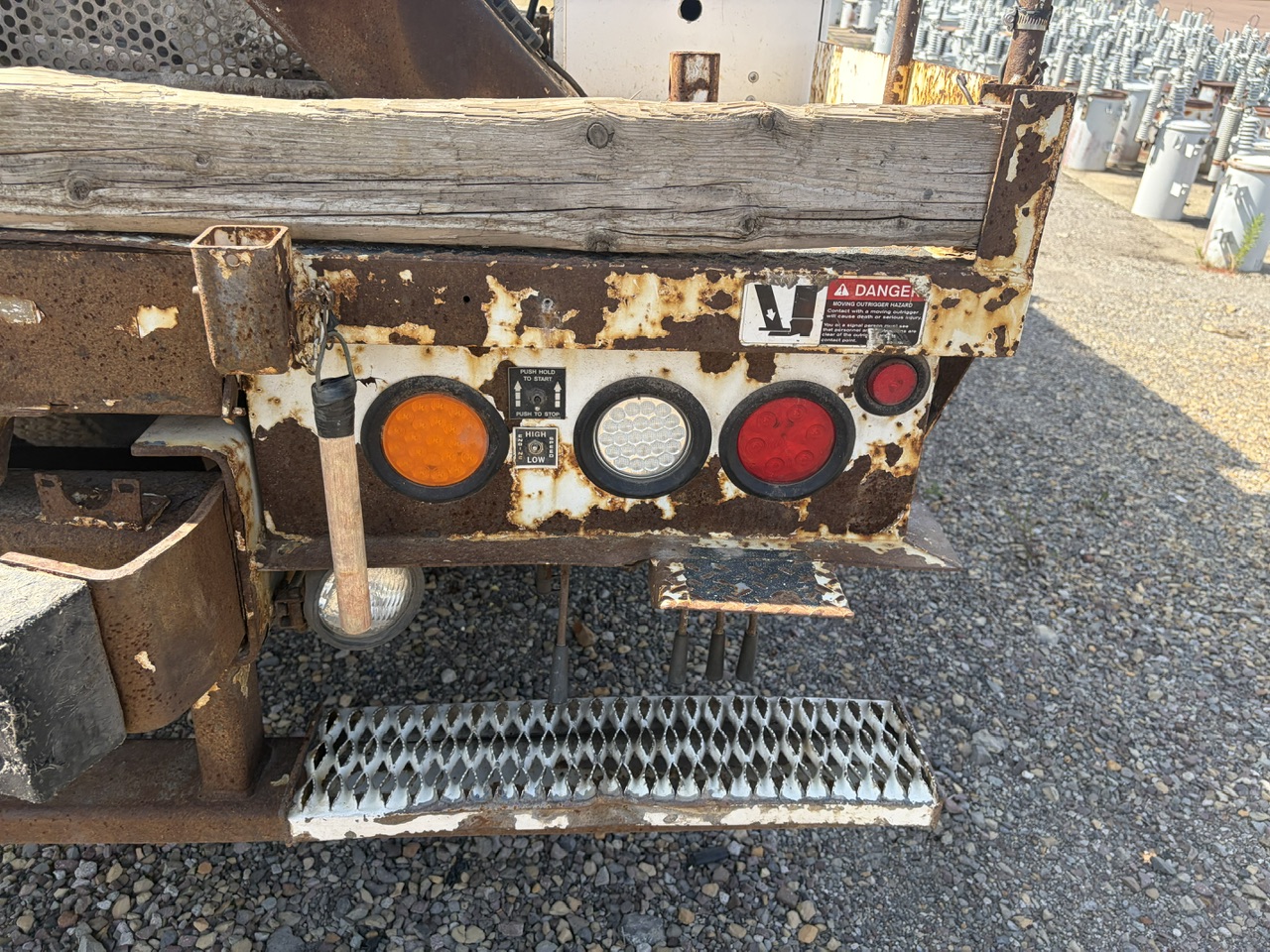

| UTILITY BED | PAINT PEELING AND RUST. | |
| STEPS | BOTH SIDES ARE RUSTED | |
| SEATS | BOTH SEATS ARE DIRTY AND WORN. | |
| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
15F
16A
16B
16C
16D
16E
16F
17A
17B
17C
17D
17E
17F
18A
18B
18C
18D
18E
18F
19A
19B
19C
19D
19E
19F
20A
20B
20C
20D
20E
20F
21A
21B
21C
21D
21E
21F
22A
22B
22C
22D
22E
22F
23A
23B
23C
23D
23E
23F
24A
24B
24C
24D
24E
24F
25A
25B
25C
25D
25E
25F
26A
26B
26C
26D
26E
26F
27A
27B
27C
27D
27E
27F
28A
28B
28C
28D
28E
28F
29A
29B
29C
29D
29E
29F
30A
30B
30C
30D
30E
30F
31A
31B
31C
31D
31E
31F
32A
32B
32C
32D
32E
32F
33A
33B
33C
33D
33E
33F
| Report Documents |
|---|
Condition report only. National Inspection Services does not guarantee mechanical reliability.
