National Inspection Services
Report: 343334
09/16/2026
09/16/2026
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888

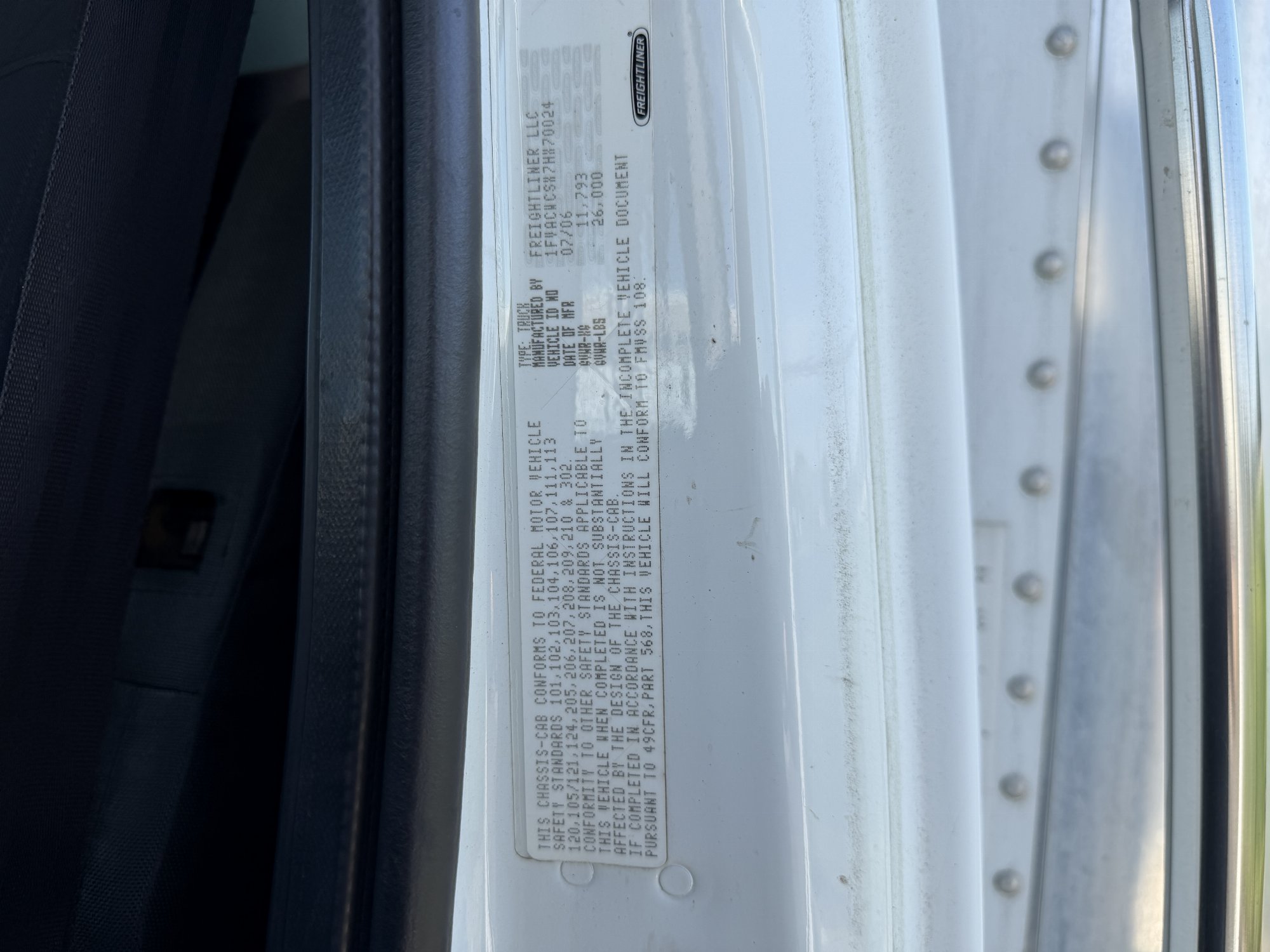

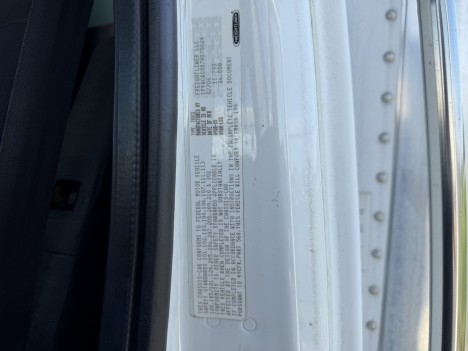

VIN: 1FVACWCSX7HX70024
PO #: 0000
PO #: 0000

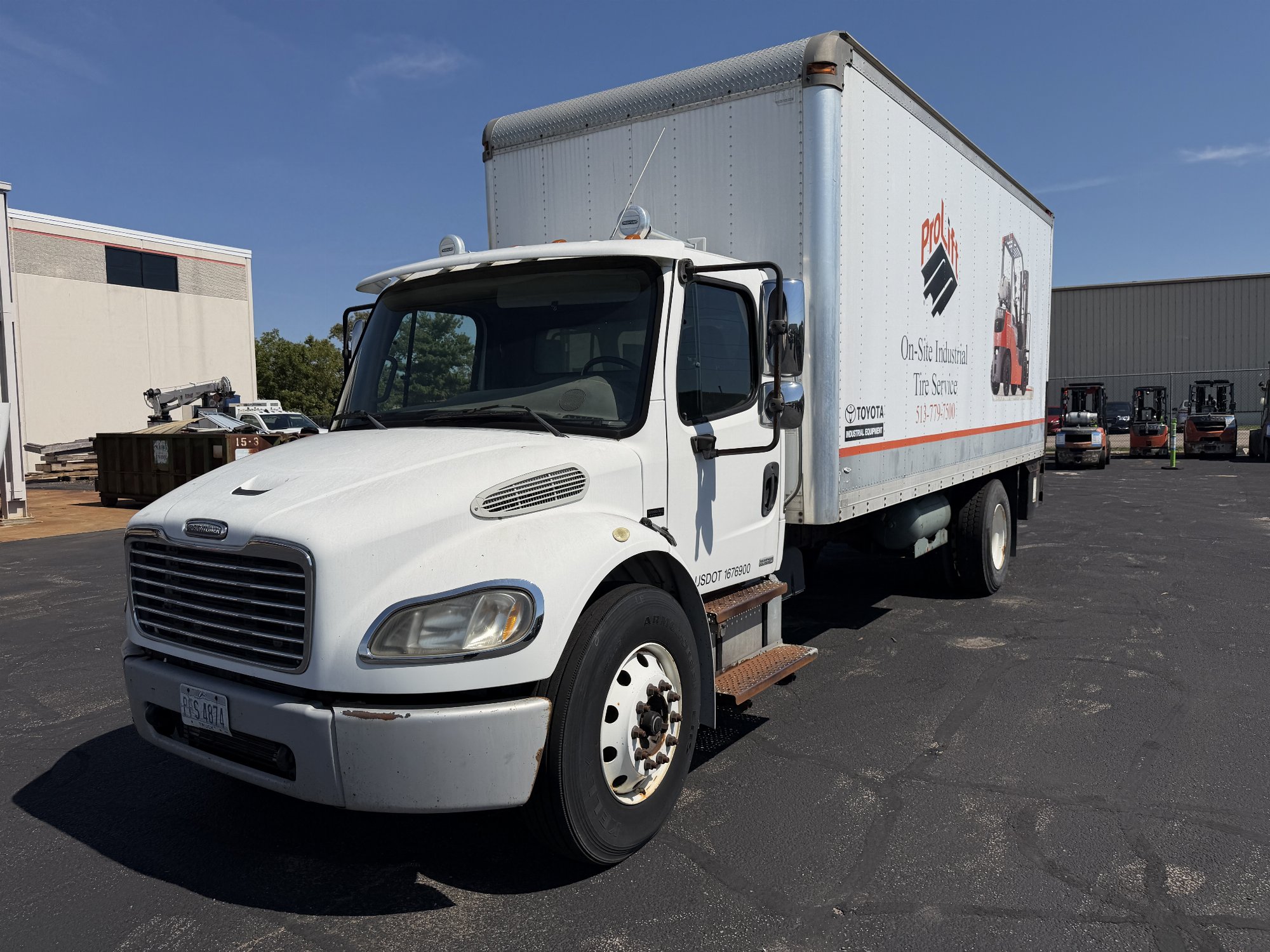

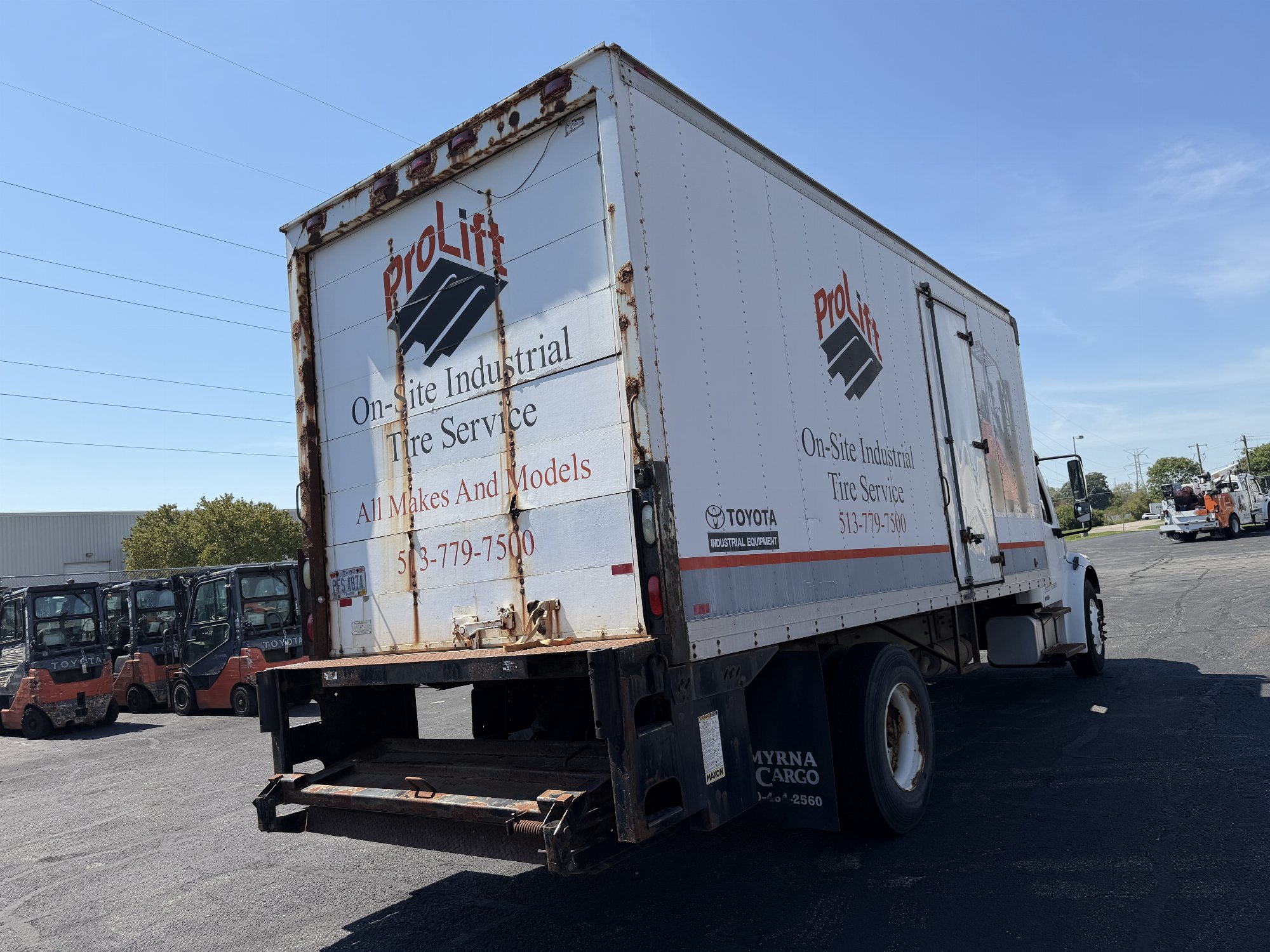

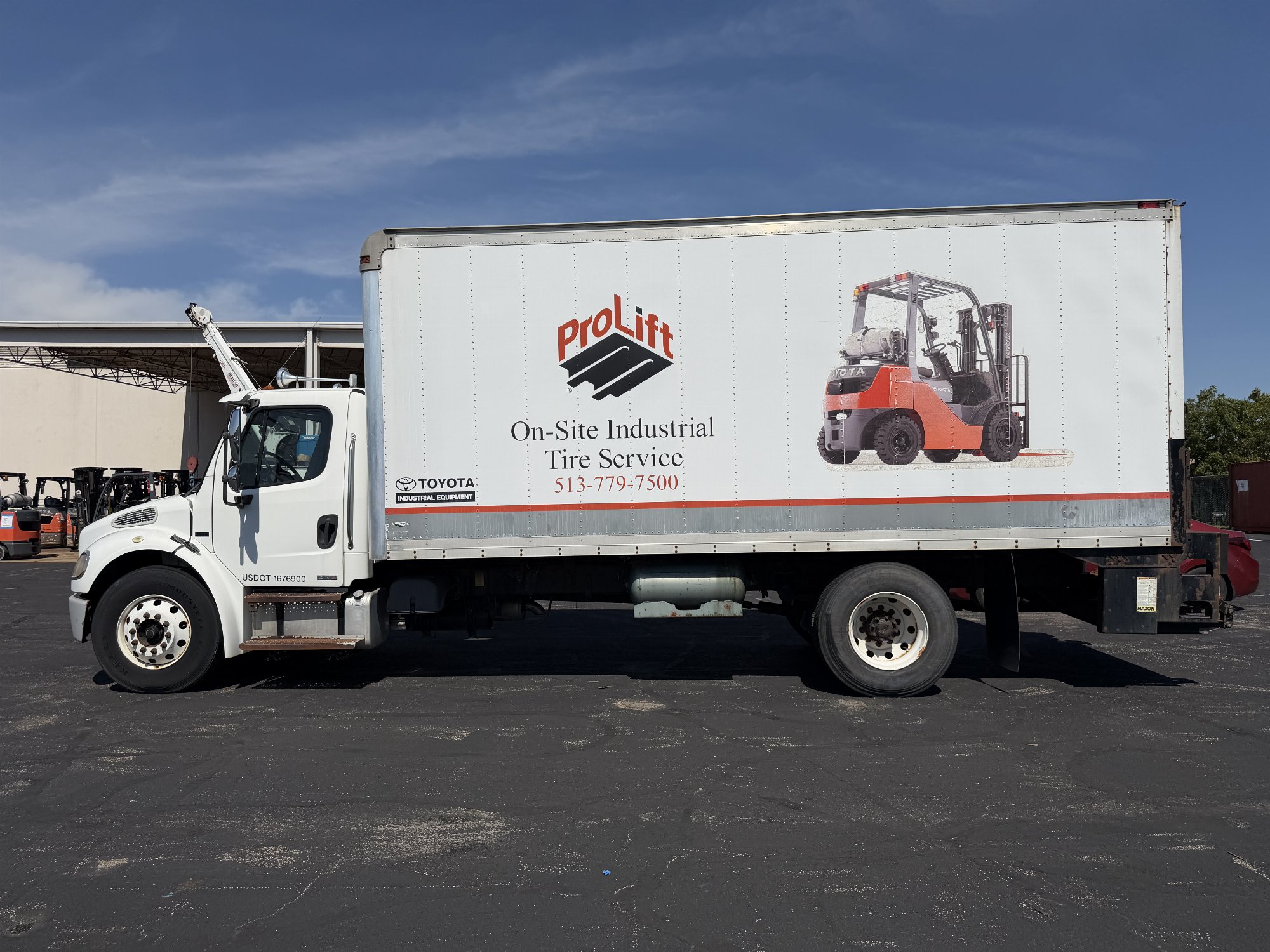

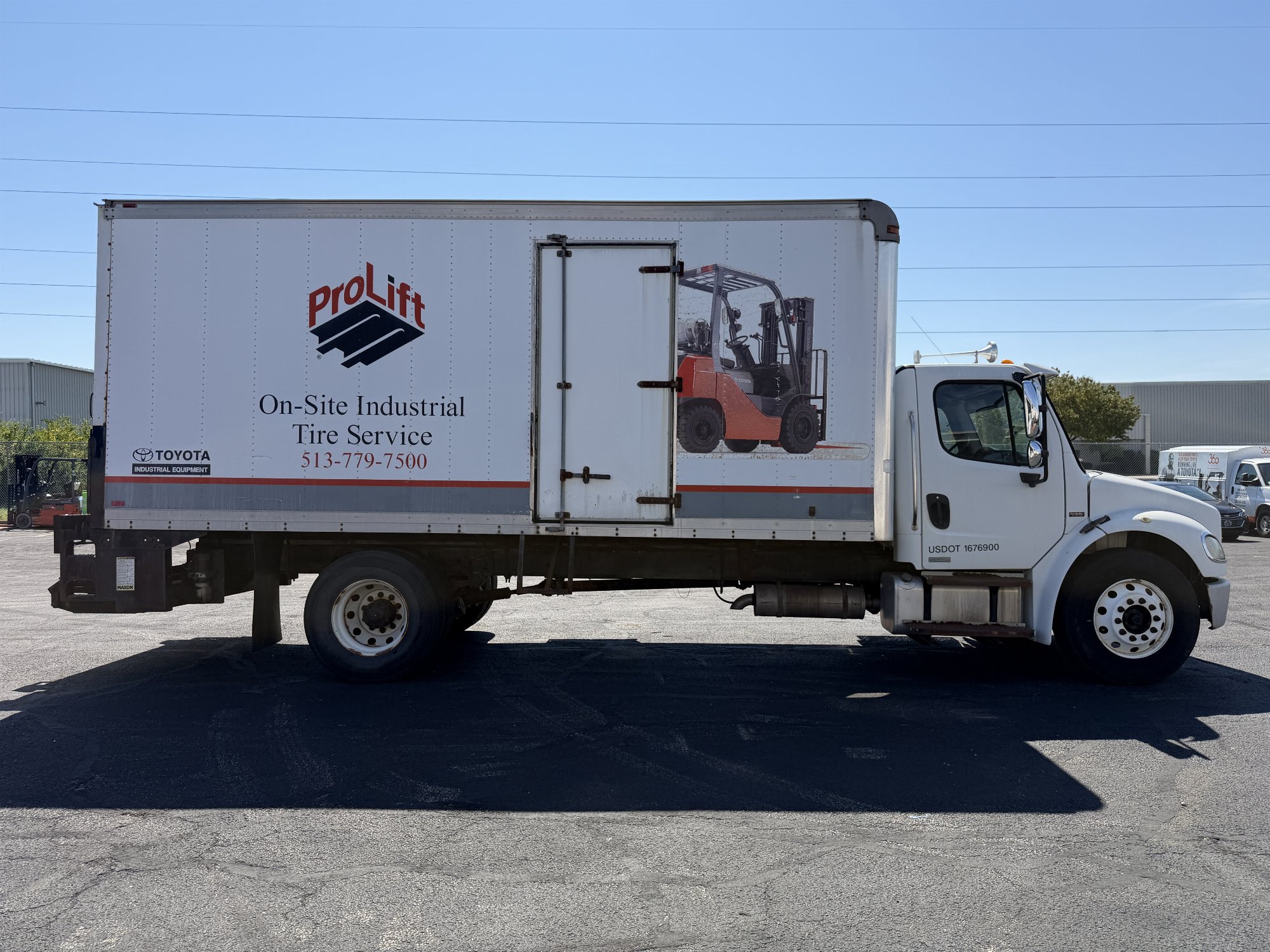

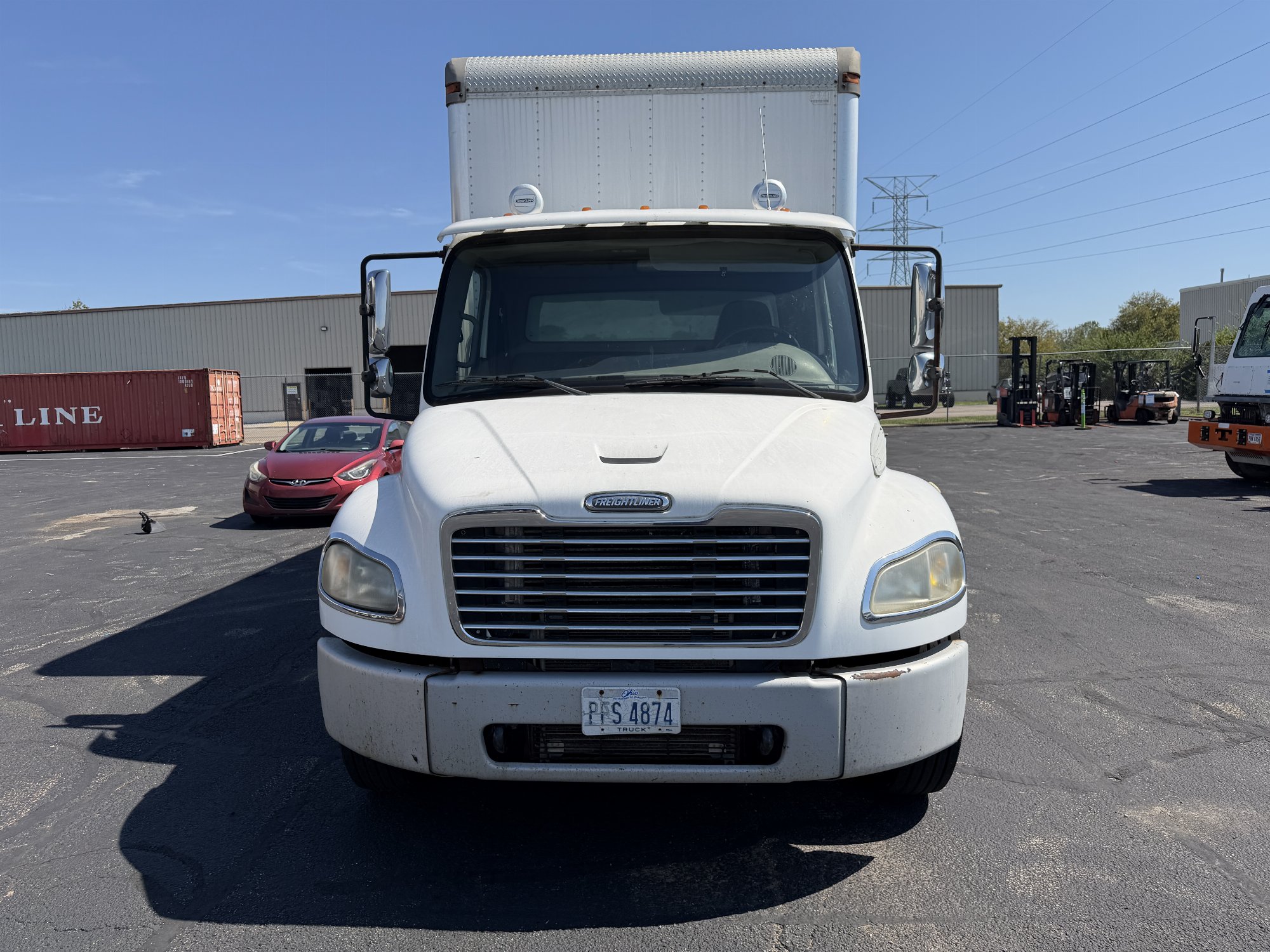

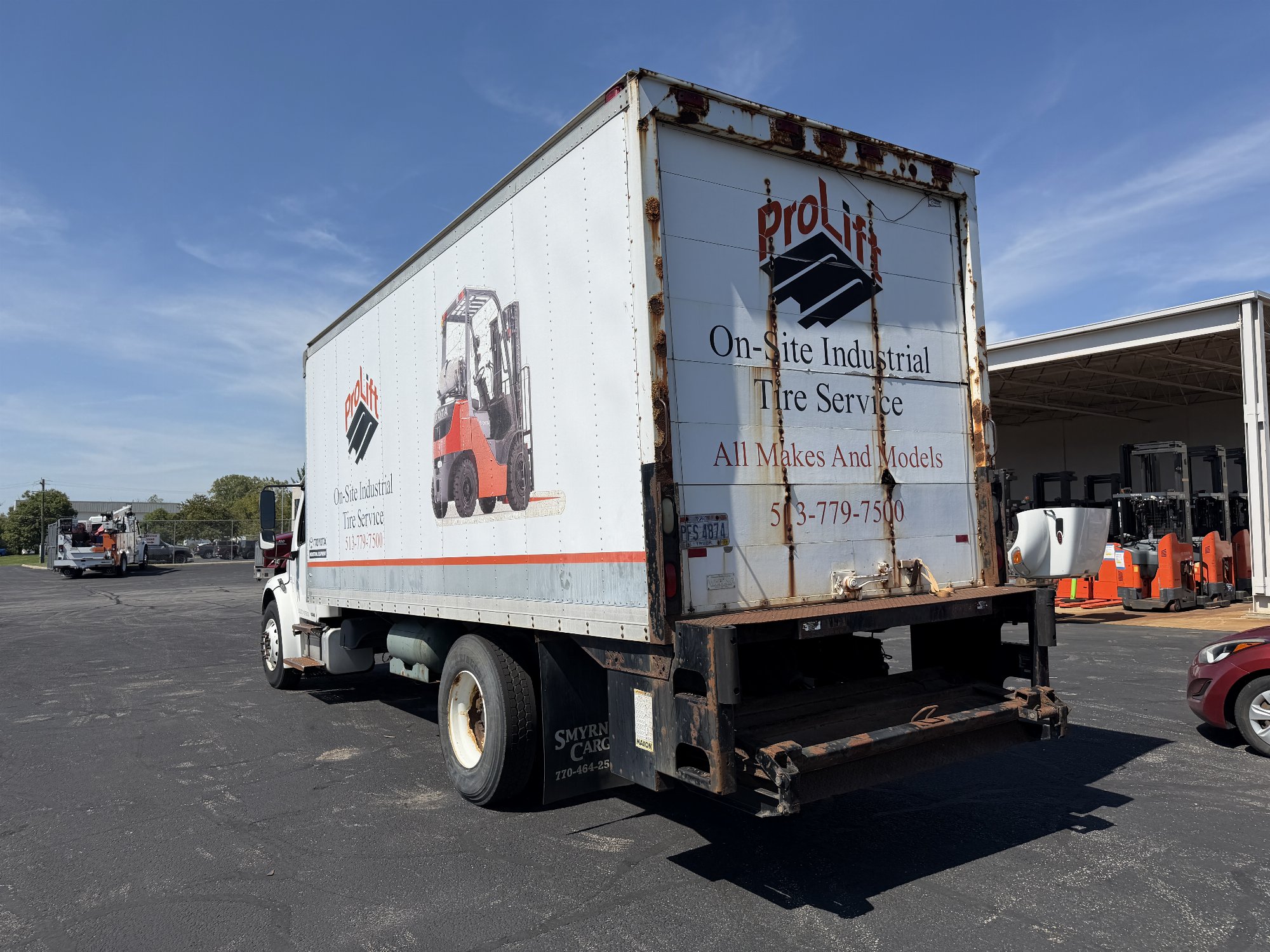

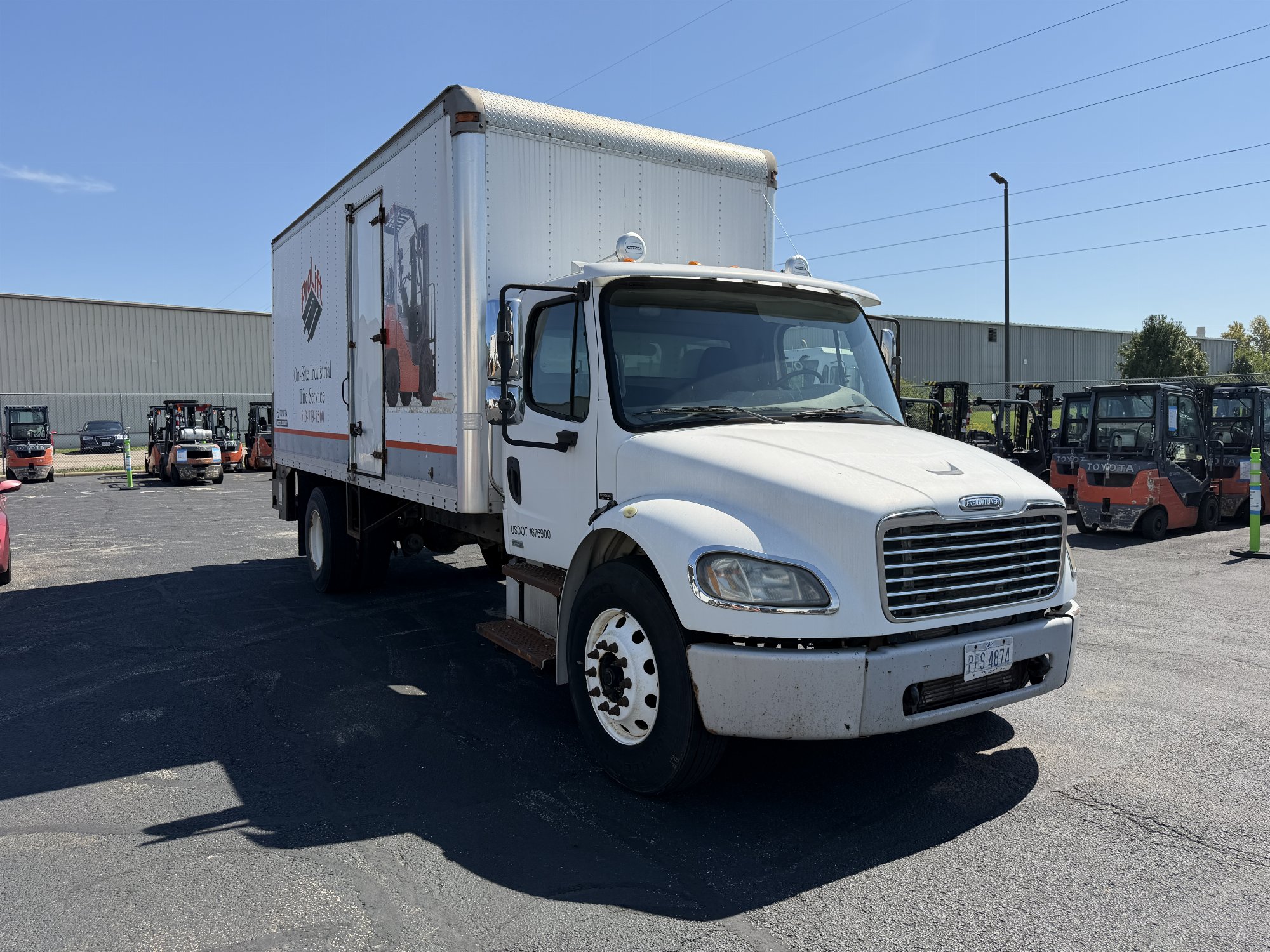

| 2007 FREIGHTLINER M2 |
|---|
| Specifications | |
|---|---|

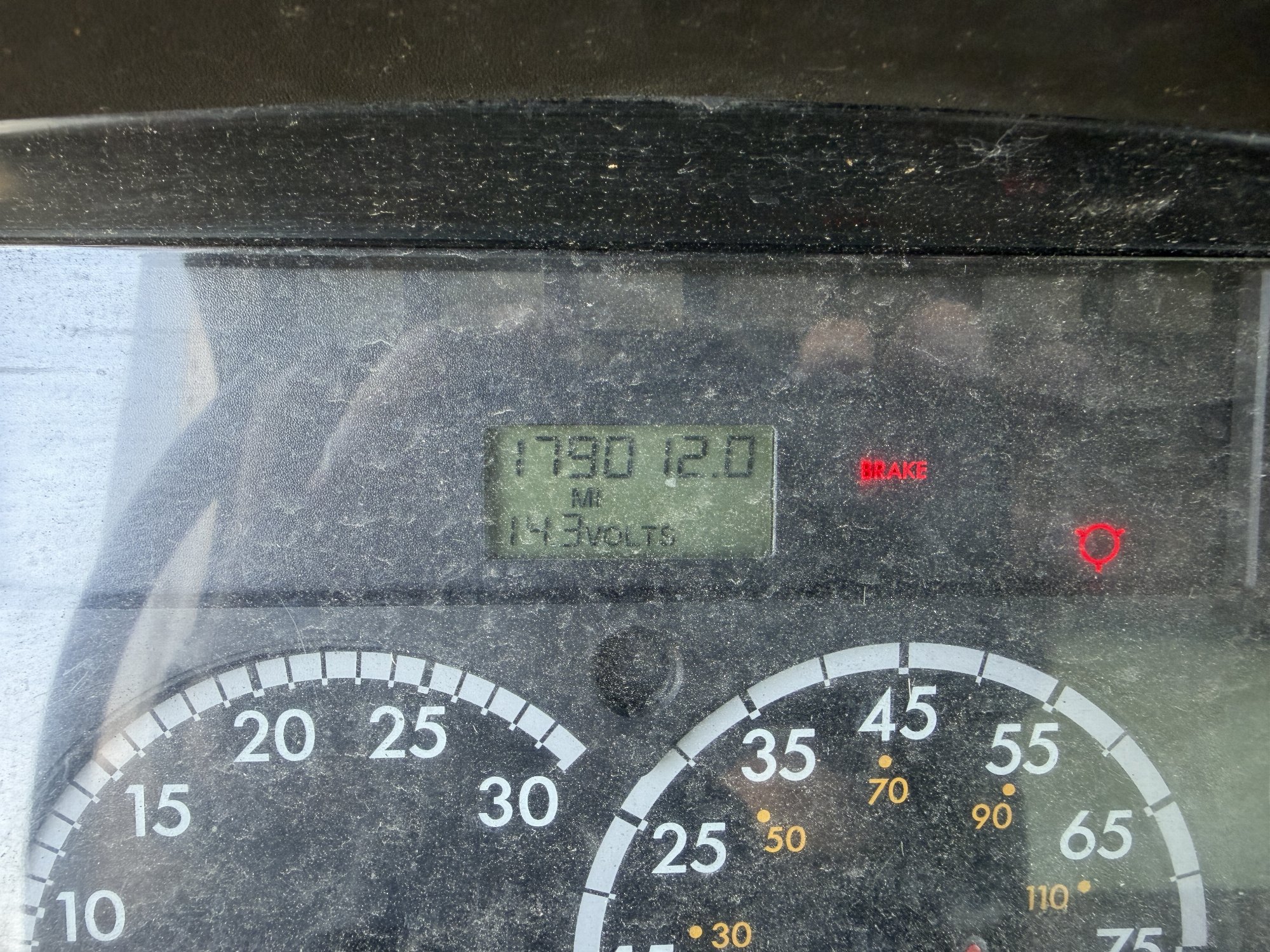

| Mileage | 179,012 |

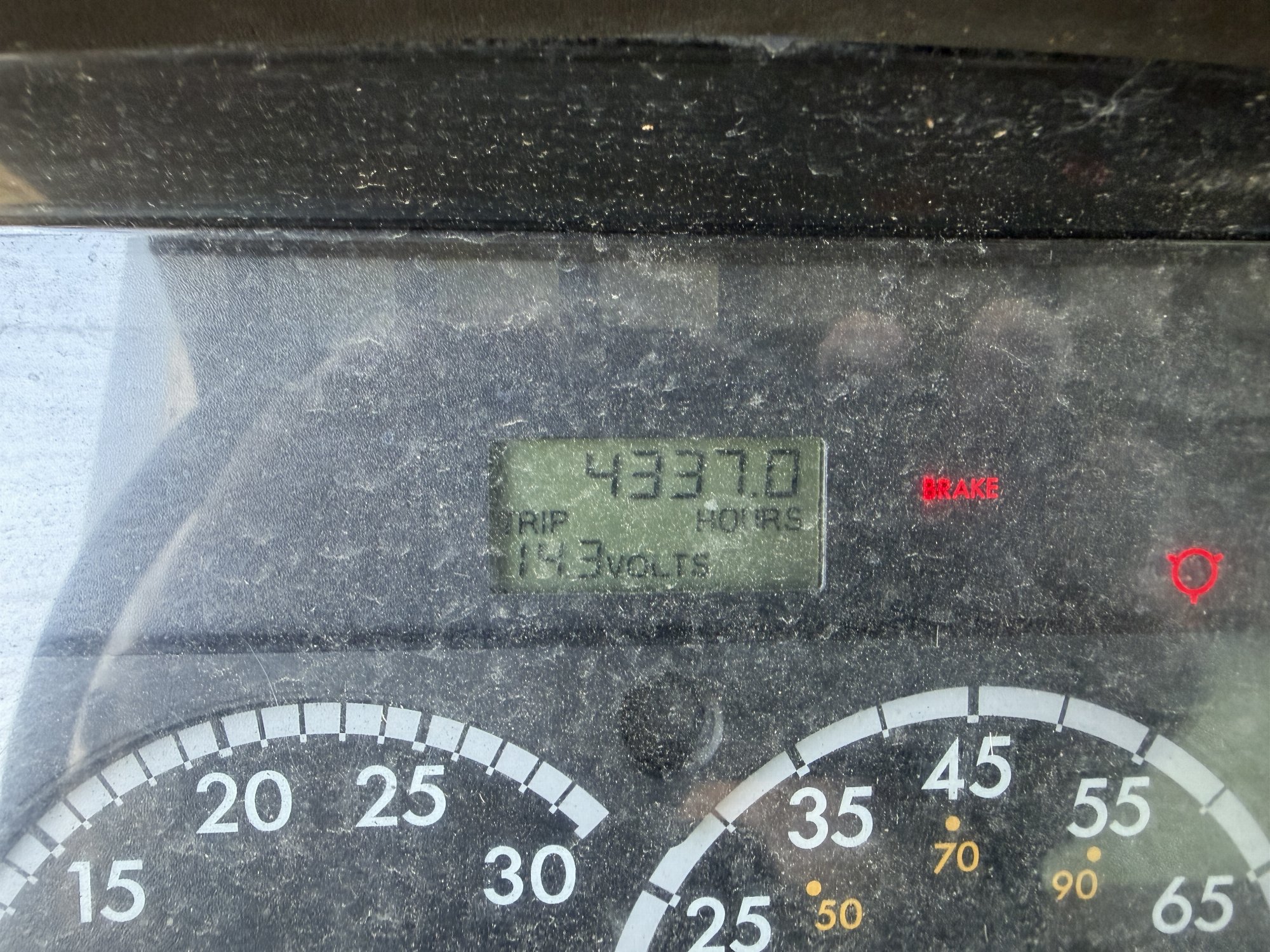

| Engine Hours | 4,337 |

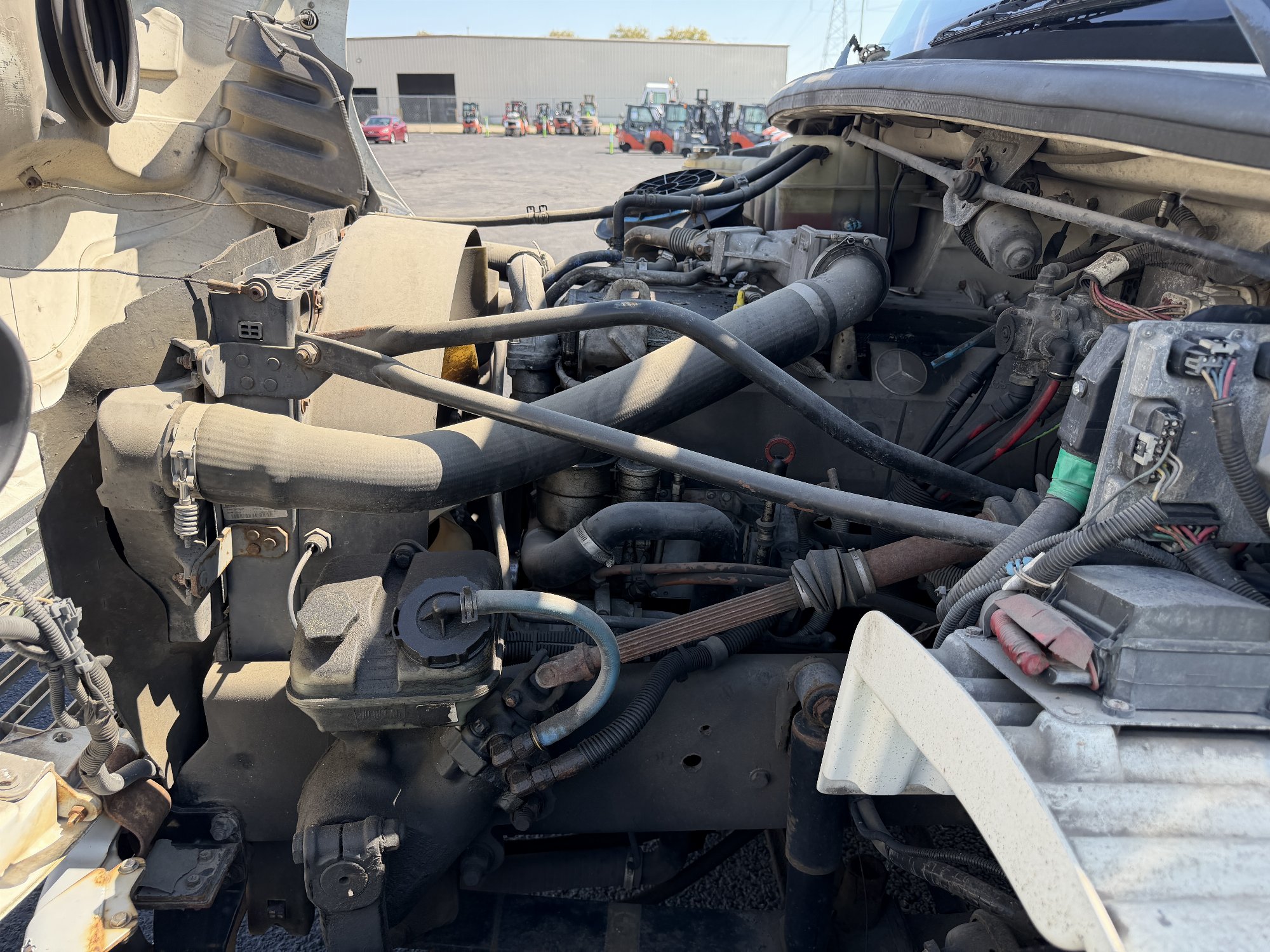

| Engine | MERCEDES MBE900-210 6.4L 210 HP |

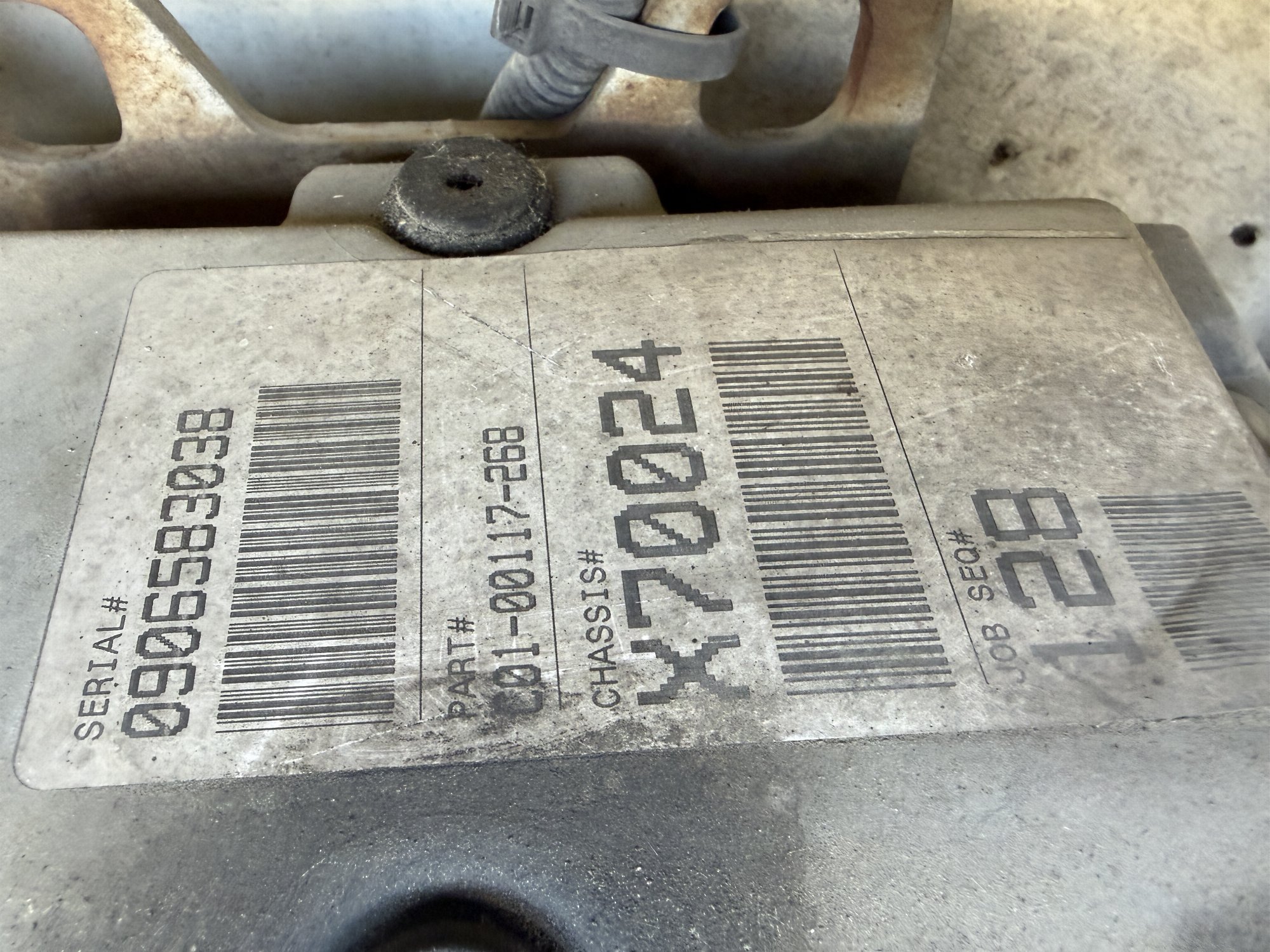

| Eng Serial | 0906583038 |

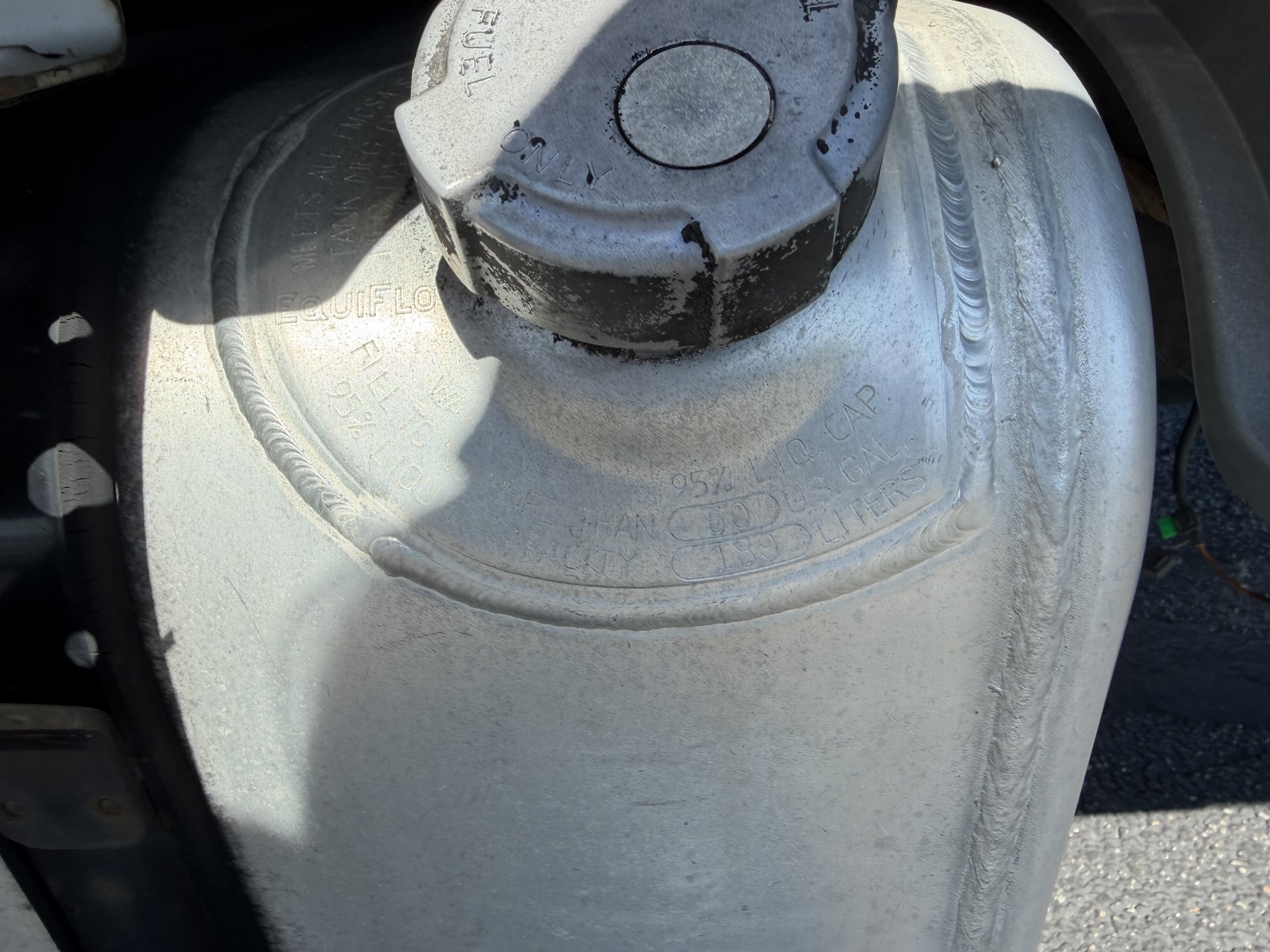

| Fuel / Tanks | DIESEL - 2 ALUM 100 GAL TOTAL |
| Transmission | ALLISON 2100 RDS 5 SPD AUTO |
| Drive Opts | POWER STEERING, OVERDRIVE, CRUISE |
| Rear End | AXLE ALLIANCE 4.78 |
| Axle Type | SINGLE - F 10,000 LB / R 17,500 LB |
| GVWR | 26,000 |
| Frame | STEEL |

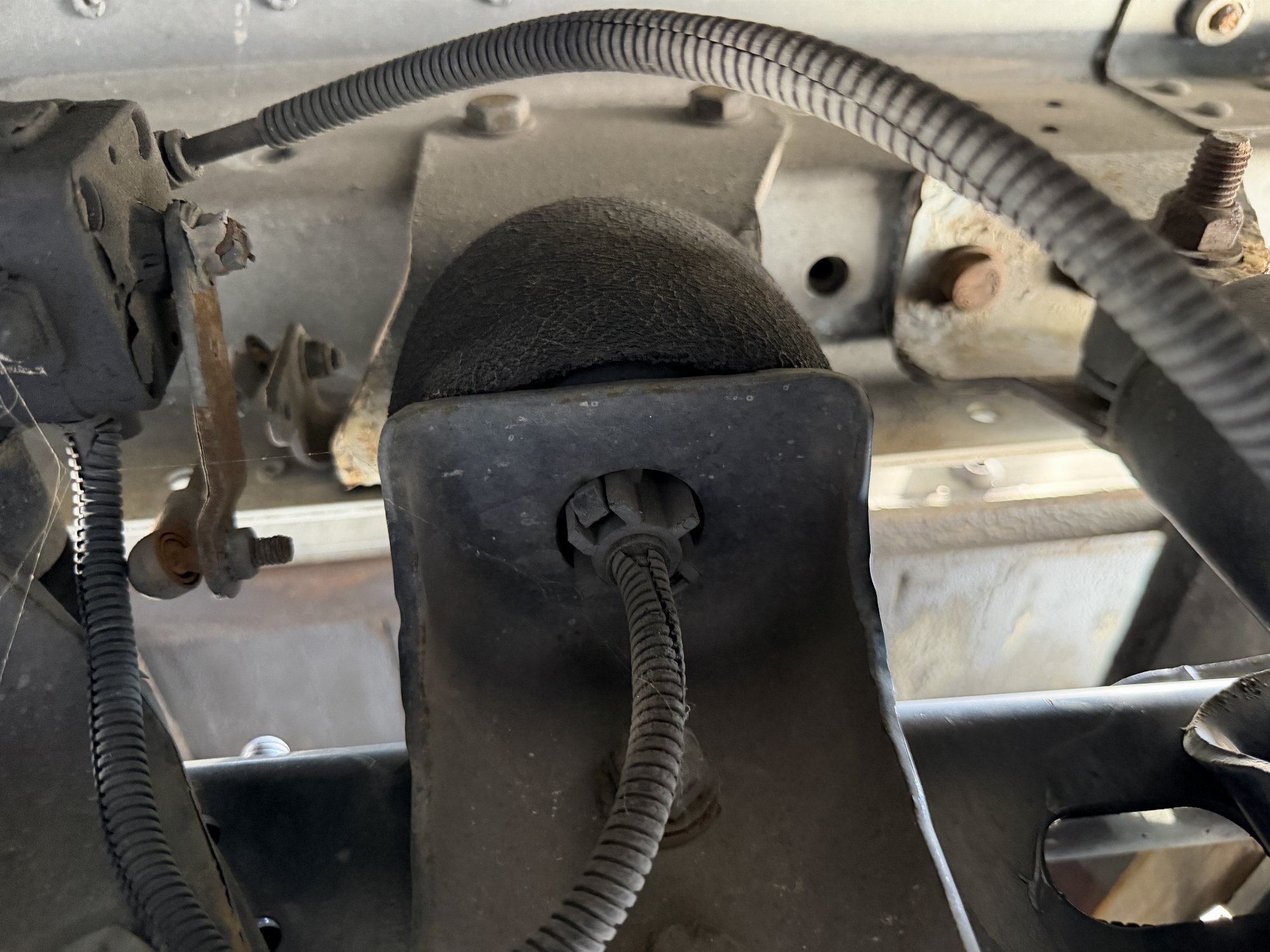

| Suspension | AIR RIDE |

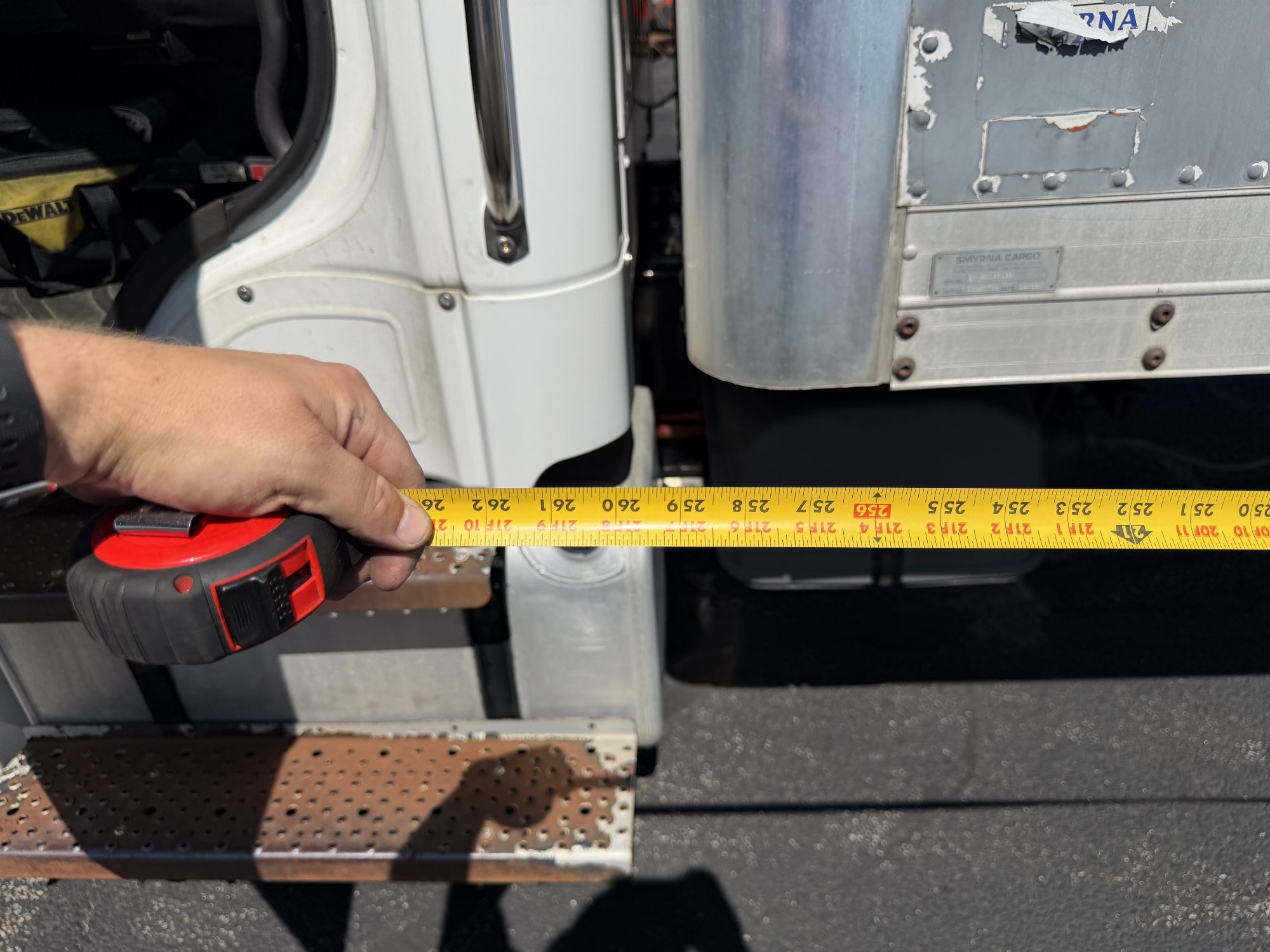

| Wheelbase | 258" |
| Tire Size | 11R22.5 |
| Wheels | F STEEL / R STEEL |
| Rear D Type | ROLL-UP |
| Side D Type | CURBSIDE |

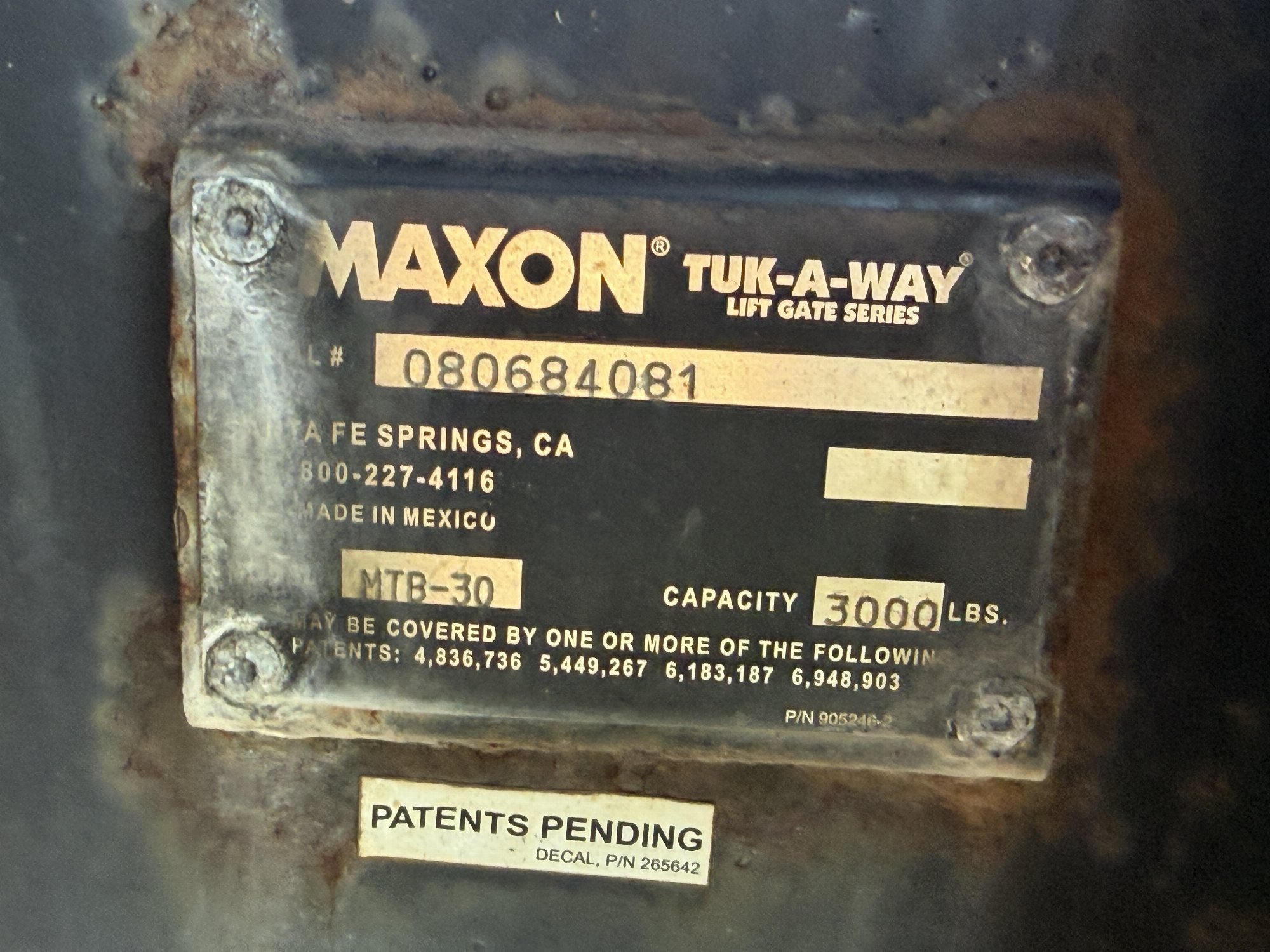

| Lift Gate Make | MAXON |
| Lift Gate Model | MTB-30 |
| Lift Gate Capac (lbs) | 3000 |

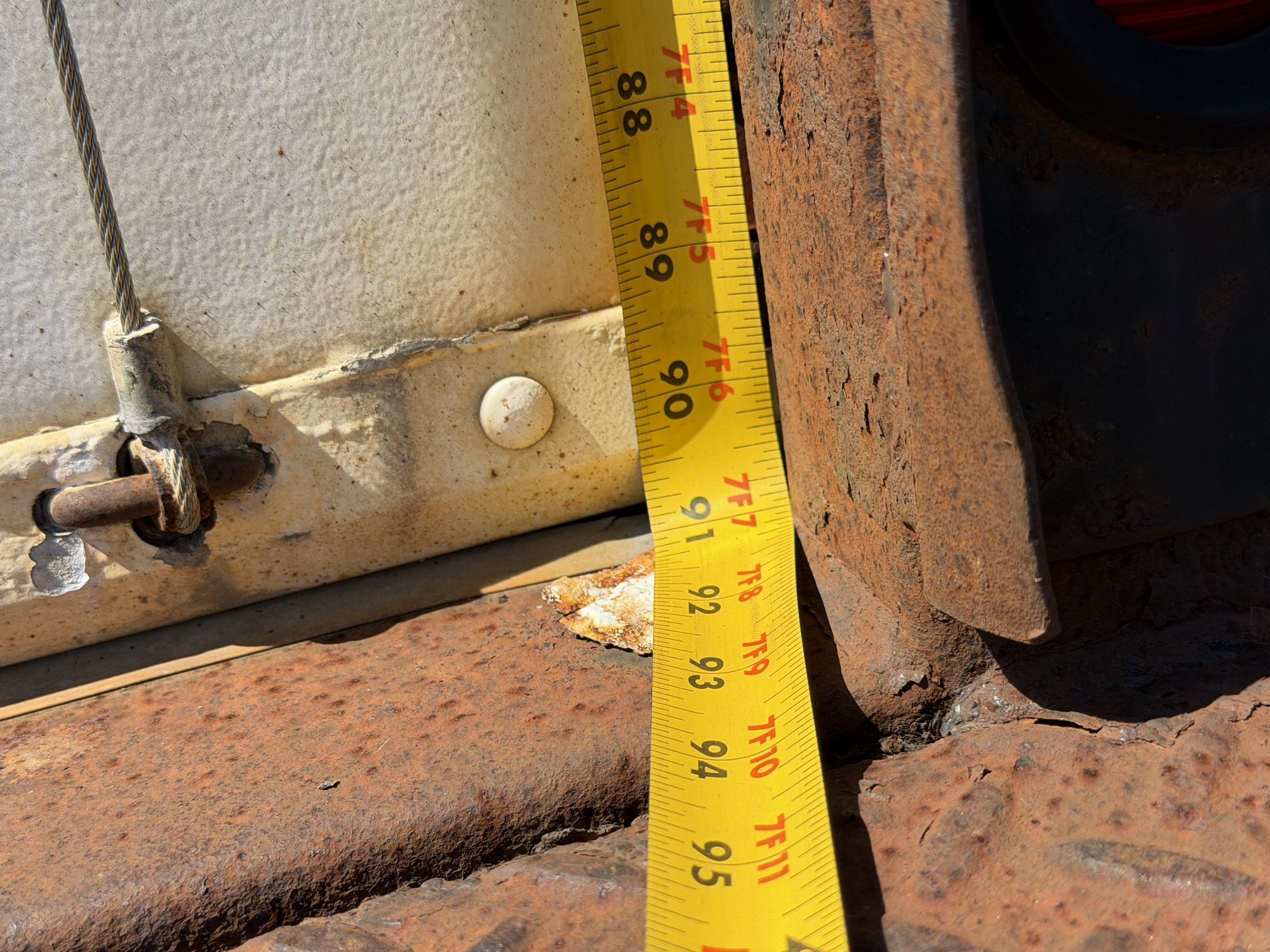

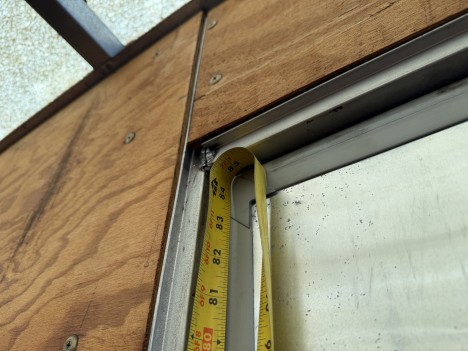

| Interior H (In) | 96 |

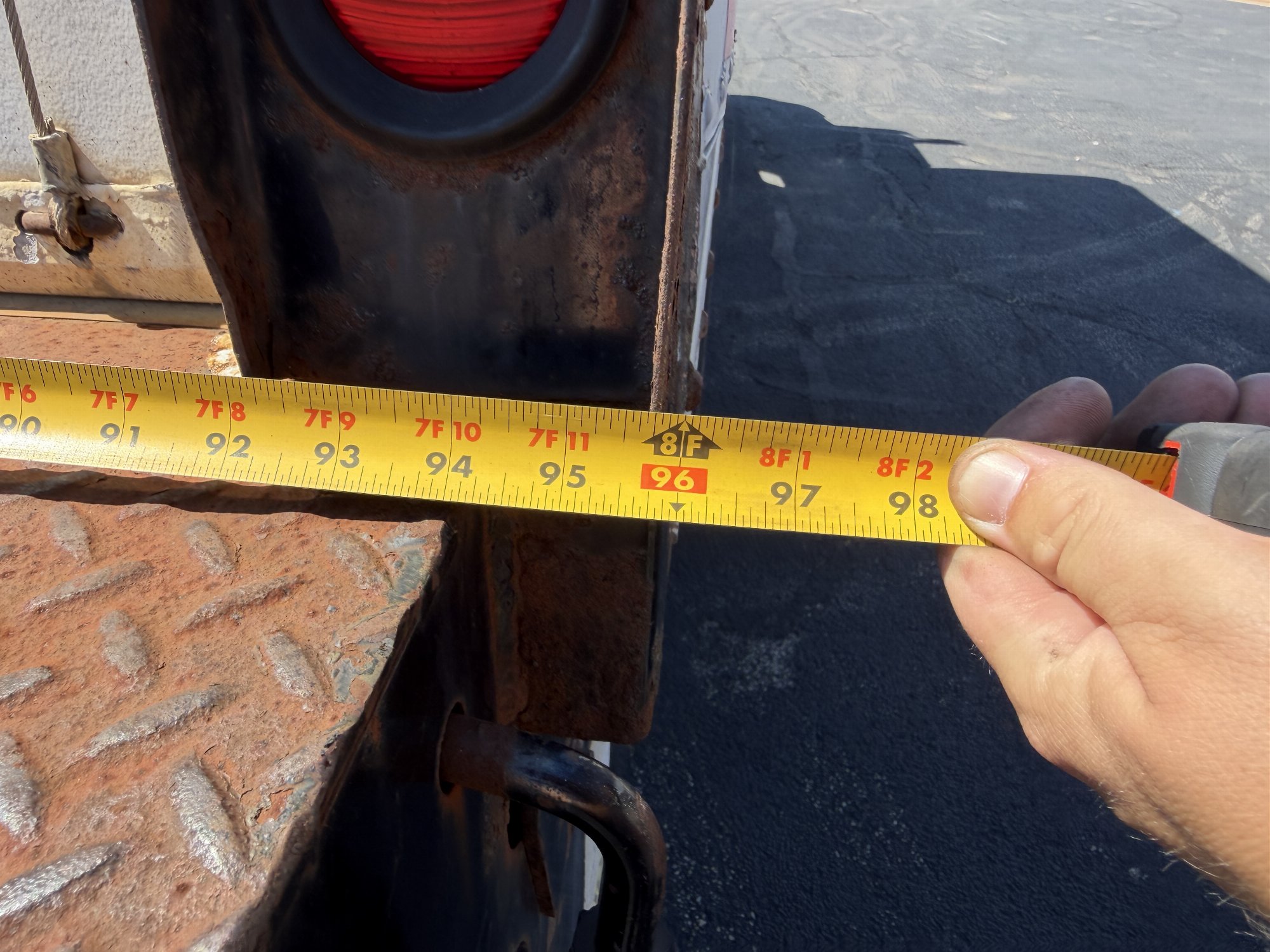

| Exterior W (In) | 96 |
| Exterior L (Ft) | 20.0 |
| Air Cond | YES, NOT OPERATIONAL |
| Interior Color | GREY |
| Radio | AM/FM / BLUETOOTH, OPERATIONAL |
| High Back Seats | DRIVER SIDE ONLY |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | PAINTED |

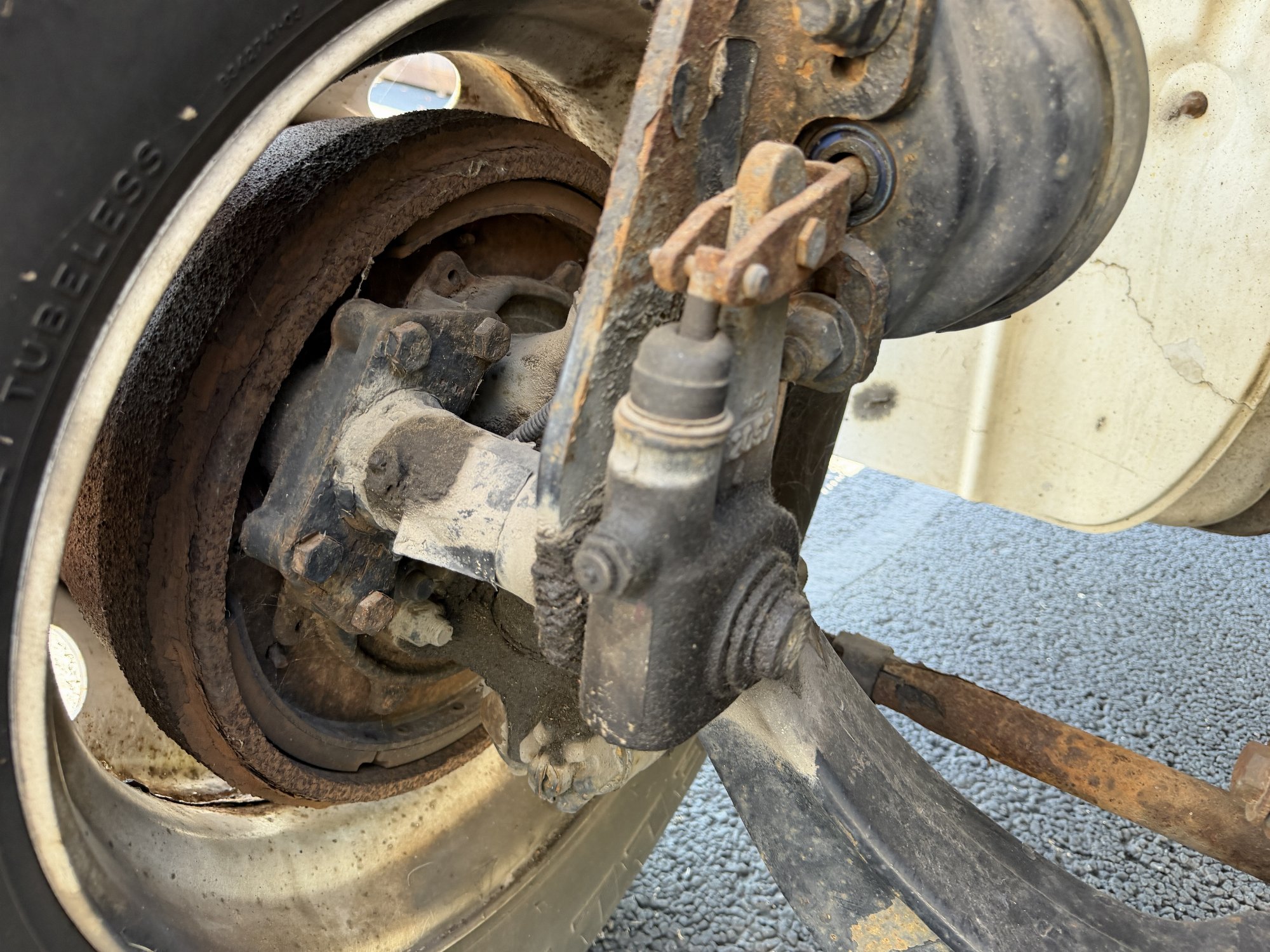

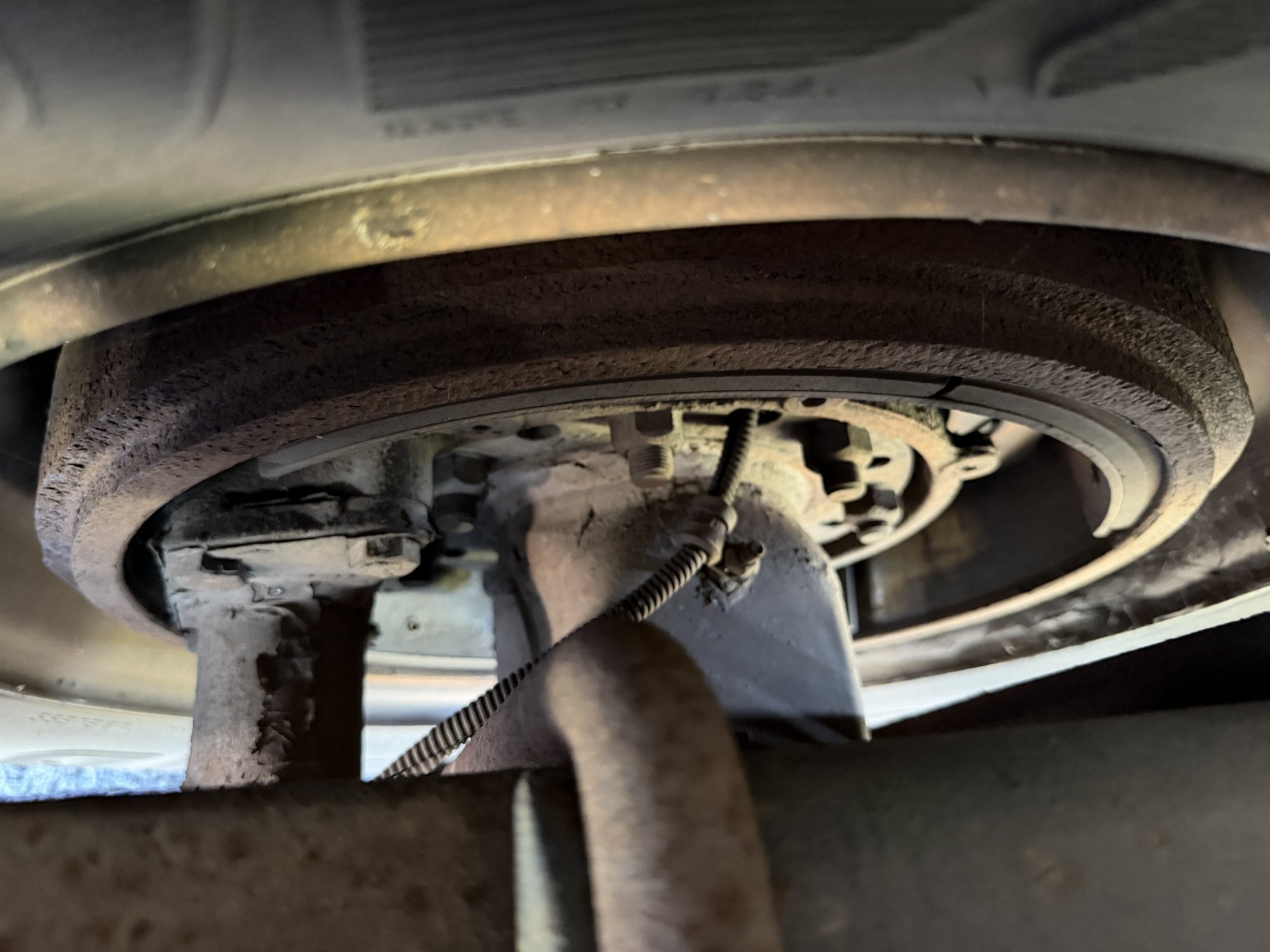

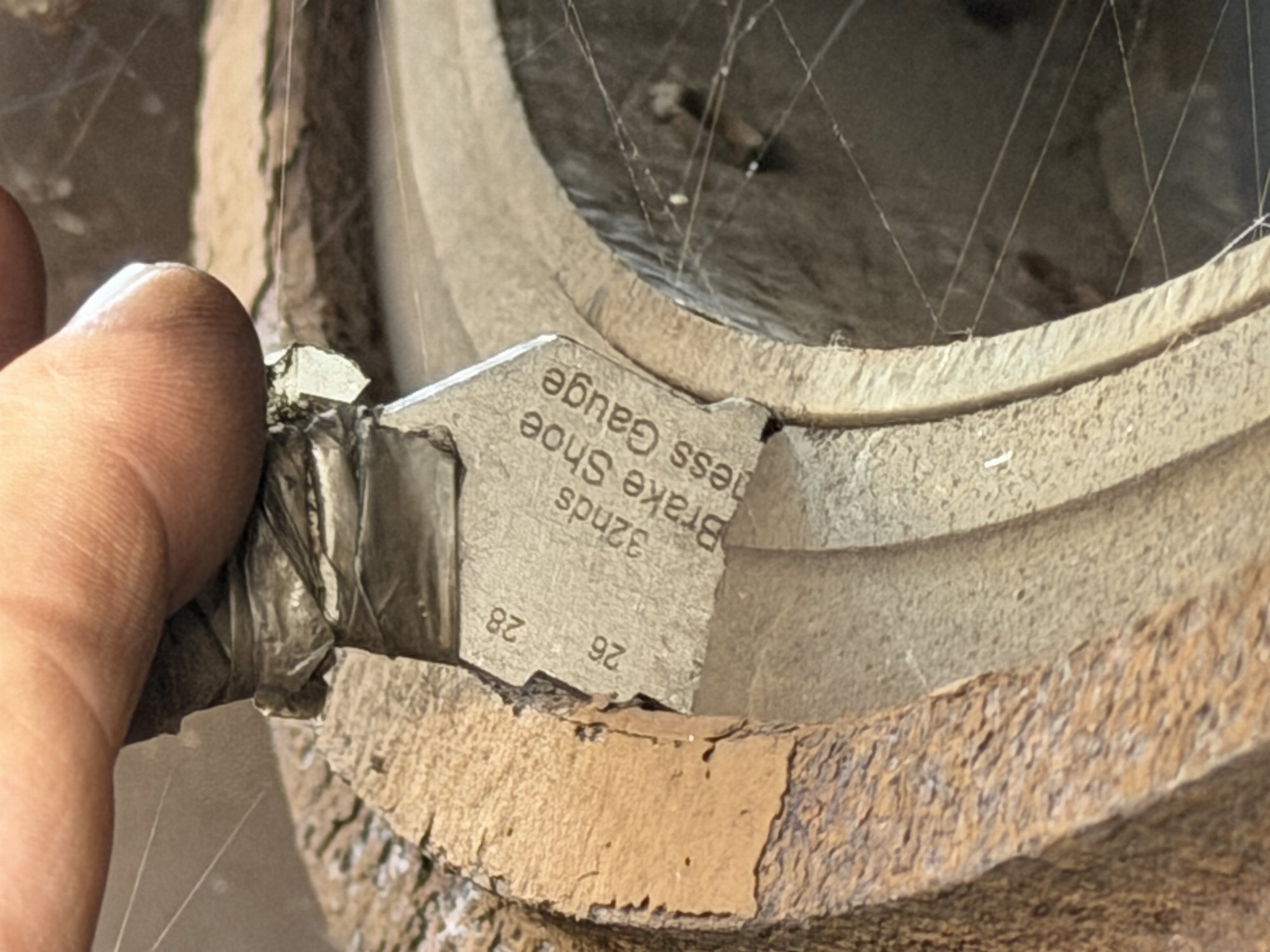

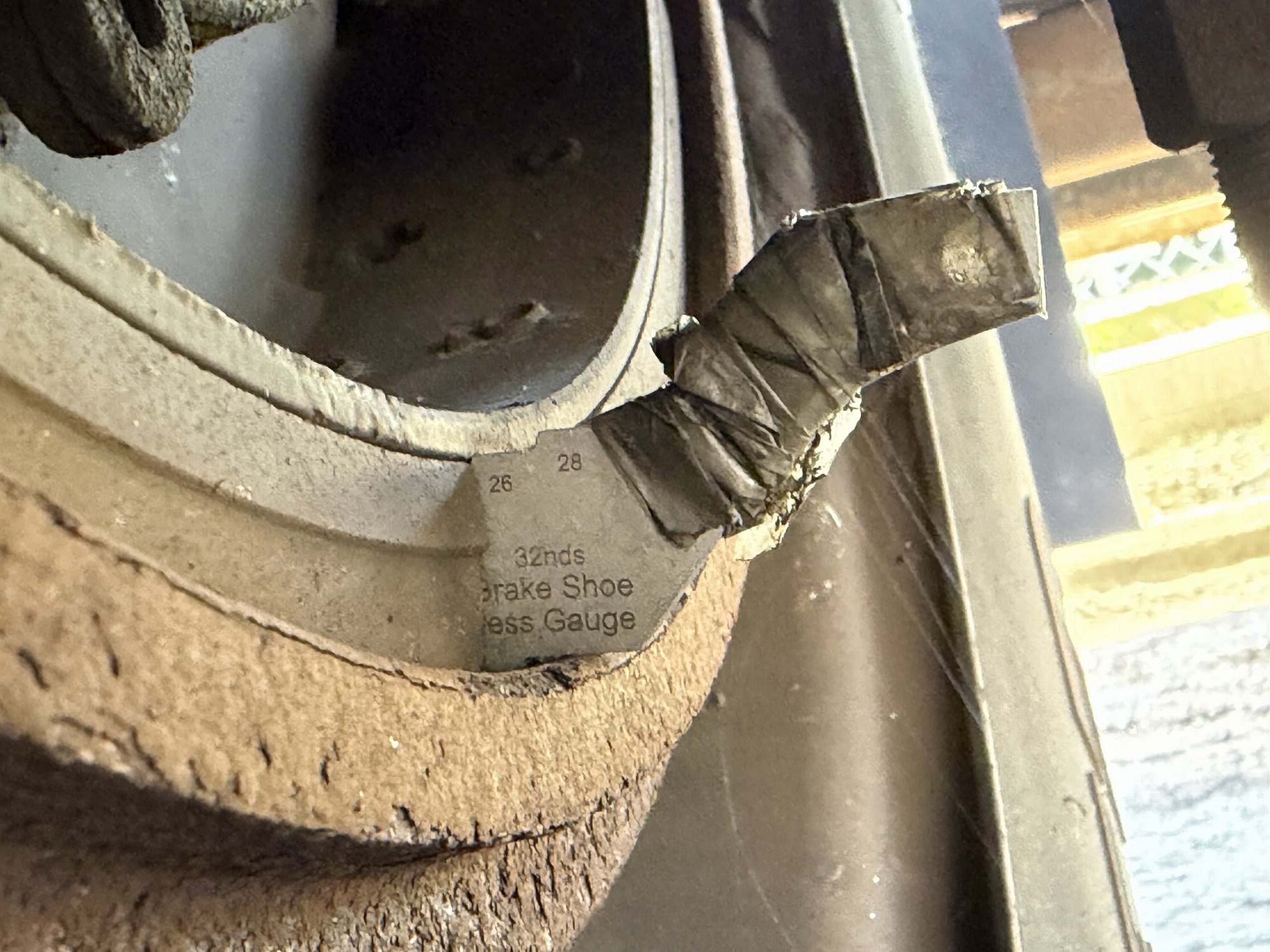

| Brakes | |
|---|---|
| Left Front20 | Right Front22 |
| Left Rear 124 | Right Rear 126 |

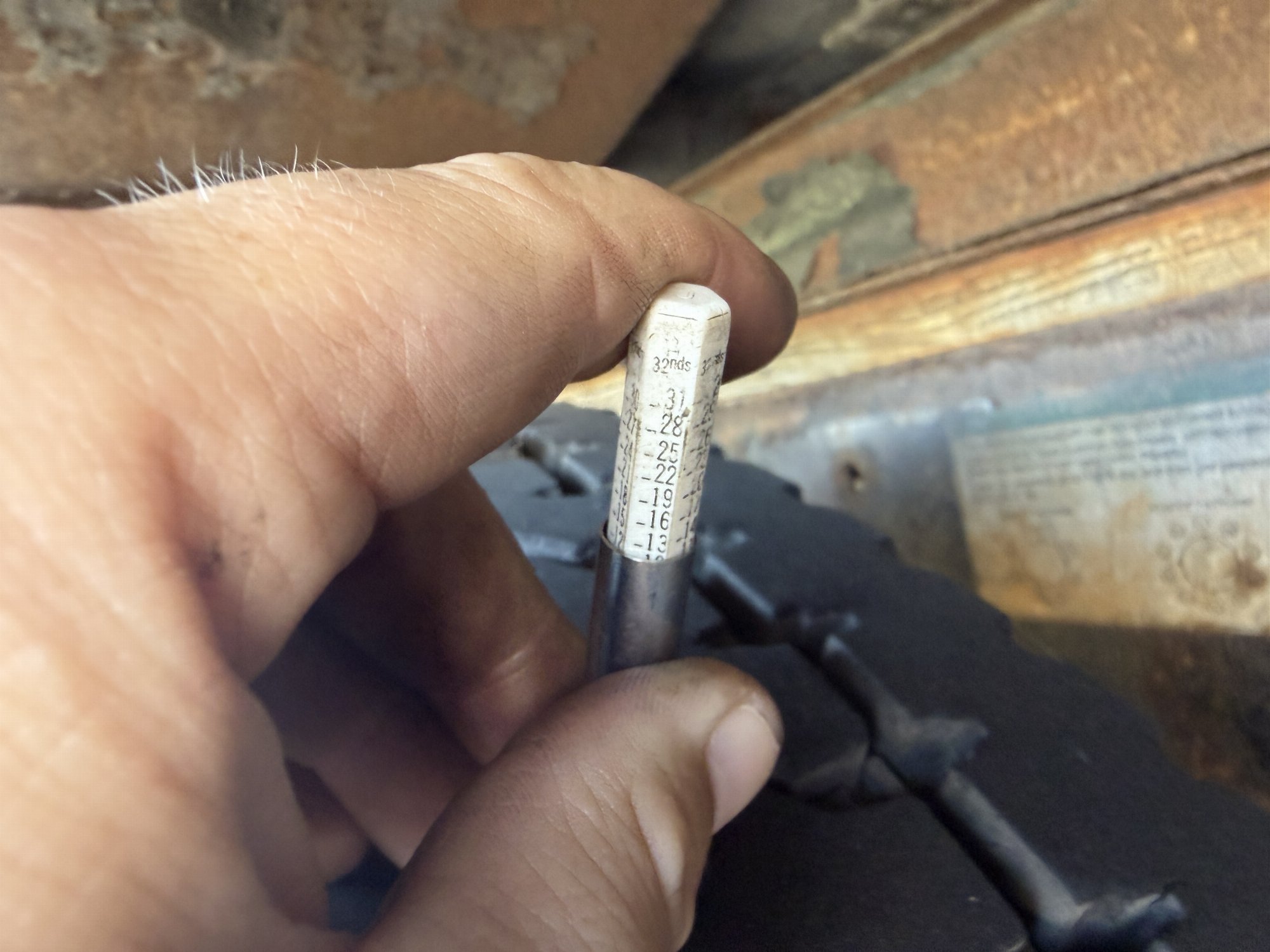

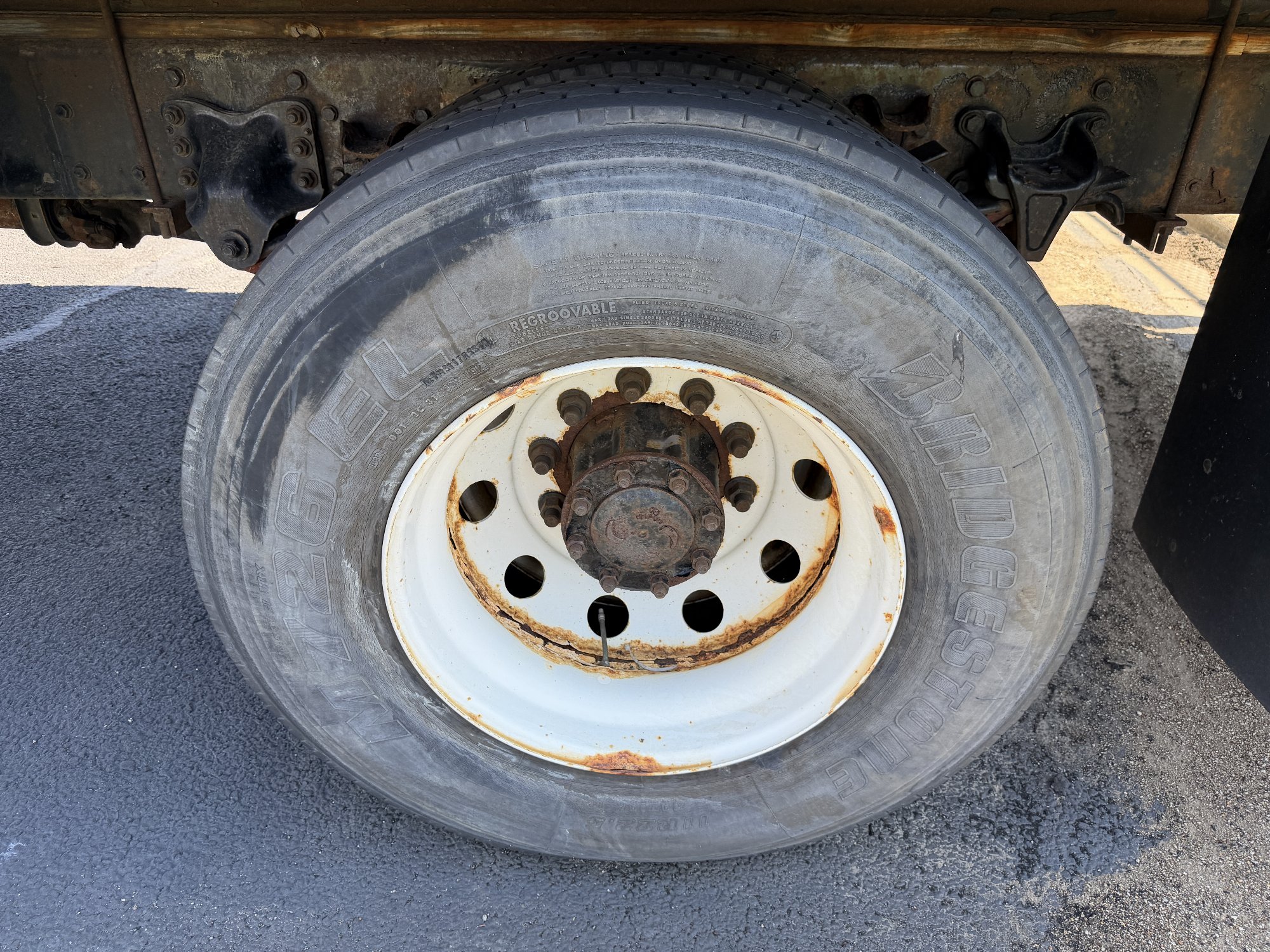

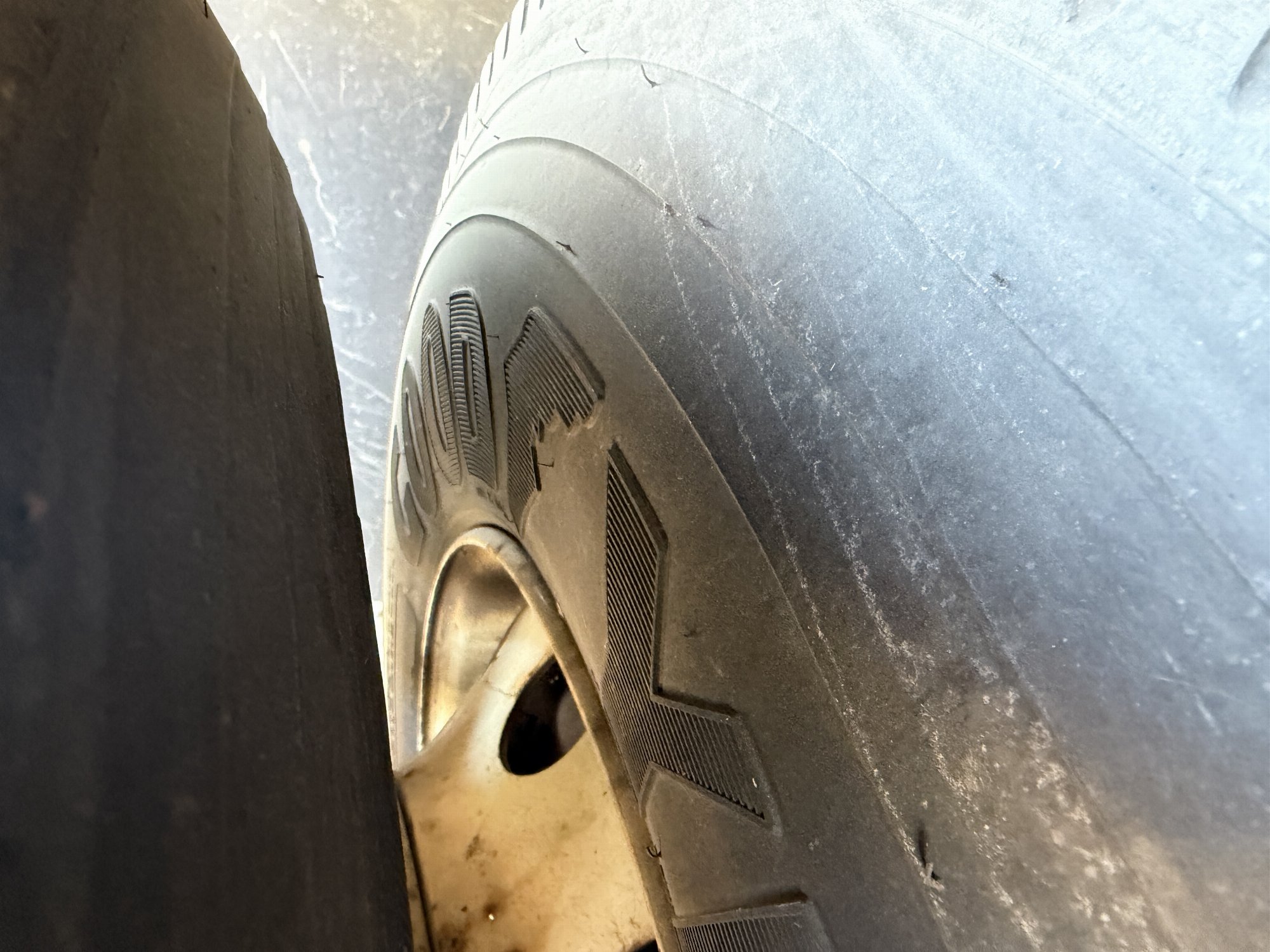

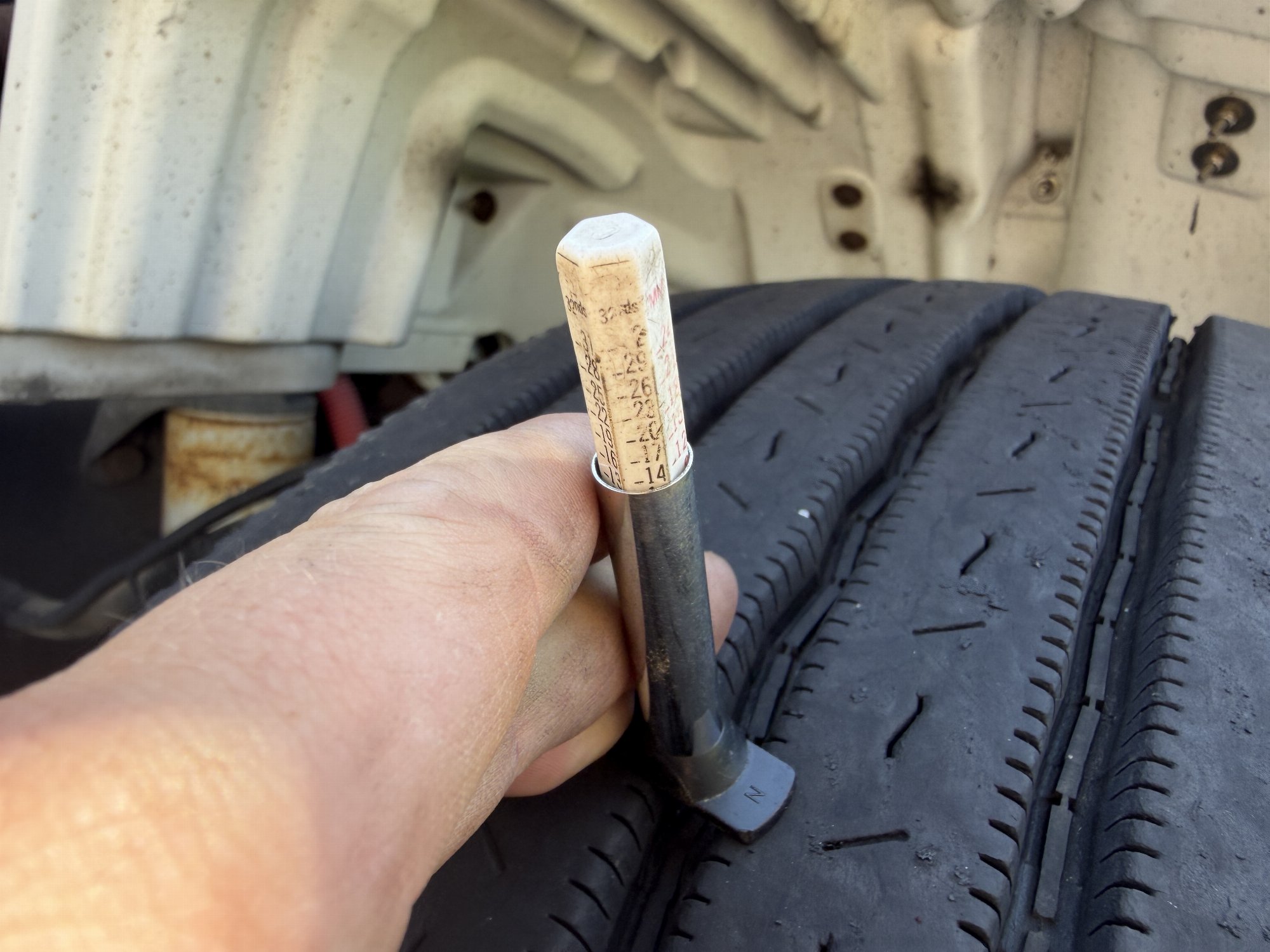

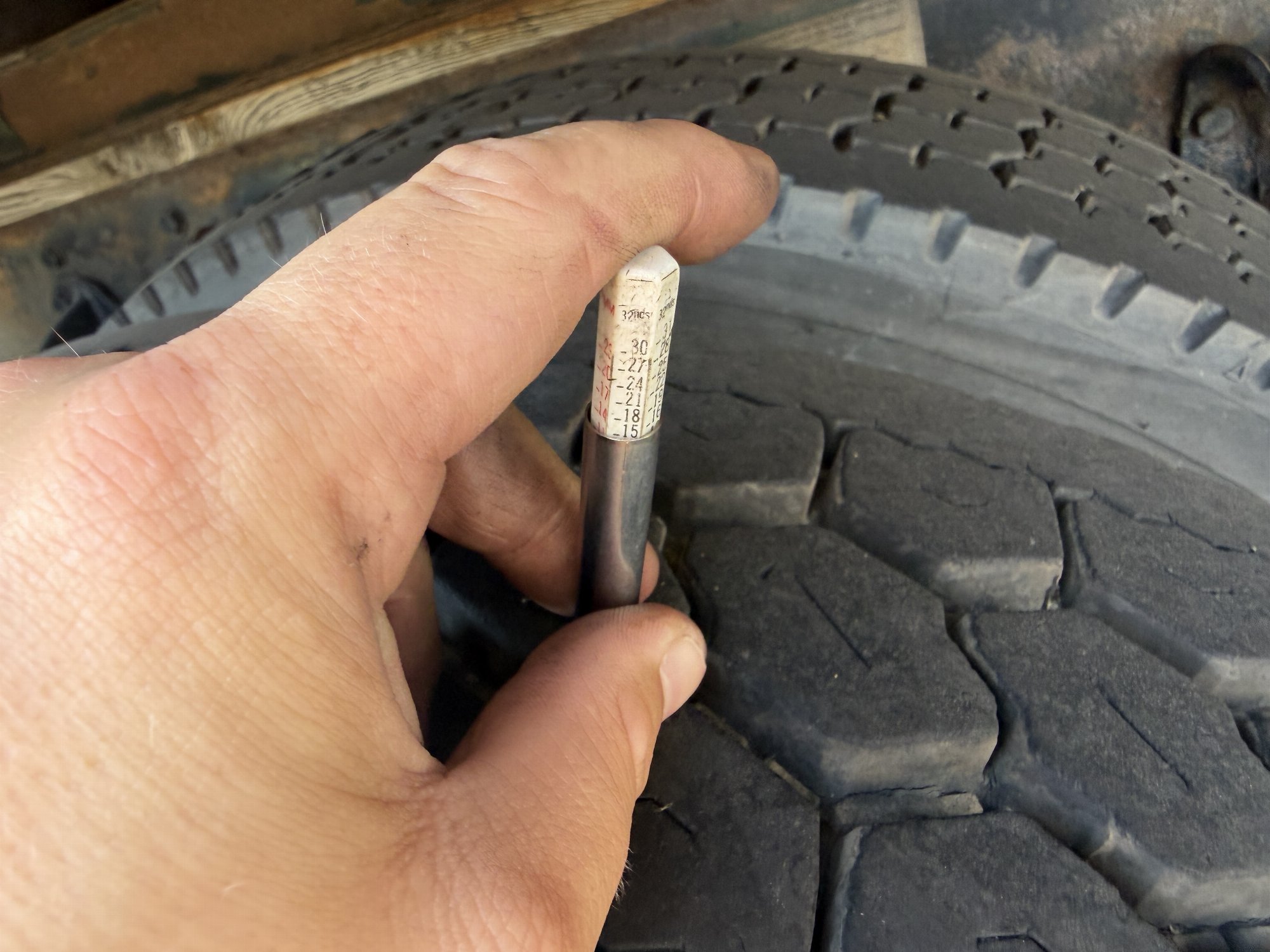

| Tires & Wheels | |||
|---|---|---|---|
|

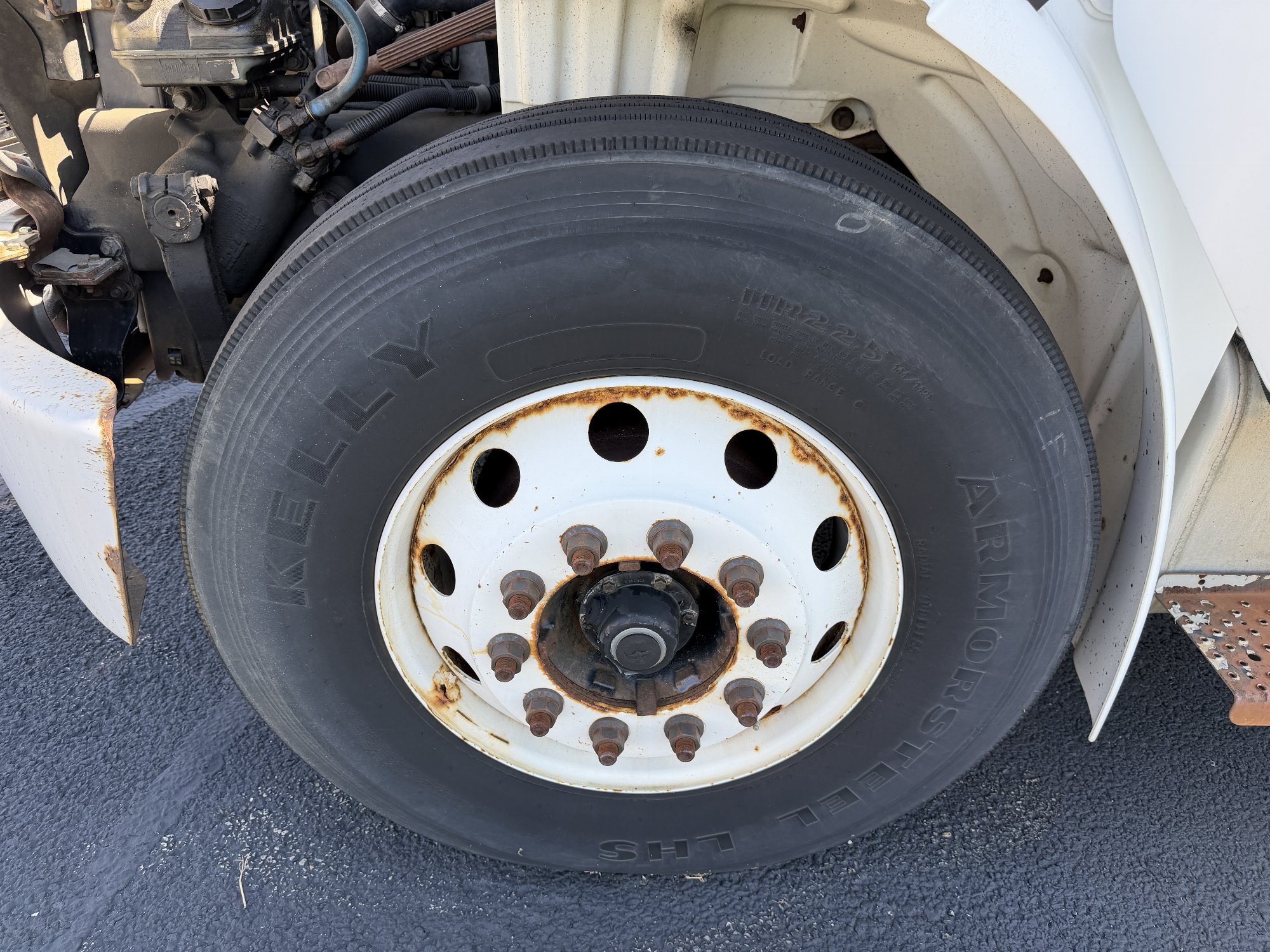

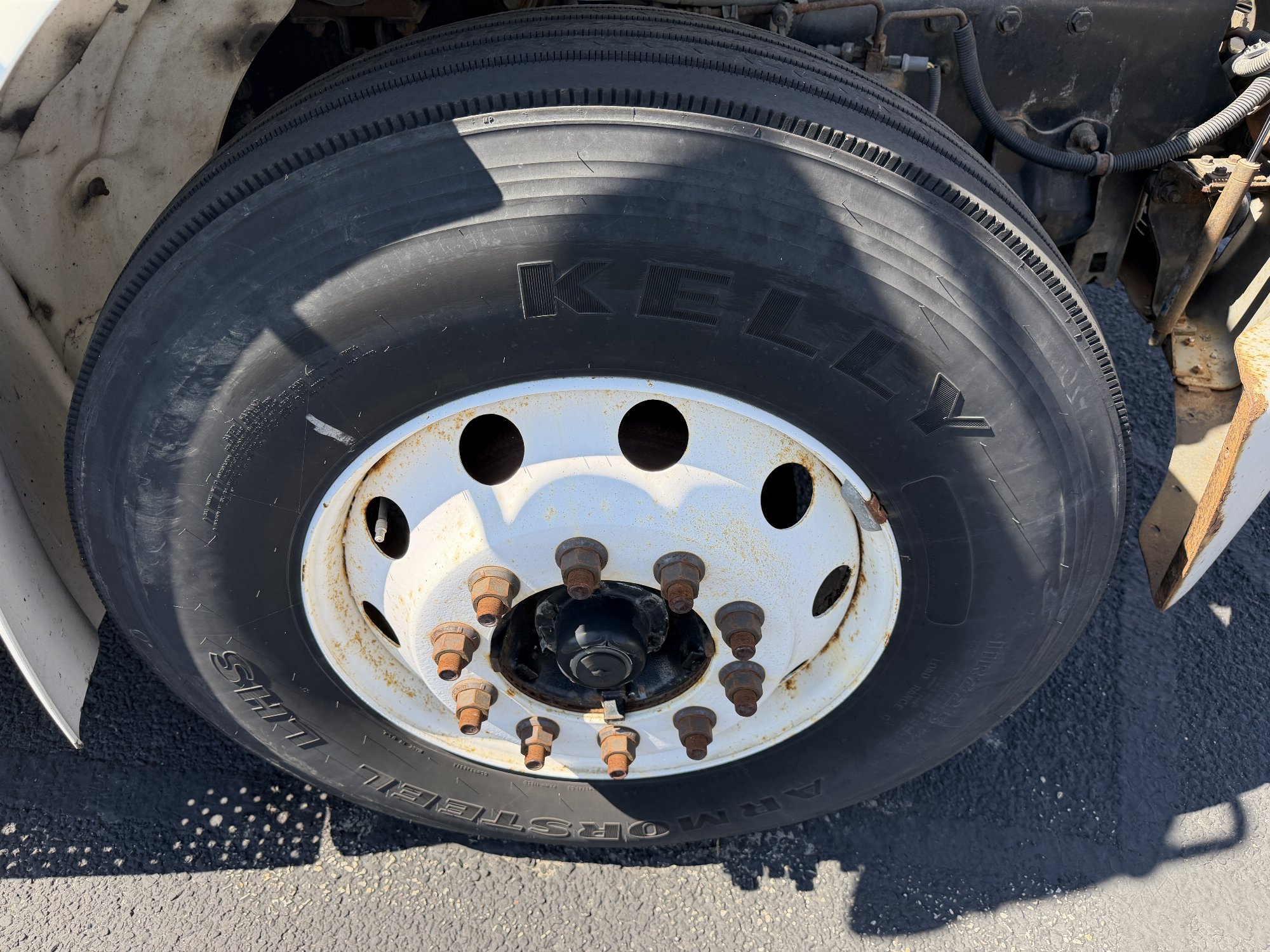

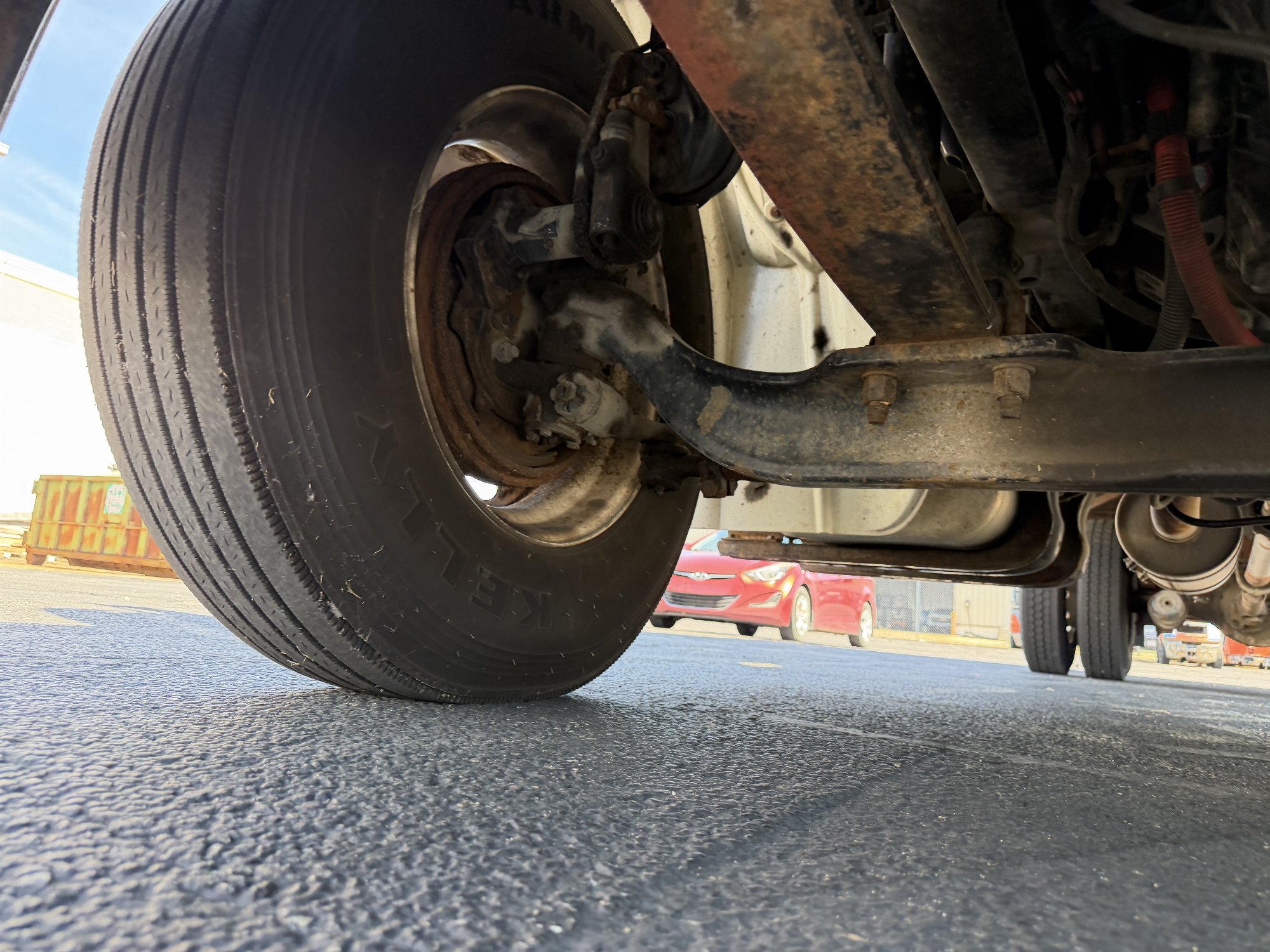

Left Front13 / 32 Kelly Steel |
Right Front12 / 32 Kelly Steel |
||
|
Left Outer 115 / 32 Bridgestone Steel |
Left Inner 111 / 32 Goodyear Steel |
Right Inner 111 / 32 Goodyear Steel |
Right Outer 115 / 32 Goodyear Steel |
| FRONT TIRES: 11R22.5 | REAR TIRES: 11R22.5 | ||
| General Observations |
|---|

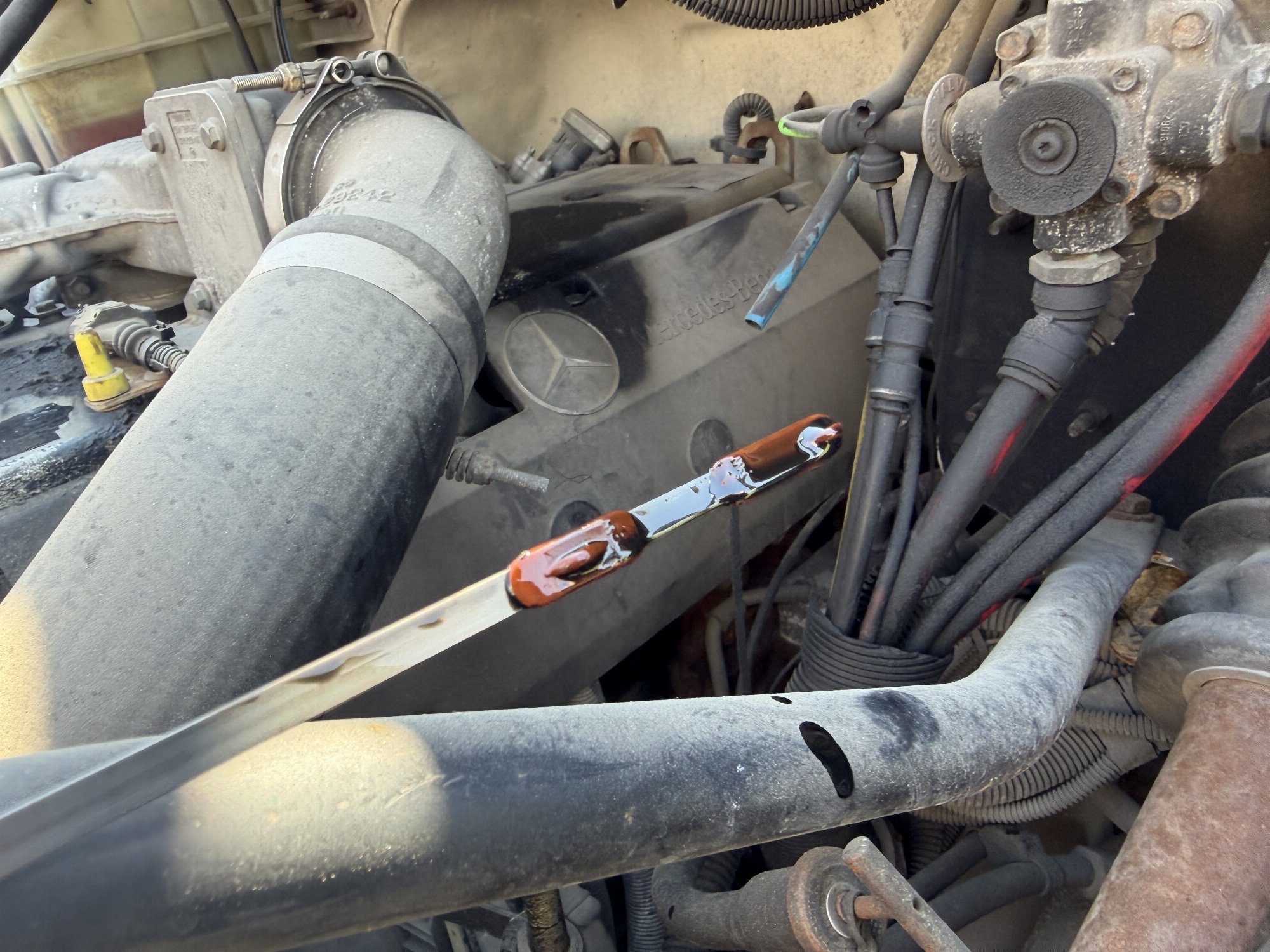

| Oil Milky? | No |
|---|---|
| Oil Leaks? | Yes |
| Coolant Leaks? | No |
| Oil in Coolant? | No |
| Clutch Play? | NA |
| Starts? | See Notes |
| Drives | Yes |
| Lights Work? | Yes - All |
|---|---|
| Wipers Work? | Yes |
| Gauges Work? | Yes - All |
| Air Horn Works? | Yes |
| City Horn Works? | Yes |
| Aftertreatment System | PASS |
|---|
| Additional Observations |
|---|

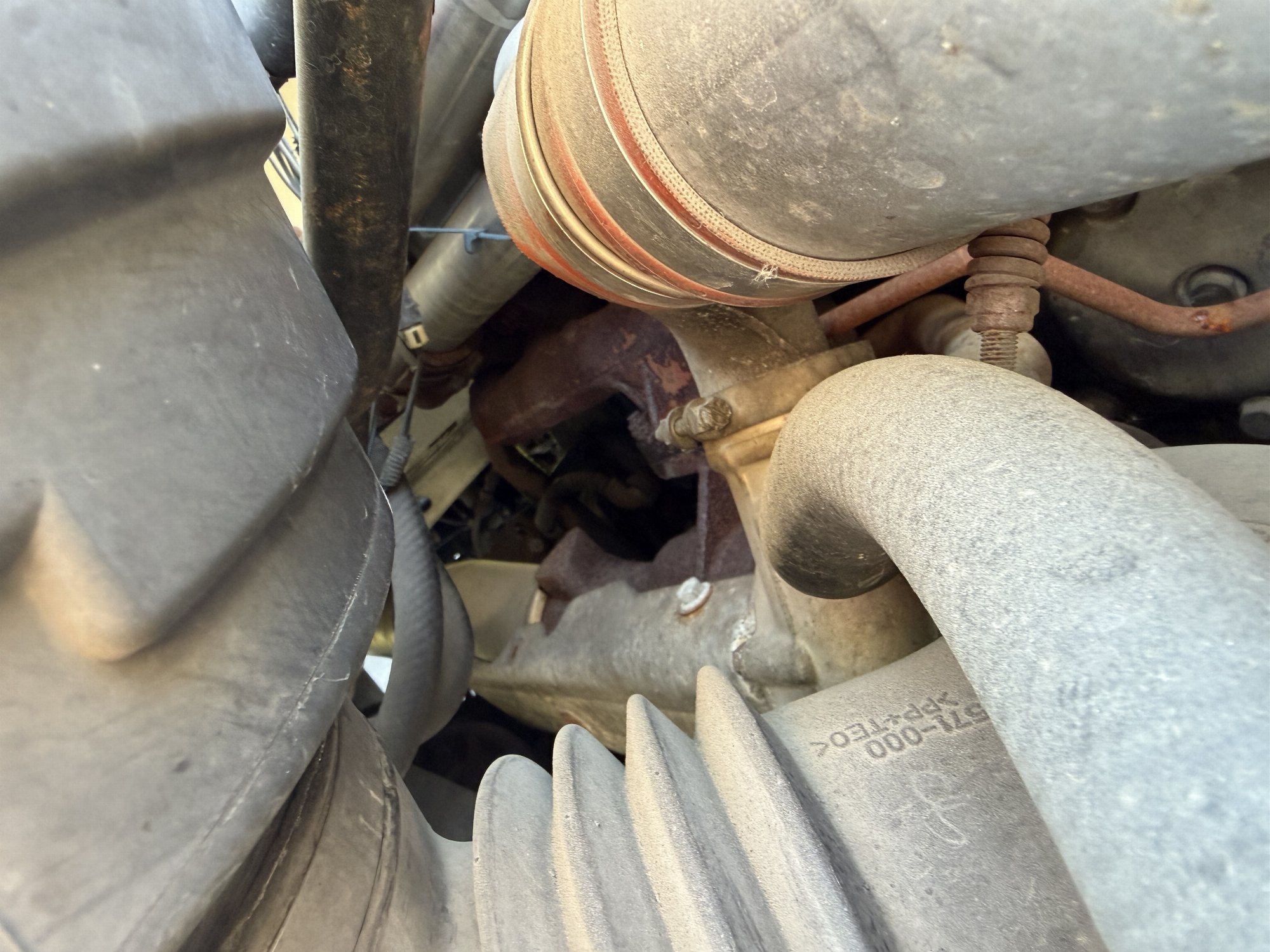

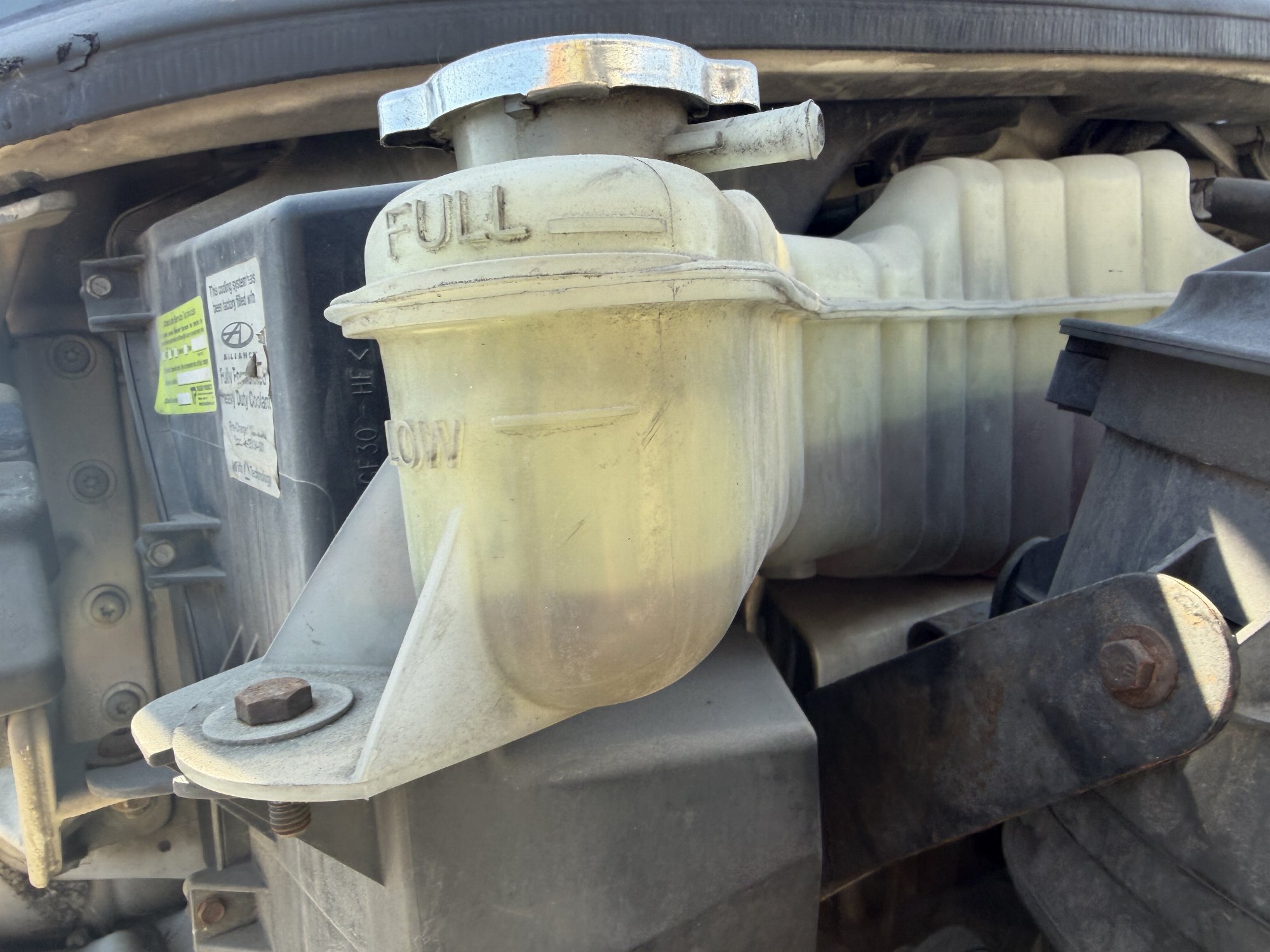

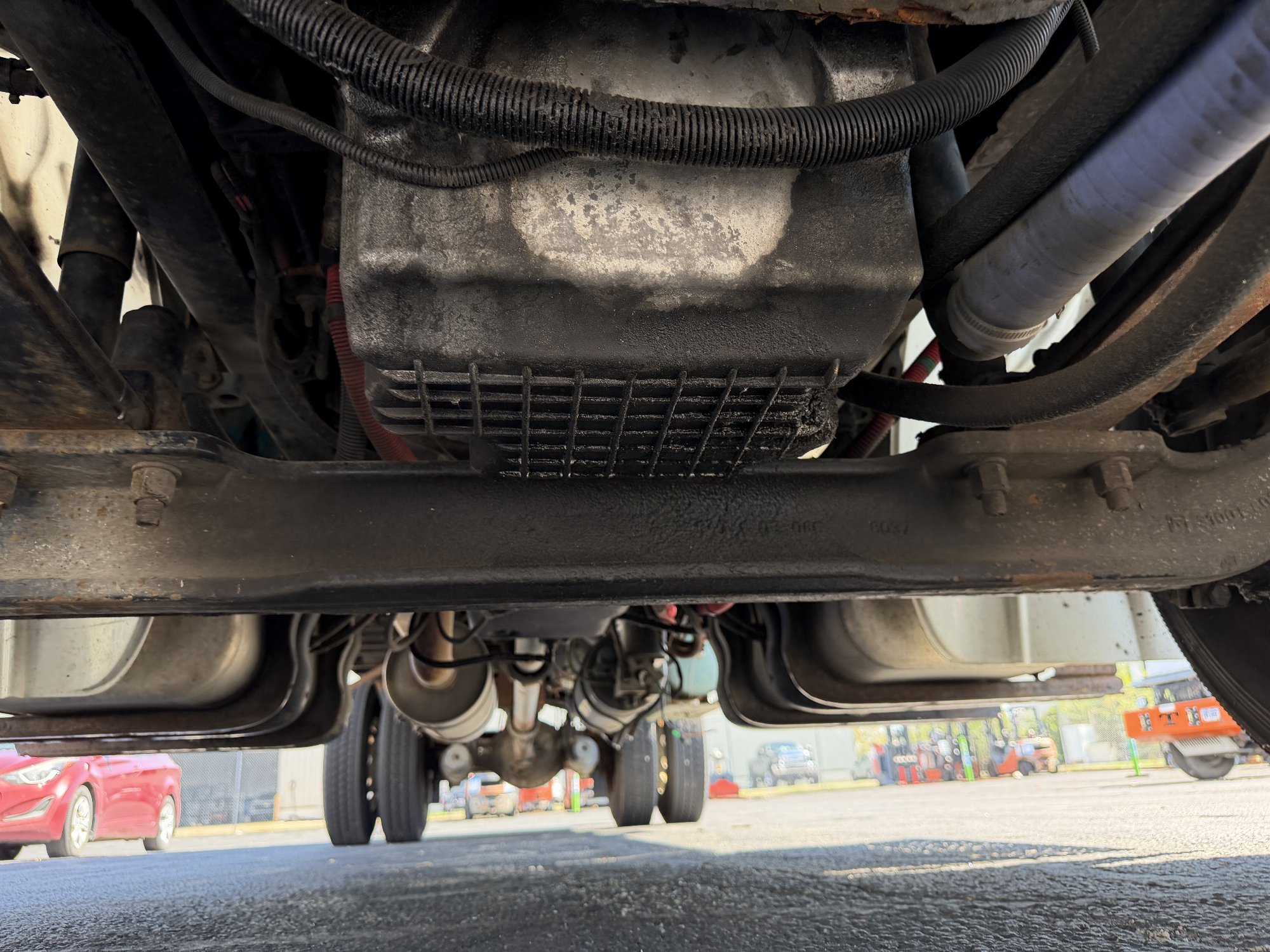

| Oil leak at oil pan gasket area. Coolant level below minimum. Needed jump start |
| Wear & Tear Detail | ||
|---|---|---|
| DIAGNOSTICS | 21 INACTIVE FAULT CODES FOUND (SEE ECM REPORT) | |

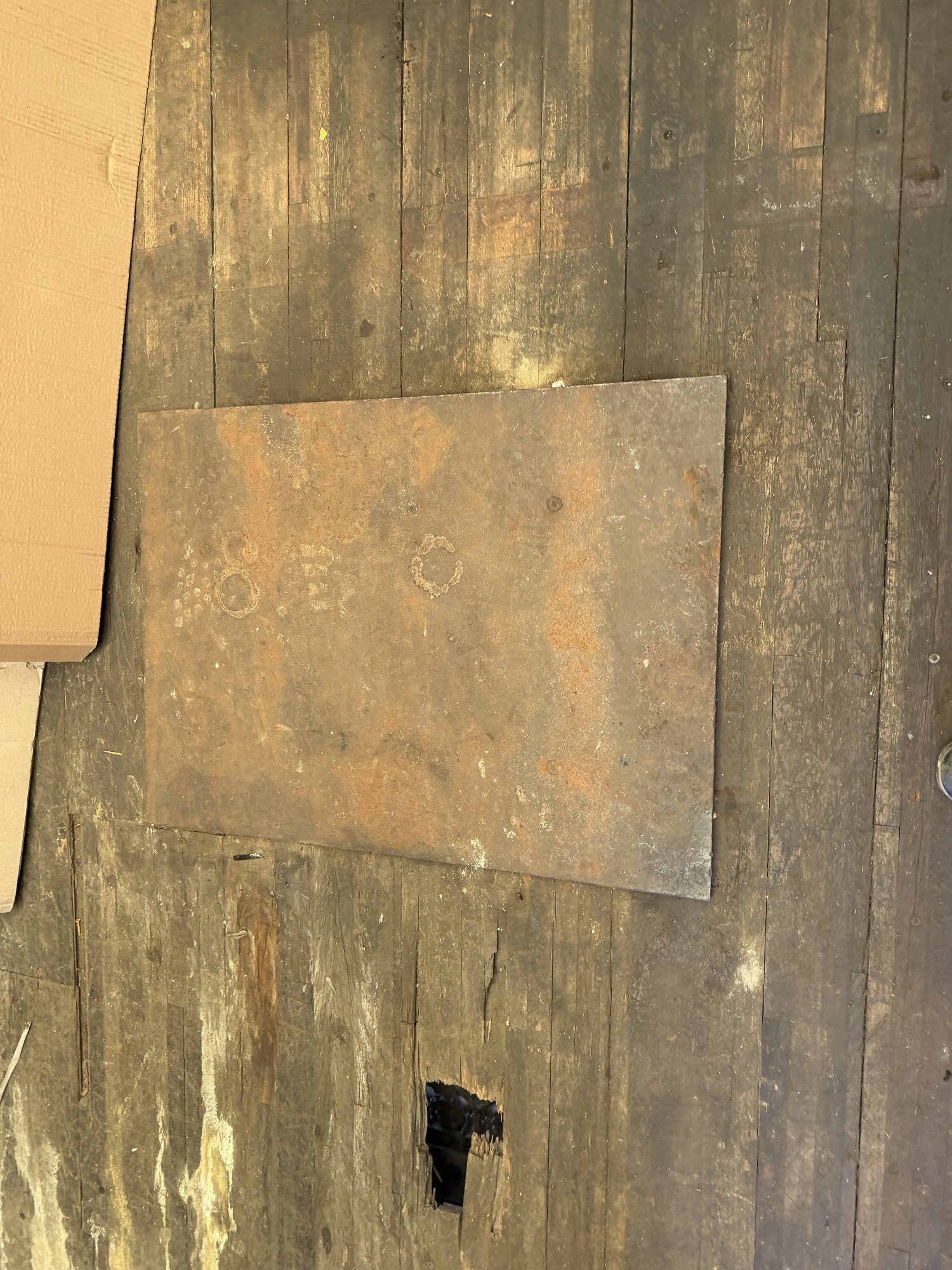

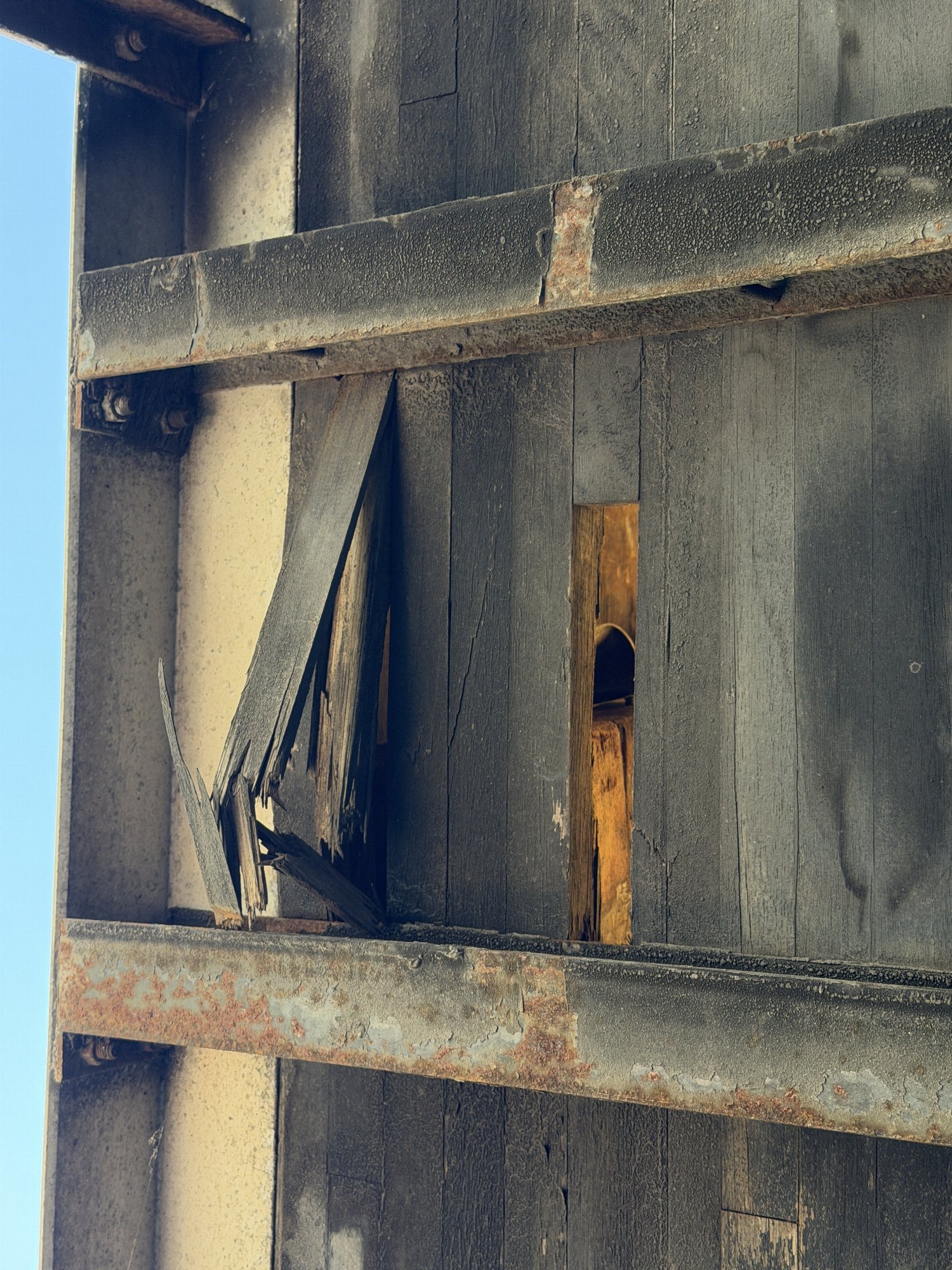

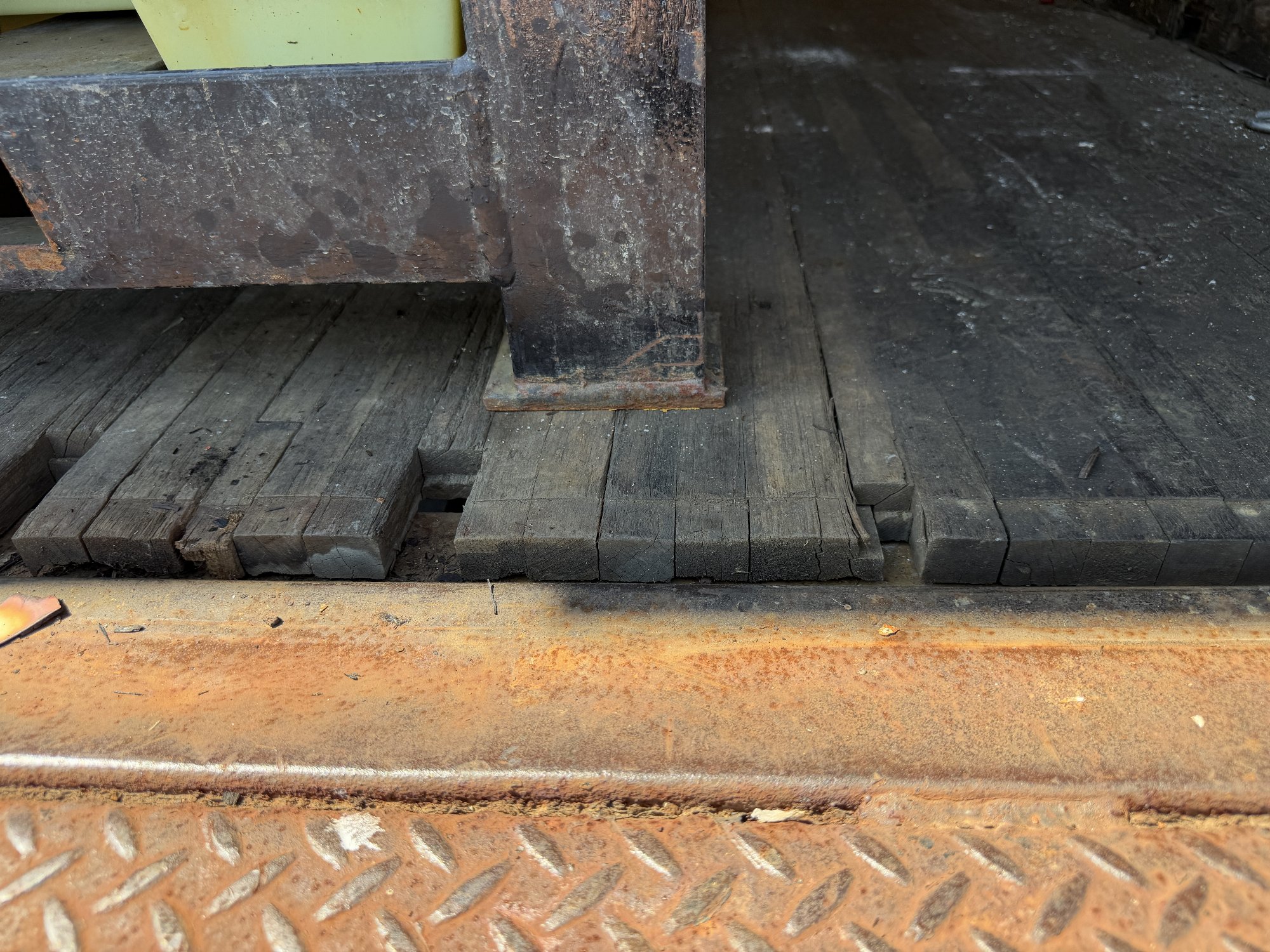

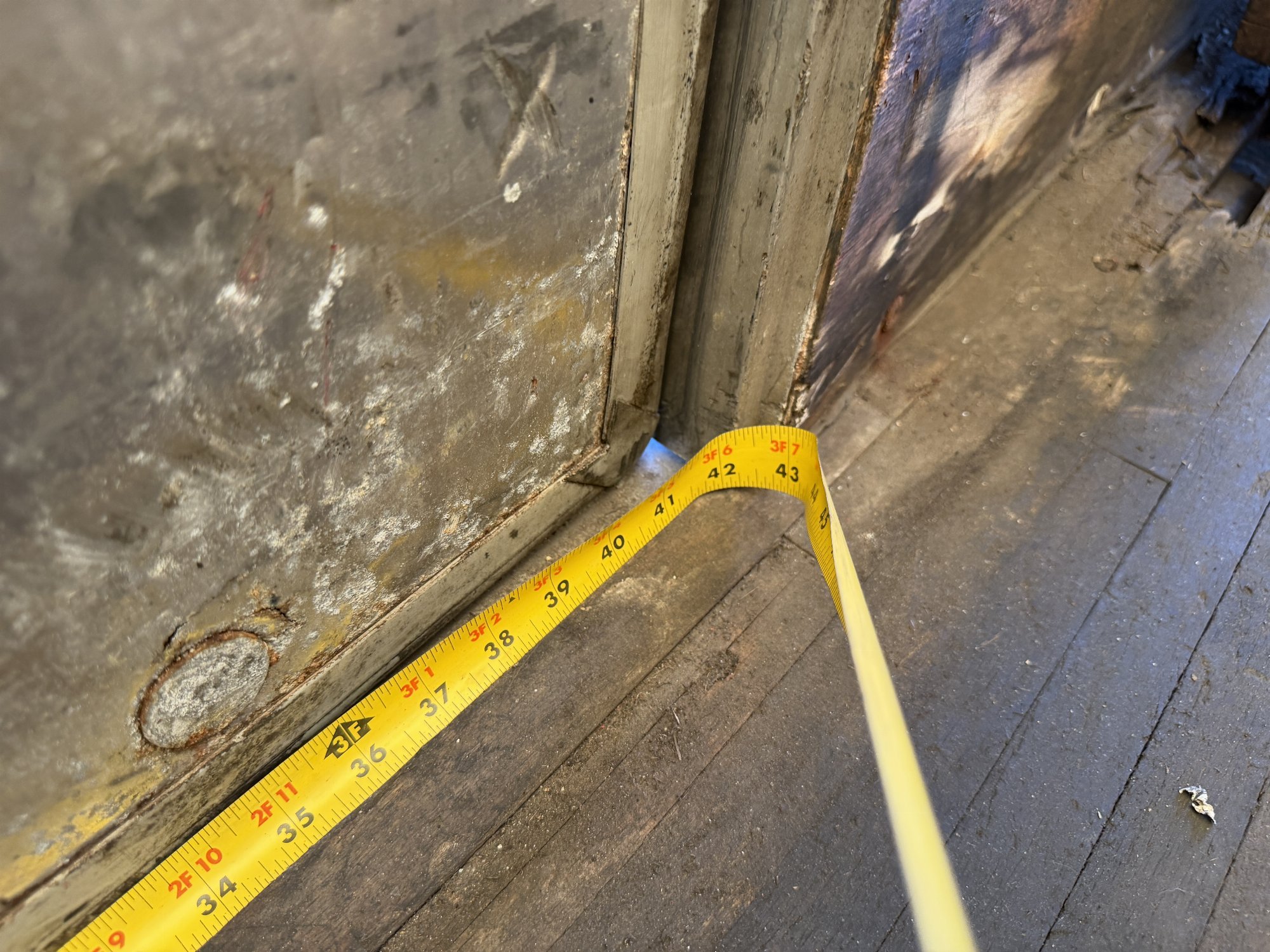

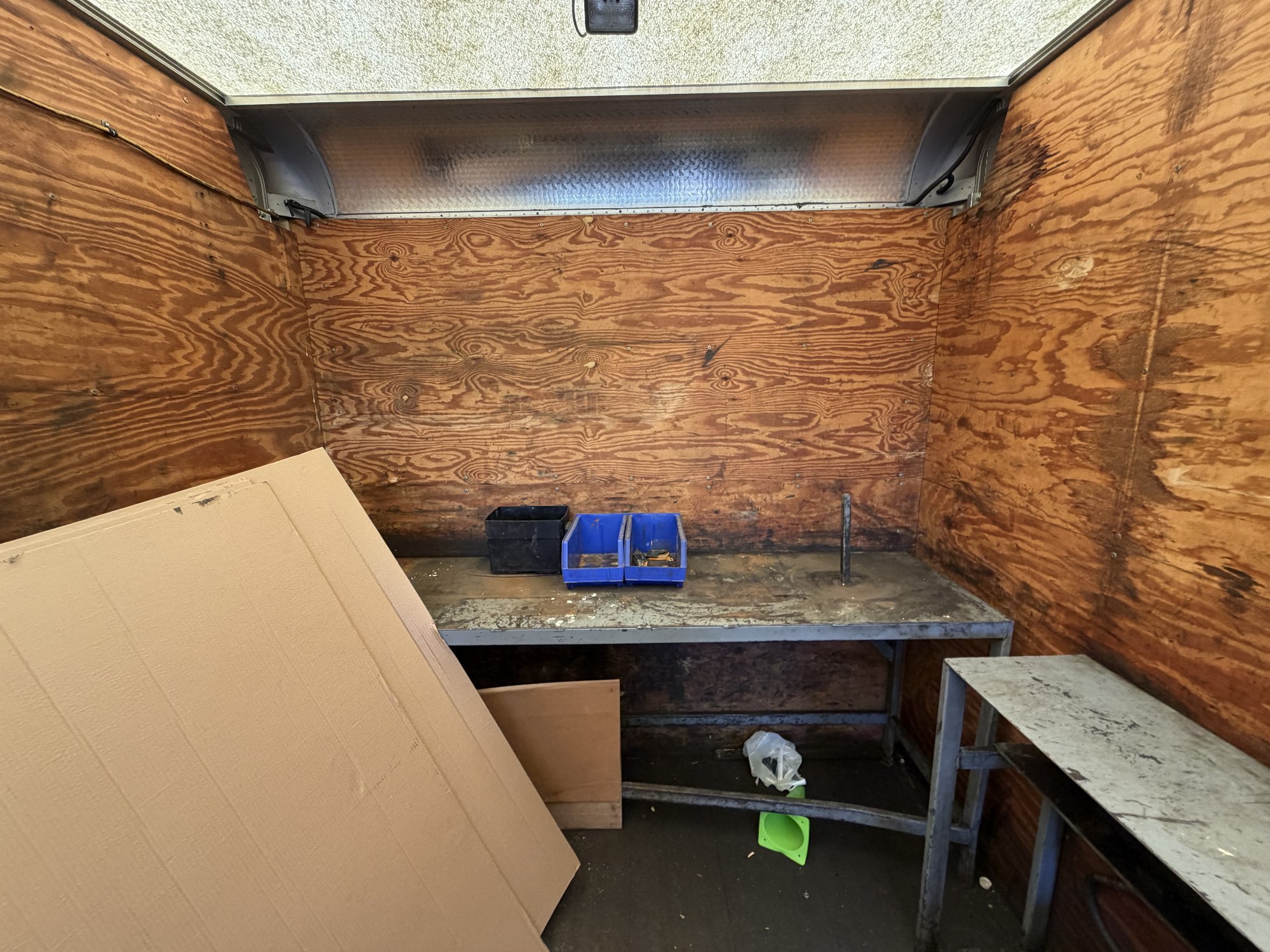

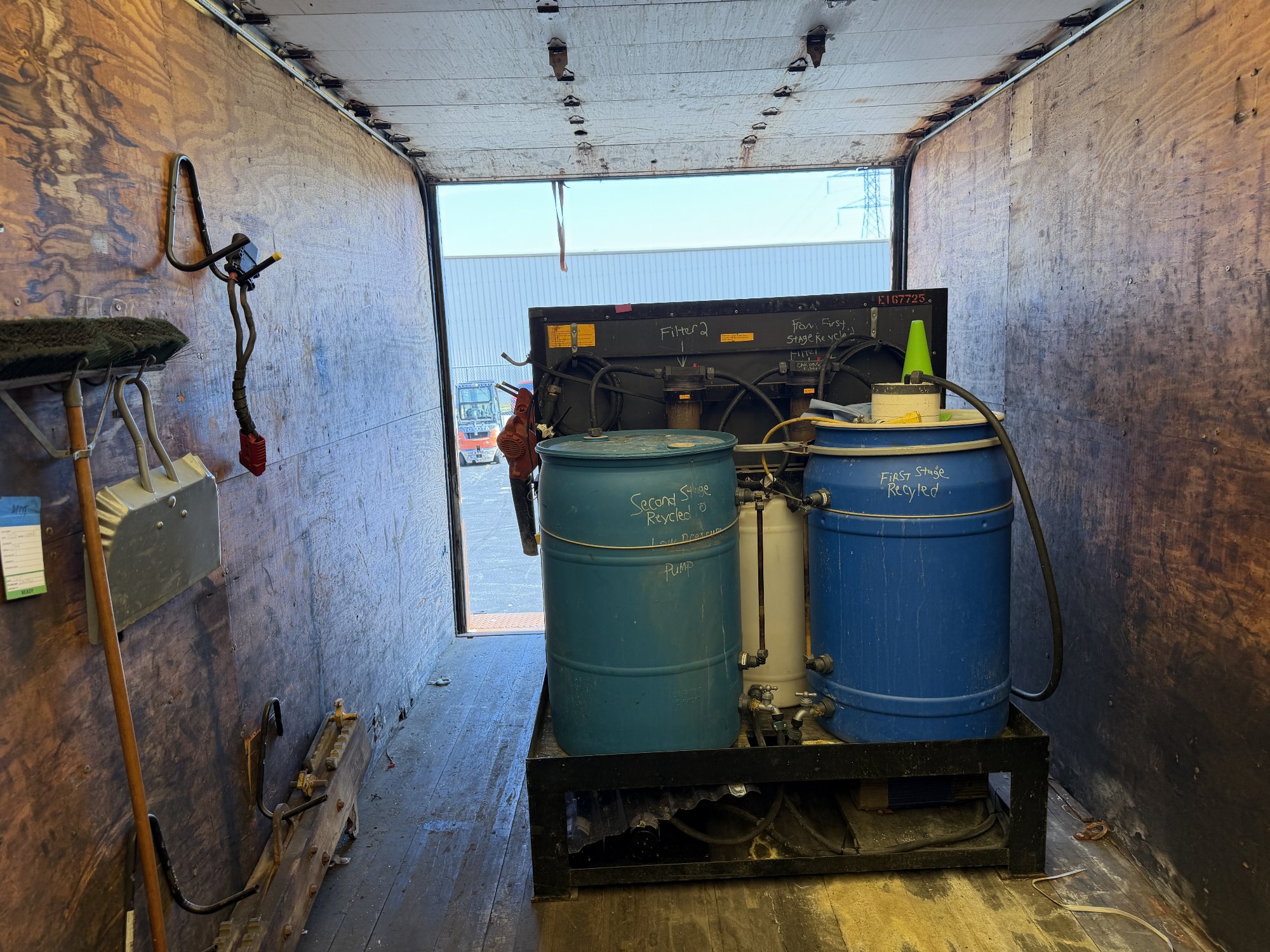

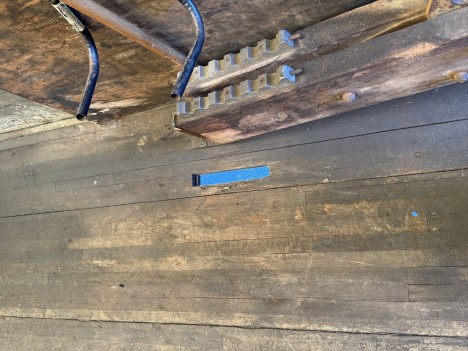

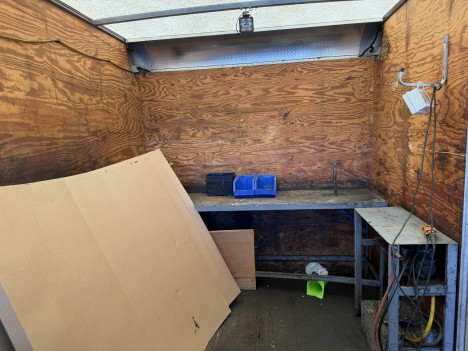

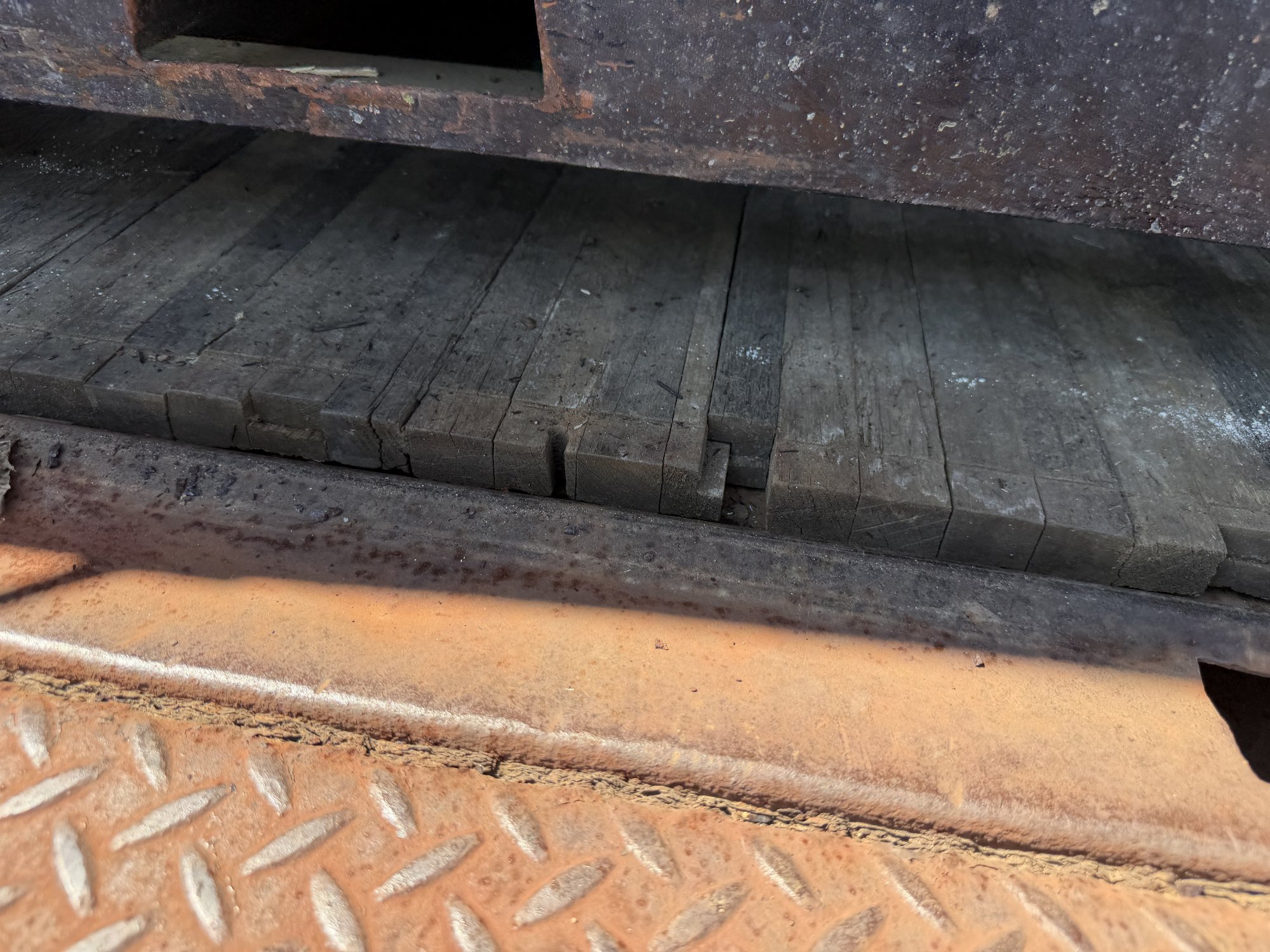

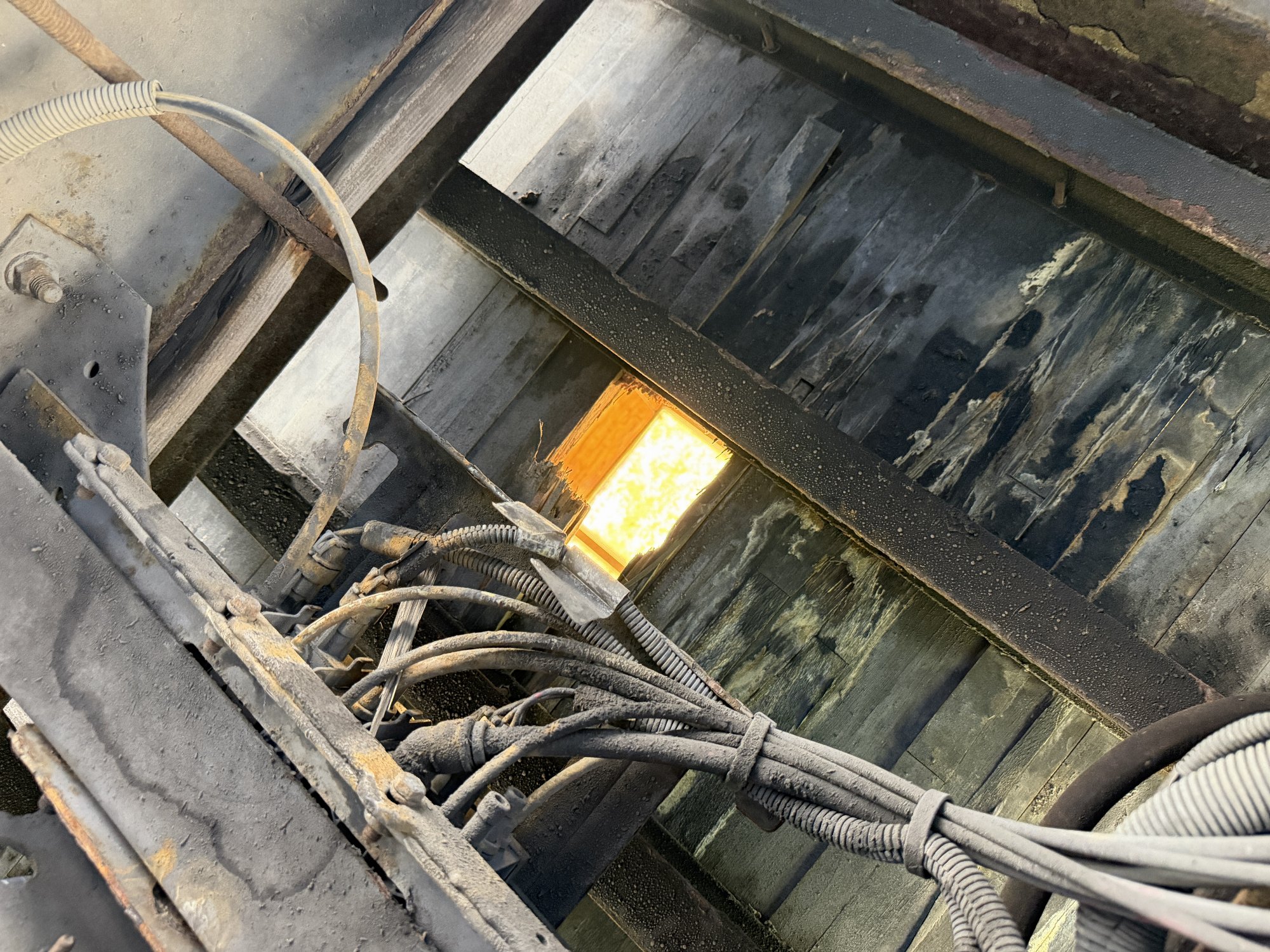

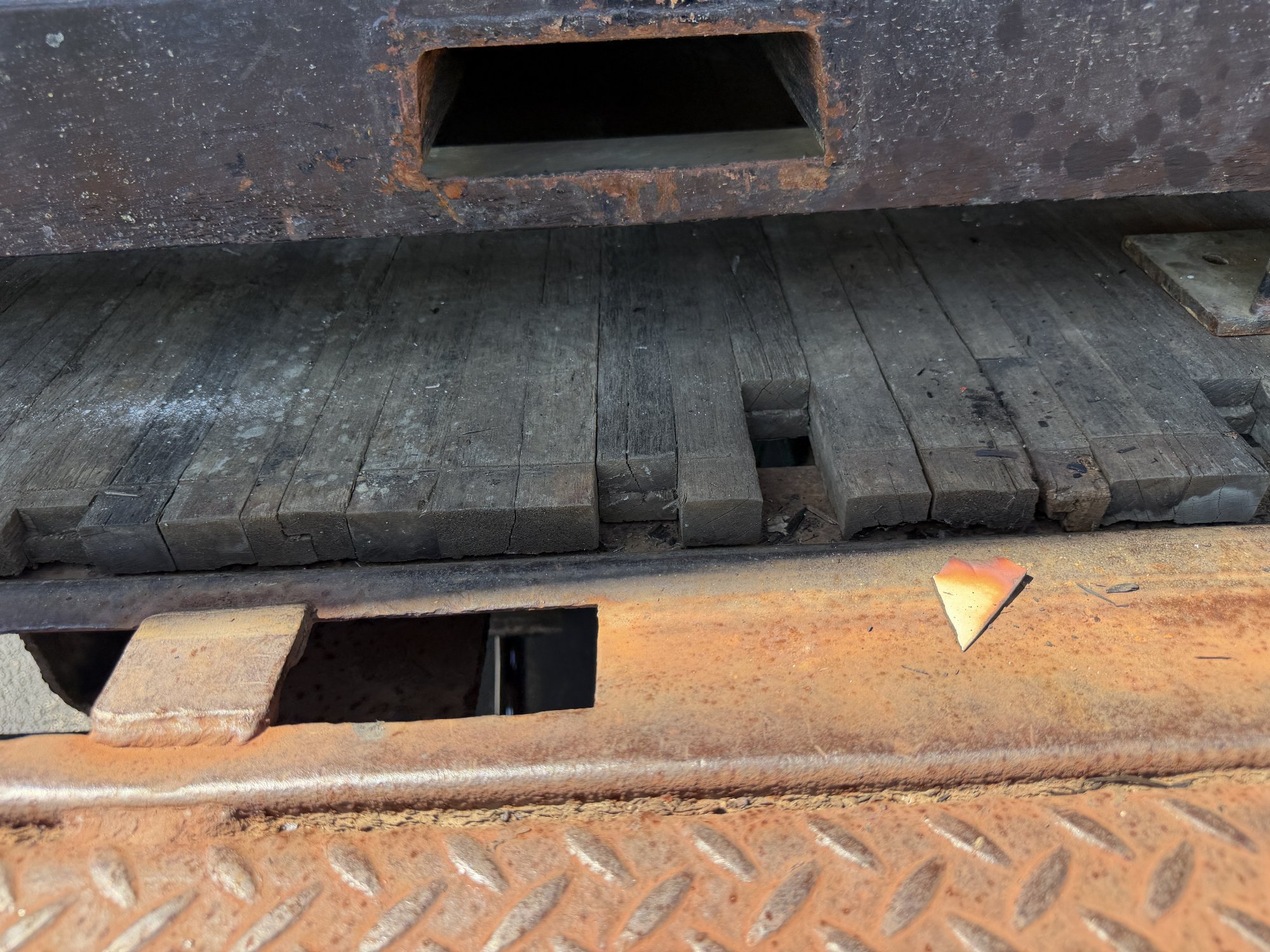

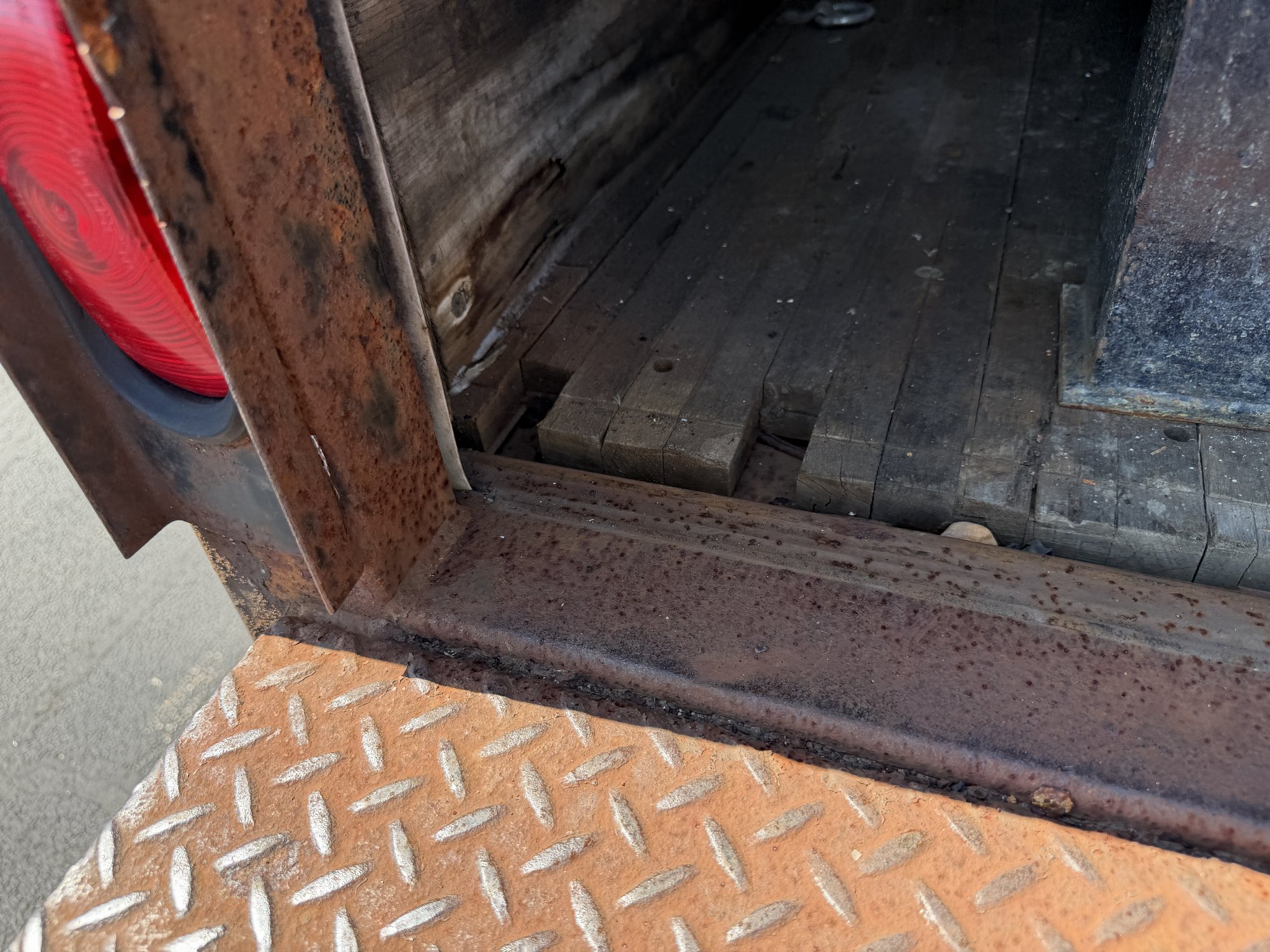

| INTERIOR BOX | NUMEROUS HOLES, ROTTEN WOOD | |

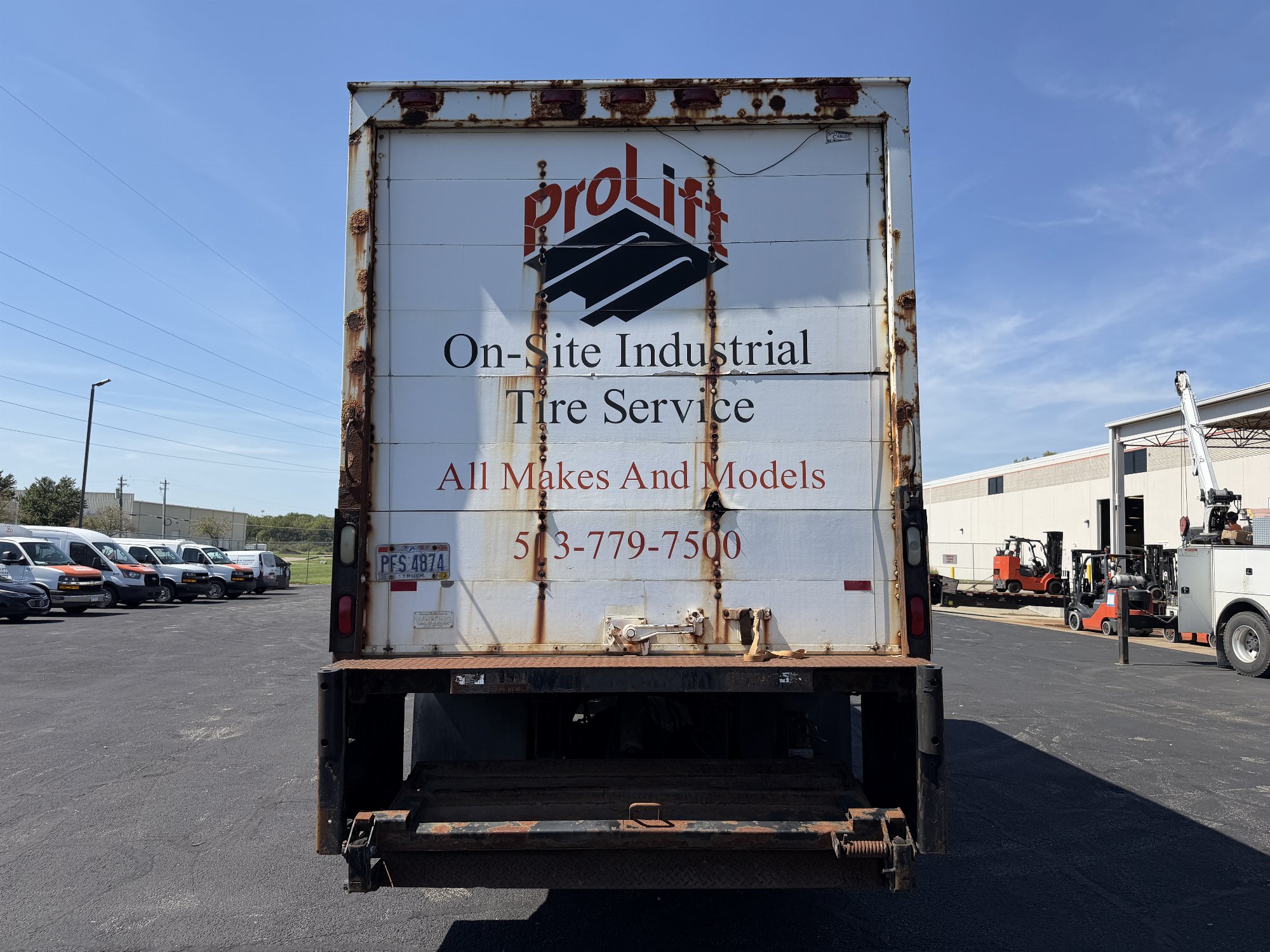

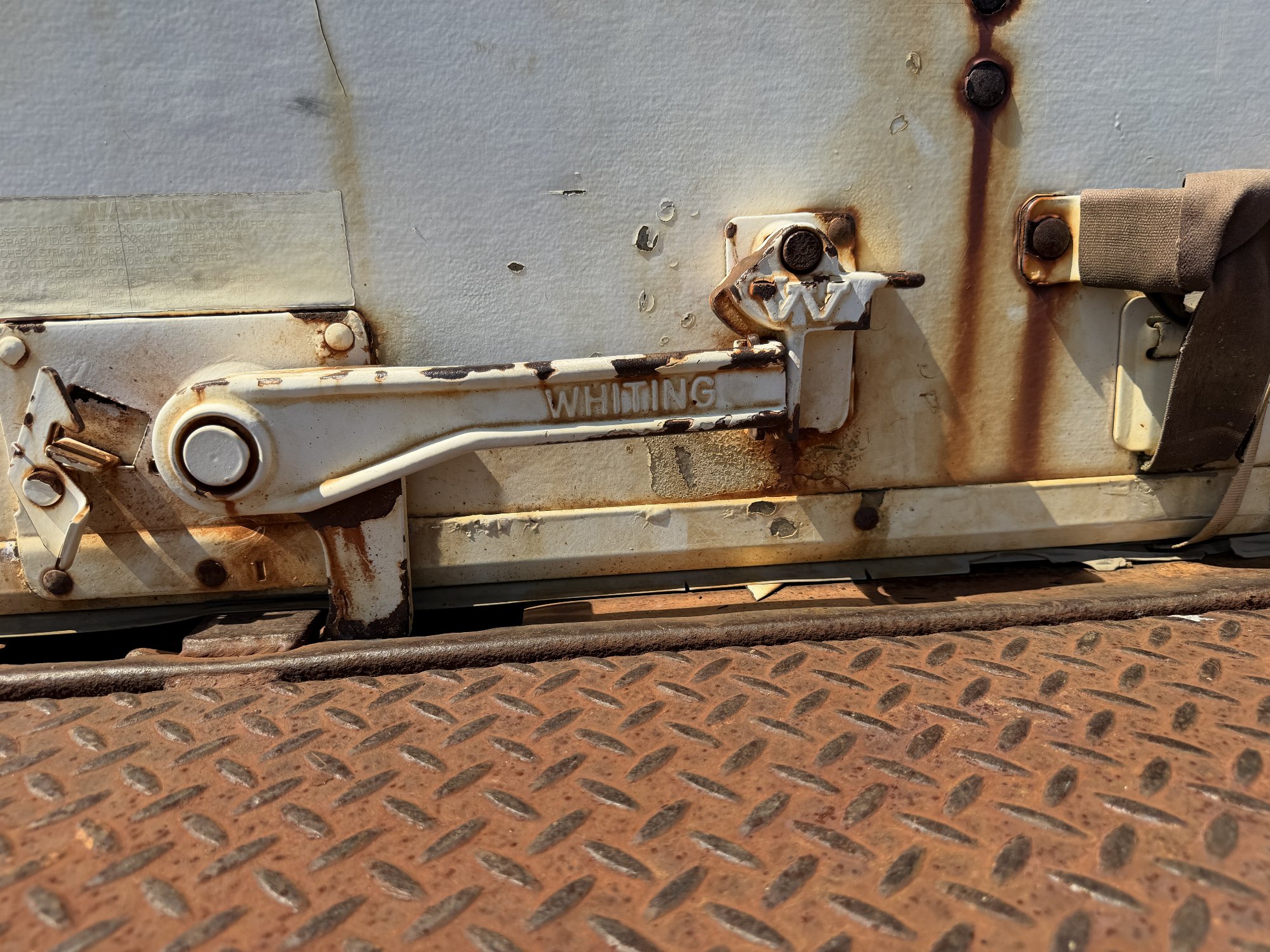

| ROLLING DOOR | ROTTING WOOD/RUST | |

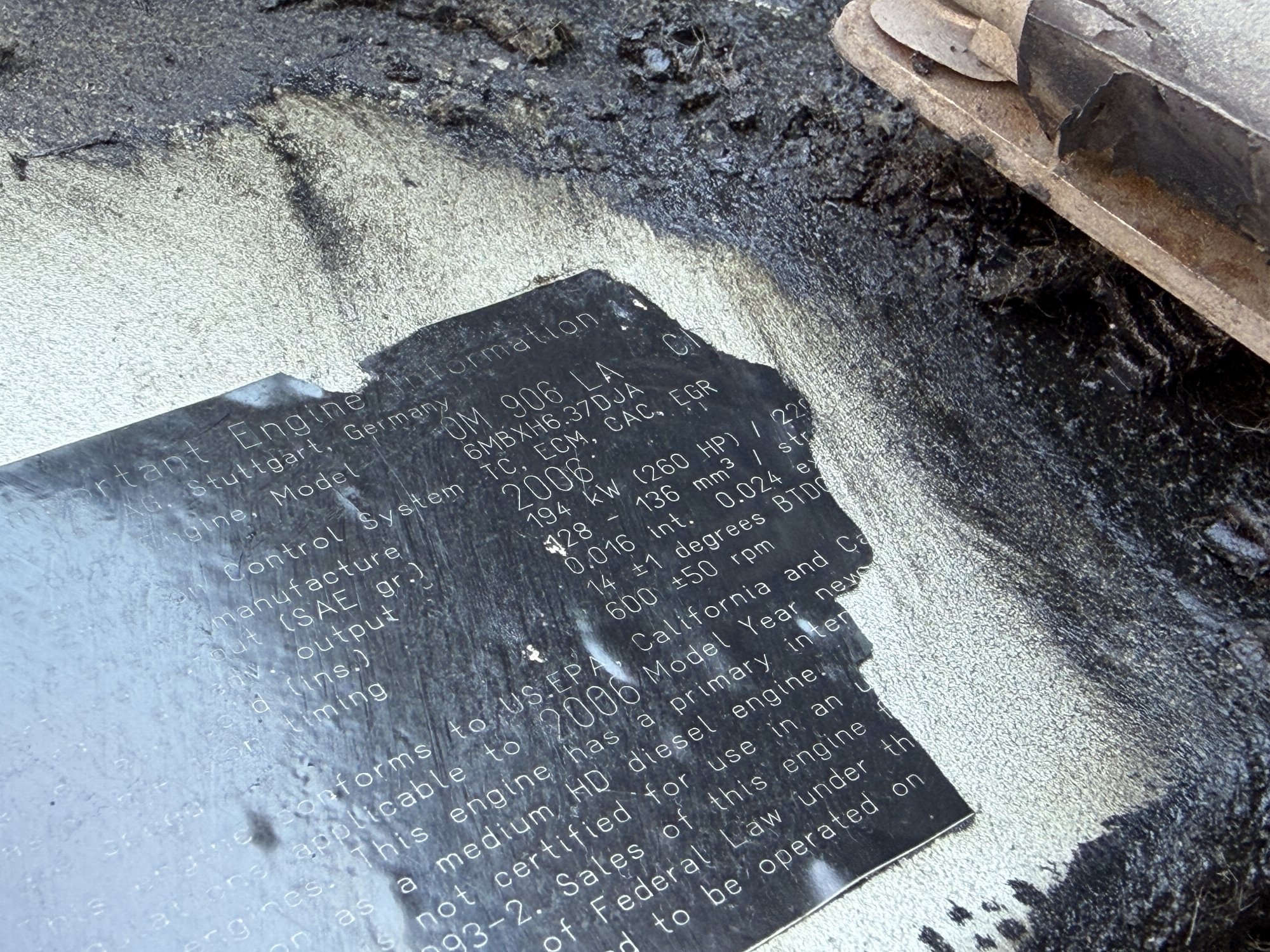

| ENGINE PLACARD | DAMAGE/WORN | |

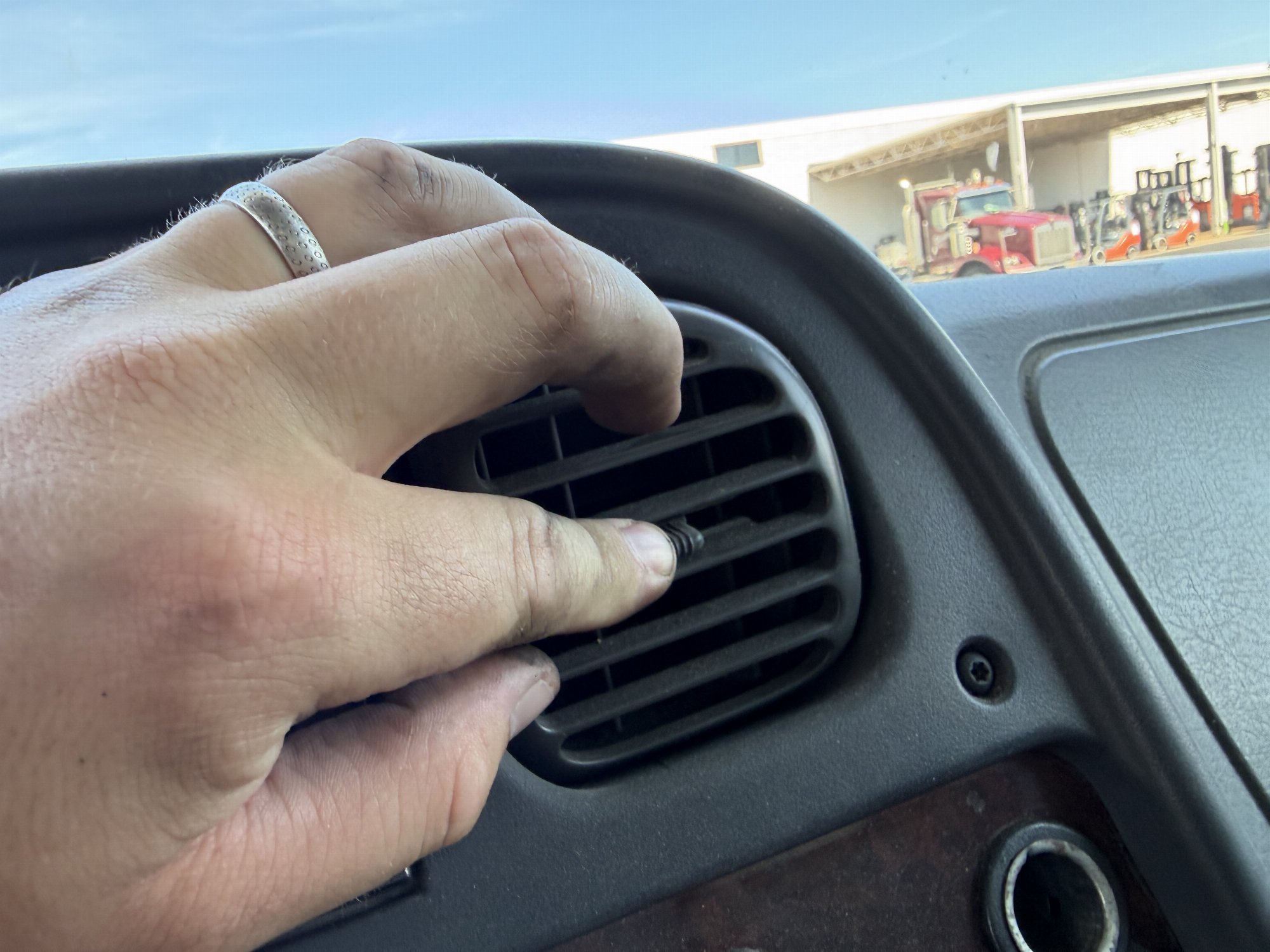

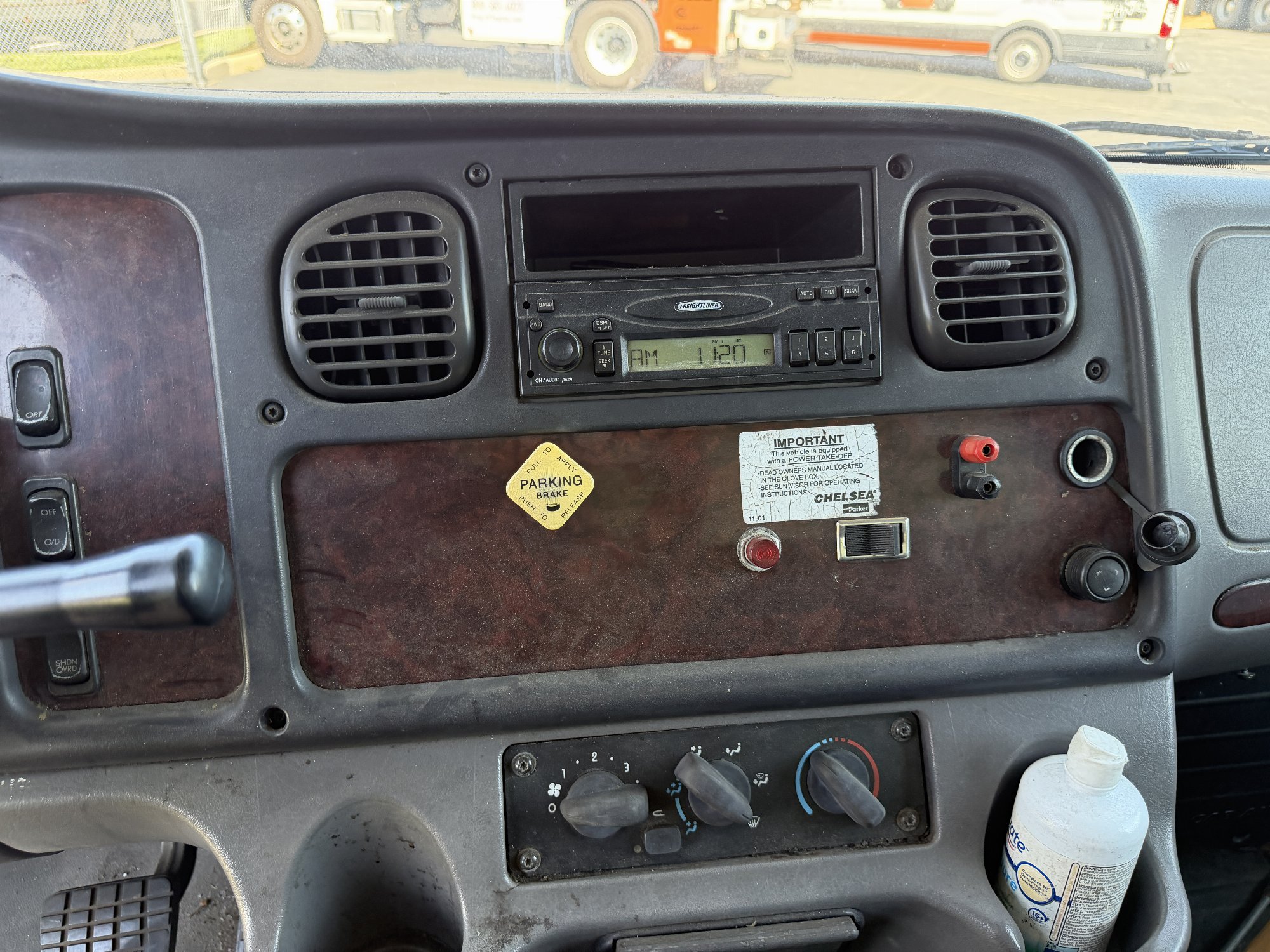

| AC | BLOCKED VENTS/WEAK | |

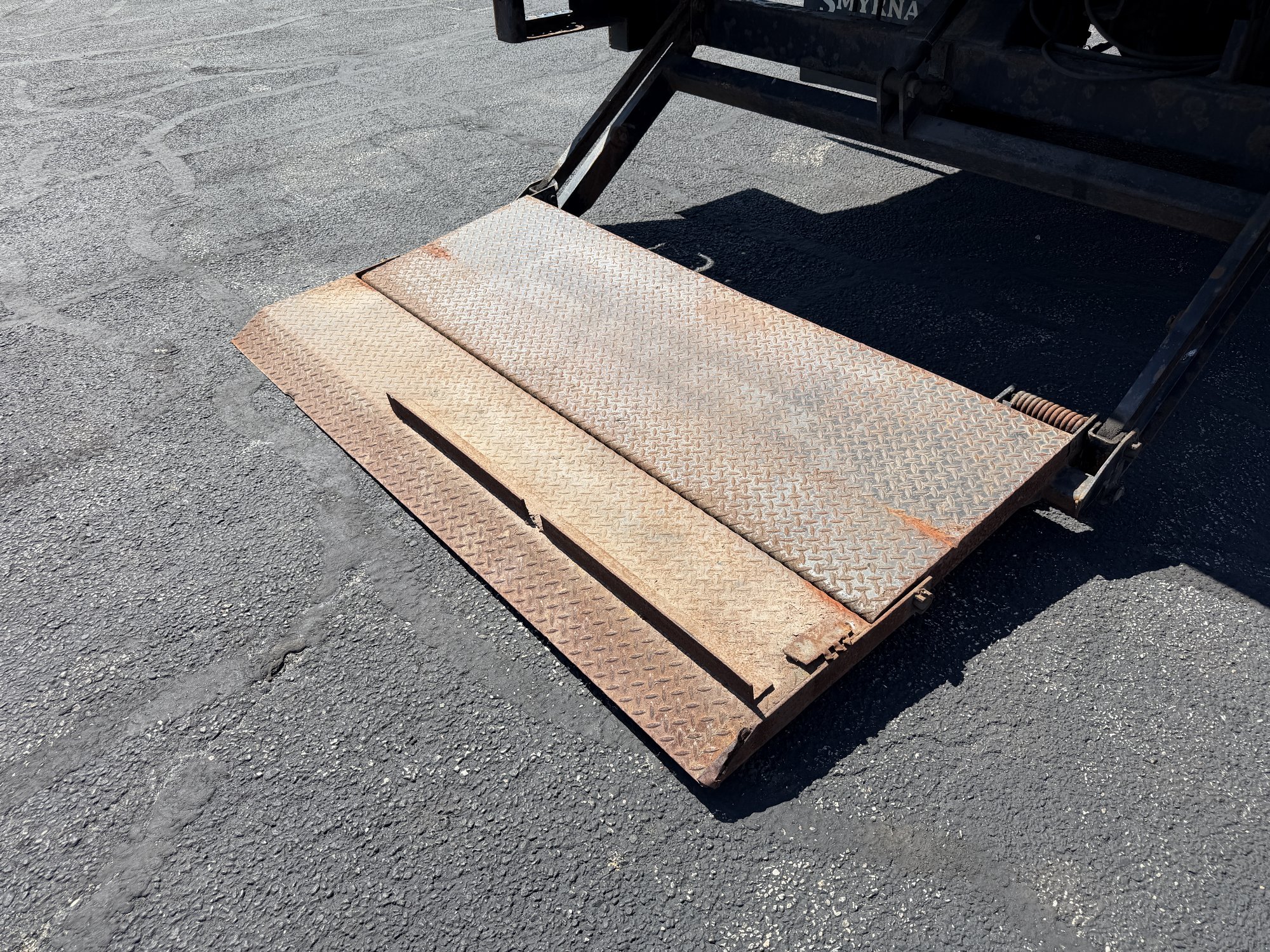

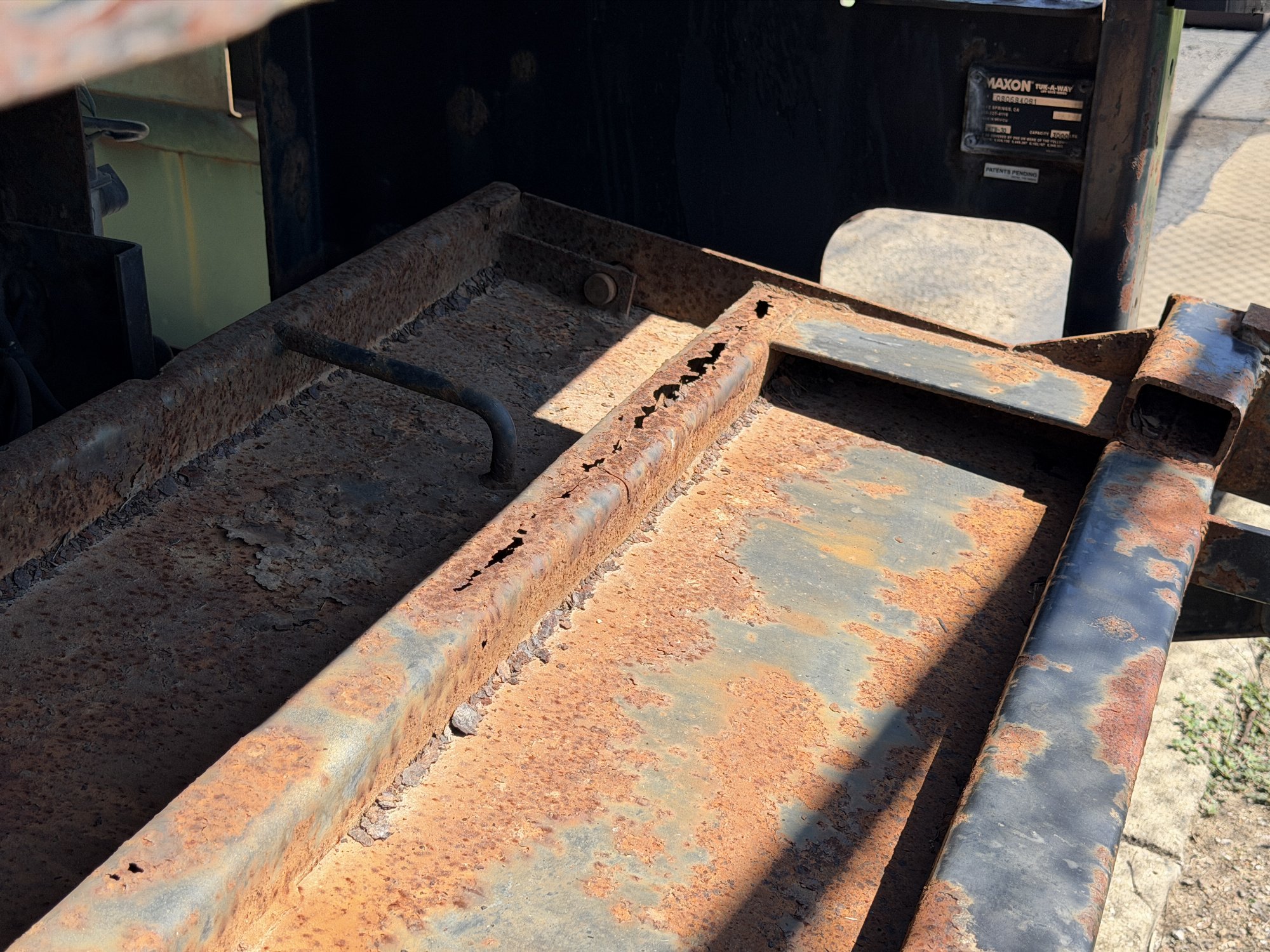

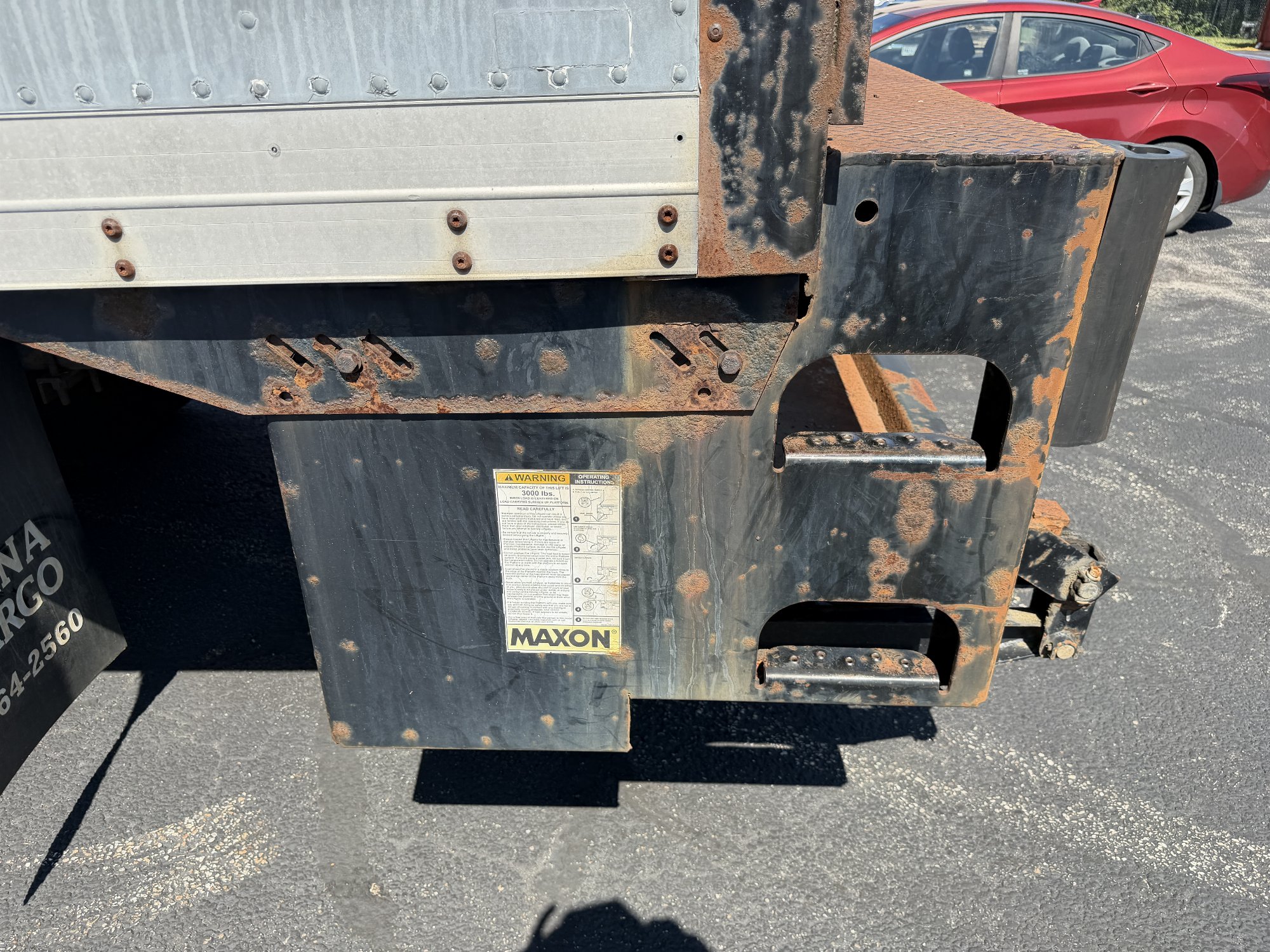

| LIFTGATE | INTERMITTENT, ACTIVATED WHEN APPLYING MECHANICAL FORCE TO SOLENOID. | |

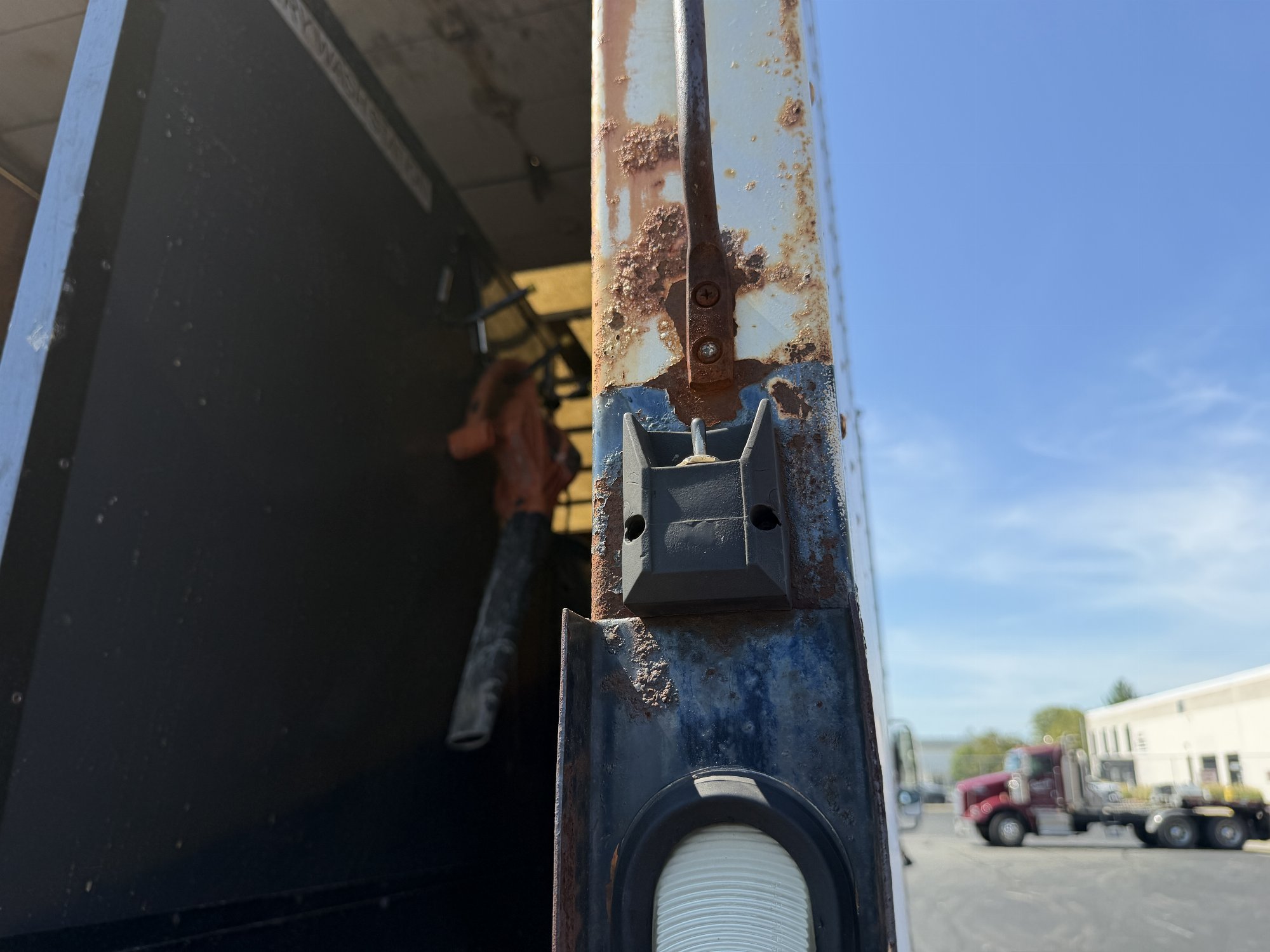

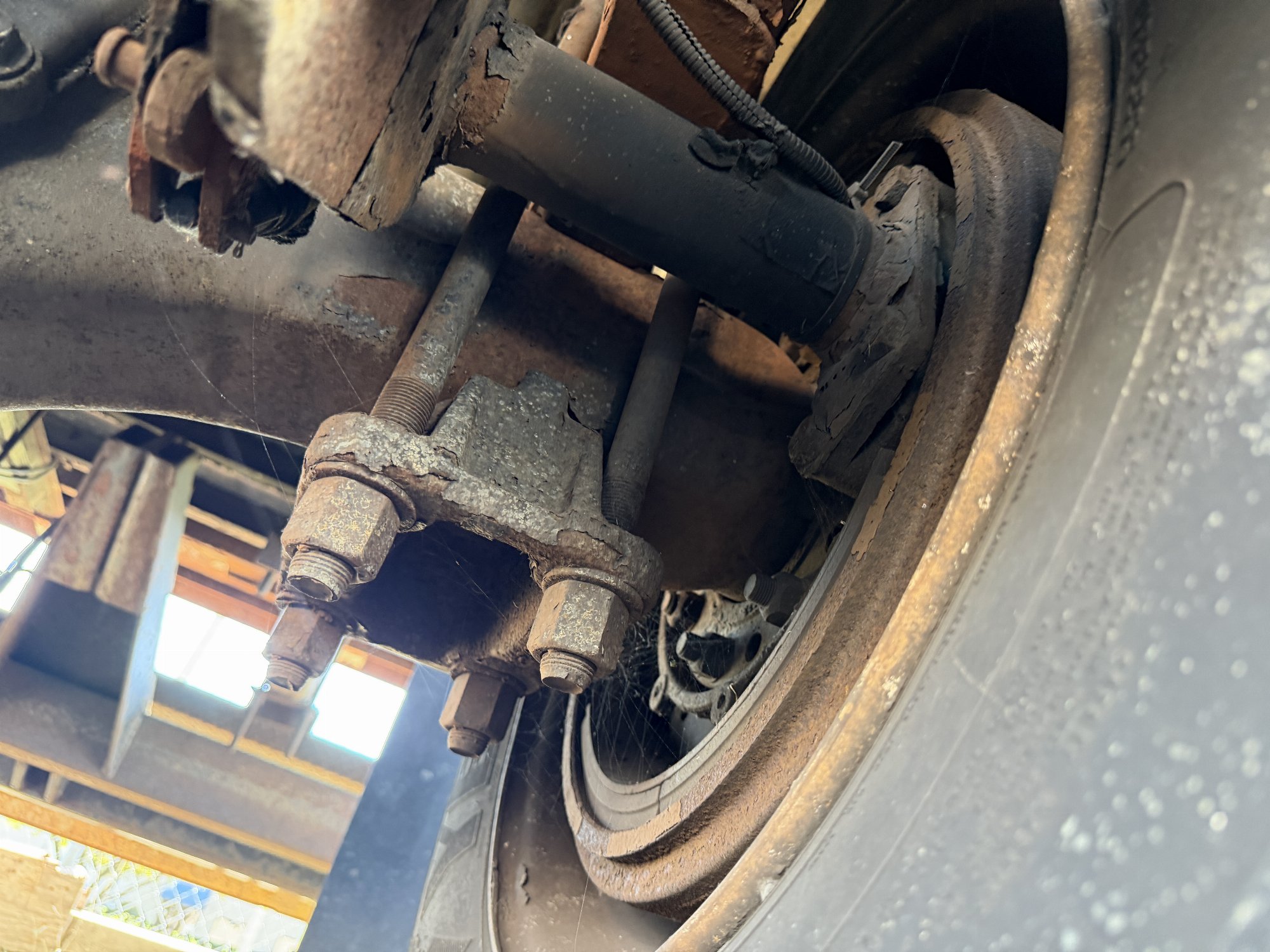

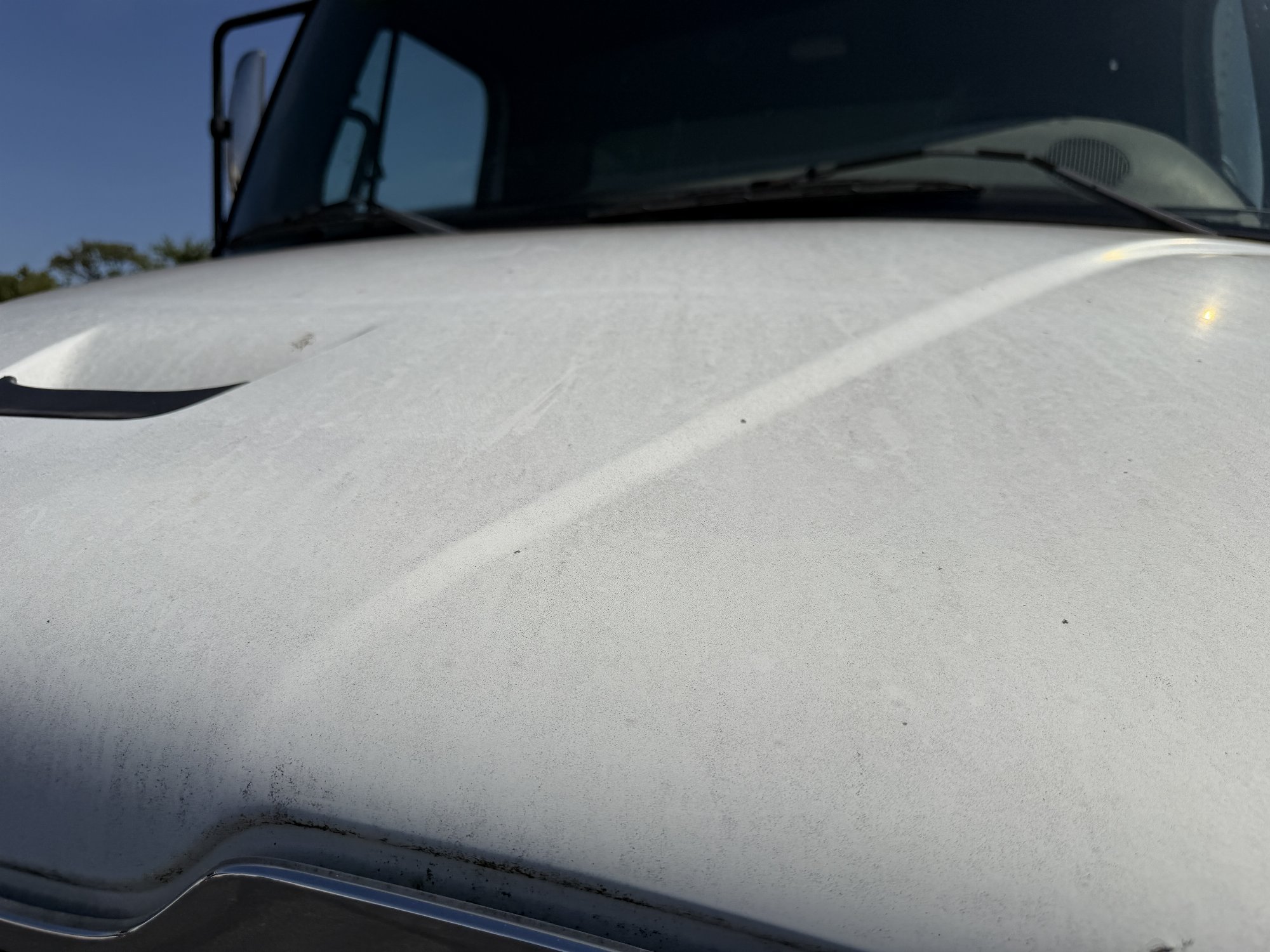

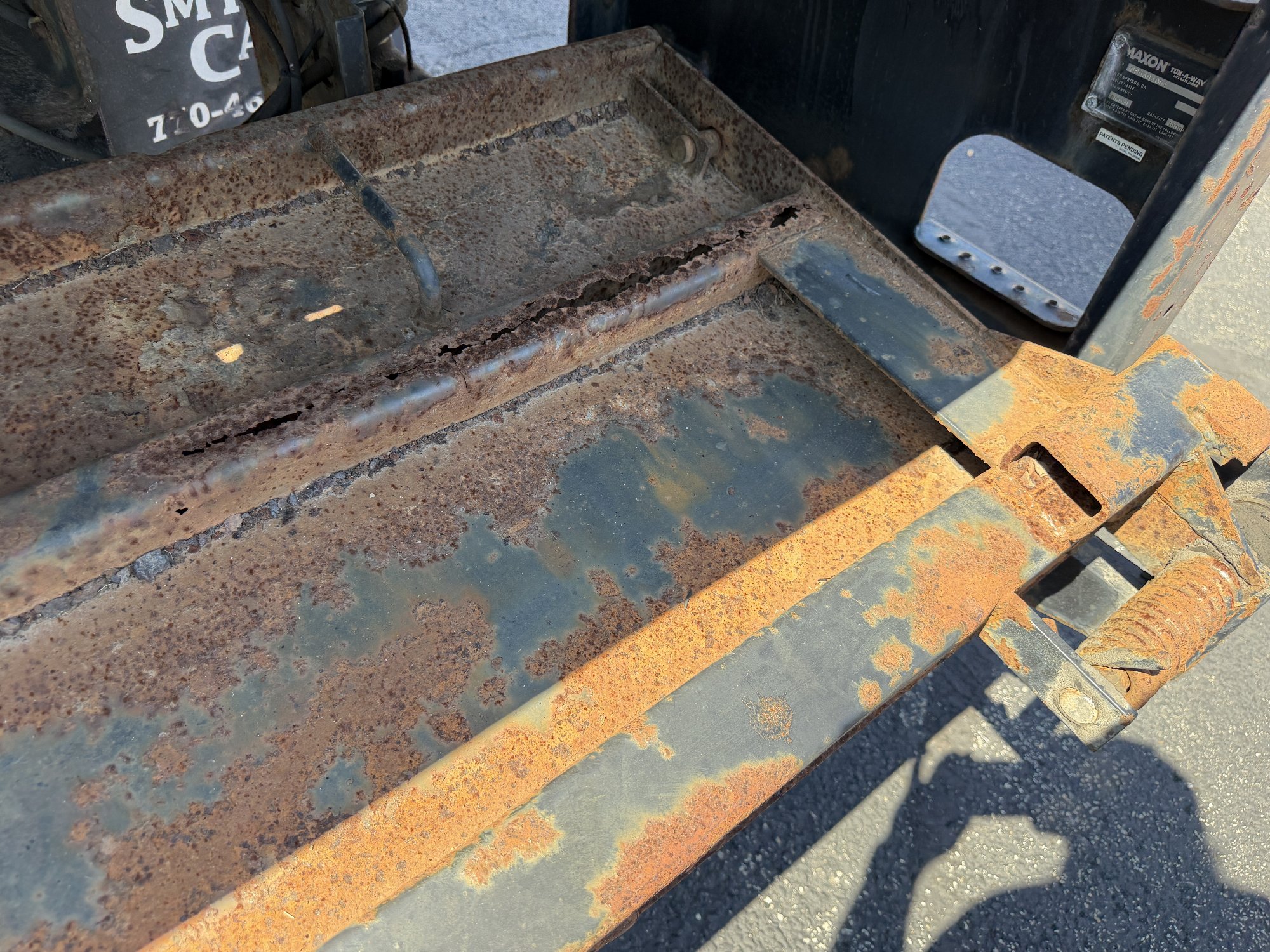

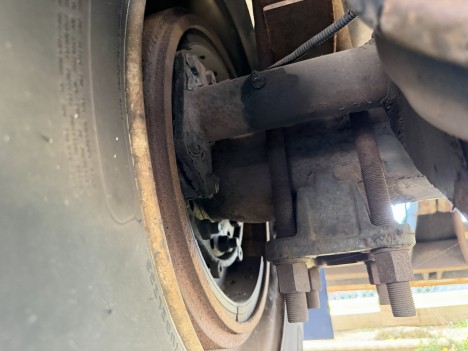

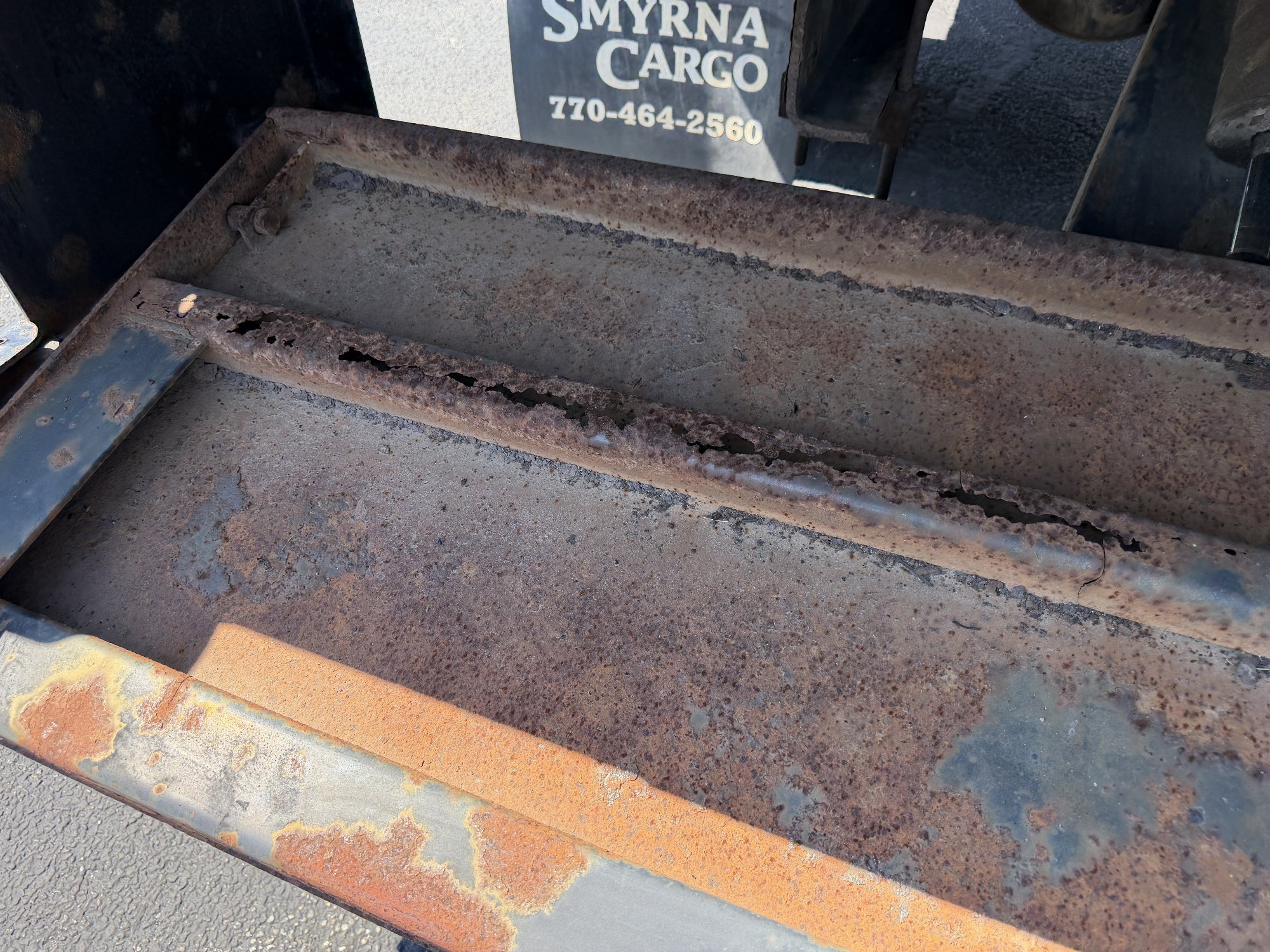

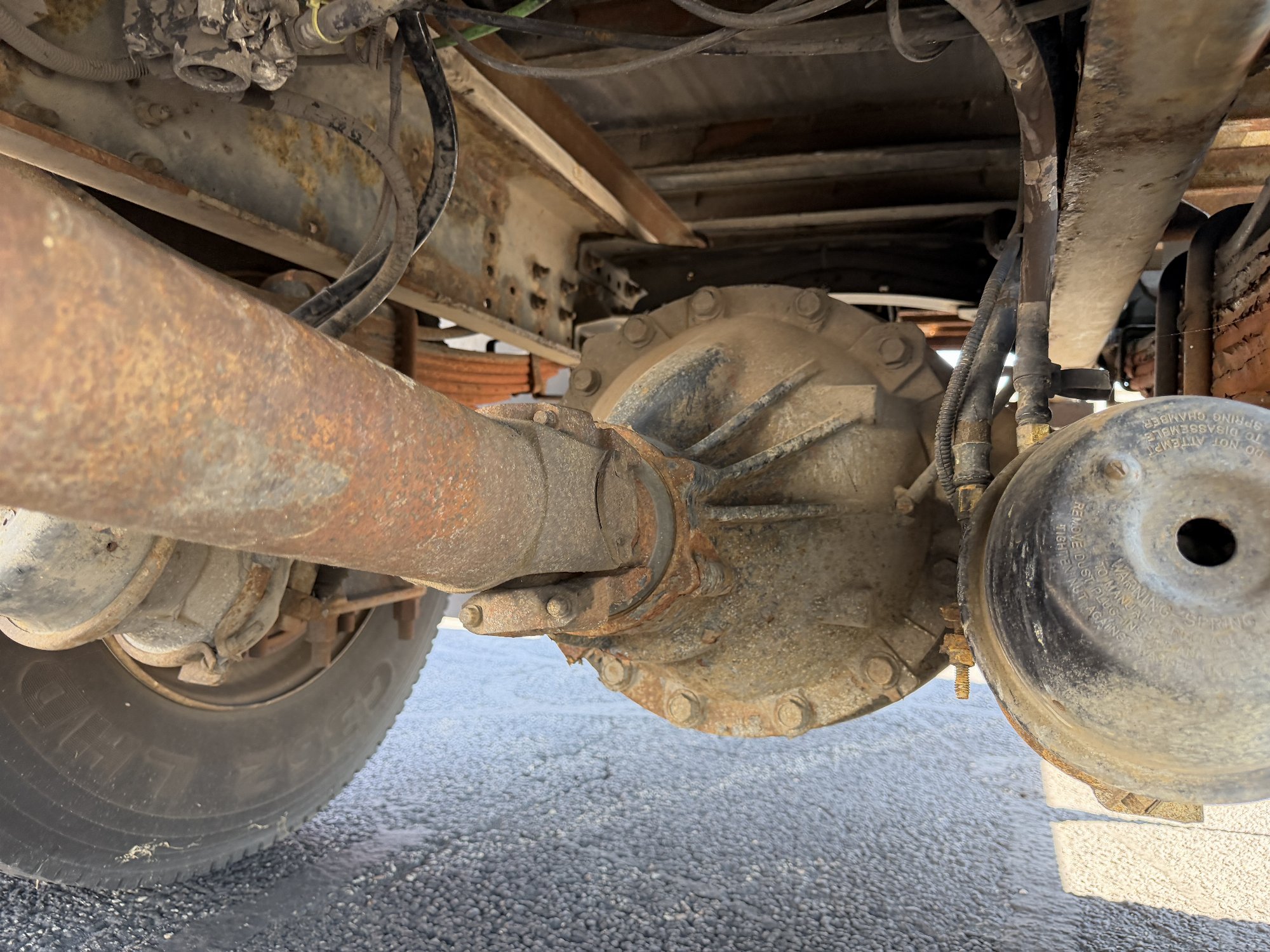

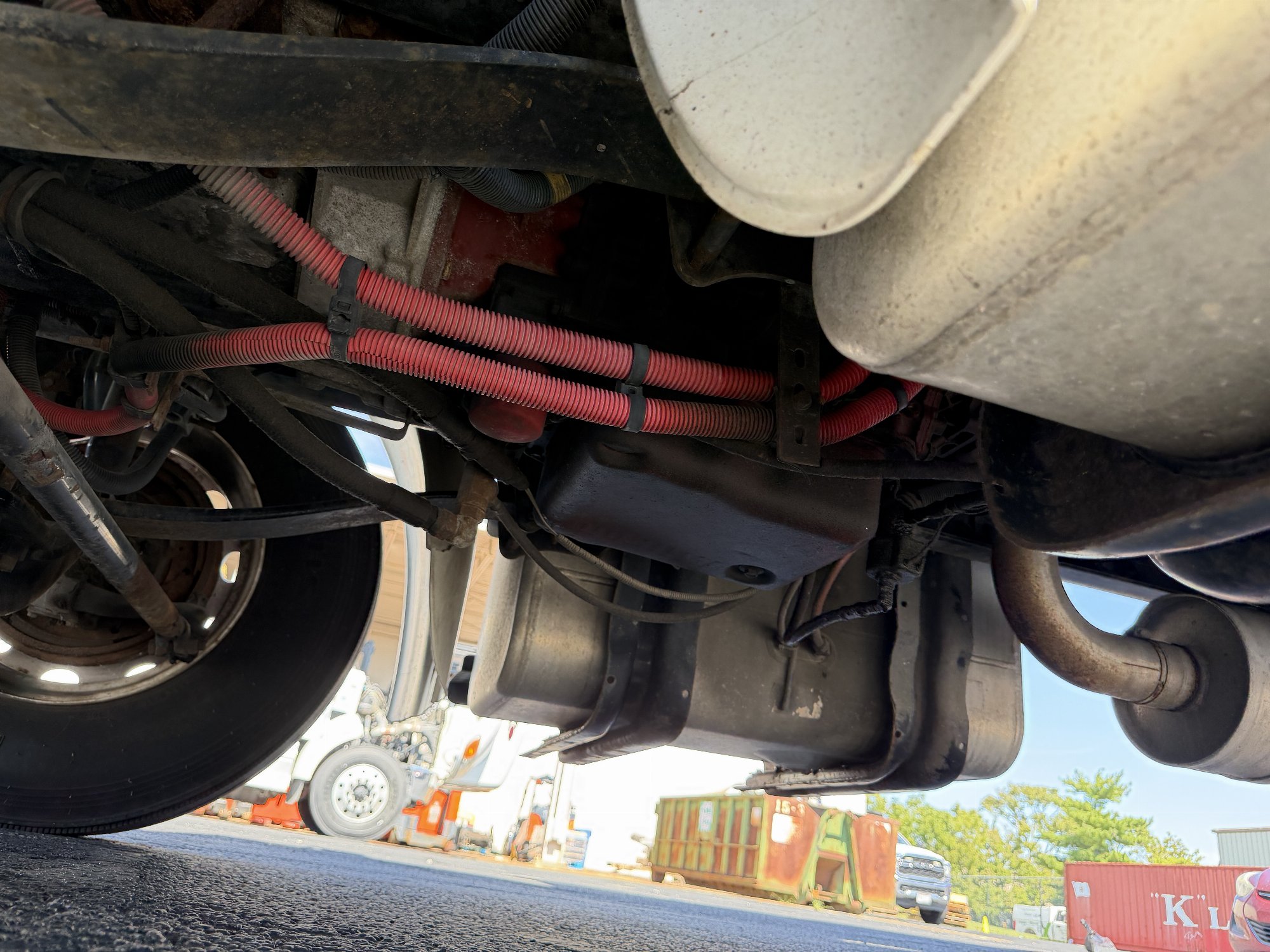

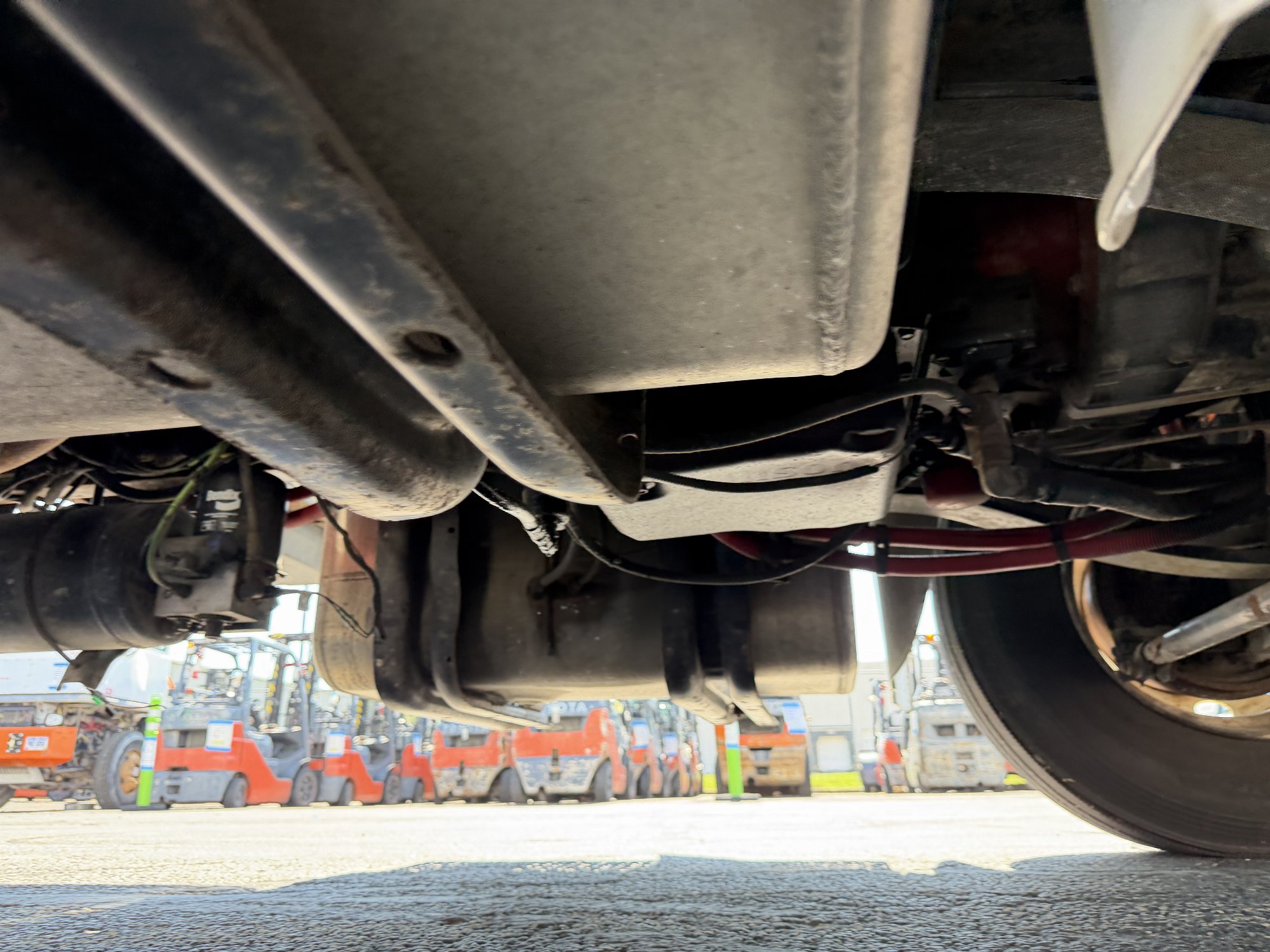

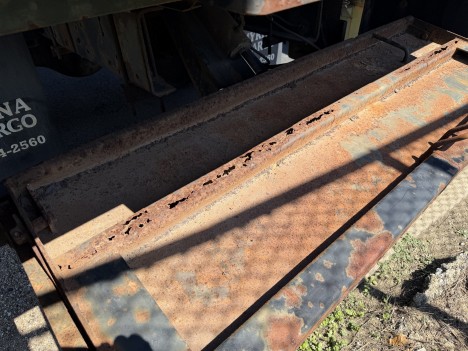

| PAINT | SCRATCHED AT BUMPER. FLAKING & SURFACE RUST AT POWERTRAIN, UNDERCARRIAGE, MUD FLAP BRACKETS, LIFTGATE, CORNER POSTS, STEPS, | |

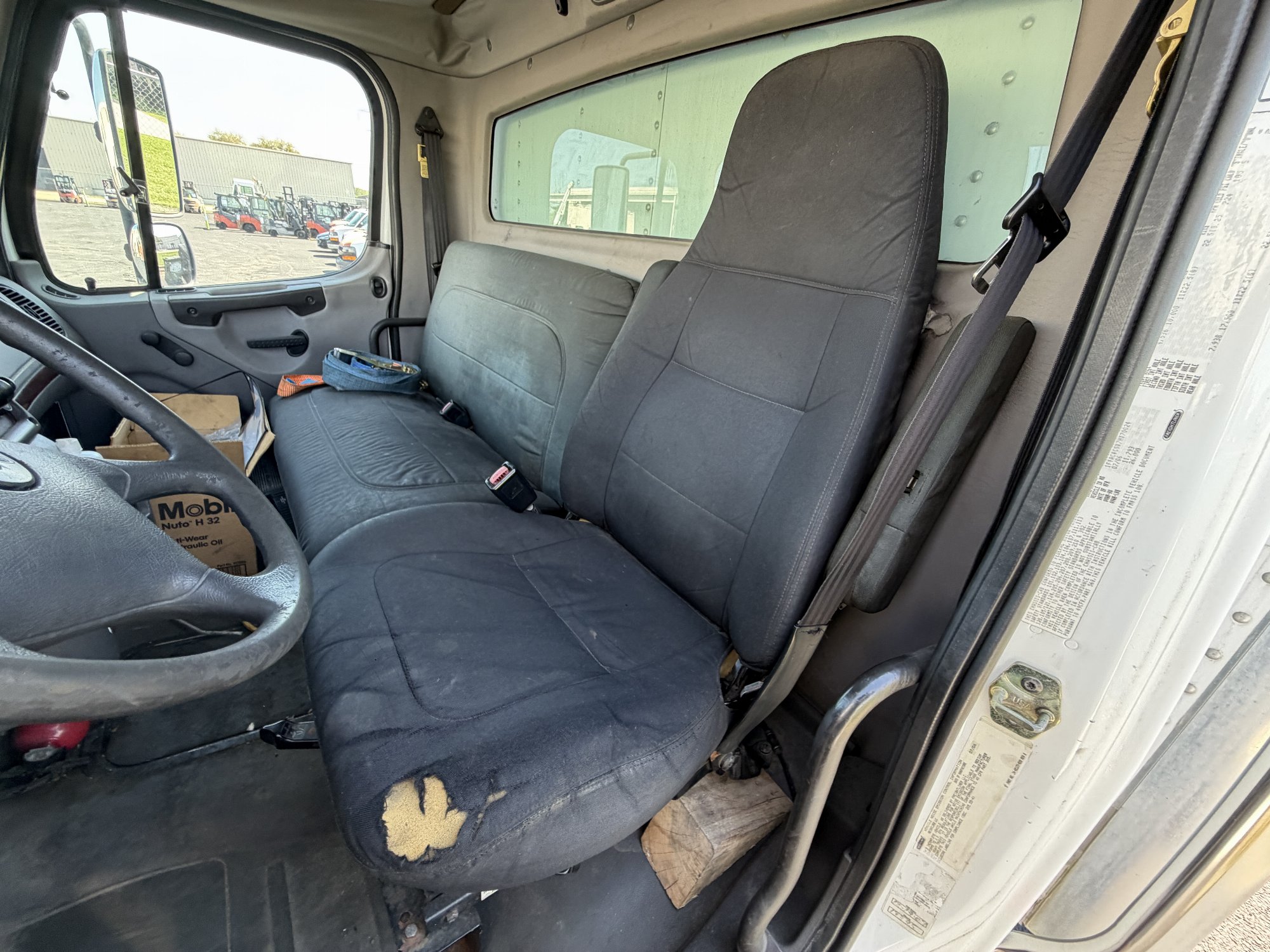

| SEATS | UPHOLSTERY IS WORN & STAINED. D/S TORN | |

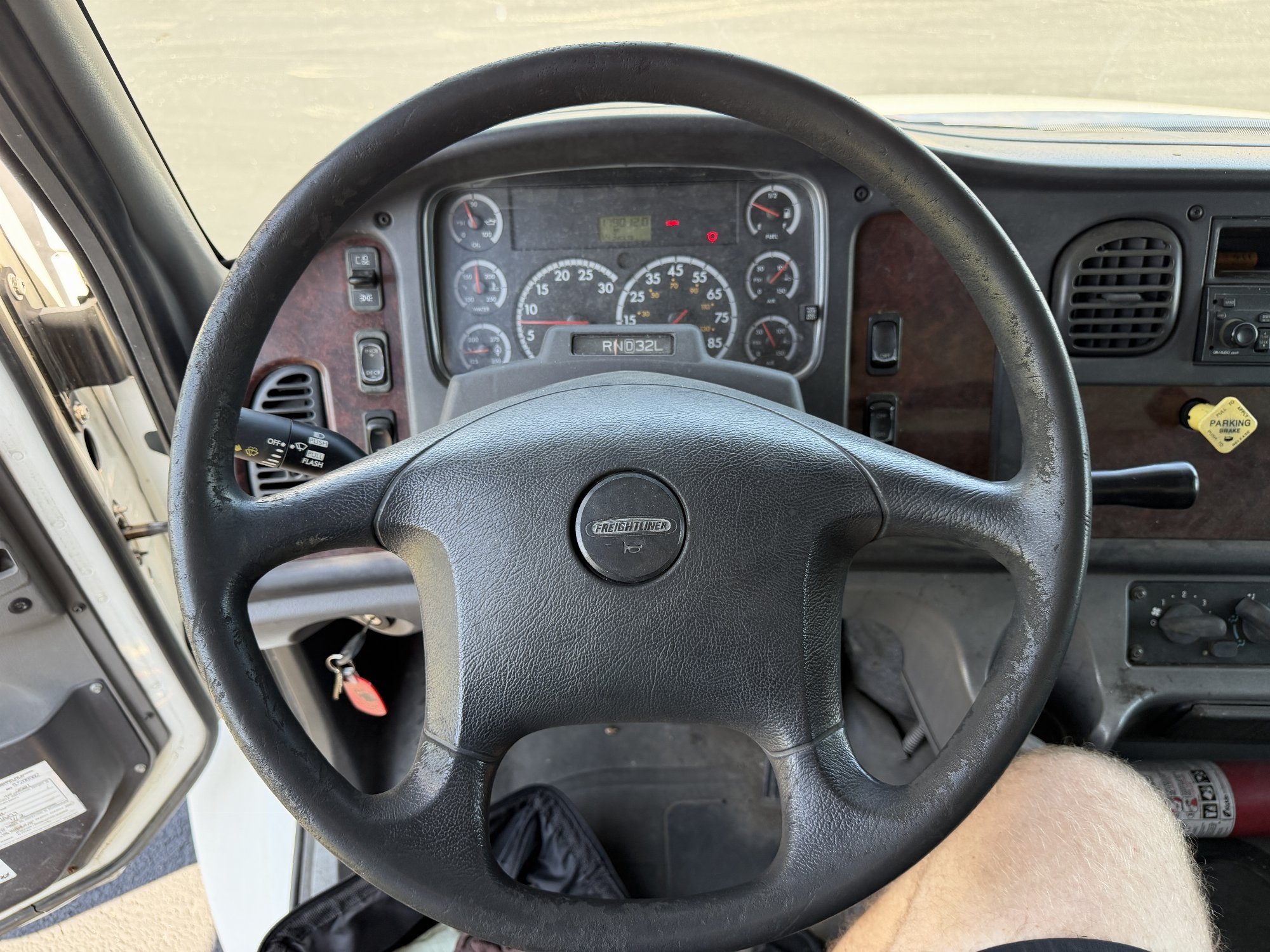

| STEERING WHEEL | SURFACES ARE WORN | |
| HEADLINER | STAINED AND COMING LOOSE | |

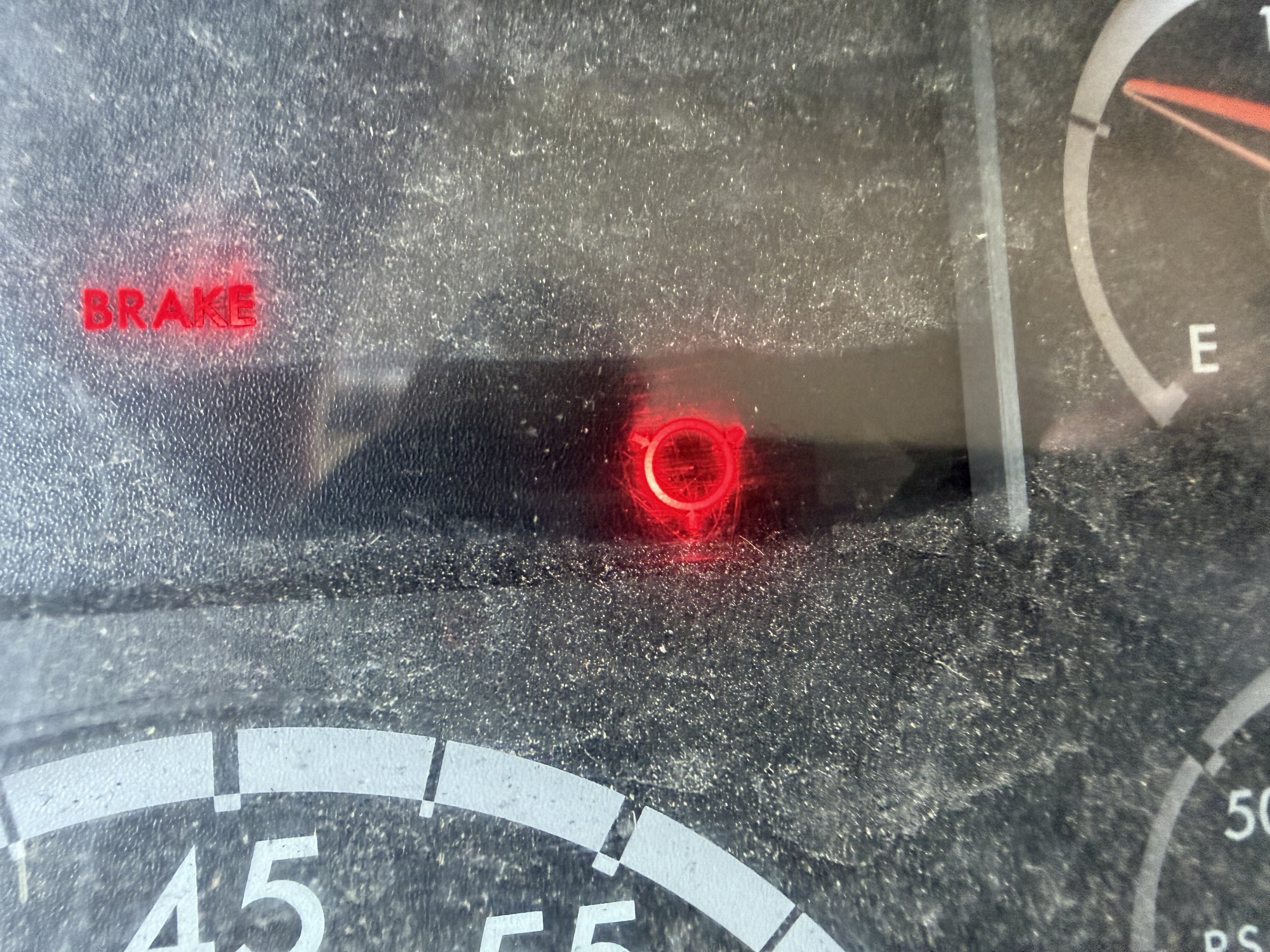

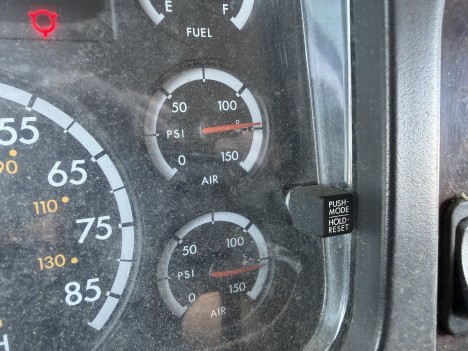

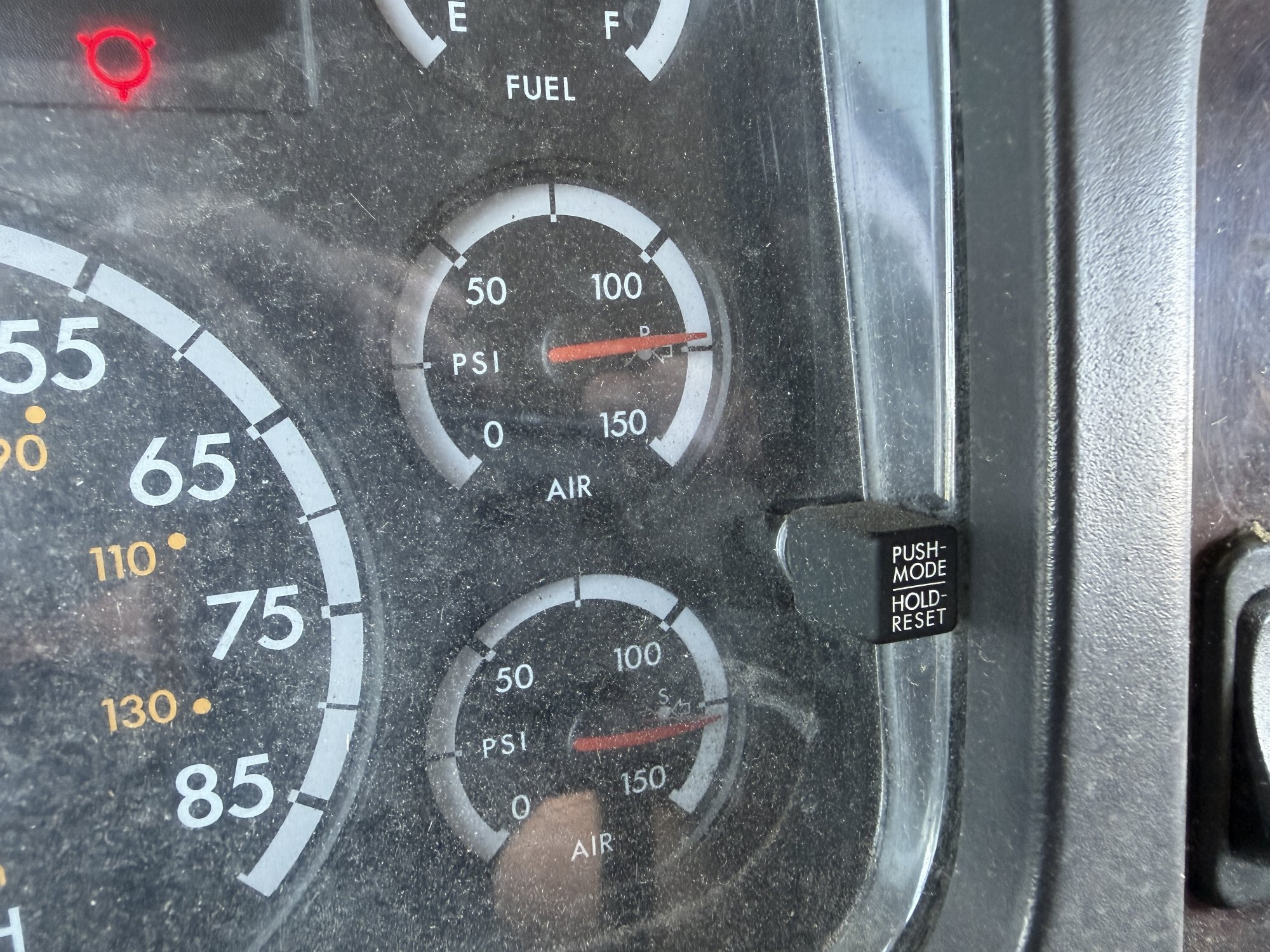

| AIR LEAK | CONSTANT, LOW AIR LIGHT AND ACTIVE LEAK FROM CABIN AIR SPRING | |
| Report Videos |
|---|
| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
15F
16A
16B
16C
16D
16E
16F
17A
17B
17C
17D
17E
17F
18A
18B
18C
18D
18E
18F
19A
19B
19C
19D
19E
19F
20A
20B
20C
20D
20E
20F
21A
21B
21C
21D
21E
21F
22A
22B
22C
22D
22E
22F
23A
23B
23C
23D
23E
23F
24A
24B
24C
24D
24E
24F
25A
| Report Documents |
|---|
Condition report only. National Inspection Services does not guarantee mechanical reliability.
