National Inspection Services
Report: 339915
09/02/2026
09/02/2026
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
VIN: 1FDUF5HT9GEA60234
PO #: 0000
PO #: 0000

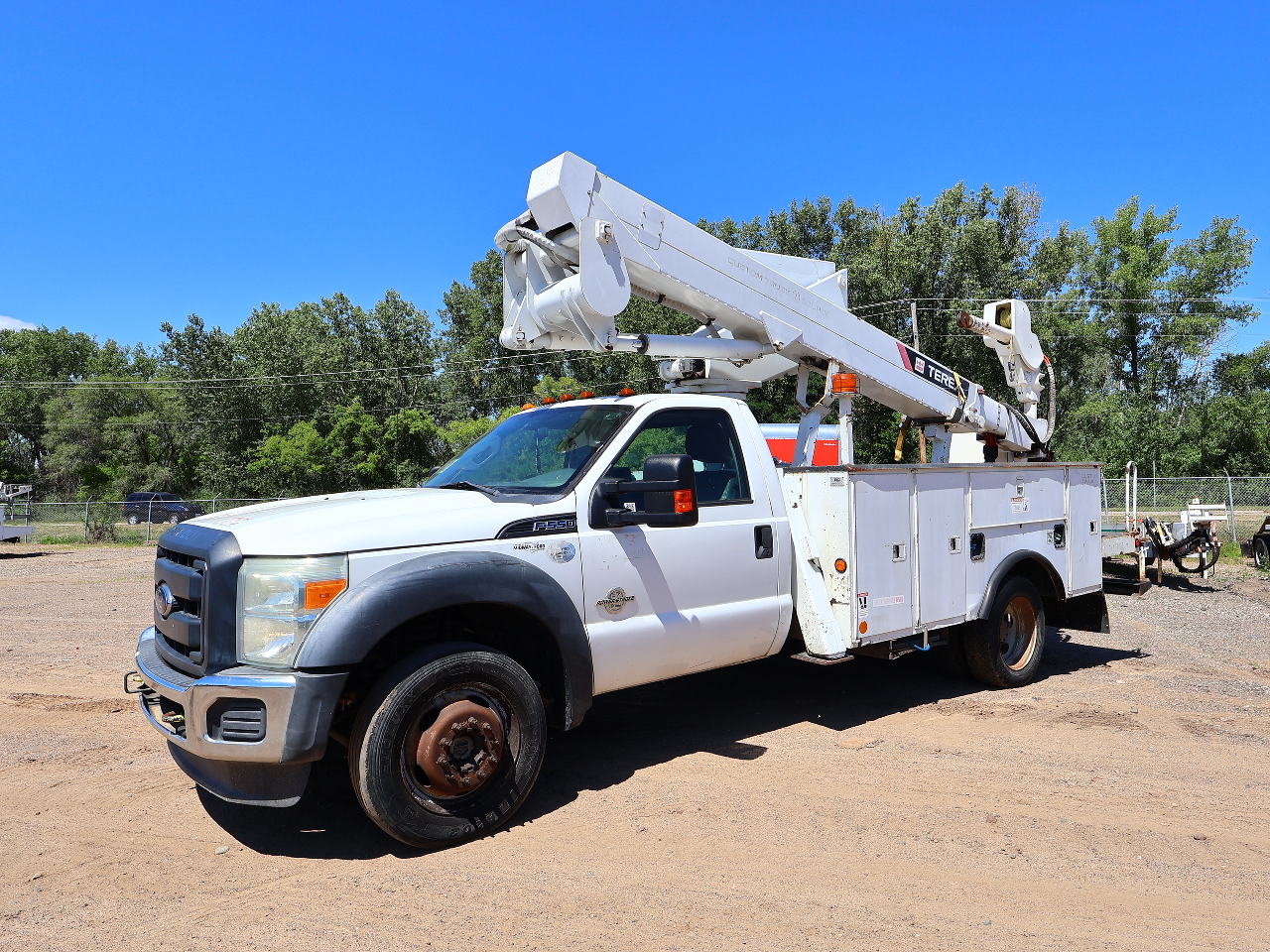

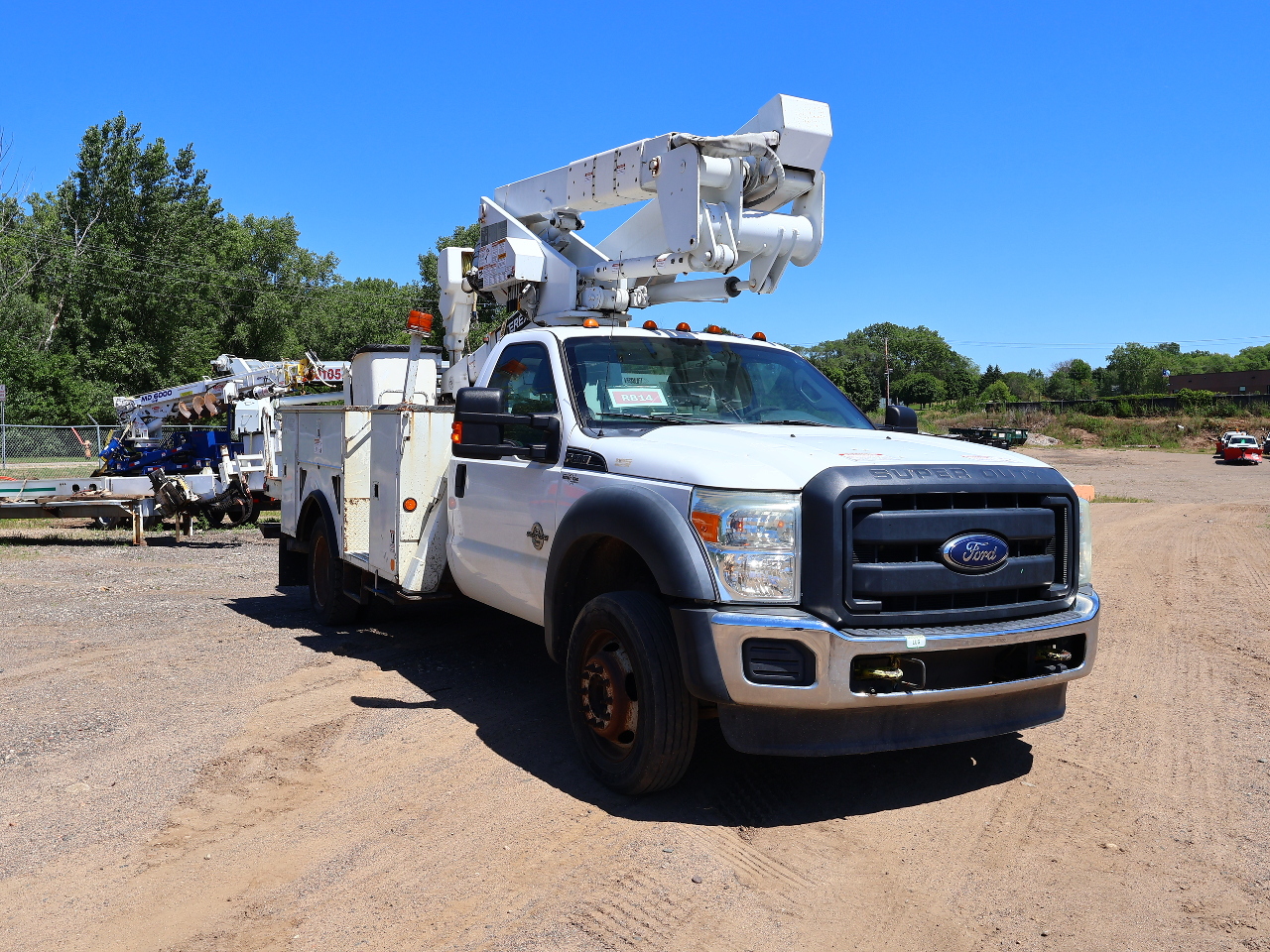

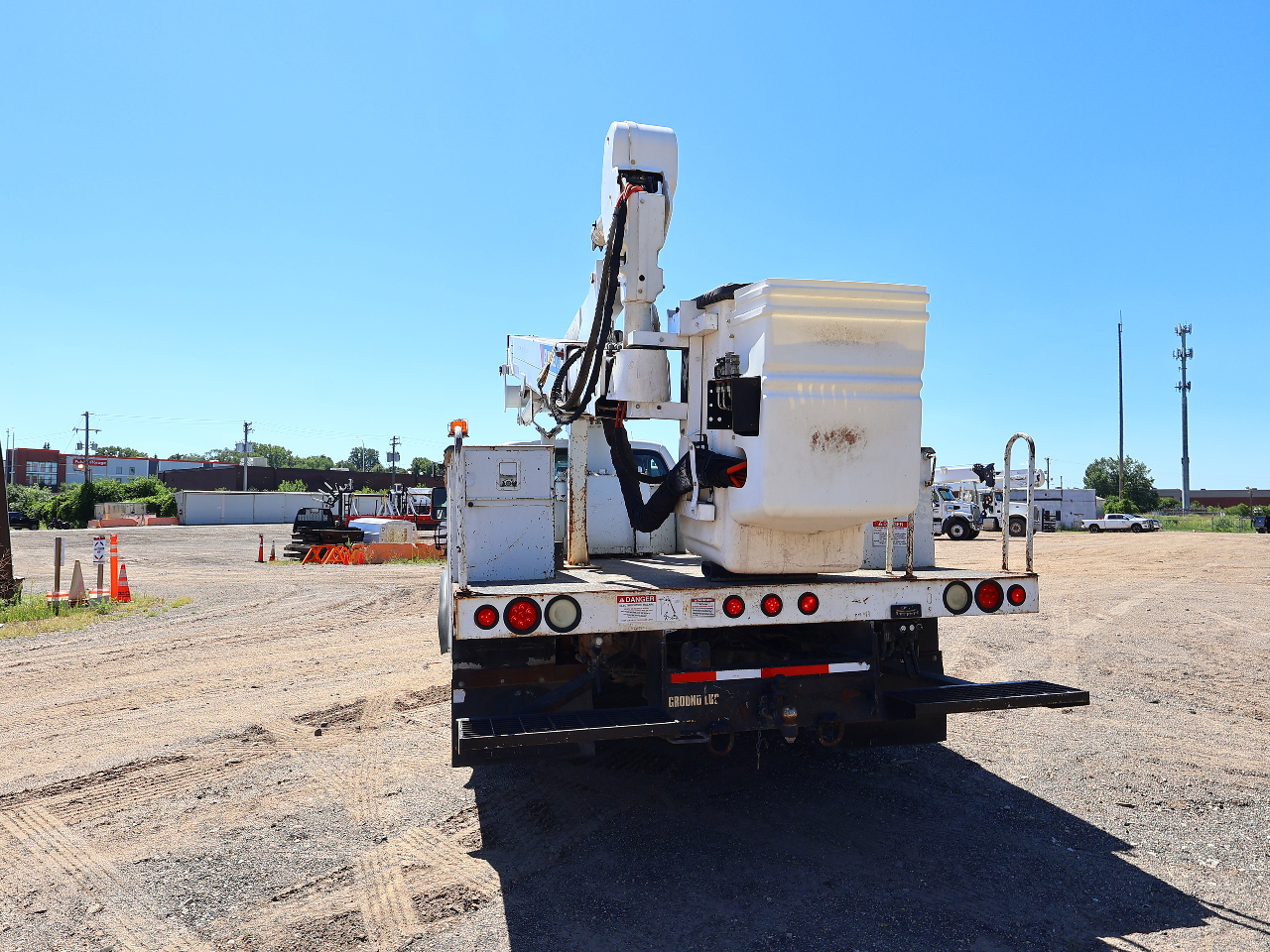

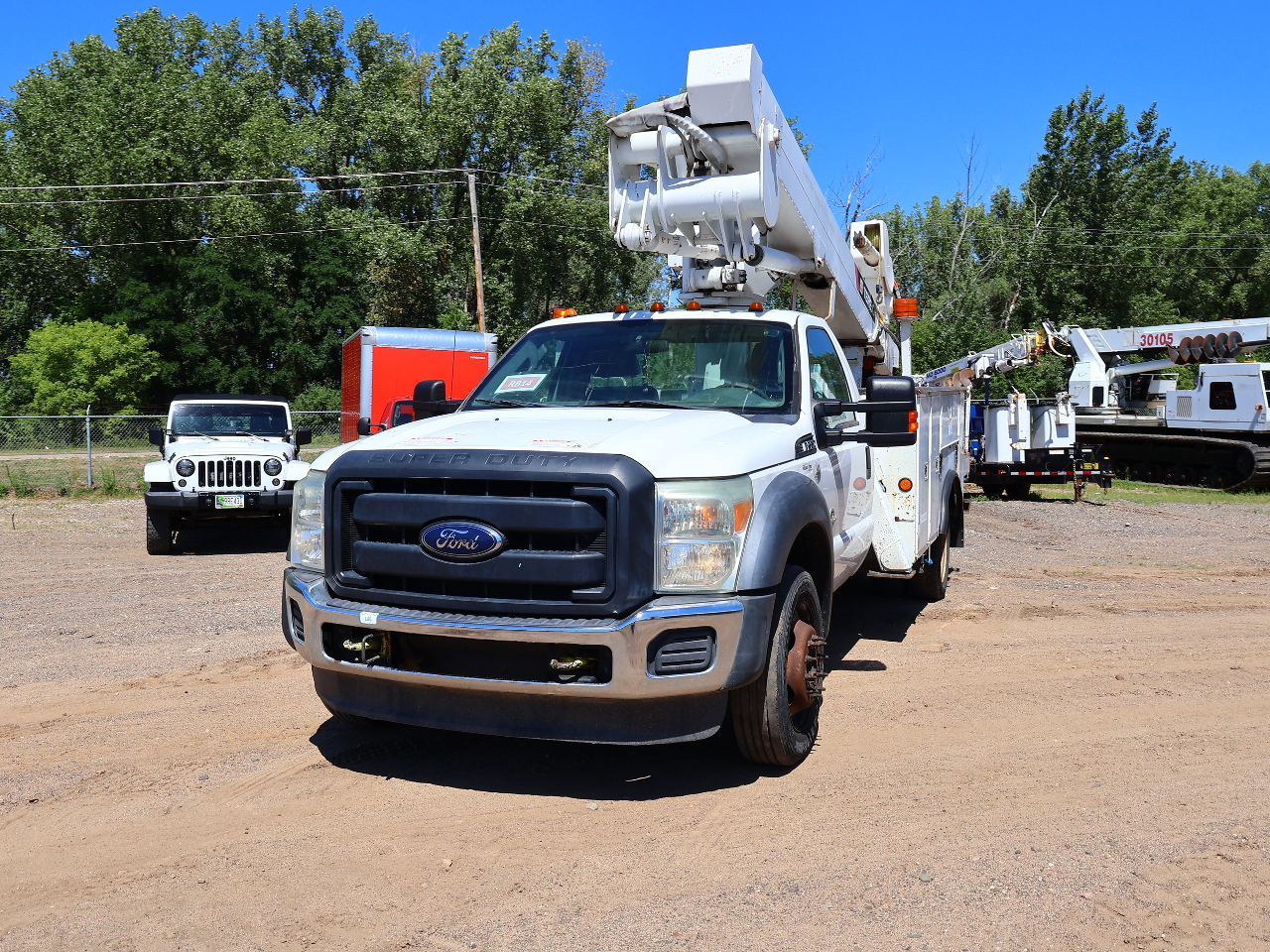

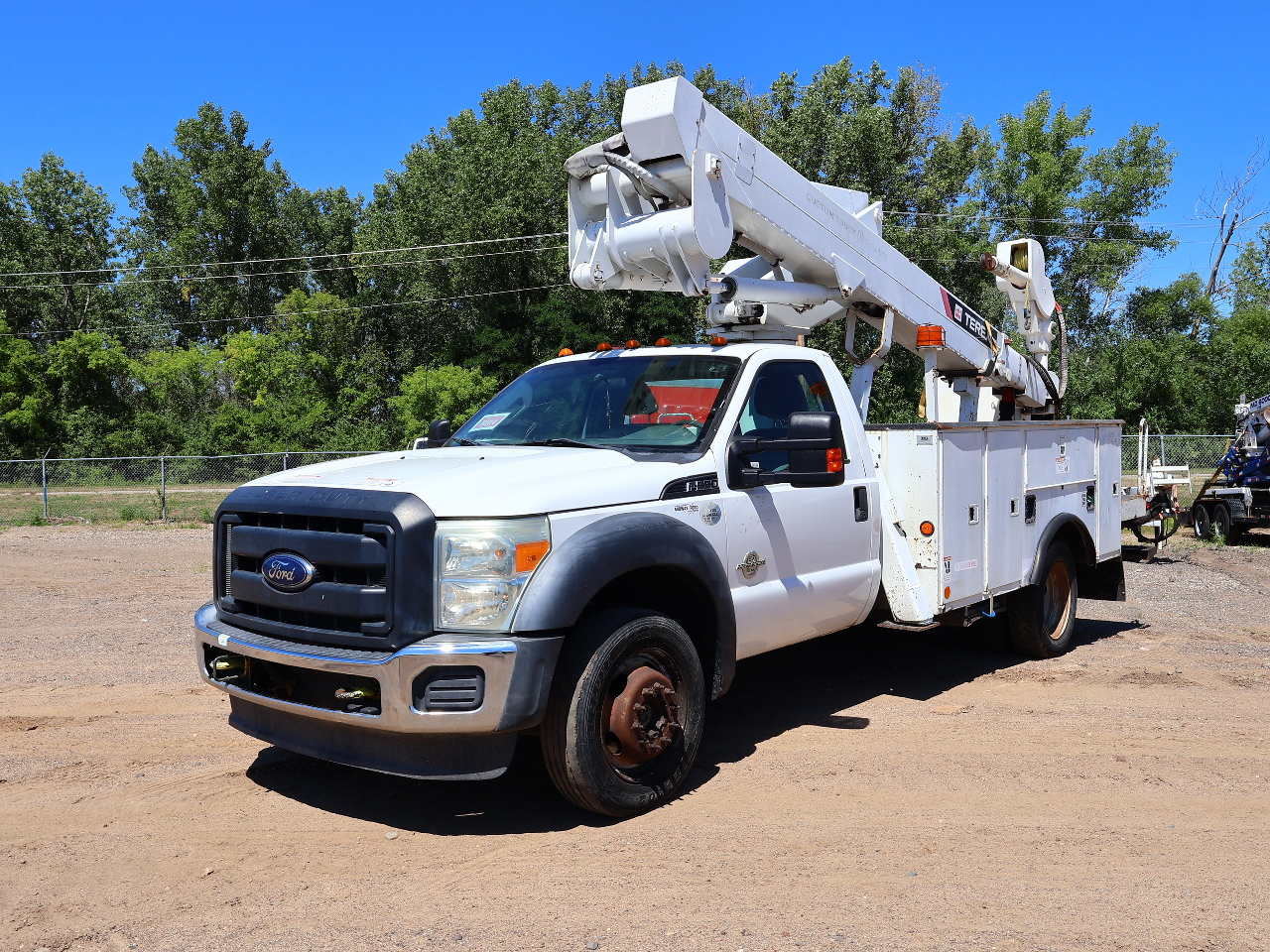

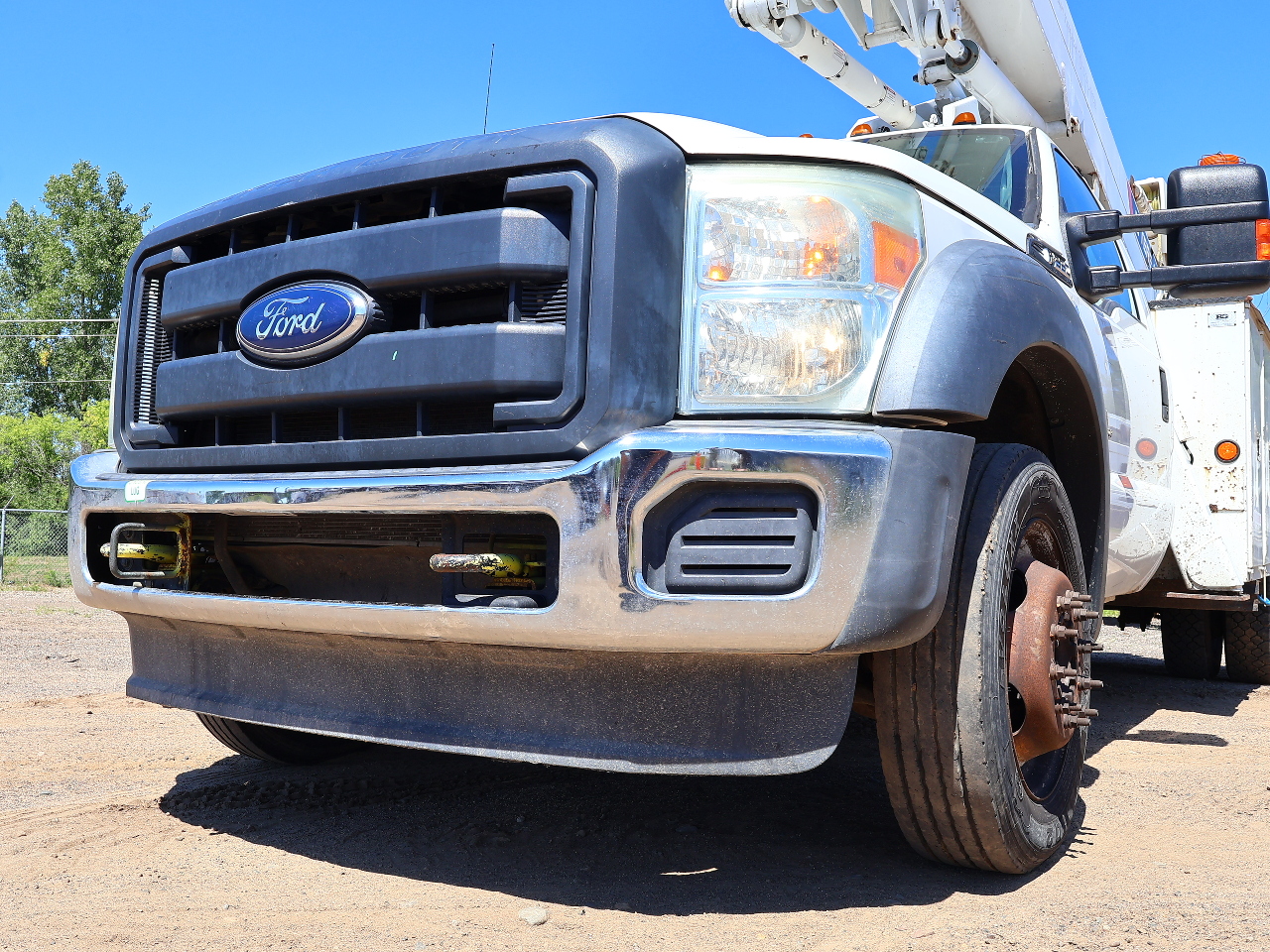

| 2016 FORD F550 |
|---|
| Specifications | |
|---|---|
| Mileage | 113,098 |
| Engine Hours | 9,104 |

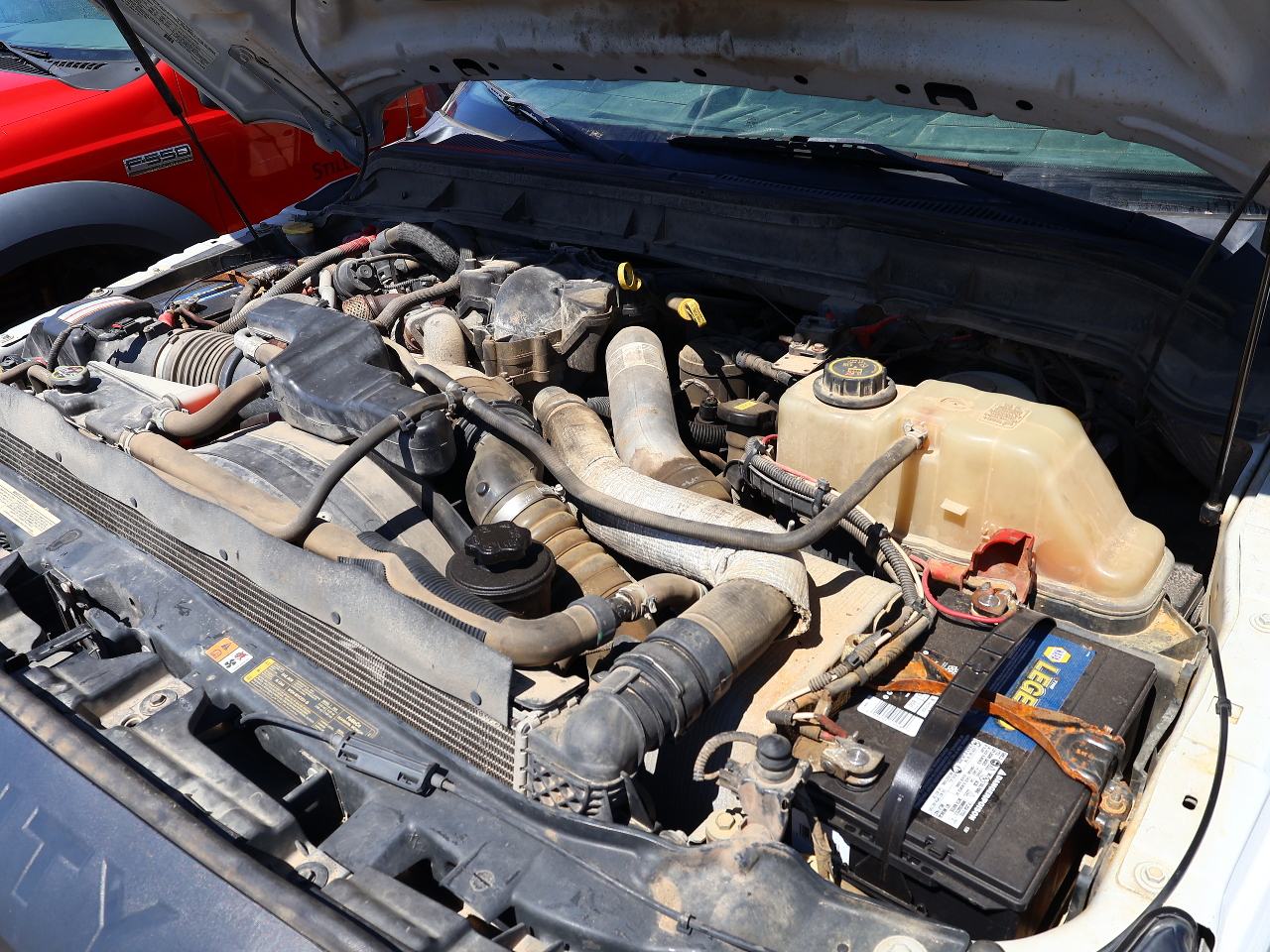

| Engine | FORD V8 6.7L |
| Fuel / Tanks | DIESEL - 1 PLASTIC 40 GAL TOTAL |
| Transmission | FORD 6R140 6 SPD AUTO |
| Drive Opts | POWER STEERING, OVERDRIVE, CRUISE |
| Rear End | FORD 4.88 |
| Axle Type | SINGLE - F 7,000 LB / R 14,706 LB |
| GVWR | 19,500 |
| Frame | STEEL |
| Suspension | SPRING |
| Wheelbase | 165" |
| Tire Size | 225/70R19.5 |
| Wheels | F STEEL / R STEEL |
| Air Cond | YES, OPERATIONAL |
| Interior Color | GRAY |
| Radio | AM/FM / CD / BLUETOOTH |
| Mirrors | DUAL POWER |
| High Back Seats | DUAL |
| Exterior Color | WHITE |
| Bumper | CHROME |
| Brakes | |
|---|---|
| Left FrontDisc | Right FrontDisc |
| Left Rear 1Disc | Right Rear 1Disc |
| Tires & Wheels | |||
|---|---|---|---|
|
Left Front10 / 32 Steel |
Right Front7 / 32 Steel |
||
|
Left Outer 110 / 32 - Steel |
Left Inner 111 / 32 - Steel |
Right Inner 114 / 32 - Steel |
Right Outer 113 / 32 - Steel |

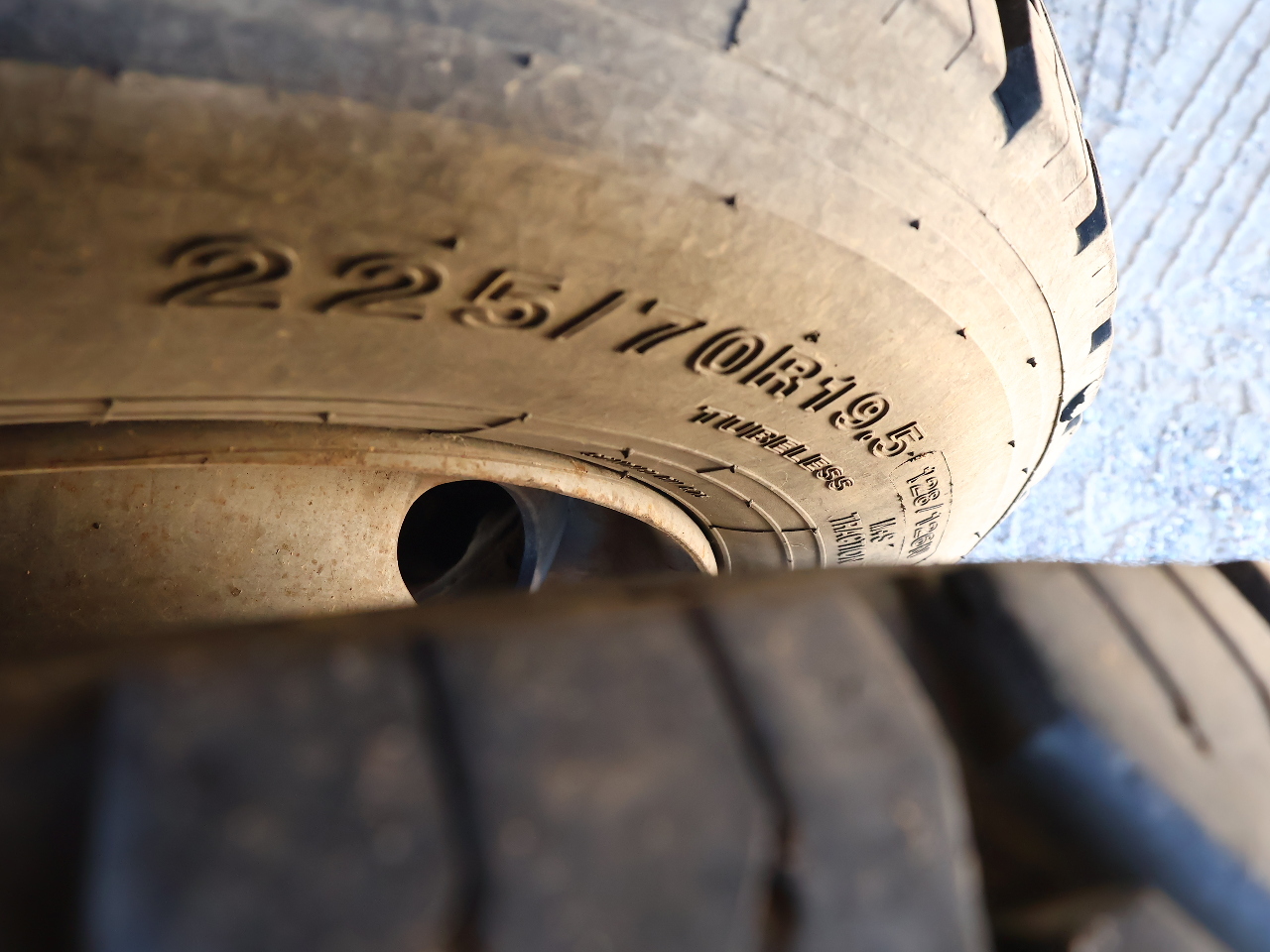

| FRONT TIRES: 225/70R19.5 | REAR TIRES: 225/70R19.5 | ||
| General Observations |
|---|
| Oil Milky? | No |
|---|---|
| Oil Leaks? | Yes |
| Coolant Leaks? | No |
| Oil in Coolant? | No |
| Clutch Play? | NA |
| Starts? | Yes |
| Drives | Yes |
| Lights Work? | Yes - All |
|---|---|
| Wipers Work? | Yes |

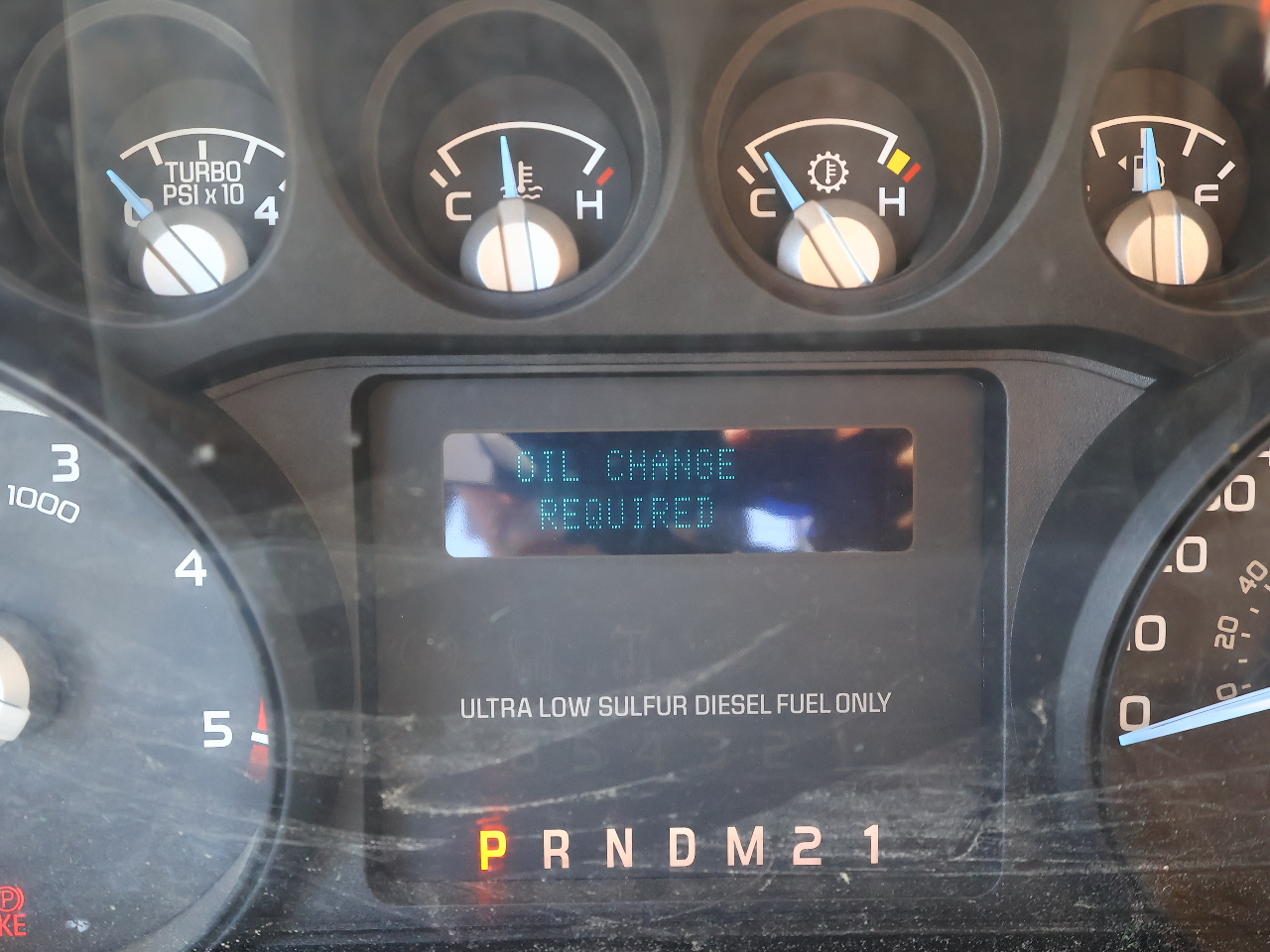

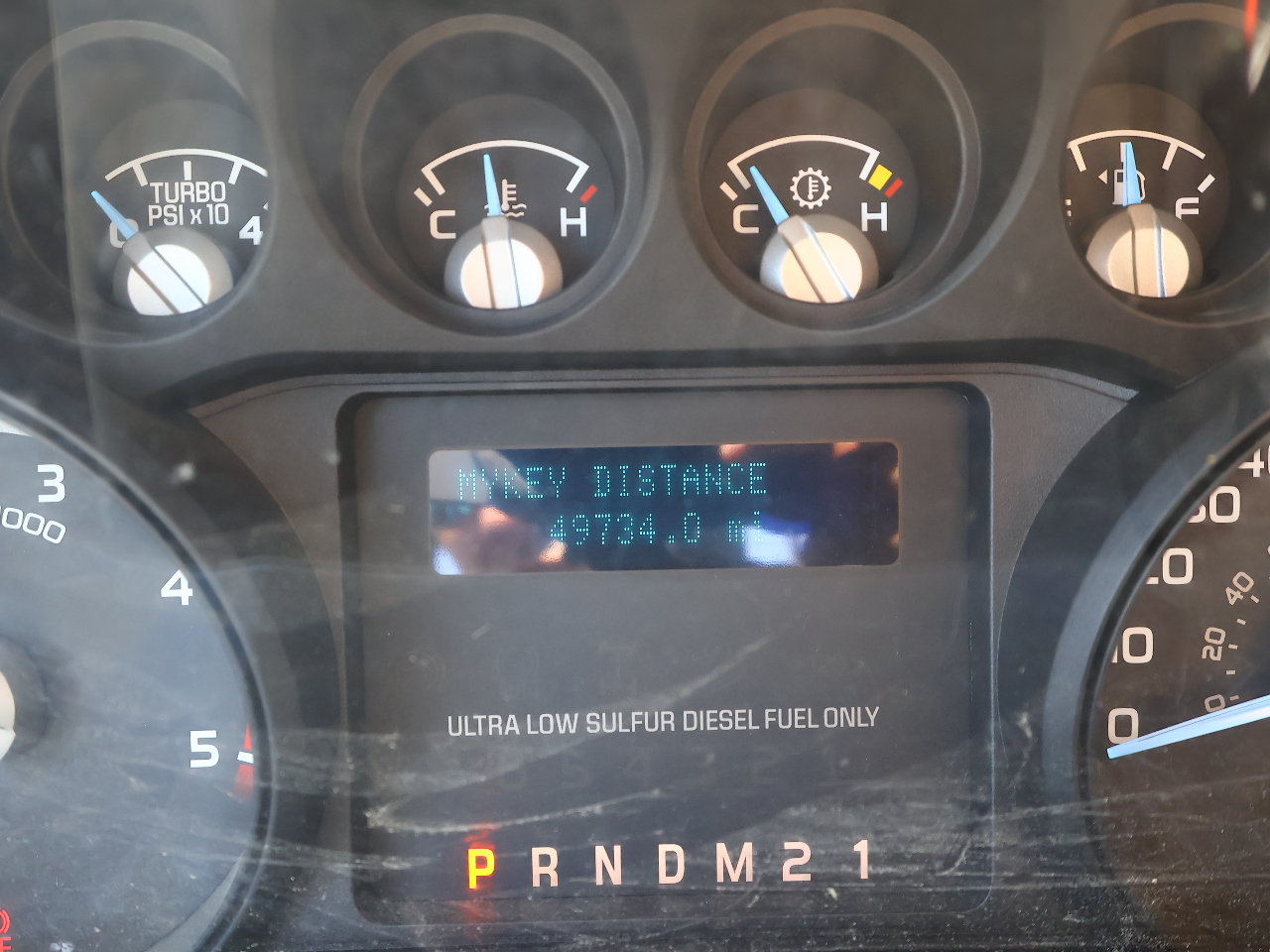

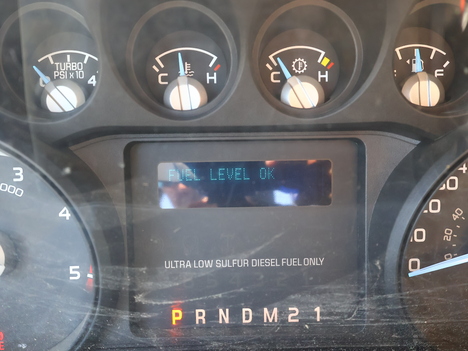

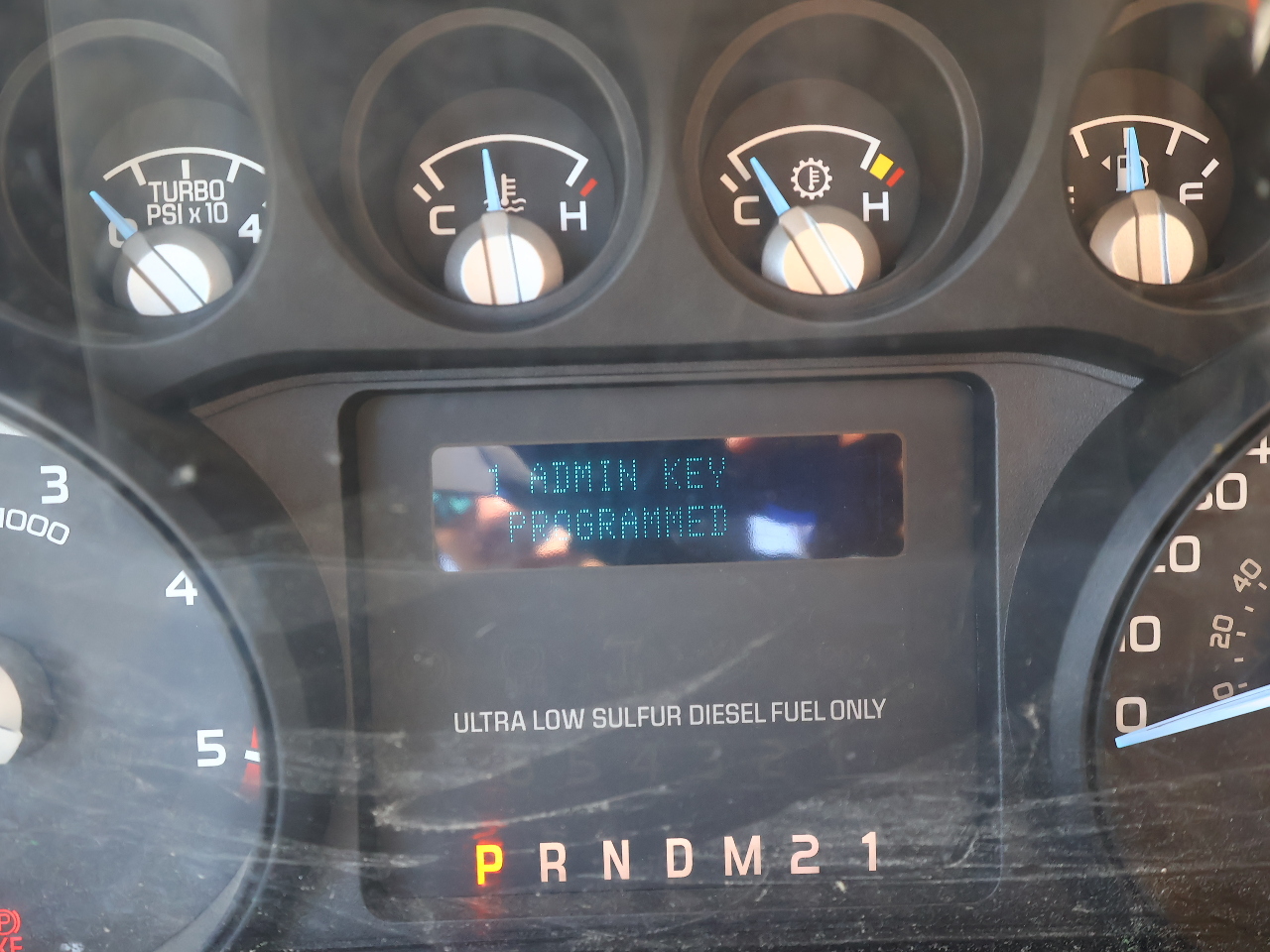

| Gauges Work? | Yes - All |
| Air Horn Works? | NA |
| City Horn Works? | Yes |
| Aftertreatment System | PASS |
|---|
| Additional Observations |
|---|

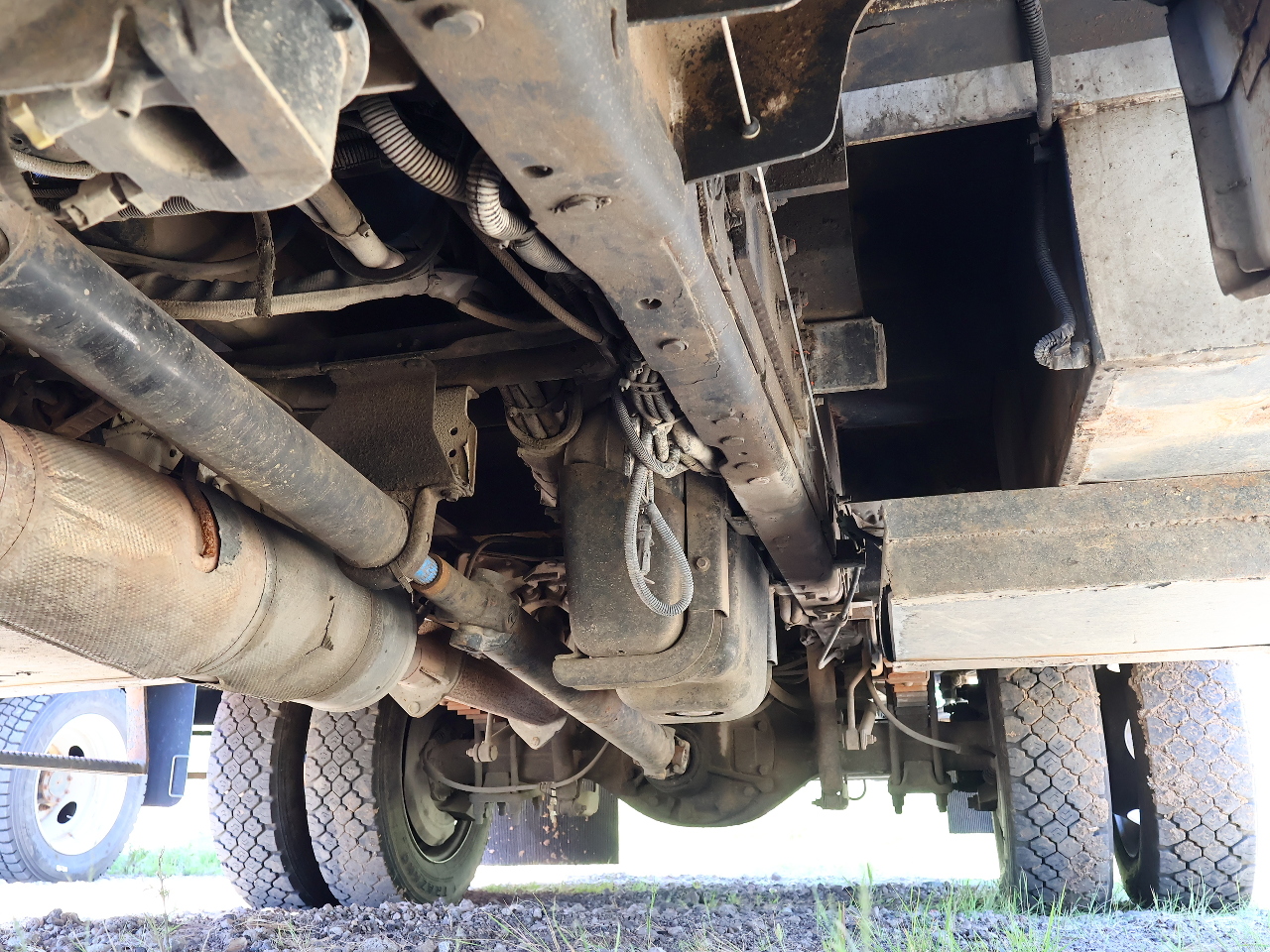

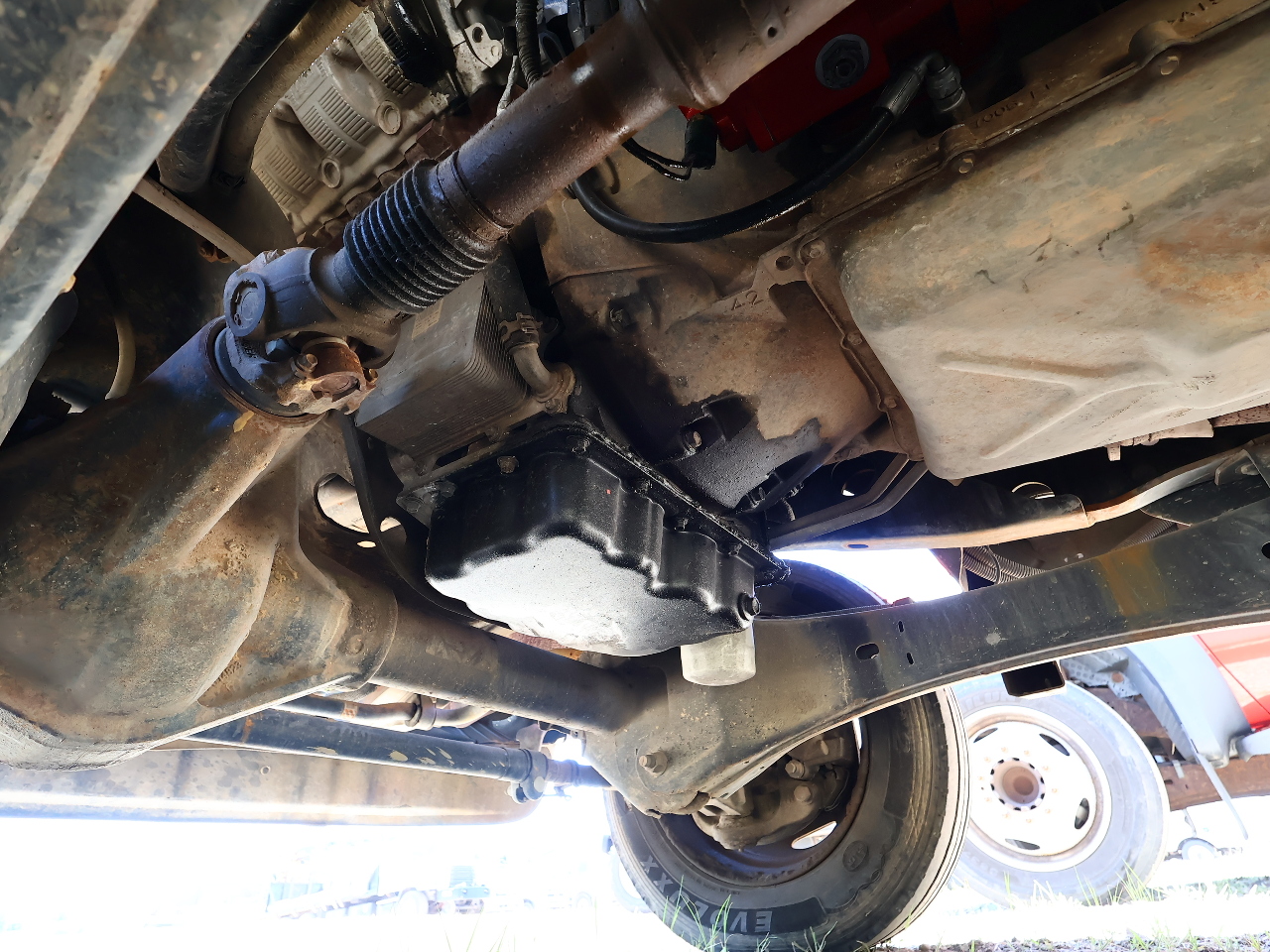

| Oil leaking at oil pan / rear seal area |
| Wear & Tear Detail | ||
|---|---|---|
| WARNINGS | NO ACTIVE WARNING INDICATORS | |

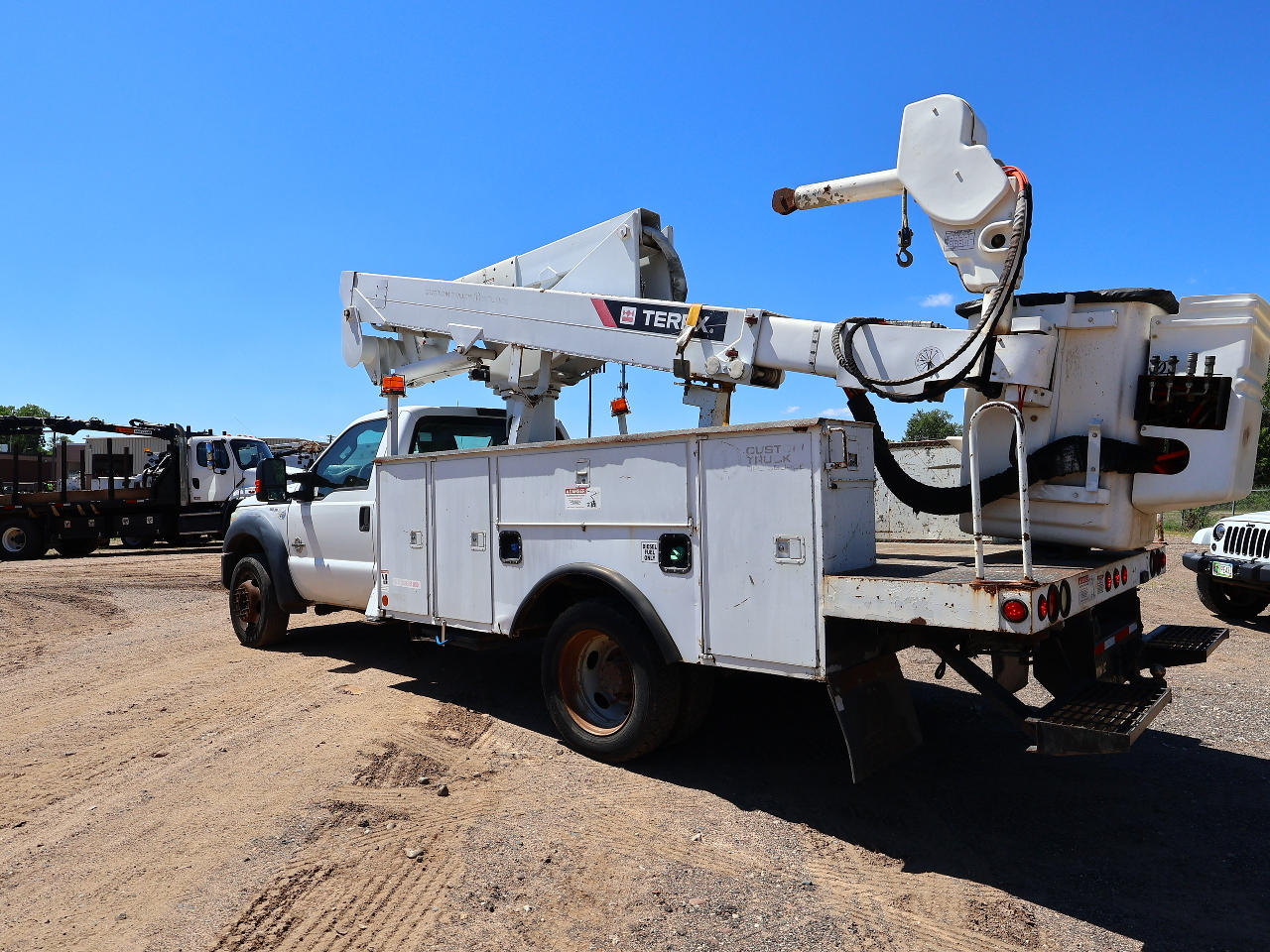

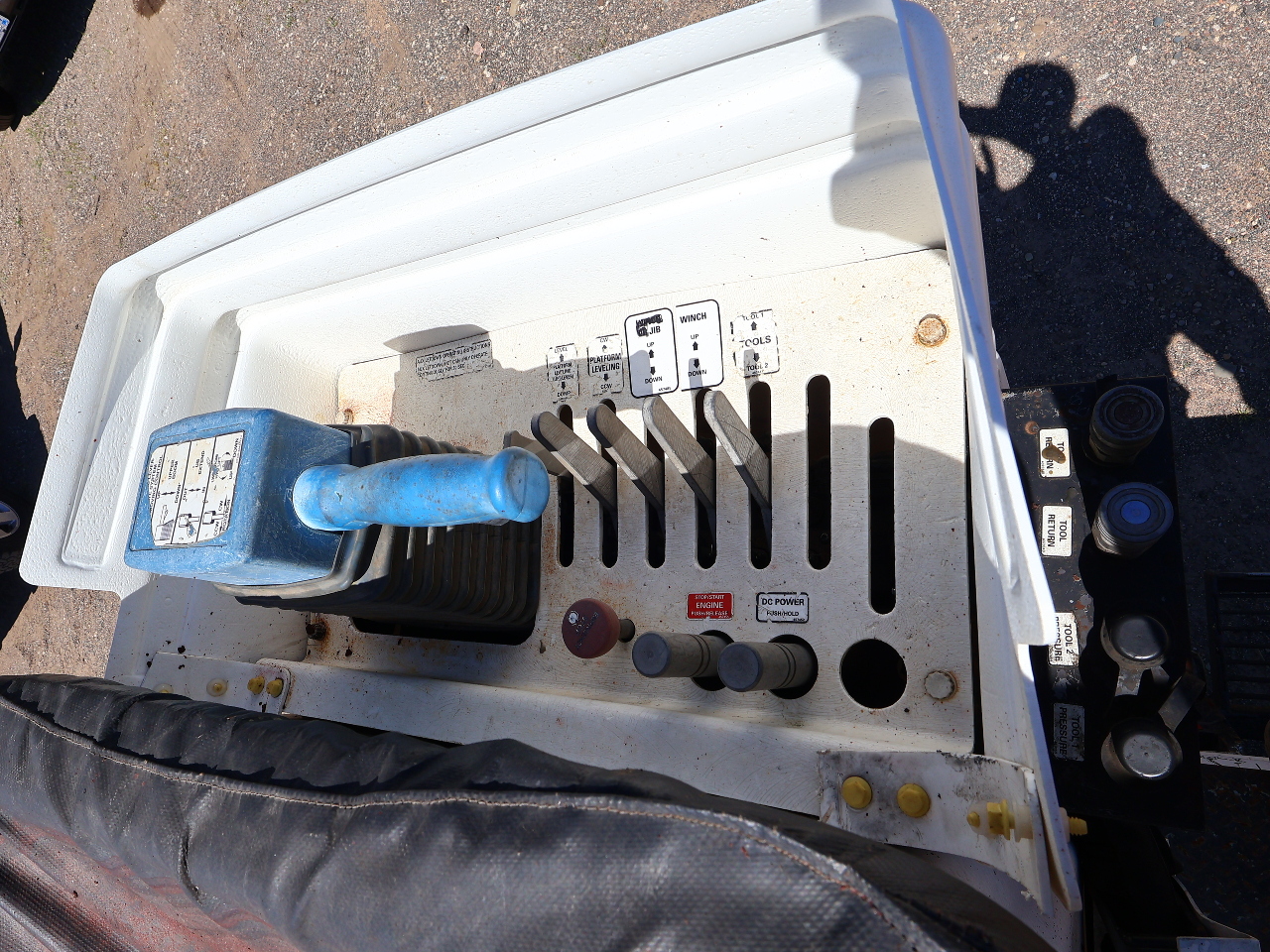

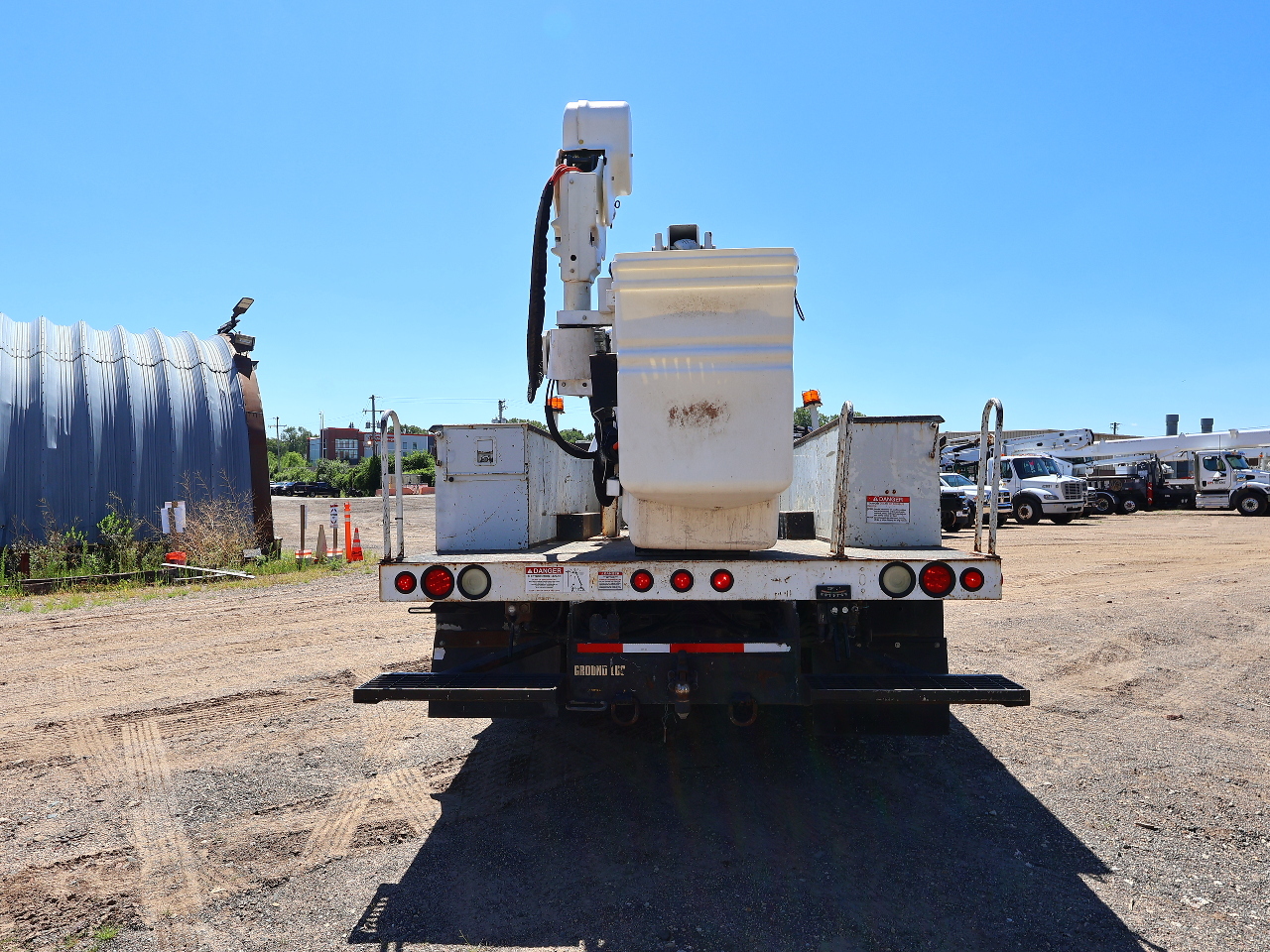

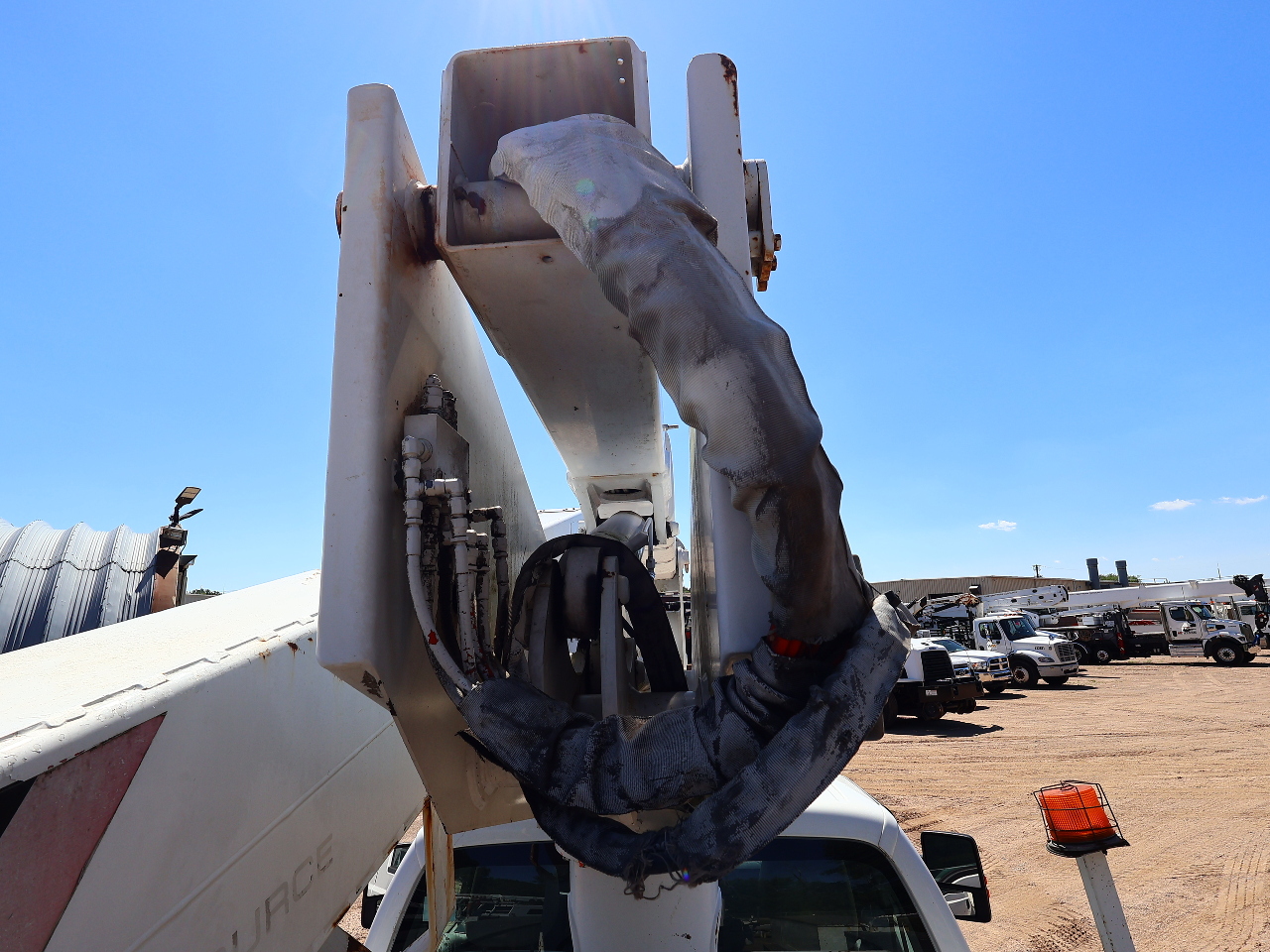

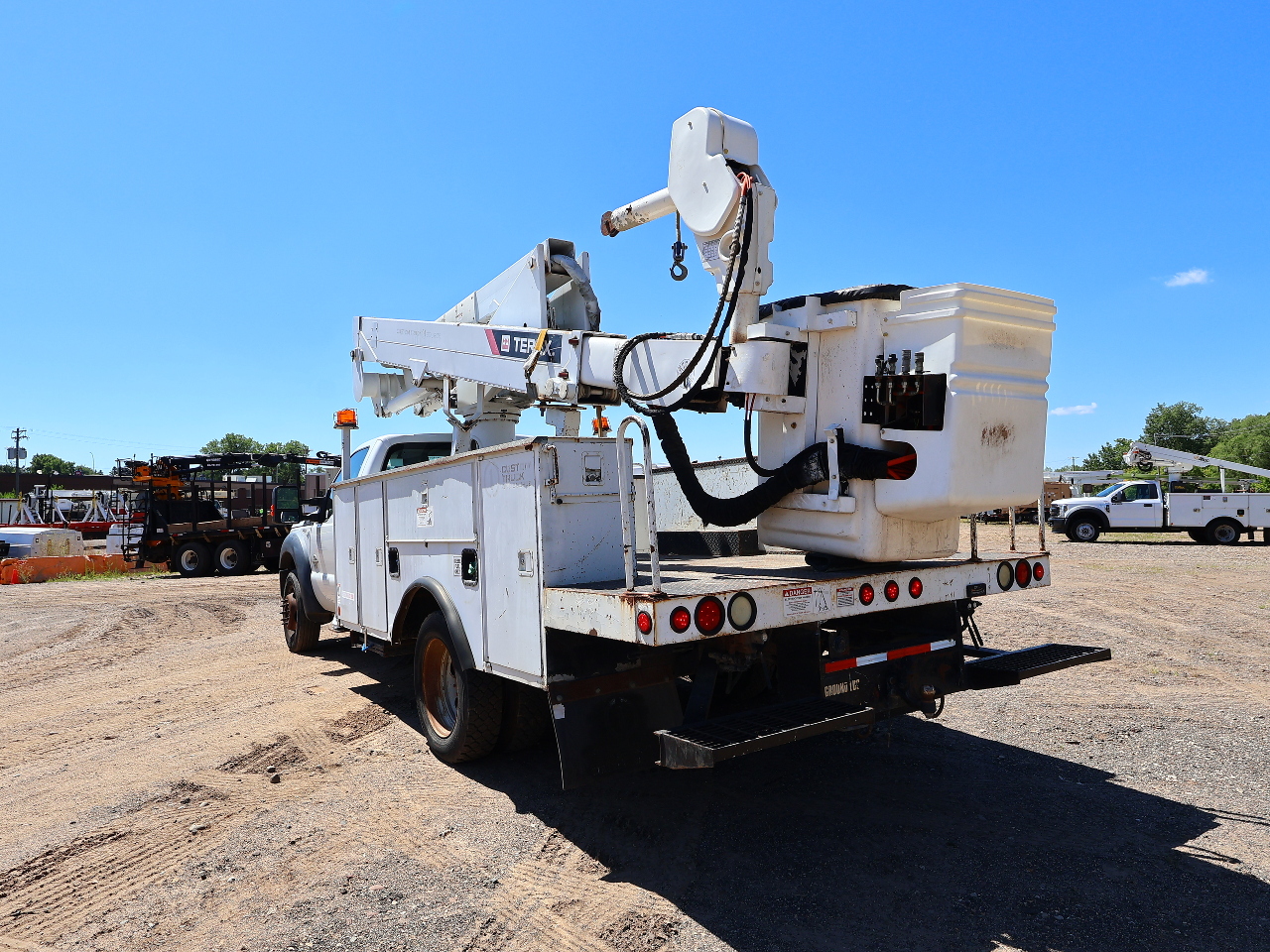

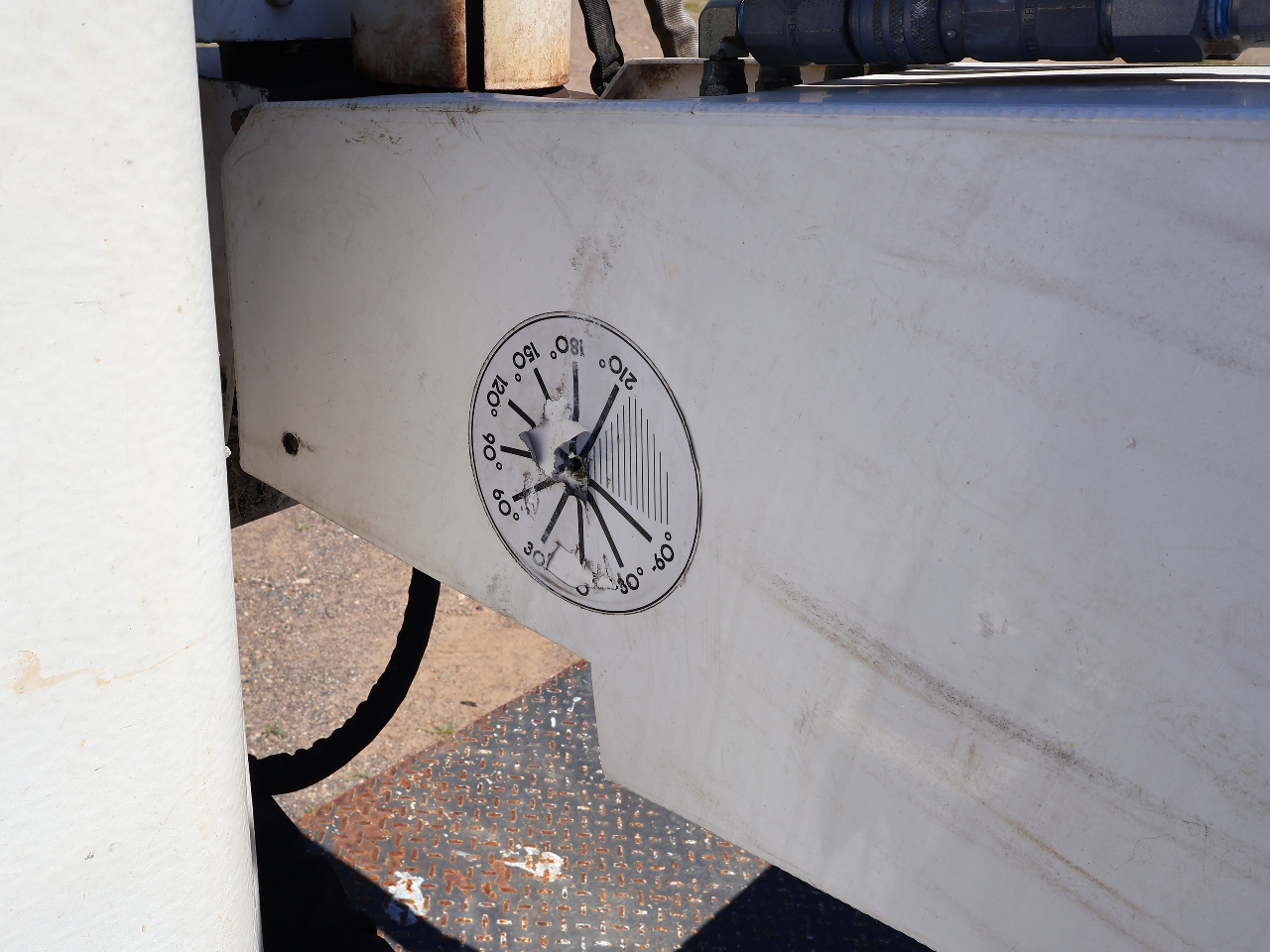

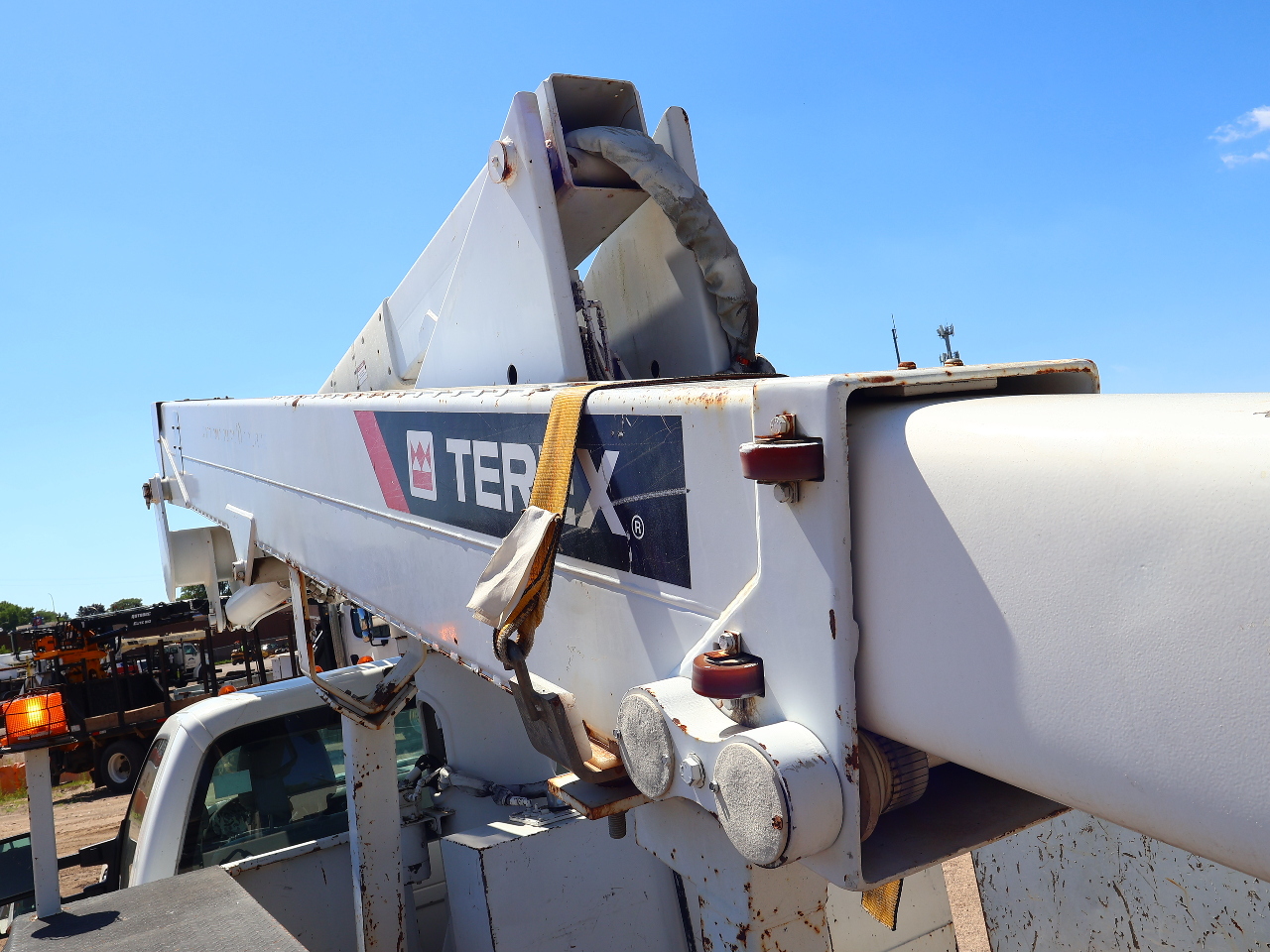

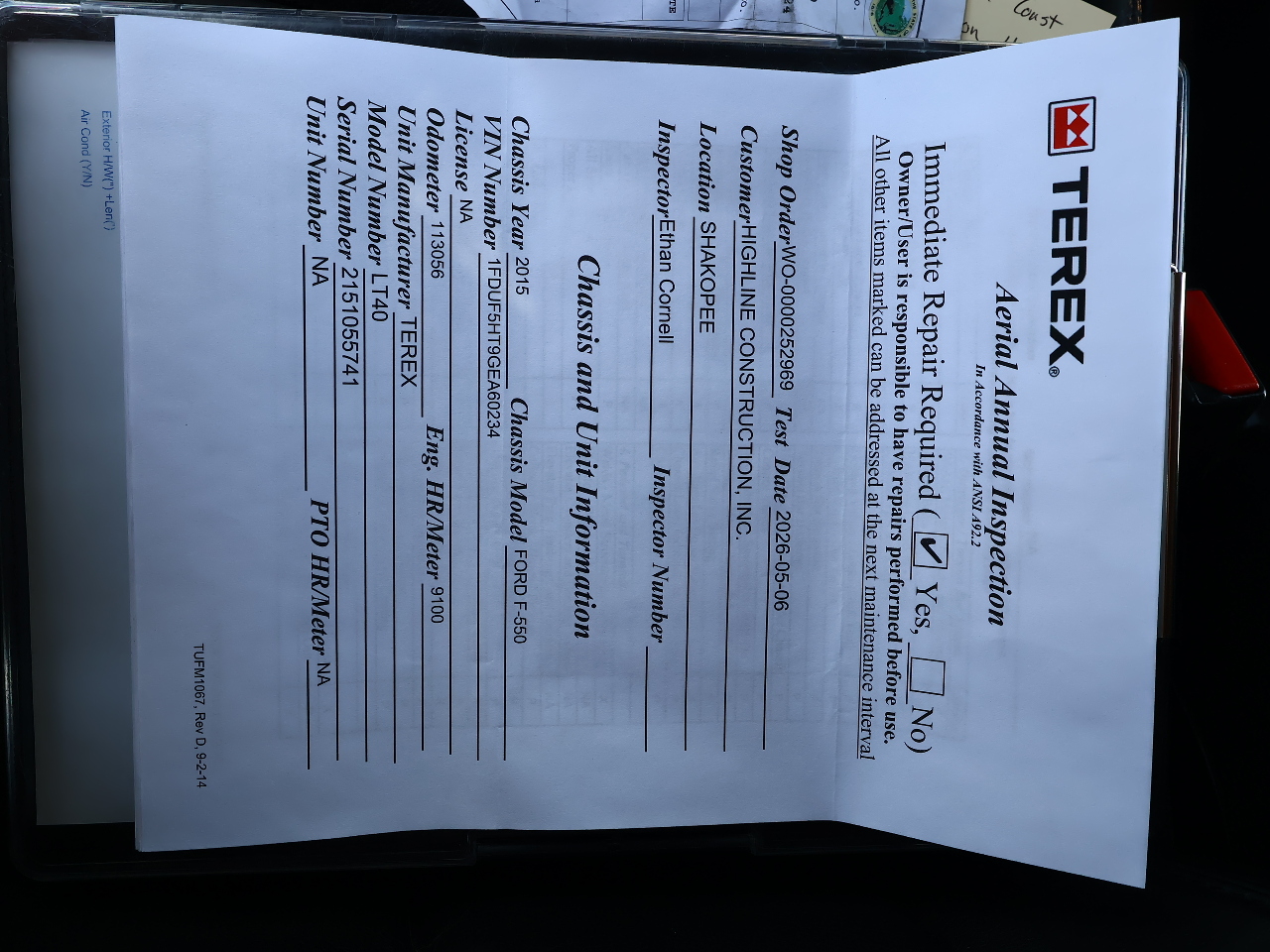

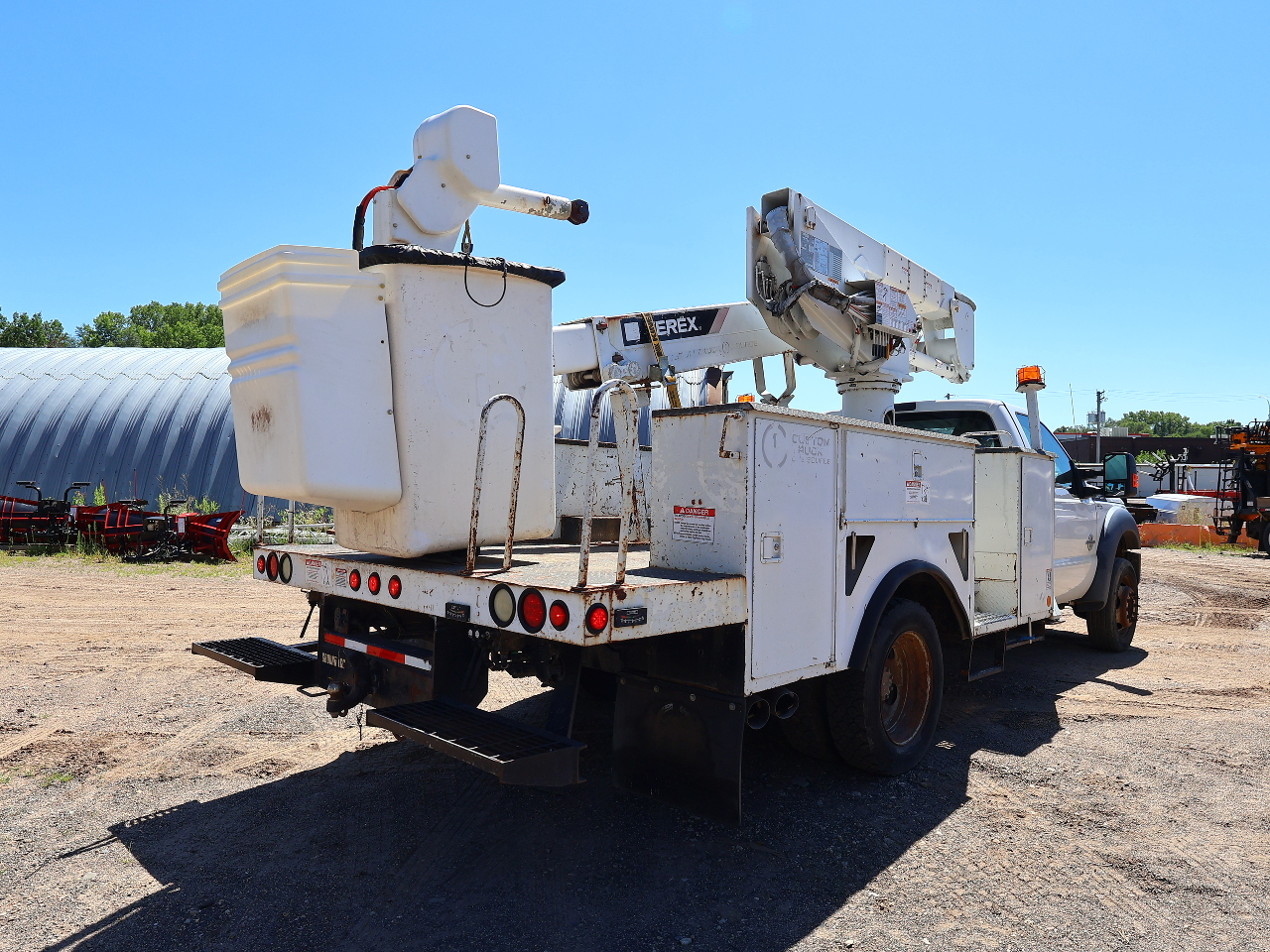

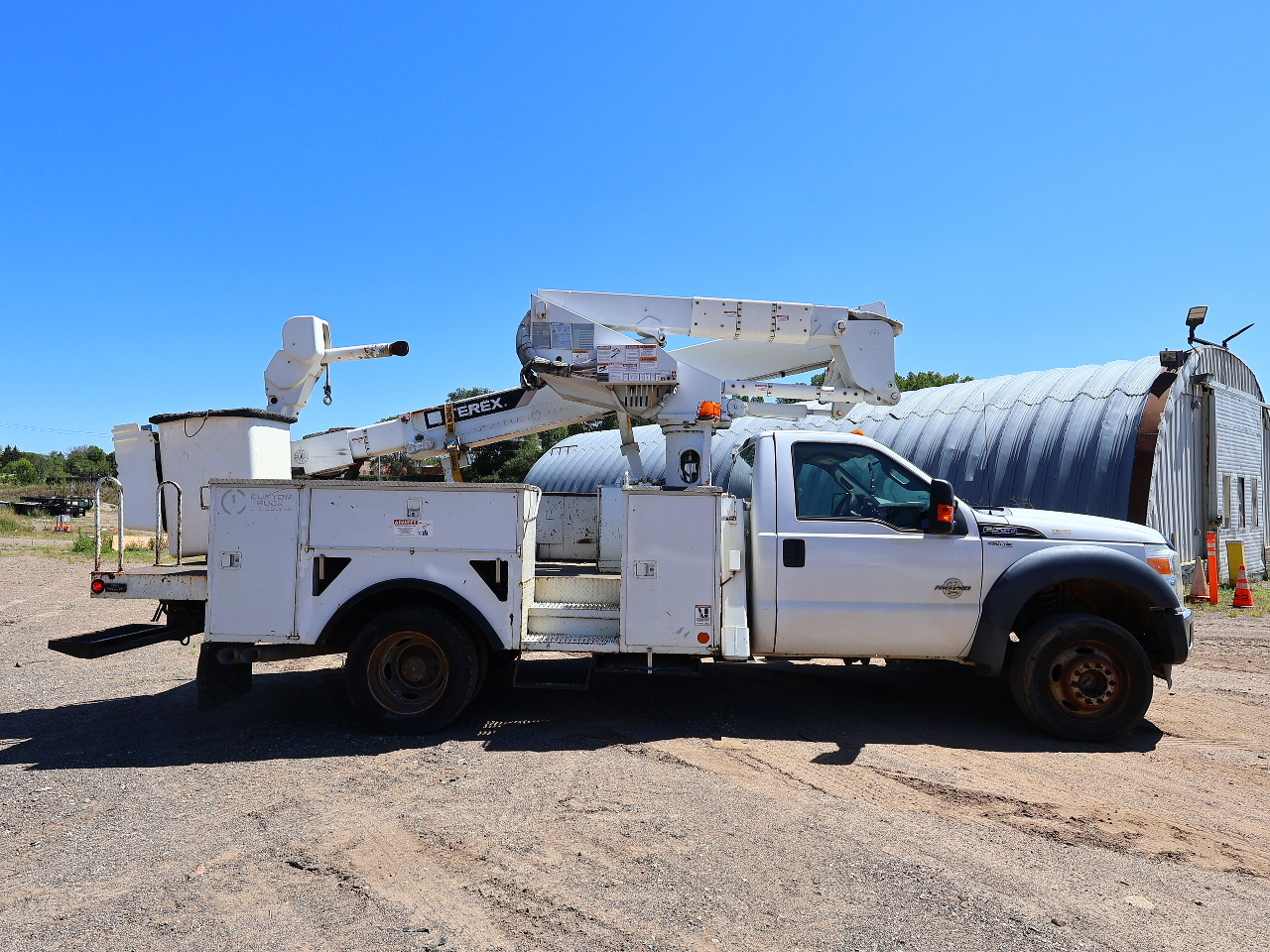

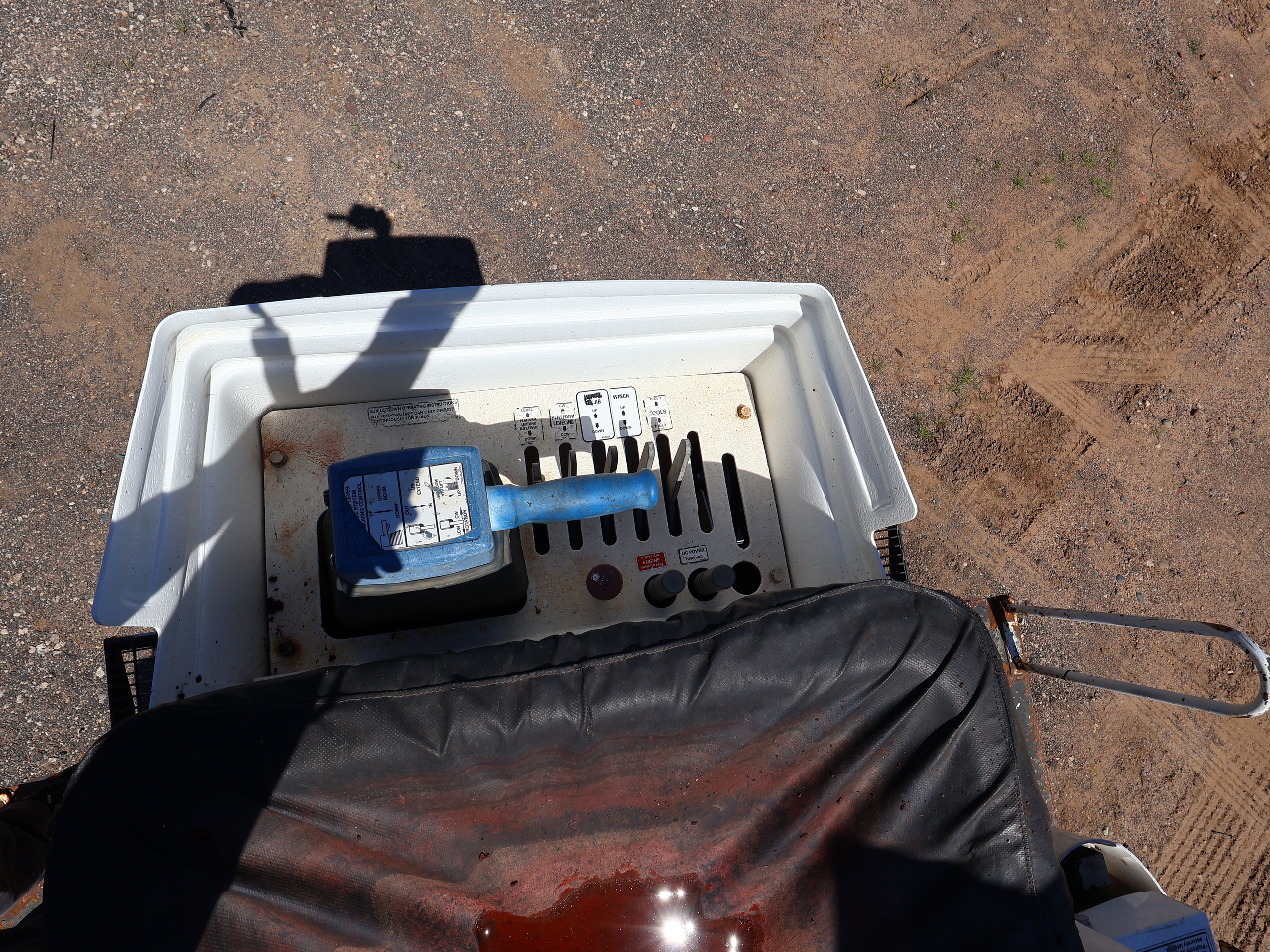

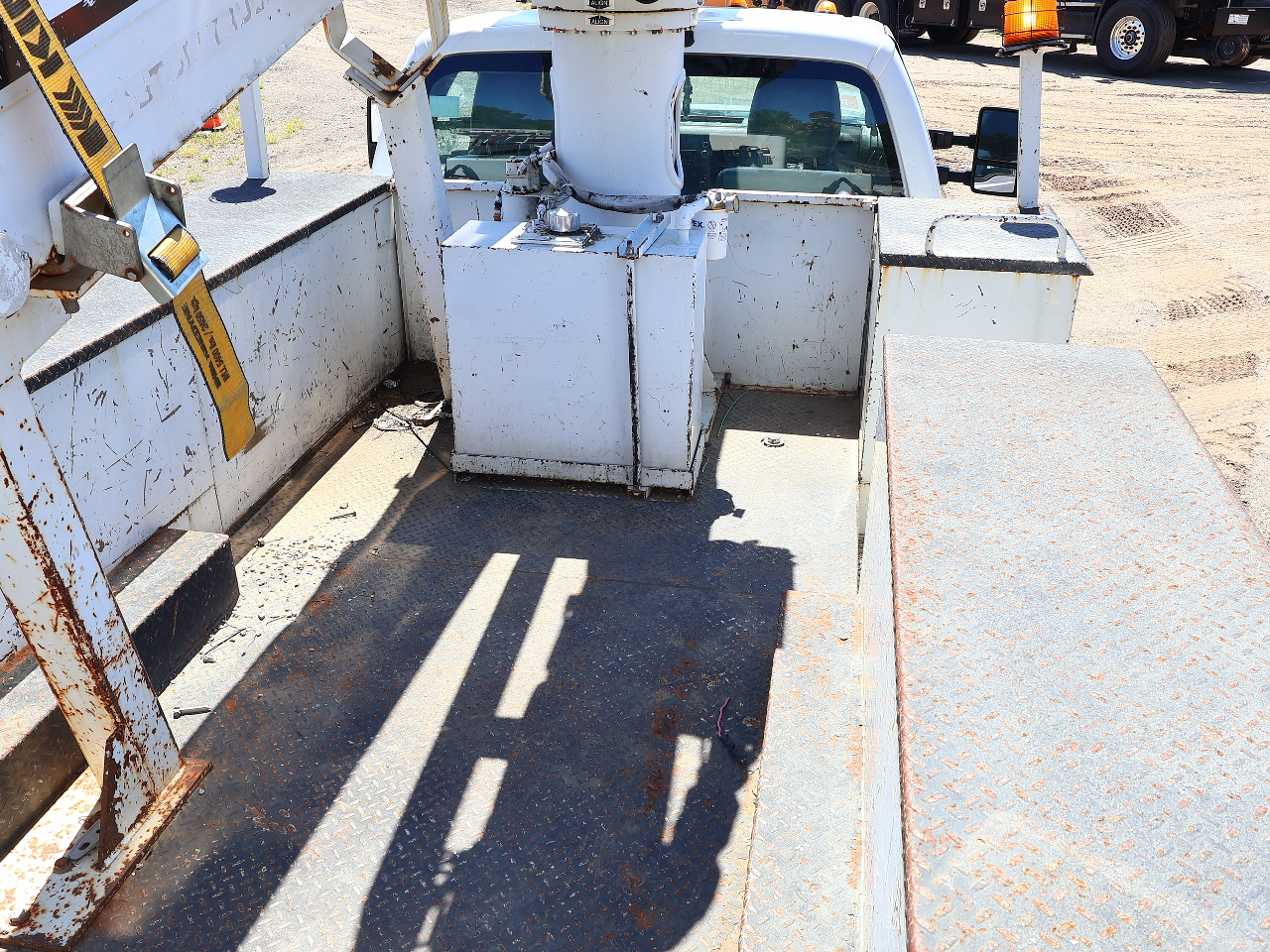

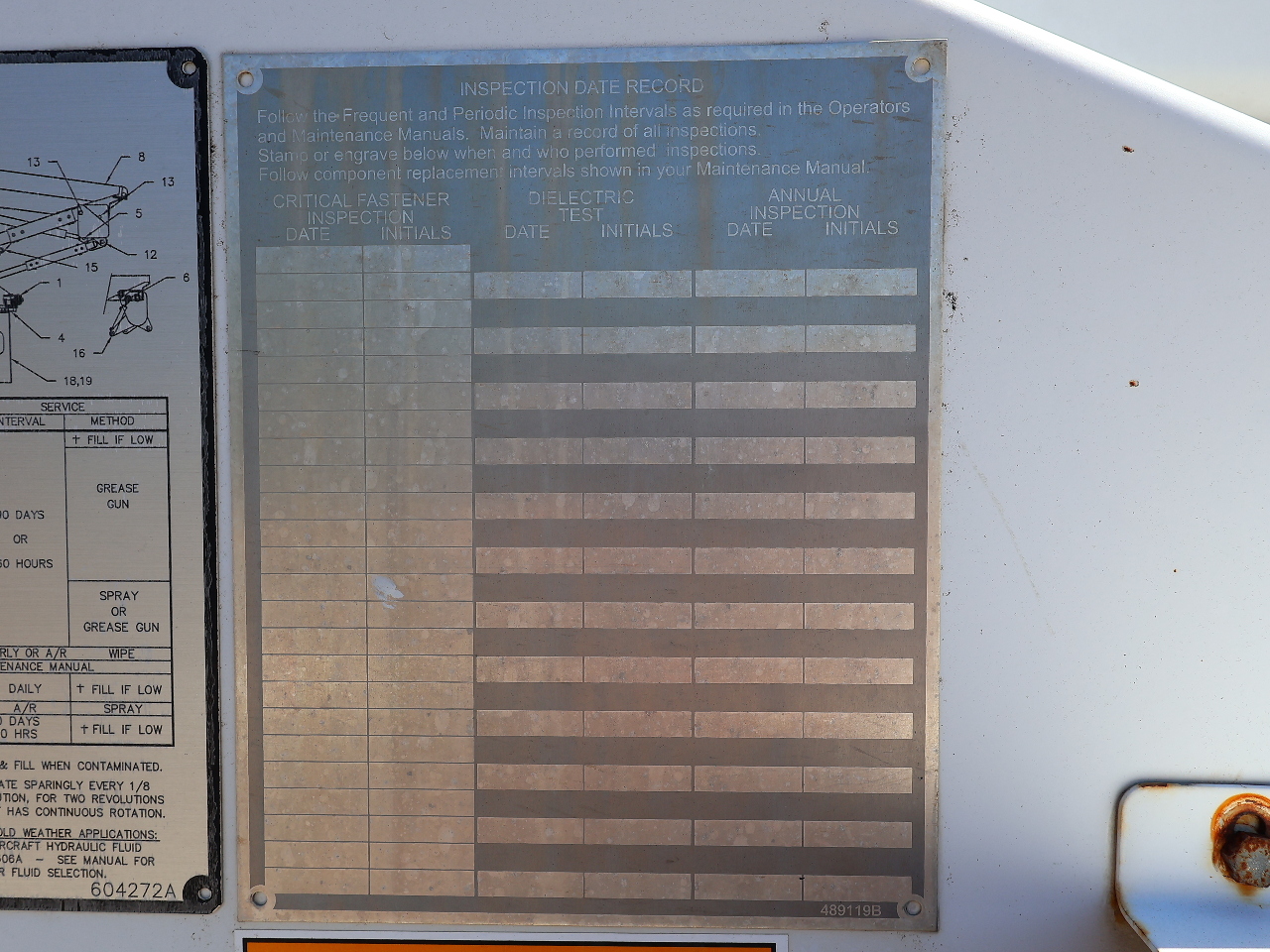

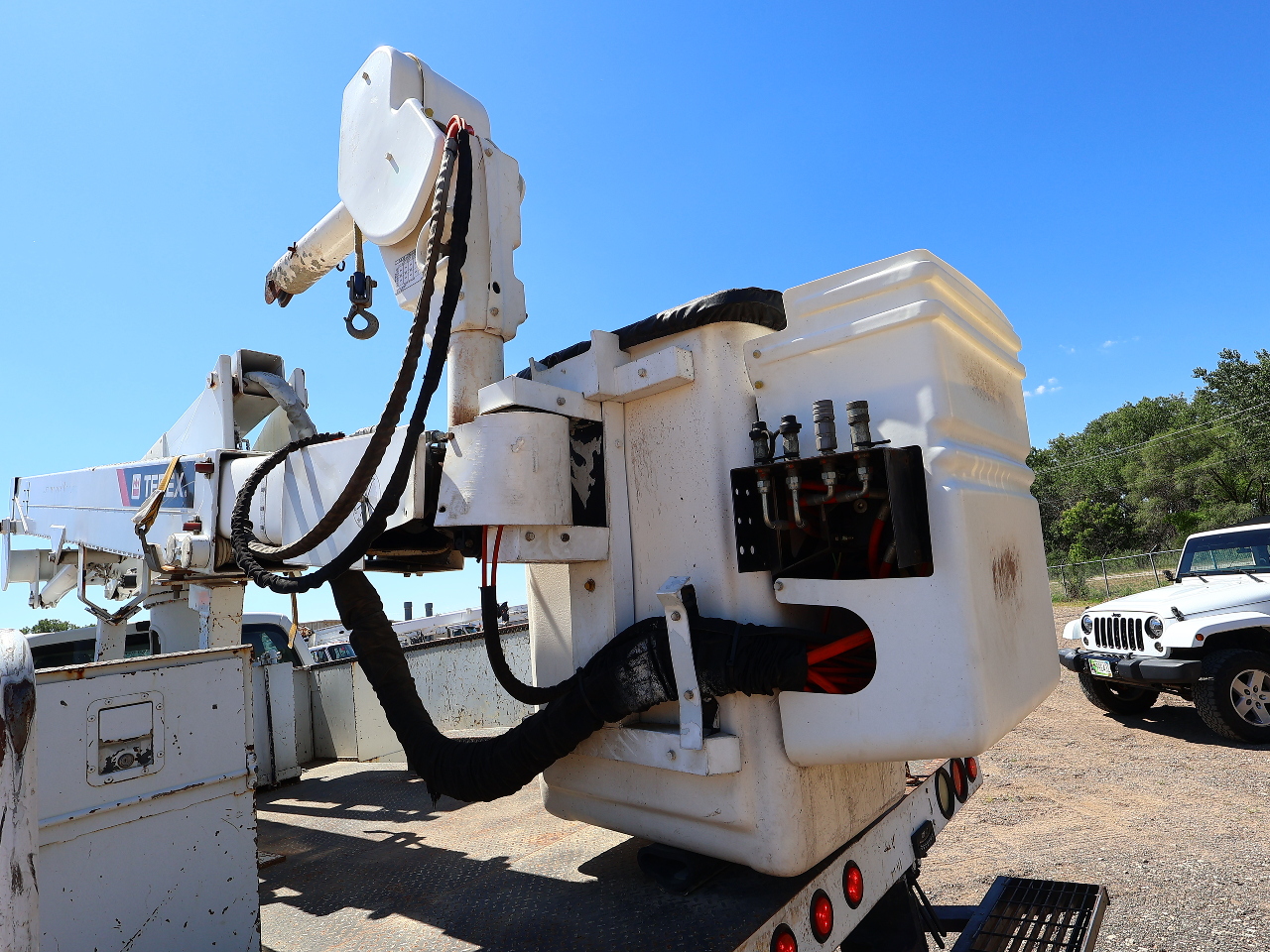

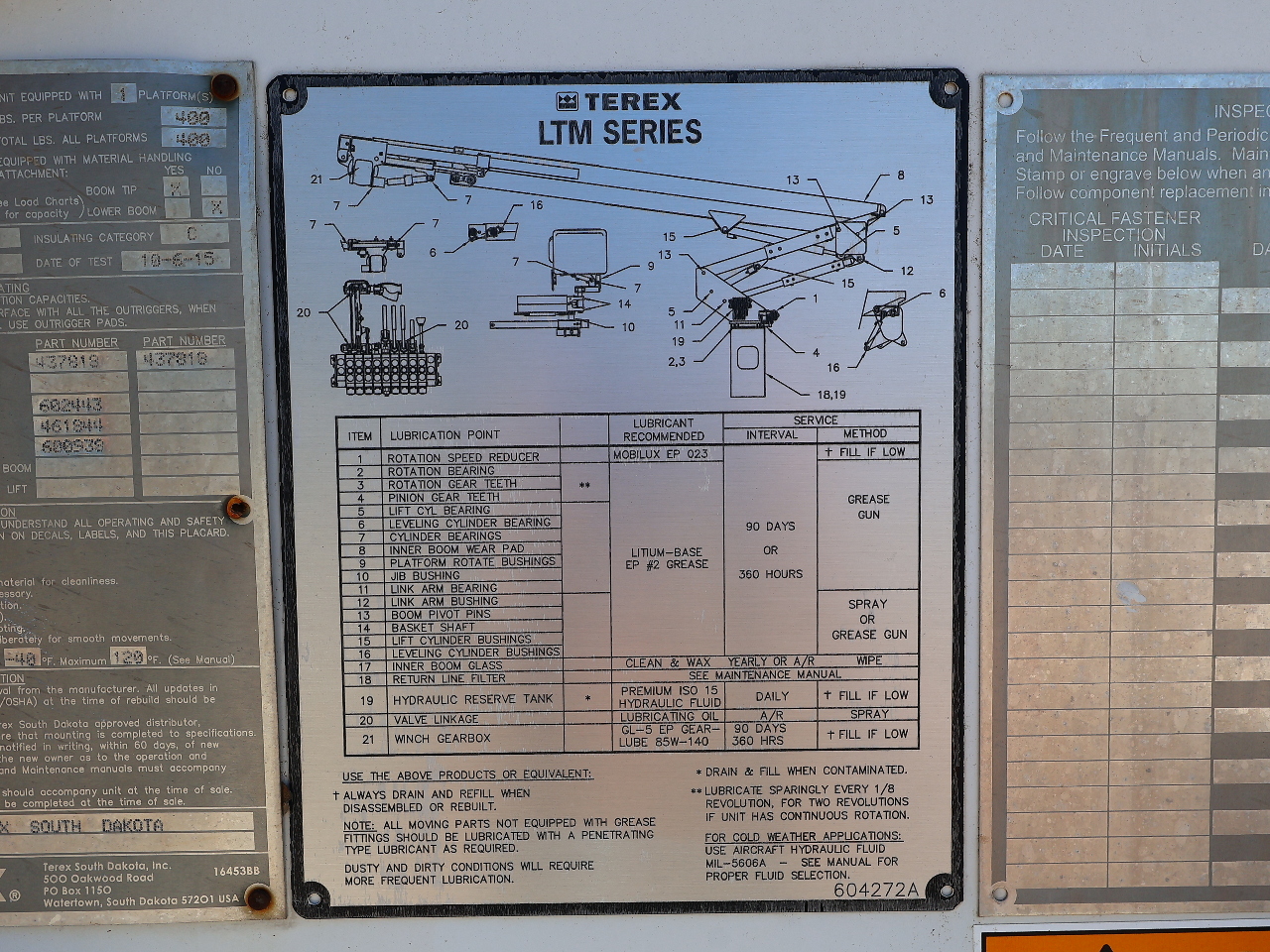

| TEREX BOOM | FAILED SAFETY INSPECTION 5/6/26 (SEE PHOTOS FOR DOCUMENTATION) | |

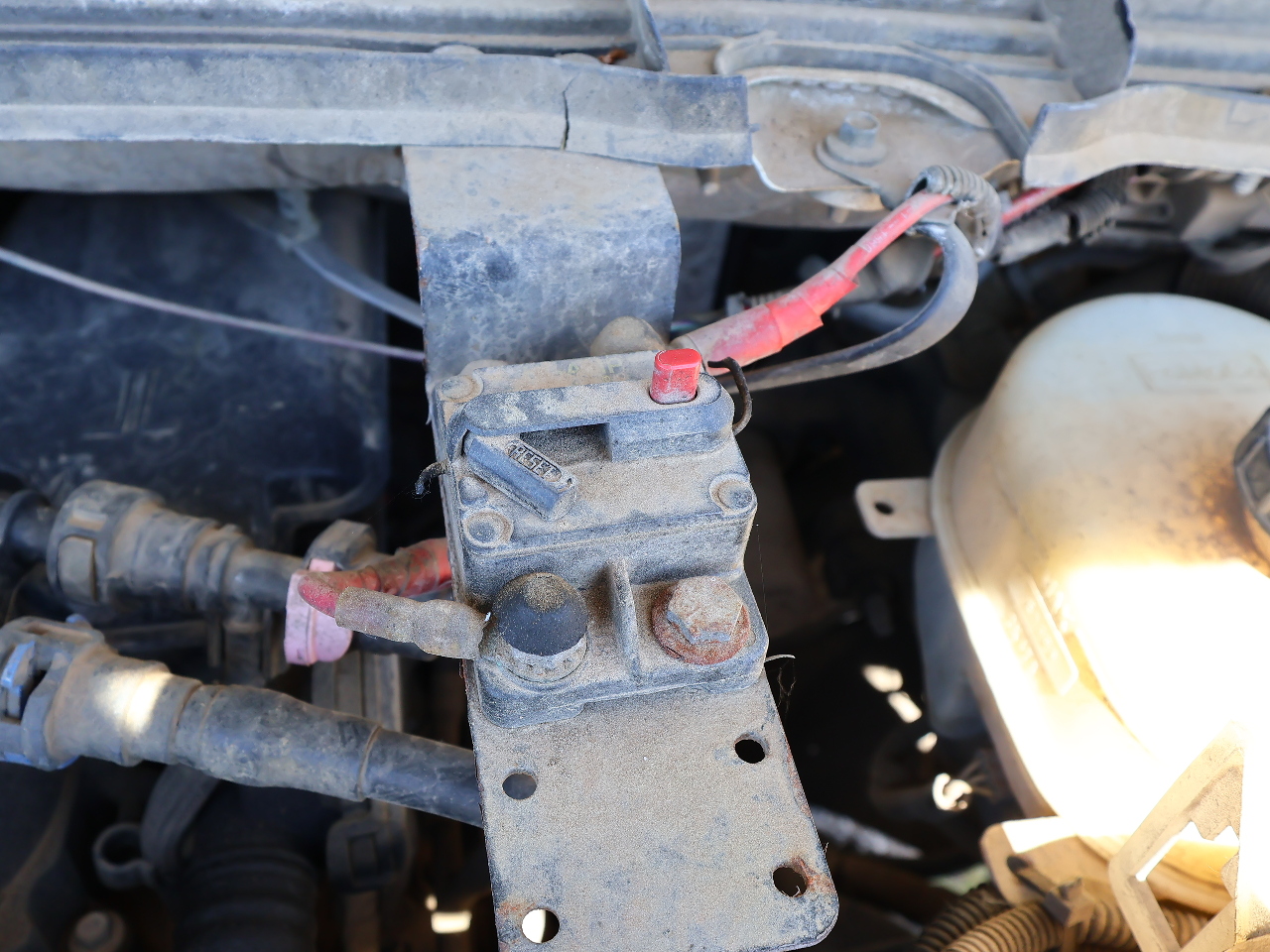

| PTO CIRCUIT BREAKER | WAS OPEN AND ONCE CLOSED, IT DID NOT REOPEN DURING THE INSPECTION. | |
| BRAKES | ROTOR AND BRAKE PAD CONTACT AREA IS RUSTED AND VERY WORN. | |

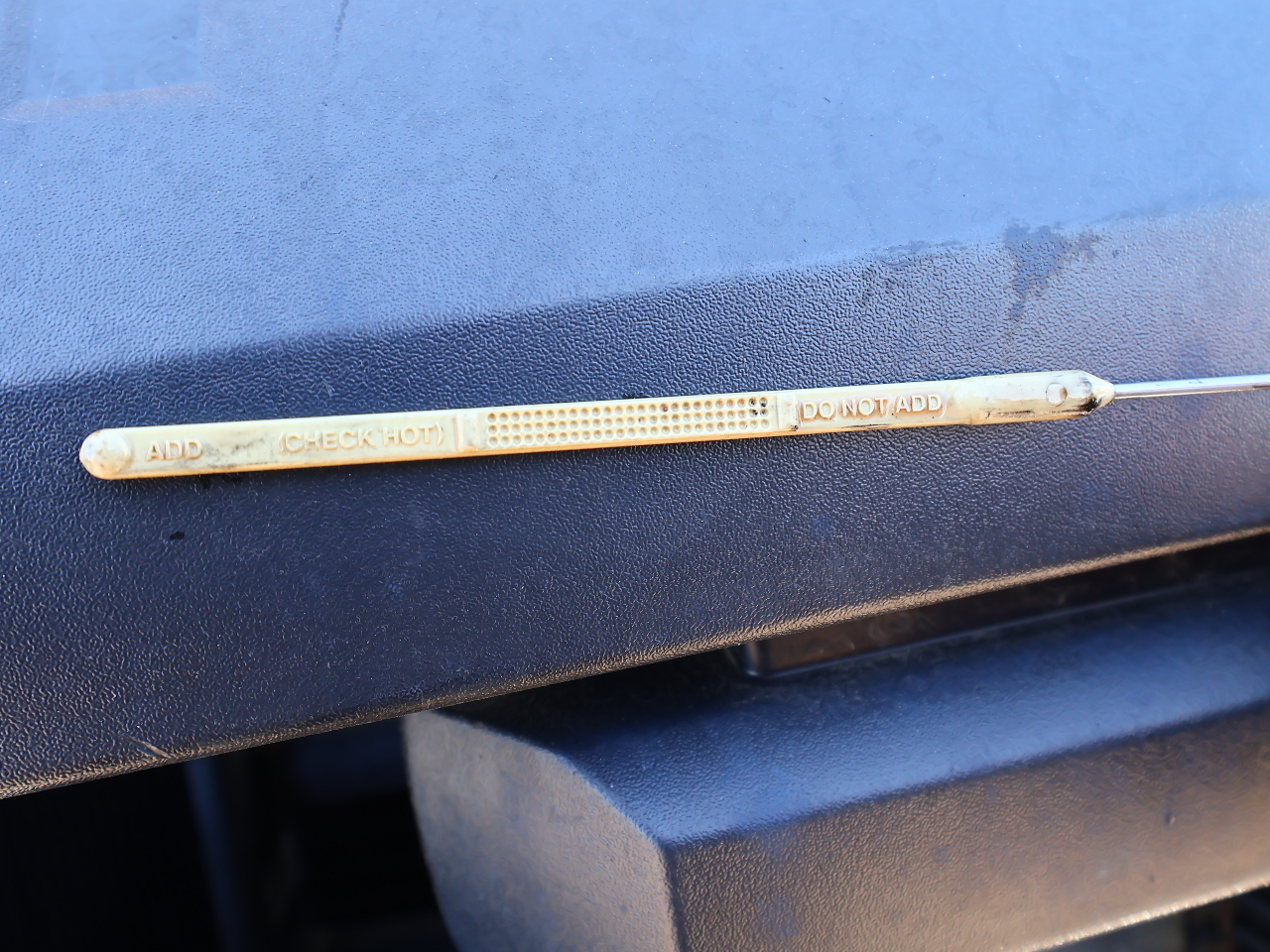

| TRANSMISSION | FLUID LEVEL IS LOW / NO FLUID VISIBLE ON DIPSTICK | |
| ENGINE | OIL LEVEL IS SUBSTANTIALLY OVERFILLED. | |

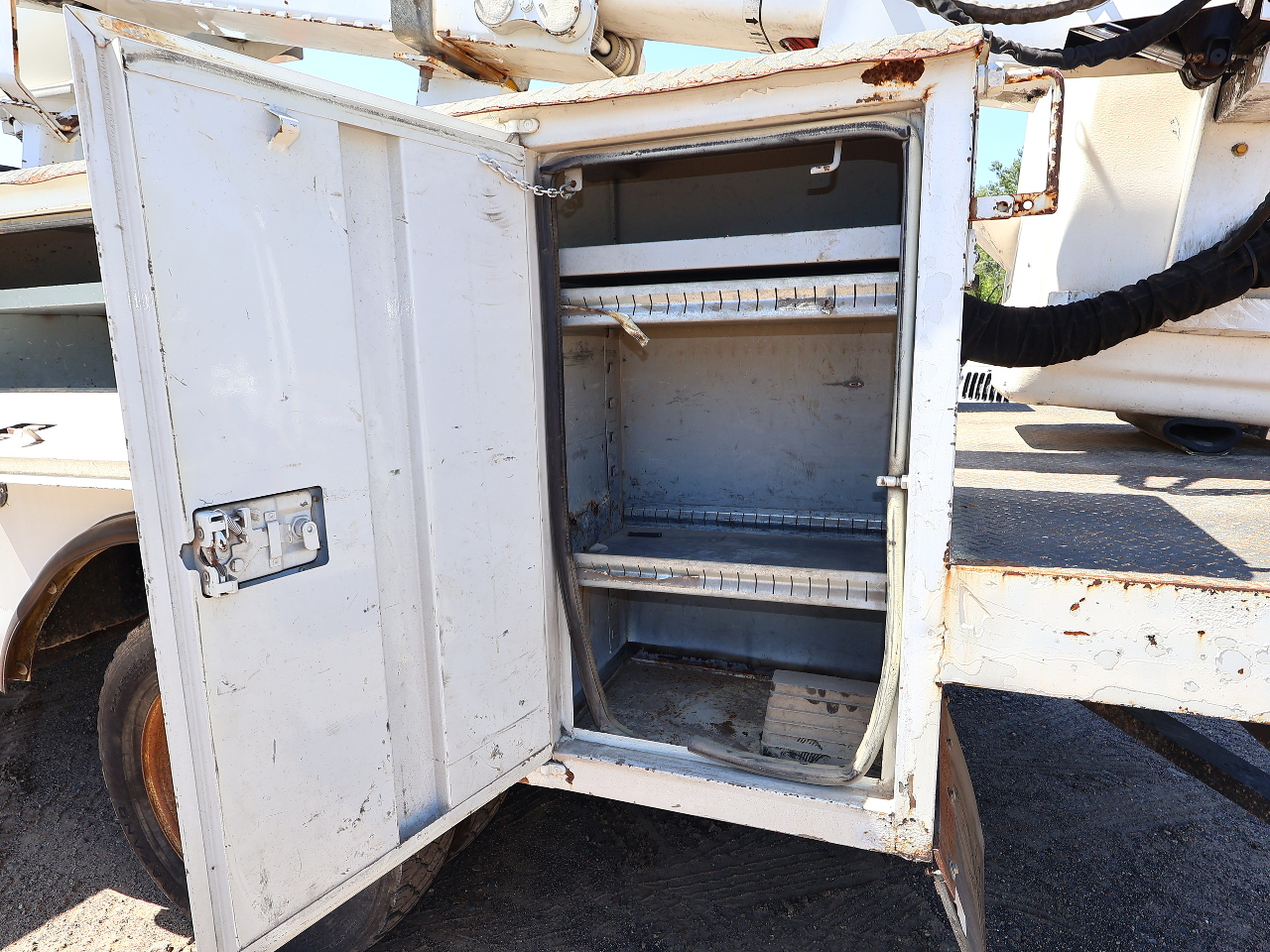

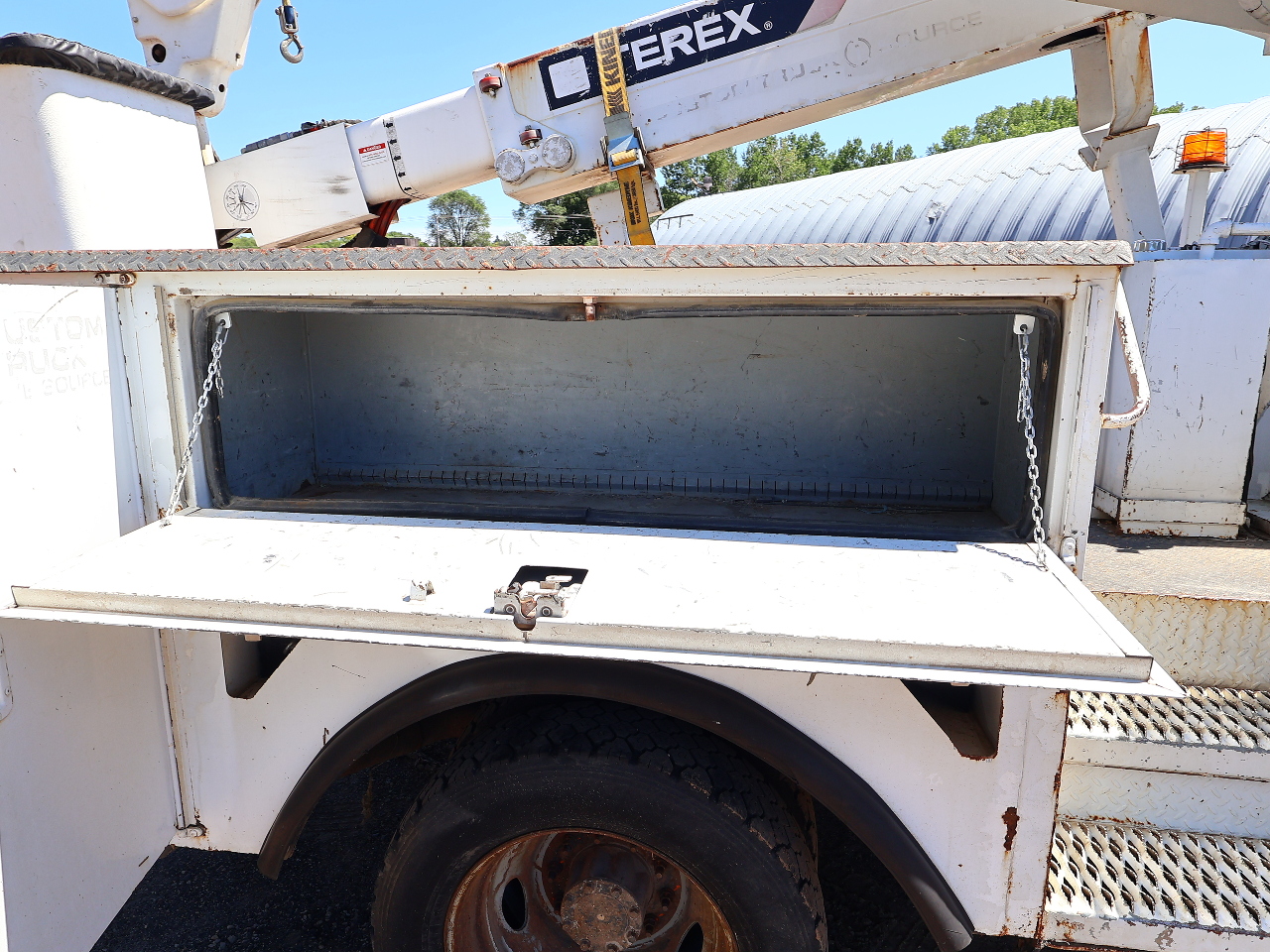

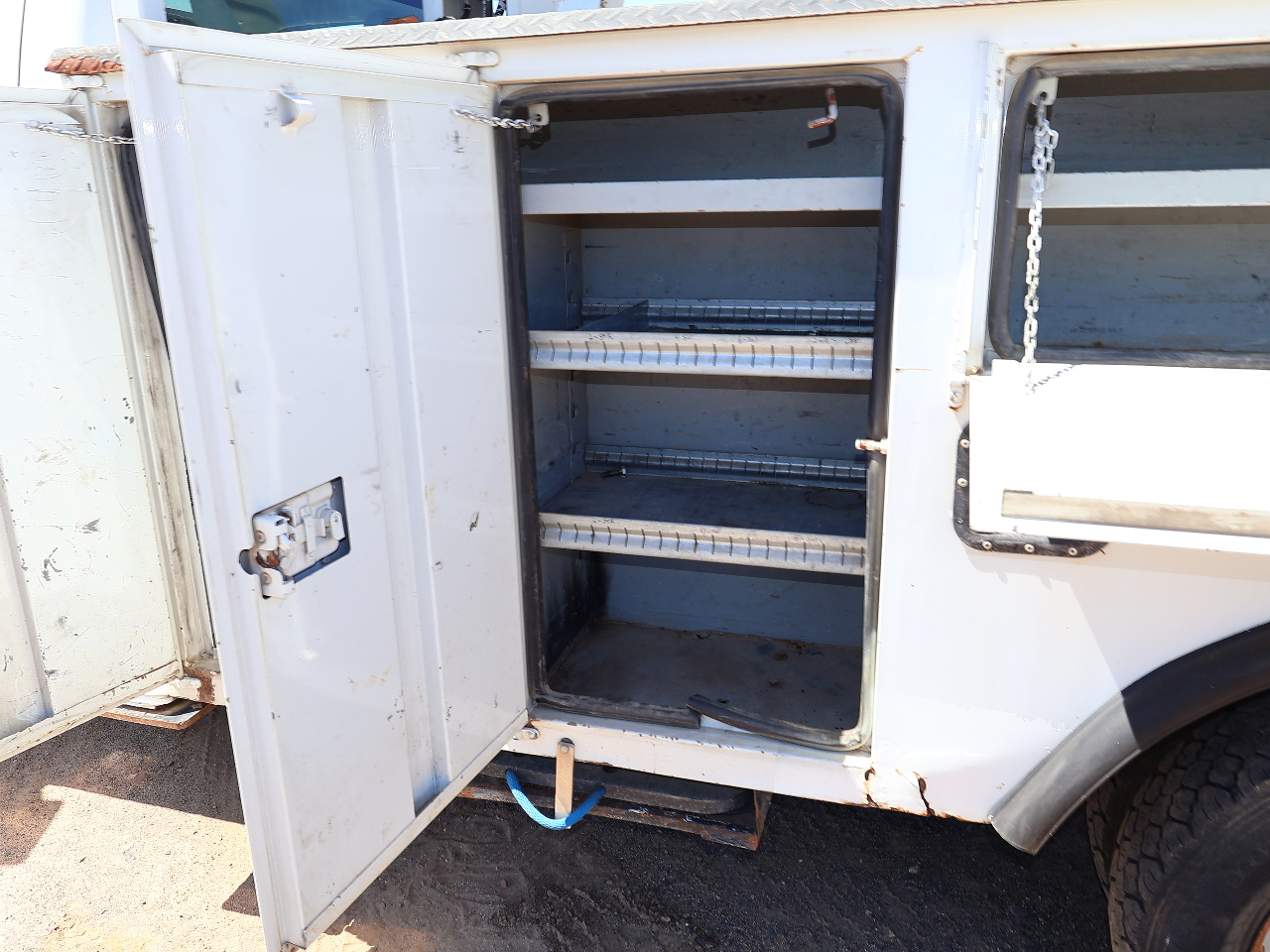

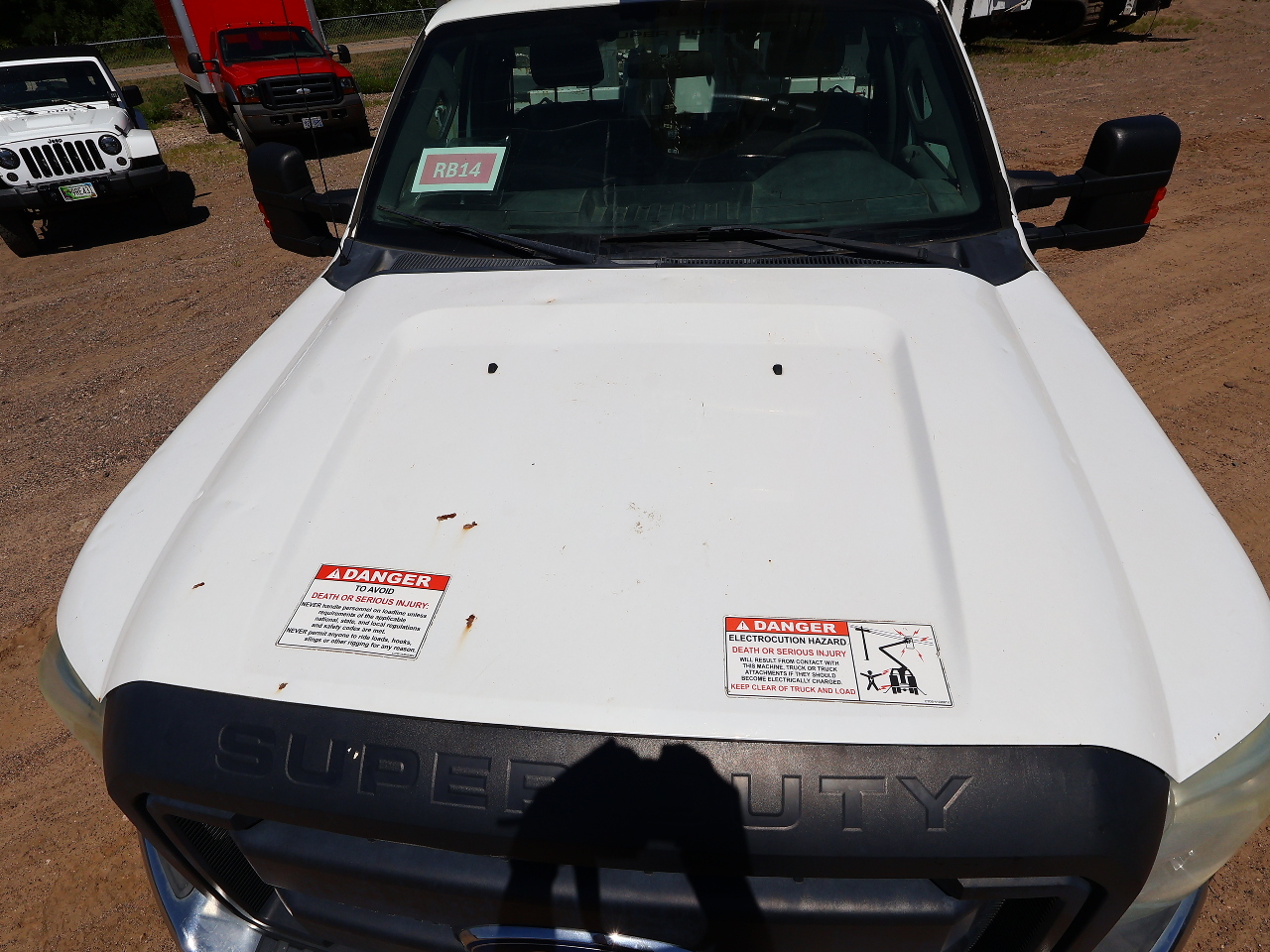

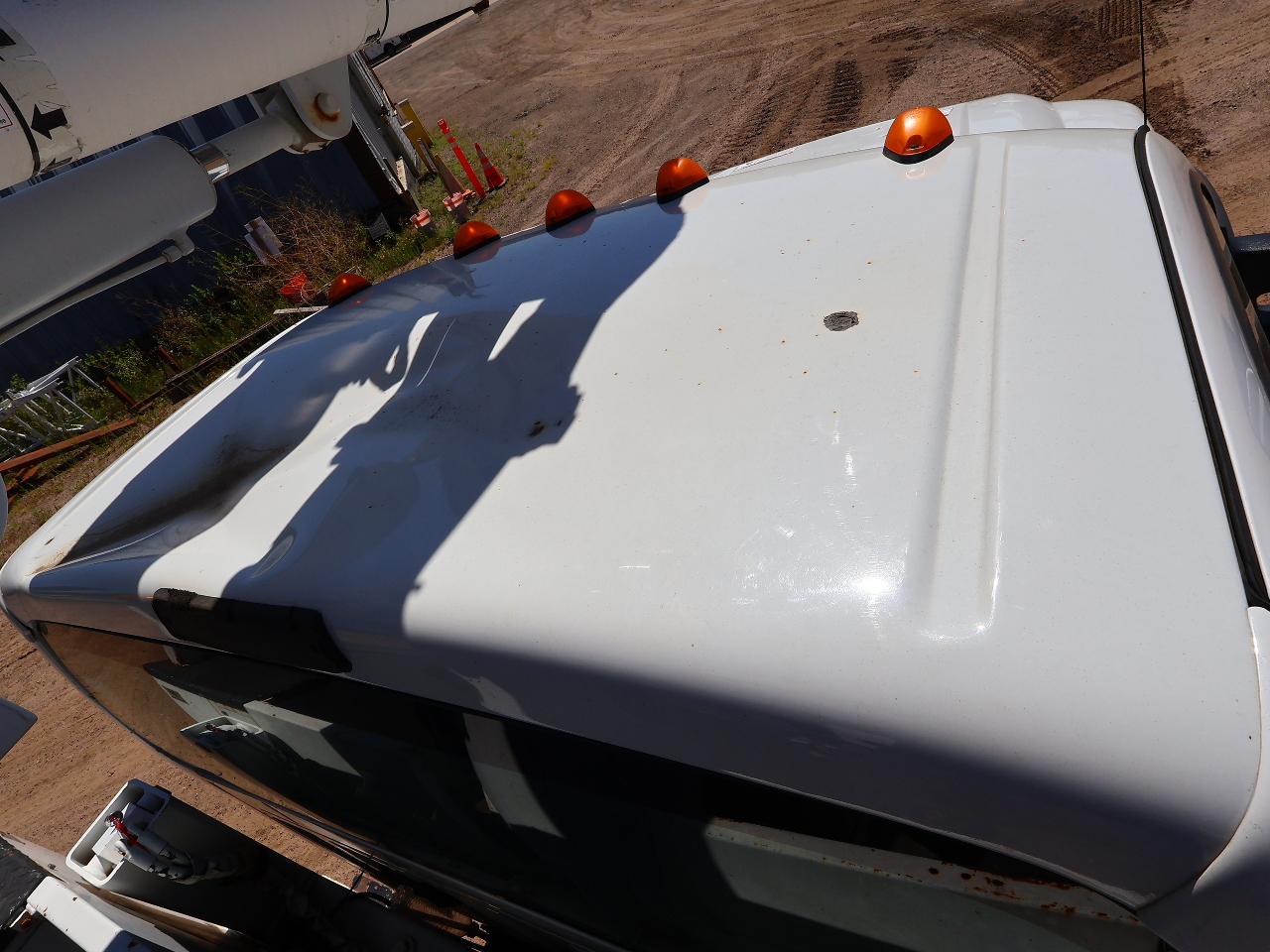

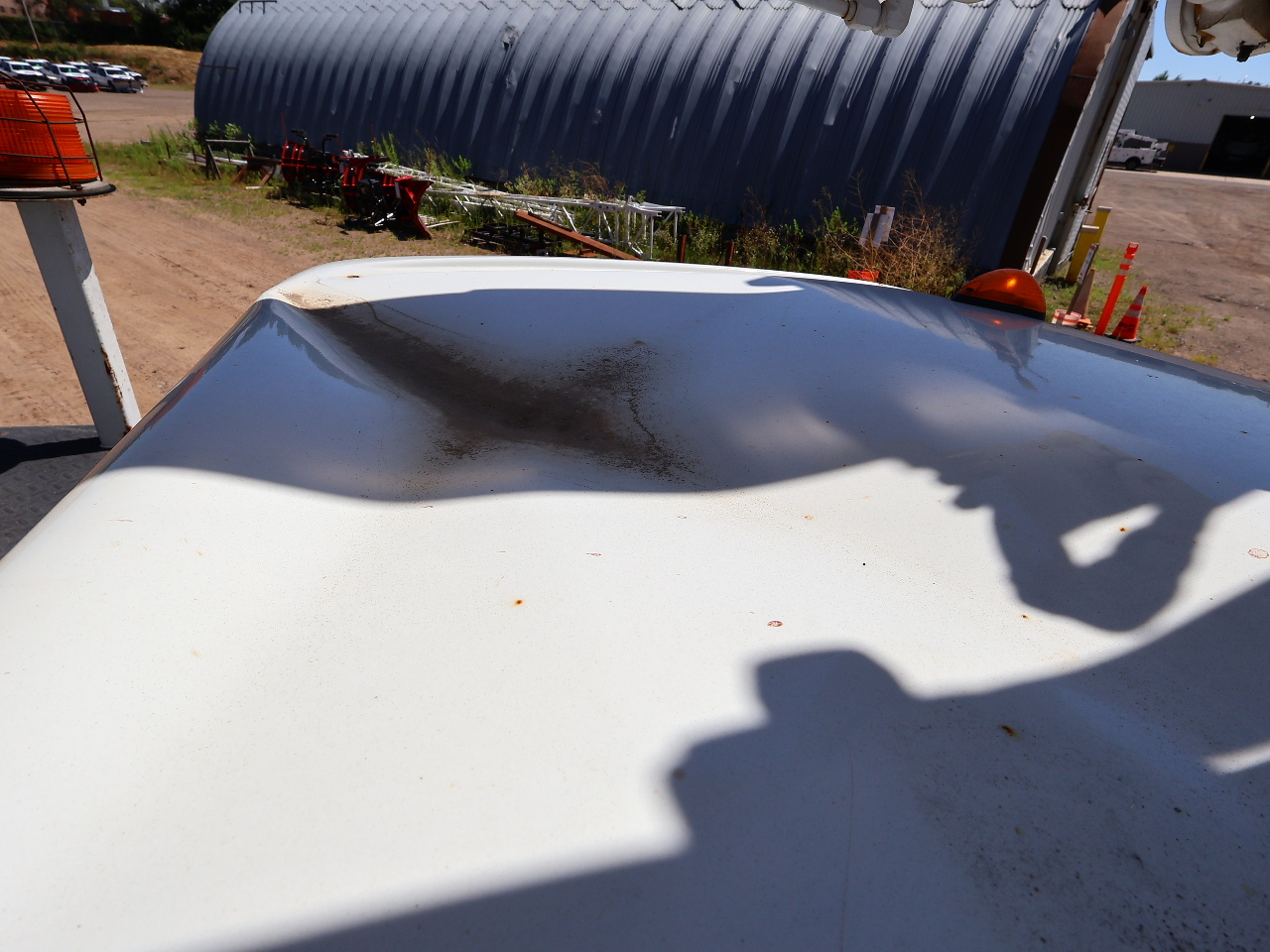

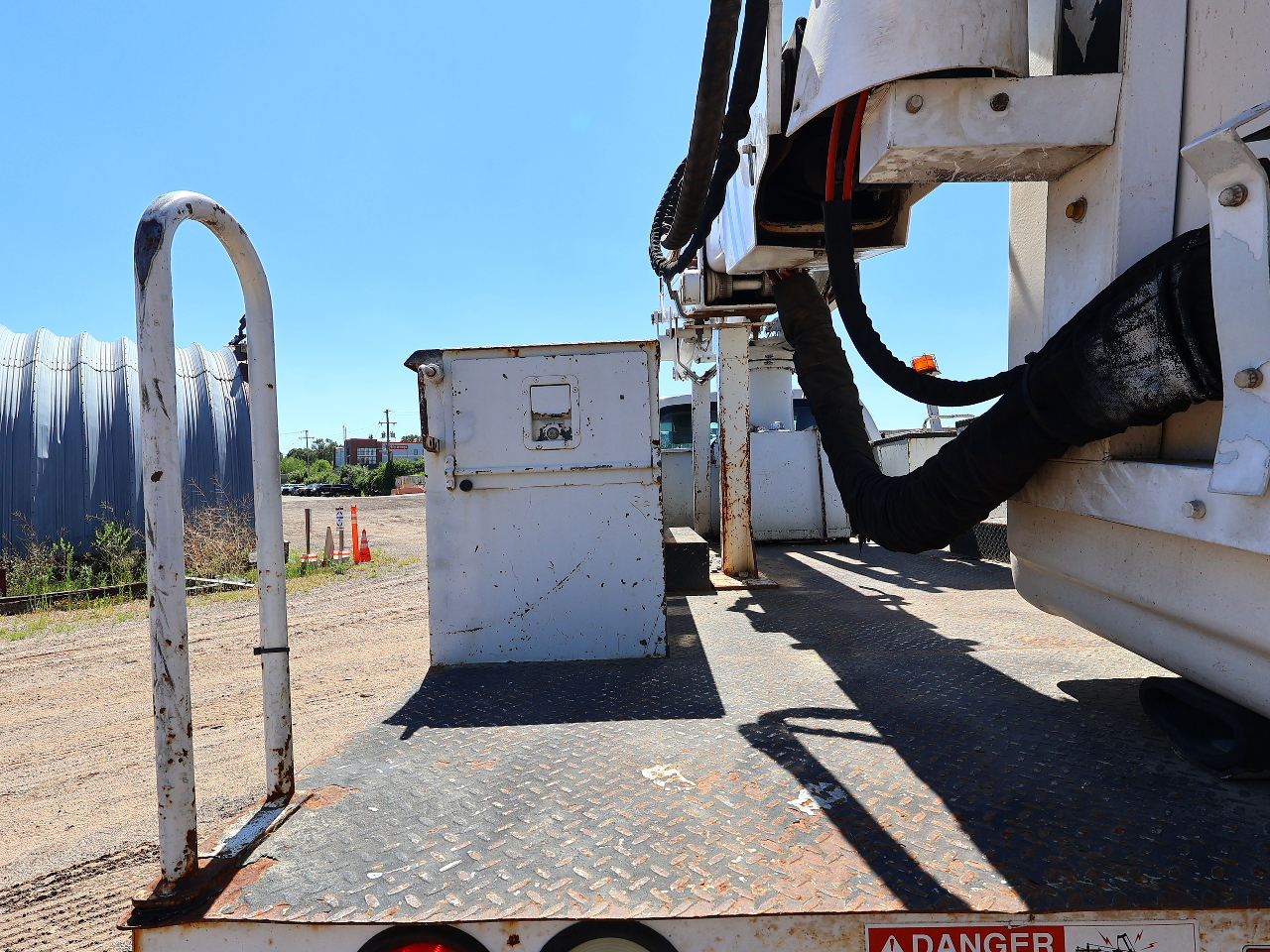

| BODY | LOTS OF DENTS, SCRAPES, AND RUST ALL OVER | |

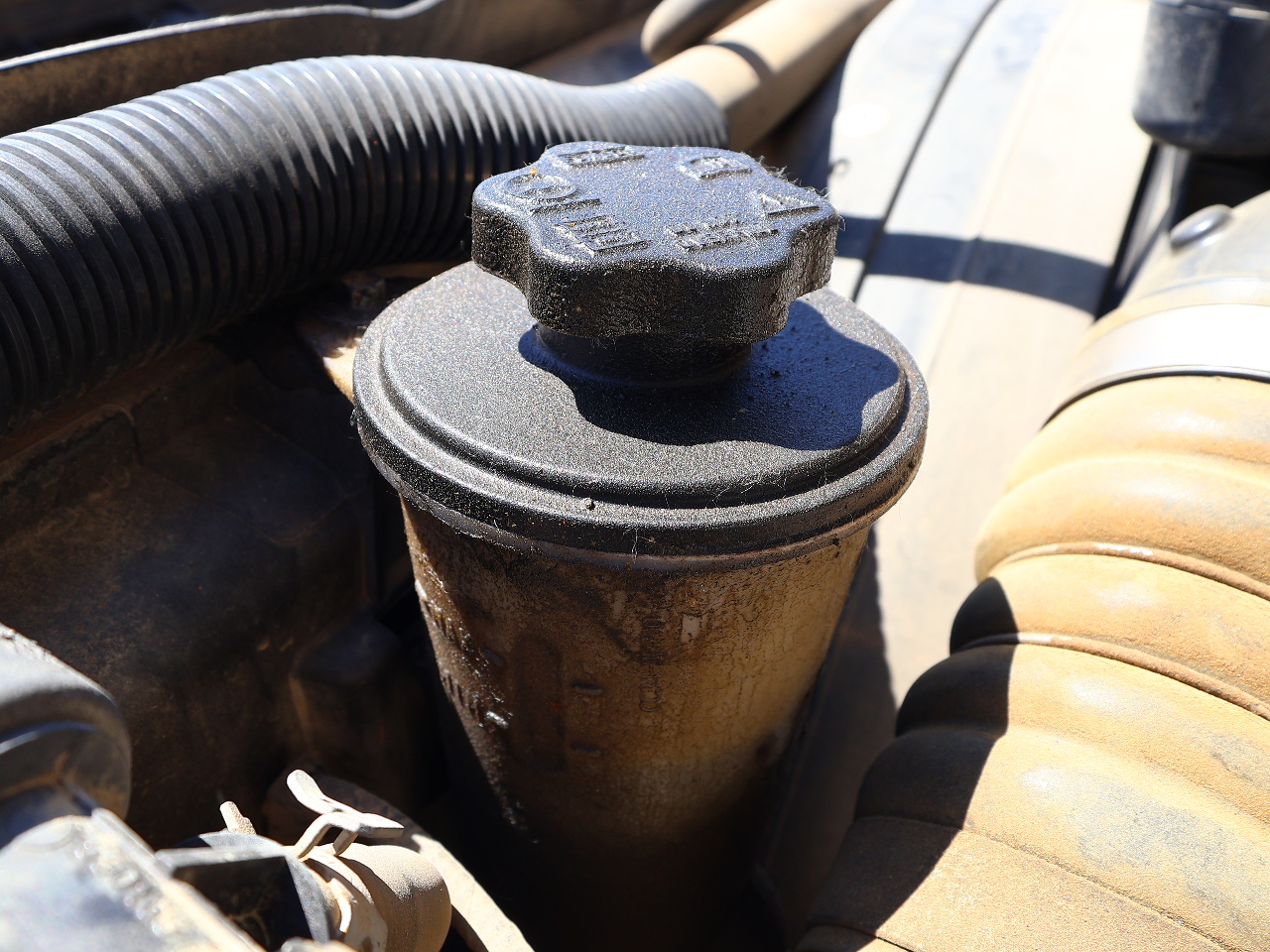

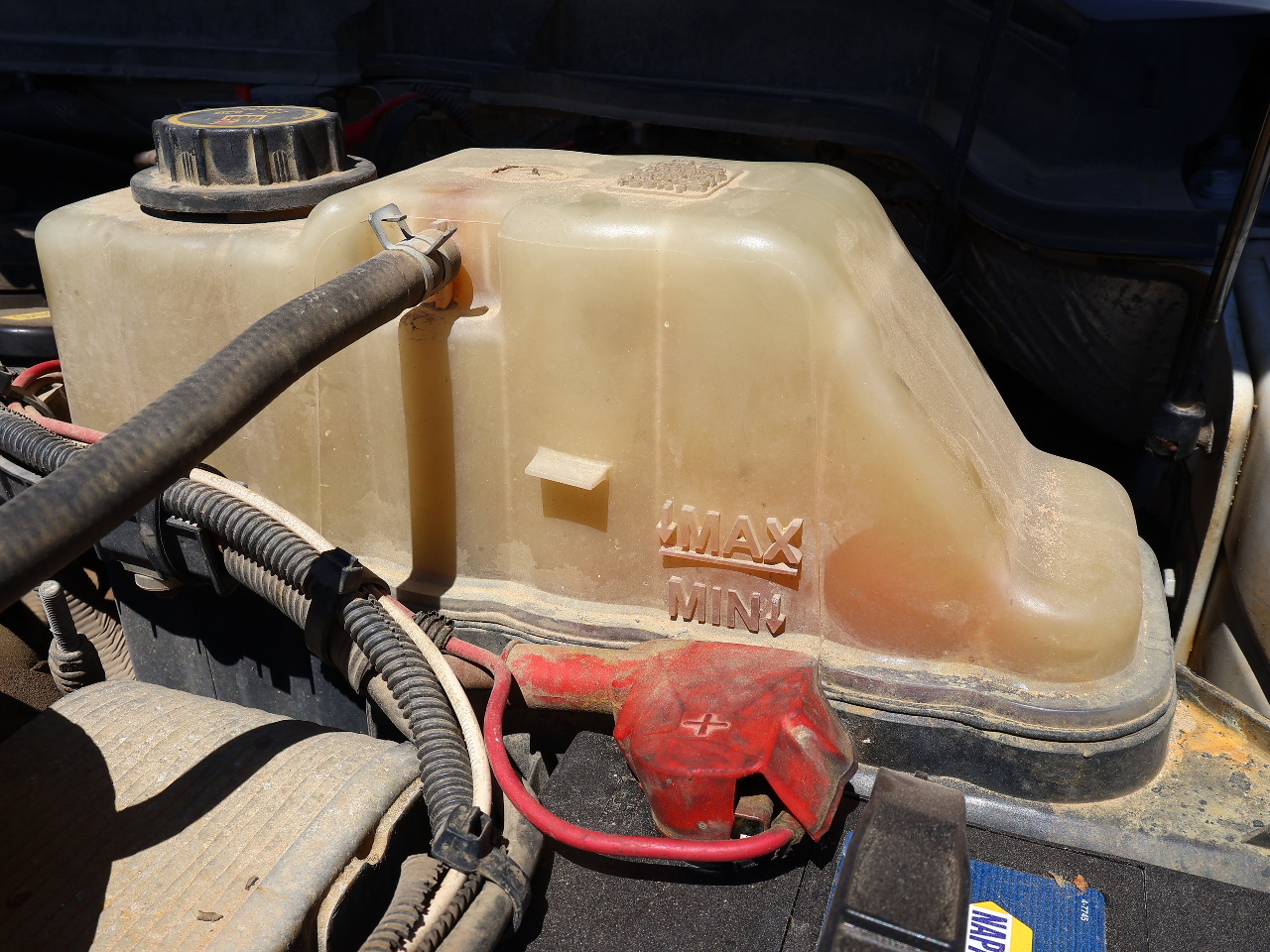

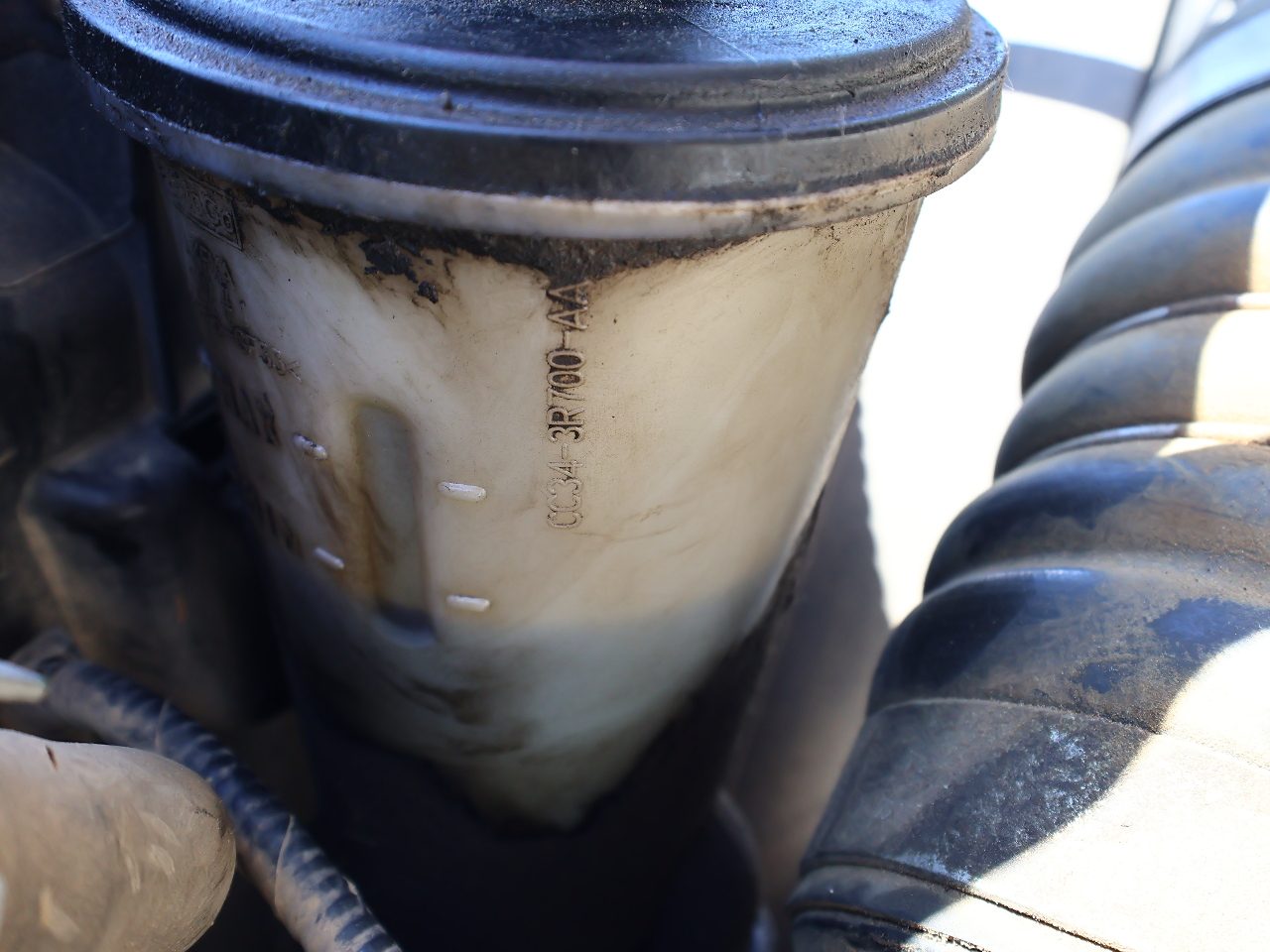

| POWER STEERING | RESERVOIR IS LEAKING | |

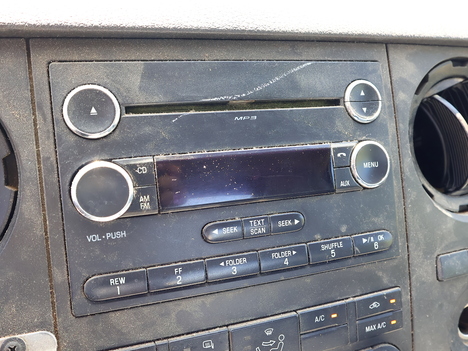

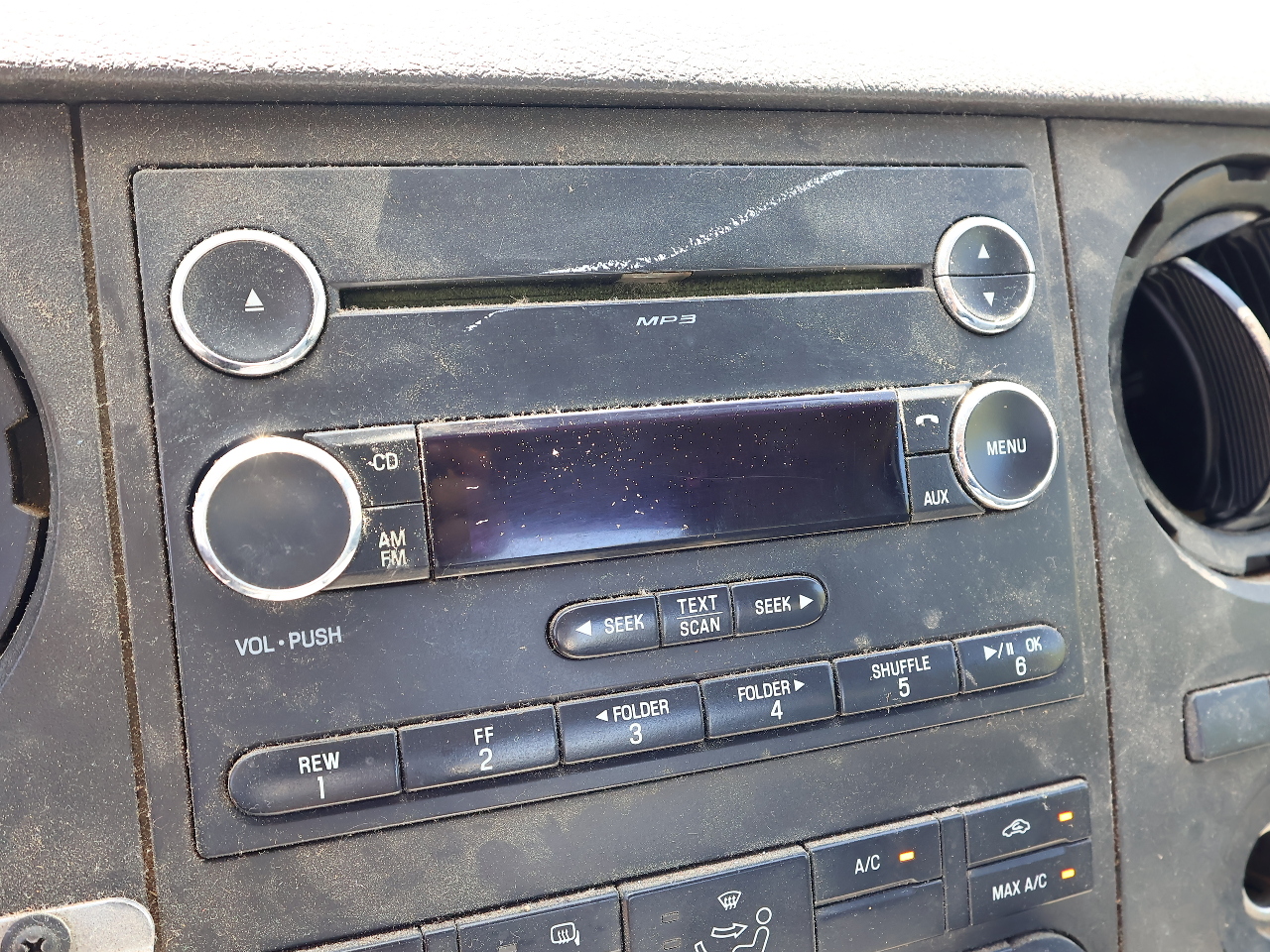

| RADIO | RADIO WORKS, BUT DISPLAY DOES NOT FUNCTION | |

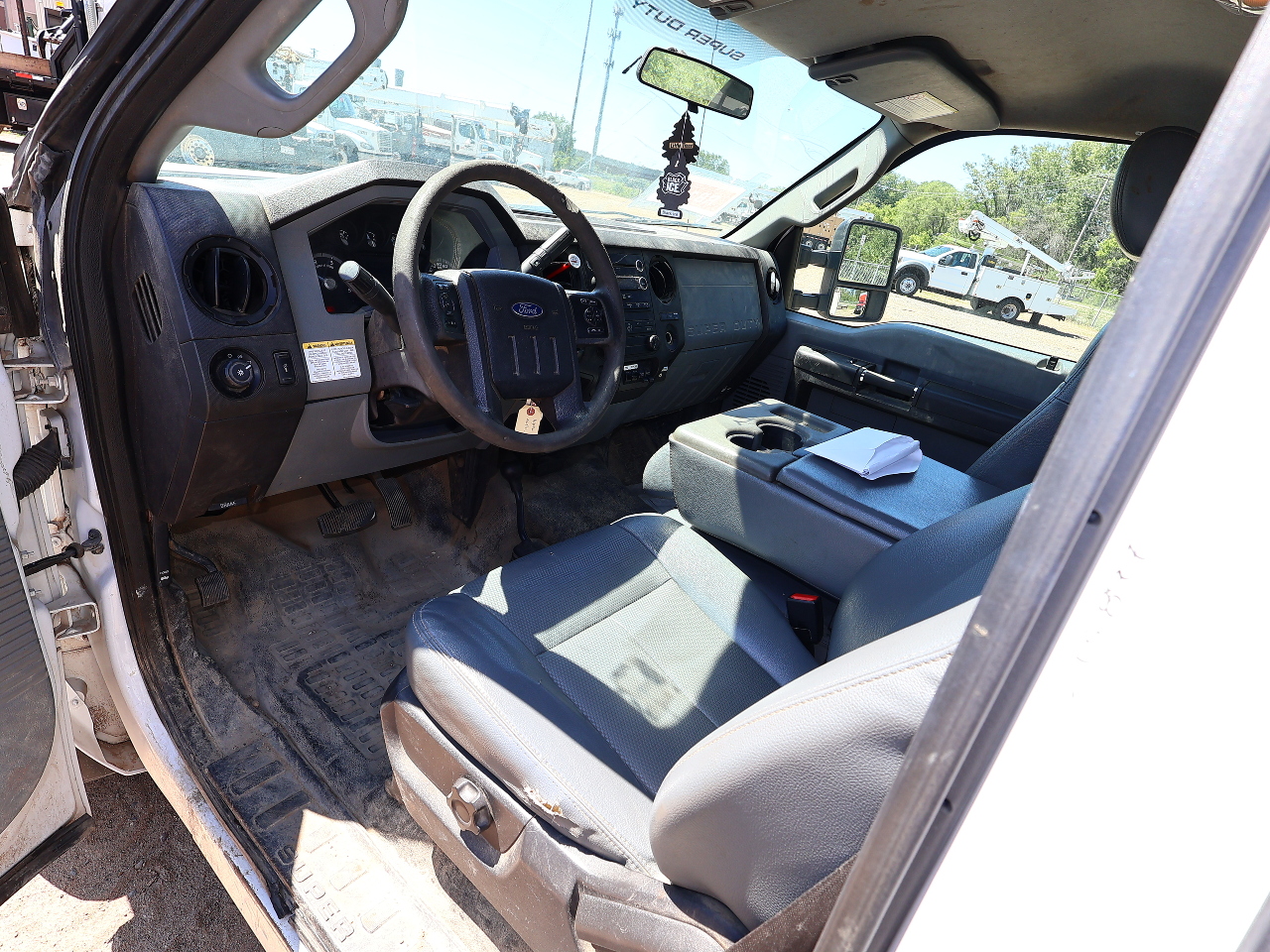

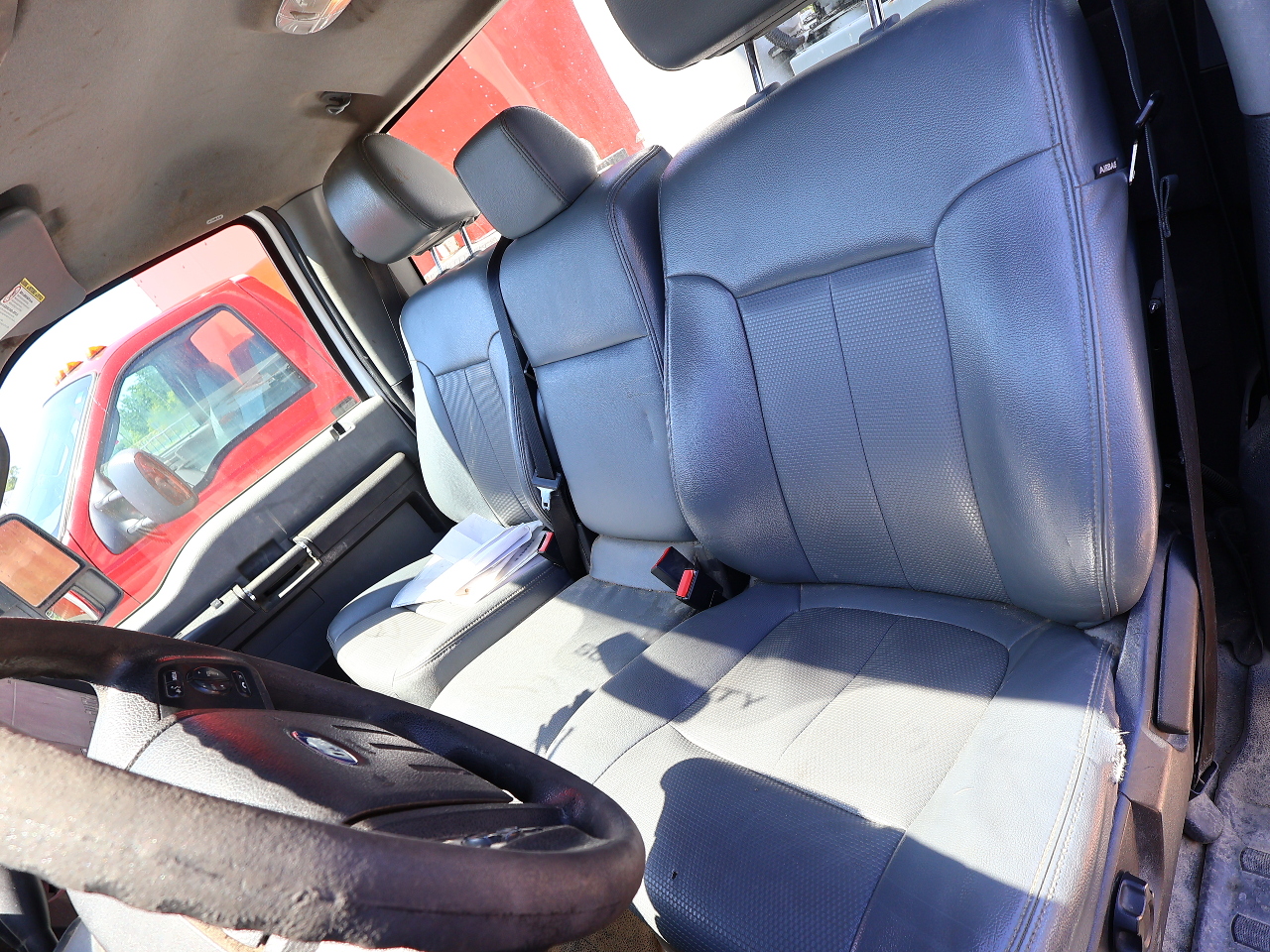

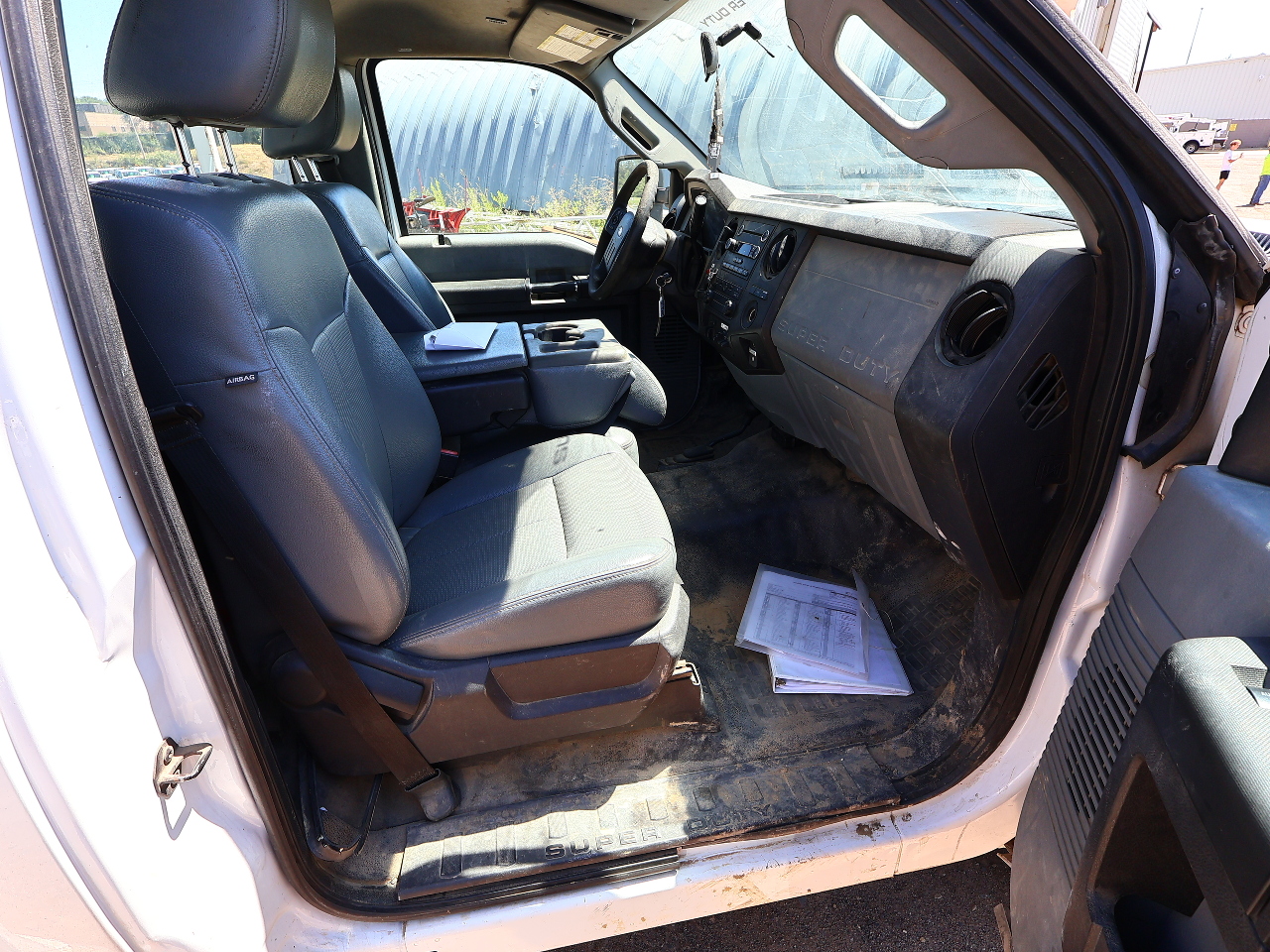

| DRIVER SEAT | UPHOLSTERY WORN, CRACKED AND TORN | |

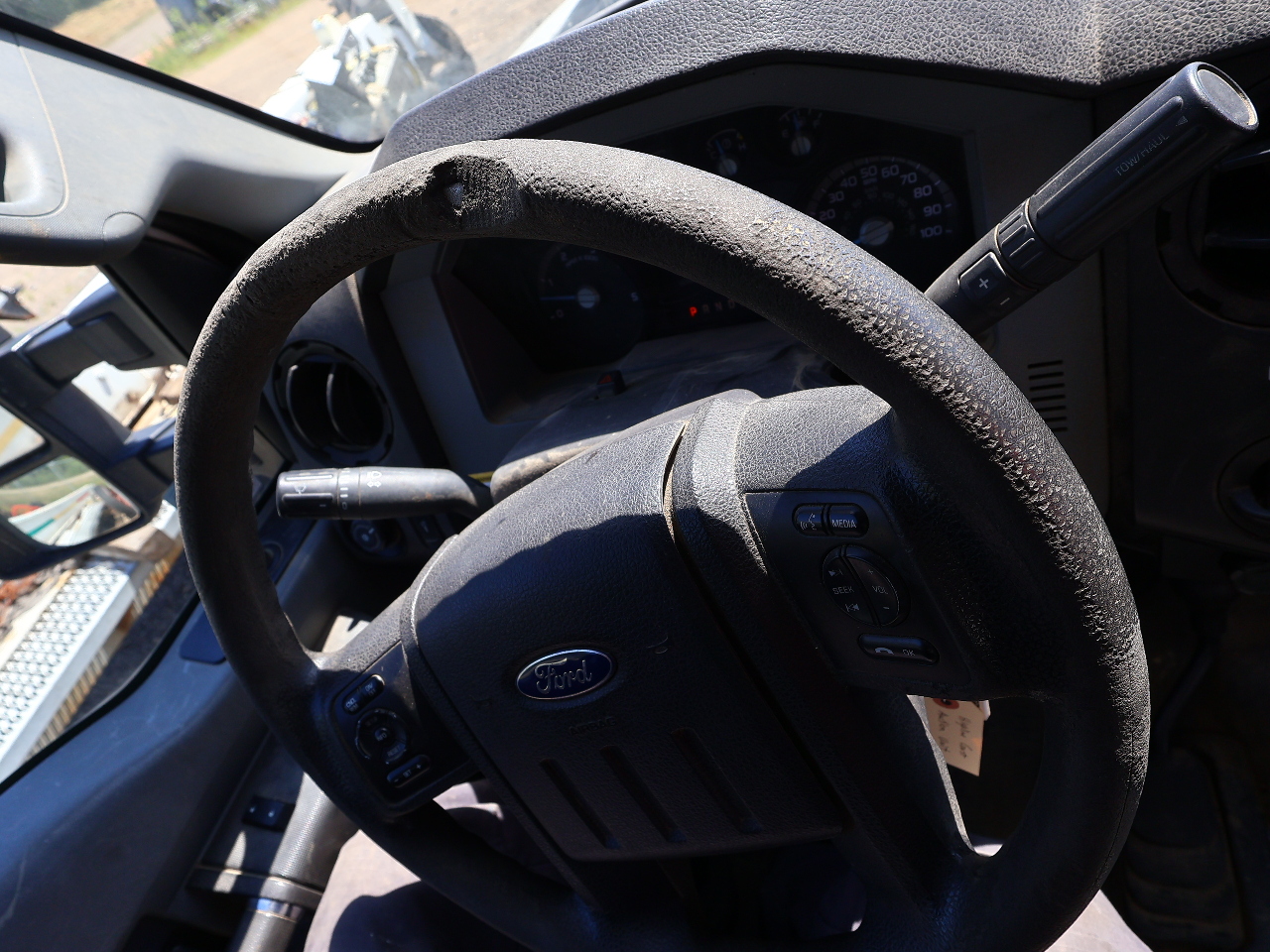

| STEERING WHEEL | SURFACES ARE WORN / DAMAGED | |

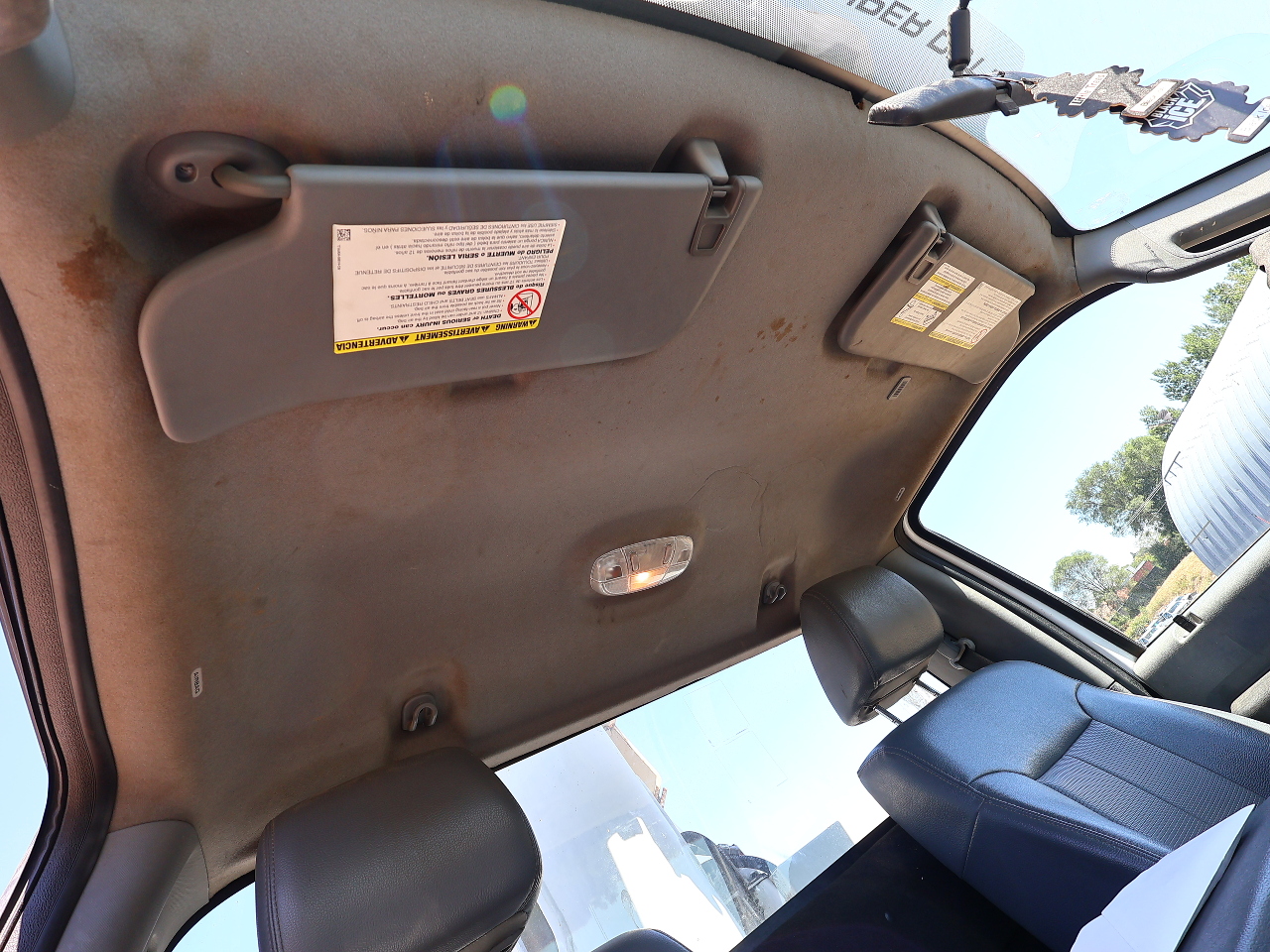

| SUN VISORS | LEFT SIDE POST IS NOT ATTACHED AND RIGHT SIDE IS LOOSE | |
| DOME LIGHT | BULB OUT ON RIGHT SIDE | |

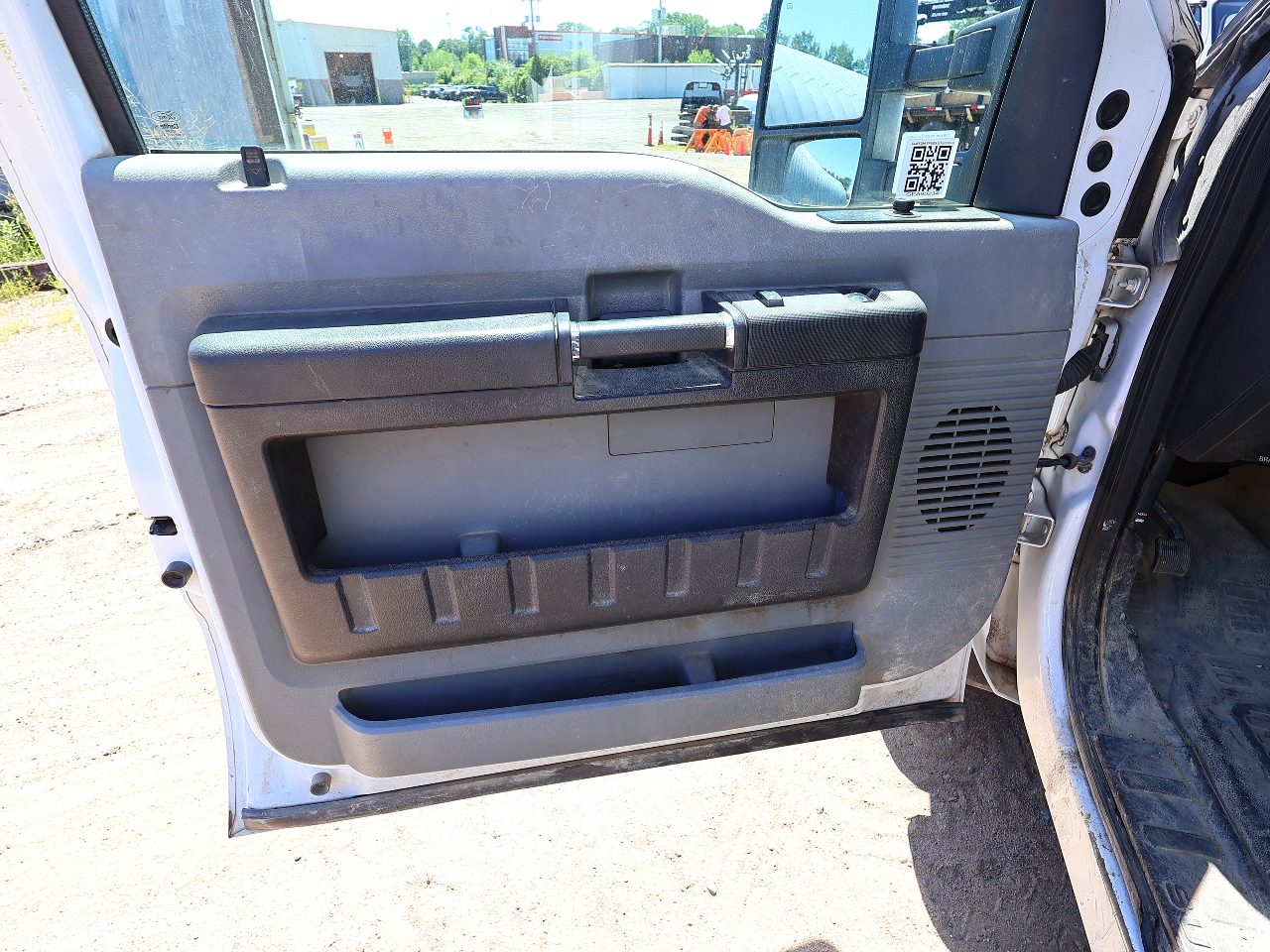

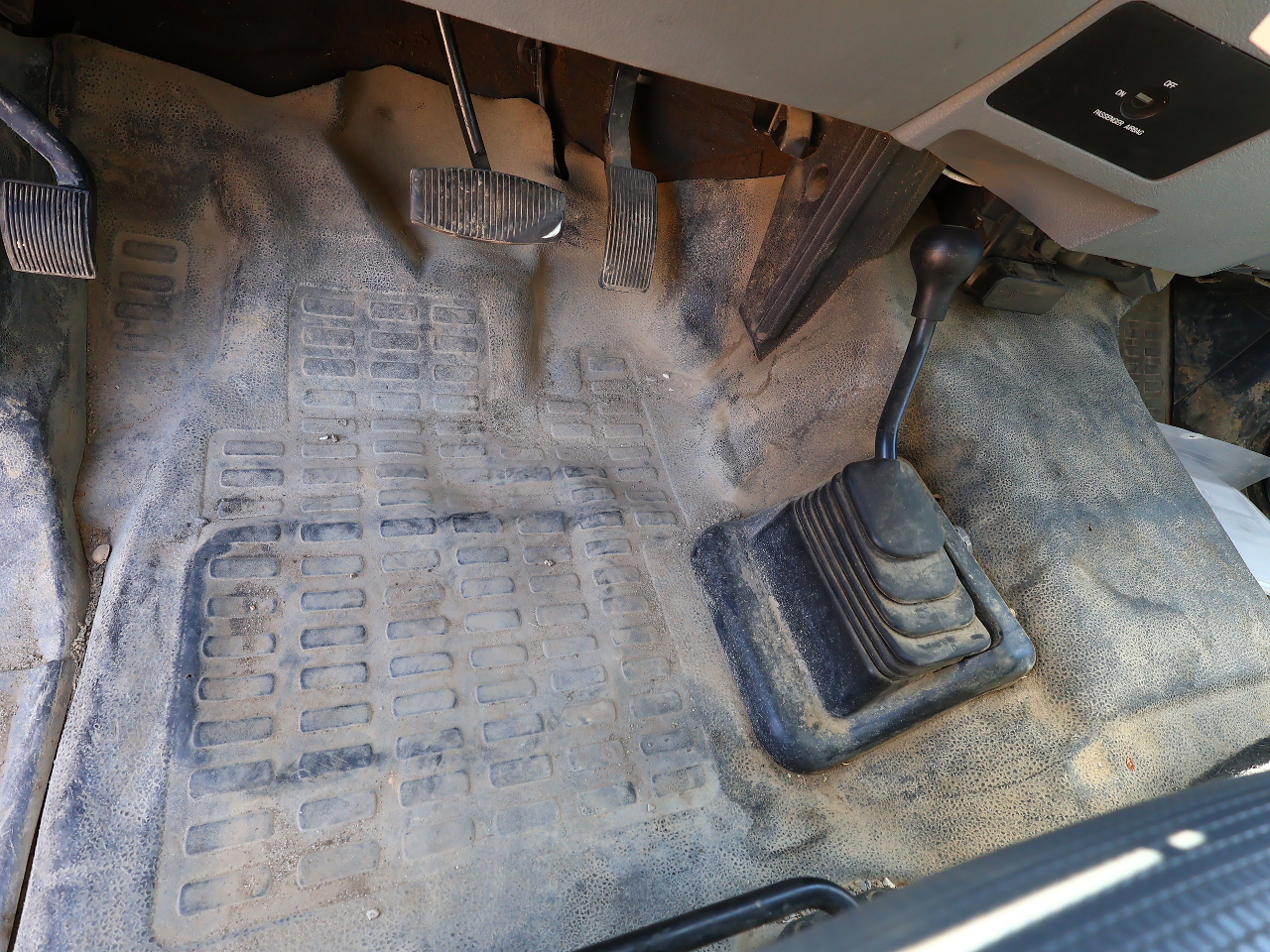

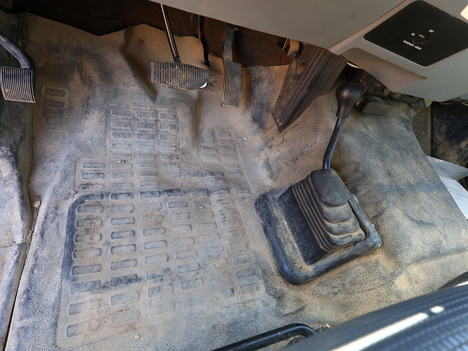

| INTERIOR | SURFACES AND UPHOLSTERY ARE DIRTY | |

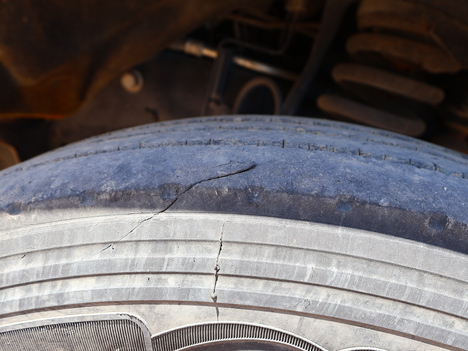

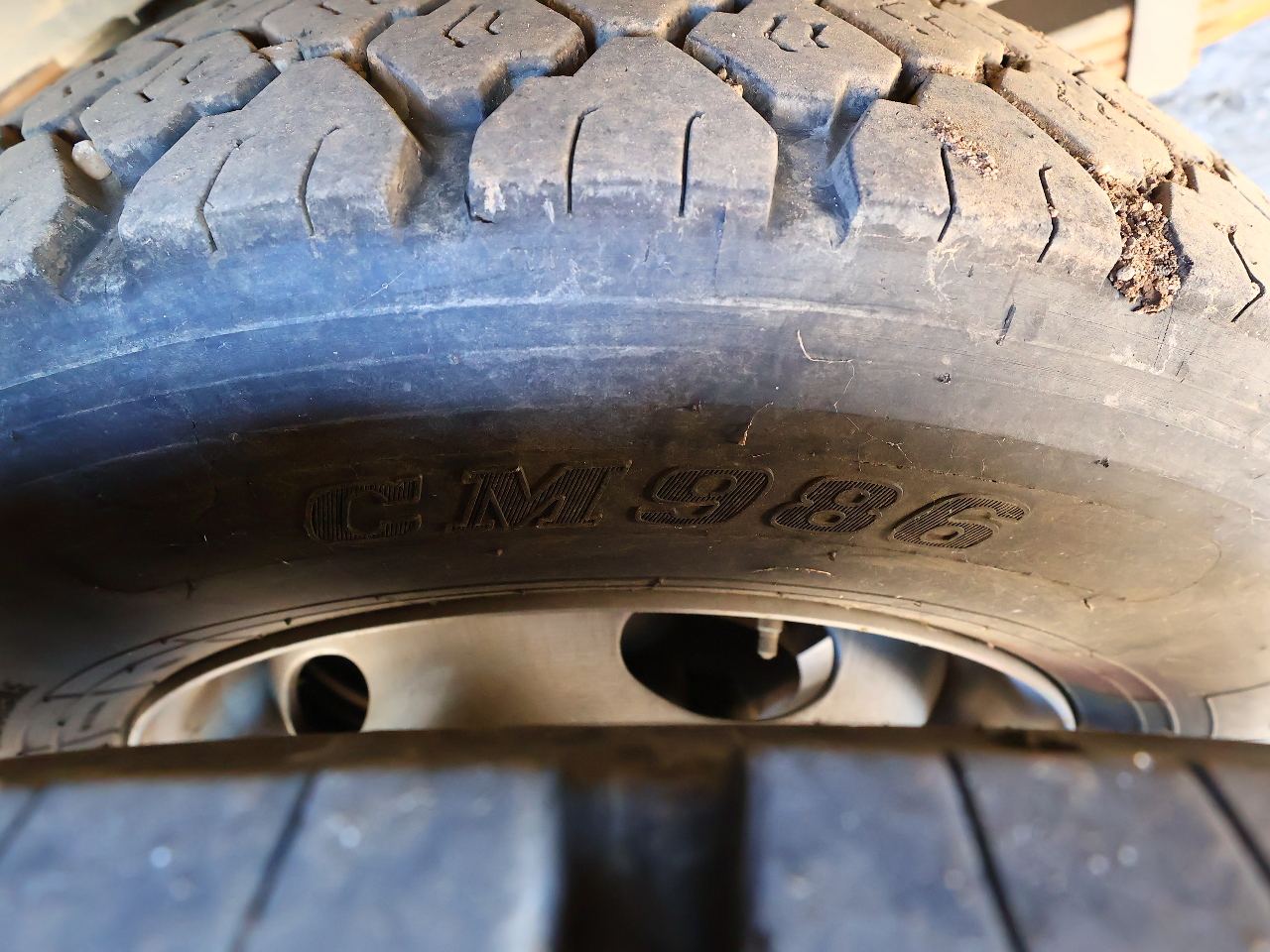

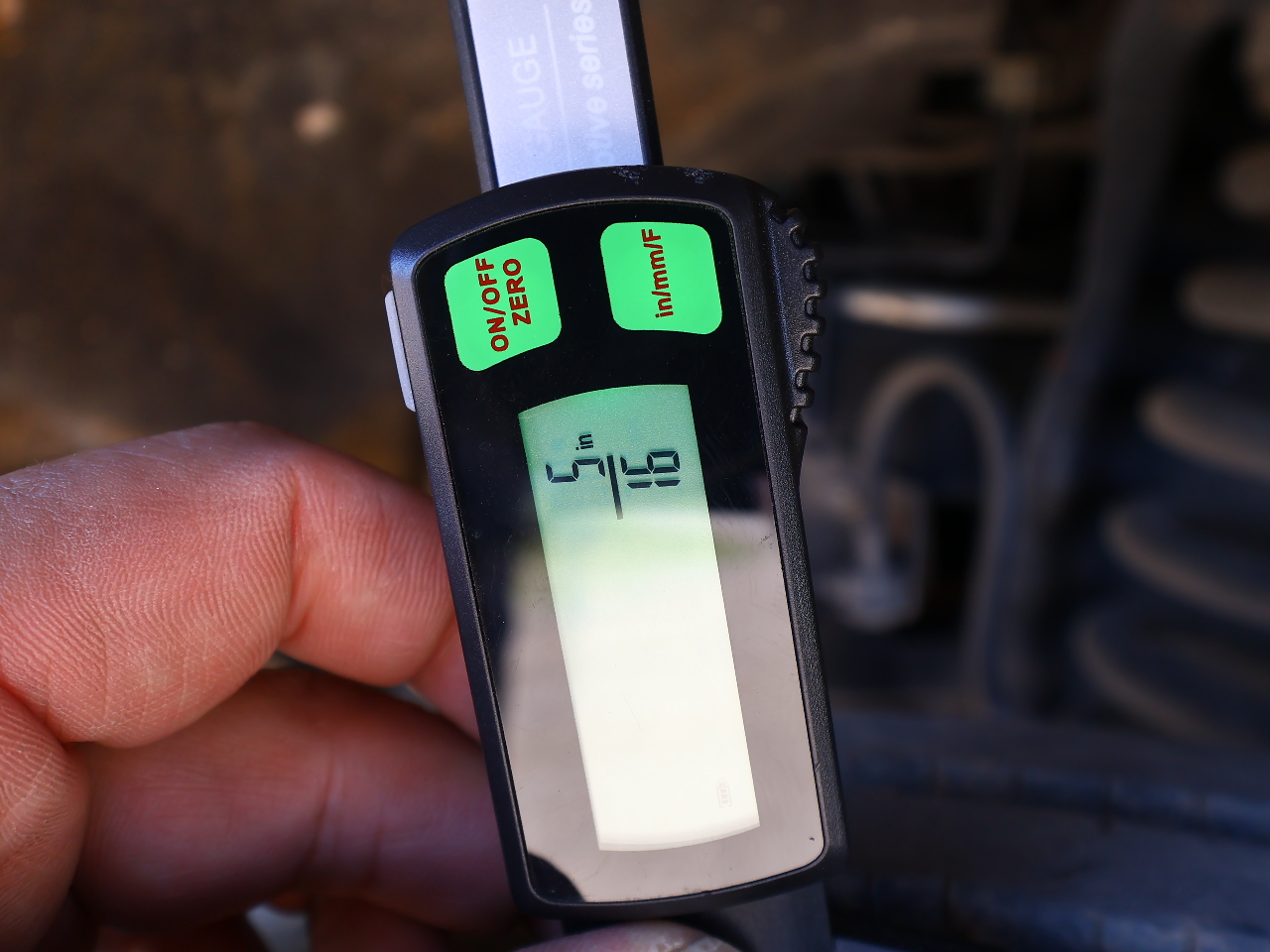

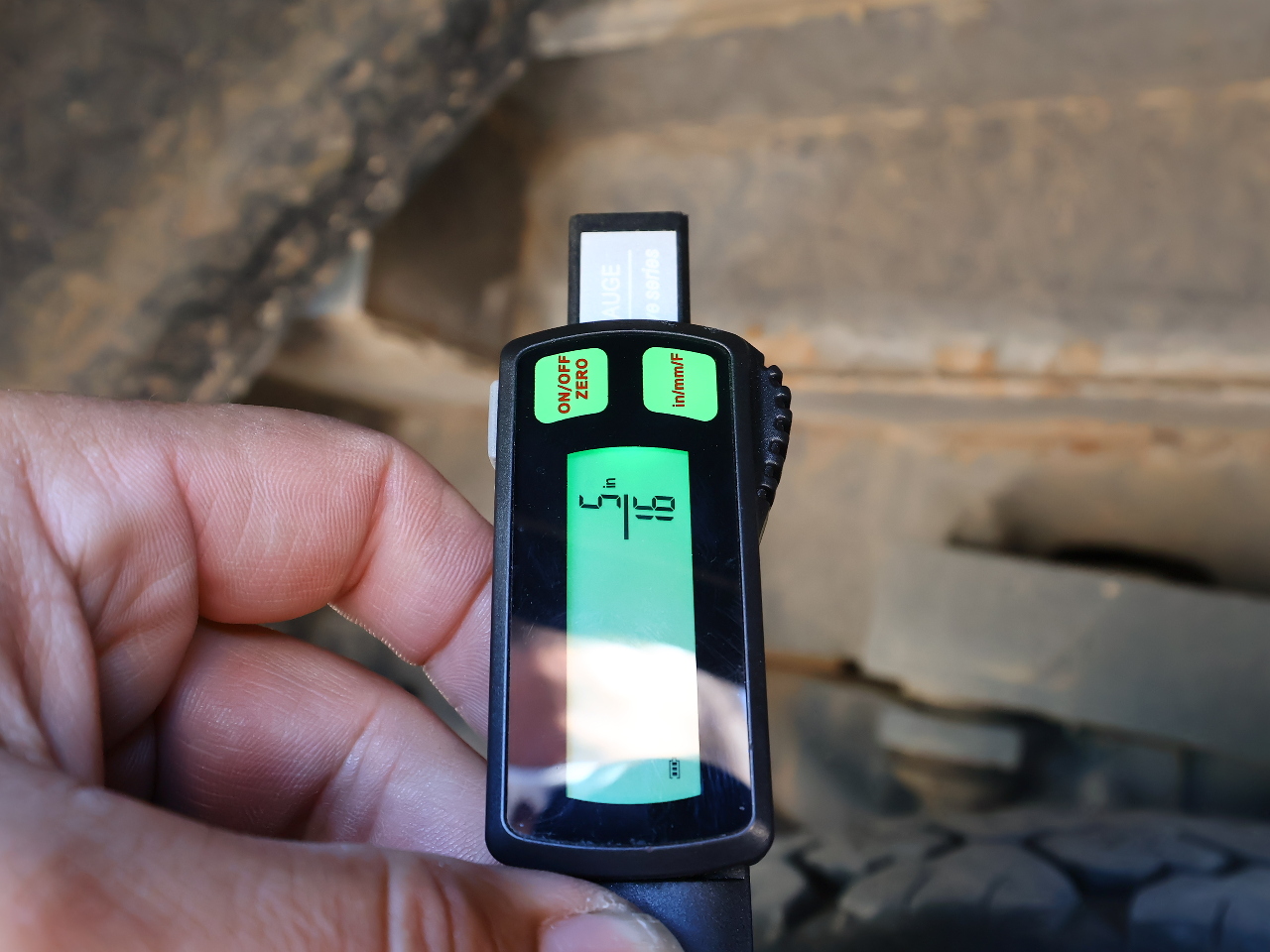

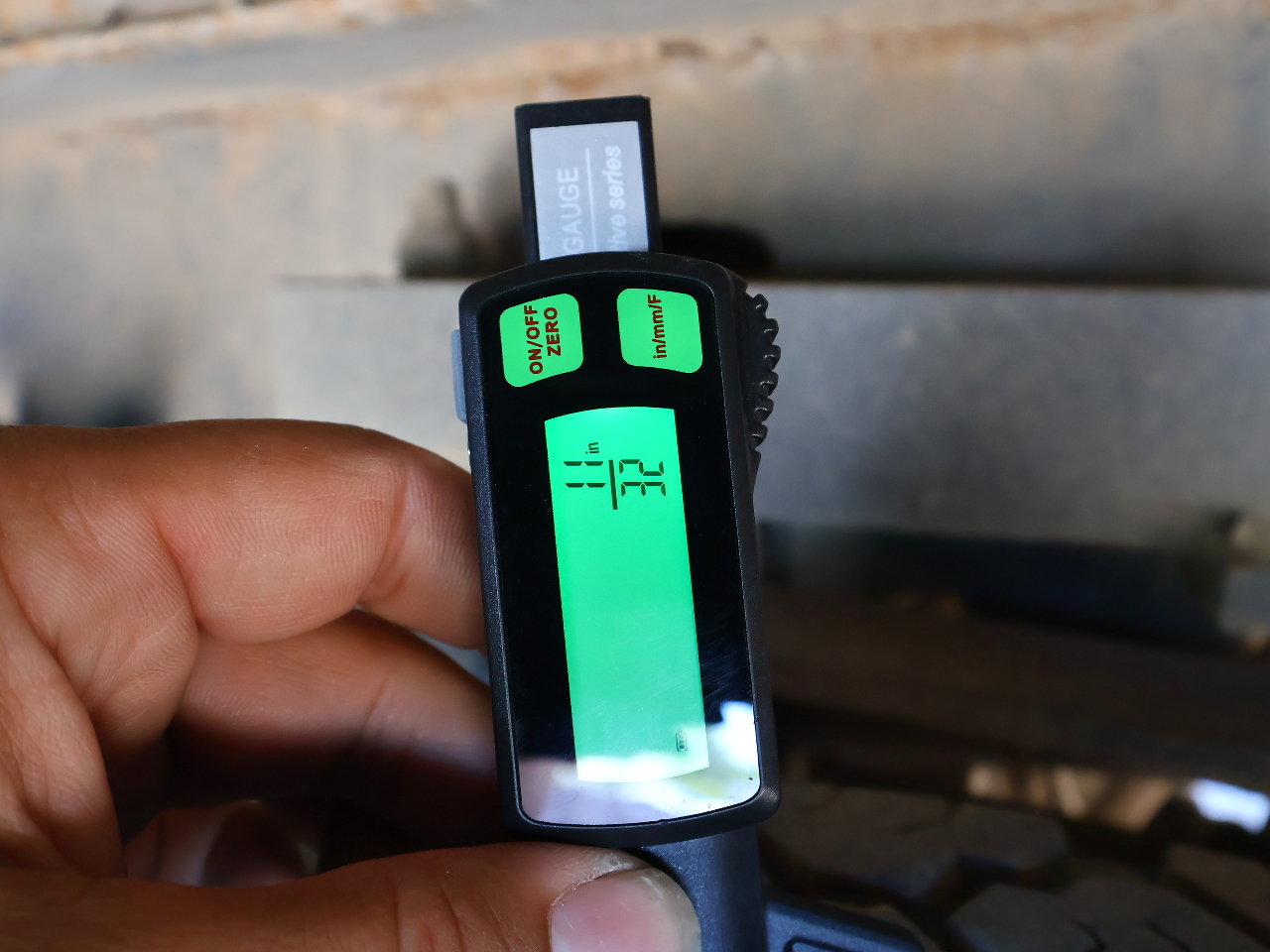

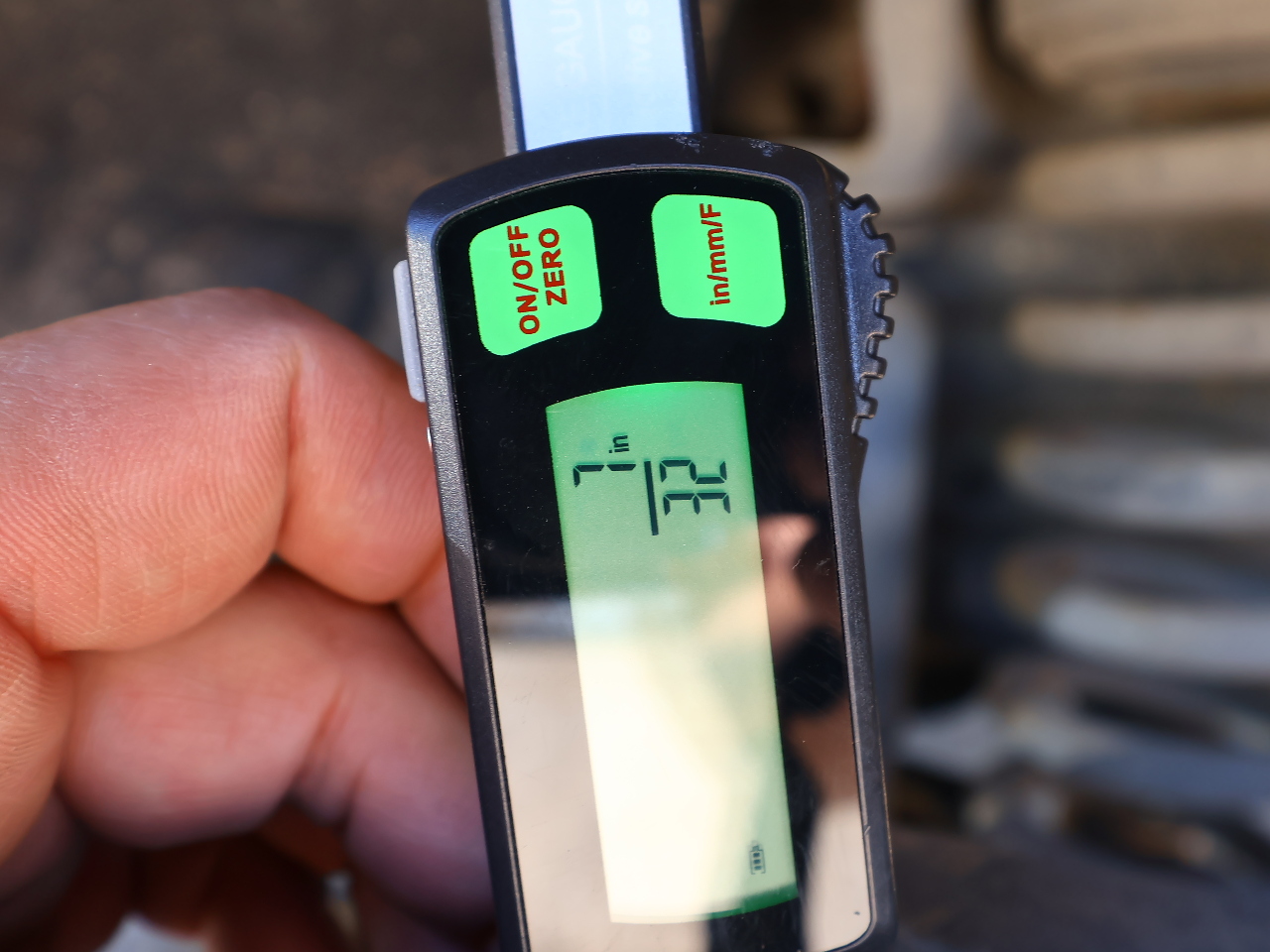

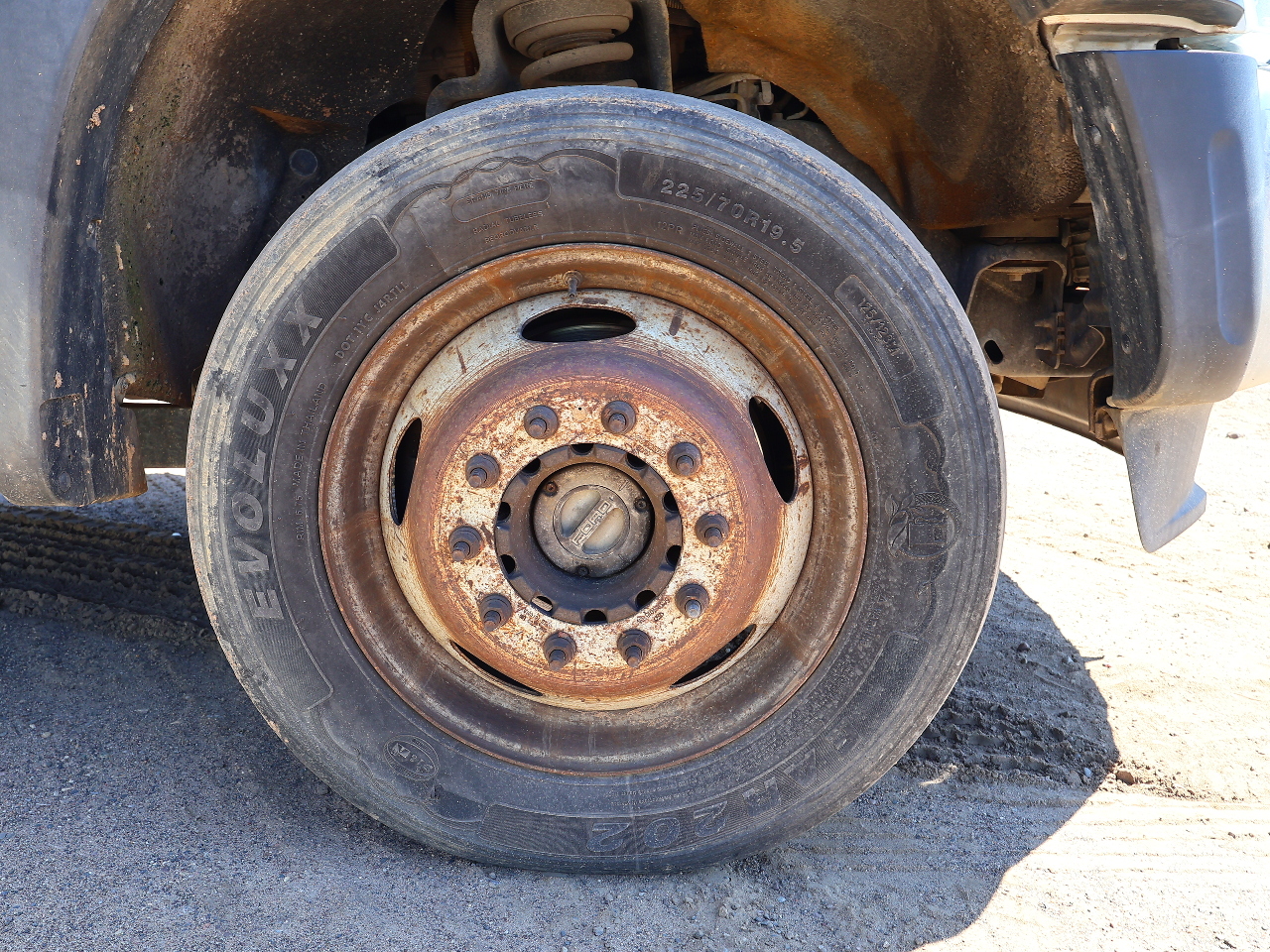

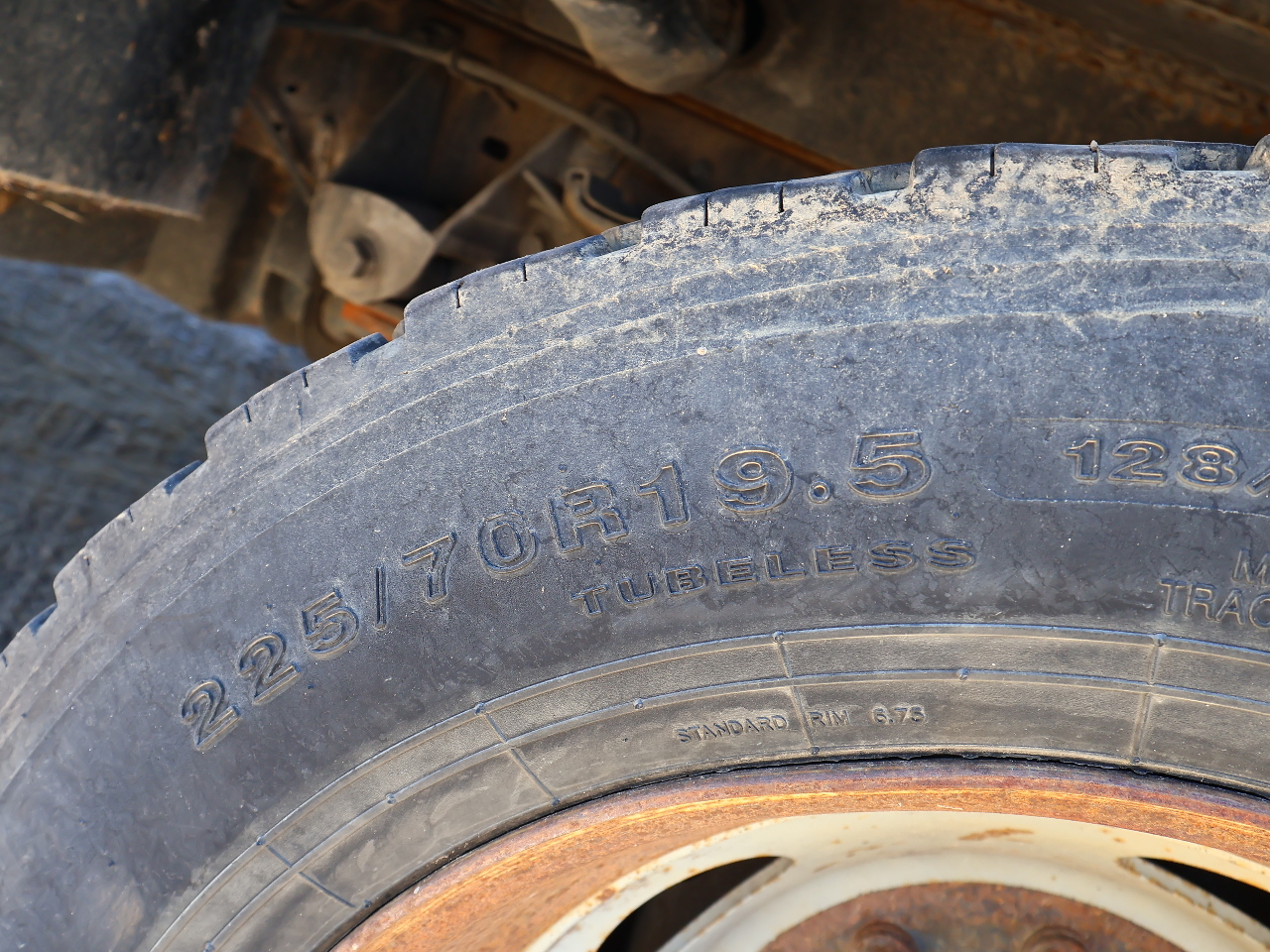

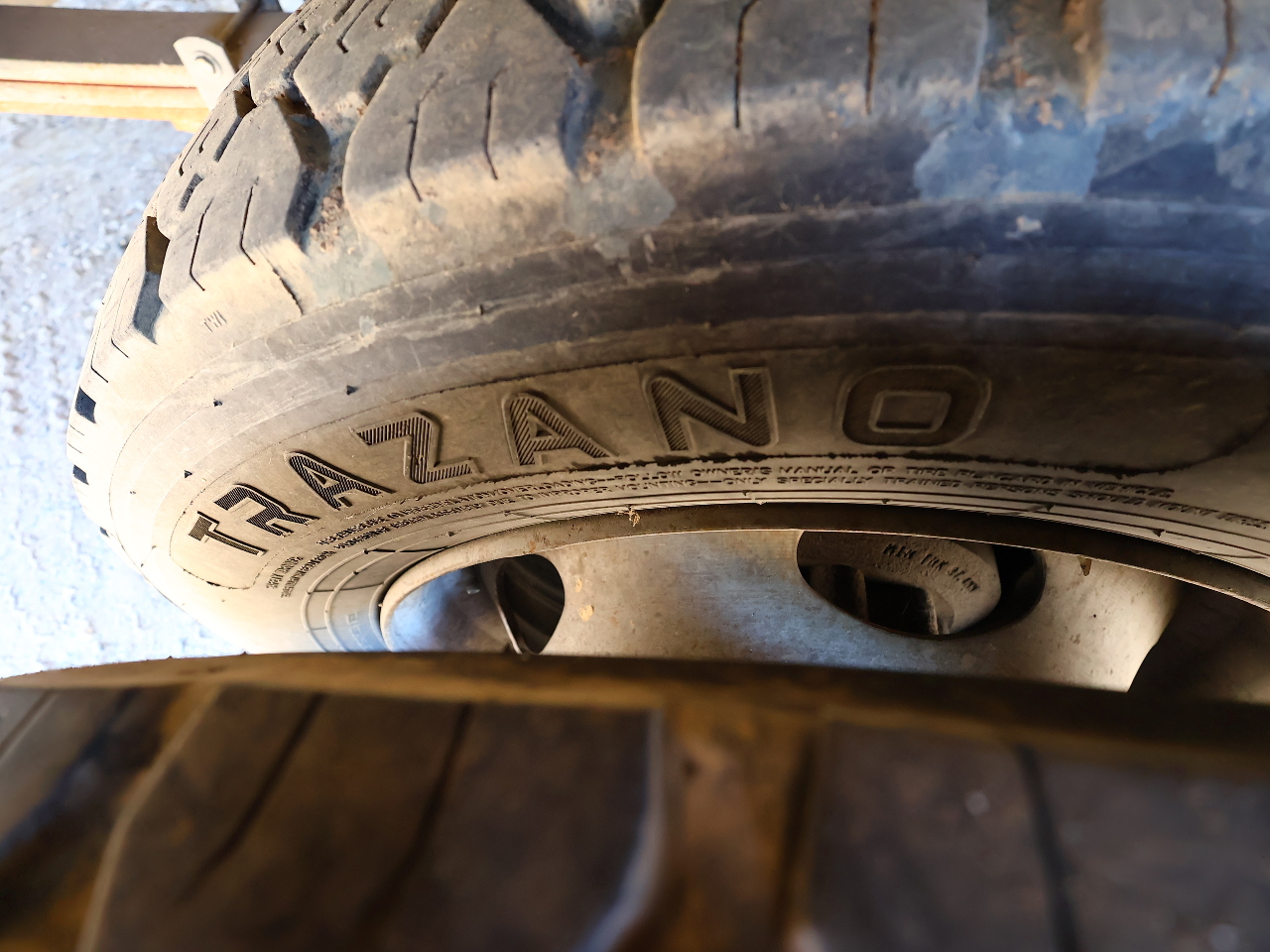

| TIRES | 1 MEASURES BELOW 10/32. LEFT STEER HAS CUT AT SIDEWALL / TREAD | |
| Report Videos |
|---|
| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
15F
16A
16B
16C
16D
16E
16F
17A
17B
17C
17D
17E
17F
18A
18B
18C
18D
18E
18F
19A
19B
19C
19D
19E
19F
20A
20B
20C
20D
20E
20F
21A
21B
21C
21D
21E
21F
22A
22B
22C
22D
22E
22F
23A
23B
23C
23D
23E
23F
24A
24B
24C
24D
24E
24F
25A
25B
25C
25D
25E
25F
26A
26B
26C
26D
26E
26F
27A
27B
27C
27D
27E
27F
28A
28B
28C
28D
28E
28F
29A
29B
29C
29D
Condition report only. National Inspection Services does not guarantee mechanical reliability.
