National Inspection Services
Report: 284647
02/04/2025
02/04/2025
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888

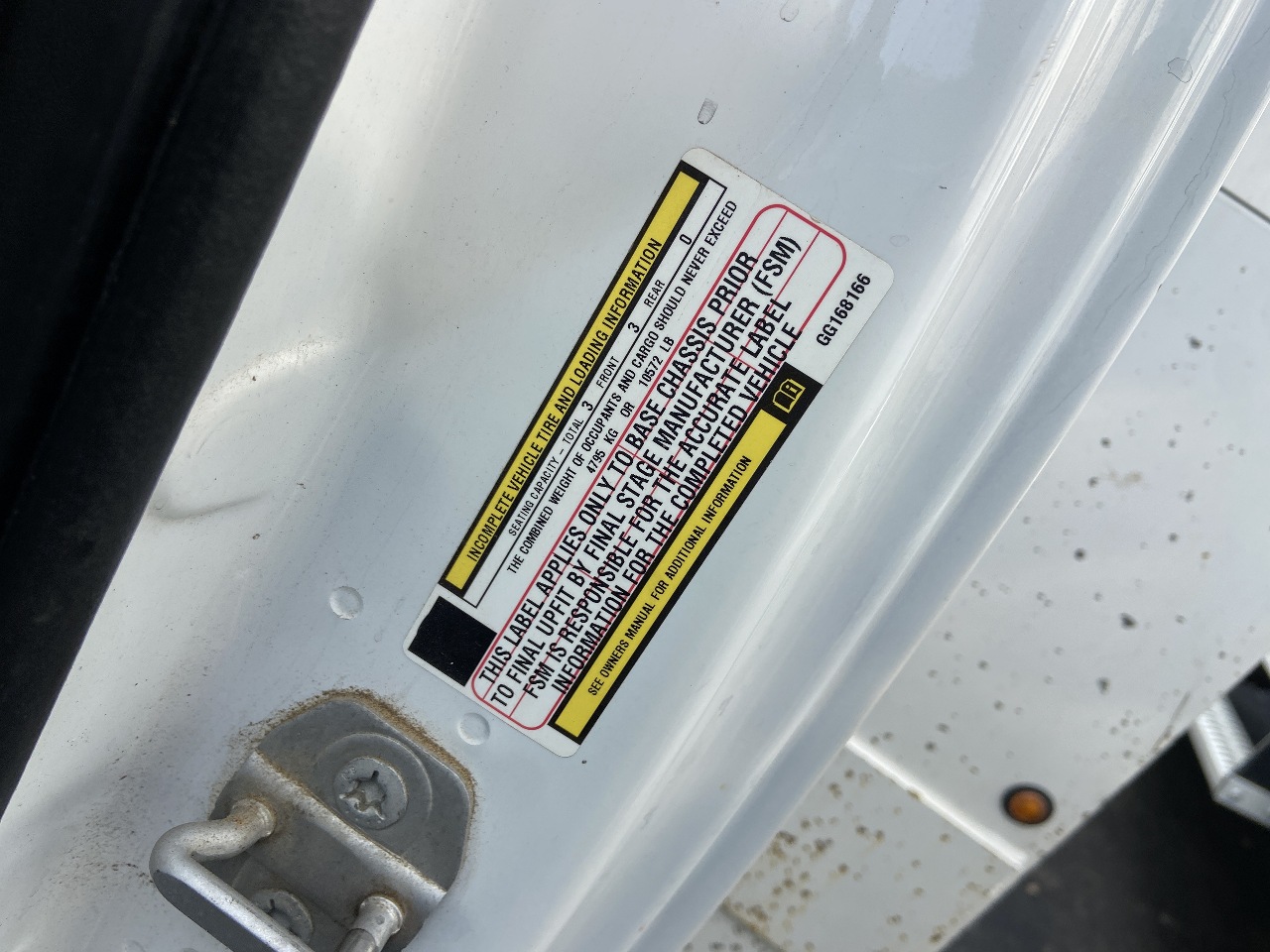

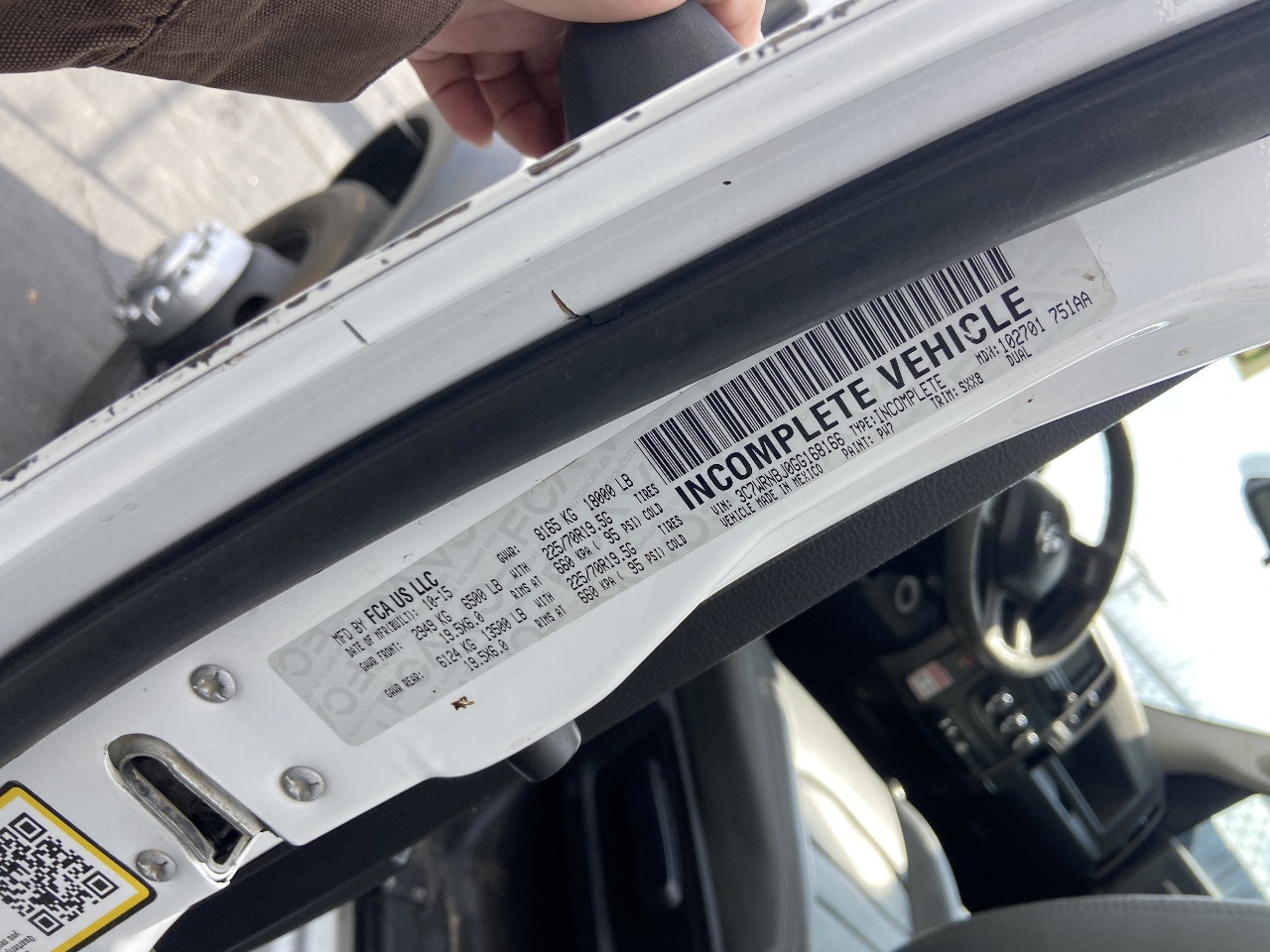

VIN: 3C7WRNBJ0GG168166
PO #: 0000
PO #: 0000
| 2016 RAM 5500 |
|---|
| Specifications | |
|---|---|

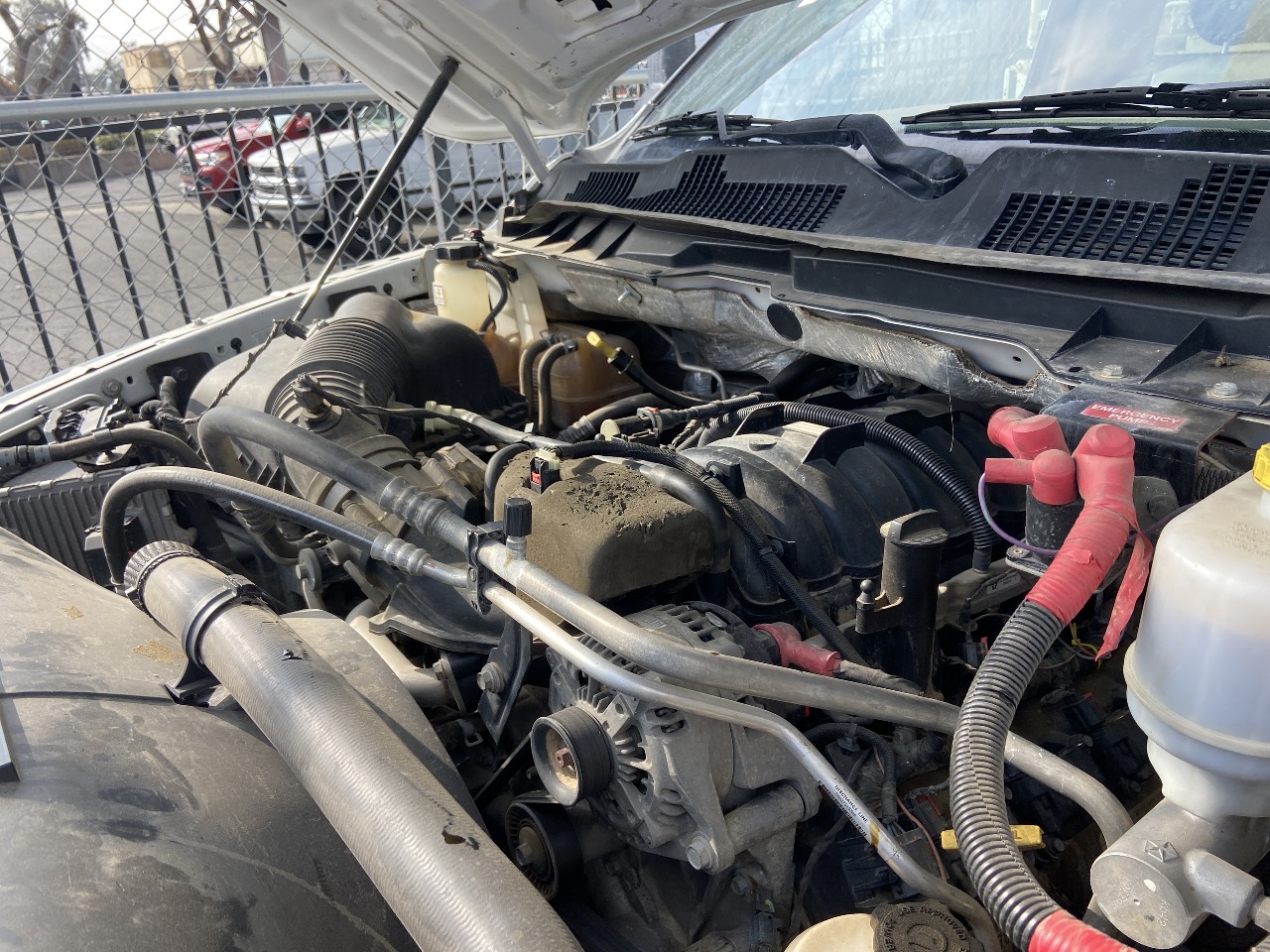

| Mileage | 82,286 | Engine | 6.4L V8 HP |

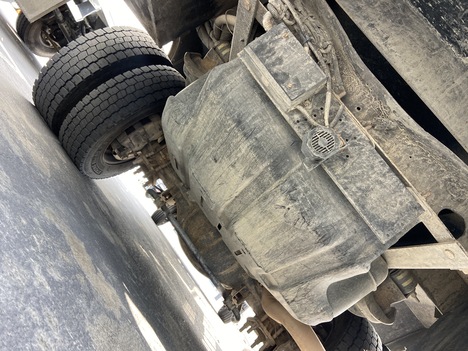

| Fuel / Tanks | GASOLINE - 1 PLASTIC 52 GAL TOTAL |
| Transmission | AISIN AS69RC 6 SPD AUTO |
| Drive Opts | POWER STEERING, OVERDRIVE, CRUISE |
| Rear End | 4.44 |
| Axle Type | SINGLE - F 6,500 LB / R 13,500 LB |
| GVWR | 19,000 |
| Frame | STEEL |

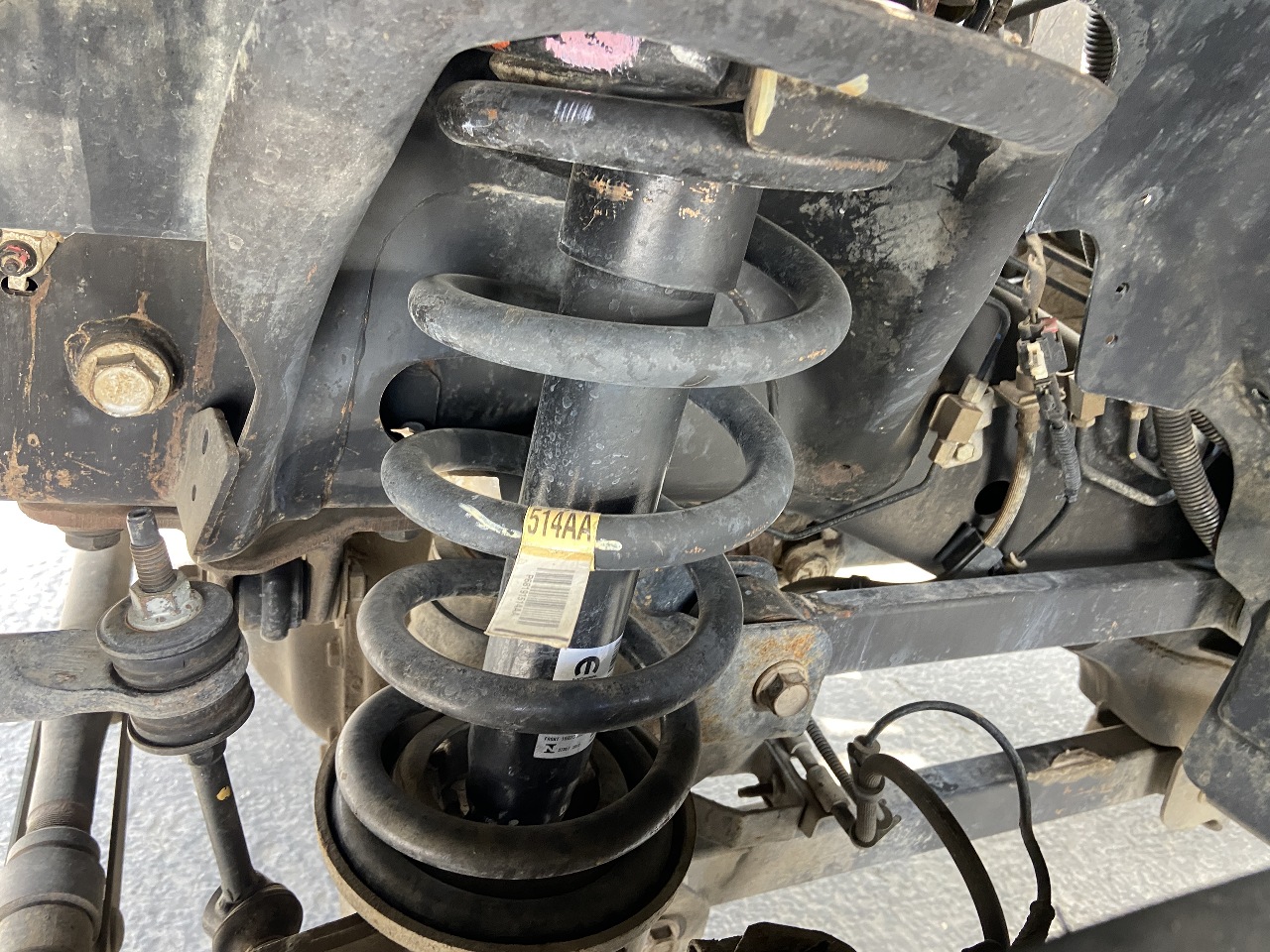

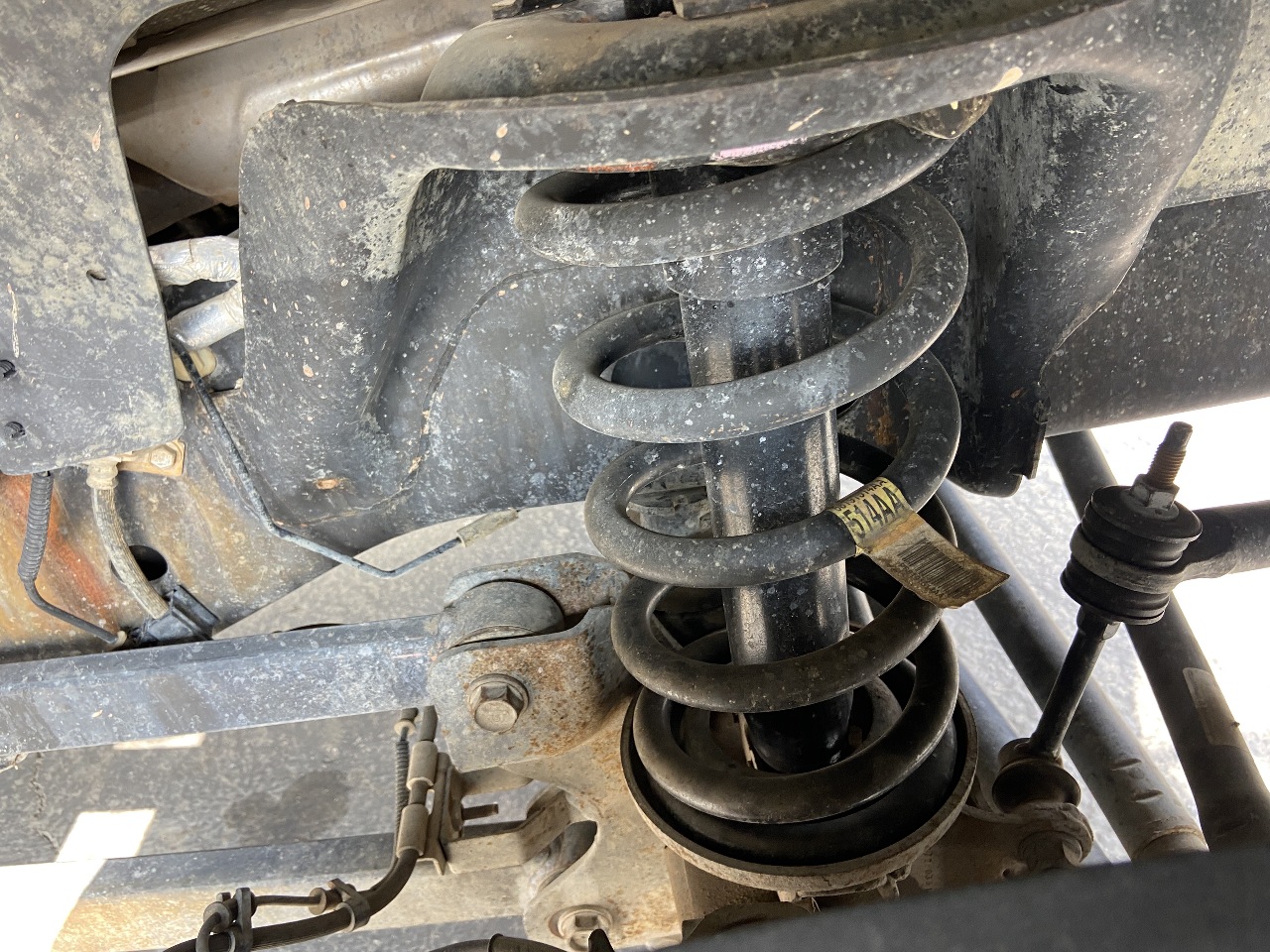

| Suspension | SPRING |
| Wheelbase | 168" |
| Tire Size | 225/70R19.5 |
| Wheels | F STEEL / R STEEL |
| Air Cond | YES, OPERATIONAL |
| Interior Color | GREY |
| Radio | AM/FM, OPERATIONAL |
| Mirrors | DUAL POWER |
| High Back Seats | DUAL |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | PAINTED |
| Brakes | |
|---|---|
| Left FrontDISC | Right FrontDISC |
| Left Rear 1DISC | Right Rear 1DISC |

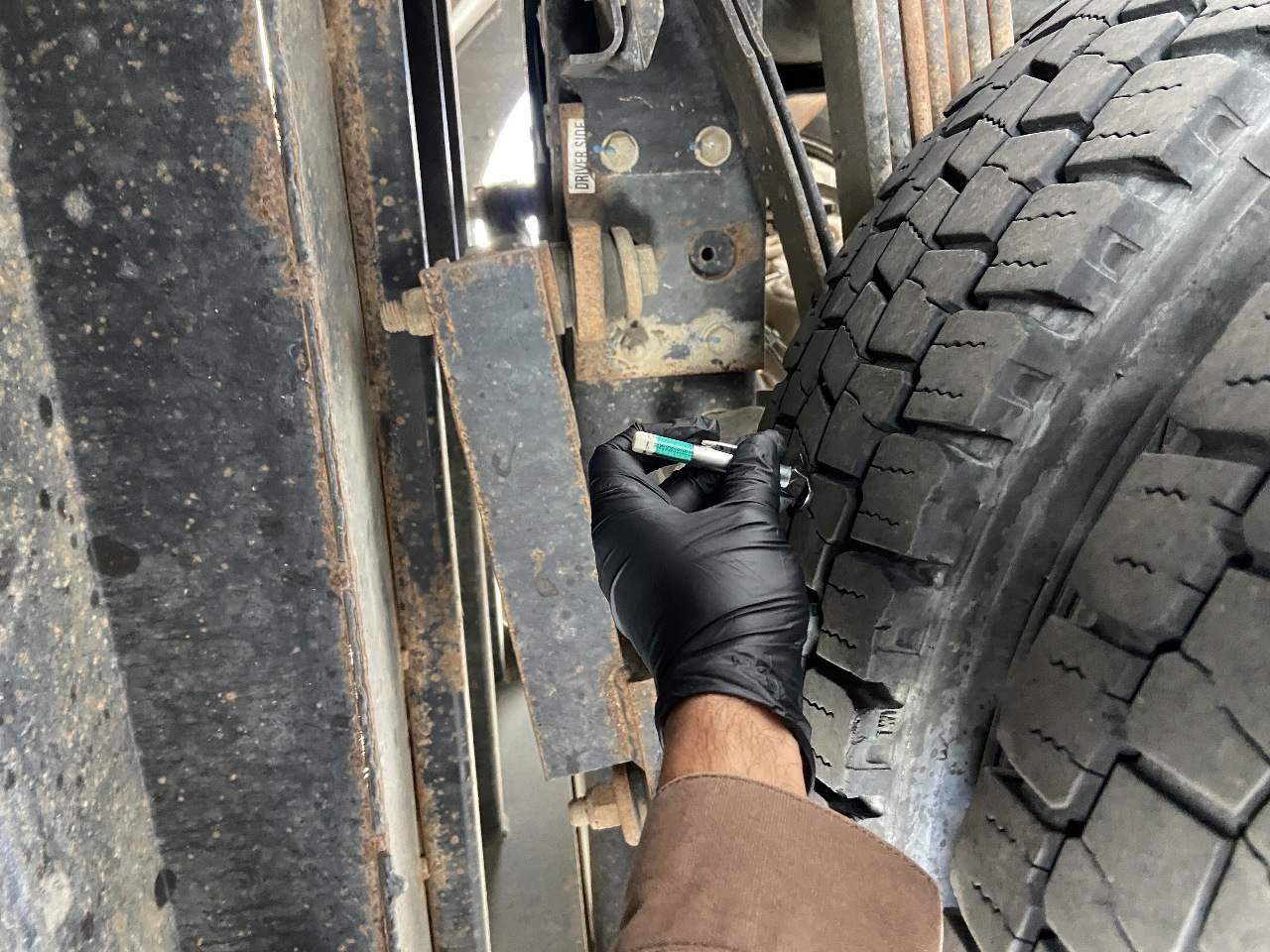

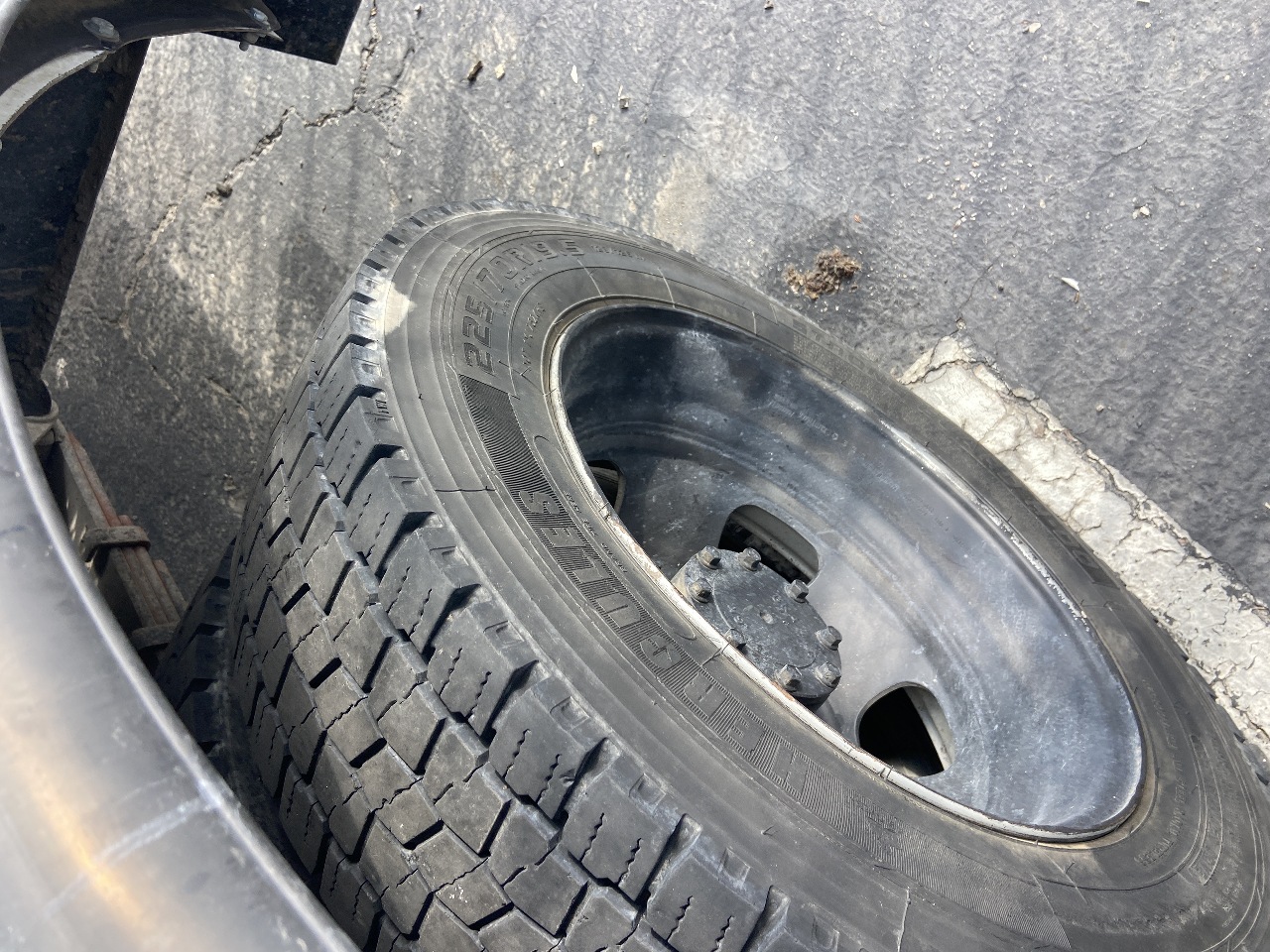

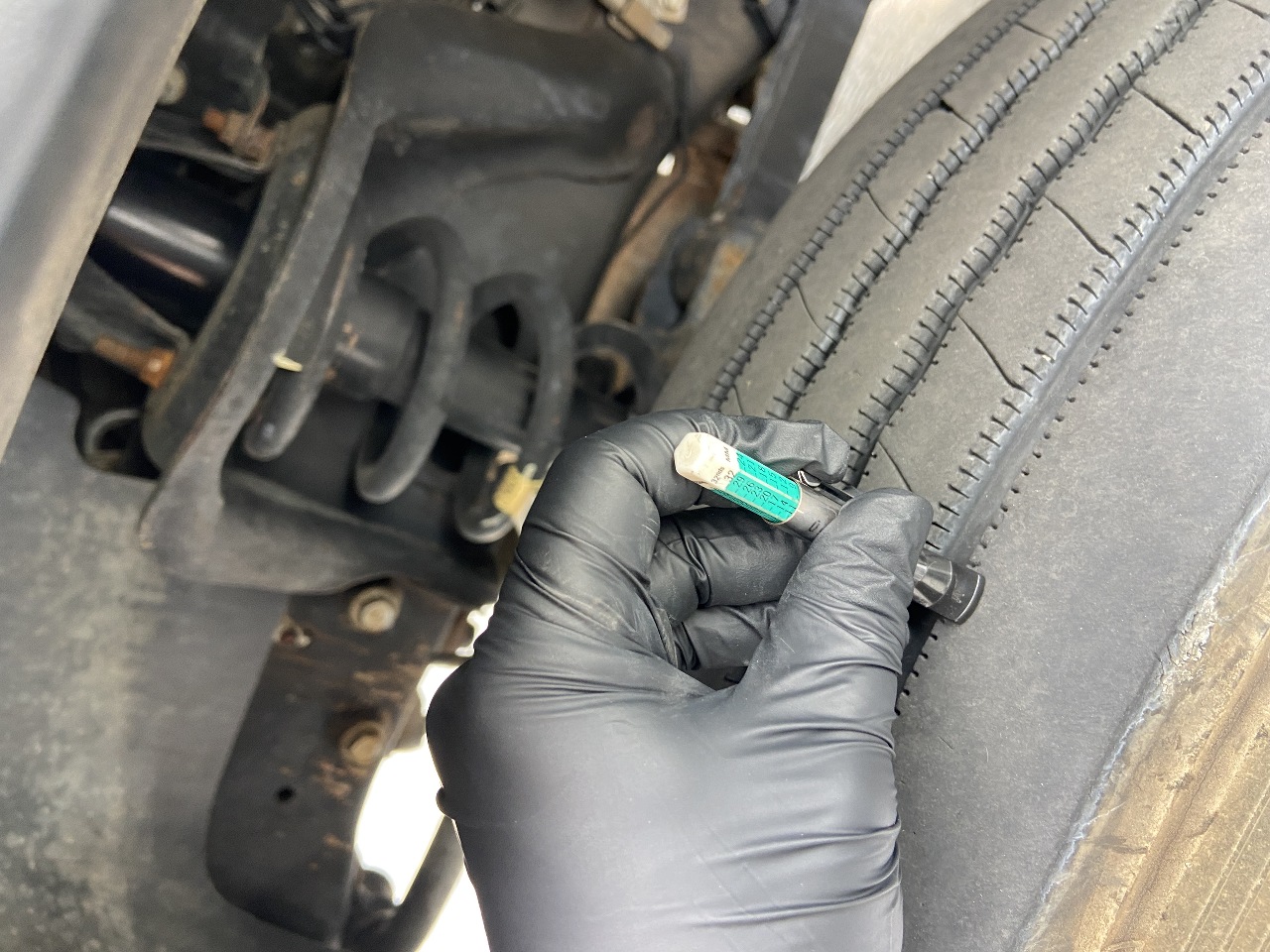

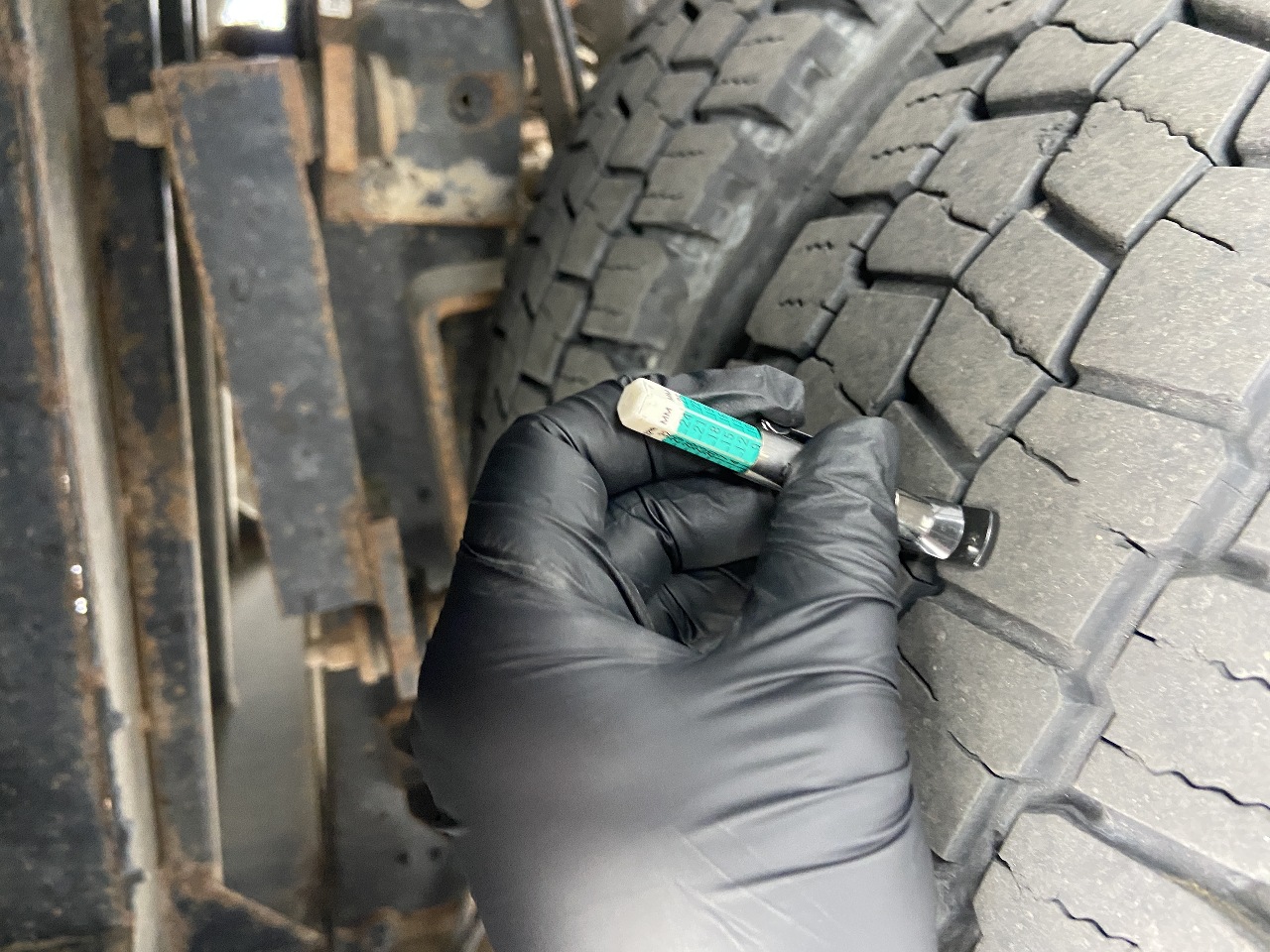

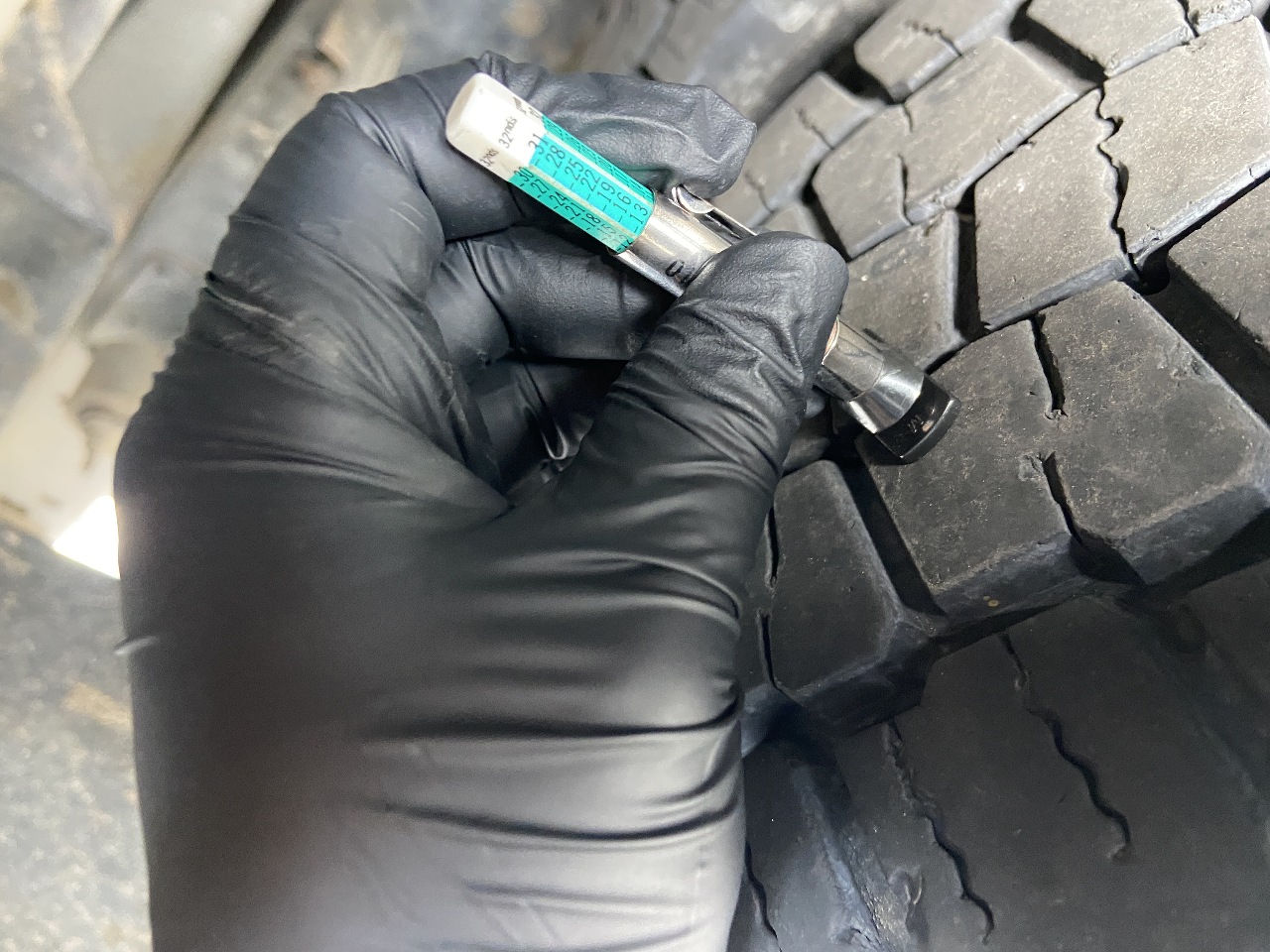

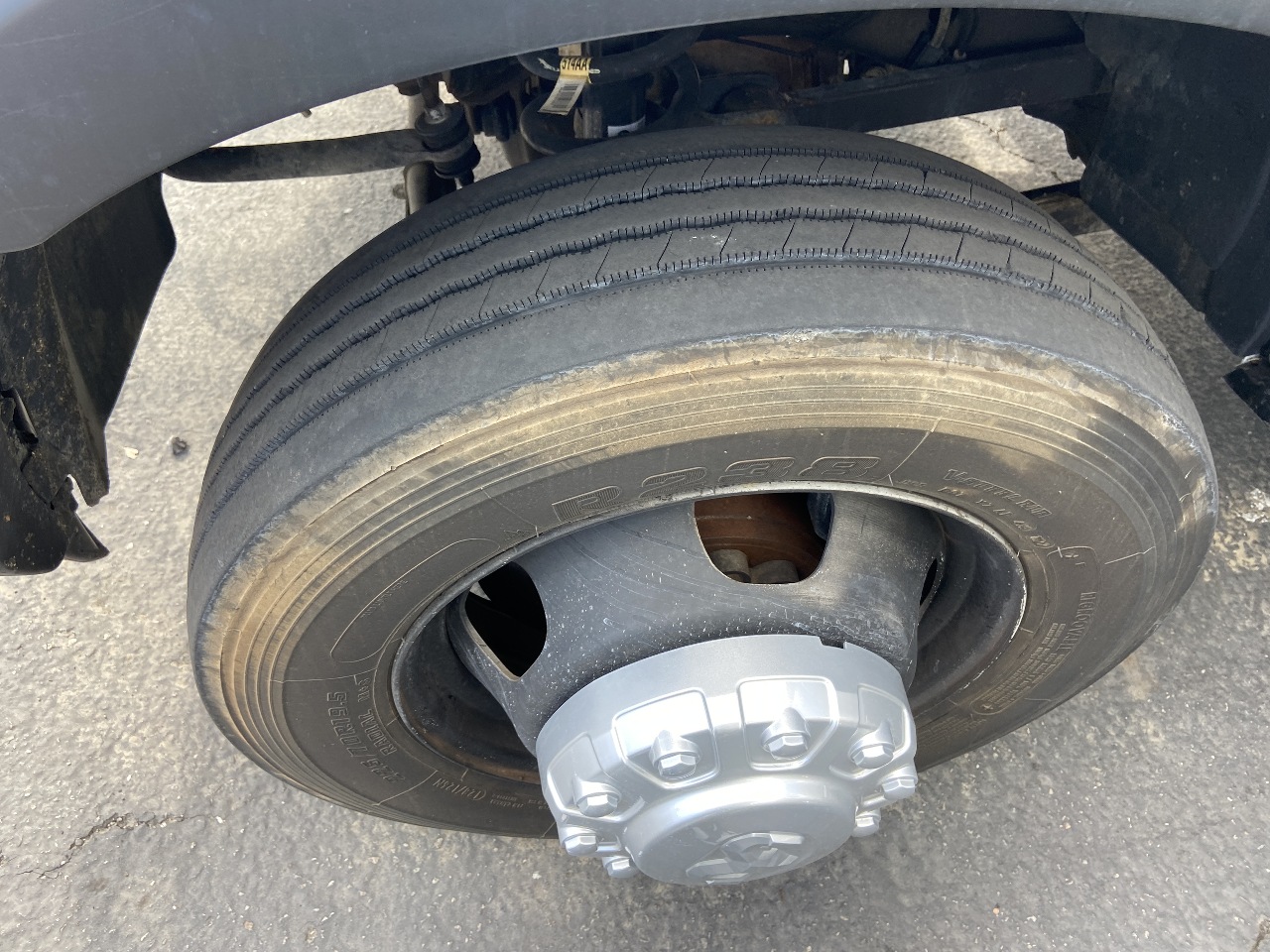

| Tires & Wheels | |||
|---|---|---|---|
|

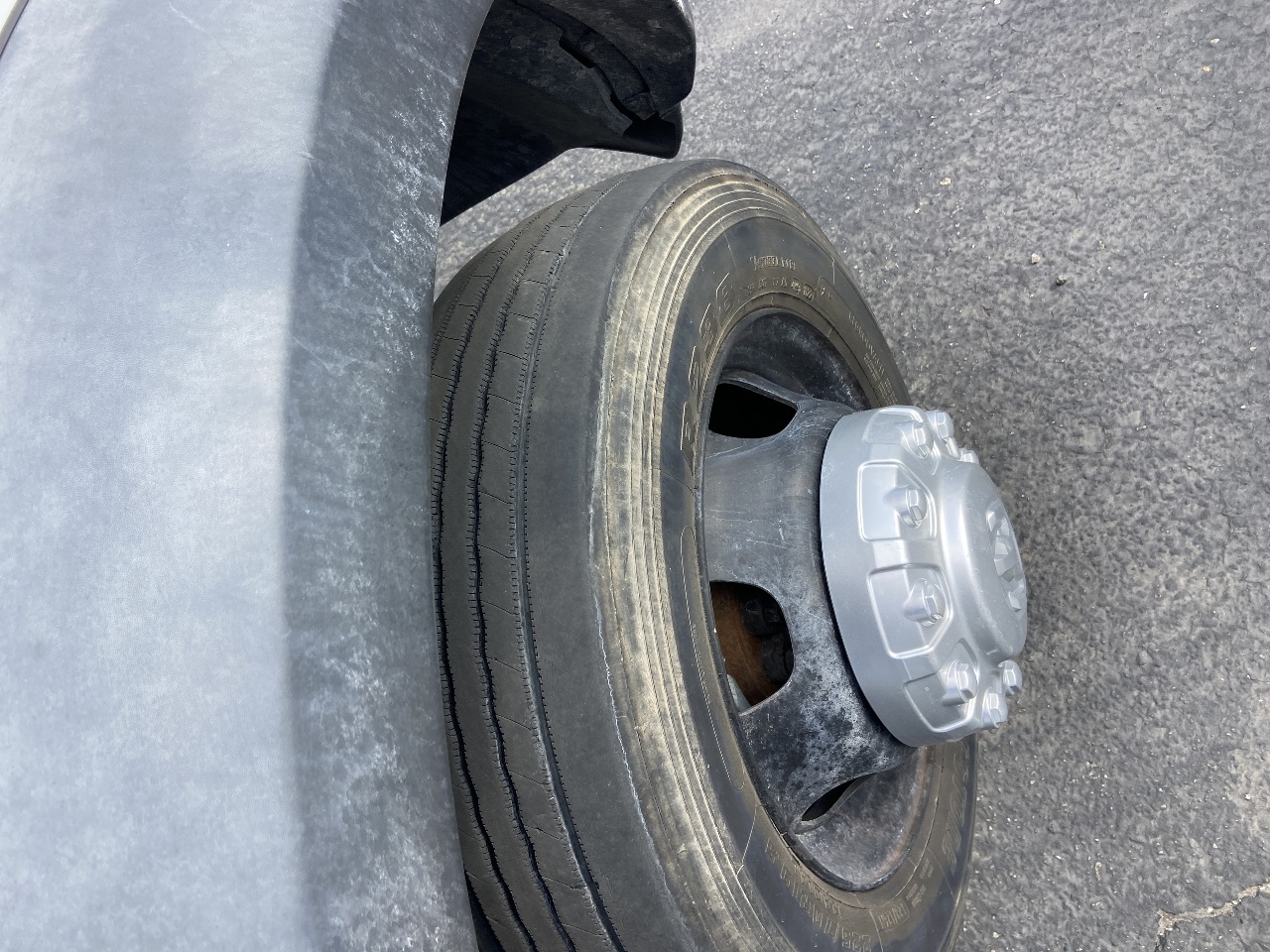

Left Front11 / 32 Bridgestone Steel |
Right Front9 / 32 Bridgestone Steel |
||
|
Left Outer 19 / 32 - Steel |
Left Inner 113 / 32 - Steel |
Right Inner 113 / 32 - Steel |
Right Outer 113 / 32 - Steel |
| FRONT TIRES: 225/70r19.5 | REAR TIRES: 225/70r19.5 | ||
| Additional Tire Detail |
|---|

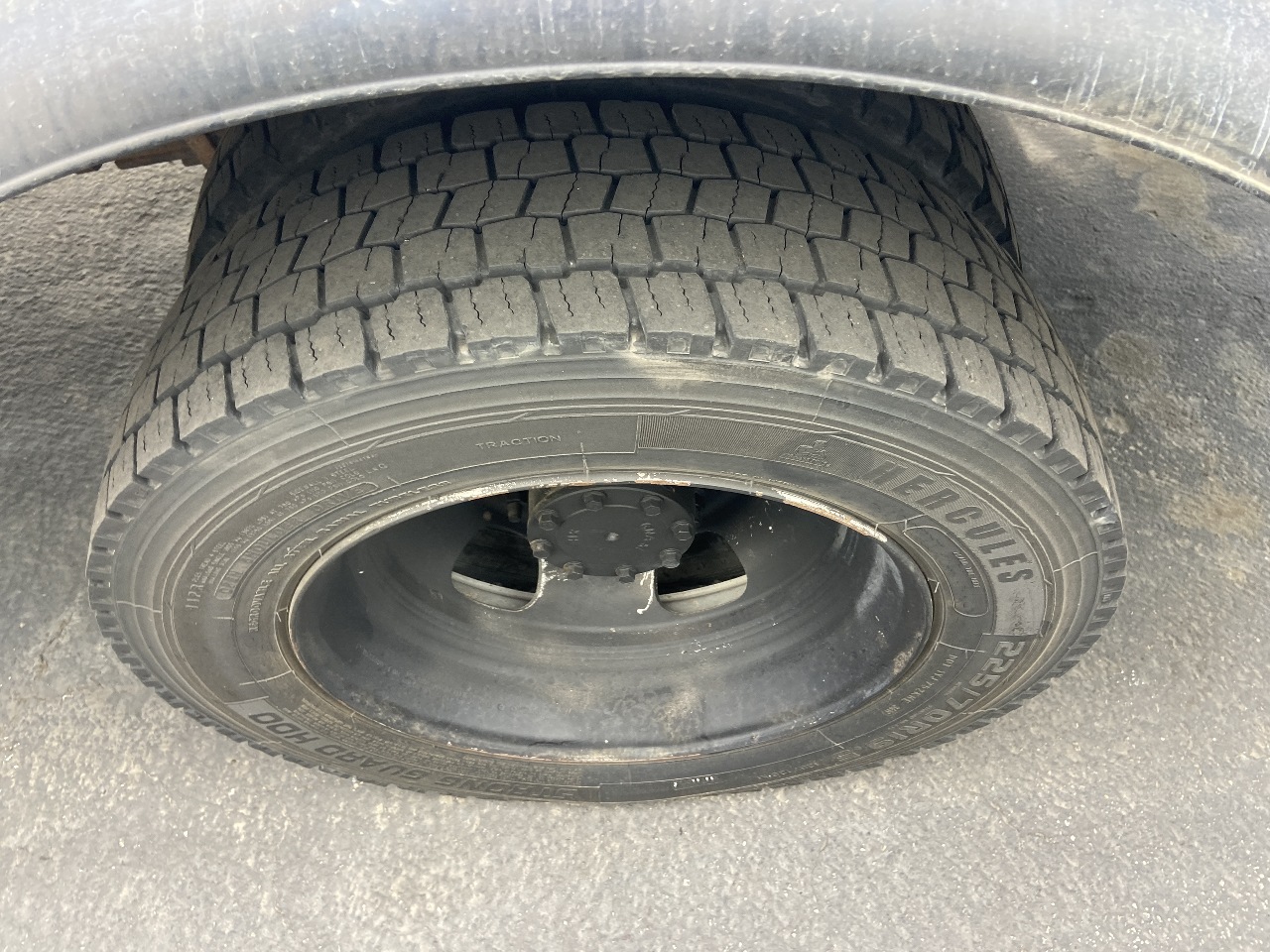

| Hercules brand rear tires |
| General Observations |
|---|

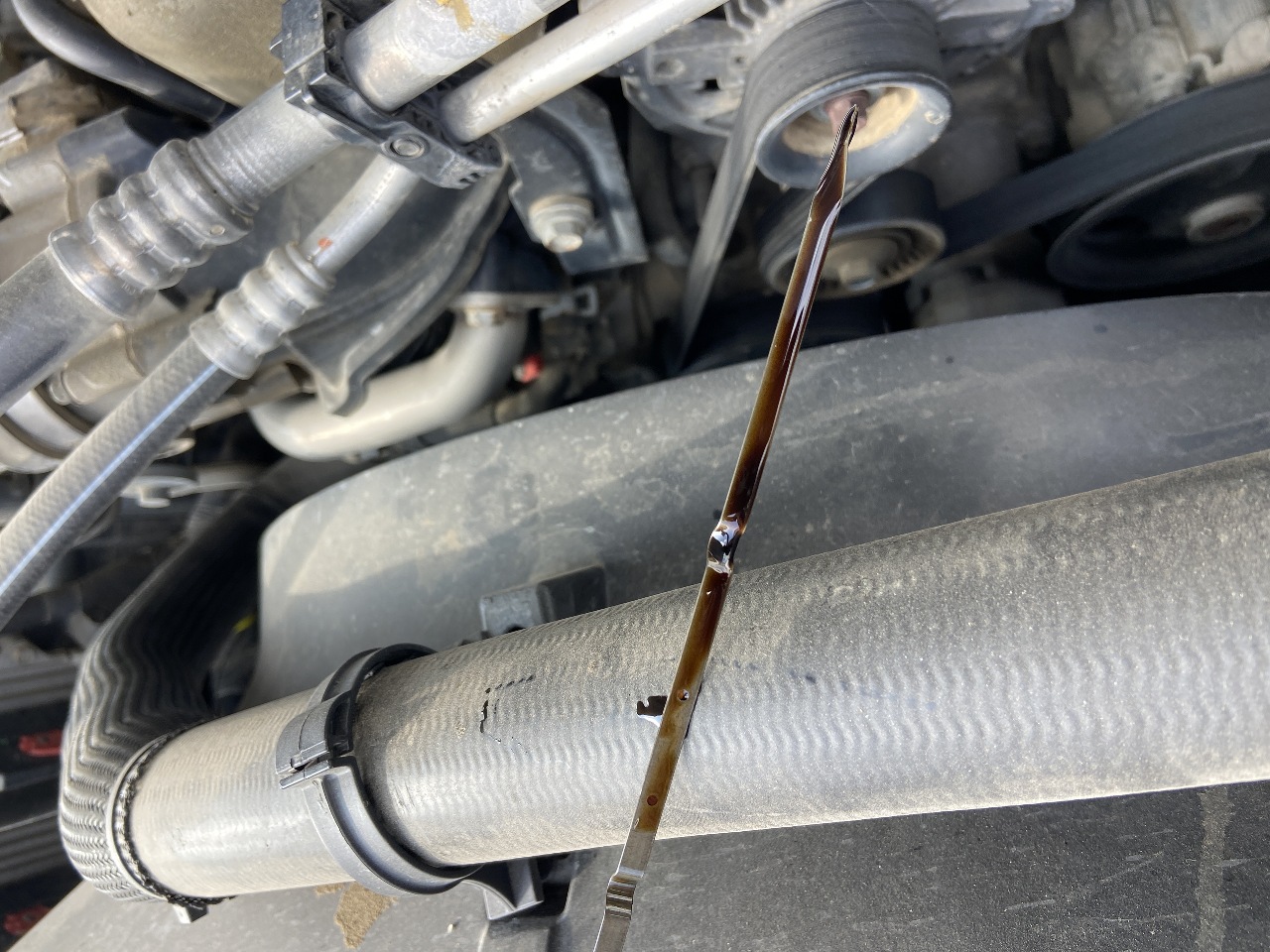

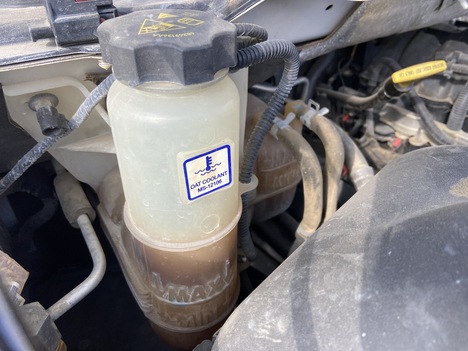

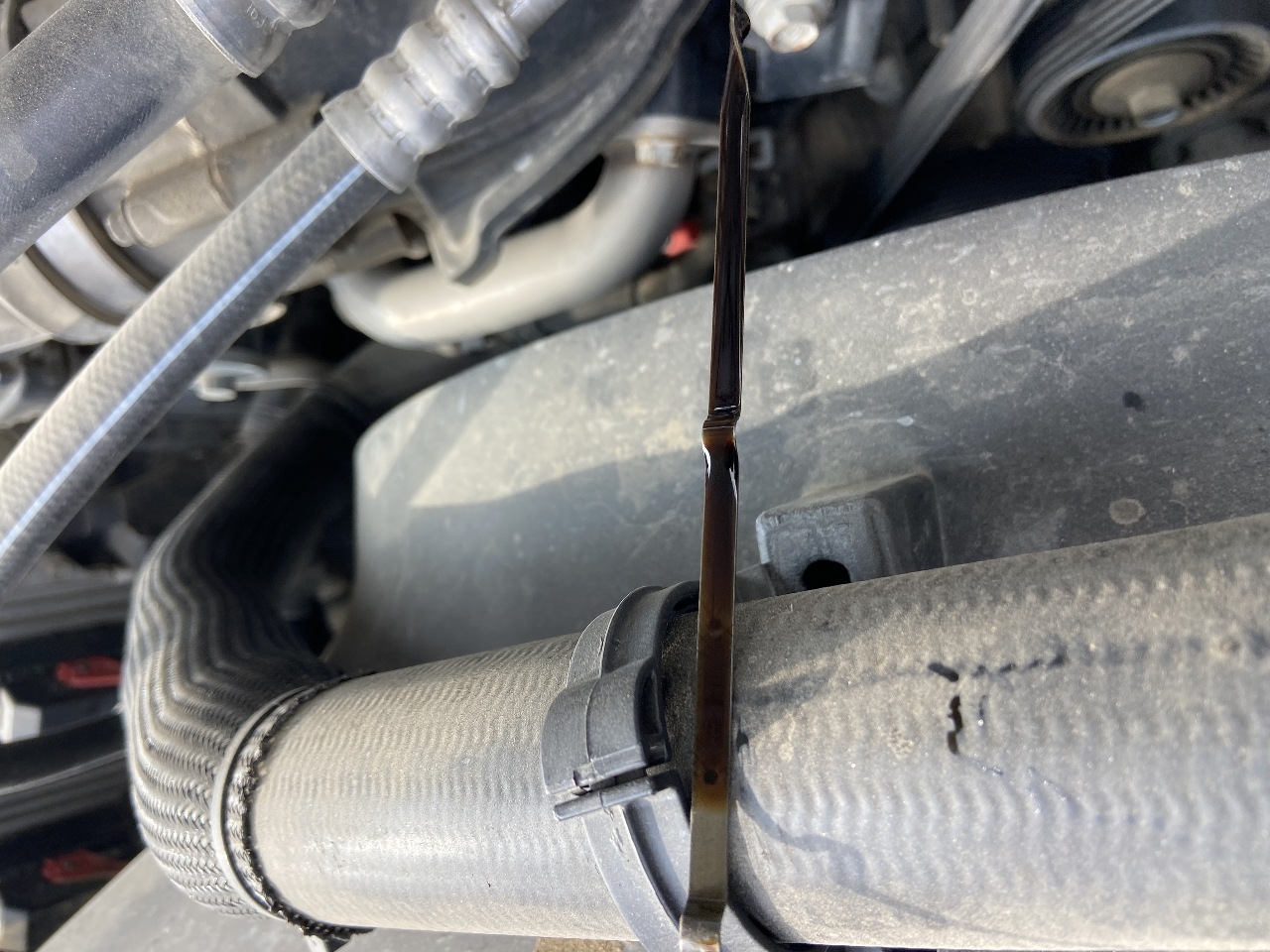

| Oil Milky? | No | Oil Leaks? | No | Water Leaks? | No | Oil in Coolant? | No | Clutch Play? | NA | Starts? | Yes | Drives | Yes |
|---|
| Lights Work? | Yes - All | Wipers Work? | Yes | Gauges Work? | Yes - All | Air Horn Works? | NA | City Horn Works? | Yes |
|---|
| Diesel Particulate Filter | PASS |
|---|
| Additional Observations | |
|---|---|
| No one available during the inspection to assist with operation of the equipment. | |
| Wear & Tear Detail | |
|---|---|

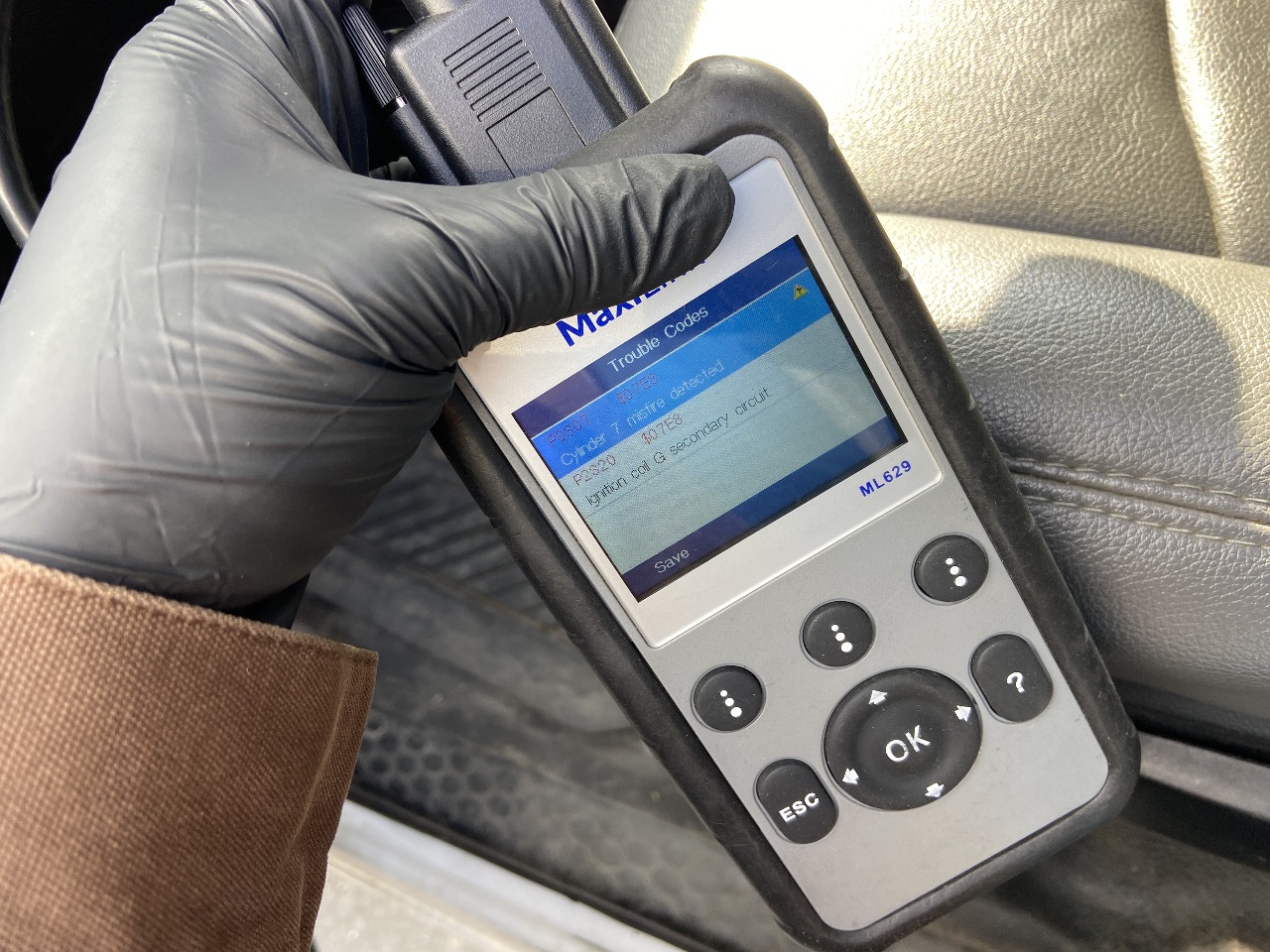

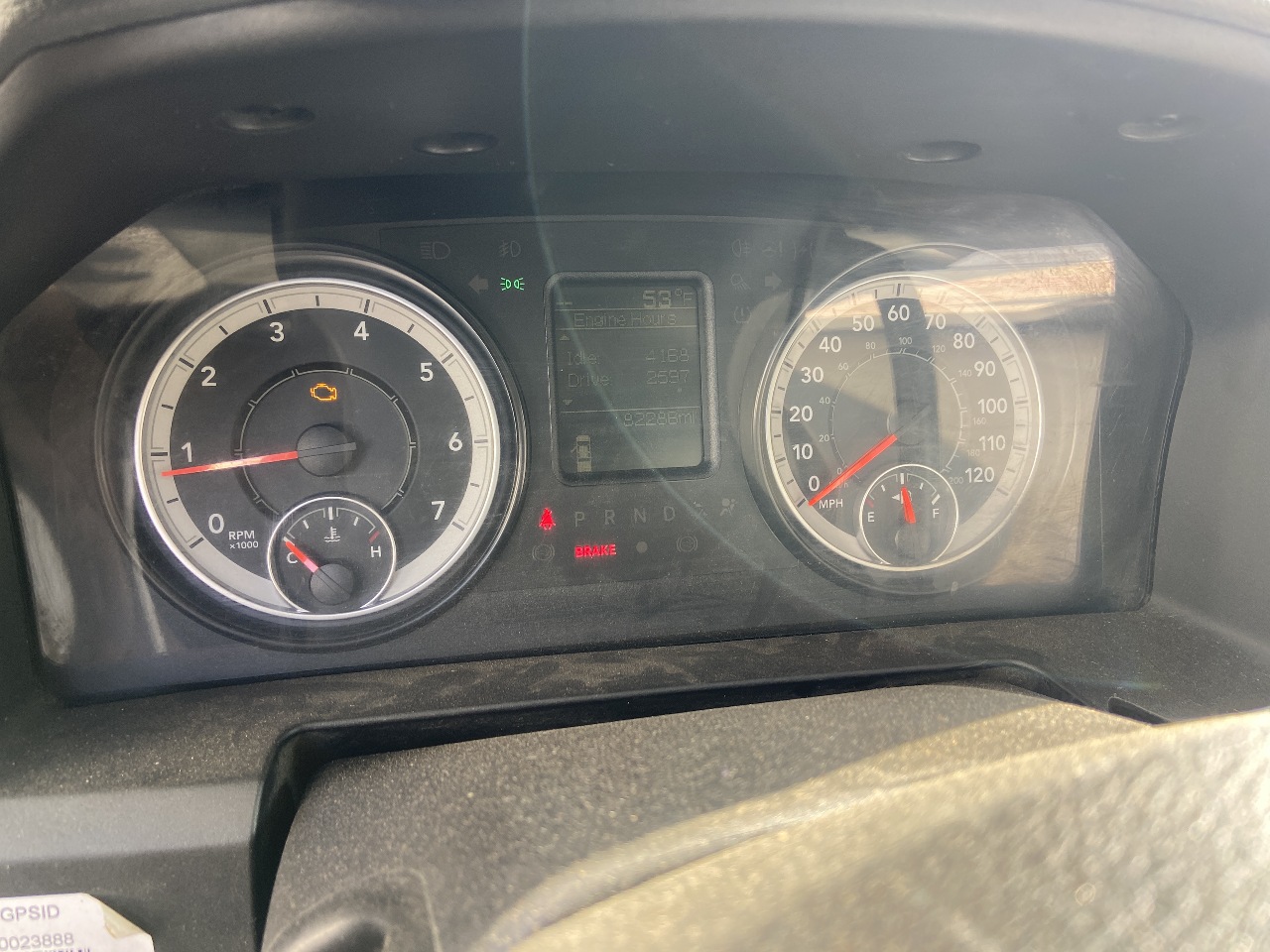

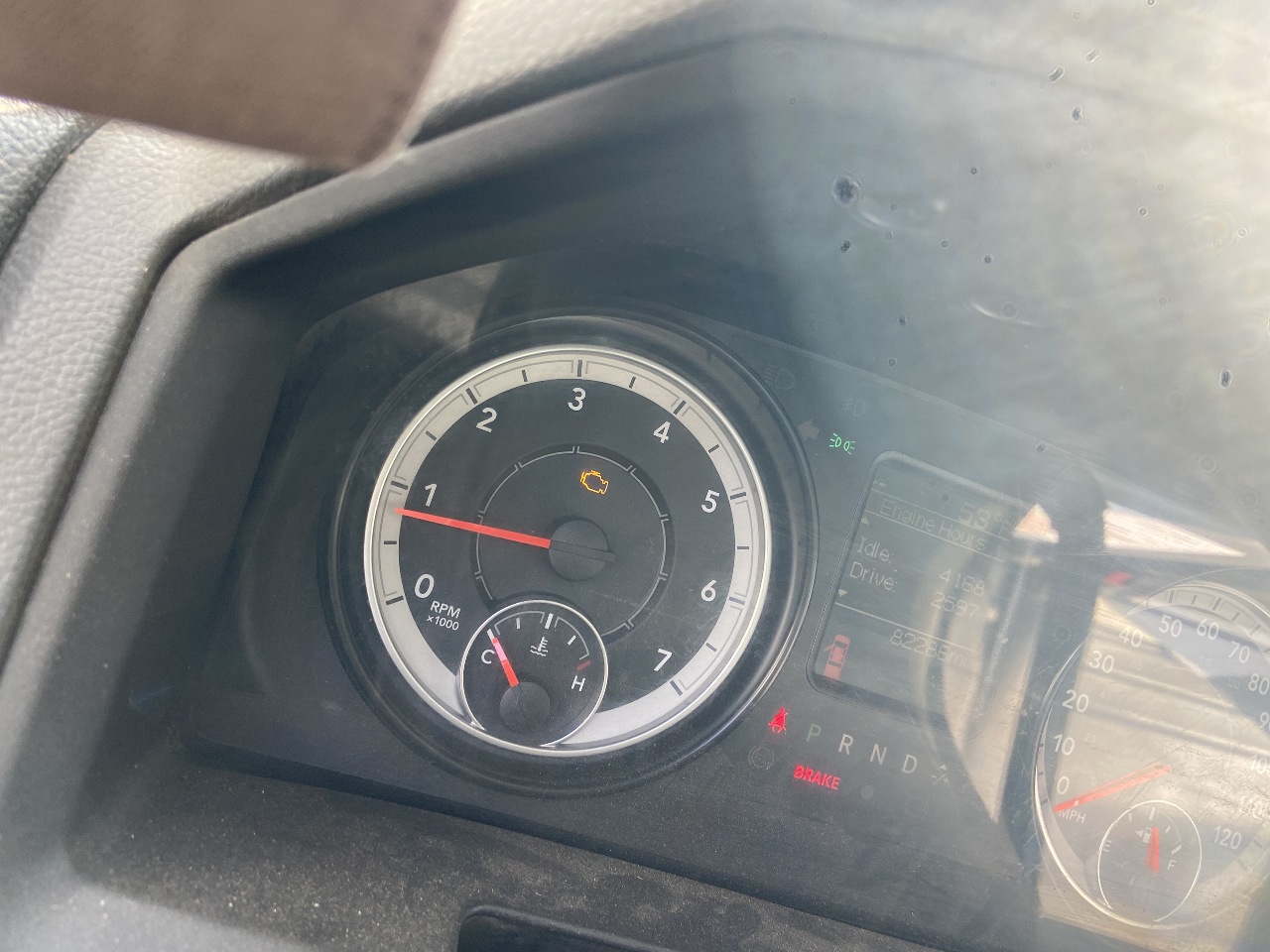

| DIAGNOSTICS | CHECK ENGINE LIGHT ON. ENGINE RUNNING ROUGH MISFIRING. CODES FOUND P0307 �CYLINDER 7 MISFIRE DETECTED�. P0320 �IGNITION COIL G SECONDARY CIRCUIT�. |

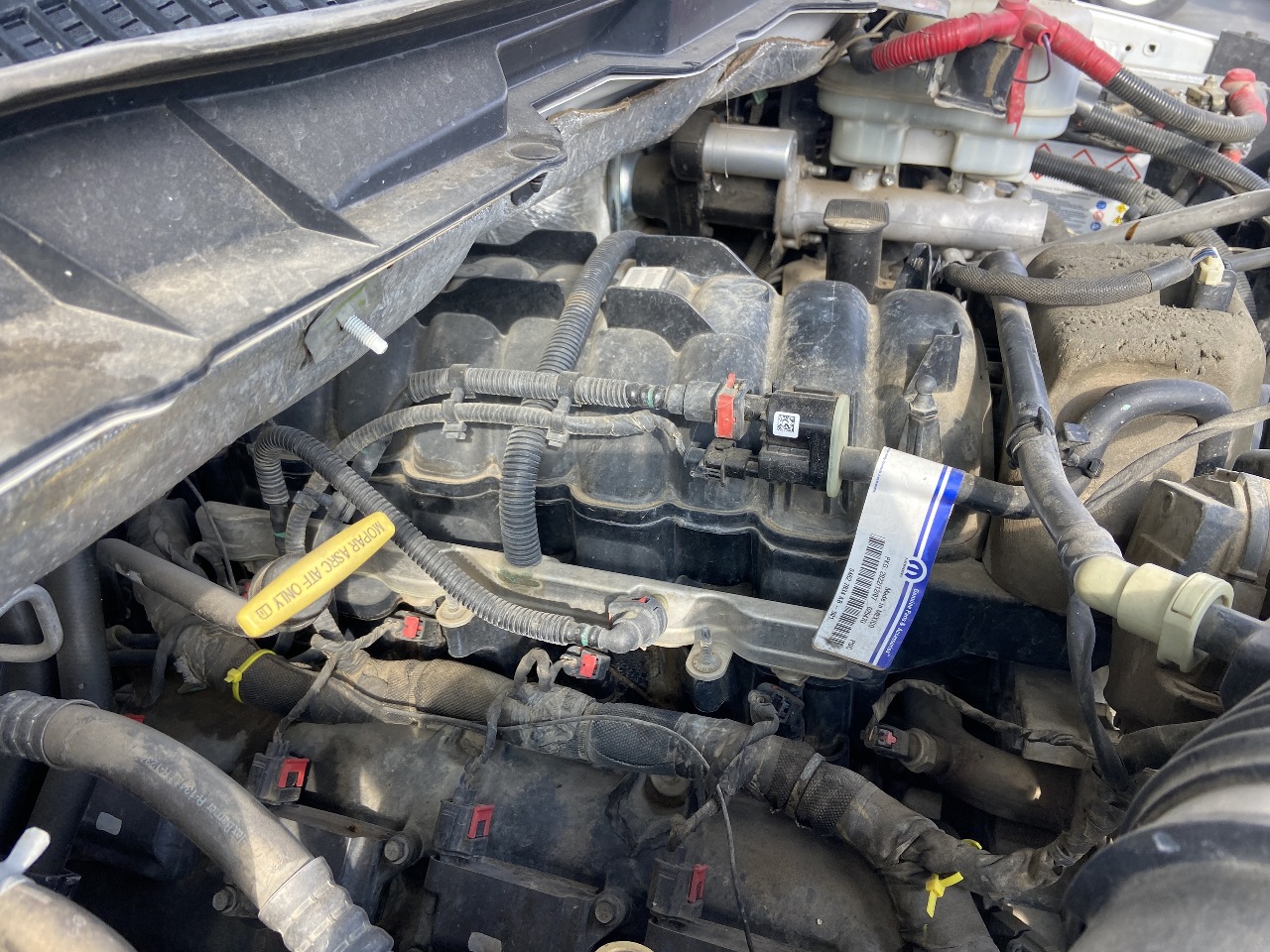

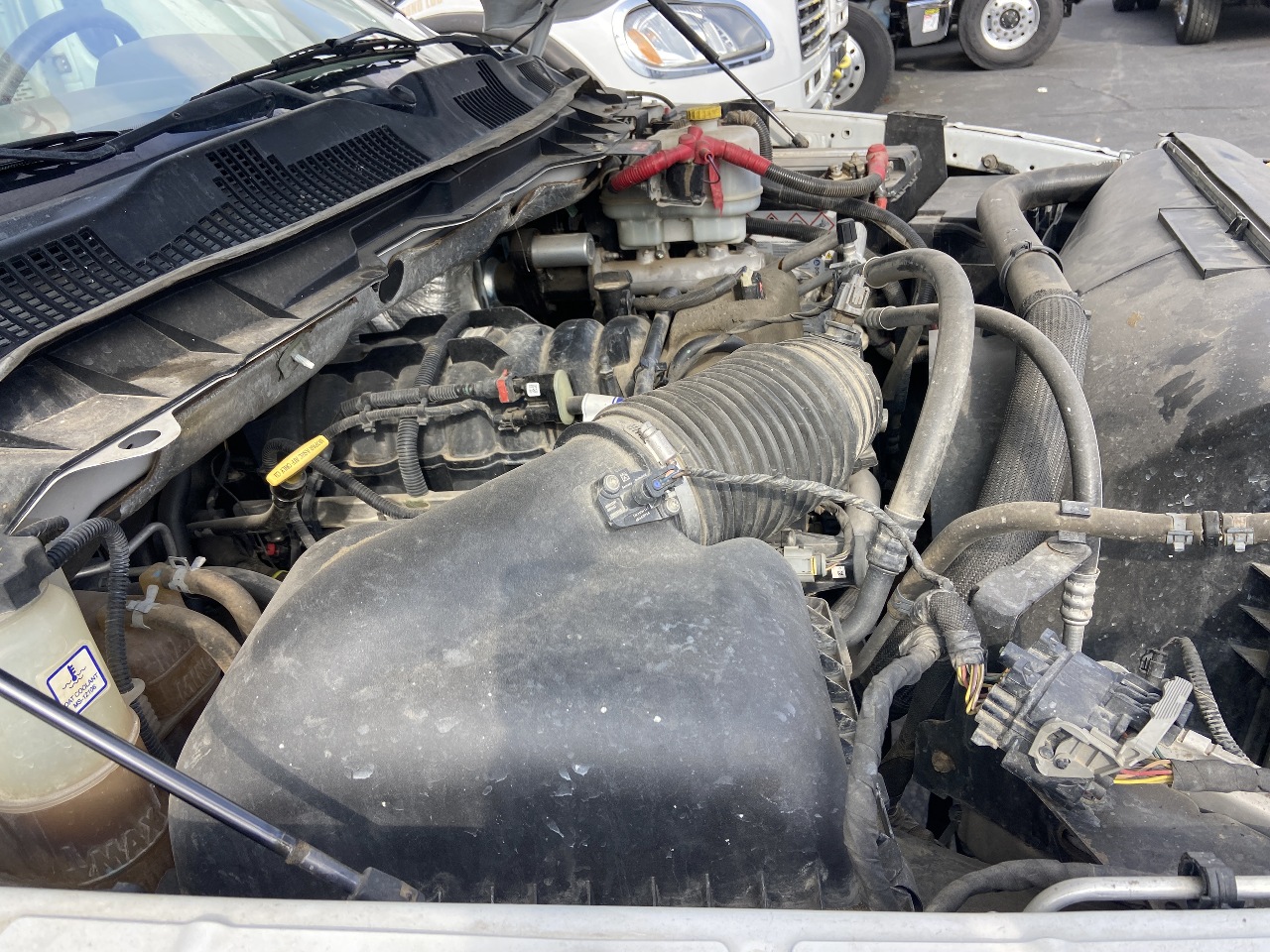

| ENGINE | THE ENGINE STARTS AND THEN SHUTS OFF 3 SECONDS LATER. HAD TO ATTEMPT START MULTIPLE TIMES TO GET THE ENGINE TO STAY ON. |

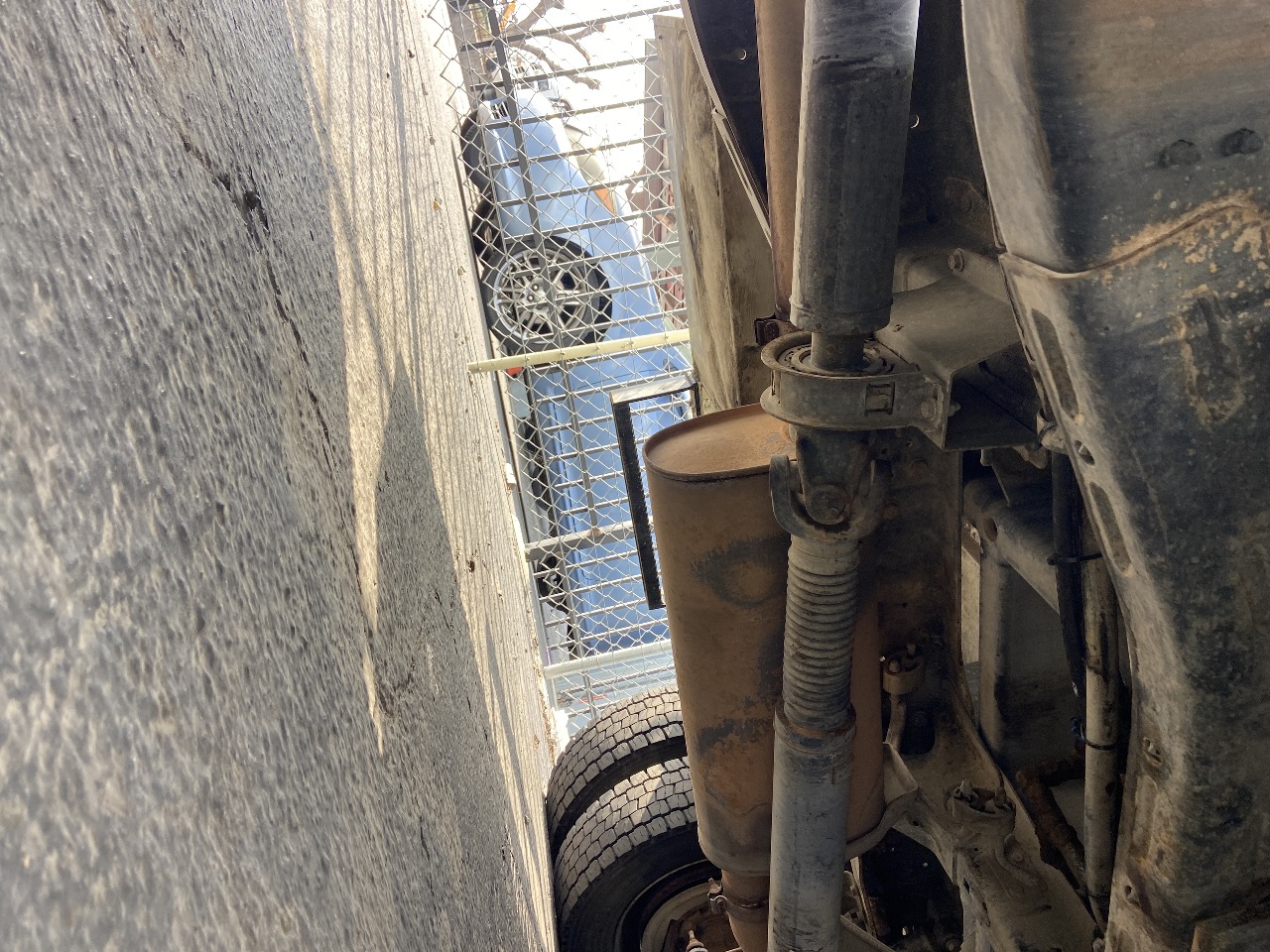

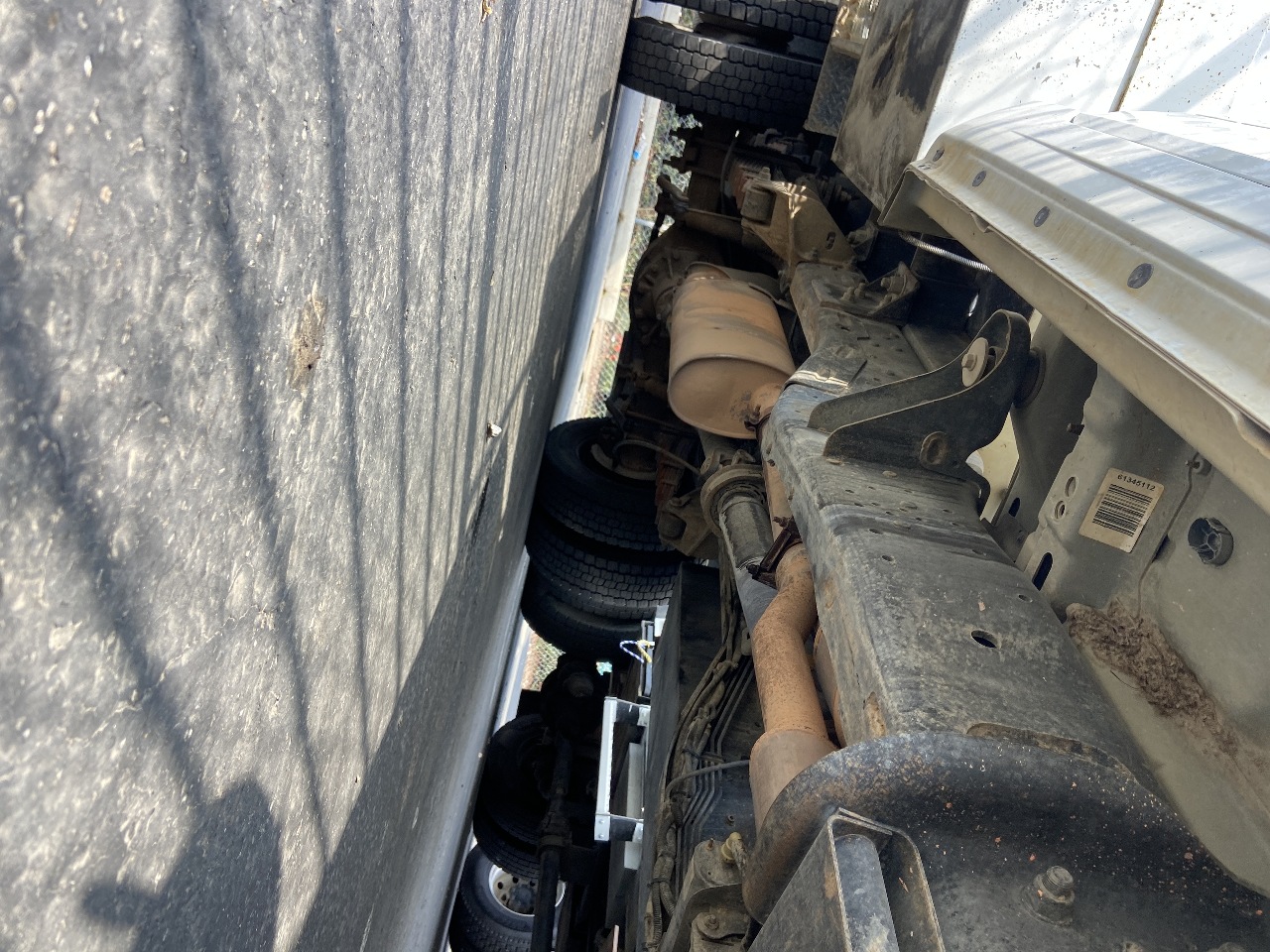

| RATTLING NOISE | RATTLING TAPPING NOISE HEARD FROM THE EXHAUST SYSTEM. THE EXHAUST APPEARS TO BE LEAKING NEAR THE MUFFLER UNDER A LOAD |

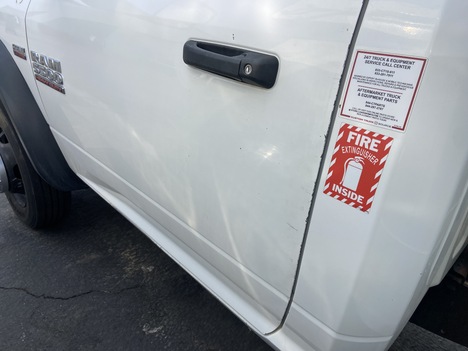

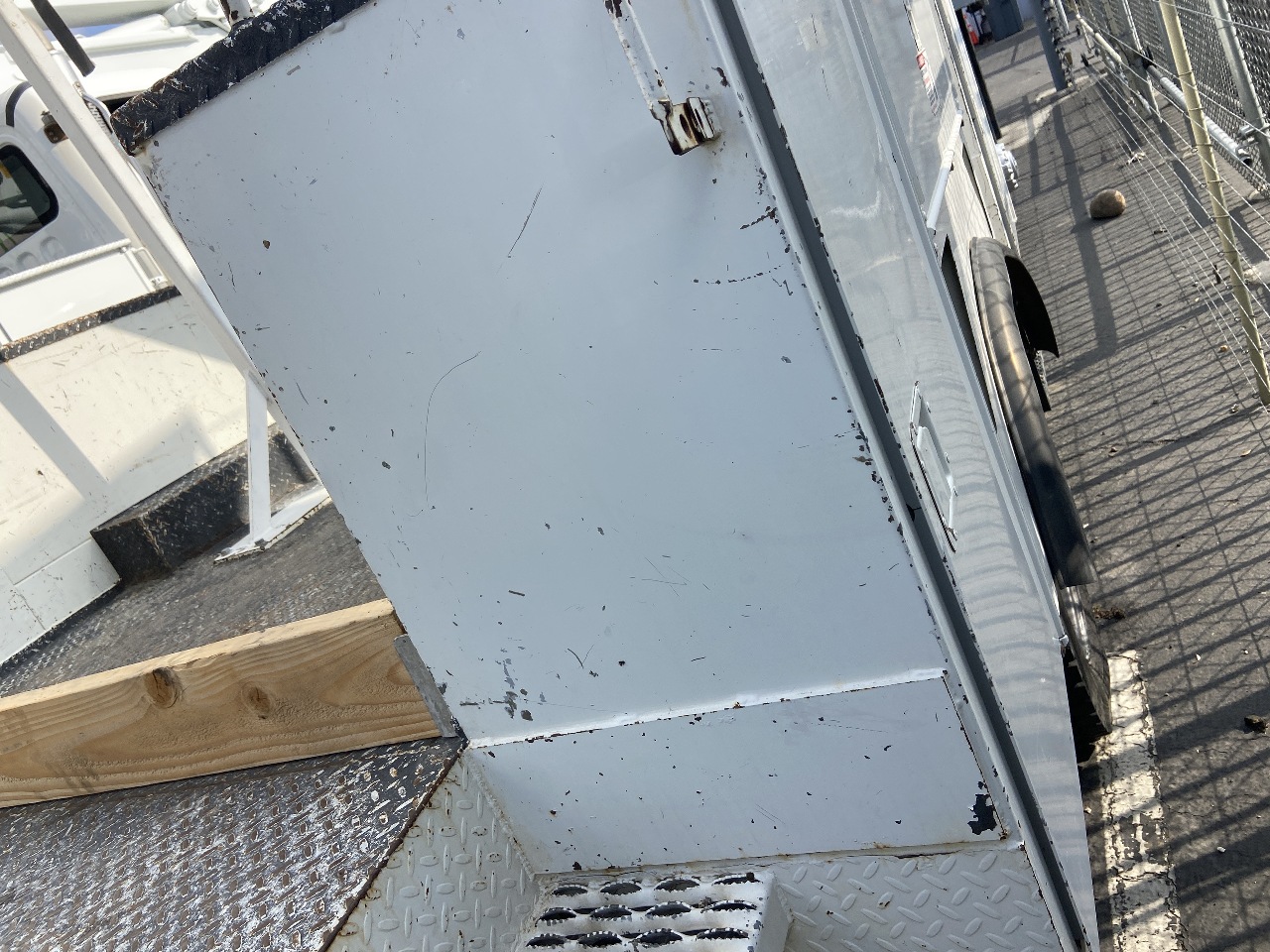

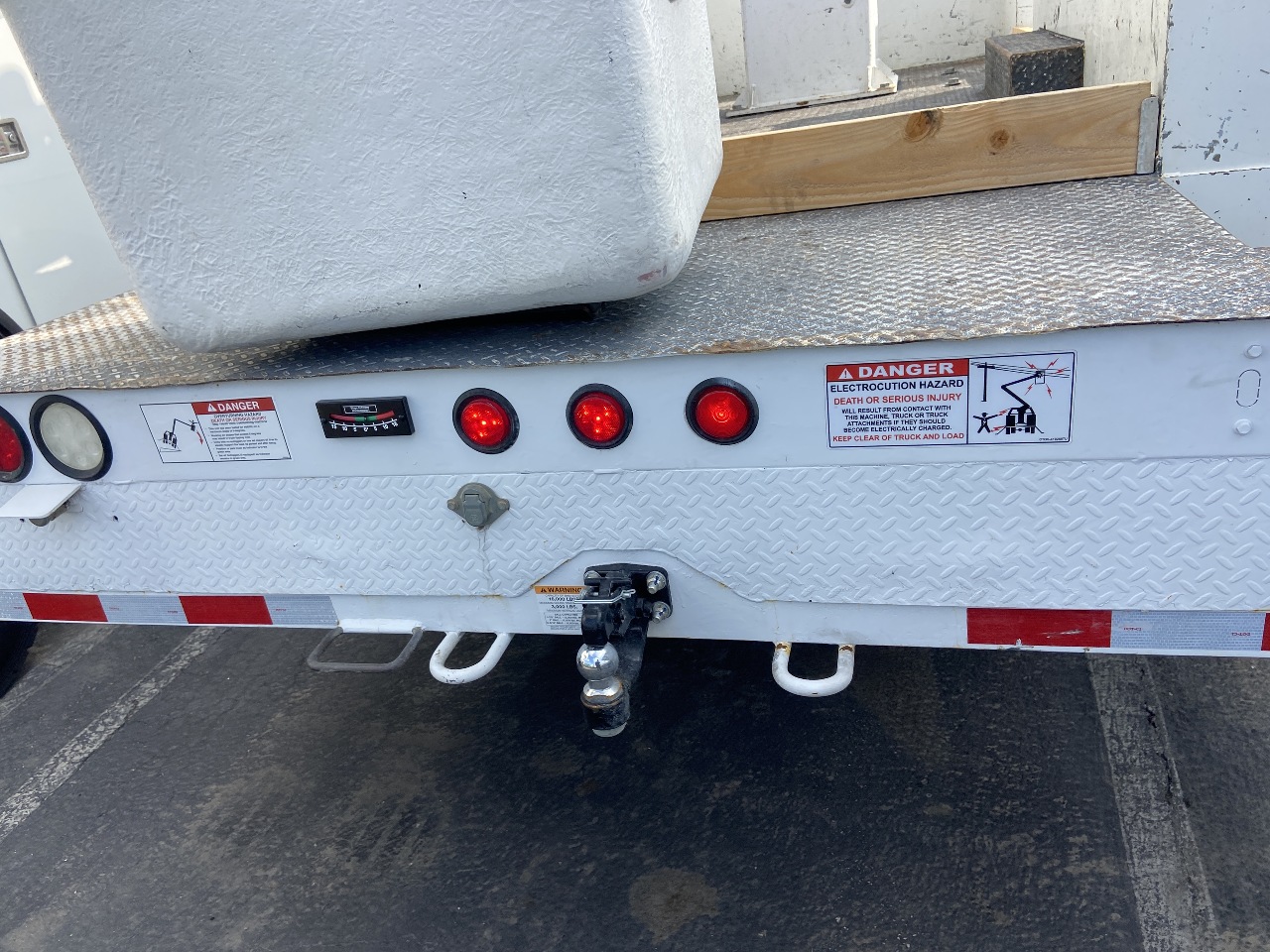

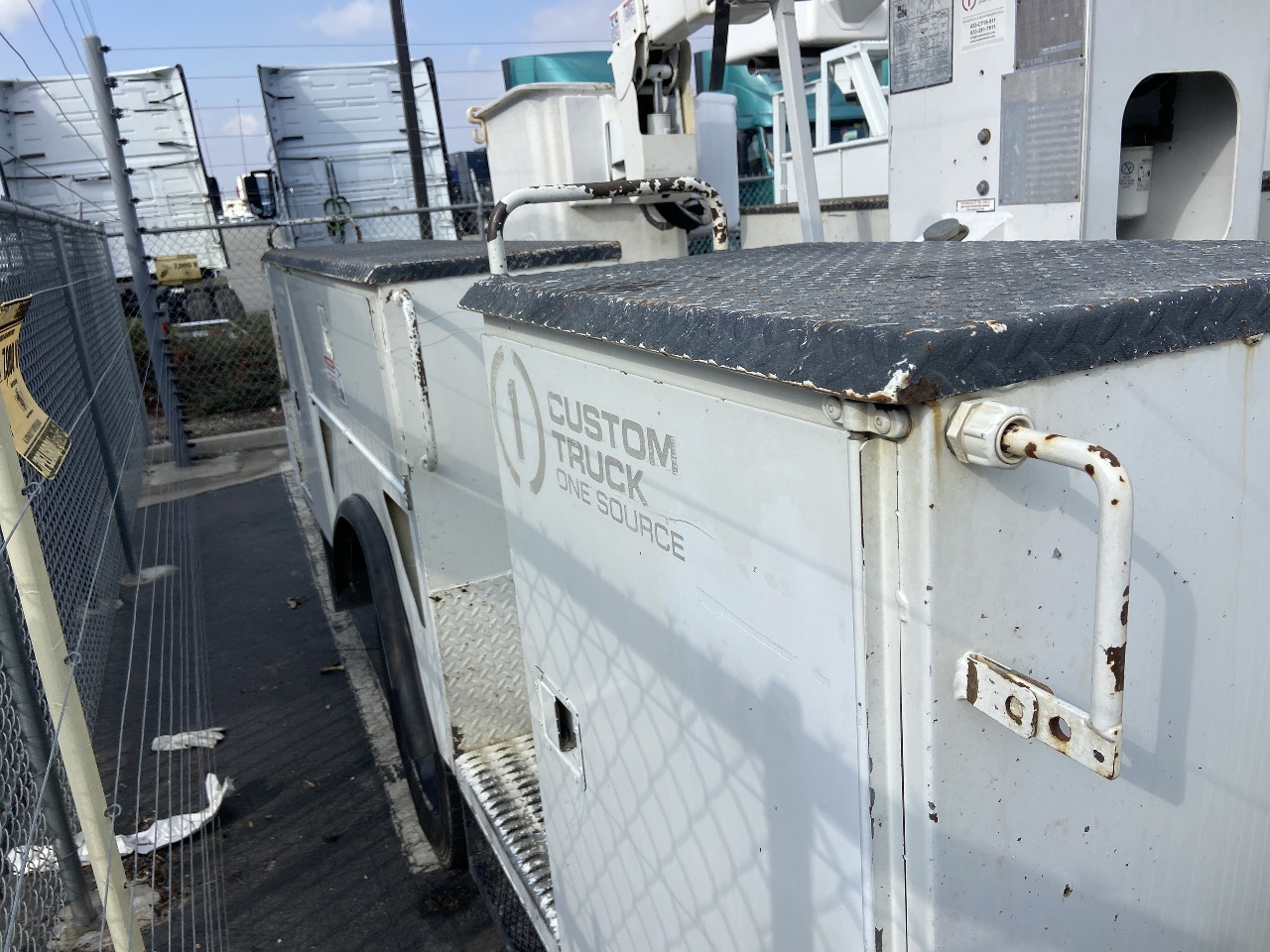

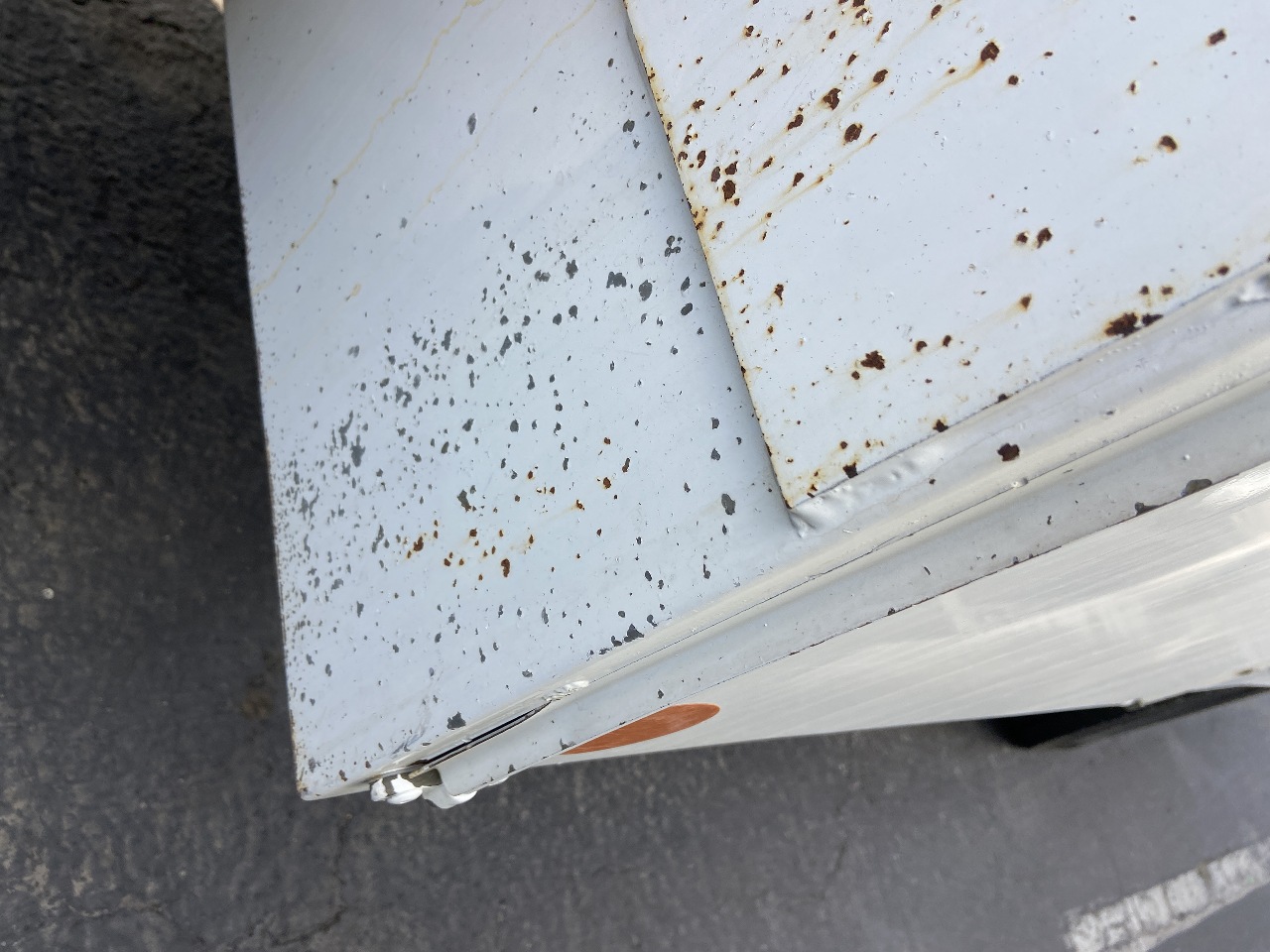

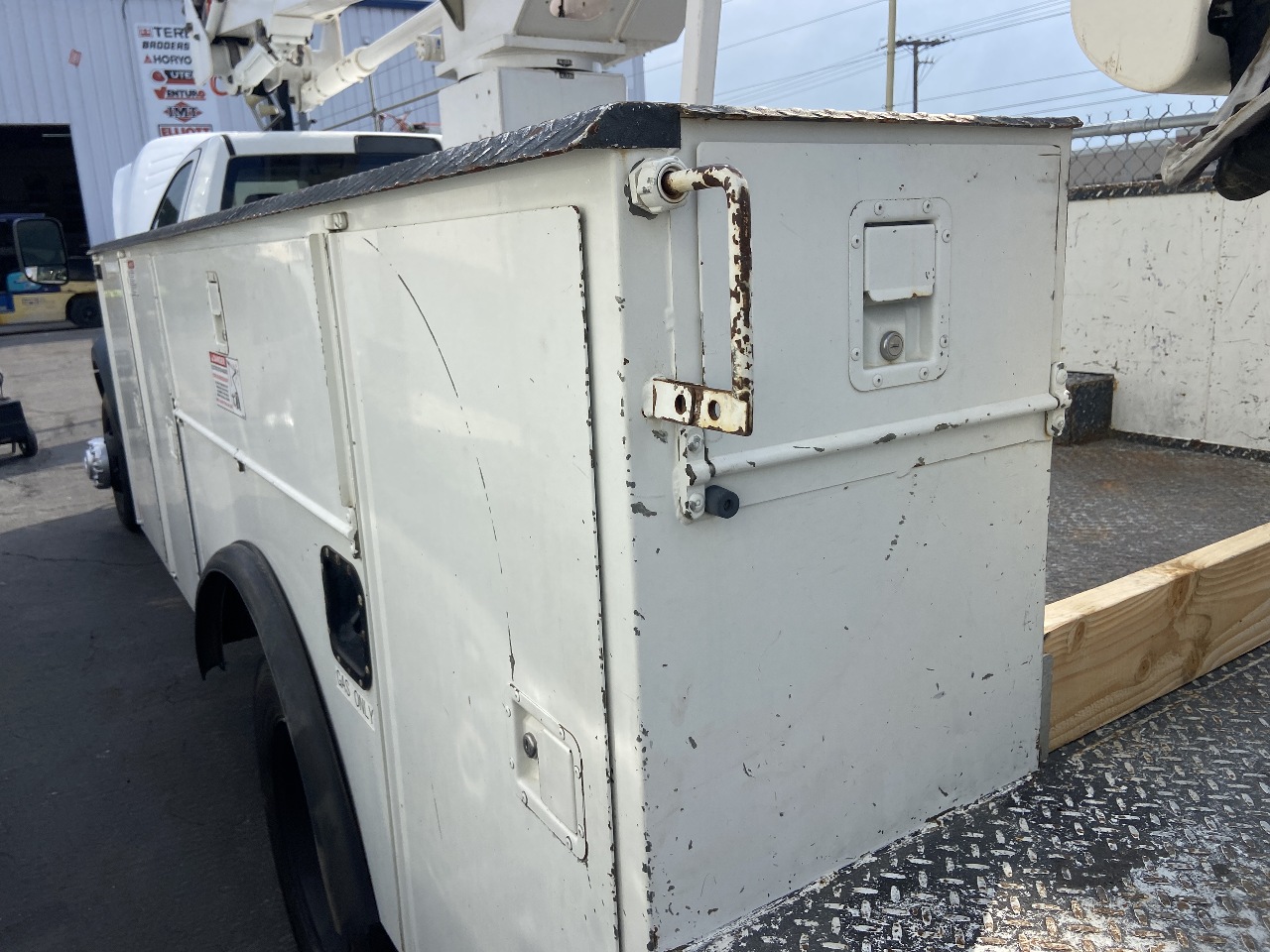

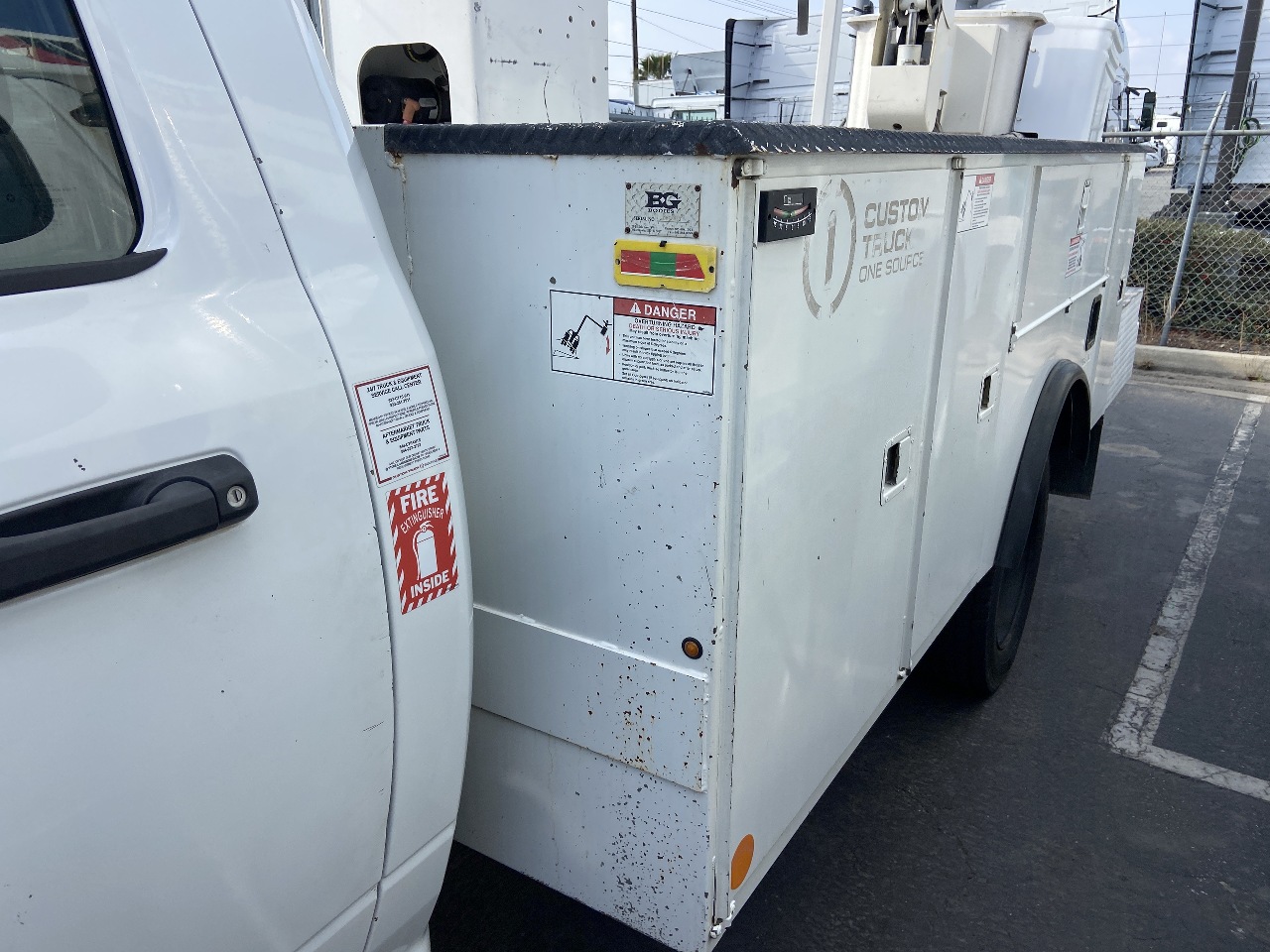

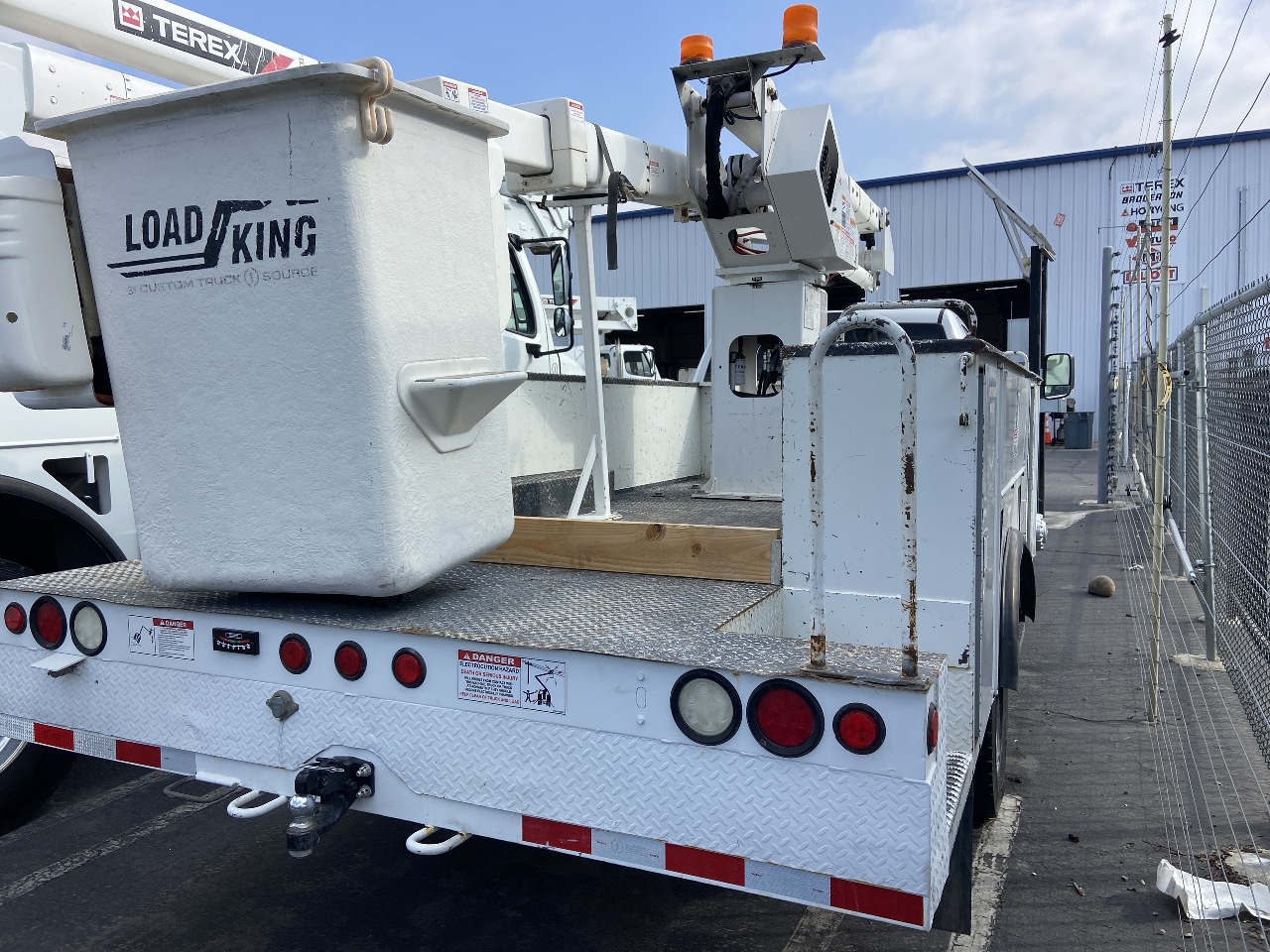

| PAINT CHIPPING | SEEN ON THE DRIVER DOOR AND CARGO BOX ASSEMBLY. SEE PHOTOS. |

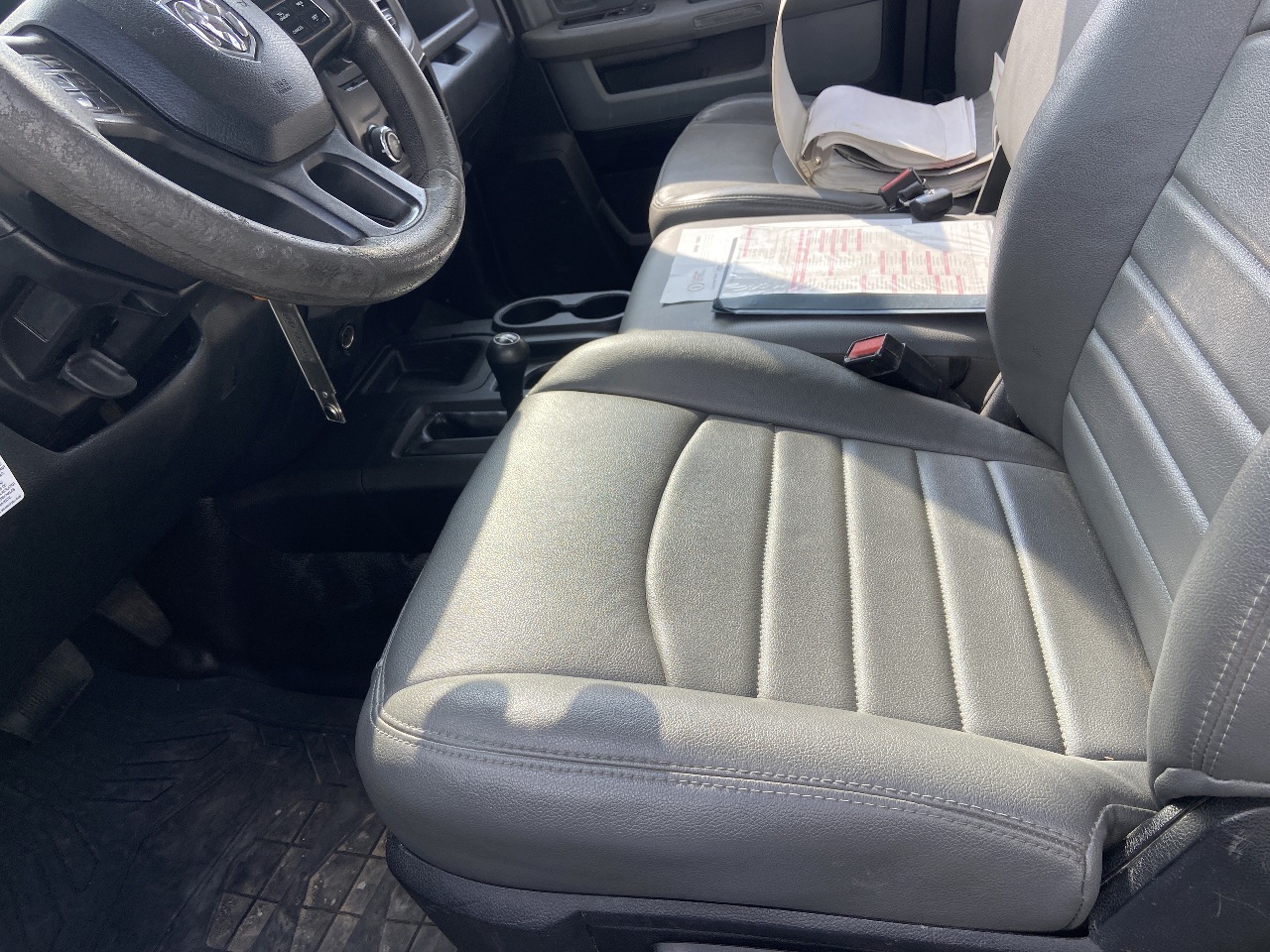

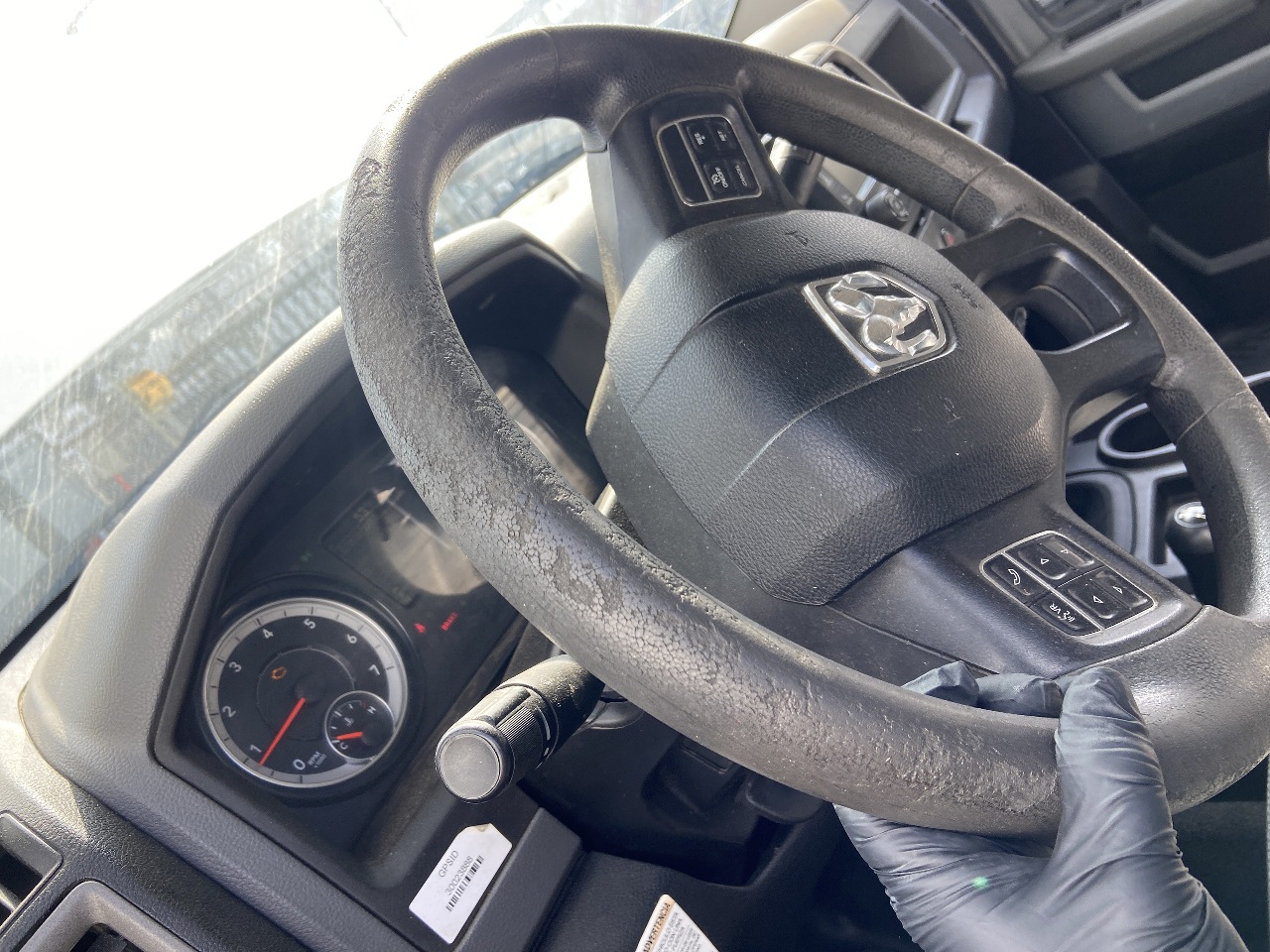

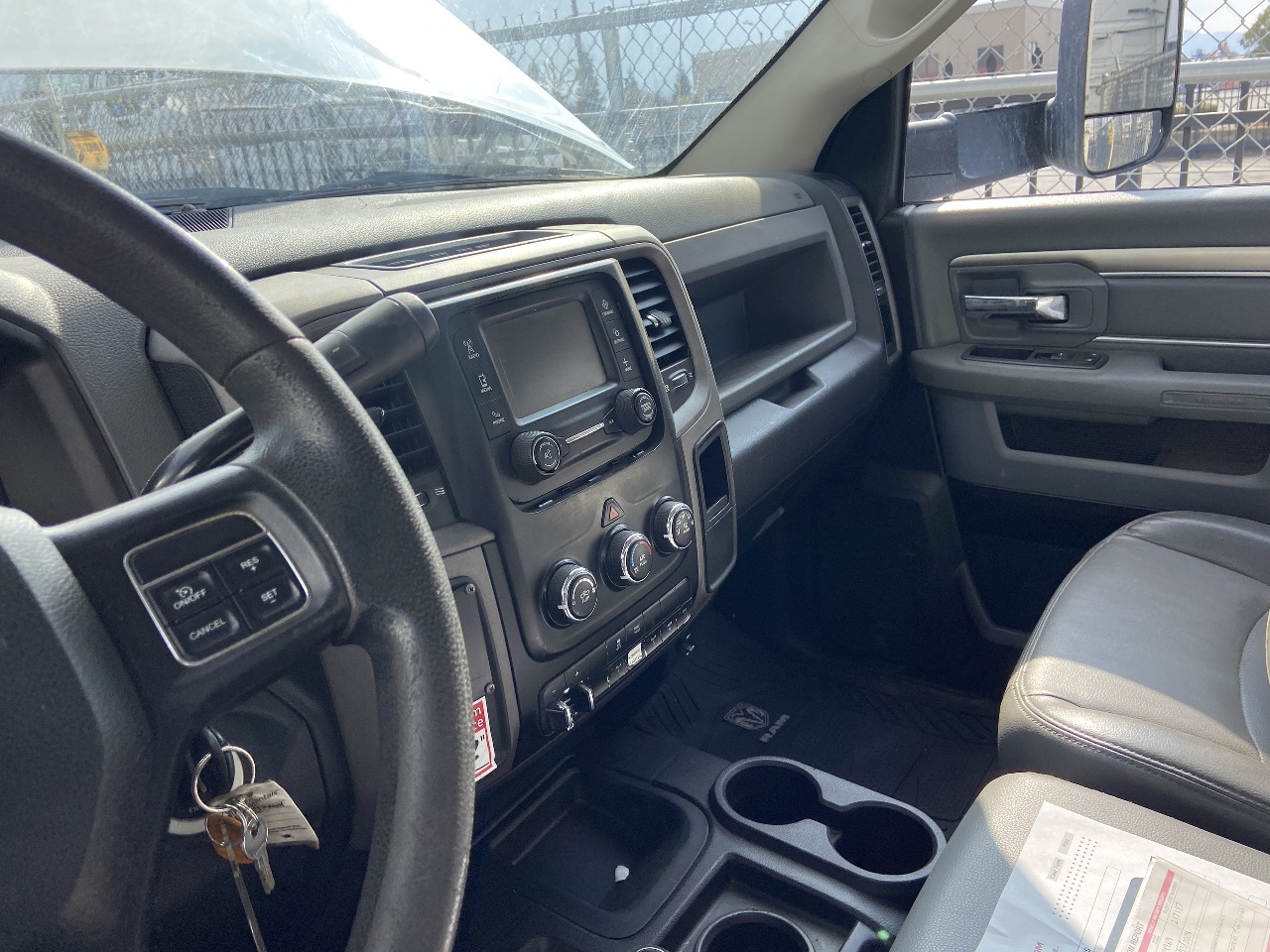

| STEERING WHEEL | SURFACES HAVE WEAR |

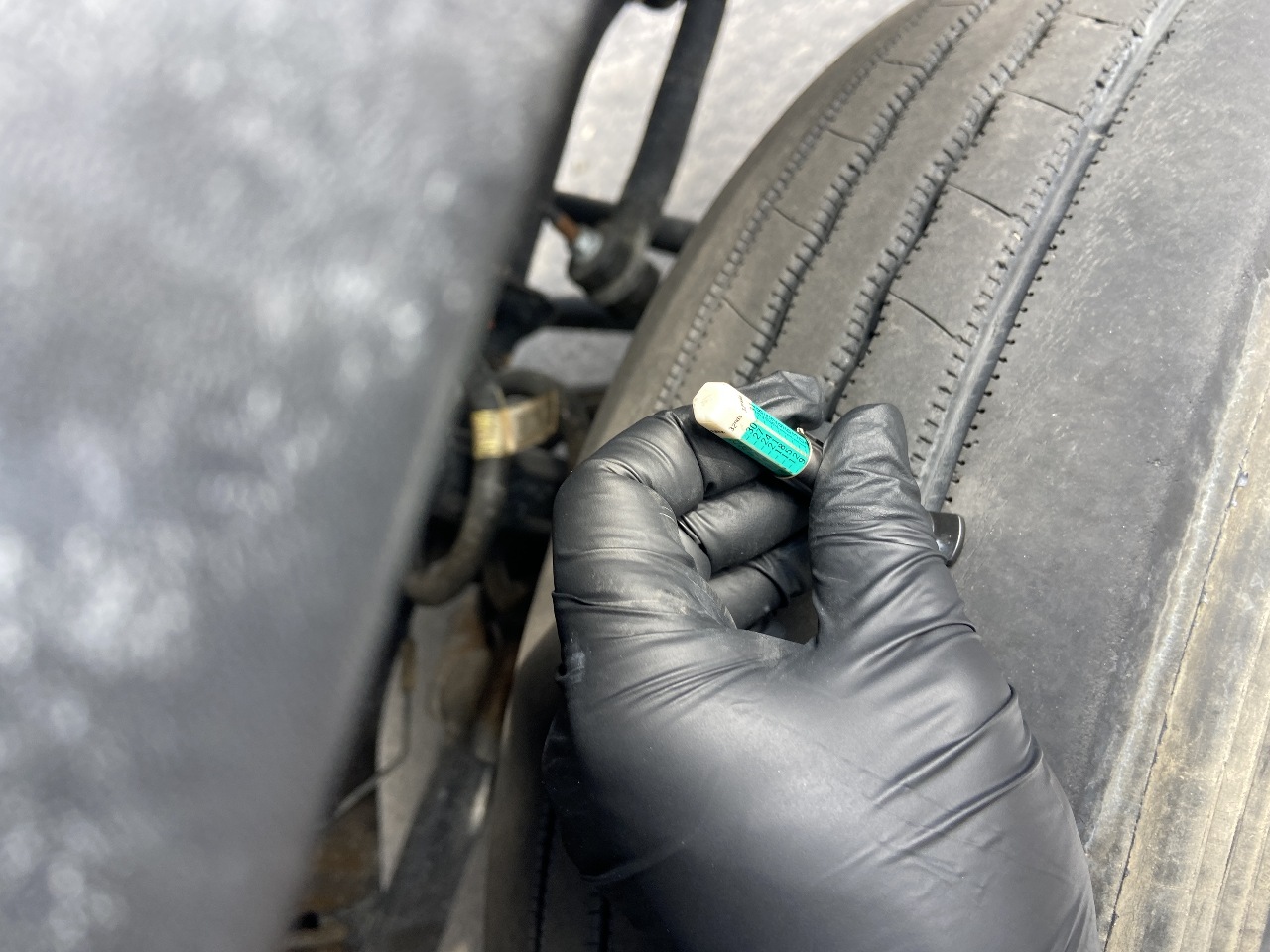

| TIRES | 2 TIRES UNDER 10/32 |
| Report Videos |
|---|

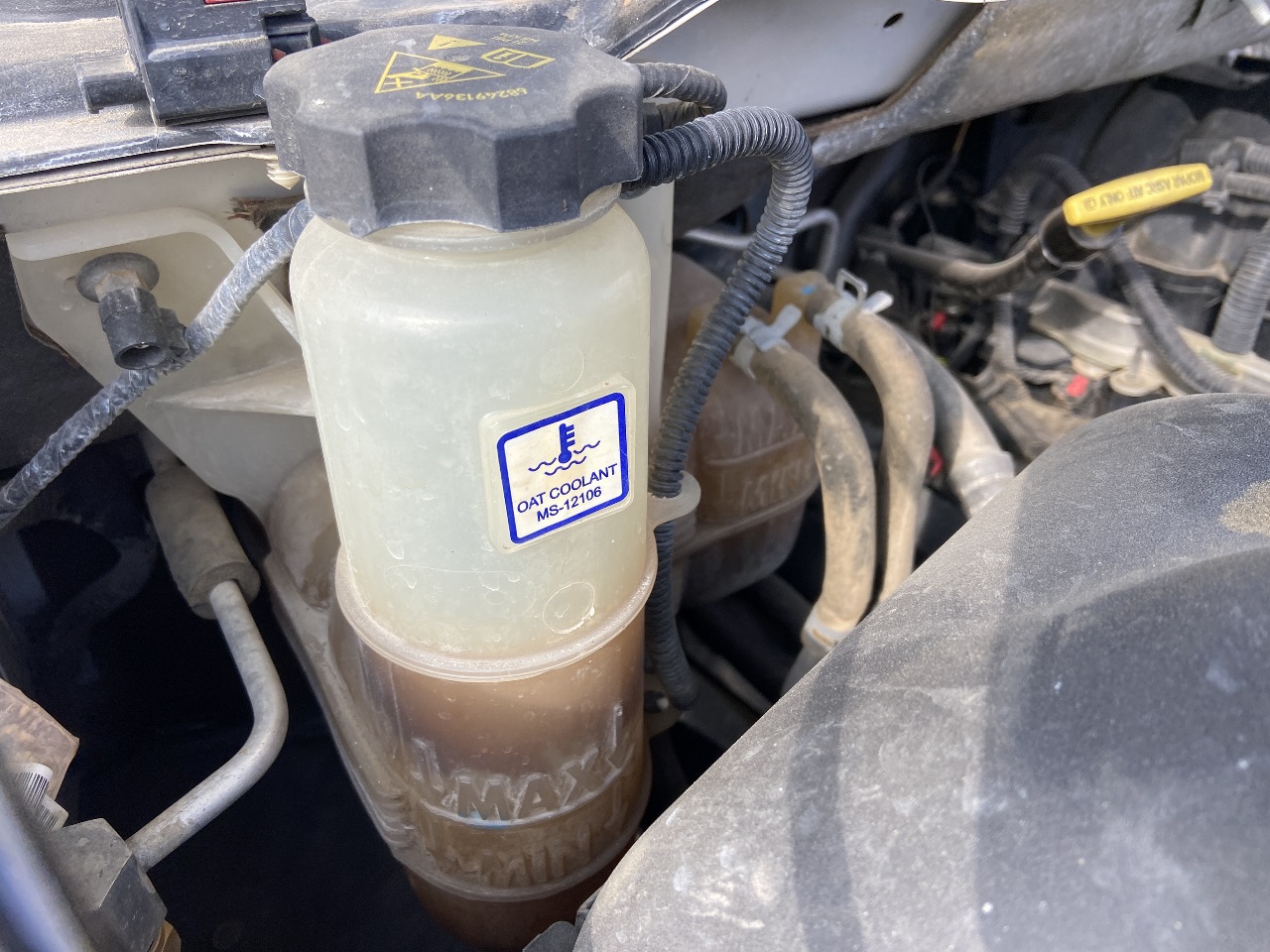

| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
Condition report only. National Inspection Services does not guarantee mechanical reliability.
