National Inspection Services
Report: 280548
11/21/2024
11/21/2024
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
VIN: 3ALDCXDT3GDGY5383
PO #: 2000610950
PO #: 2000610950

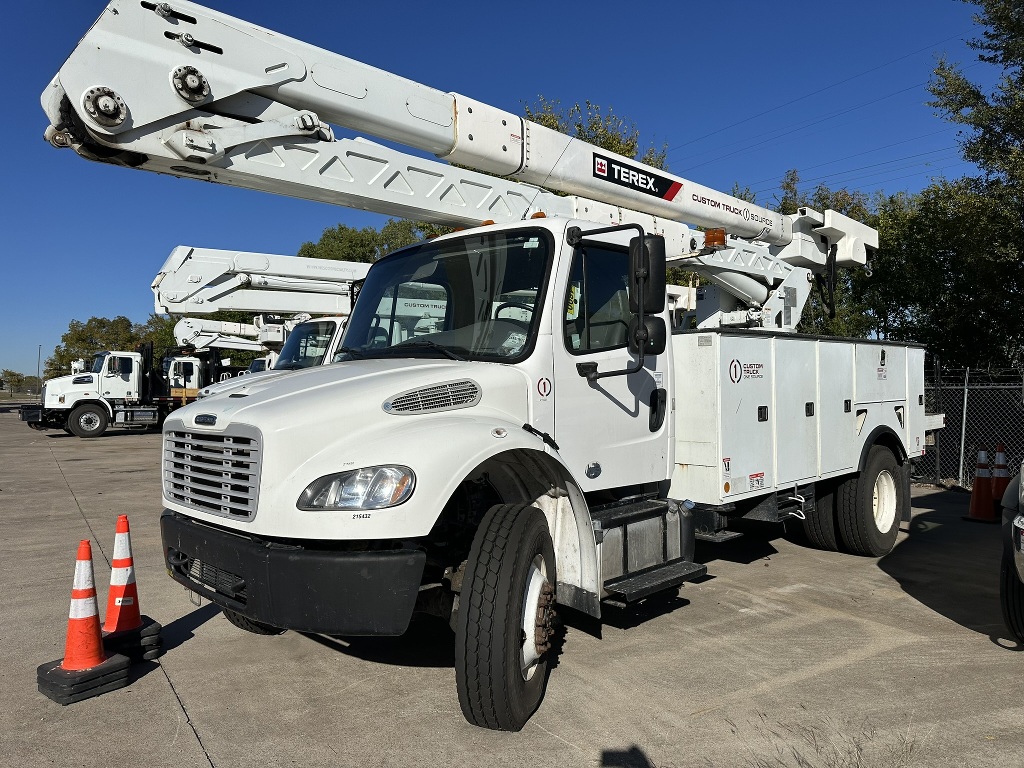

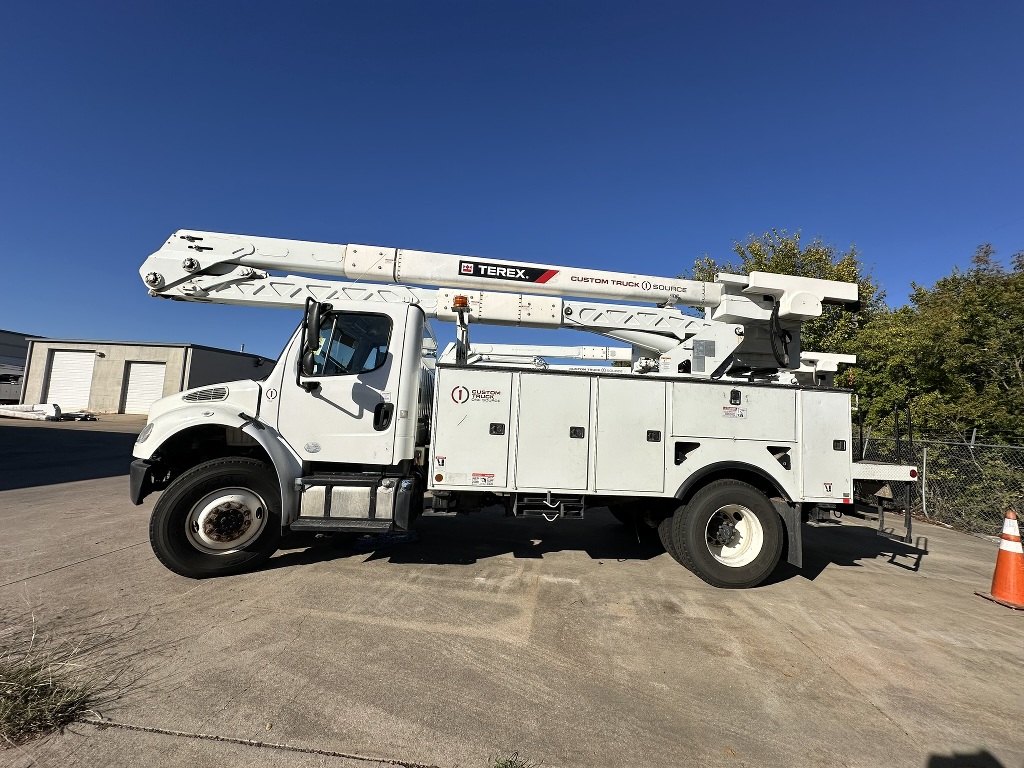

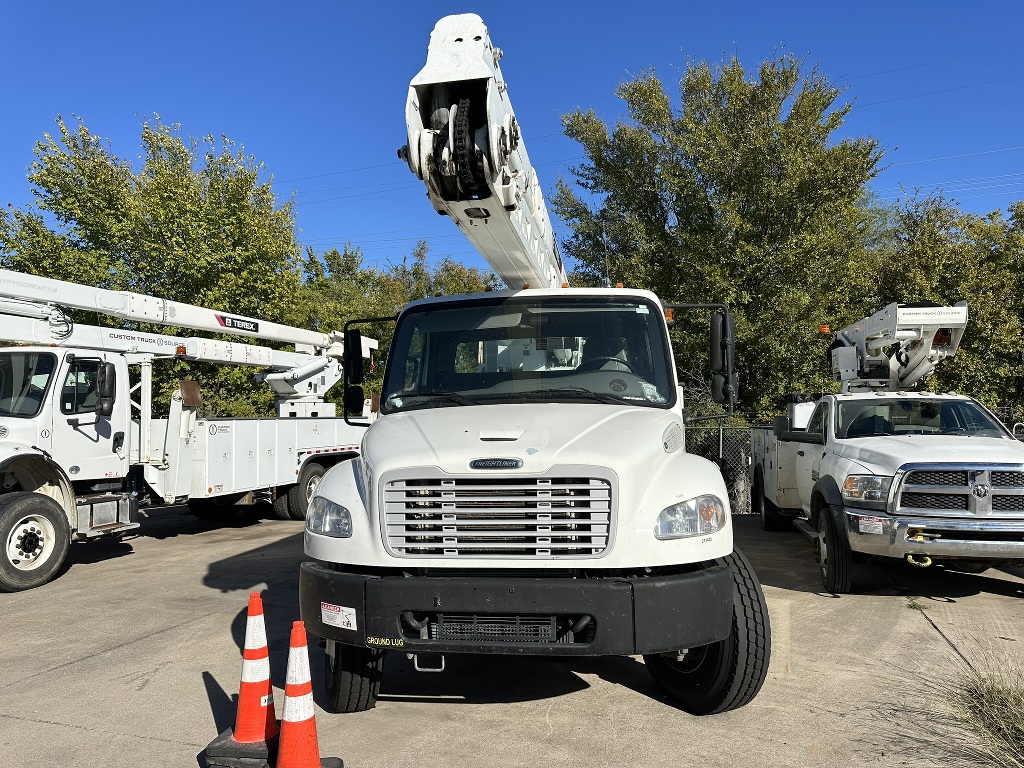

| 2016 FREIGHTLINER M2106 |
|---|
| Specifications | |
|---|---|

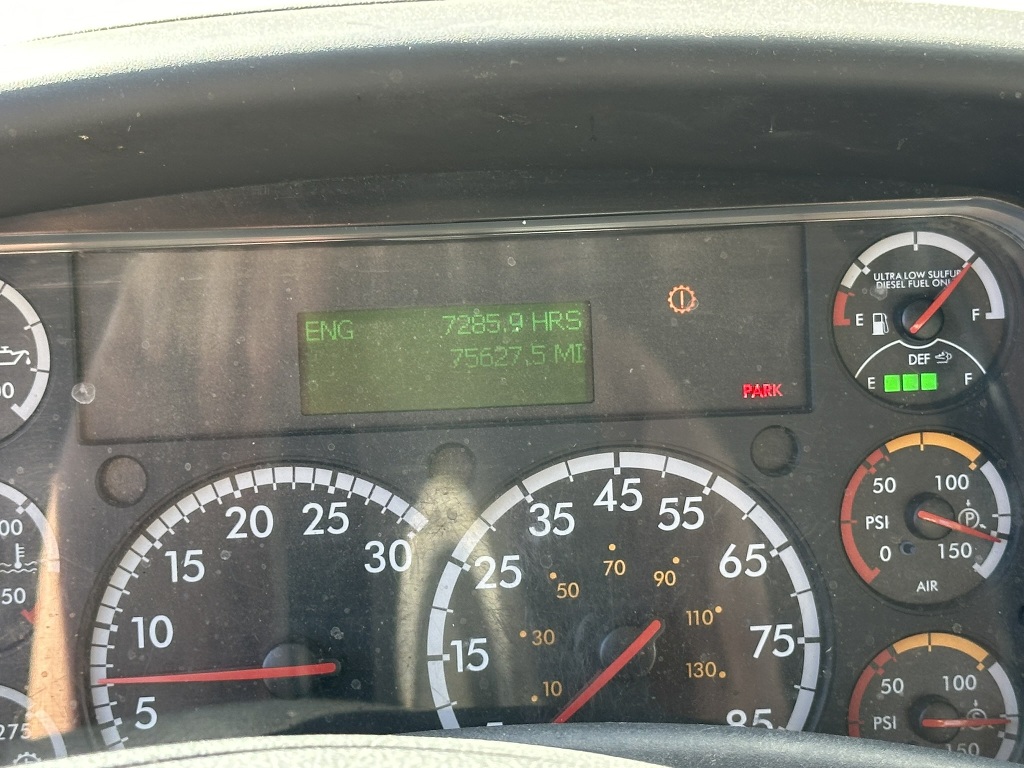

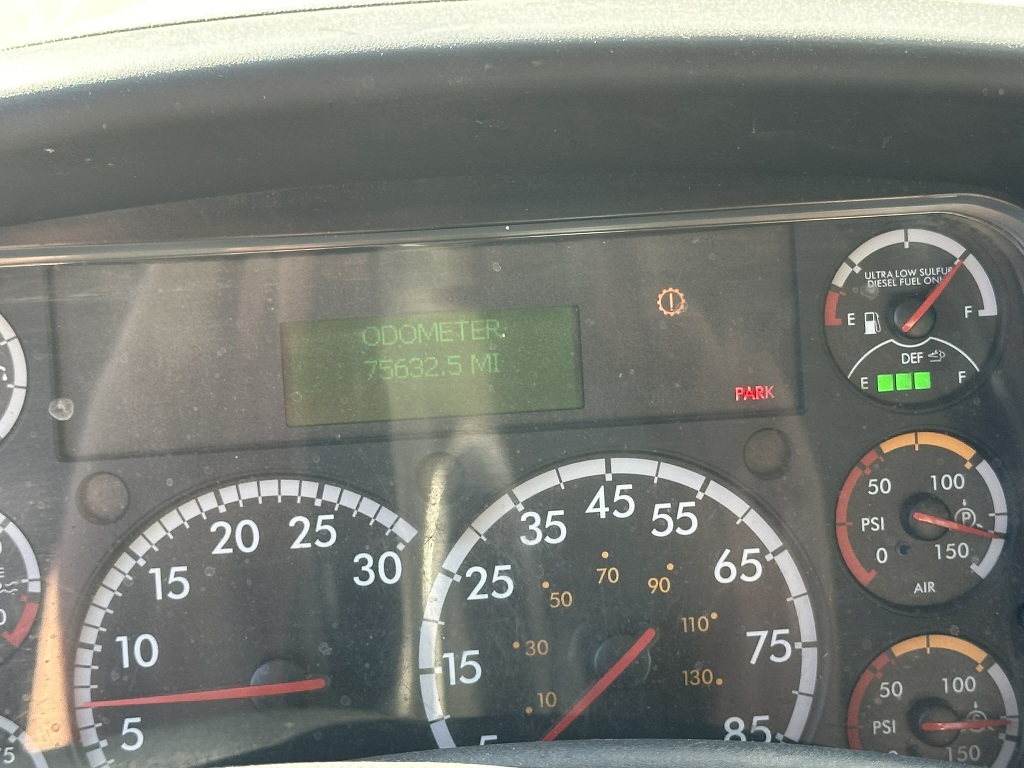

| Mileage | 75,632 / 75,627 (ECM) |

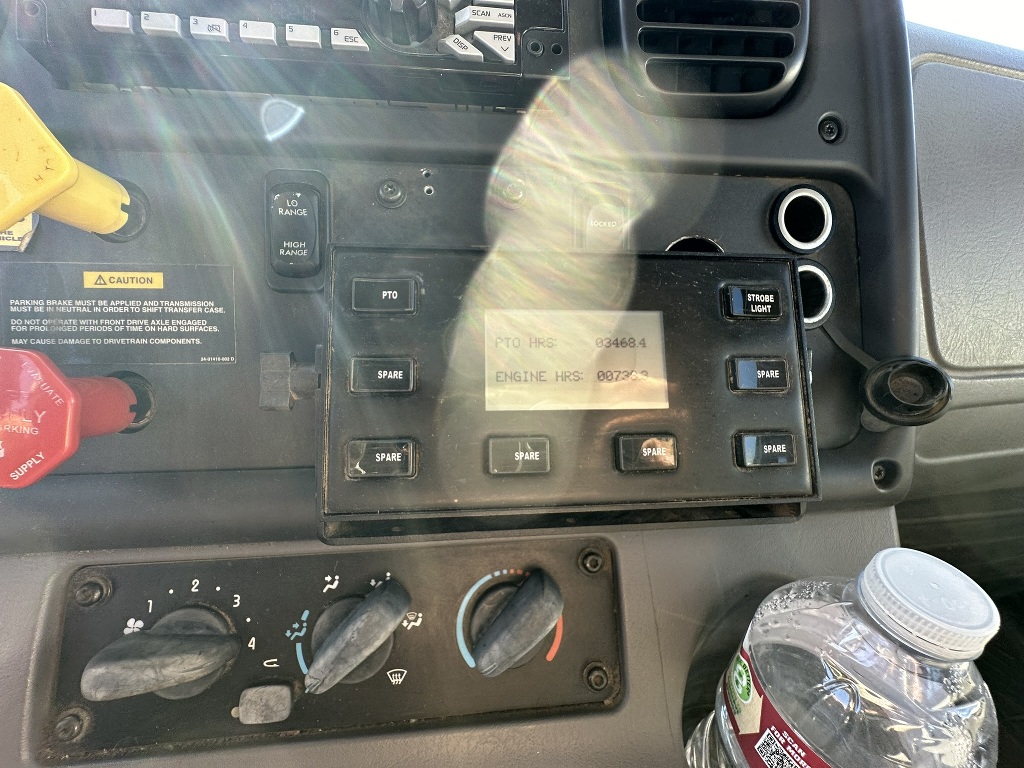

| Engine Hours | 7,285 |

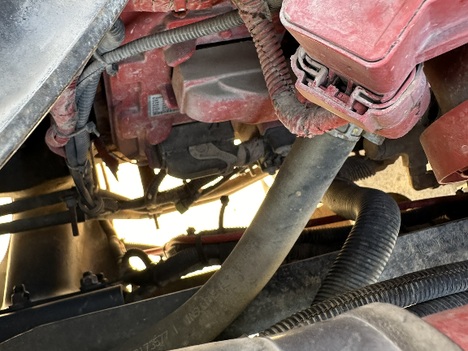

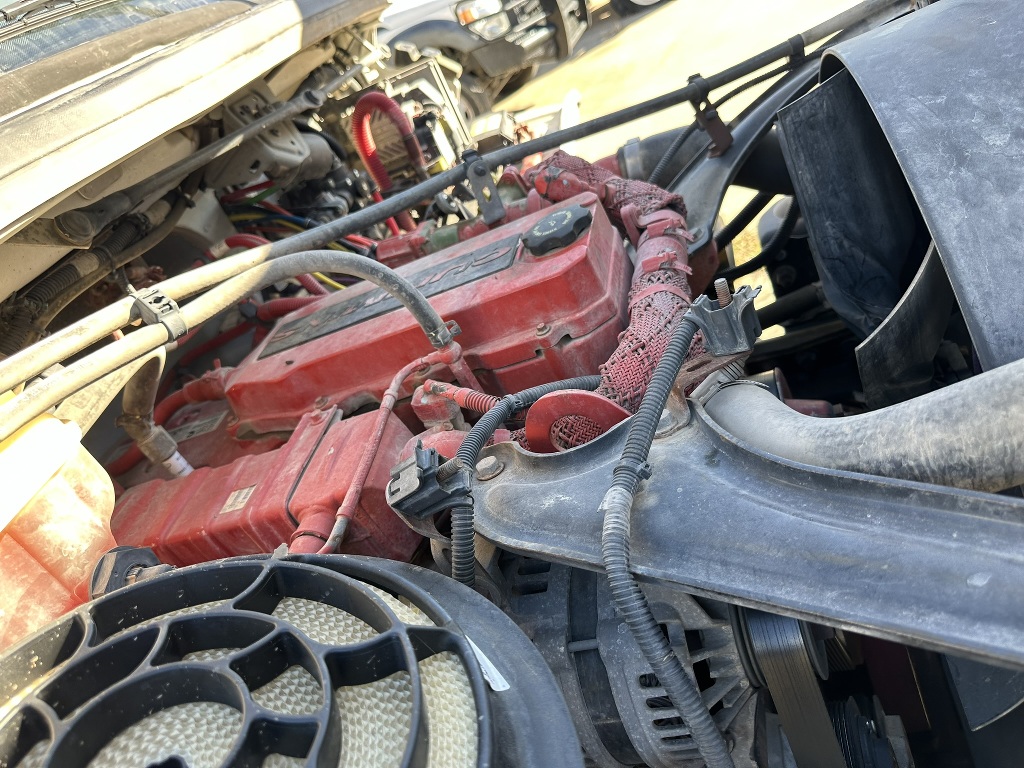

| Engine | CUMMINS ISB 6.7 250 250 HP |
| Eng Brake | YES |
| Eng Serial | 58548132 |

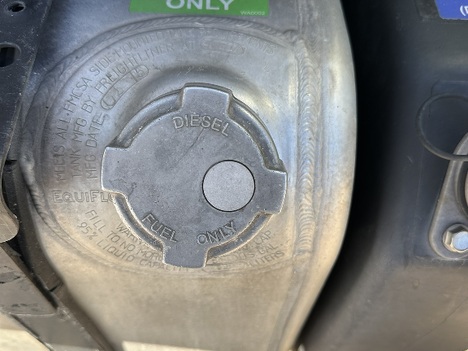

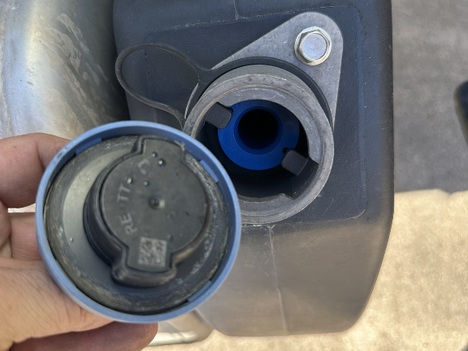

| Fuel / Tanks | DIESEL - 1 ALUM 50 GAL TOTAL |

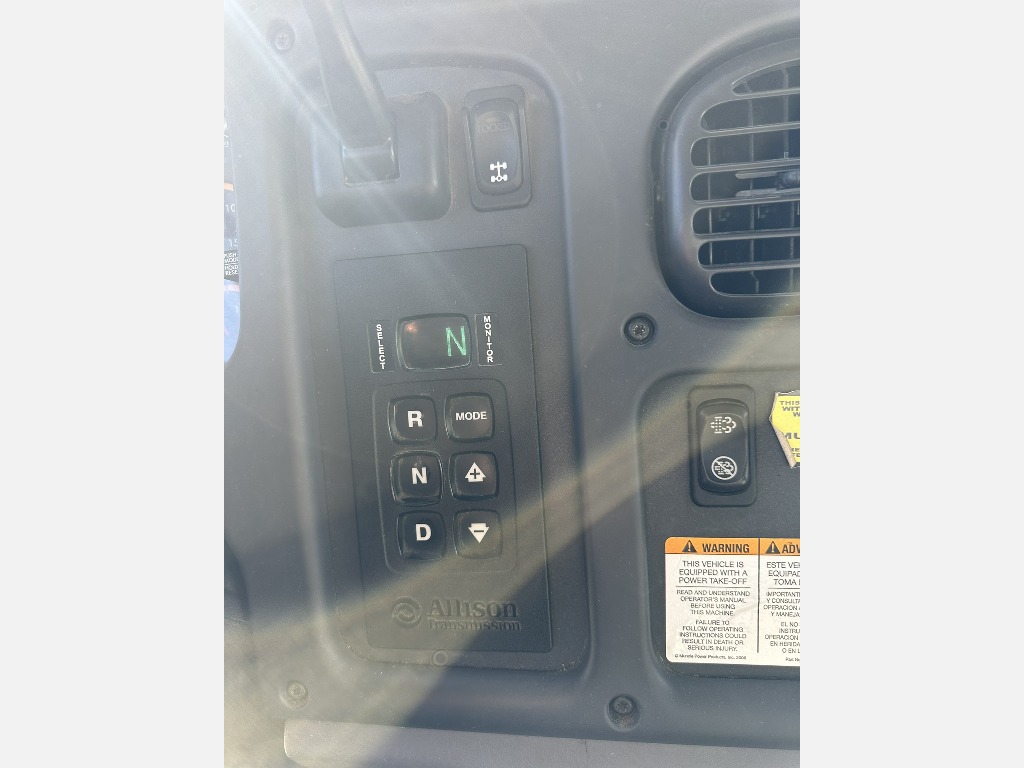

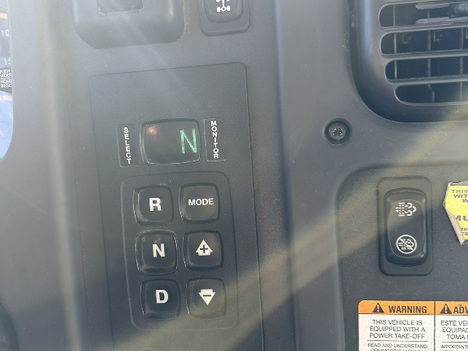

| Transmission | ALLISON 3500 RDS 6 SPD AUTO |
| Drive Opts | POWER STEERING, OVERDRIVE, CRUISE |
| Rear End | MERITOR 5.57 |
| Axle Type | SINGLE - F 12,000 LB / R 21,000 LB |

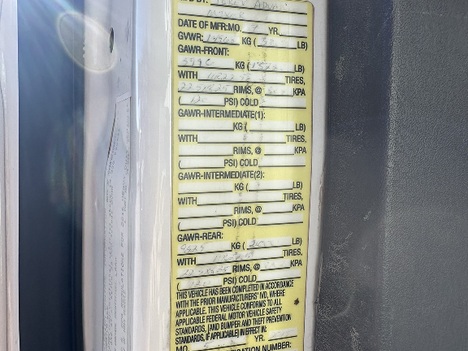

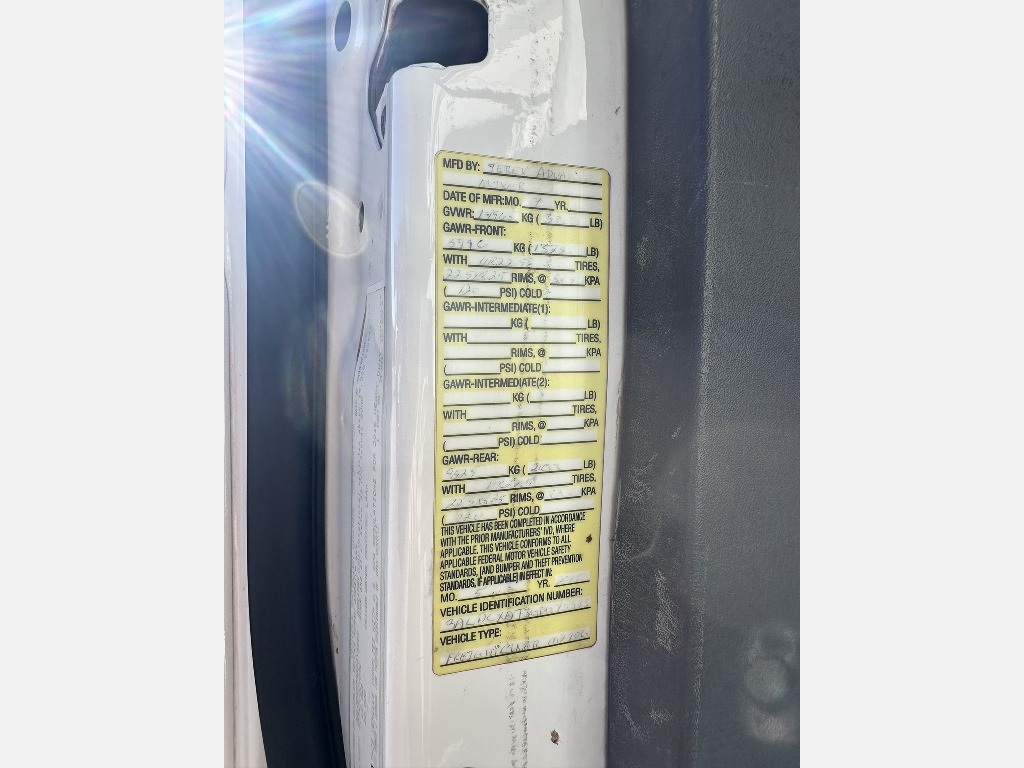

| GVWR | 33,000 |
| Frame | STEEL |
| Suspension | SPRING |
| Wheelbase | 190" |
| Tire Size | 11R22.5 |
| Wheels | F STEEL / R STEEL |
| Air Cond | YES, OPERATIONAL |

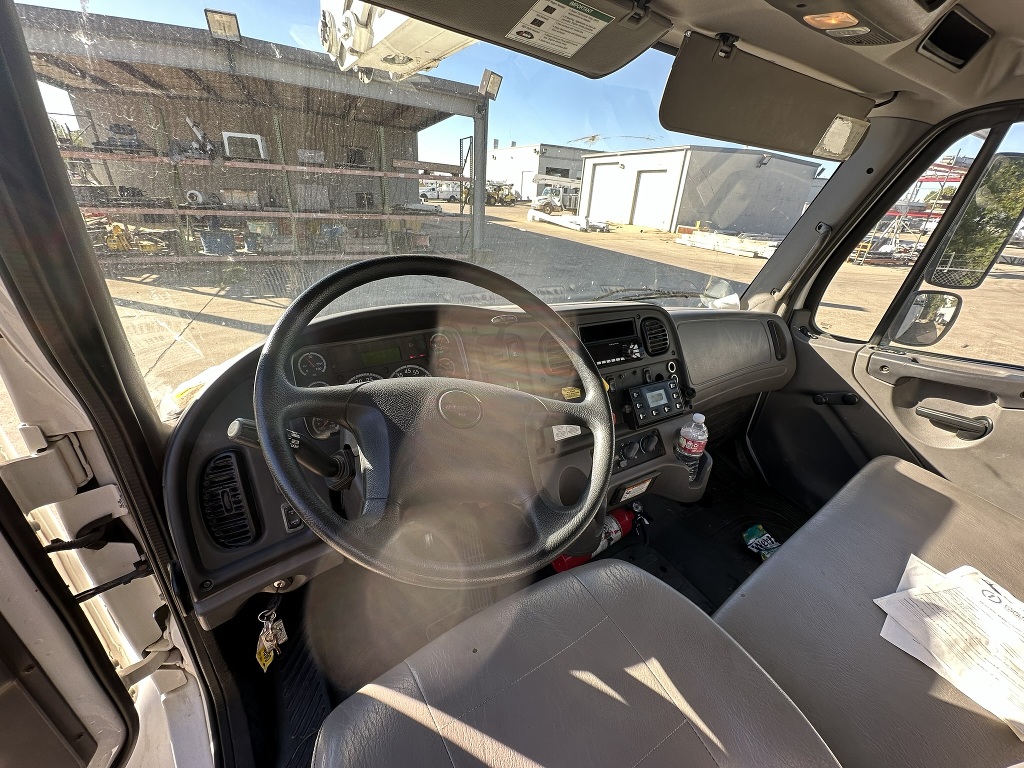

| Interior Color | GREY |
| Radio | AM/FM, OPERATIONAL |
| High Back Seats | DRIVER SIDE ONLY |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | PAINTED |

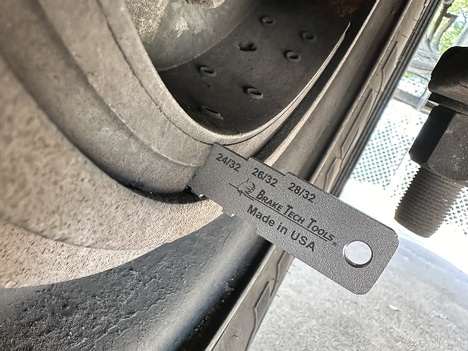

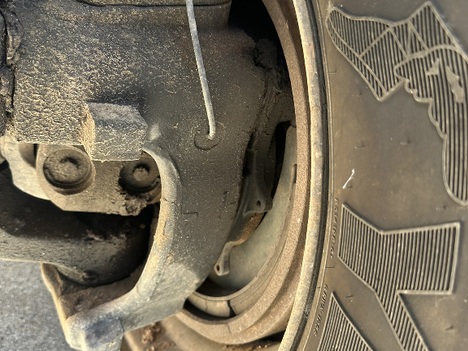

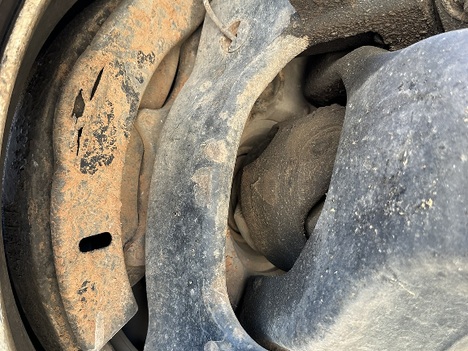

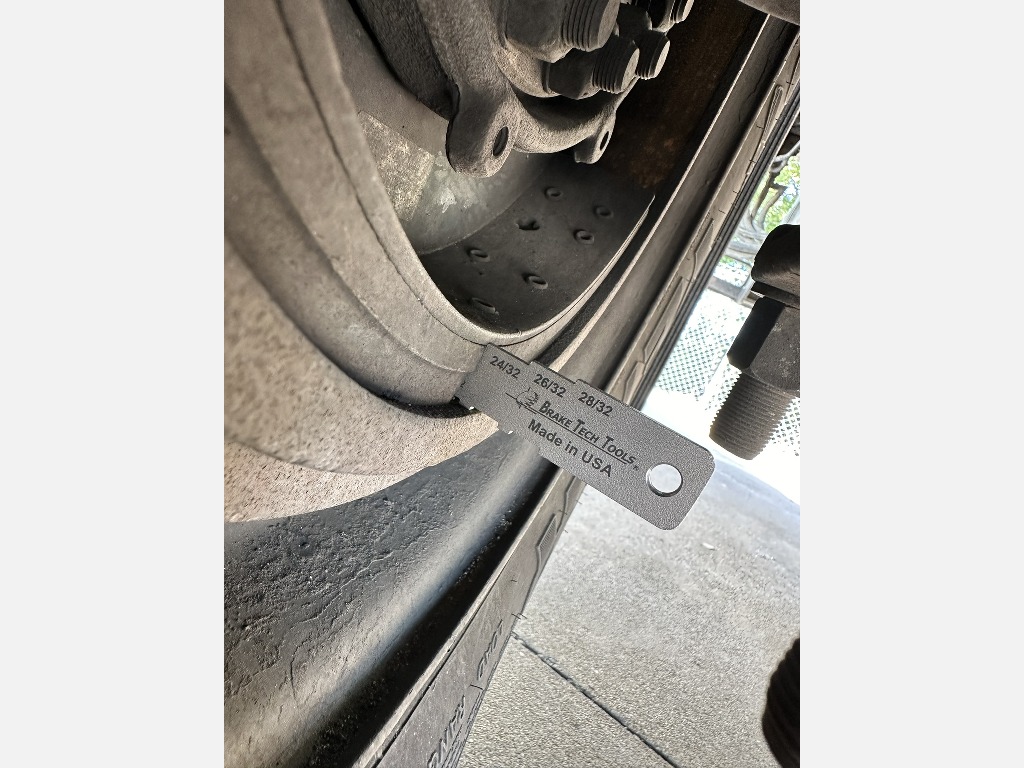

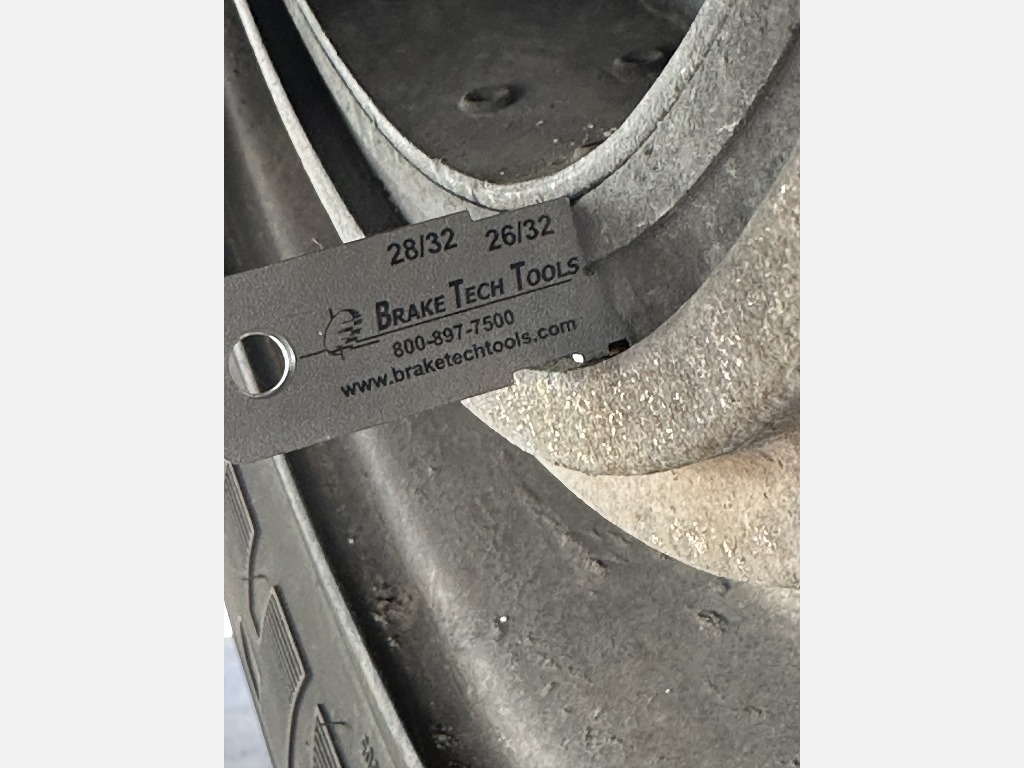

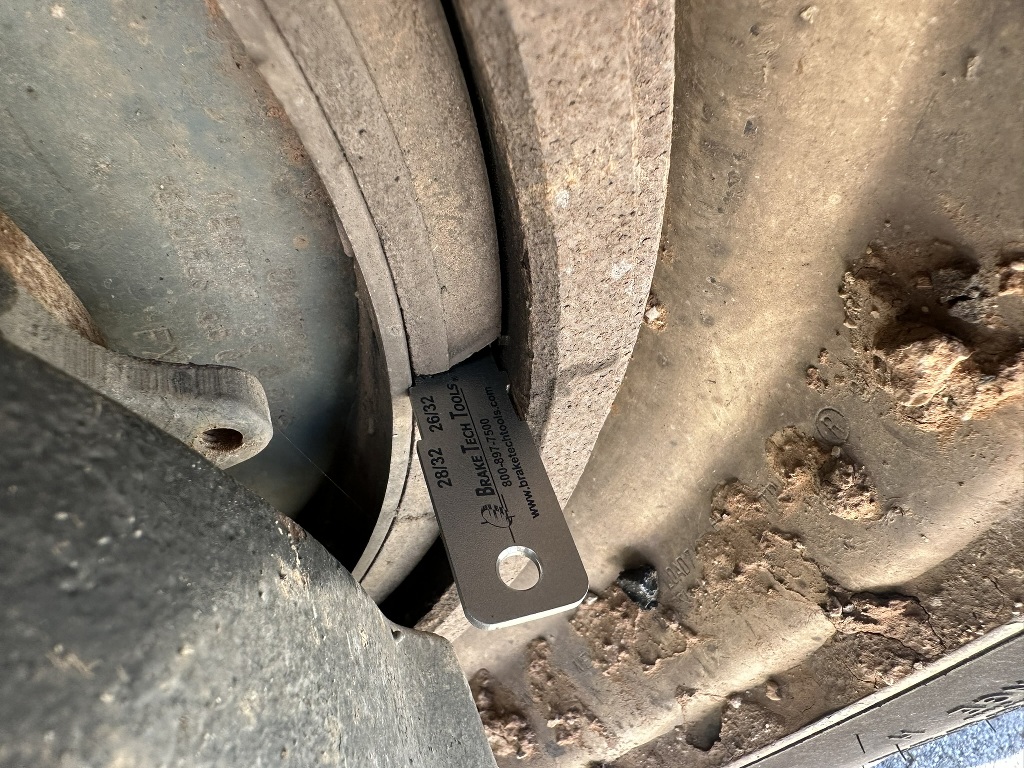

| Brakes | |
|---|---|
| Left Front26 | Right FrontCovered |
| Left Rear 126 | Right Rear 124 |

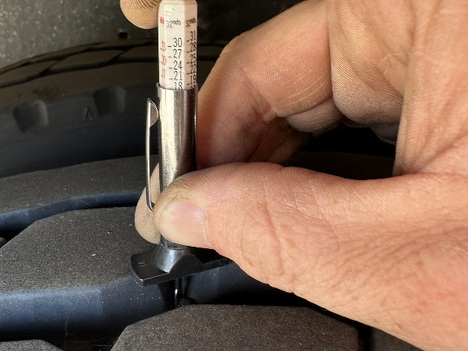

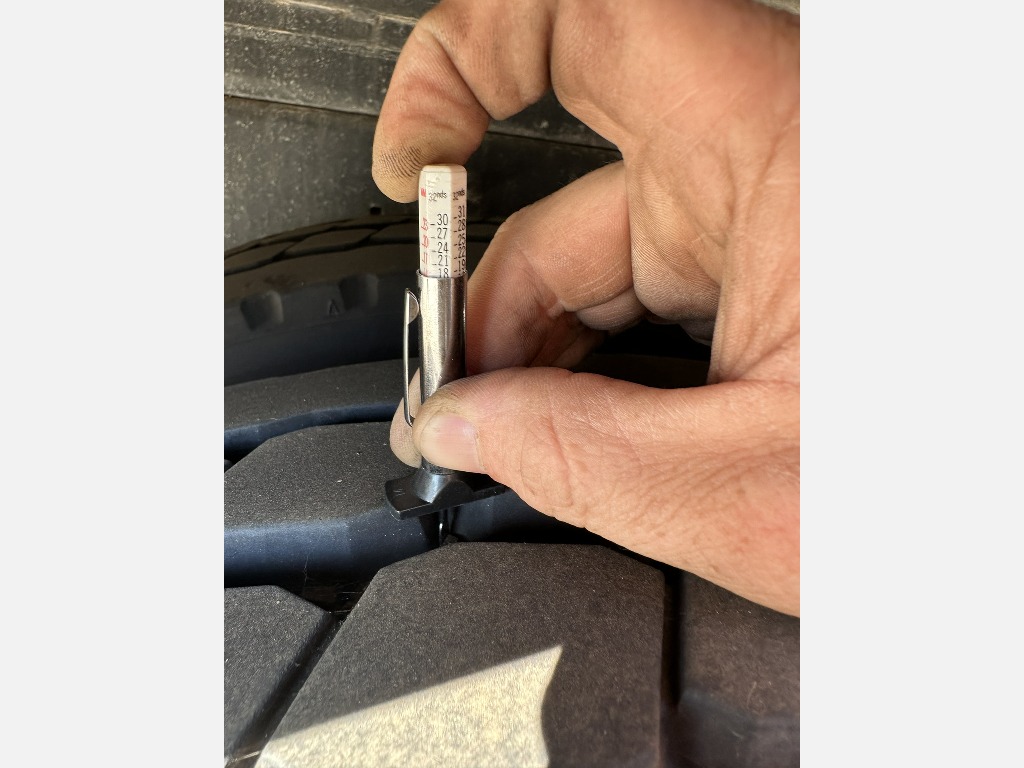

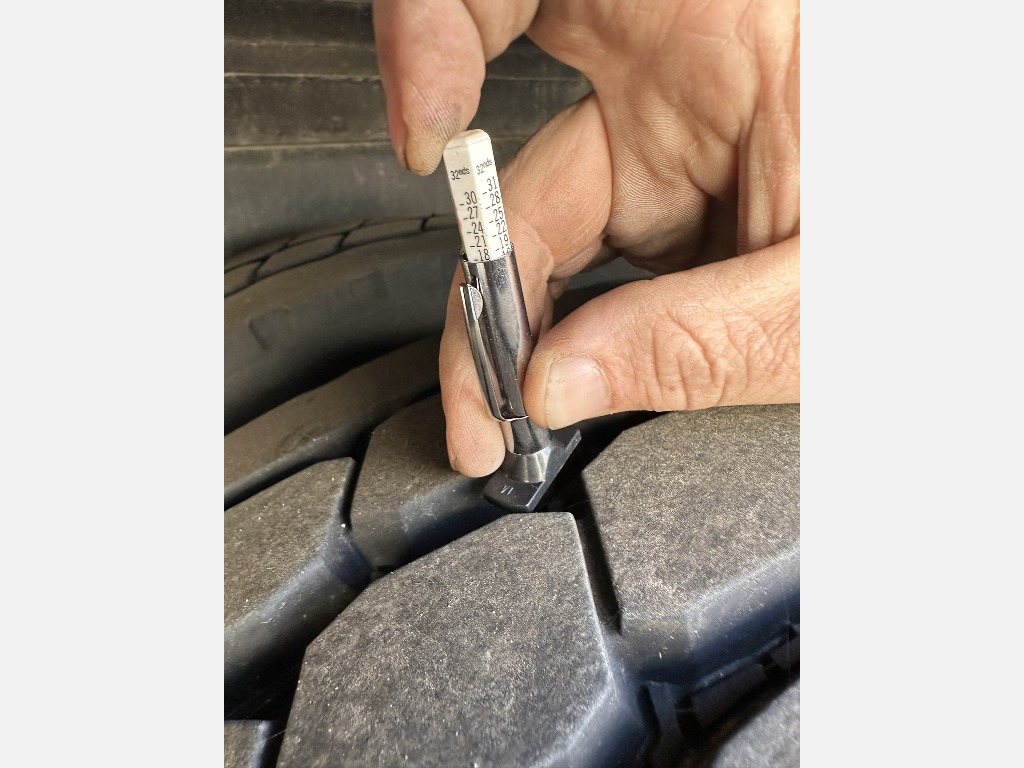

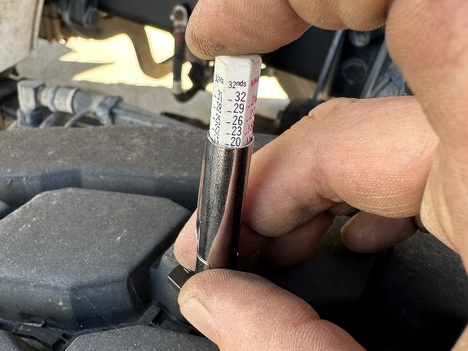

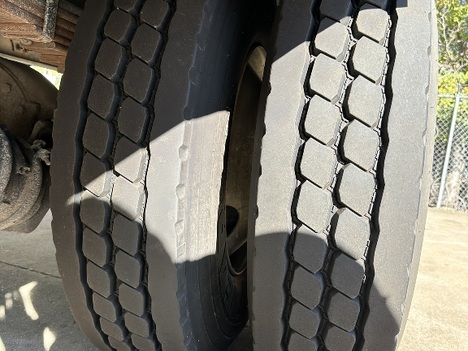

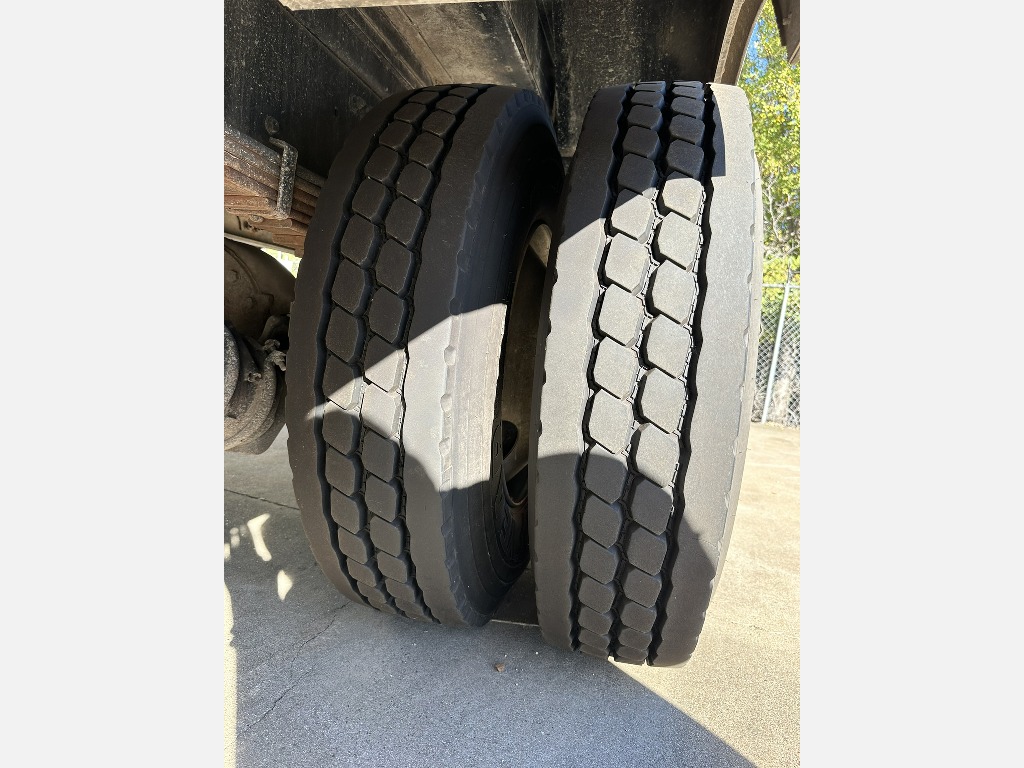

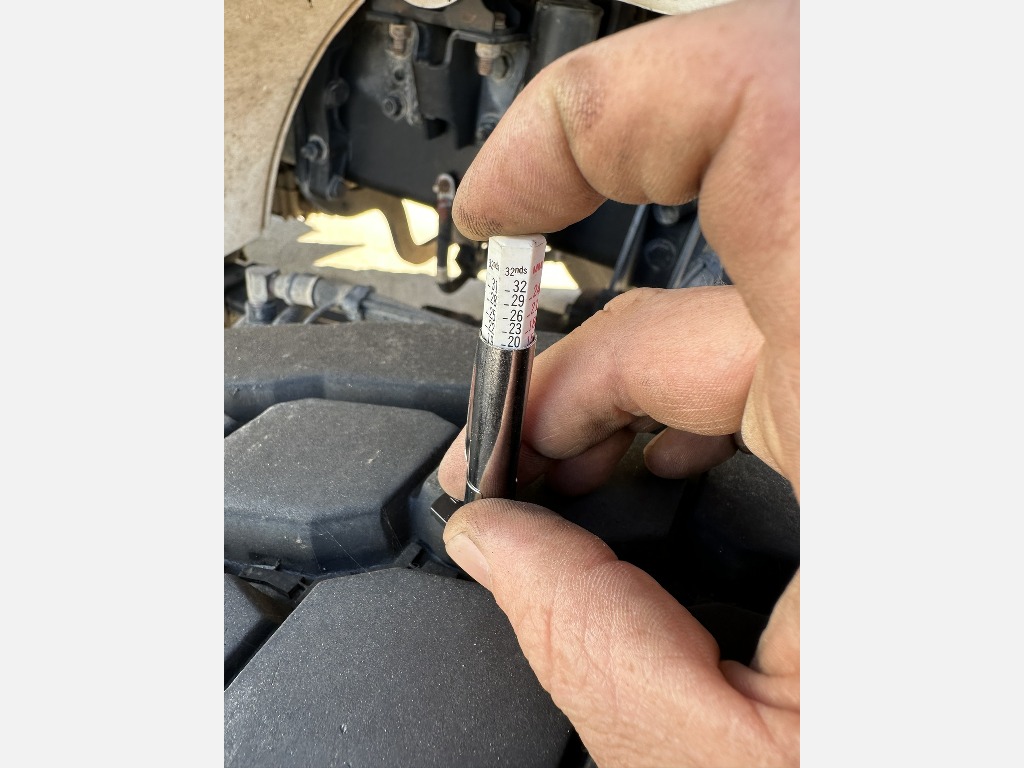

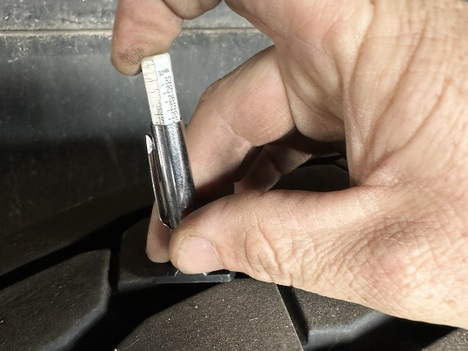

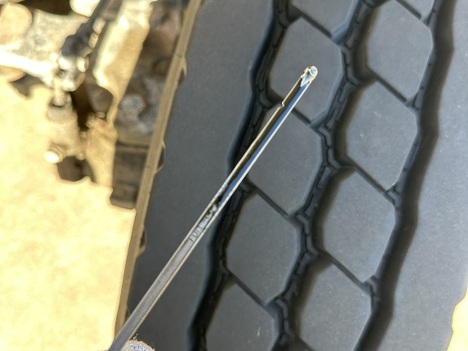

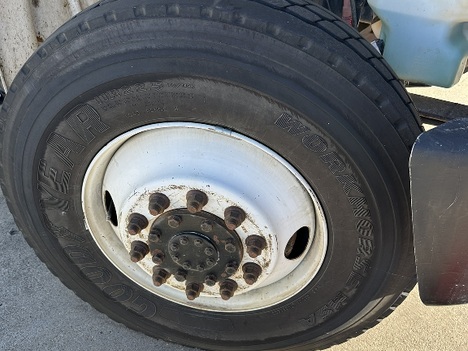

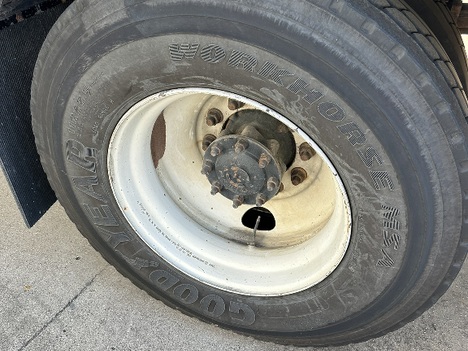

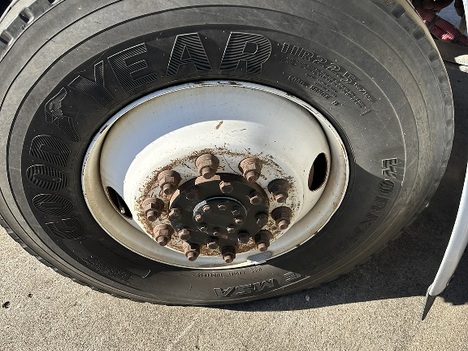

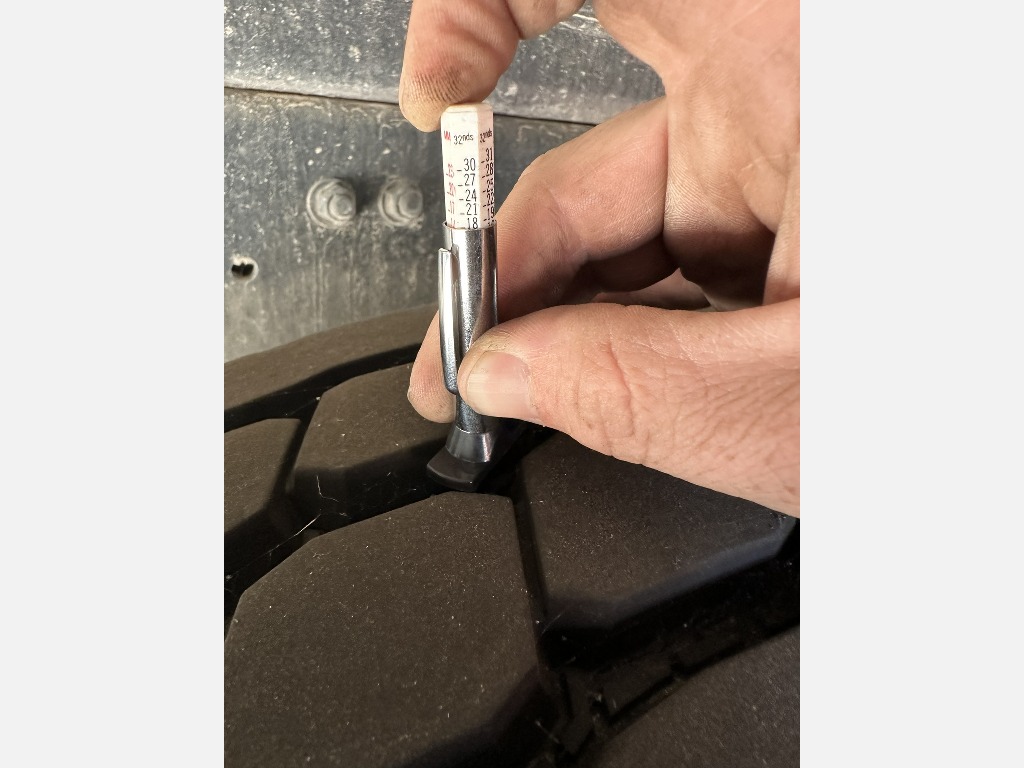

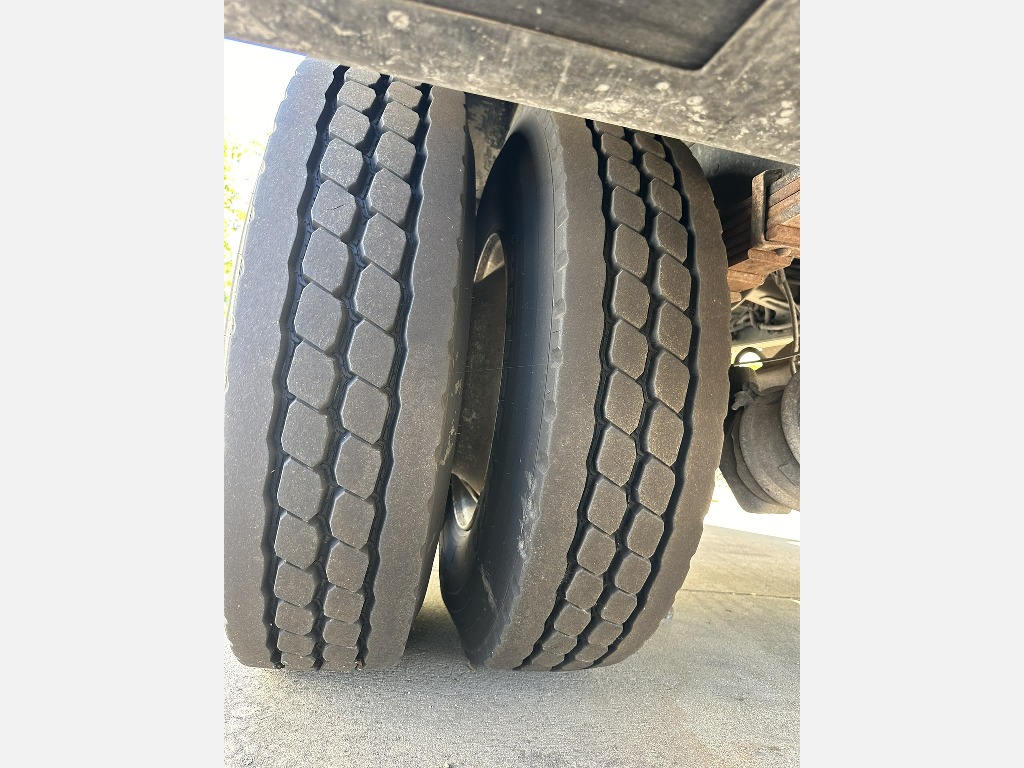

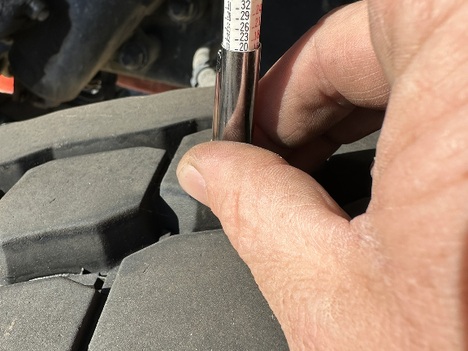

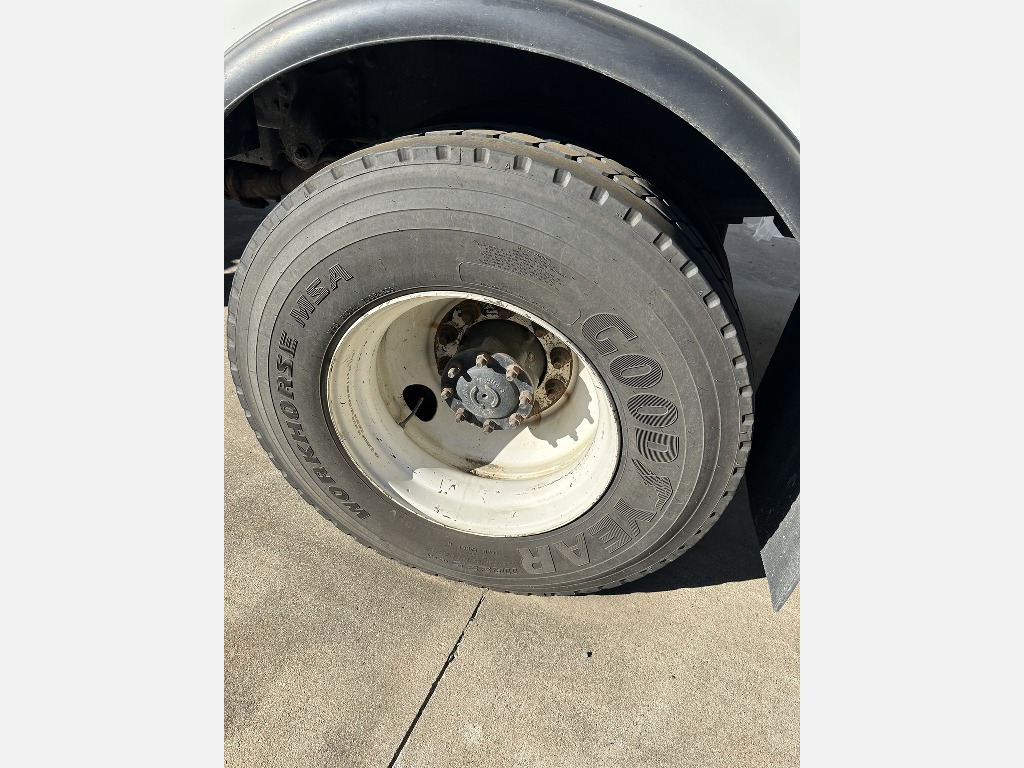

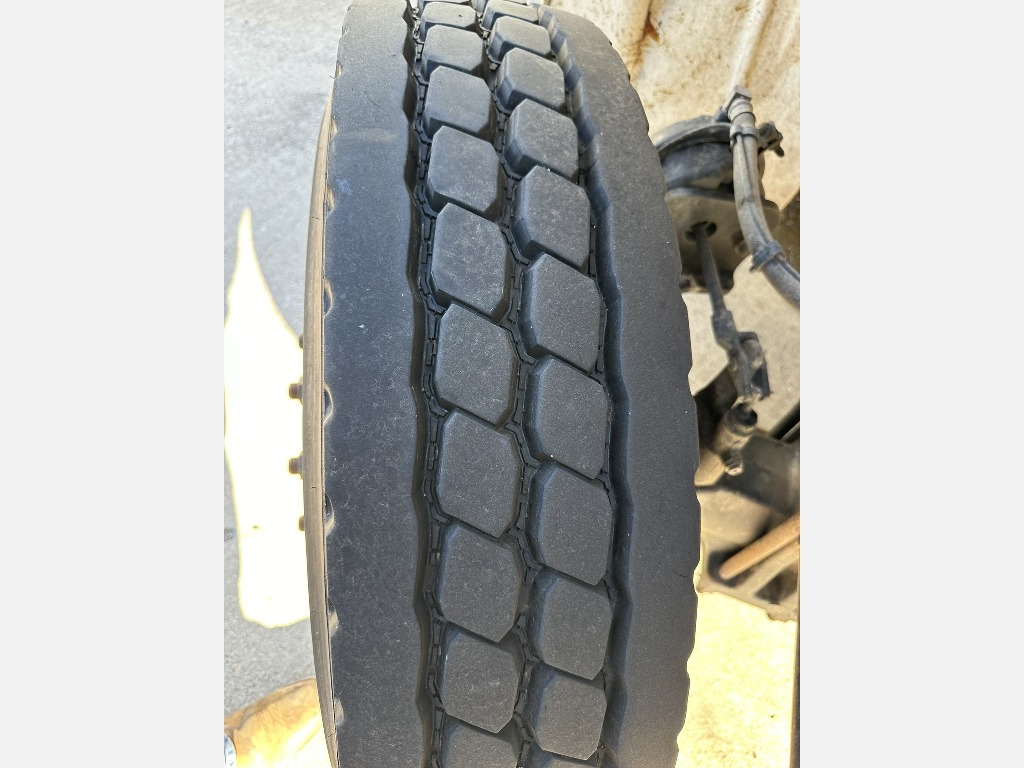

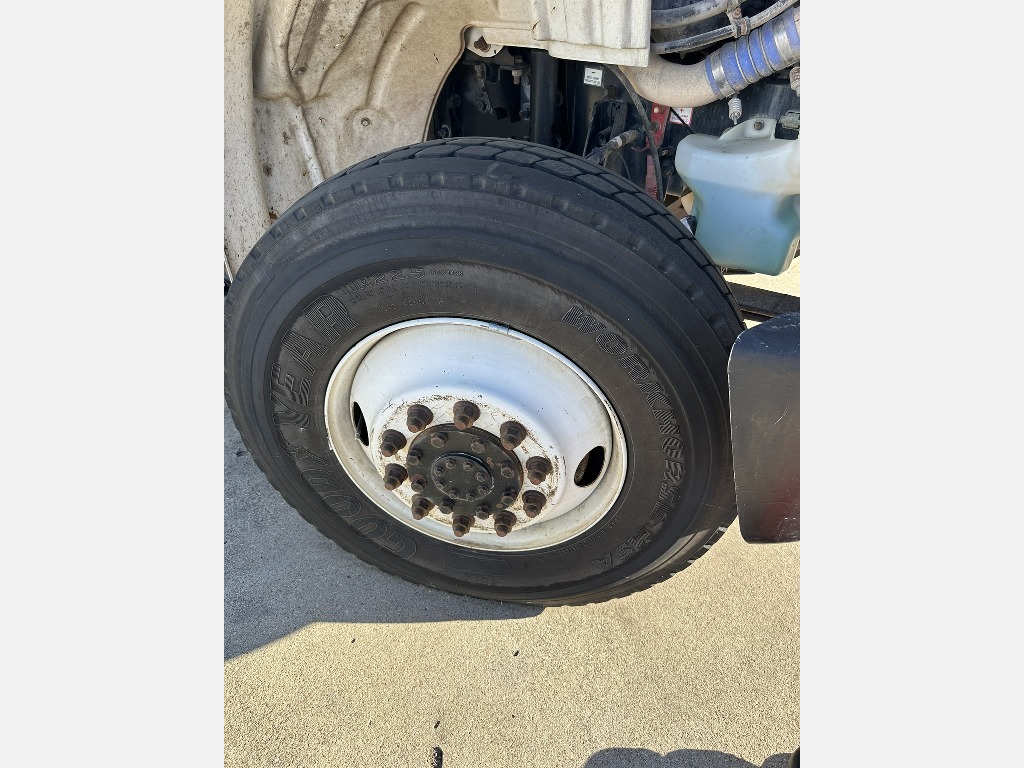

| Tires & Wheels | |||
|---|---|---|---|
|

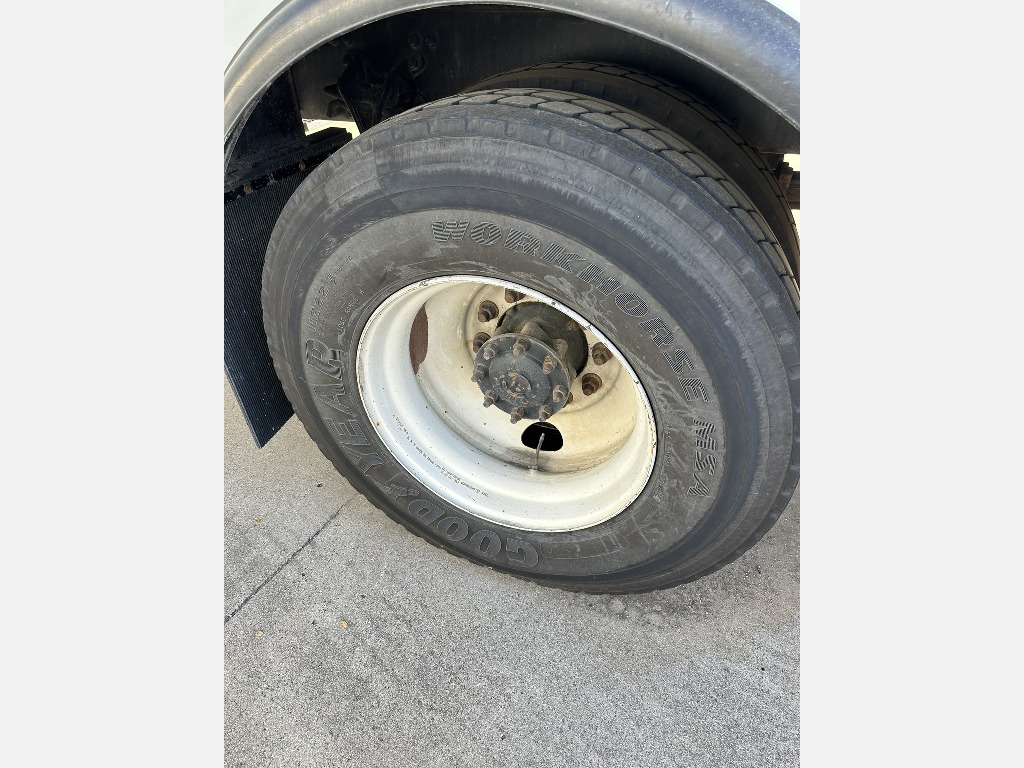

Left Front20 / 32 Goodyear Steel |
Right Front20 / 32 Goodyear Steel |
||
|
Left Outer 118 / 32 Goodyear Steel |
Left Inner 118 / 32 Goodyear Steel |
Right Inner 119 / 32 Goodyear Steel |
Right Outer 118 / 32 Goodyear Steel |
| FRONT TIRES: 11R22.5 | REAR TIRES: 11R22.5 | ||
| General Observations |
|---|
| Oil Milky? | No |
|---|---|

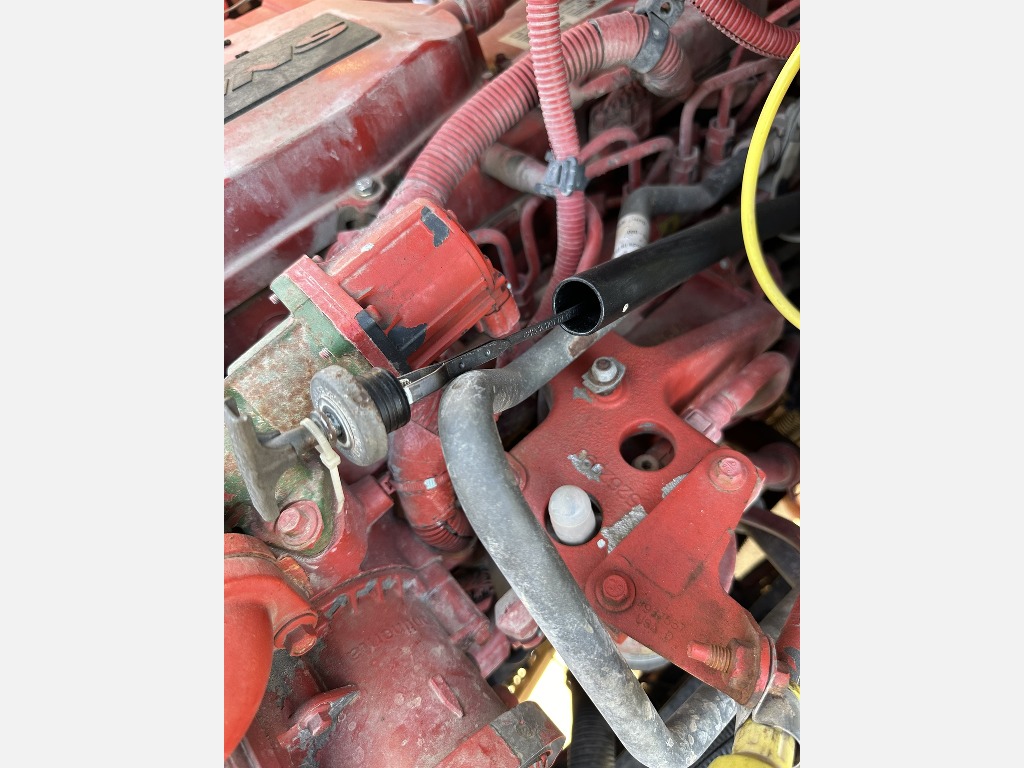

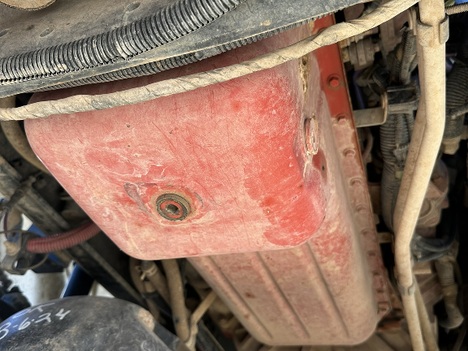

| Oil Leaks? | Yes |
| Water Leaks? | No |
| Oil in Coolant? | No |
| Clutch Play? | NA |
| Starts? | Yes |
| Drives | See Notes |
| Lights Work? | Yes - All |
|---|---|
| Wipers Work? | Yes |

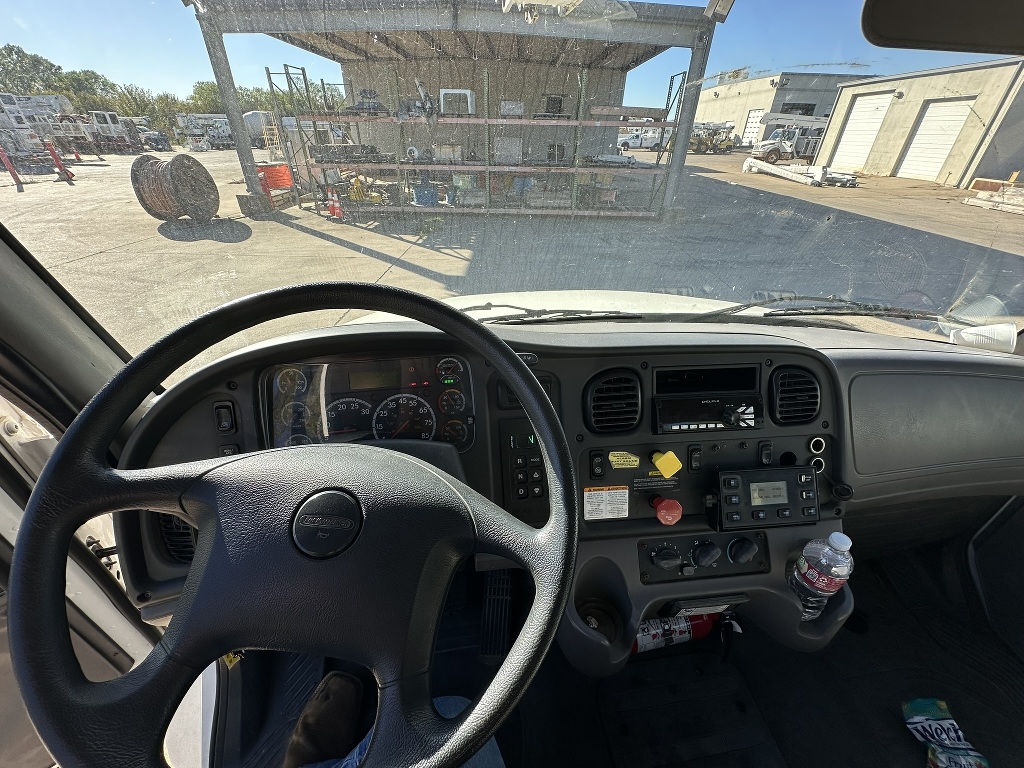

| Gauges Work? | Yes - All |
| Air Horn Works? | Yes |
| City Horn Works? | Yes |
| Additional Observations |
|---|

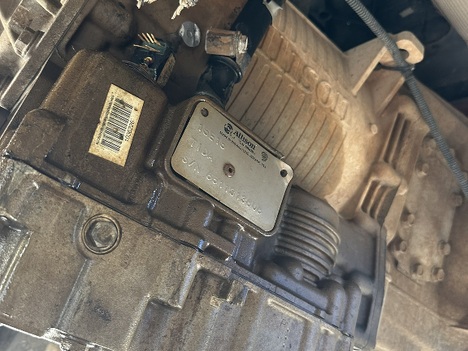

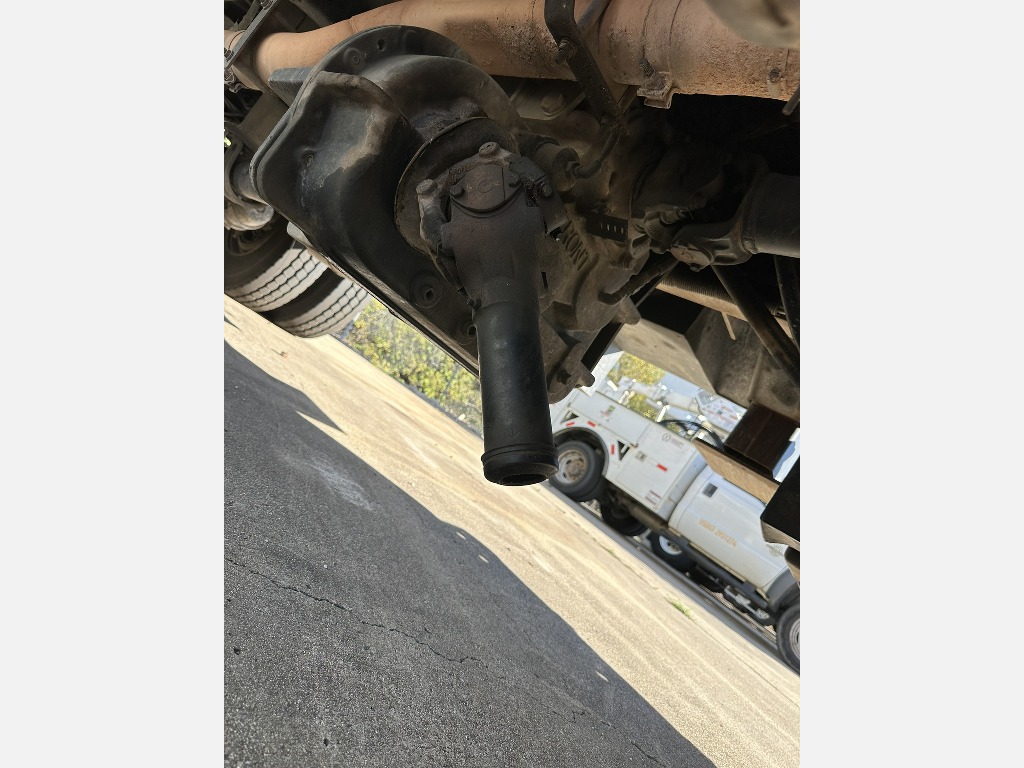

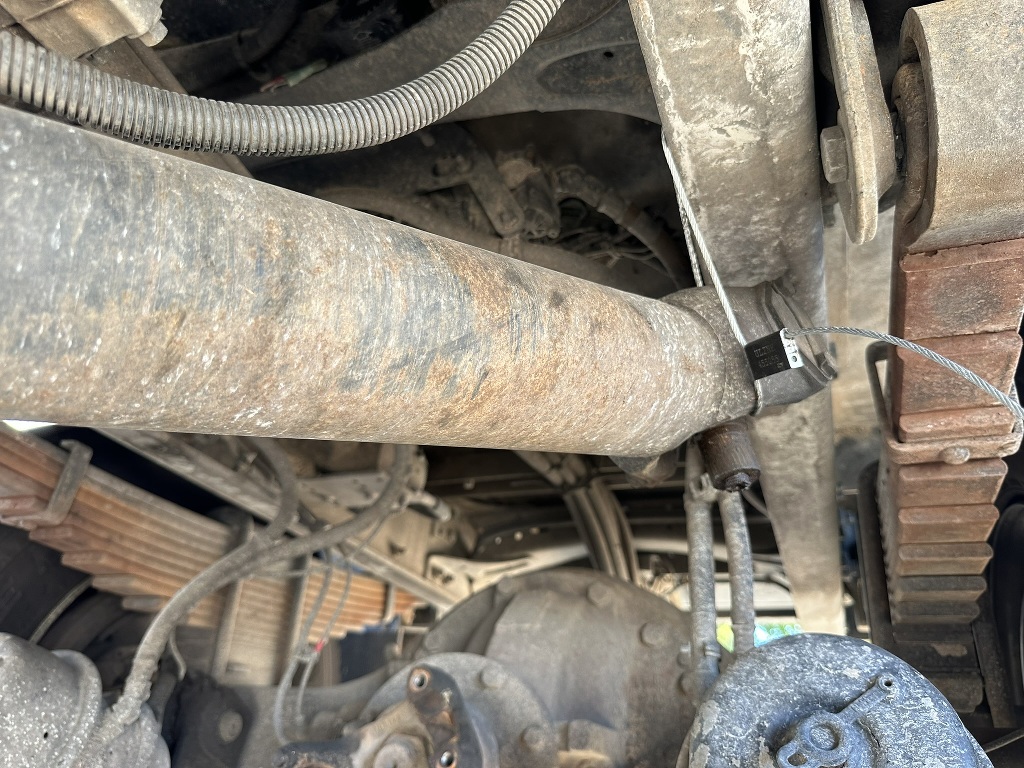

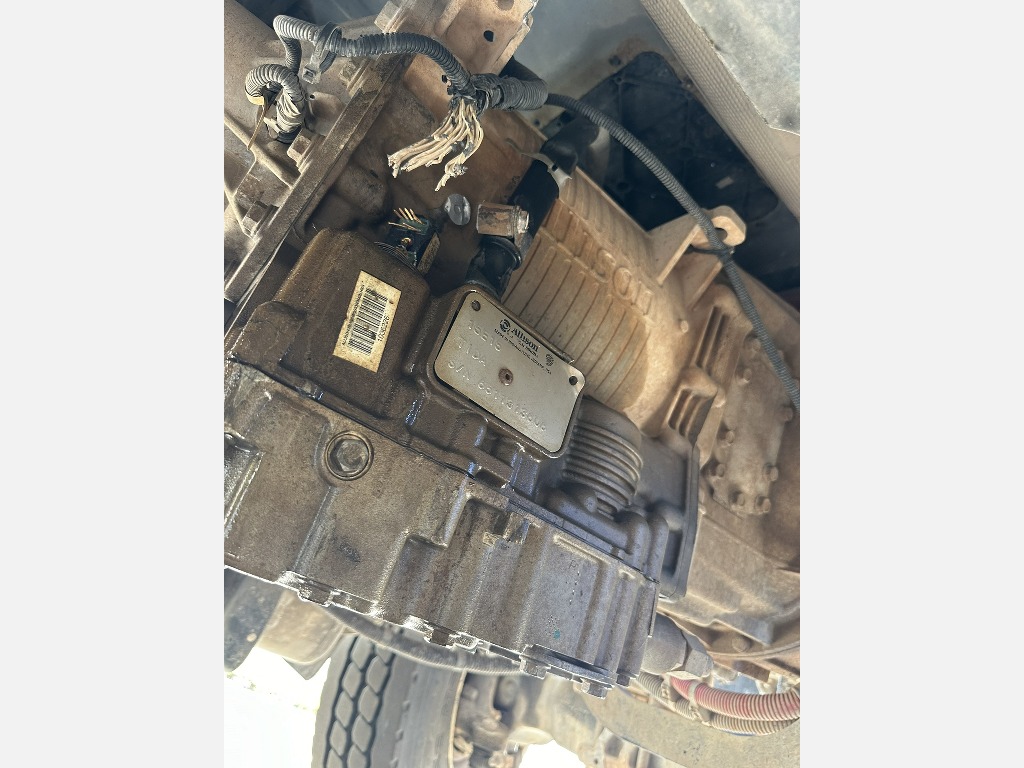

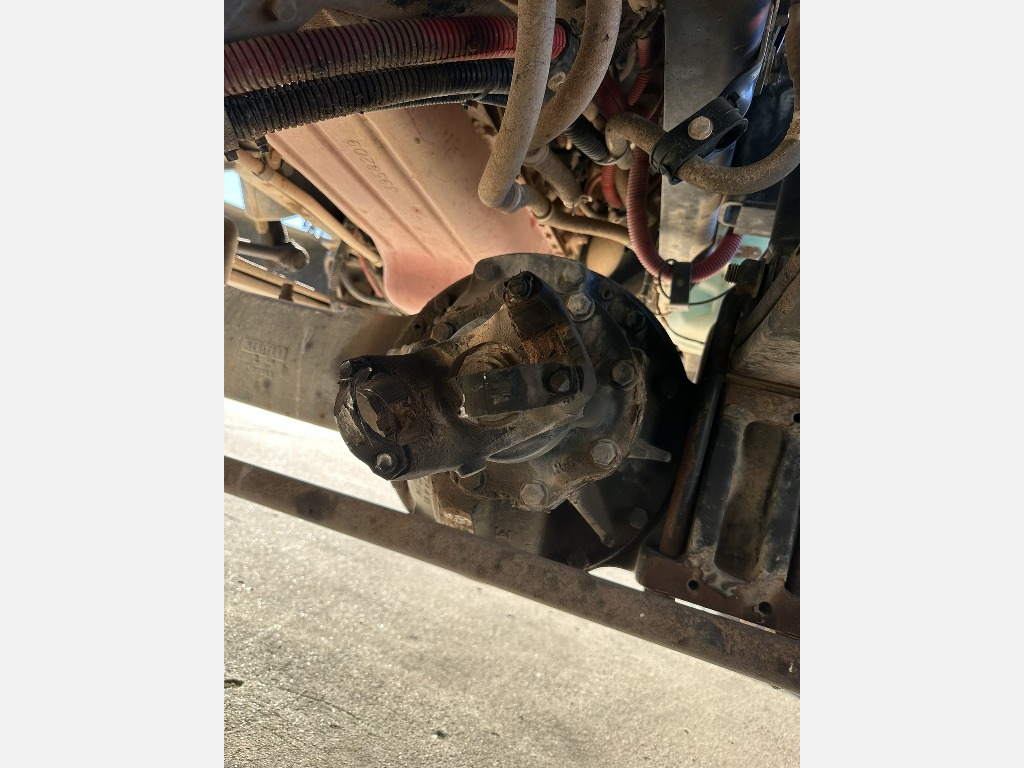

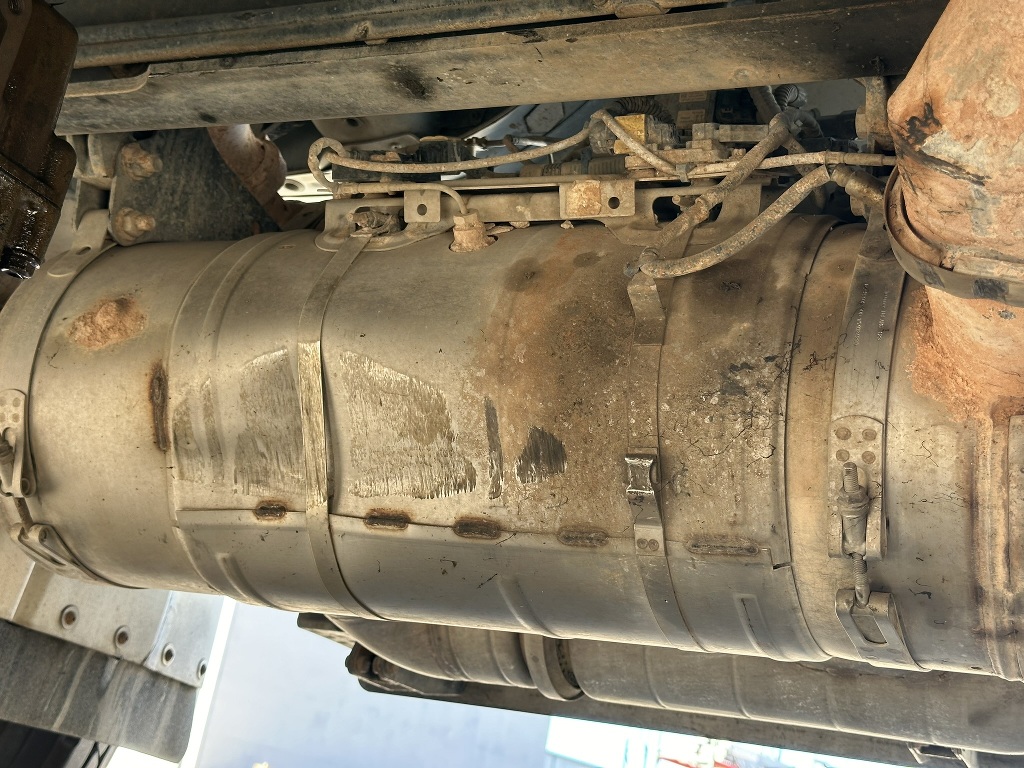

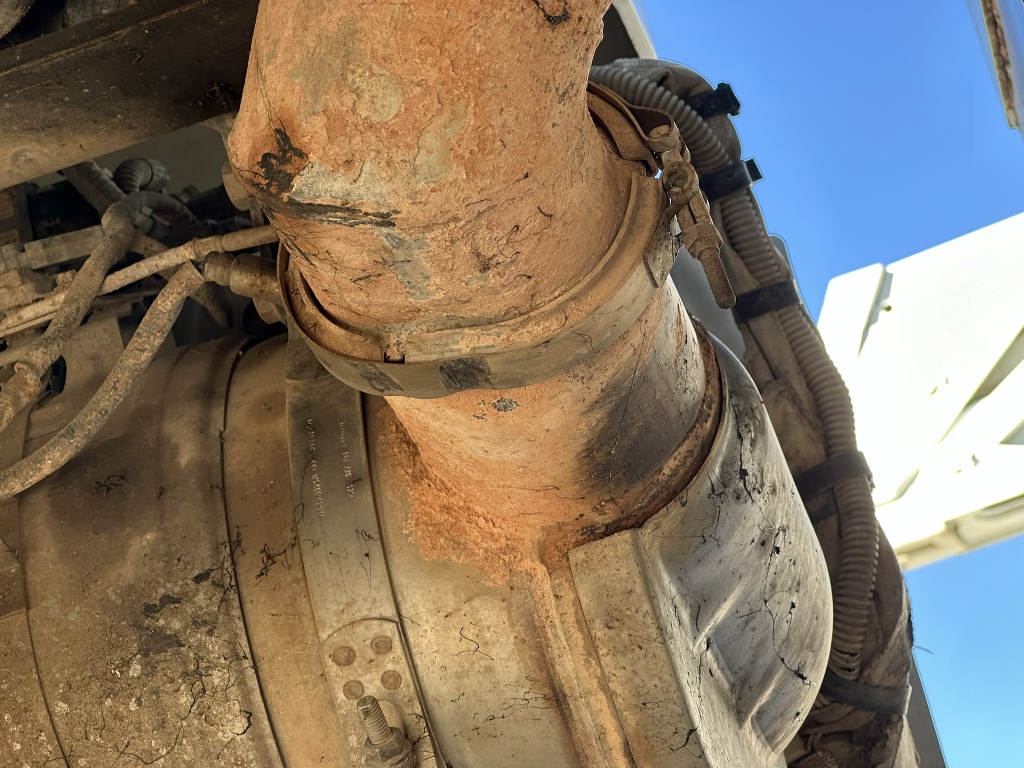

| Unit is a 4 wheel drive. the driveshaft for the front axle was thrown causing major damage to the transmission and aftertreatment system. TRANSMISSION HAS WET OIL PRESENT. |
| Wear & Tear Detail | |
|---|---|

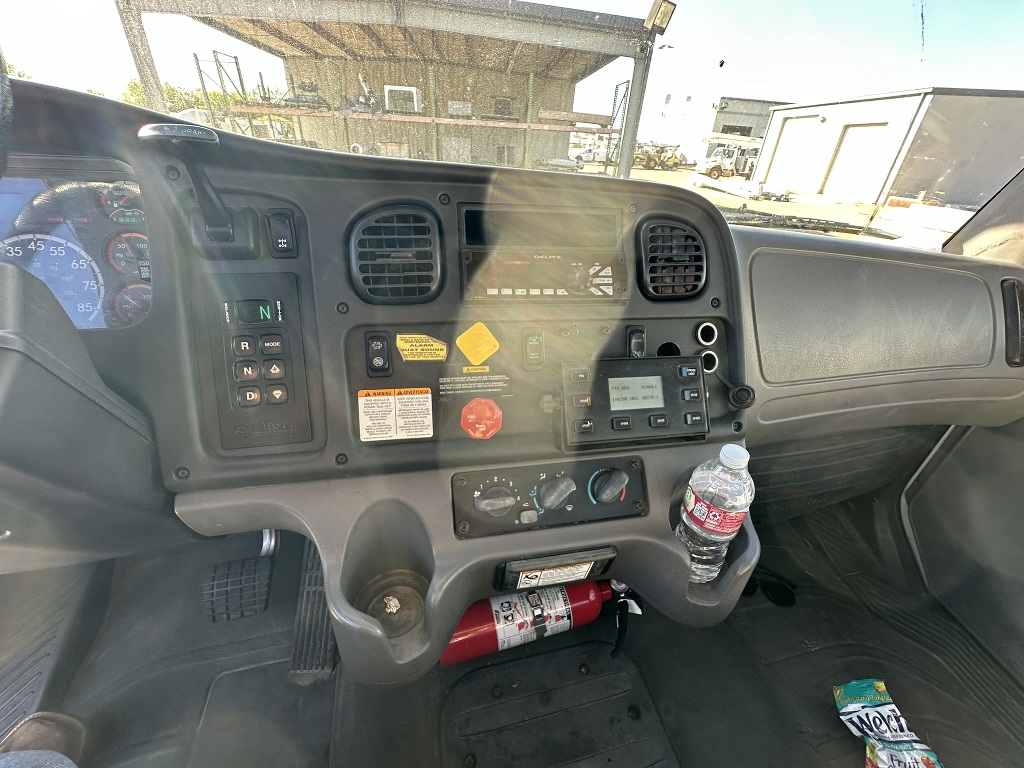

| WARNINGS | CHECK TRANSMISSION LIGHT ILLUMINATED. NO WARNING LIGHT INDICATORS. |

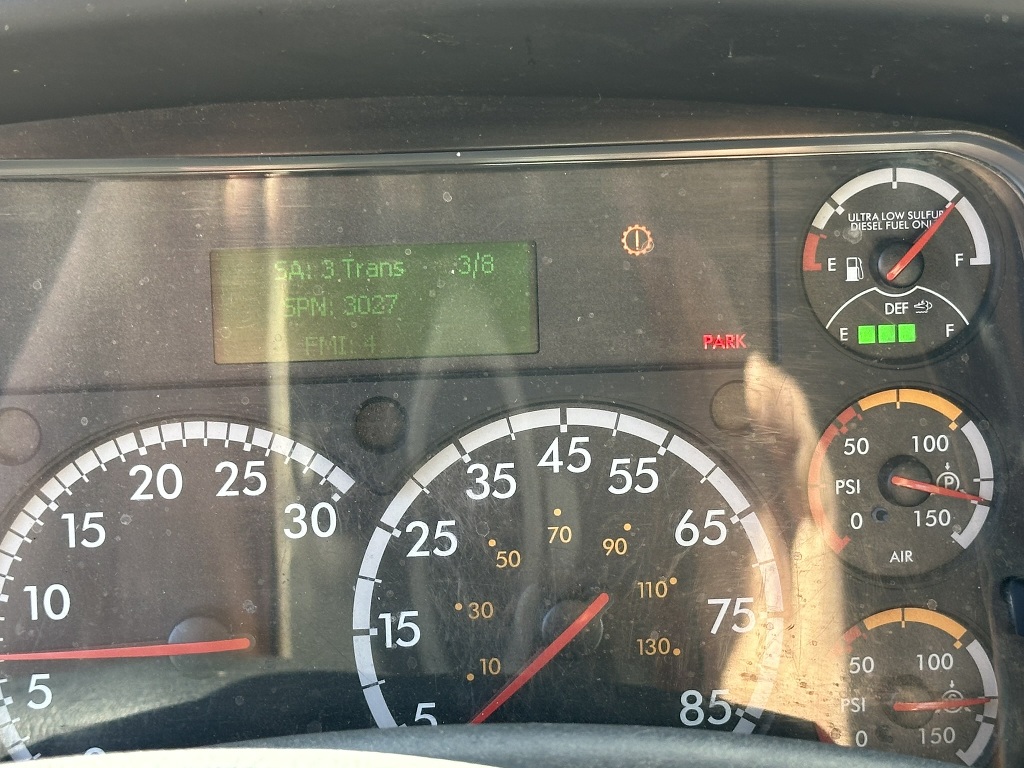

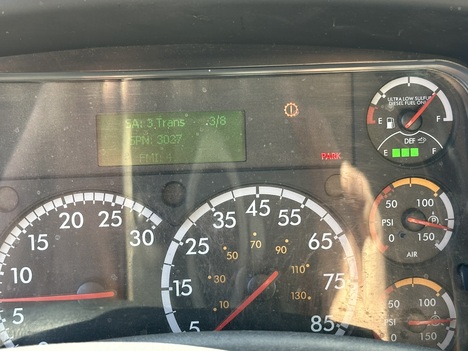

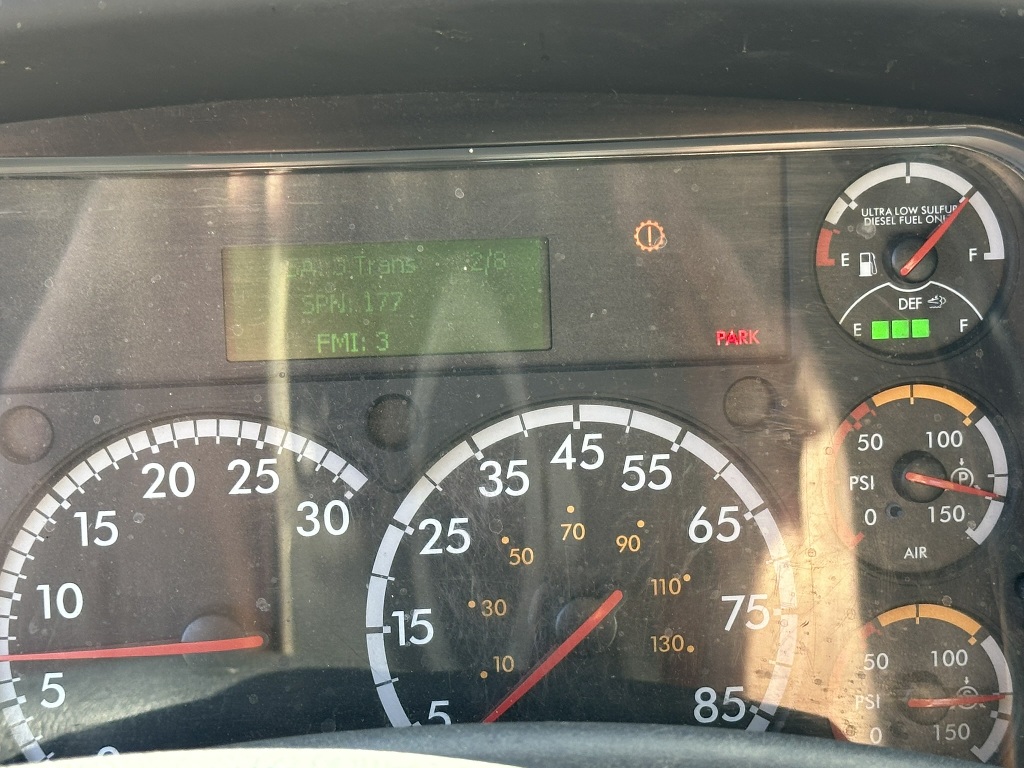

| ON-BOARD COMPUTER FAULT DATA | SA 3 SPN 2003 : COMMUNICATION LINK BETWEEN THE ENGINE CONTROL MODULE AND THE TRANSMISSION CONTROL MODULE HAS BEEN LOST. - SA 3 SPN 177 FMI 3 - INDICATES AN ISSUE WITH THE TRANSMISSION OIL TEMPERATURE.. - SA 3 SPN 3027 FMI 5 - THIS INDICATES AN ISSUE WITH THE AXLE AIR LIFT PRESSURE. - SA 3 SPN 749 FMI 5 - INDICATES AN ISSUE WITH THE AXLE LIFT AIR PRESSURE. - SA 3 SPN 5391 FMI 3 - INDICATES AN ISSUE WITH THE AXLE LIFT AIR PRESSURE. - SA 3 SPN 5892 FMI 3 - UNDICATES AN ISSUE WITH THE TRANSMISSION FLUID PRESSURE SWITCH 2 CIRCUIT HIGH. THIS FAULT CAN BE CAUSED BY VOLTAGE ABOVE NORMAL OR A SHORTED HIGH CIRCUIT. - SA 3 SPN 6022 FMI 5 - INDICATES AN ISSUE WITH THE AXLE LIFT AIR PRESSURE. - SA 3 SPN 6823 FMI5 - INDICATES AN ISSUE WITH THE ACTUATOR SUPPLY CIRCUIT VOLTAGE 2 OPEN (HSD 2), MEANING THE CIRCUIT IS BELOW NORMAL OR THERE IS AN OPEN CIRCUIT. |
| UTILITY TOOL BOXES | BOTH SIDES HAVE SOME CHIPPING TO THE PAINT. |

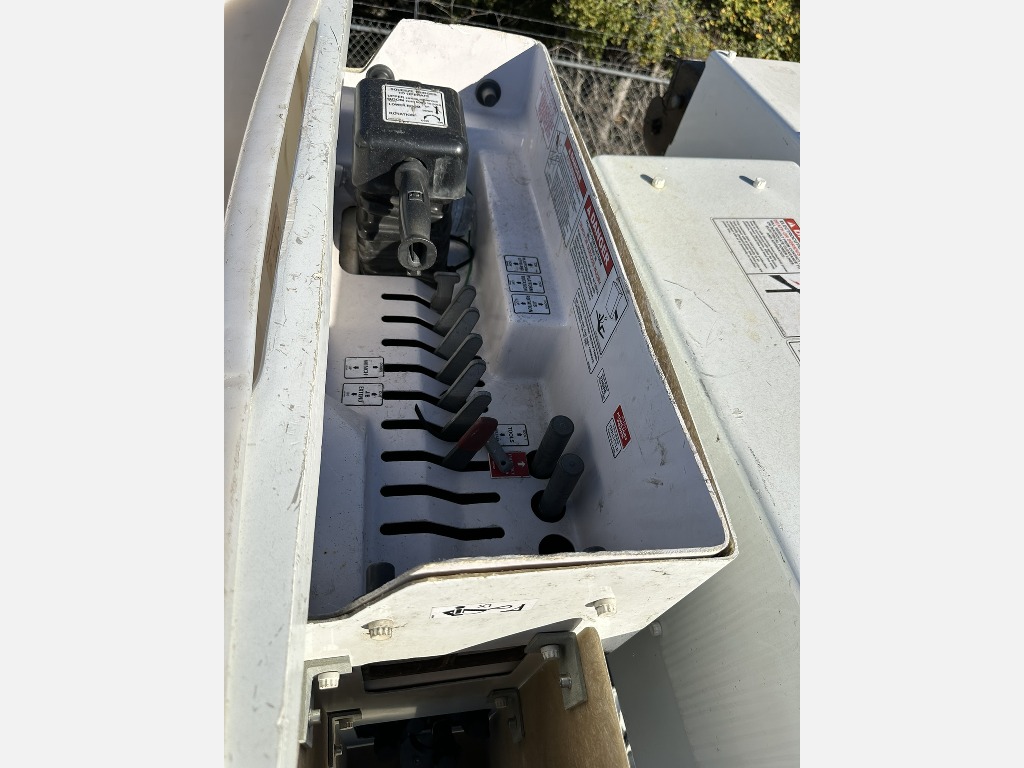

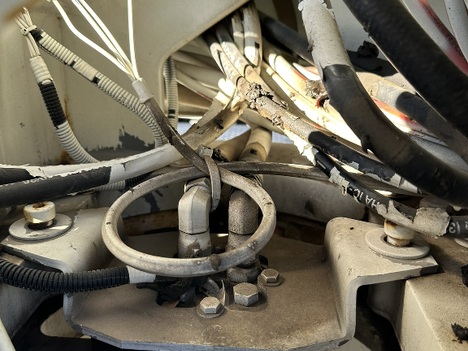

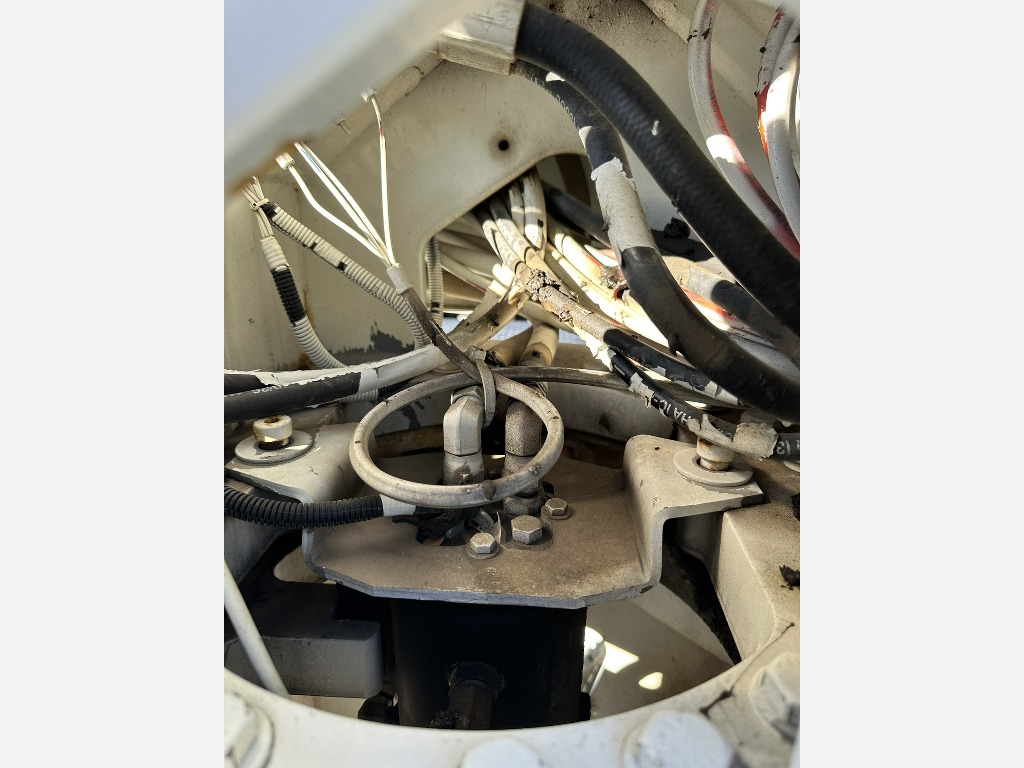

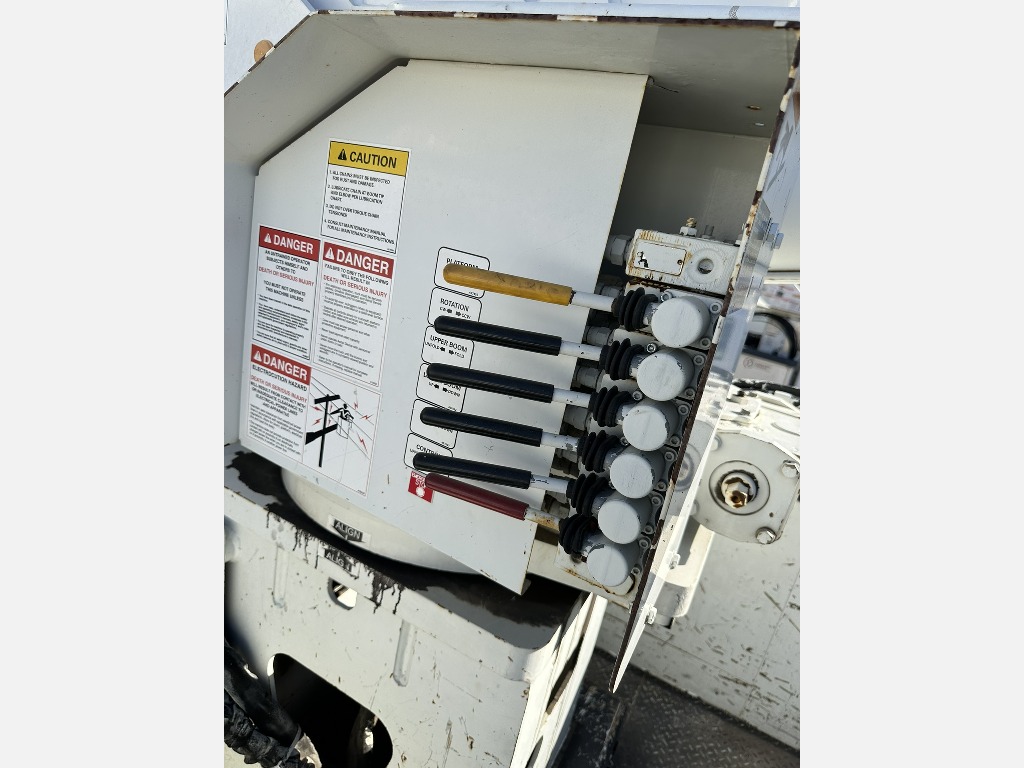

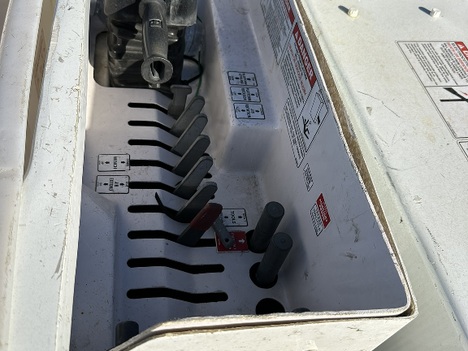

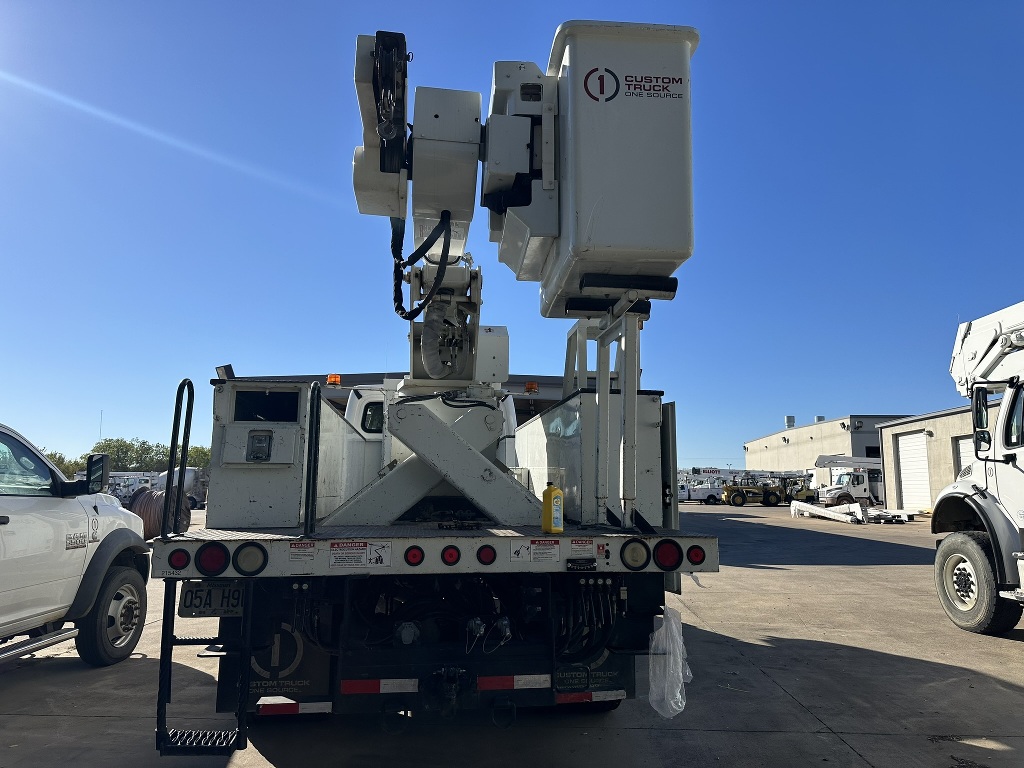

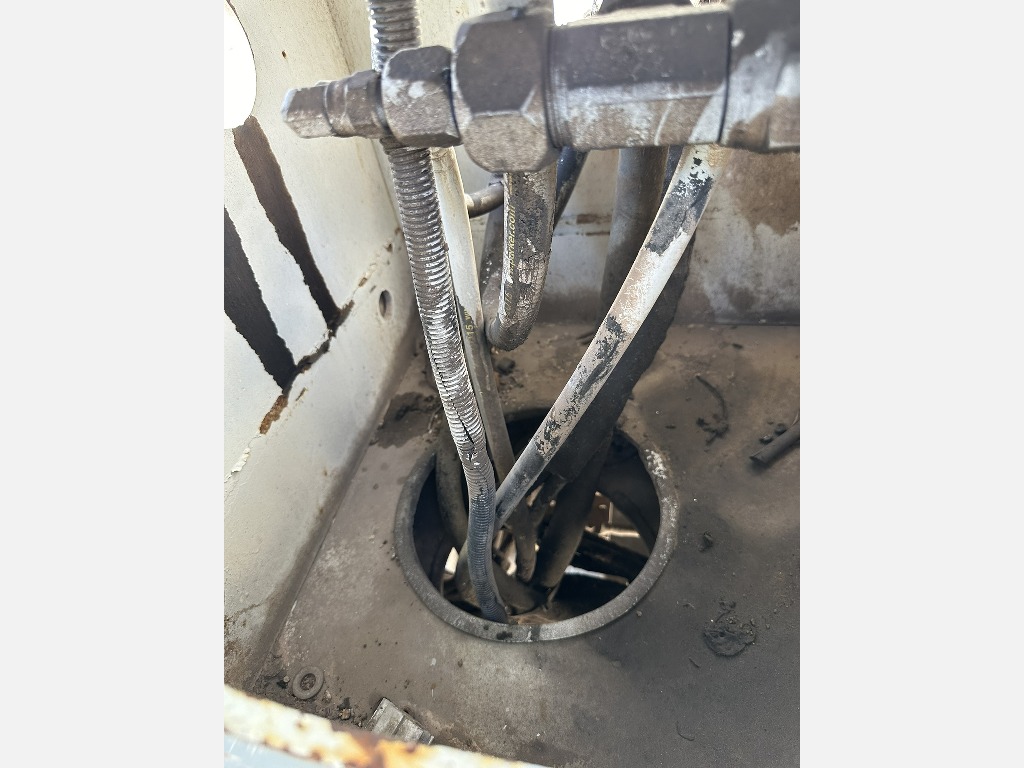

| BOOM ARM | HAS SCRATCHES AND CHIPS TO THE PAINT |
| BUCKET | HAS SCRAPES TO THE FINISH |

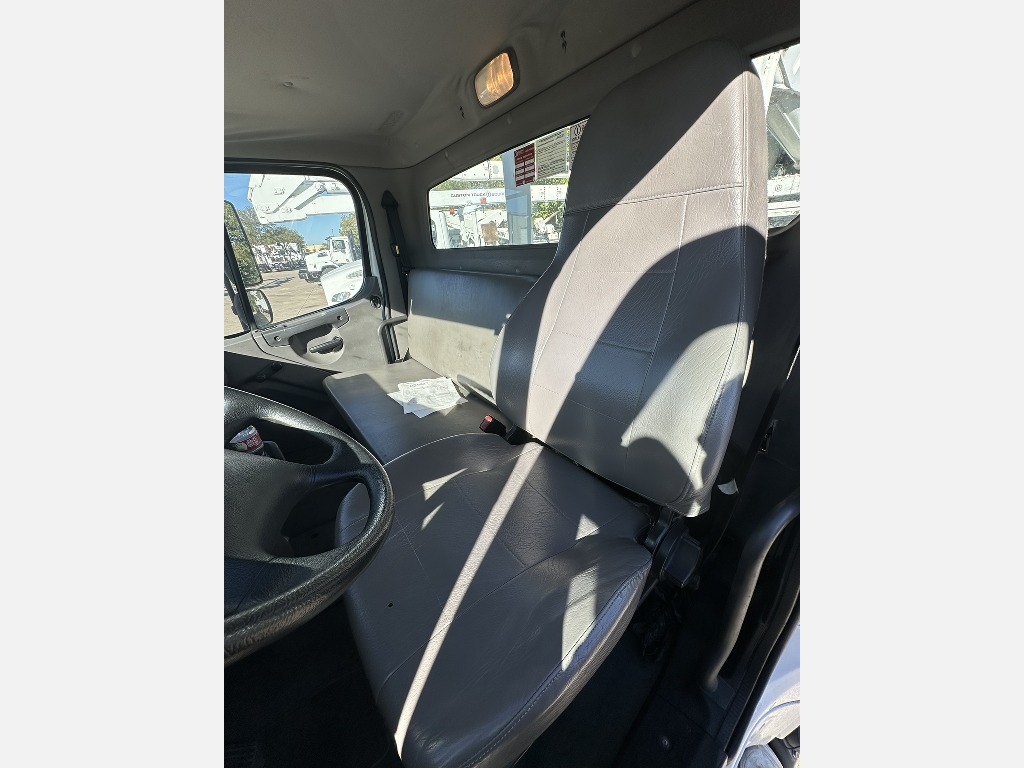

| SEAT | DRIVER CUSHION IS WORN AND THE FABRIC IS STARTING TO CRACK ON THE ENTRY SIDE. |

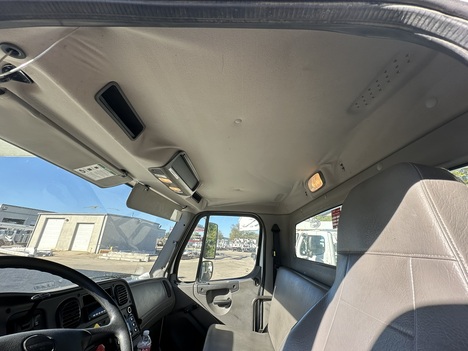

| HEADLINER | IS SEPARATING FROM THE BACKING IN SEVERAL PLACES |
| Report Videos |
|---|
| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
Condition report only. National Inspection Services does not guarantee mechanical reliability.
