National Inspection Services
Report: 275583
09/30/2024
09/30/2024
Mitsubishi HC Capital America, Inc (Cinnelly Galvez)
800 Connecticut Ave, Norwalk, CT 06854 USA
(203) 956-3256
800 Connecticut Ave, Norwalk, CT 06854 USA
(203) 956-3256
VIN: 2NP2HM7X0CM153571
Stock #: 352671
Stock #: 352671

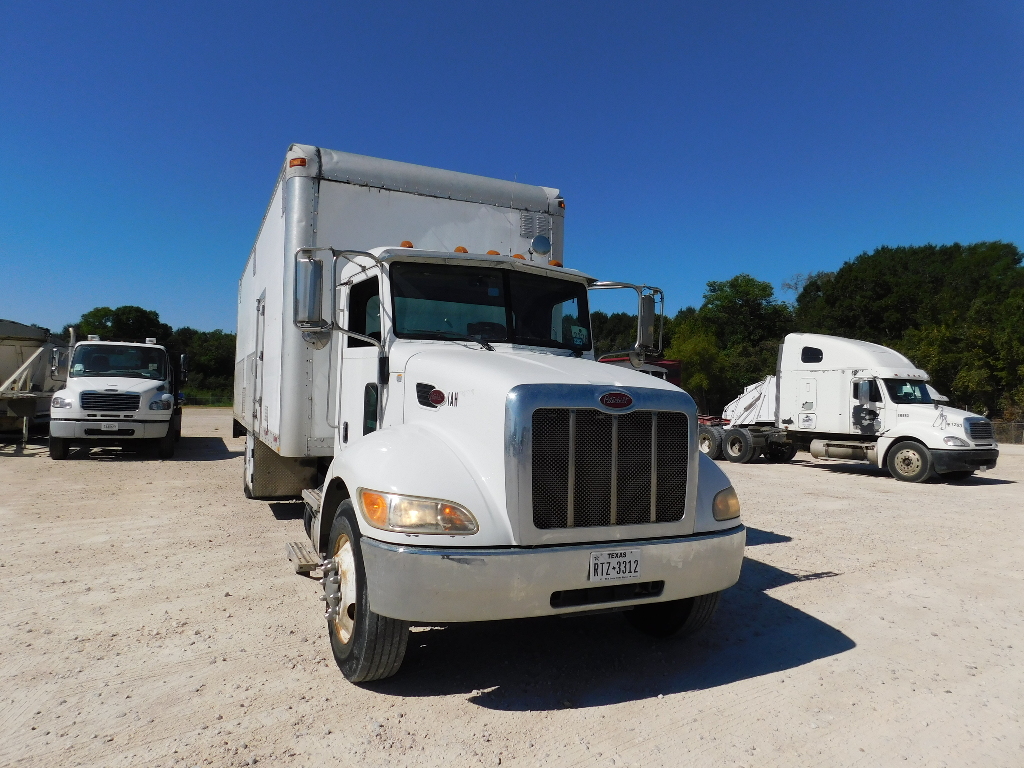

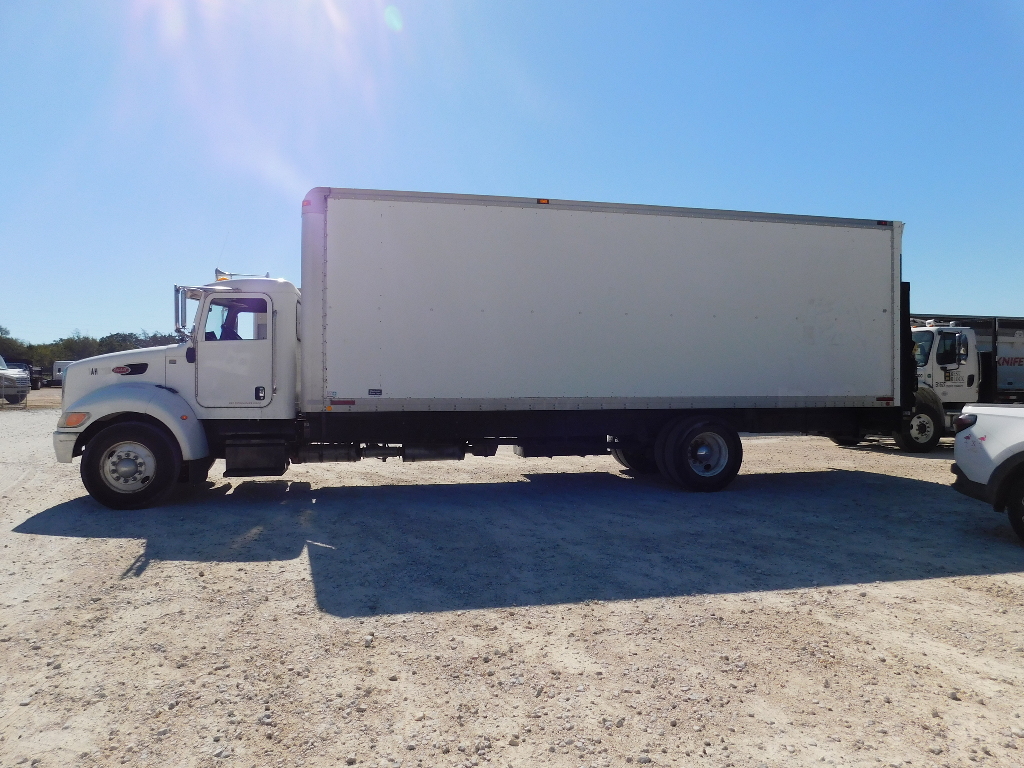

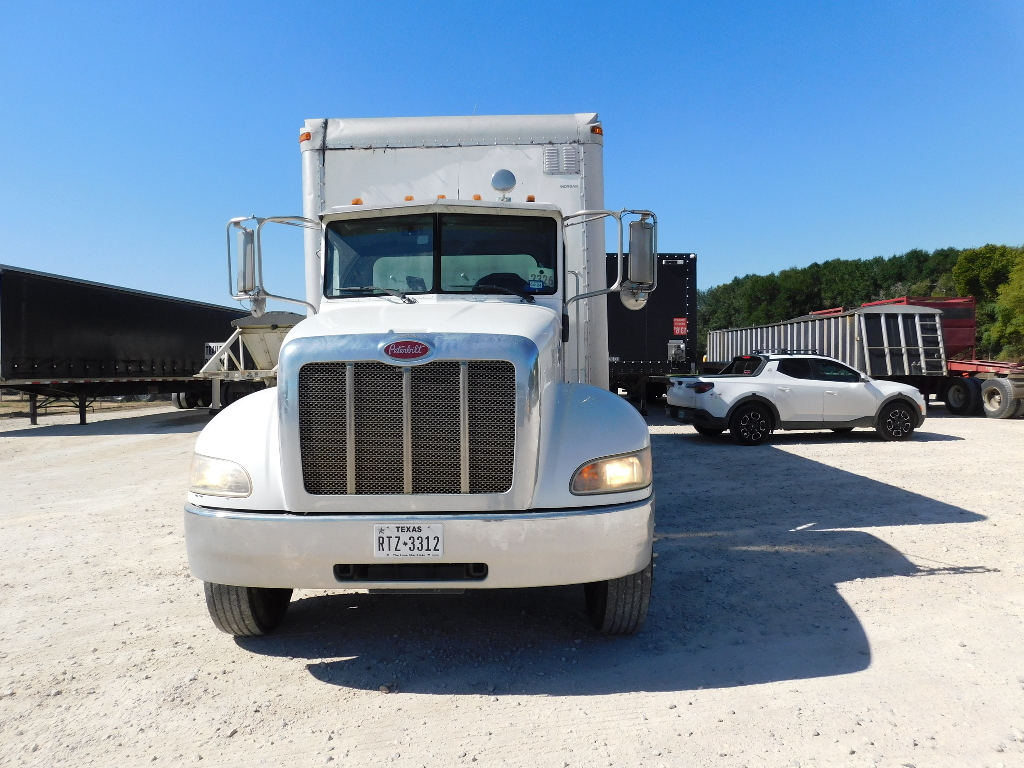

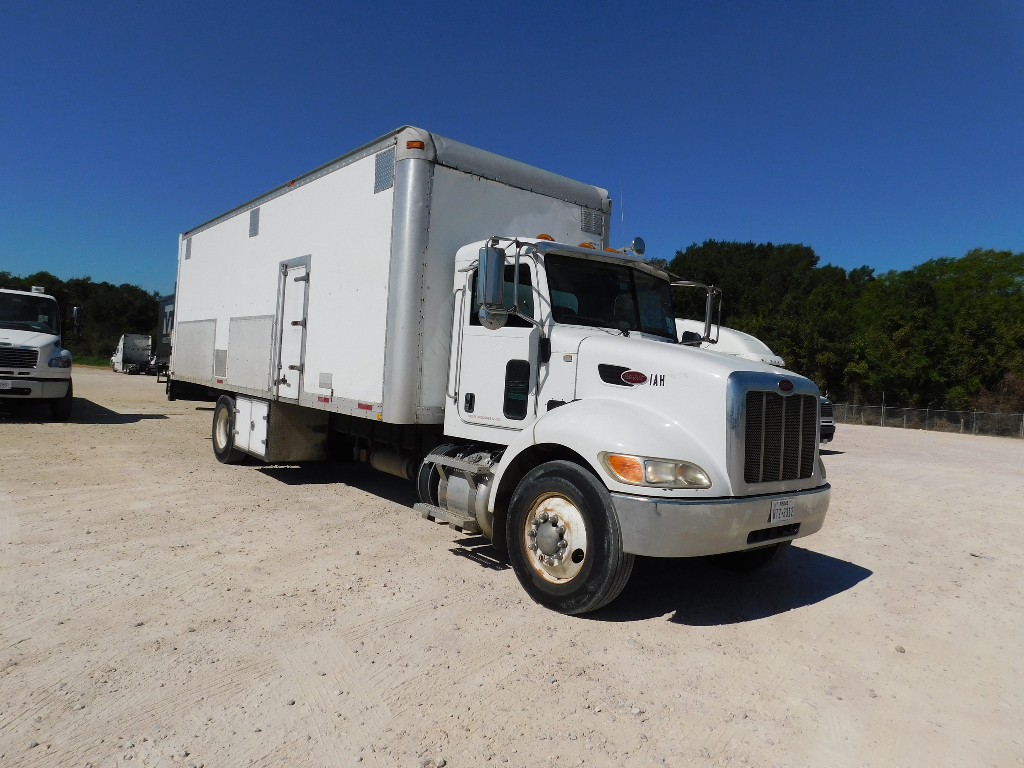

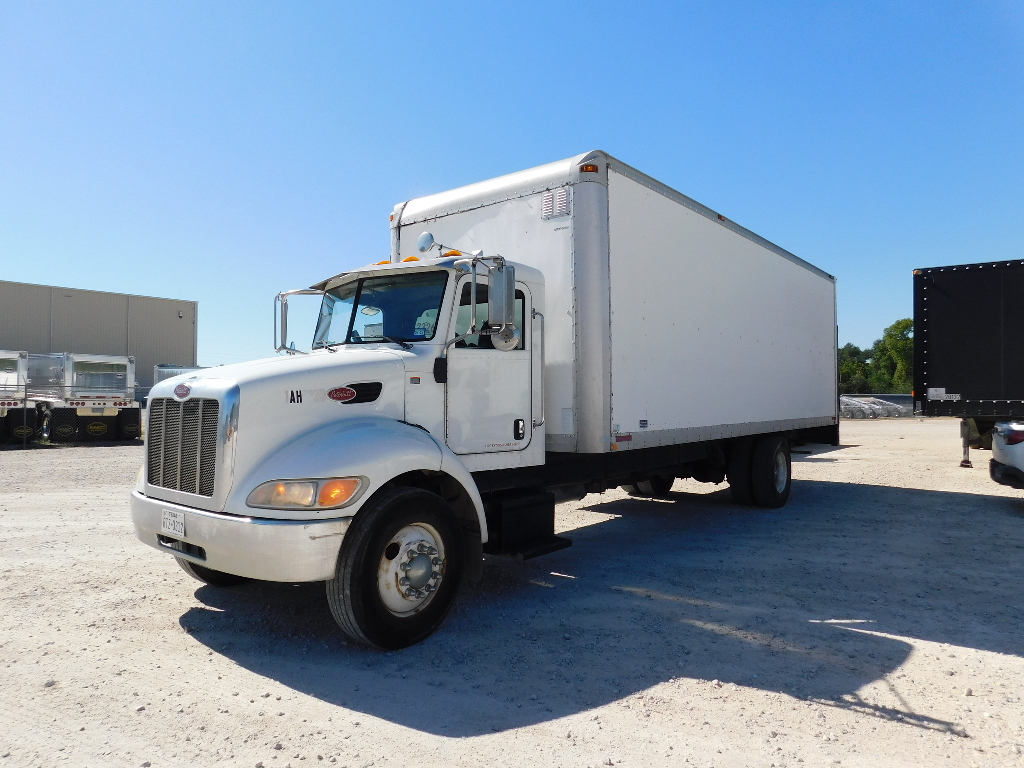

| 2012 PETERBILT 337 |
|---|
| Specifications | |
|---|---|

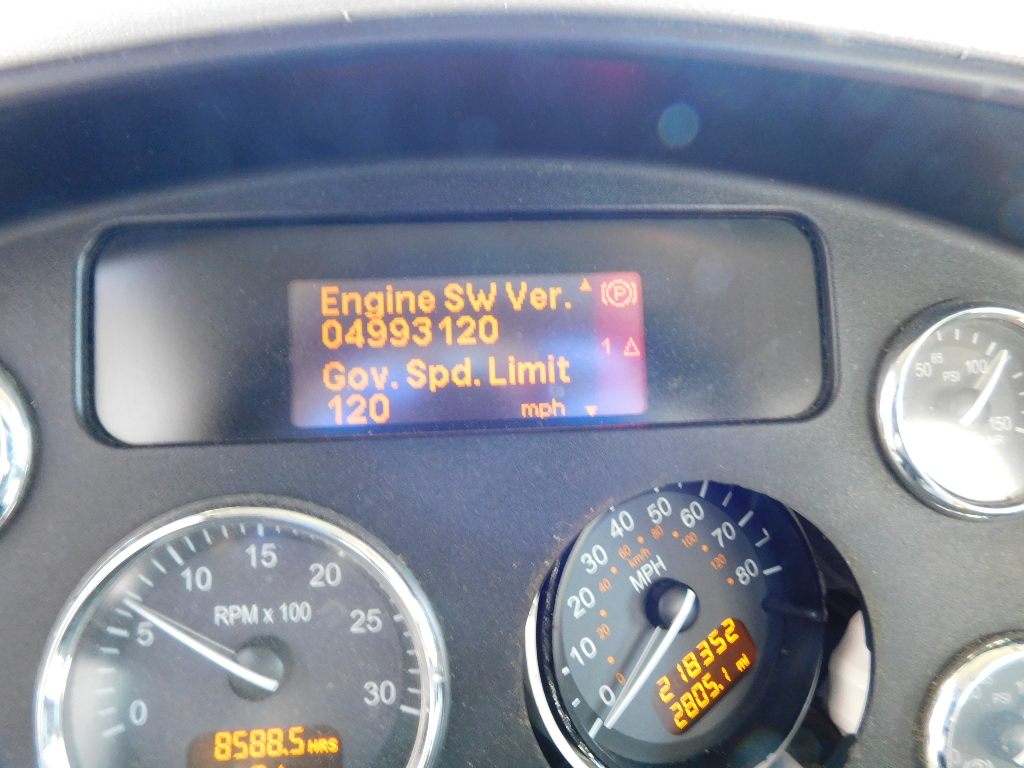

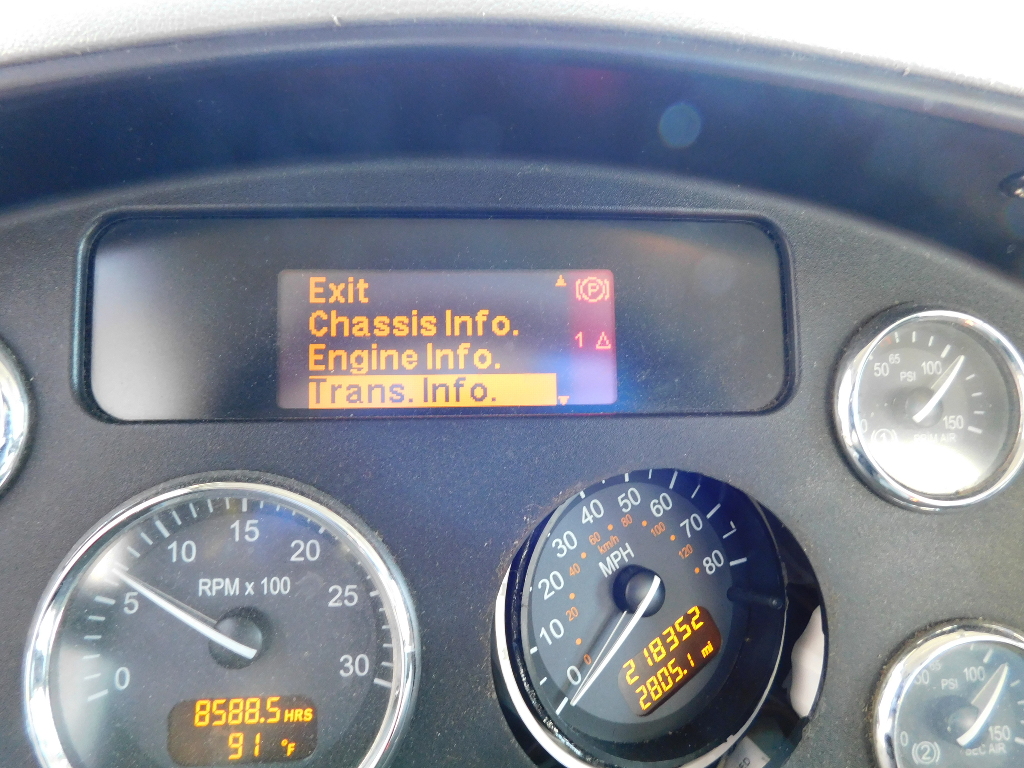

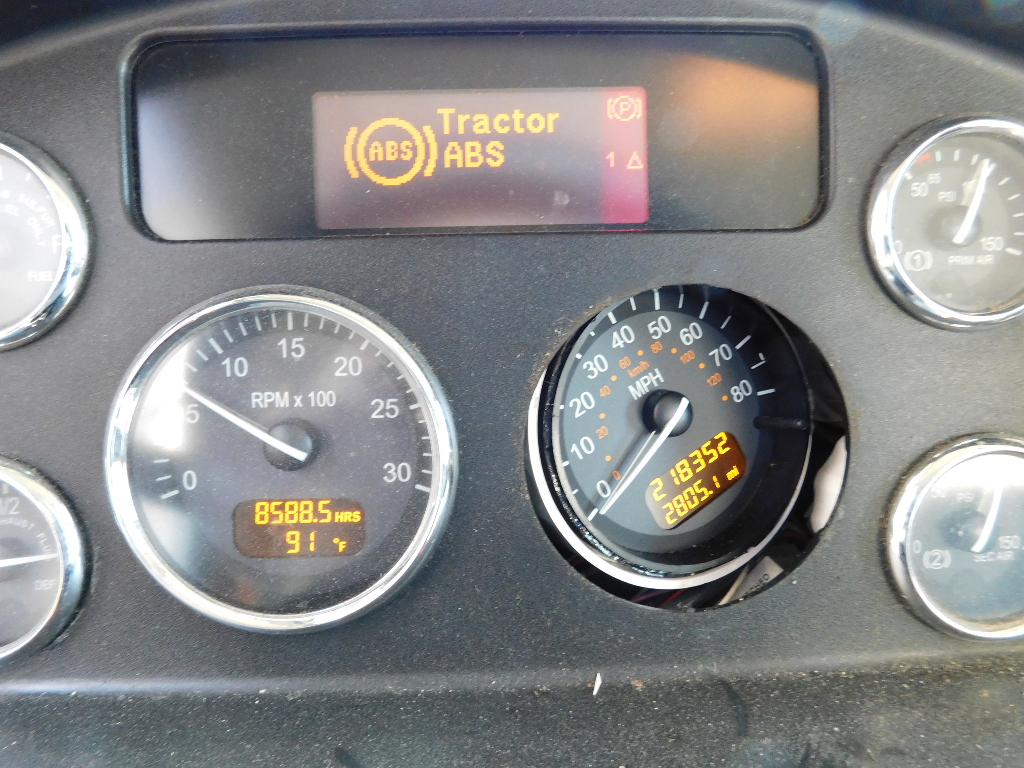

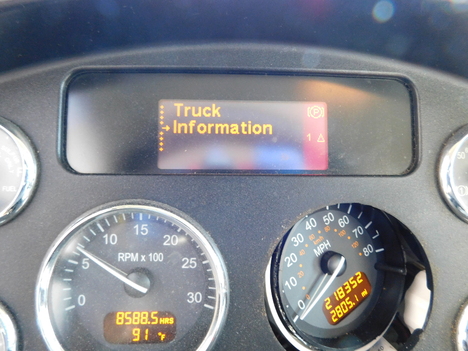

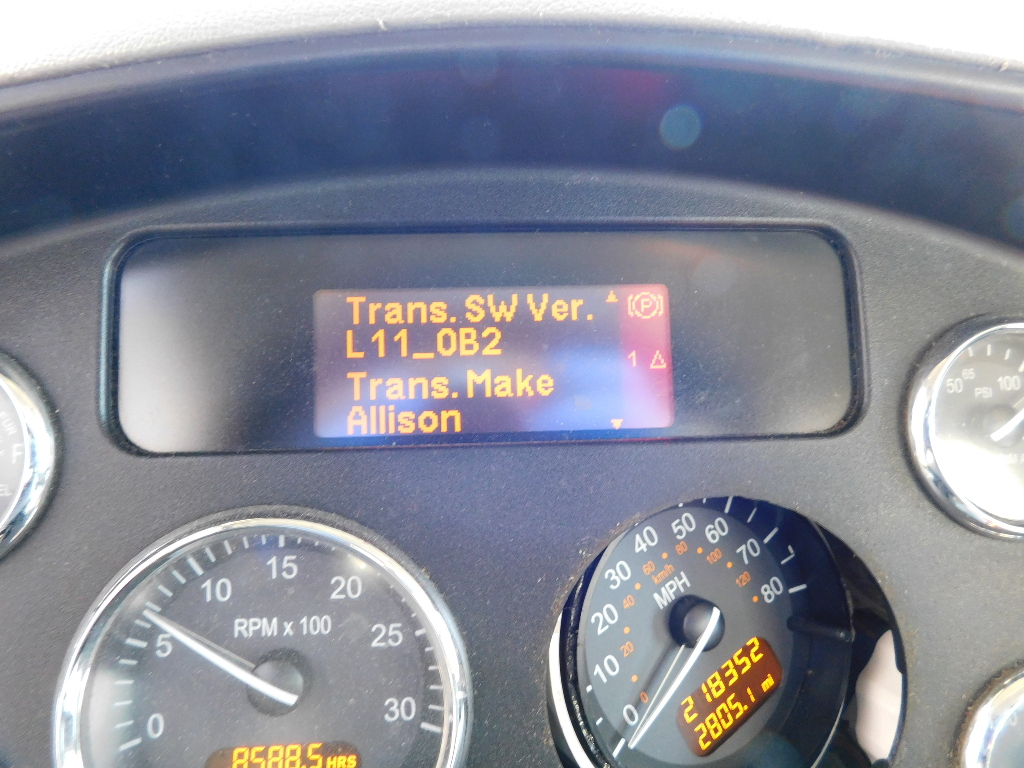

| Mileage | 218,352 / 218,352 (ECM) |
| Engine Hours | 8,588 |

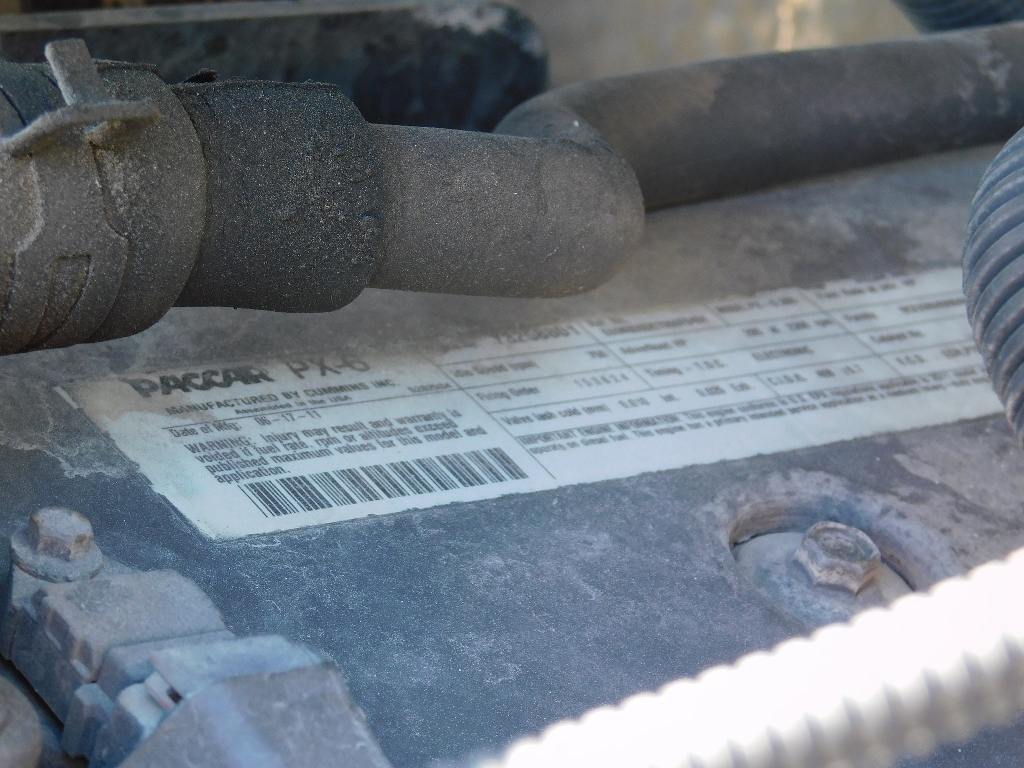

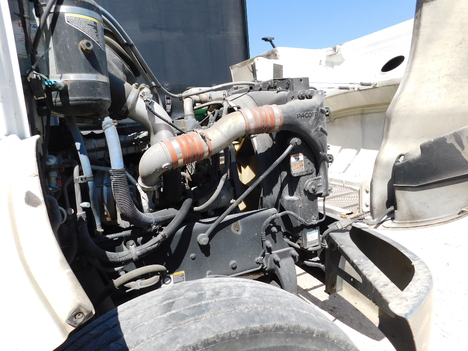

| Engine | PACCAR PX-6 280 HP |
| Eng Serial | 73258801 |
| Fuel / Tanks | DIESEL - 1 ALUM 50 GAL TOTAL |

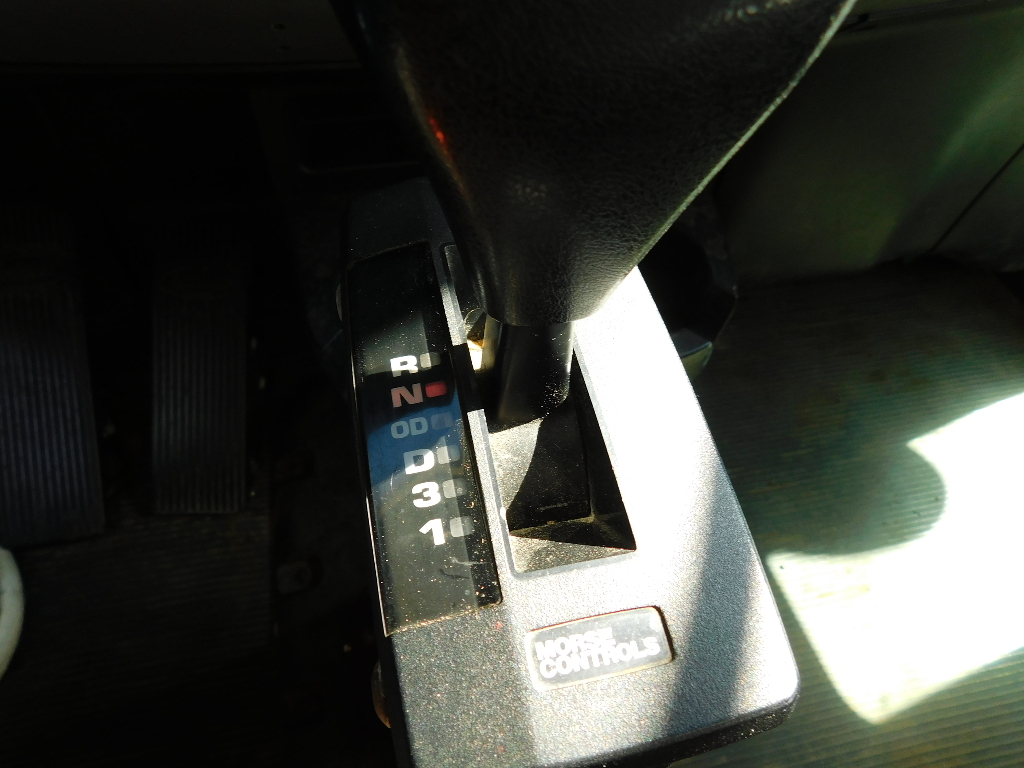

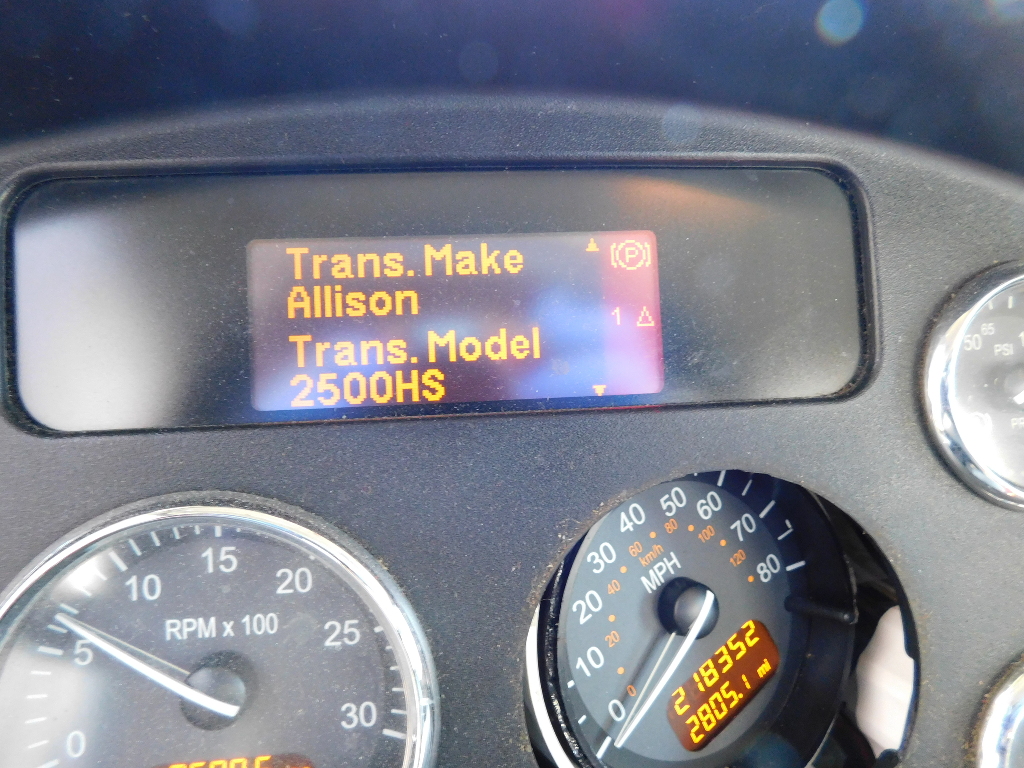

| Transmission | ALLISON 2500HS 6 SPD AUTO |
| Drive Opts | POWER STEERING, OVERDRIVE, CRUISE |
| Rear End | SPICER 4.63 |
| Axle Type | SINGLE - F 12,000 LB / R 21,000 LB |

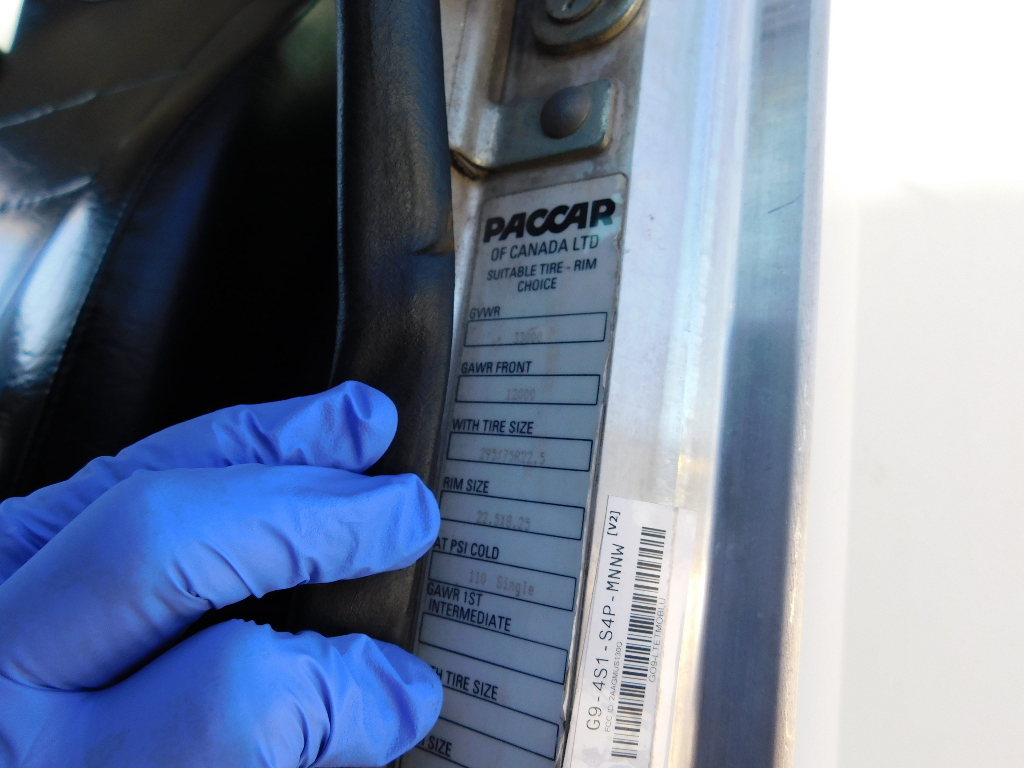

| GVWR | 33,000 |
| Frame | STEEL |

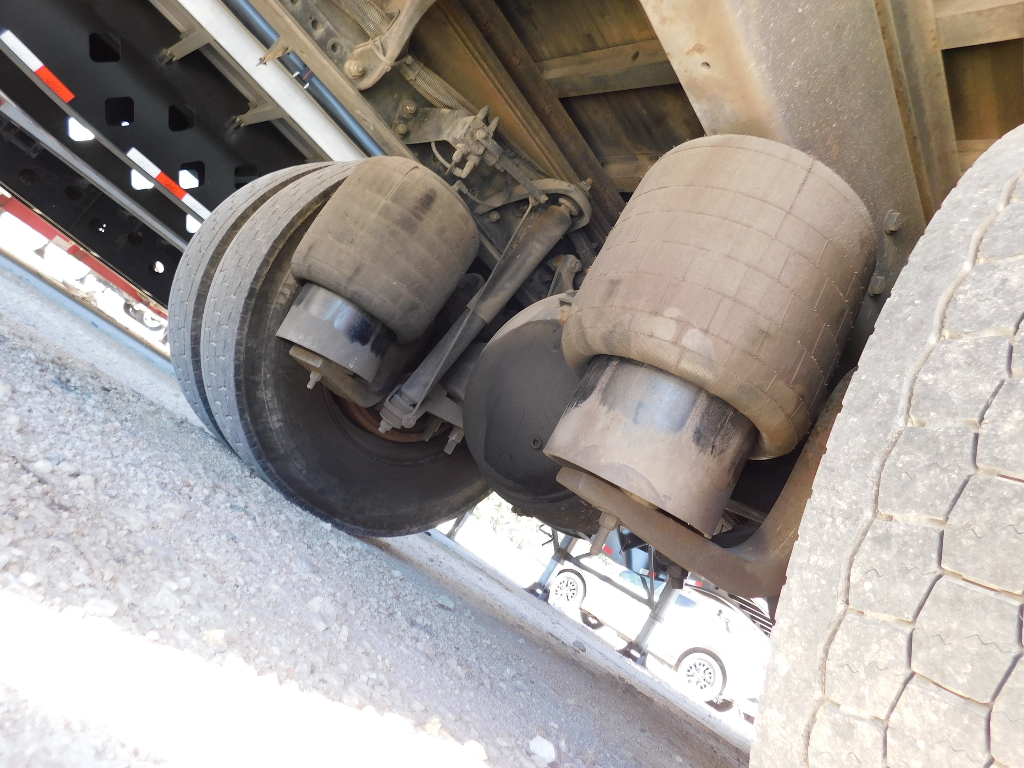

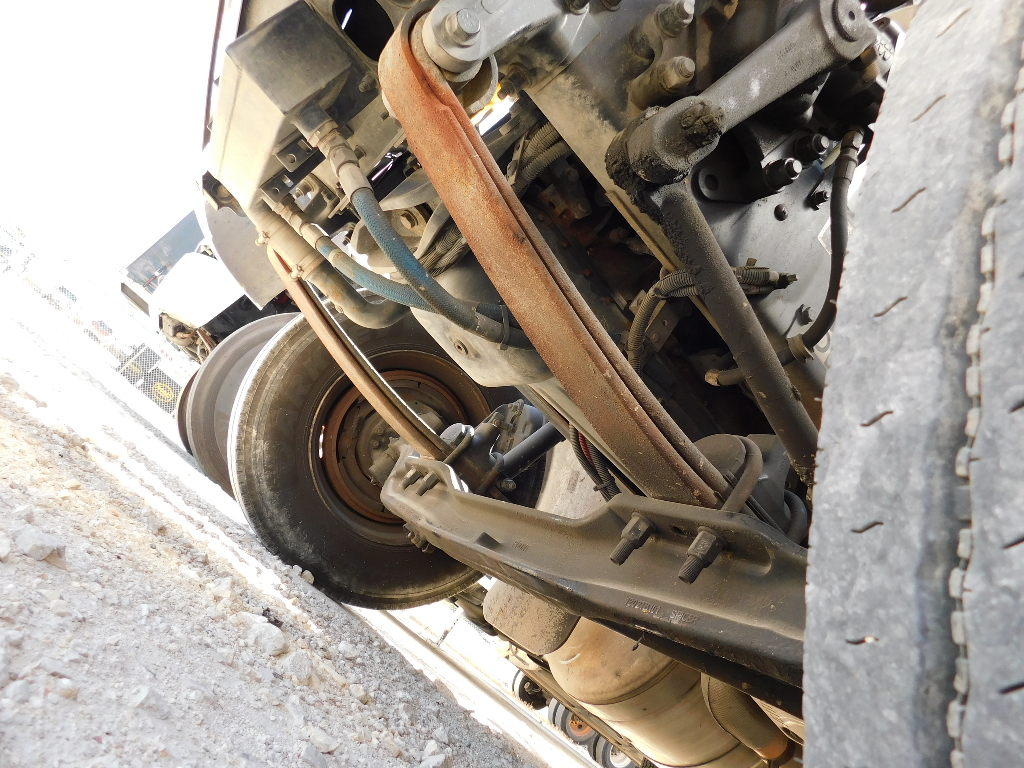

| Suspension | AIR RIDE |
| Wheelbase | 286" |
| Tire Size | 295/75R22.5 |
| Wheels | F STEEL / R STEEL |
| Rear D Type | ROLL-UP |

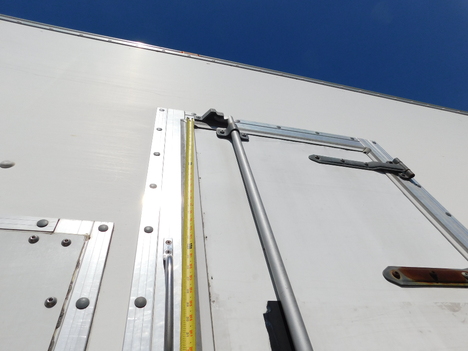

| R Door (In x In) | 93 X 91 |

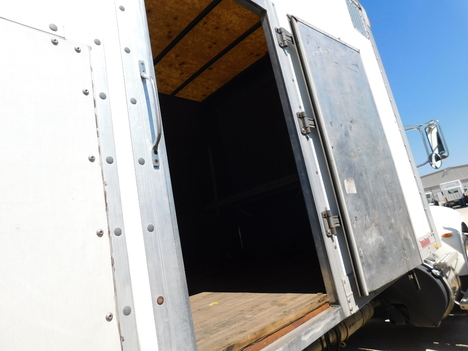

| Side D Type | SWING |

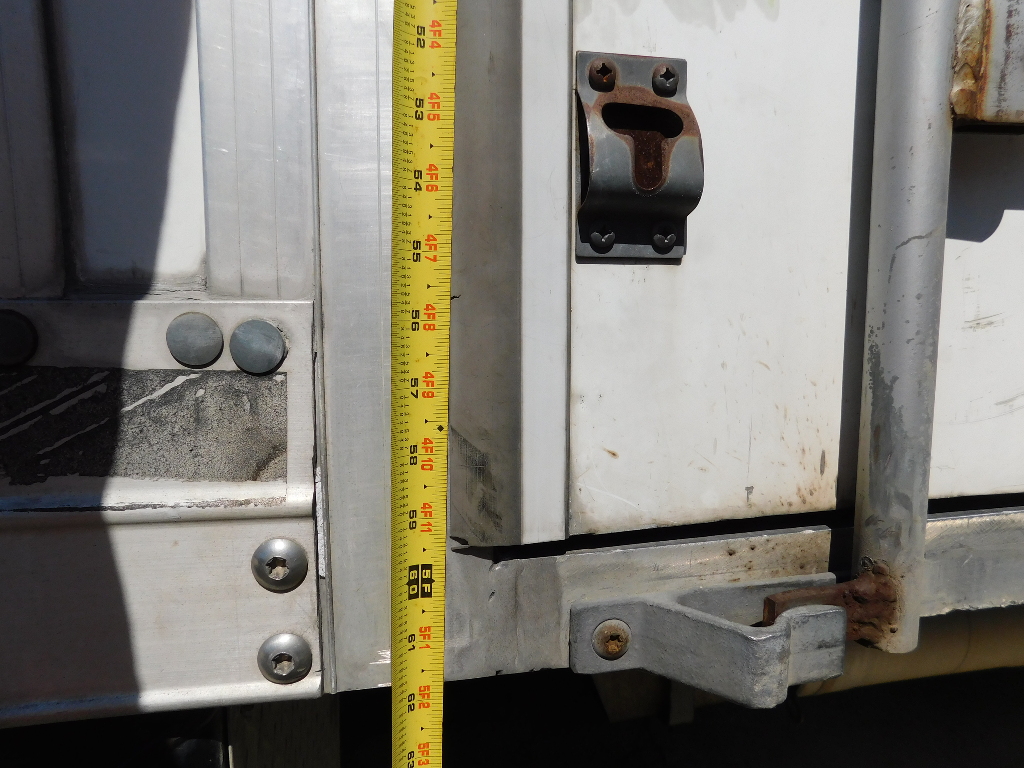

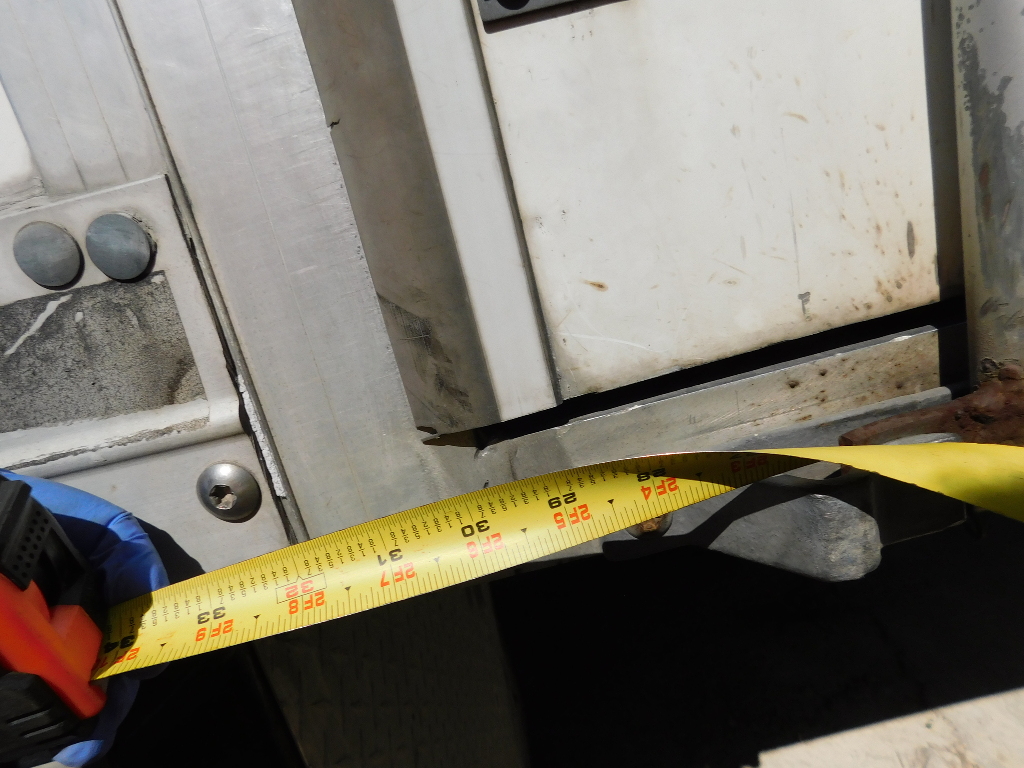

| S Door (In x In) | 60 X 30 |

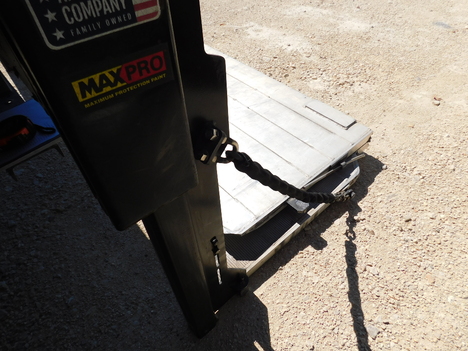

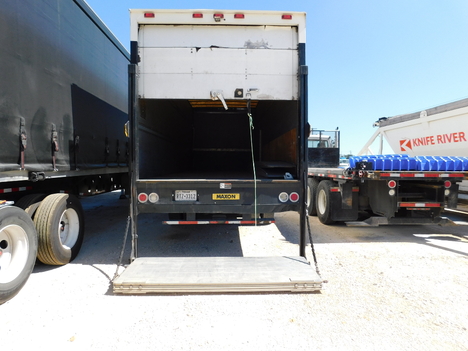

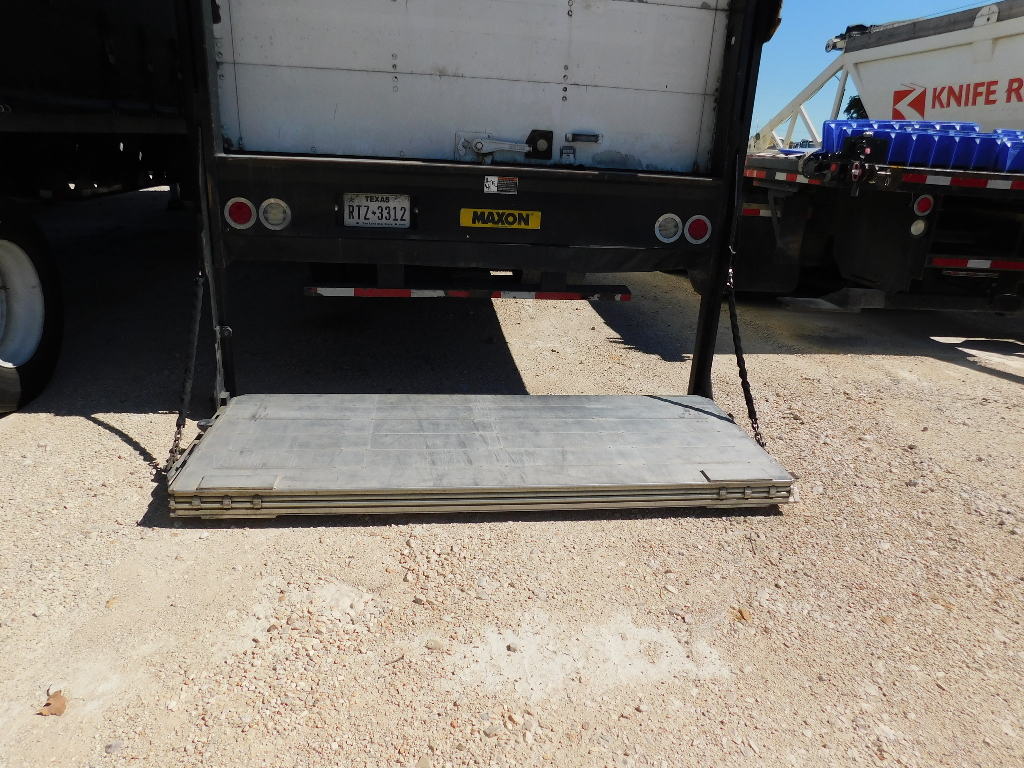

| Lift Gate Make | MAXON |
| Lift Gate Model | DMD |
| Lift Gate Capac (lbs) | 2200 |

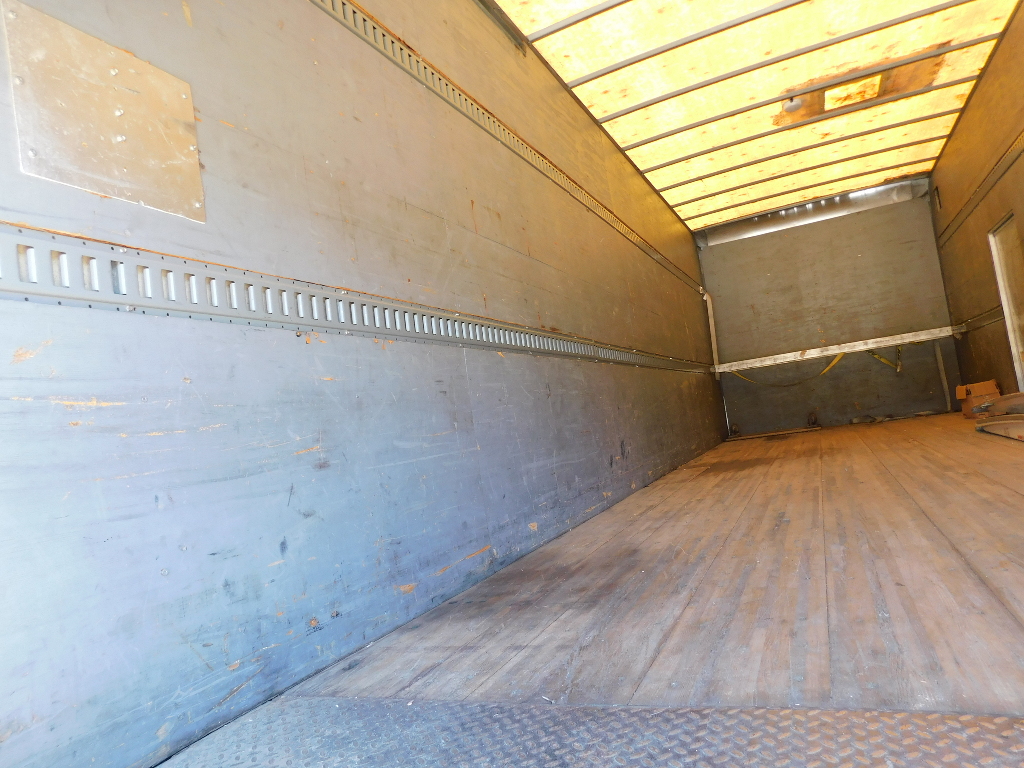

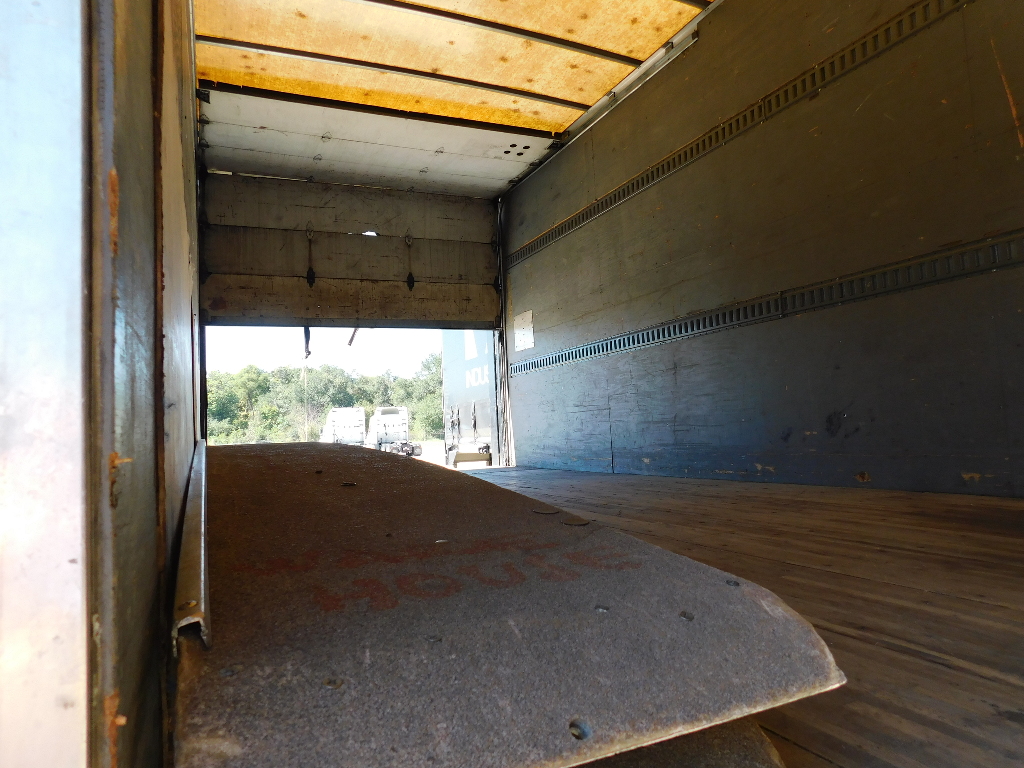

| Interior H (In) | 97 |
| Exterior W (In) | 102 |
| Exterior L (Ft) | 24.0 |
| Air Cond | YES |
| Interior Color | GRAY |
| Radio | AM/FM, NOT OPERATIONAL |

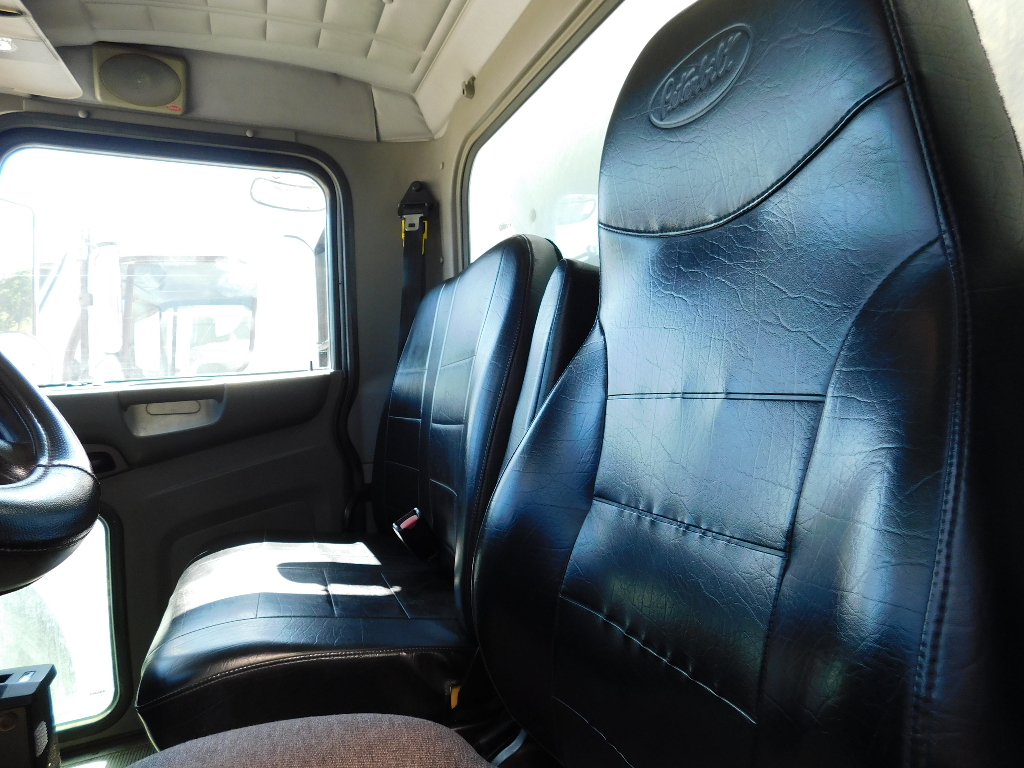

| High Back Seats | DRIVER SIDE ONLY |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | CHROME |

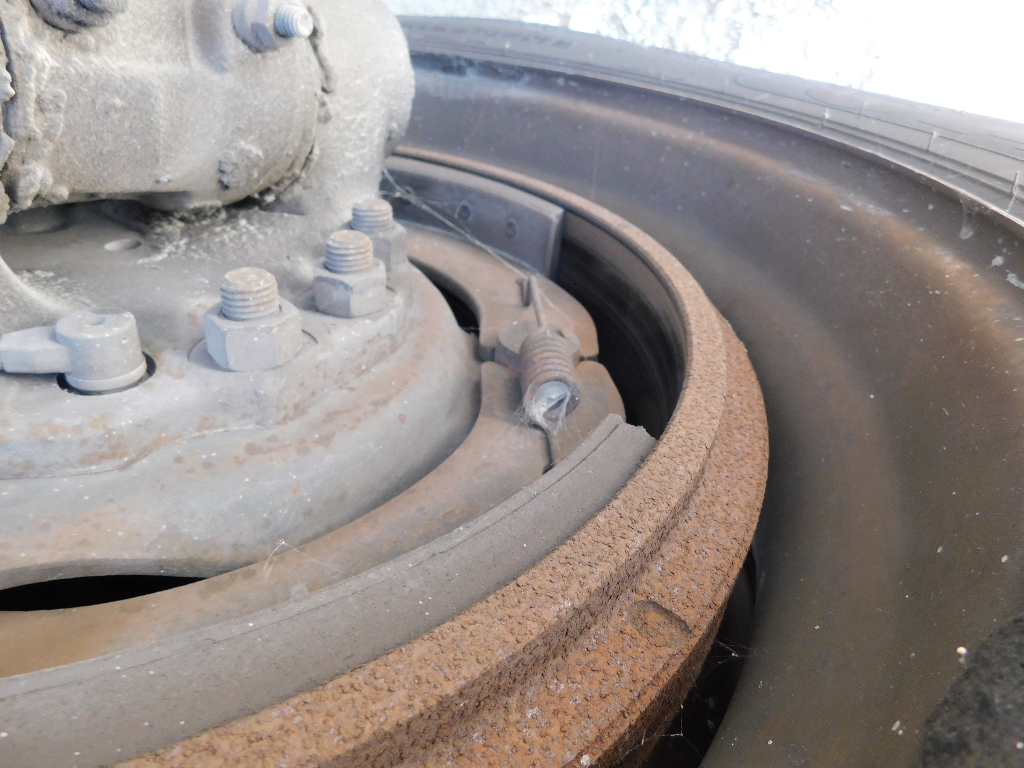

| Brakes | |
|---|---|
| Left Front21 | Right Front23 |
| Left Rear 126 | Right Rear 125 |

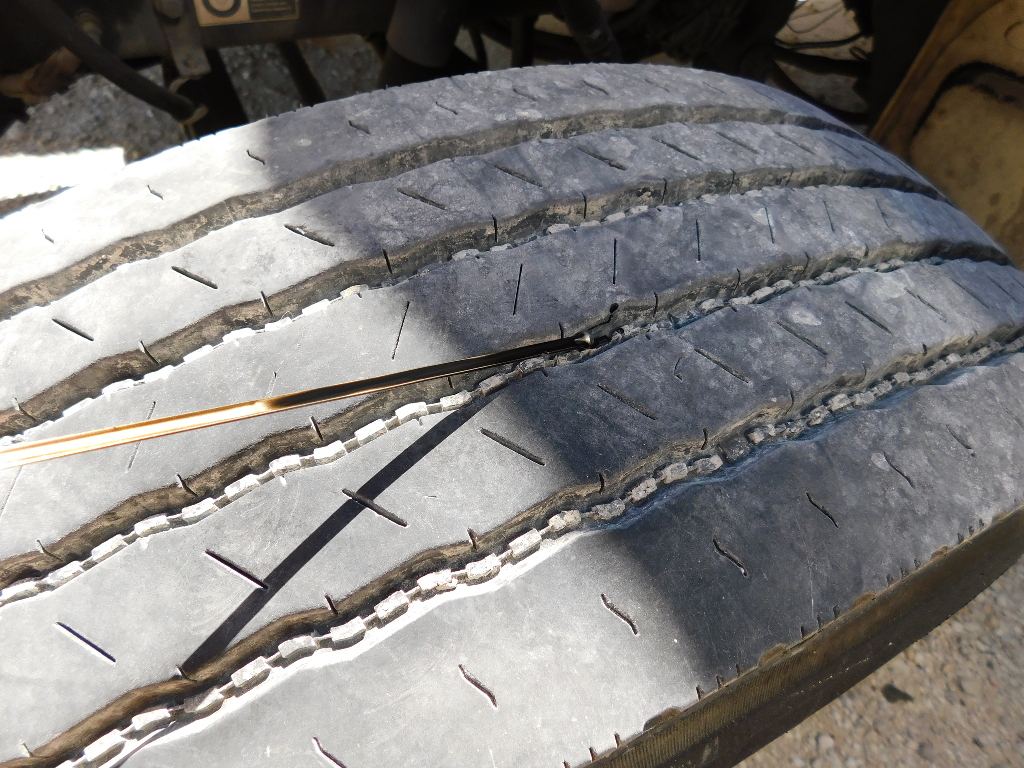

| Tires & Wheels | |||
|---|---|---|---|
|
Left Front12 / 32 Steel |
Right Front12 / 32 Steel |
||
|

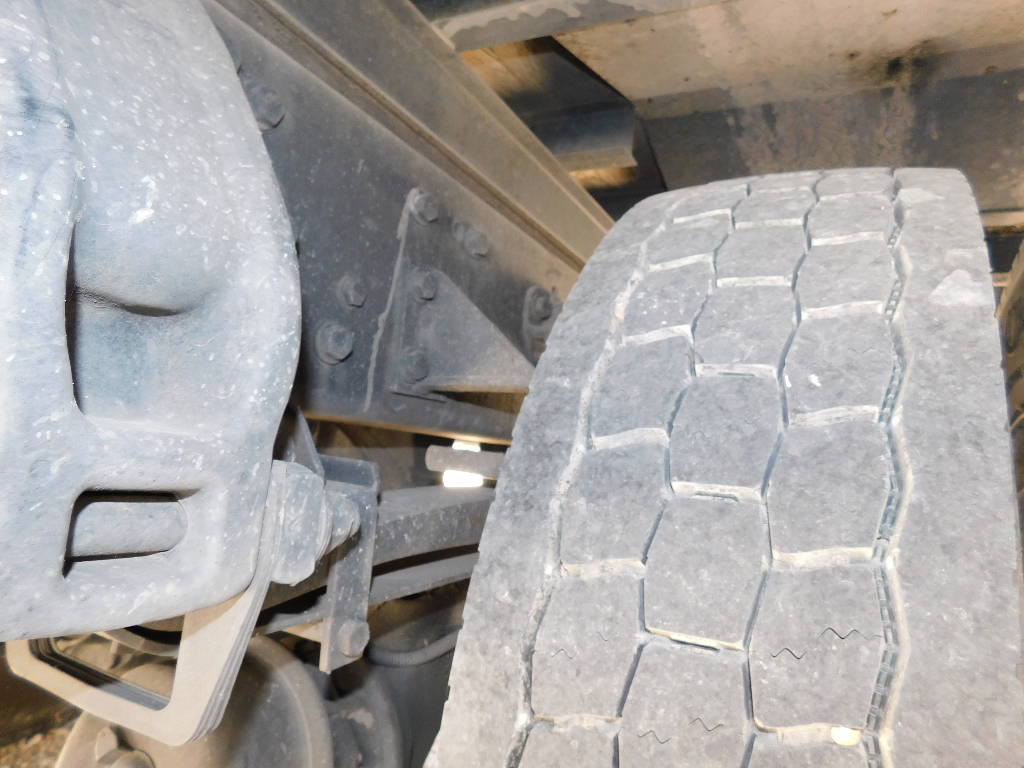

Left Outer 116 / 32 Falken Steel |
Left Inner 115 / 32 Falken Steel |
Right Inner 119 / 32 Falken Steel |
Right Outer 122 / 32 Falken Steel |
| FRONT TIRES: 295/75R22.5 | REAR TIRES: 295/75R22.5 | ||
| Additional Tire Detail |
|---|
| STEER tires ARE BARKLEY BRAND |
| General Observations |
|---|
| Oil Milky? | No | Oil Leaks? | See Notes | Water Leaks? | No | Oil in Coolant? | No | Clutch Play? | NA | Starts? | Yes | Drives | Yes |
|---|
| Lights Work? | Yes - All | Wipers Work? | Yes | Gauges Work? | Yes - All | Air Horn Works? | Yes | City Horn Works? | Yes |
|---|
| Diesel Particulate Filter | PASS |
|---|
| Additional Observations | |
|---|---|

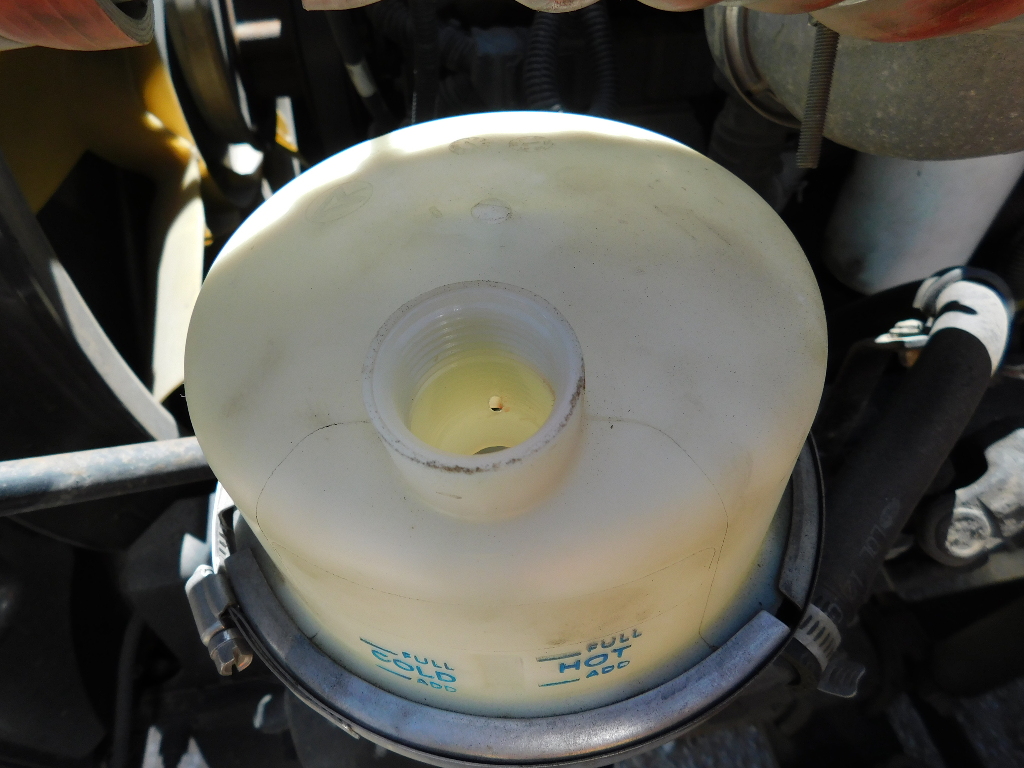

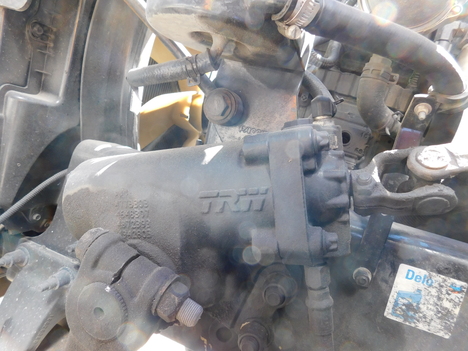

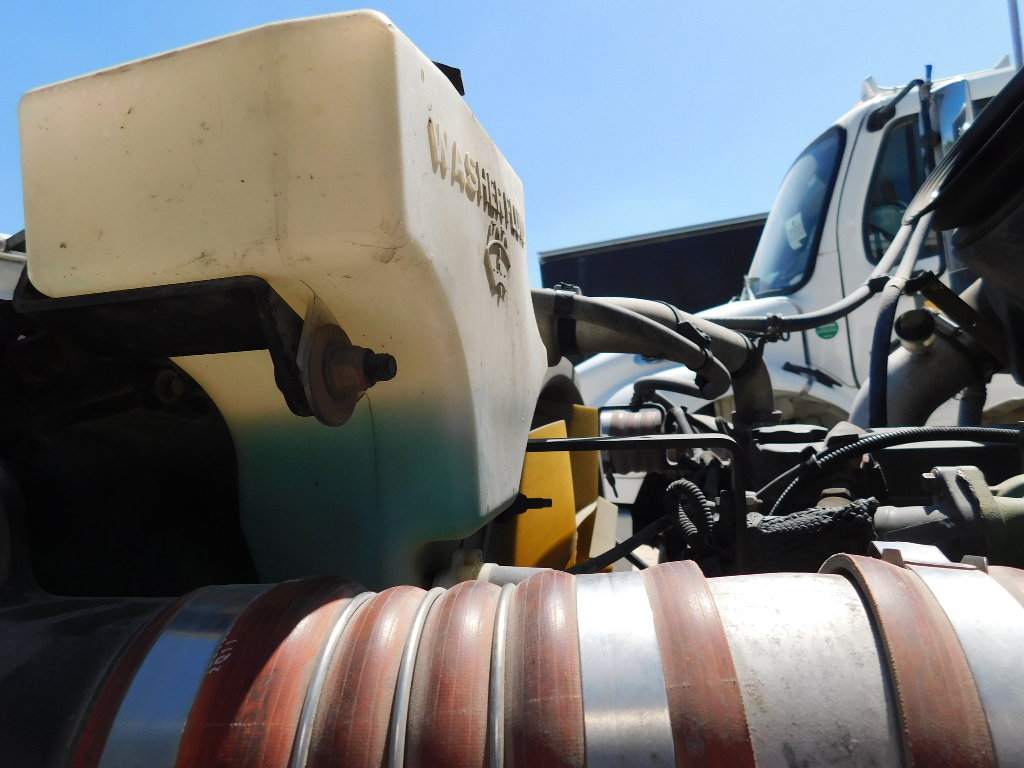

| wiper washer fluid low. wiper blade for driver's side needs replacing, the arm is scratching the glass. power steering reservoir is empty. | |
| Wear & Tear Detail | |
|---|---|

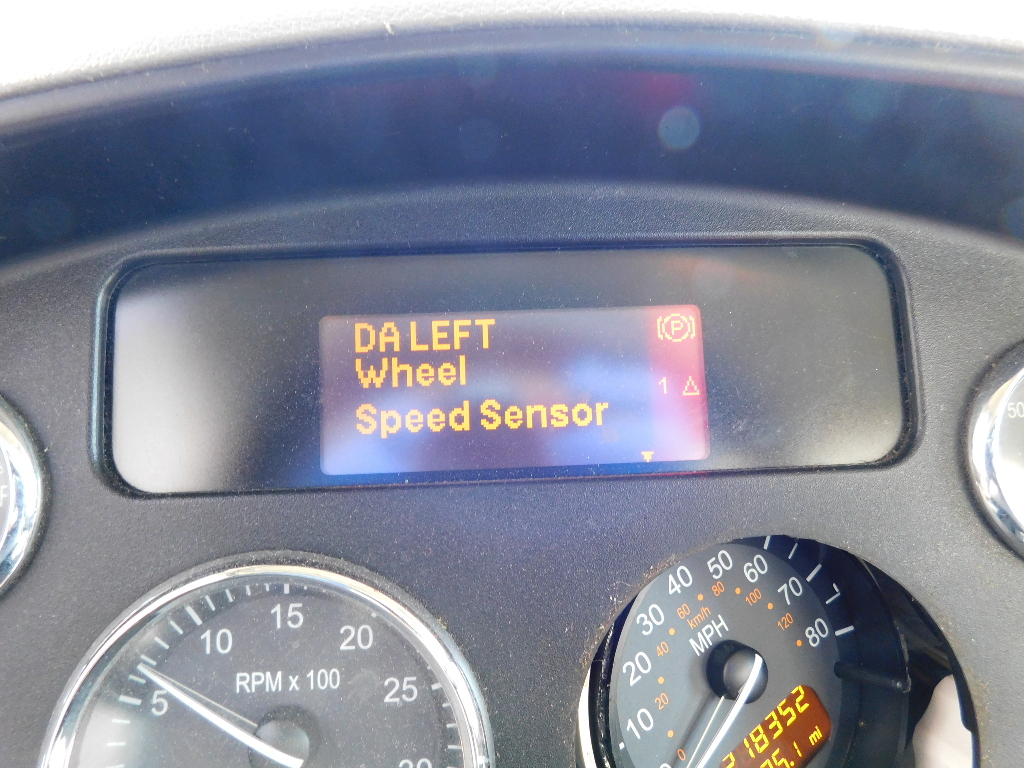

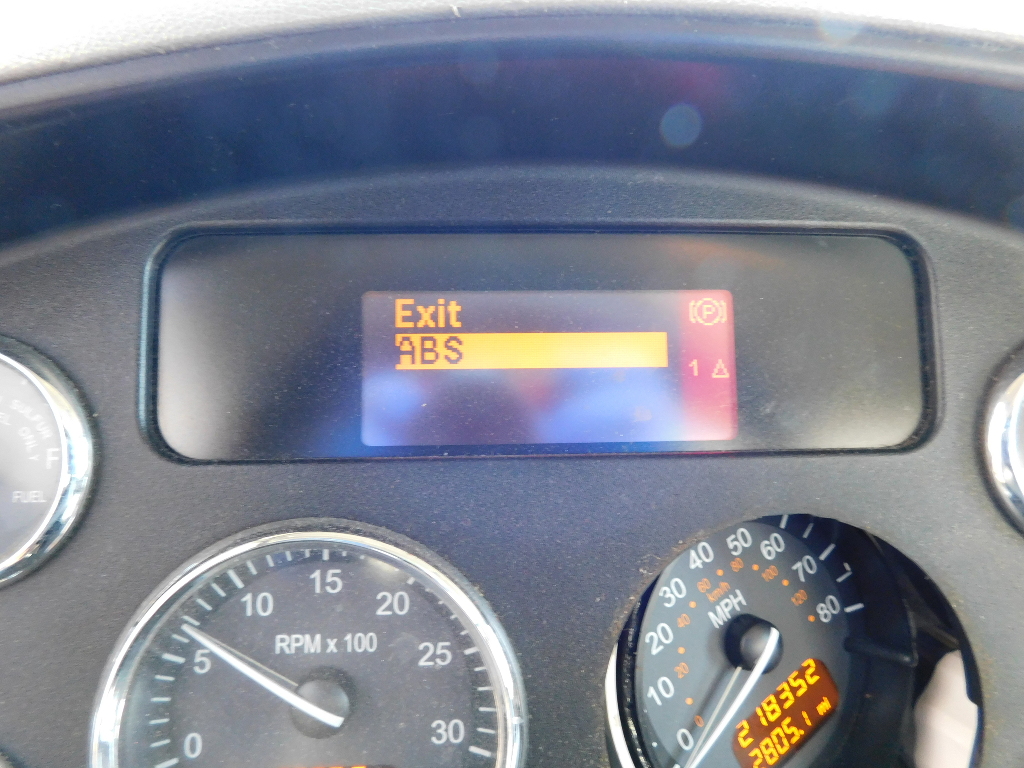

| DIAGNOSTICS | 3 ACTIVE FAULTS DETECTED - (SEE ECM REPORT) |

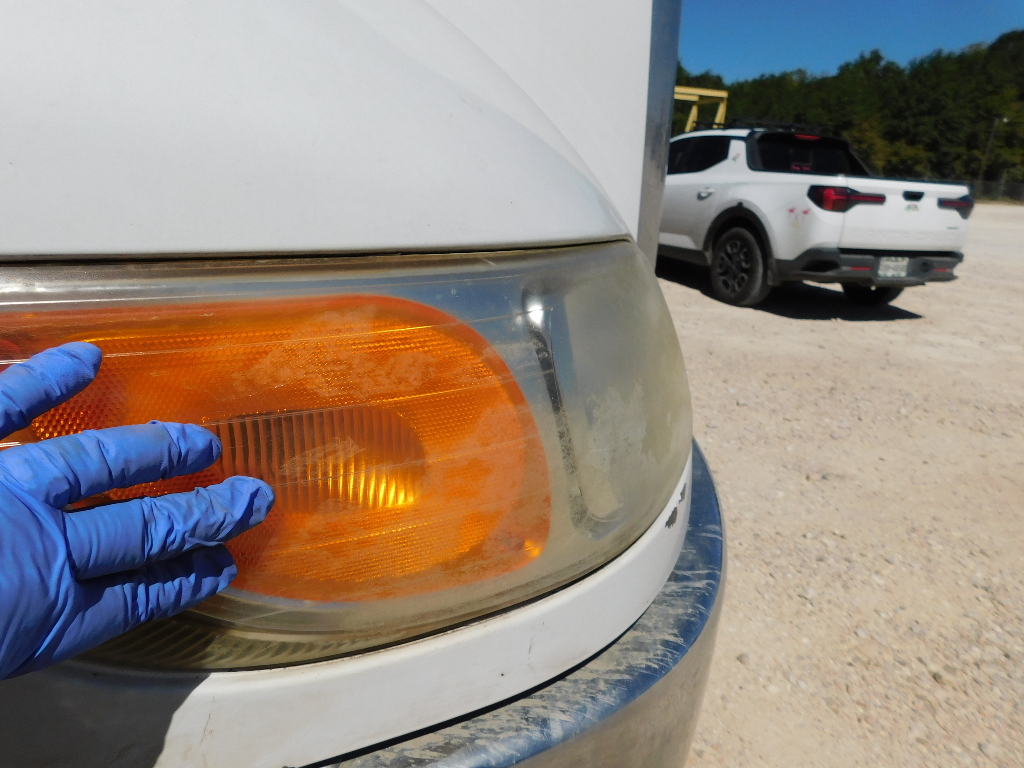

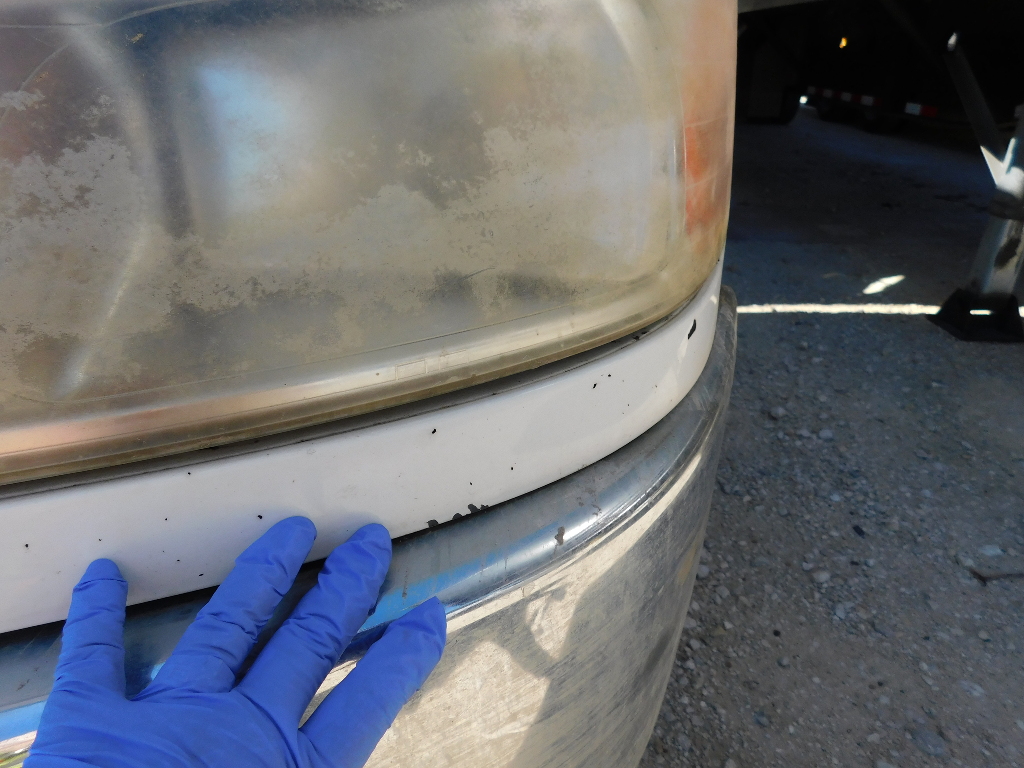

| HEADLIGHT LENSES | BOTH ARE HAZY |

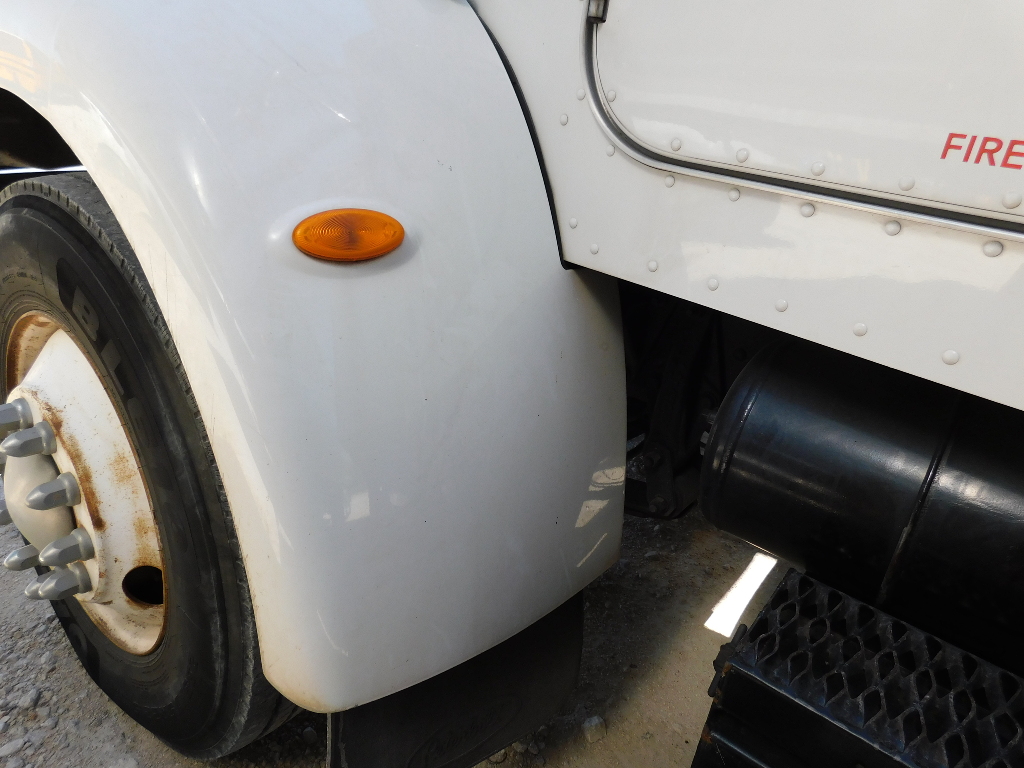

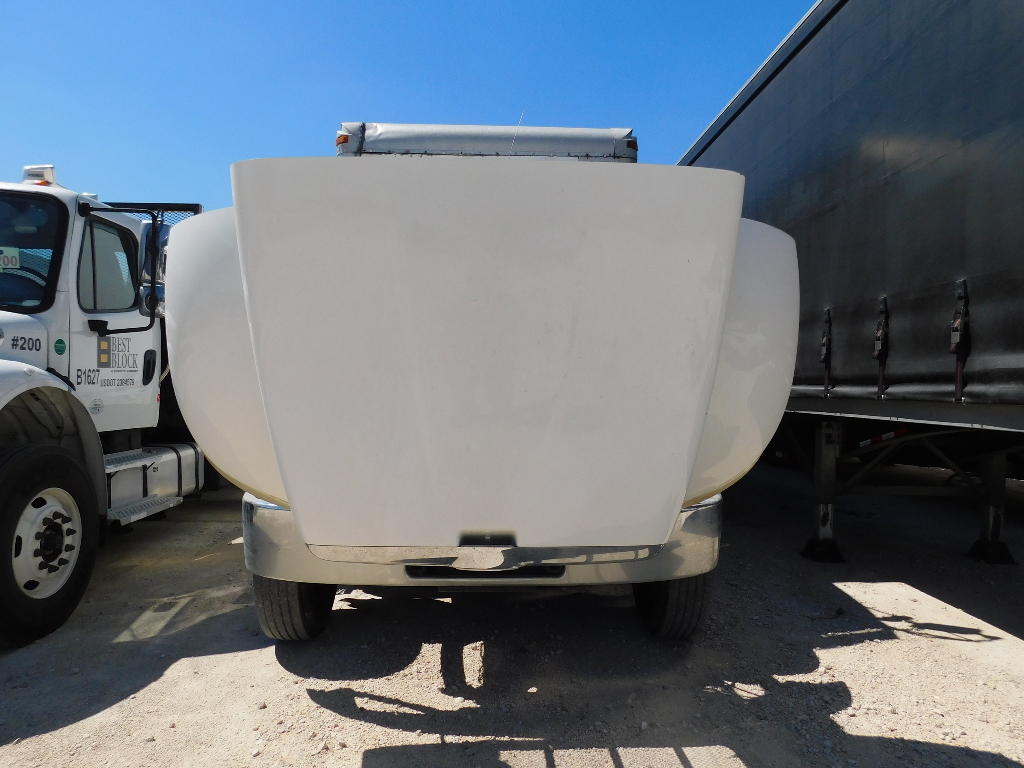

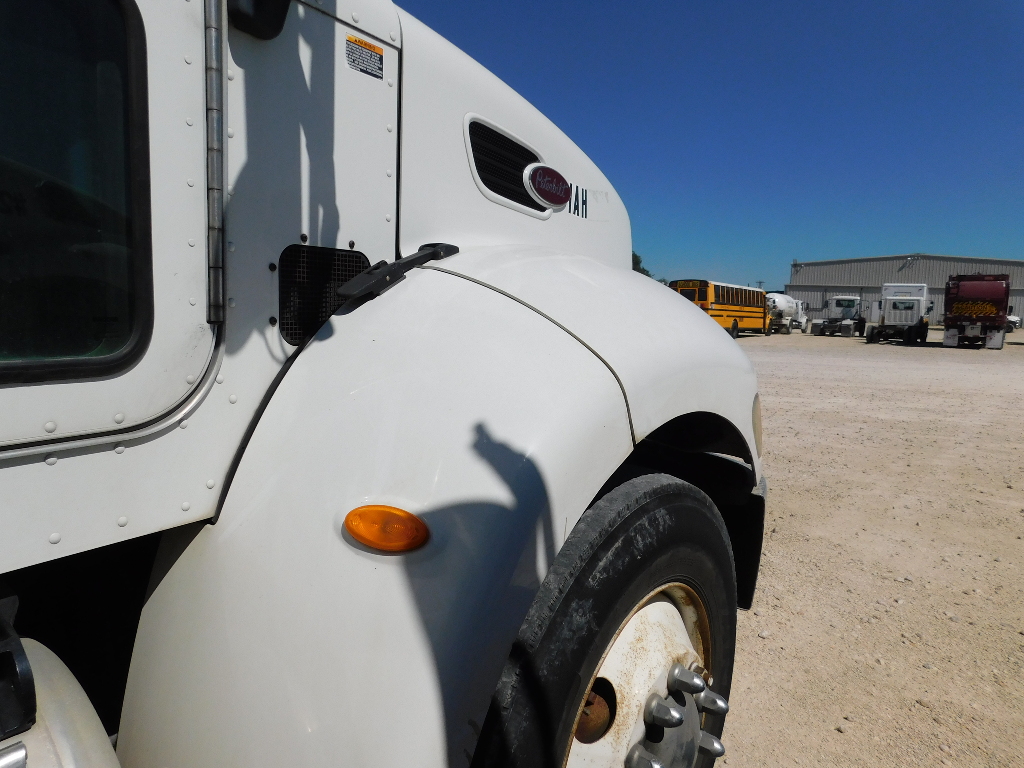

| HOOD/FENDERS (FRONT) | BOTH SIDES HAVE CHIPPED PAINT AROUND THE HEADLIGHTS AND GRILLE. HOOD EDGE BY WINDSHIELD IS CHIPPED ON THE D/S. |

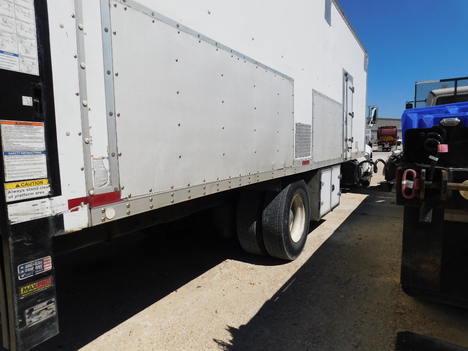

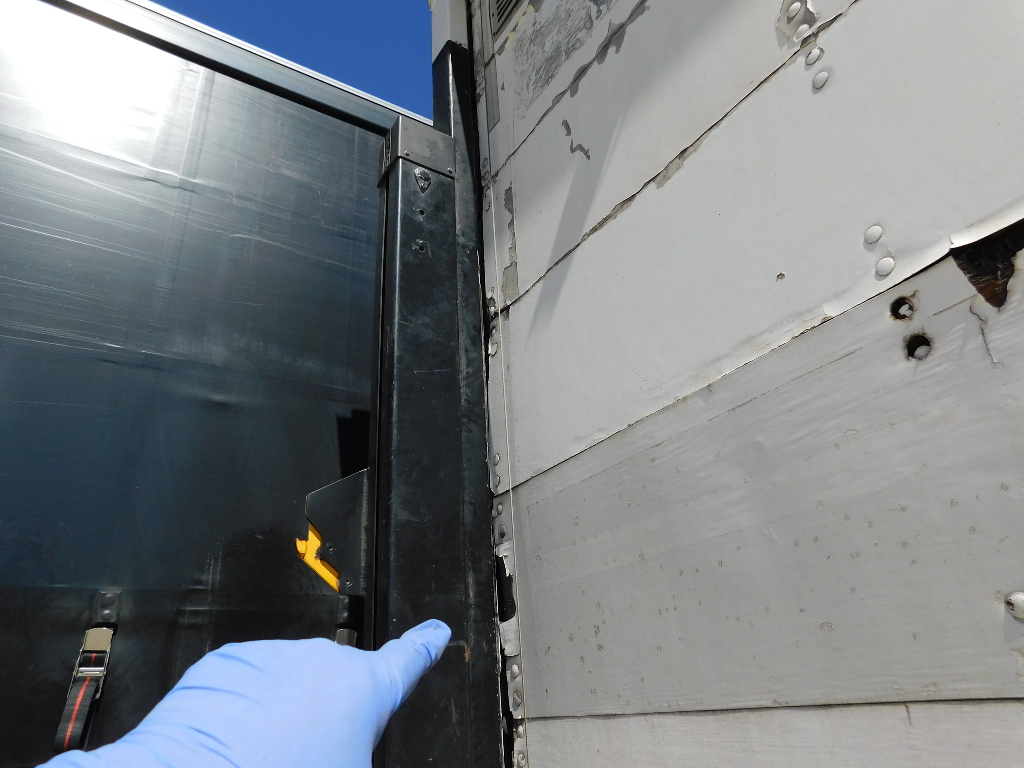

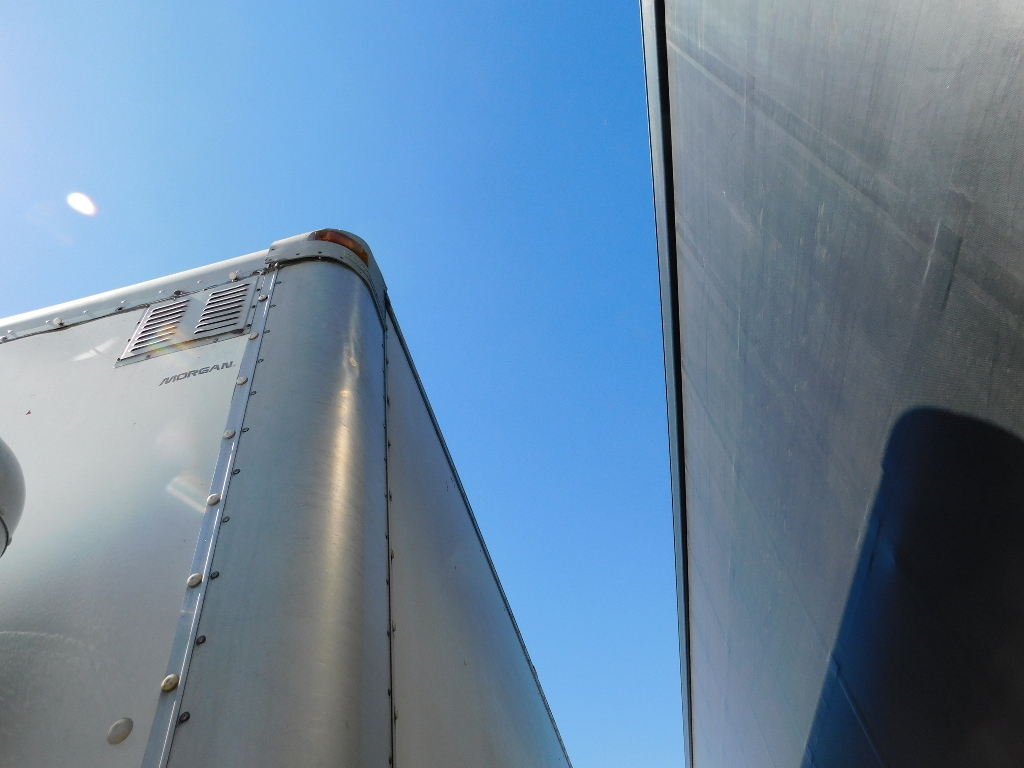

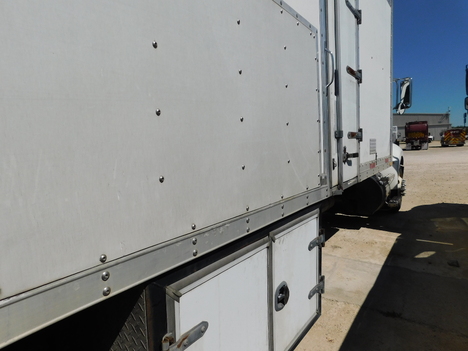

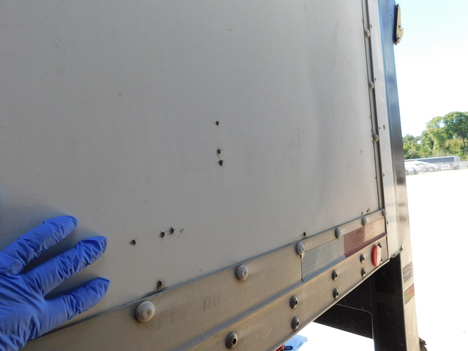

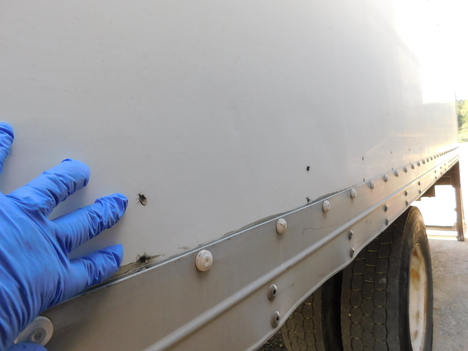

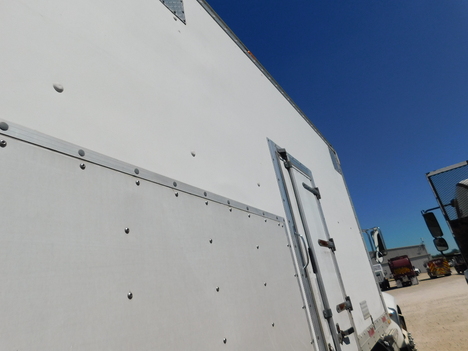

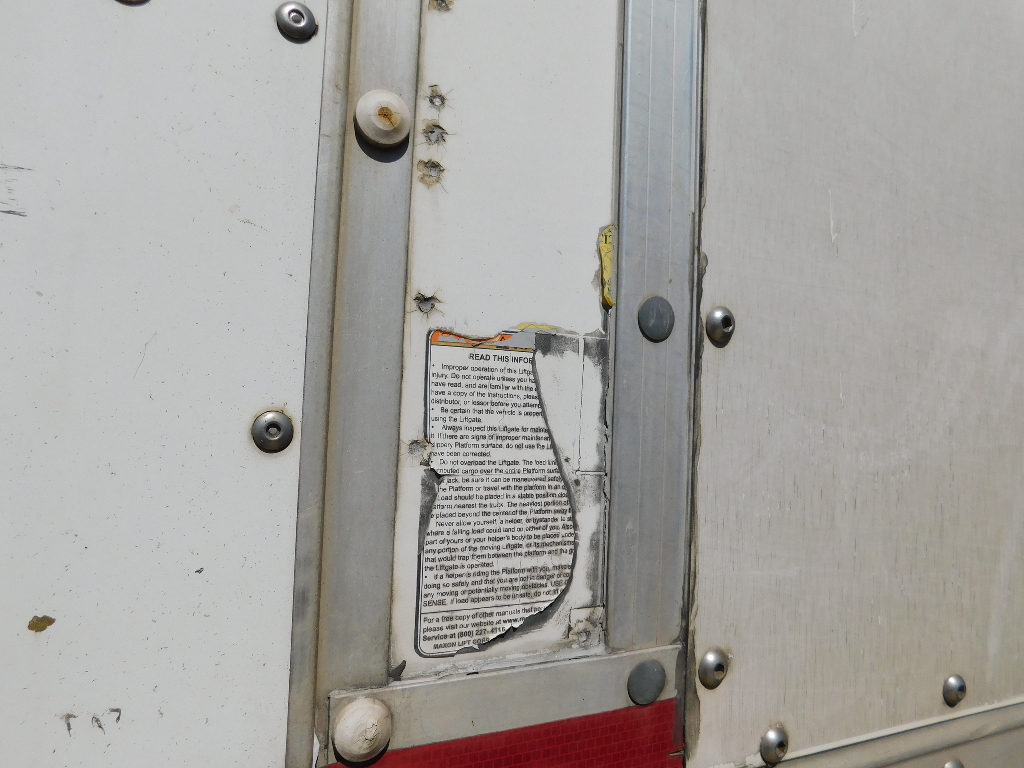

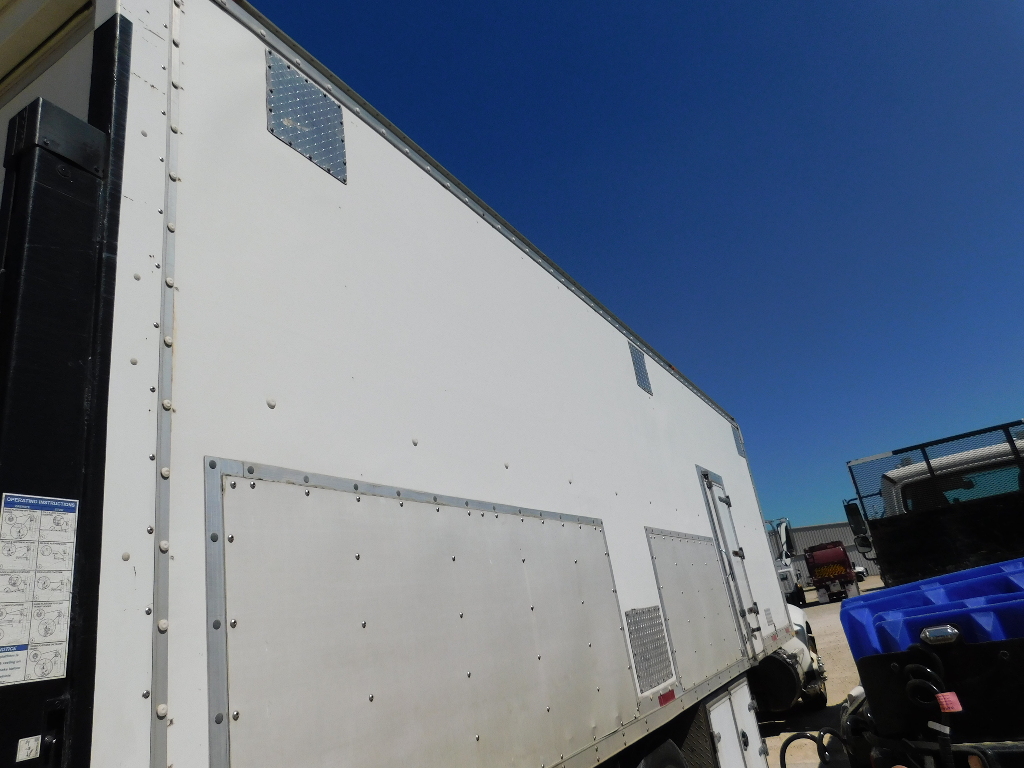

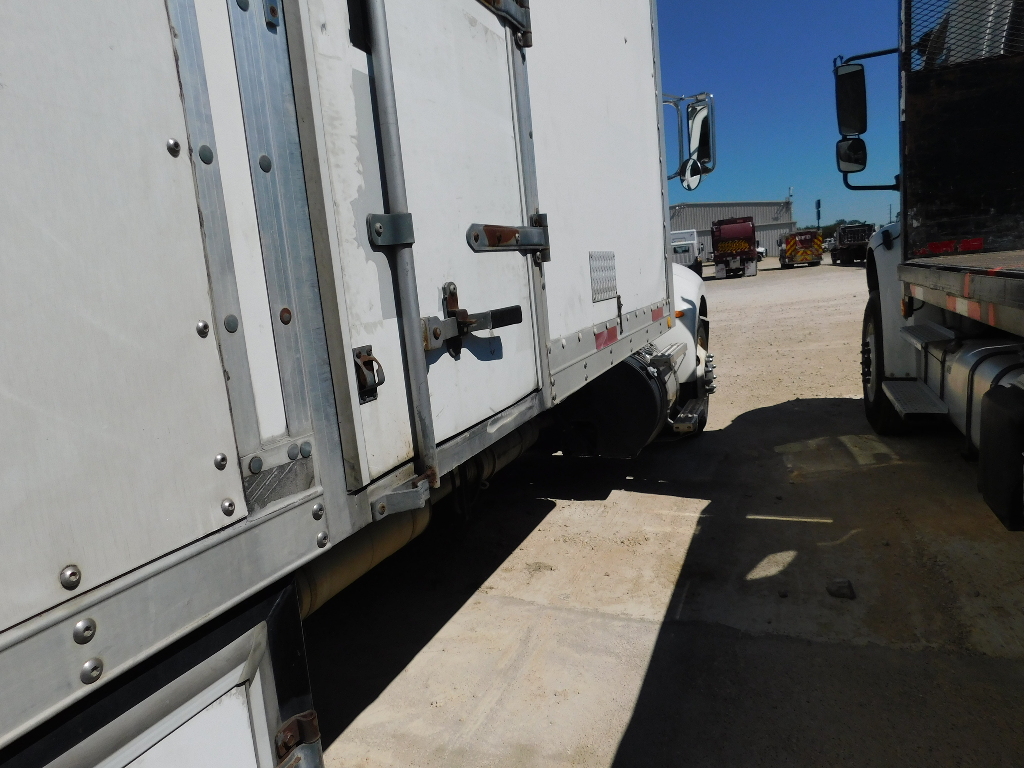

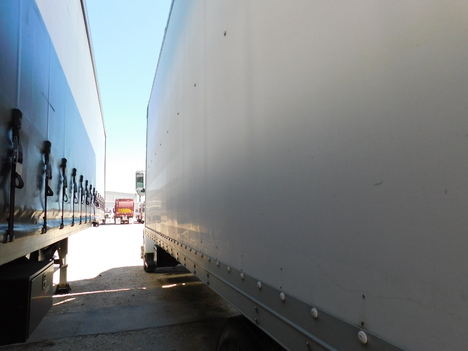

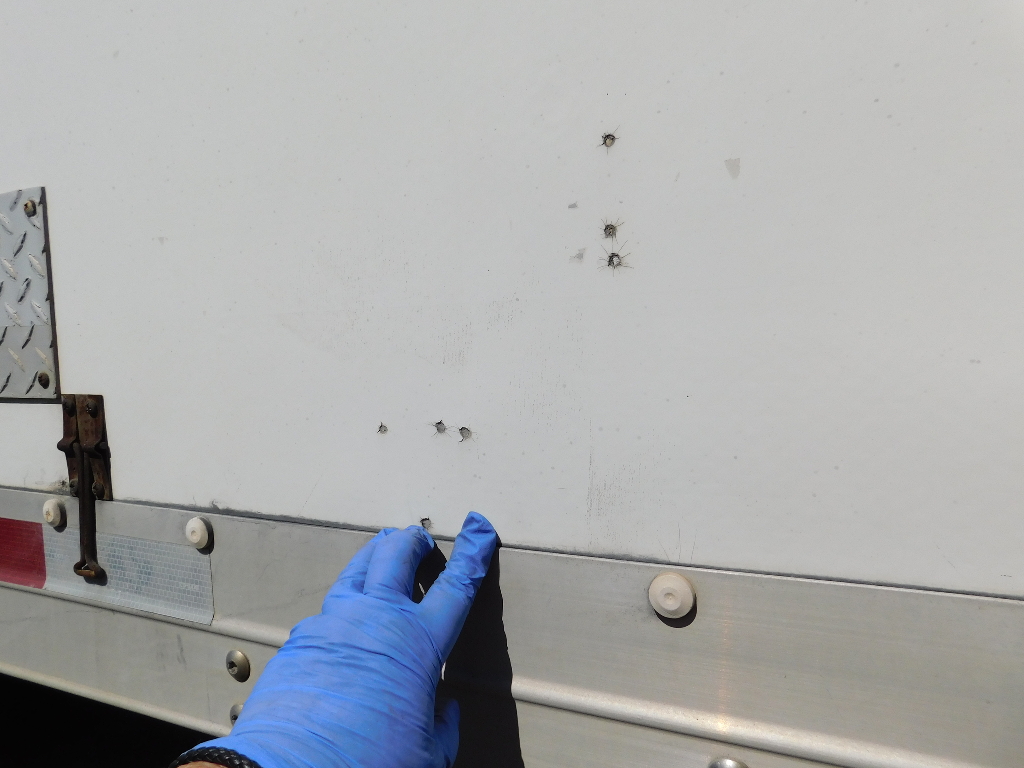

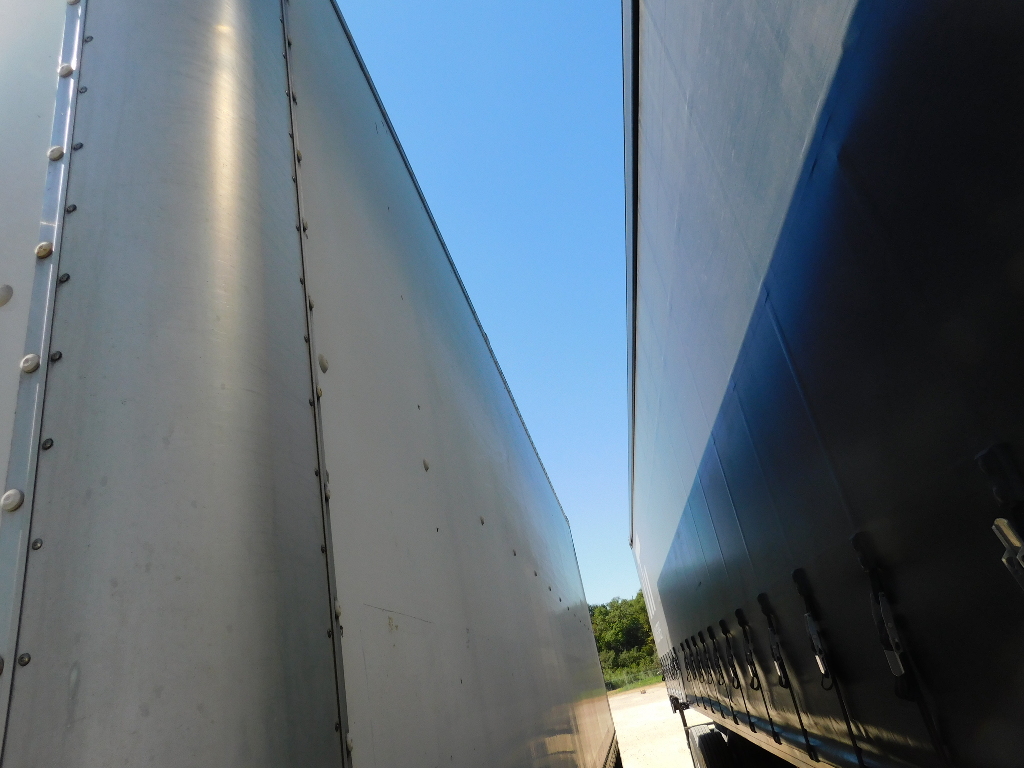

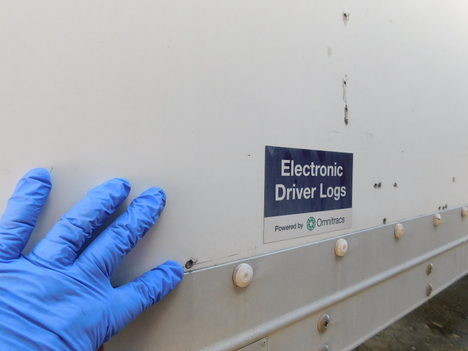

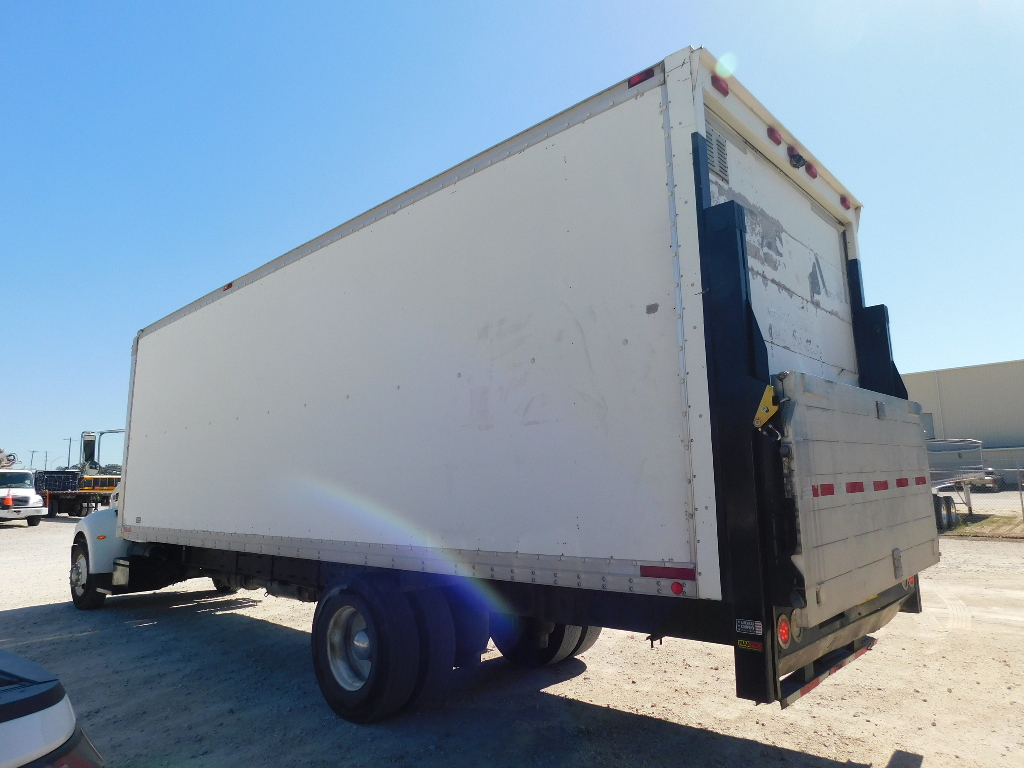

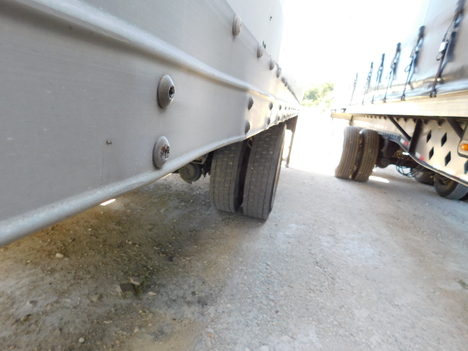

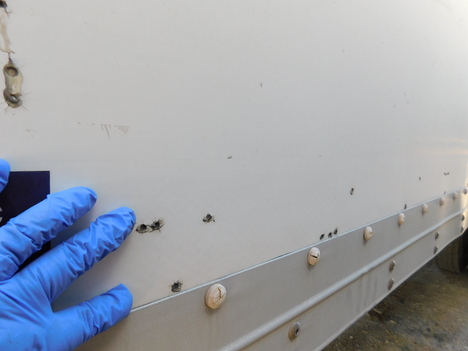

| BOX EXTERIOR | D/S HAS HOLES IN THE PANELS JUST ABOVE THE FRAME AS IF THERE WAS ANOTHER ALUMINUM PIECE THAT WENT THERE. THE LOWER FRAME HAS RIPPLED METAL. P/S HAS DIAMOND PLATE PATCHES AT THE TOP. HOLES TO THE PANELING UP FRONT BY THE FRAME AS ON THE OTHER SIDE. TOP FRONT CORNERS HAVE SMALL DENTS AT THE TOP. THE P/S HAS A DENT WITH CALKING TO SEAL THE ROOF, TOP CORNER. |

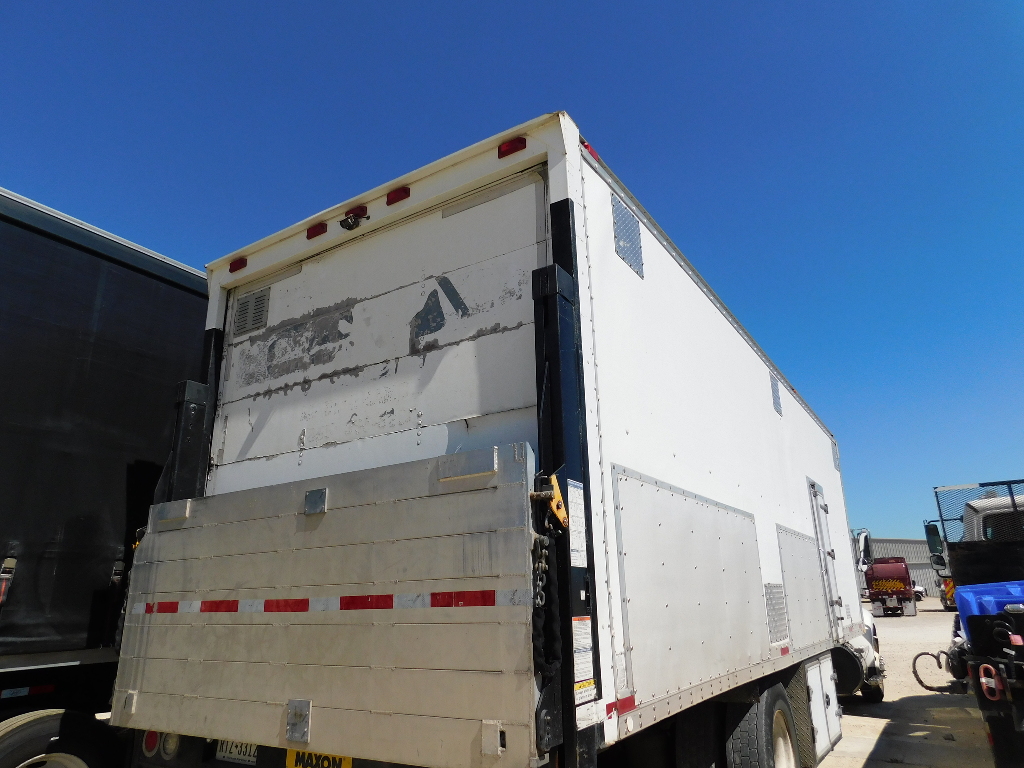

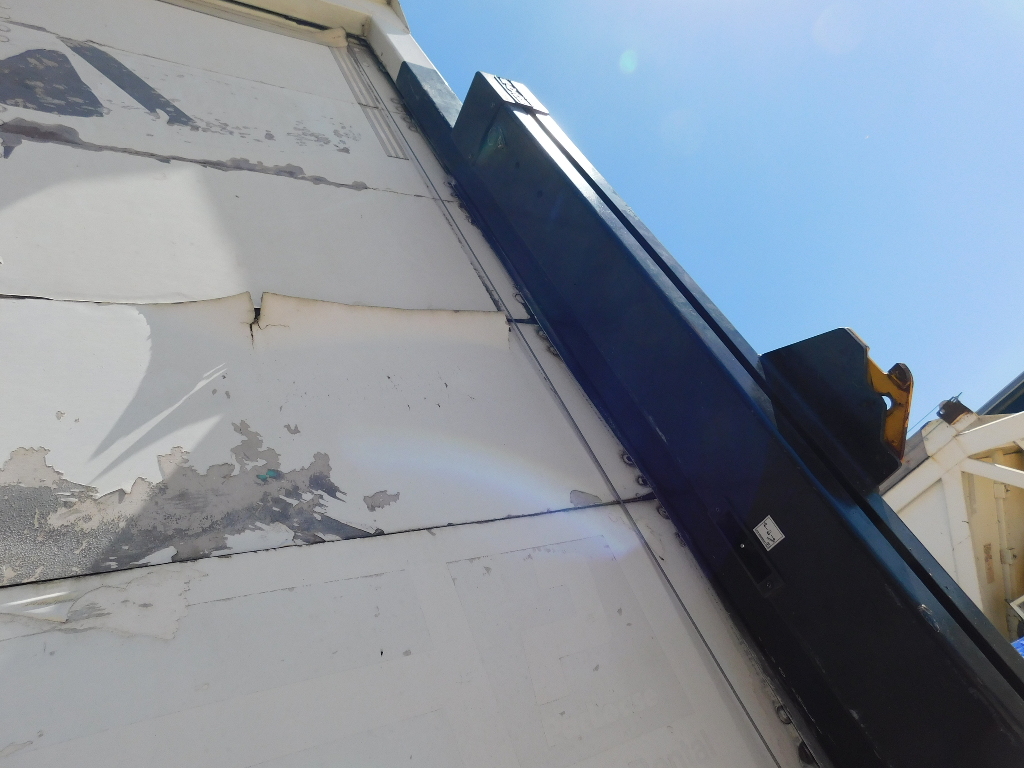

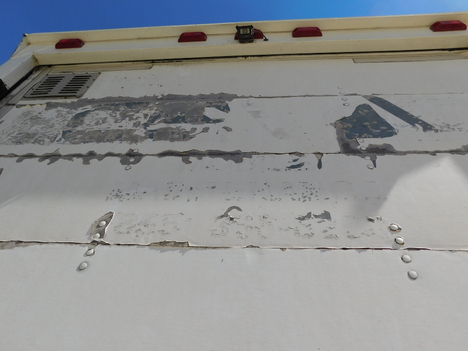

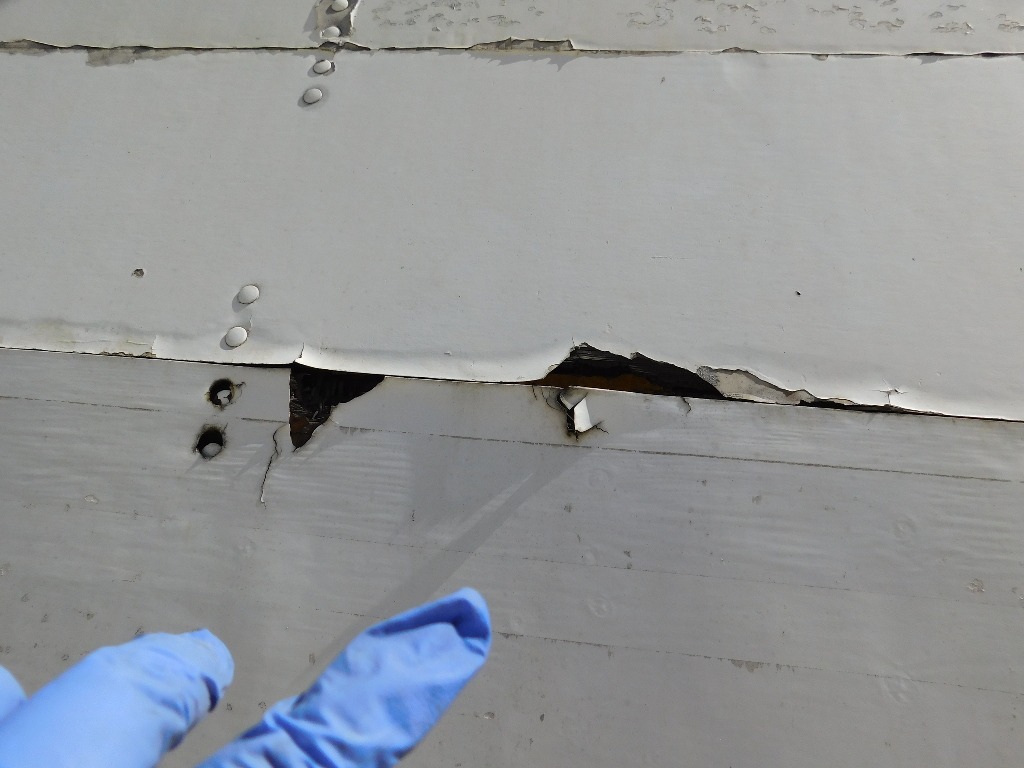

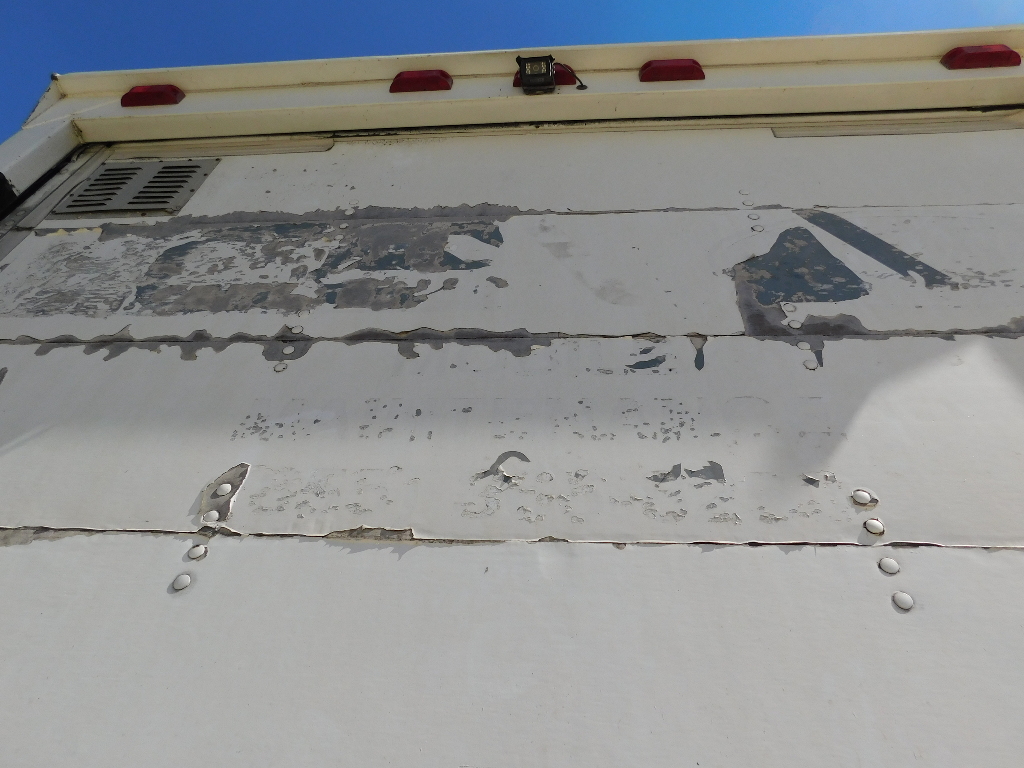

| REAR DOOR | TWO LOWER PANELS HAVE HOLES. THERE IS CHIPPED, SCRAPED, AND PEELED PAINT. |

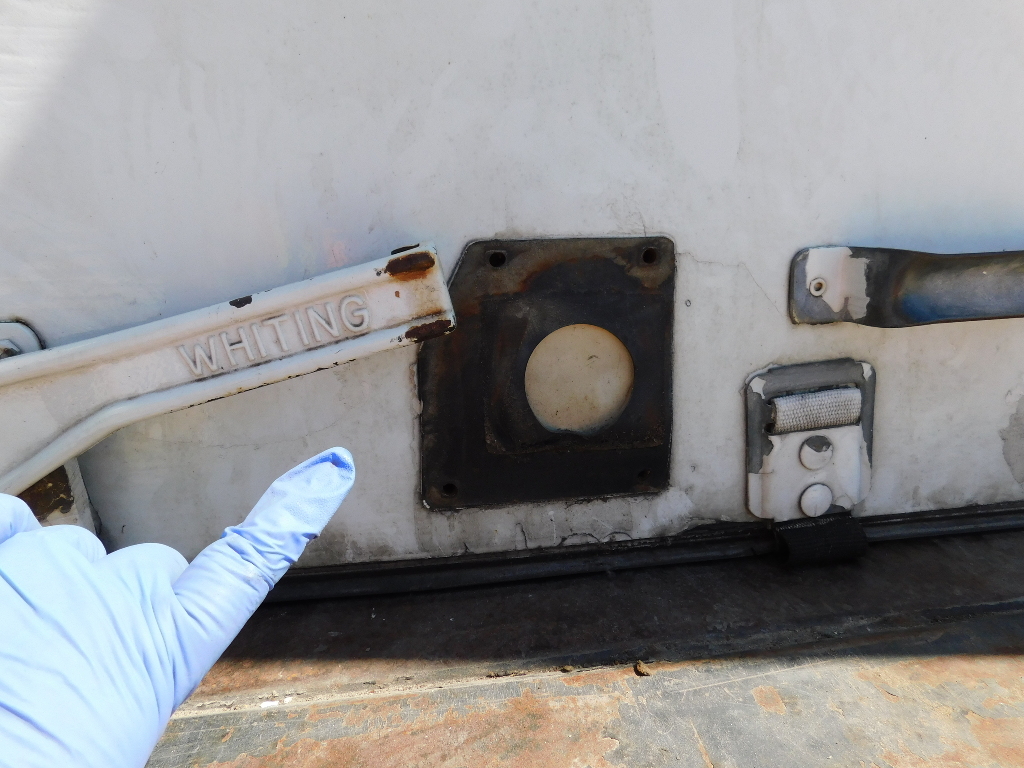

| REAR DOOR LOCK | THE MECHANISM IS MISSING |

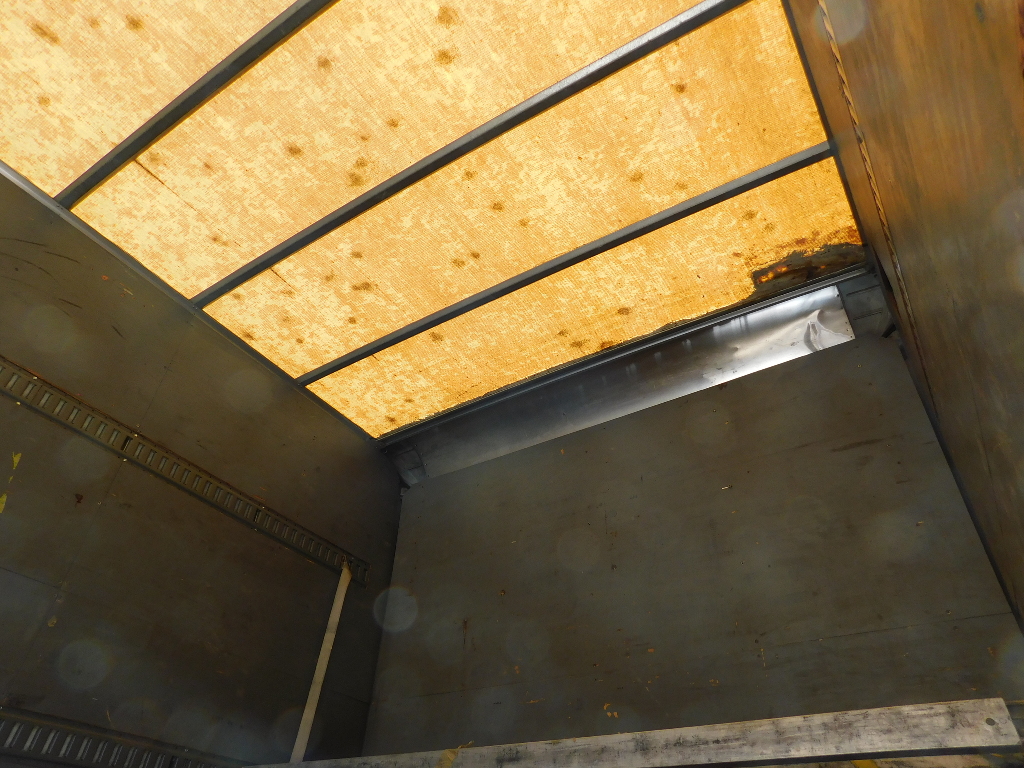

| BOX ROOF | IS PATCHED ON THE P/S |

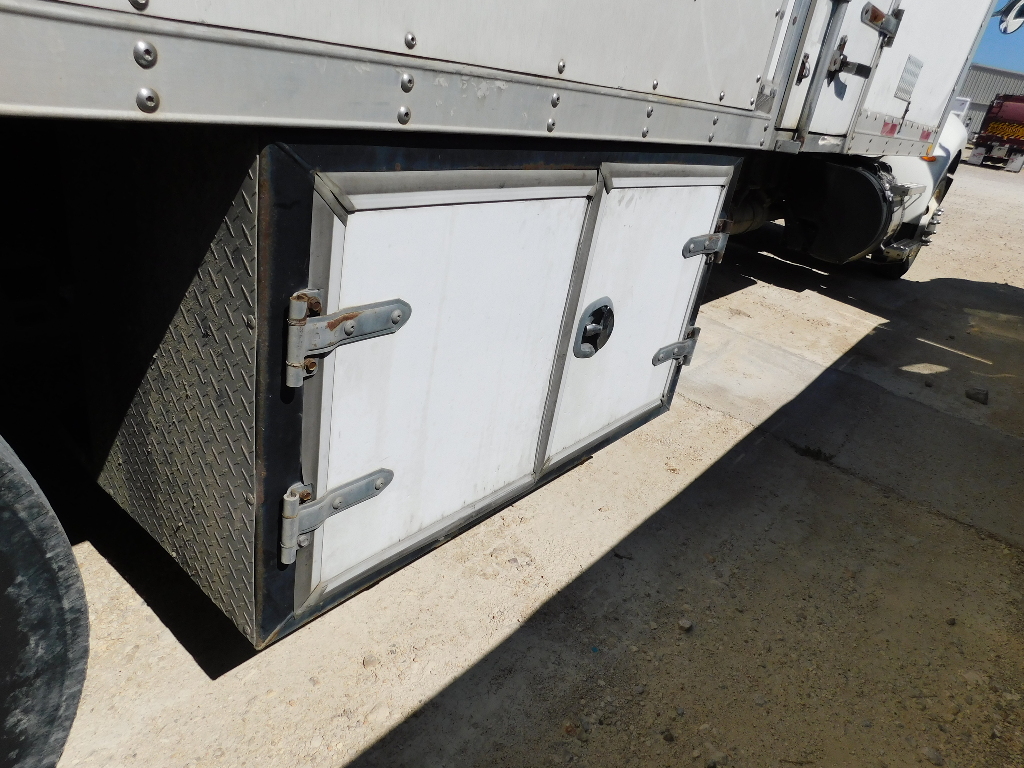

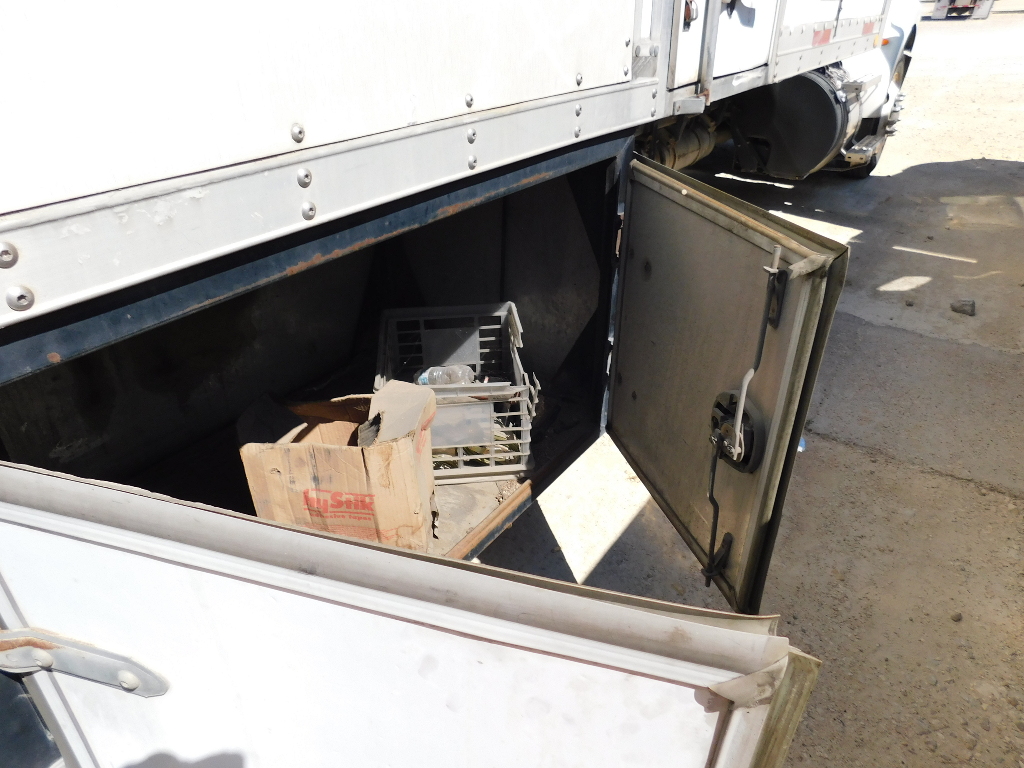

| TOOL BOX HANDLE | DOES NOT TURN TO LOCK |

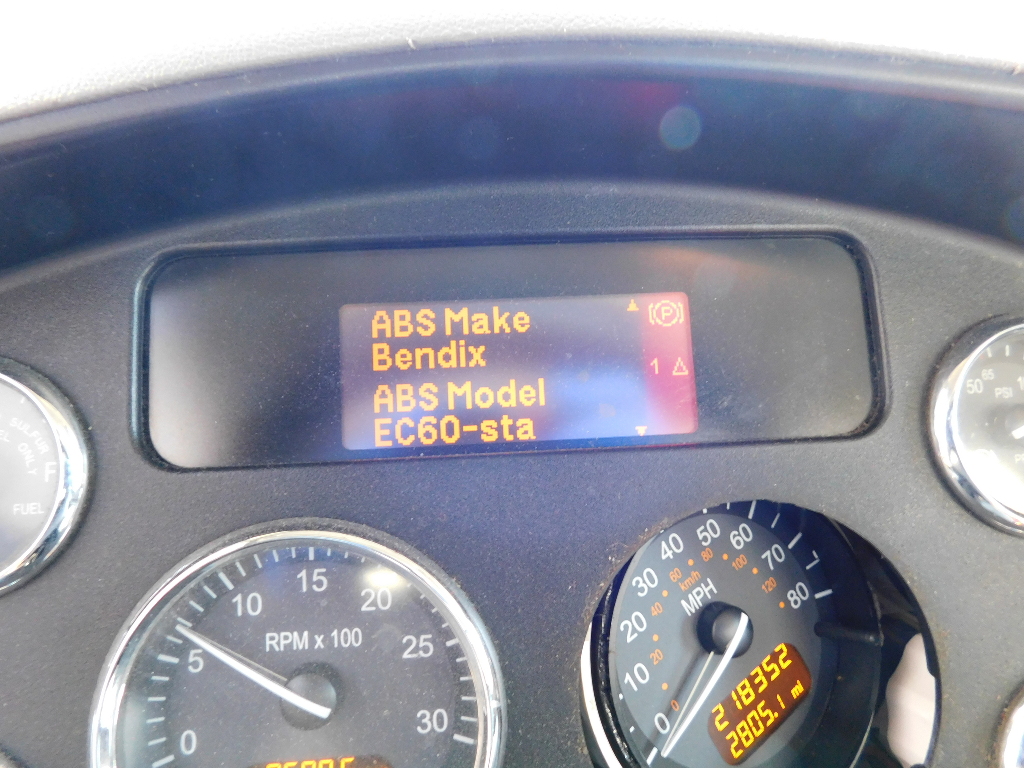

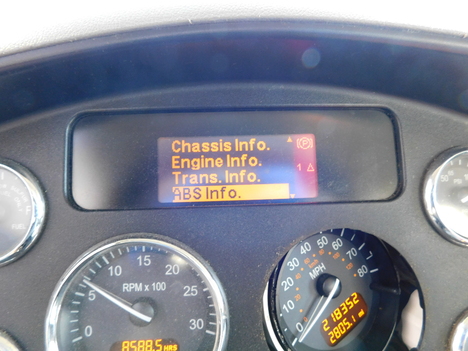

| SPEEDOMETER | IS POPPED OUT OF THE INSTRUMENT CLUSTER. |

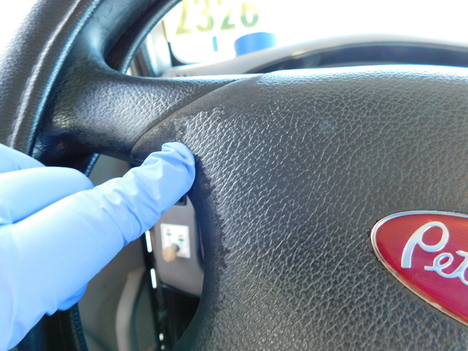

| STEERING WHEEL | IS WORN ON THE EDGES OF THE CENTER. |

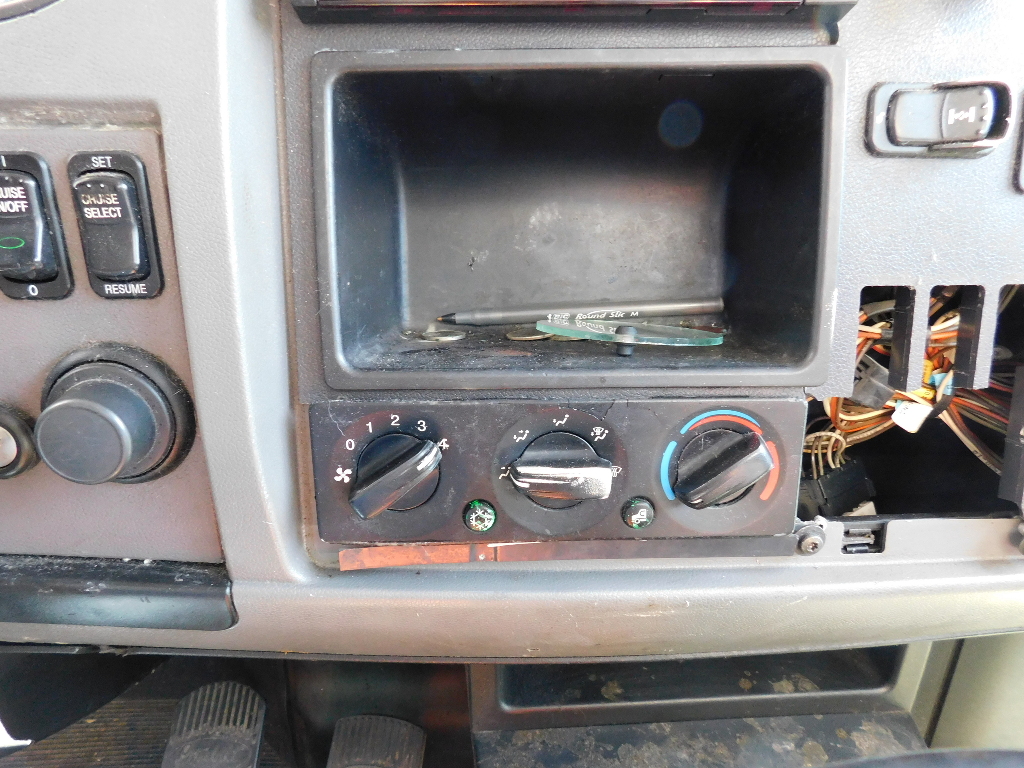

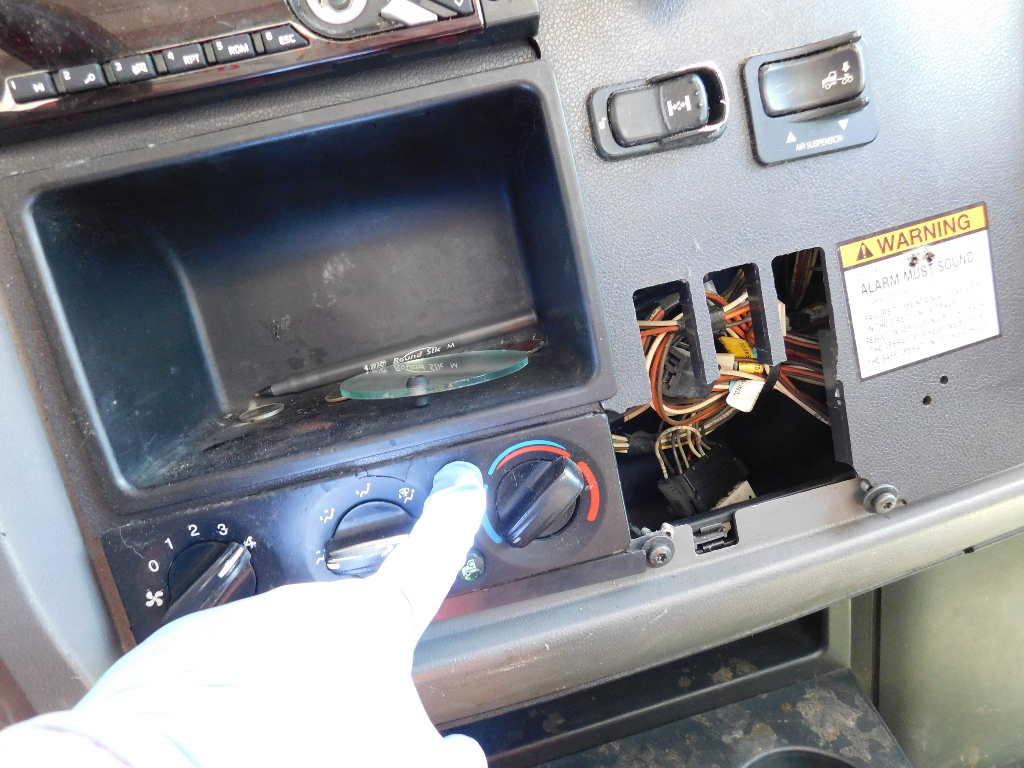

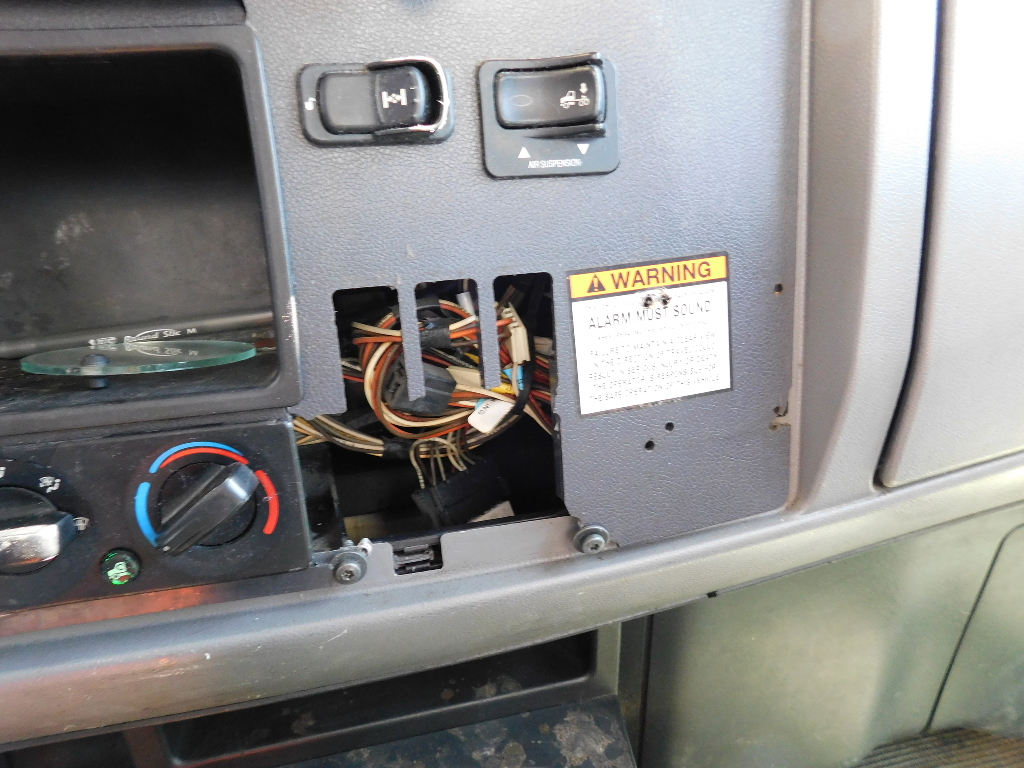

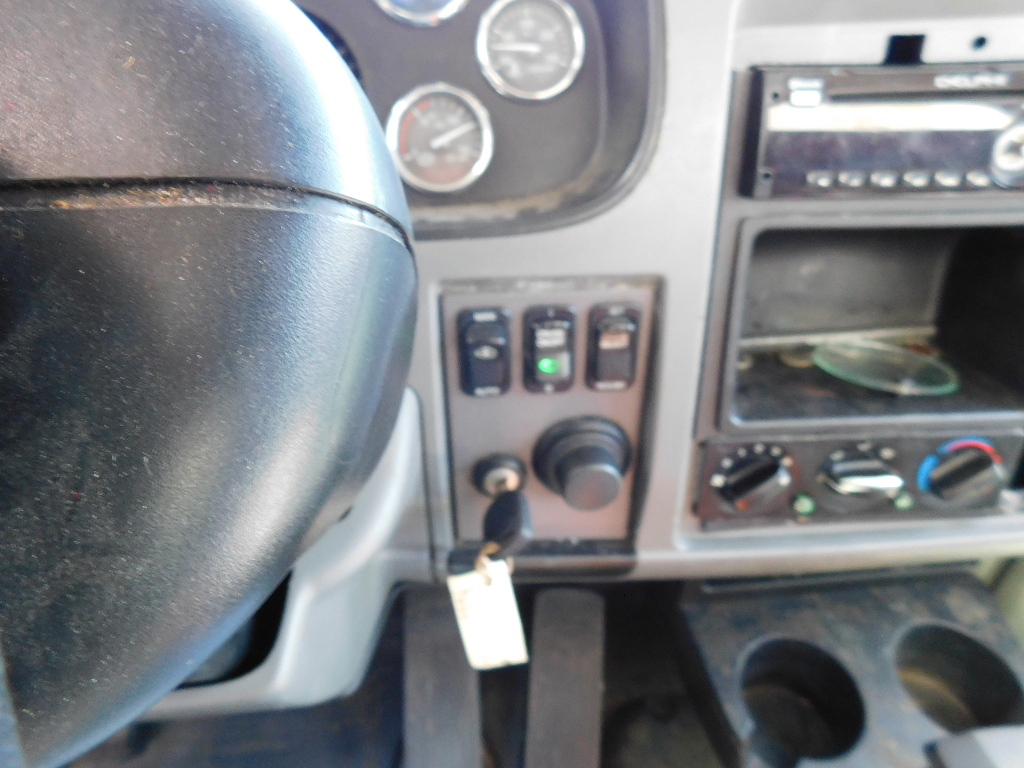

| DASH CENTER CONSOLE | LOOSE IF PUSHED ON, IT BENDS IN. IT IS MISSING TRIM. |

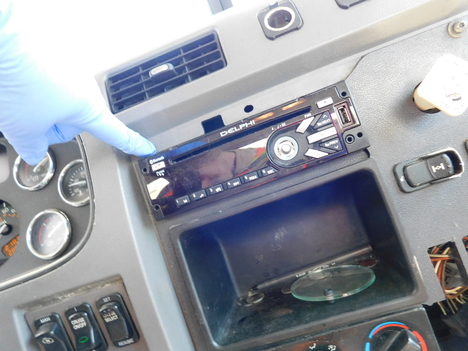

| RADIO | WON'T TURN ON. |

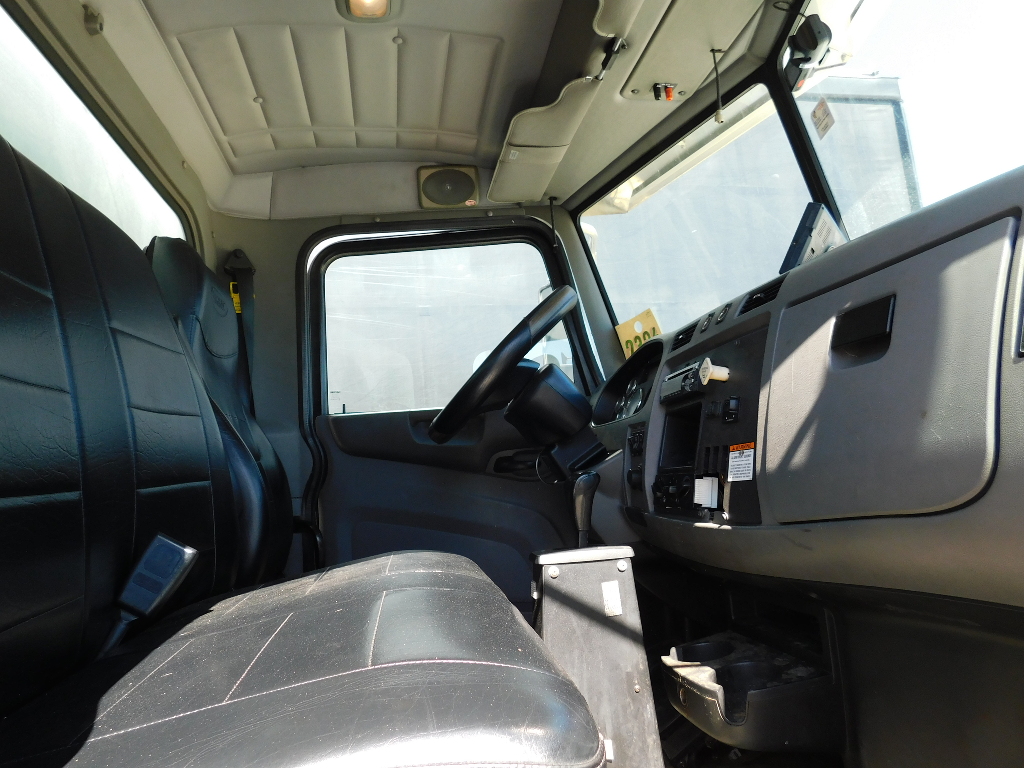

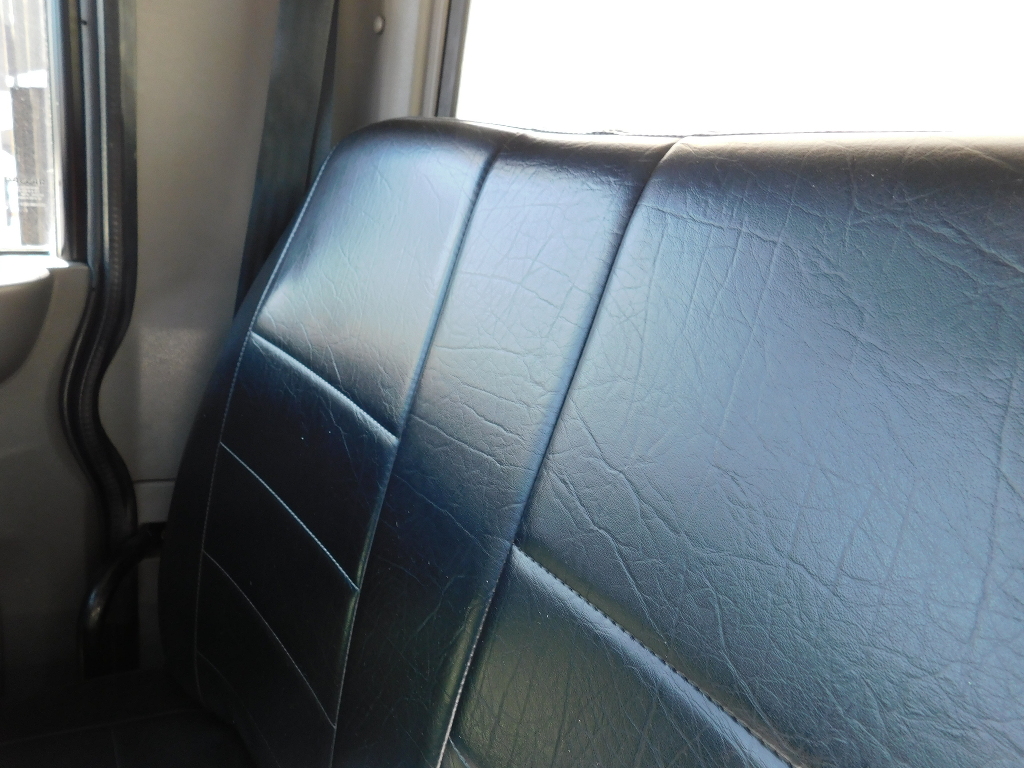

| SEAT | DRIVER CUSHION IS SOILED AND WORN. |
| BUMPER | HAS SCRATCHES IN THE CHROME ON BOTH ENDS. |

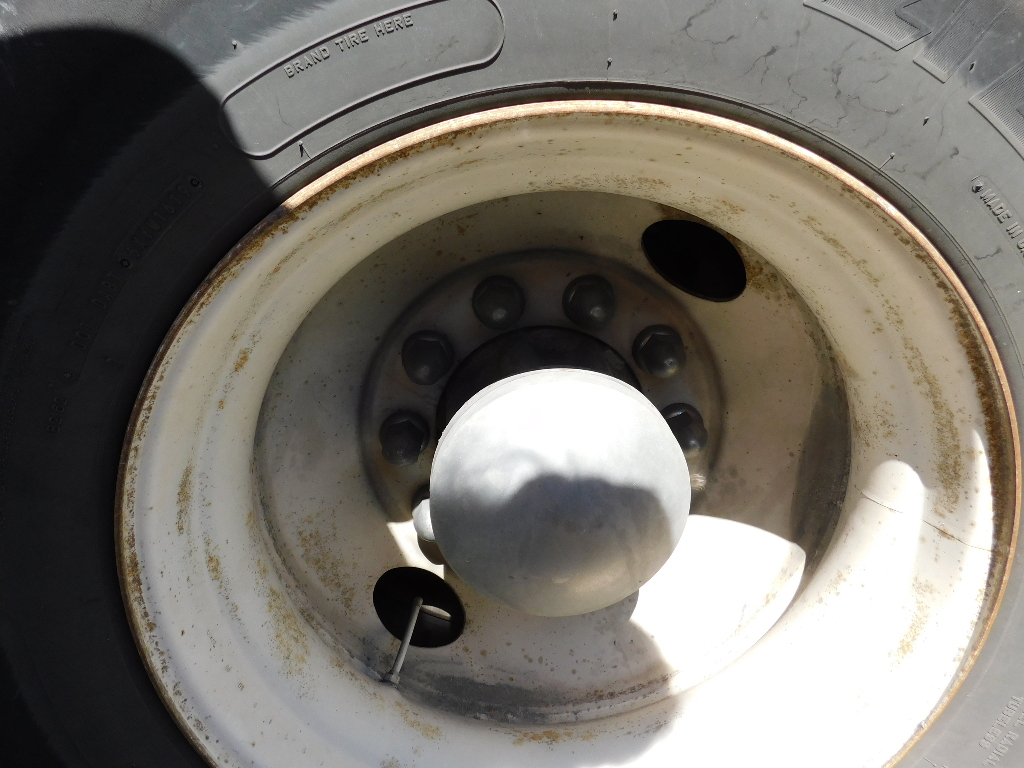

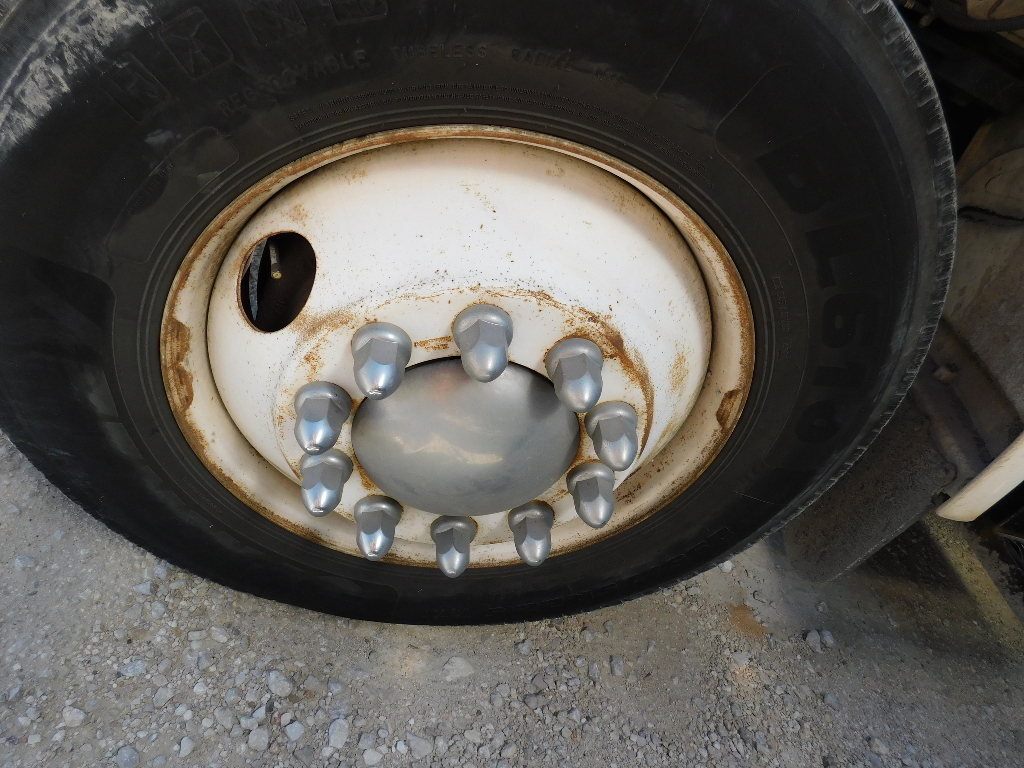

| WHEELS | ALL HAVE RUST COMING THROUGH THE PAINT IN VARYING DEGREES. |

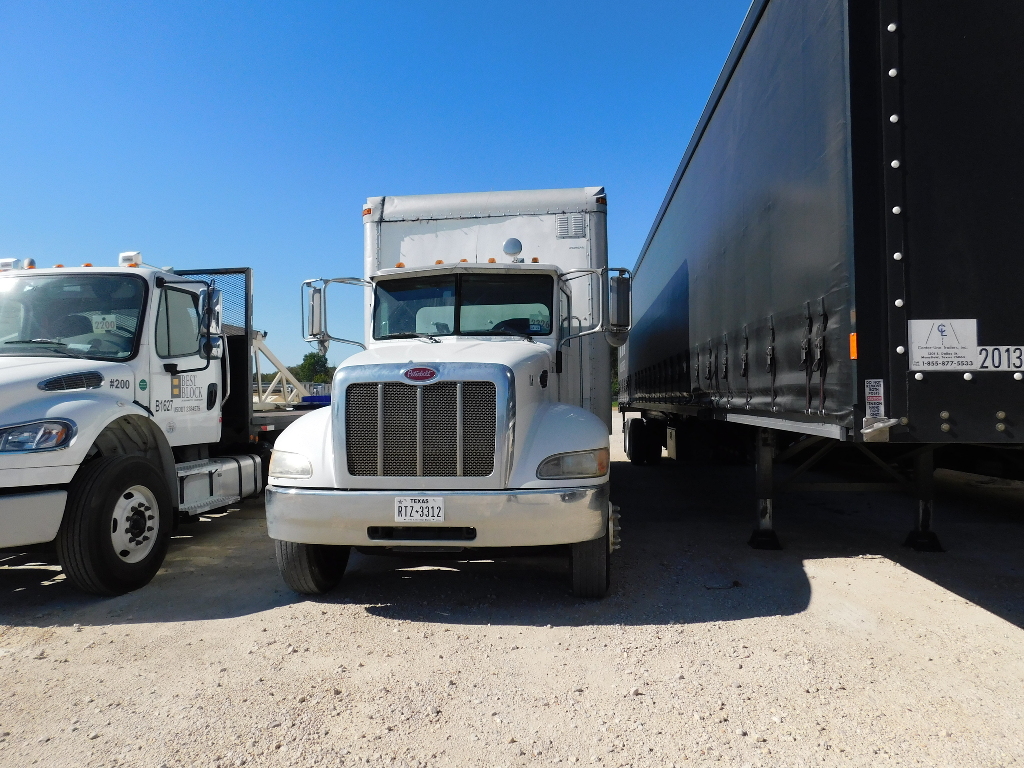

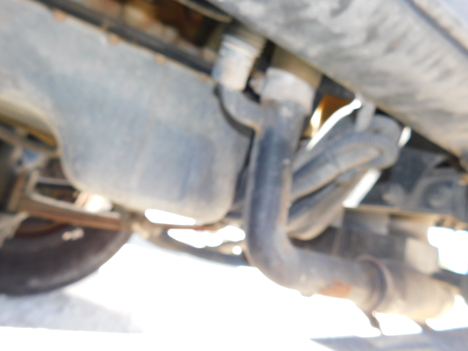

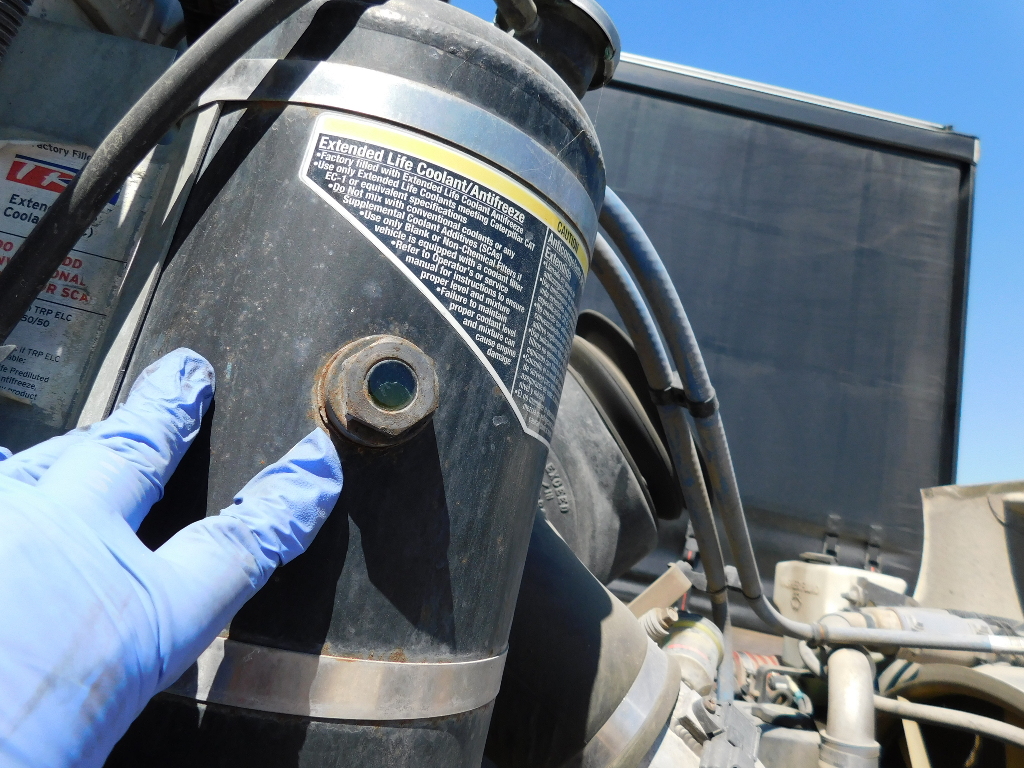

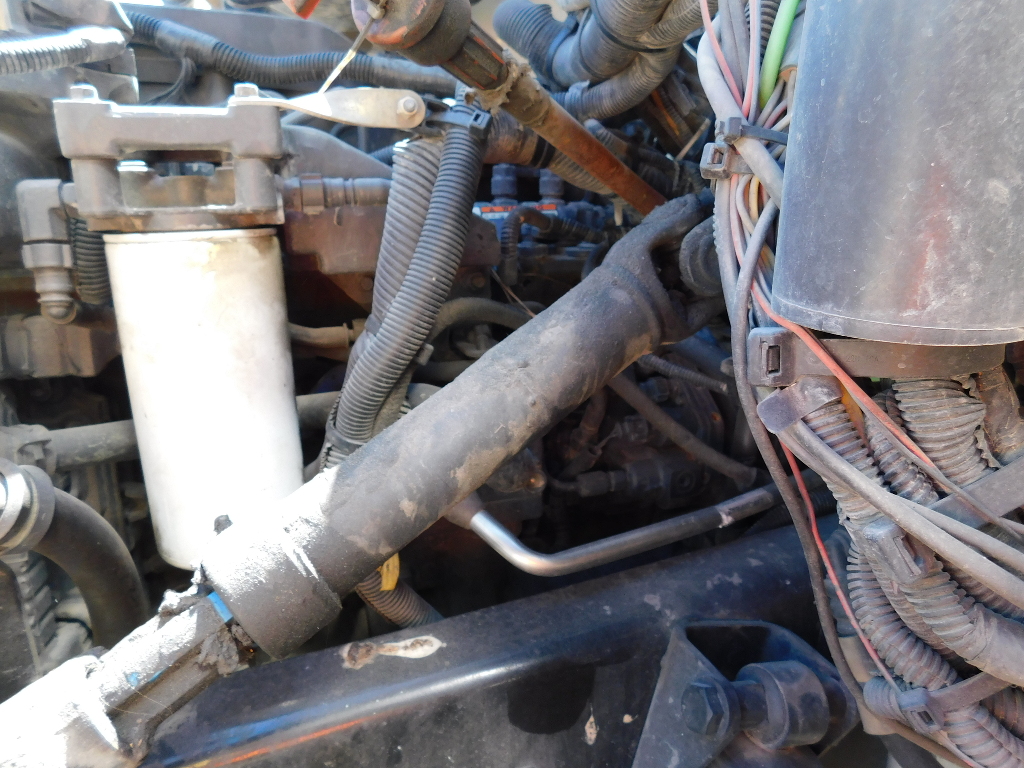

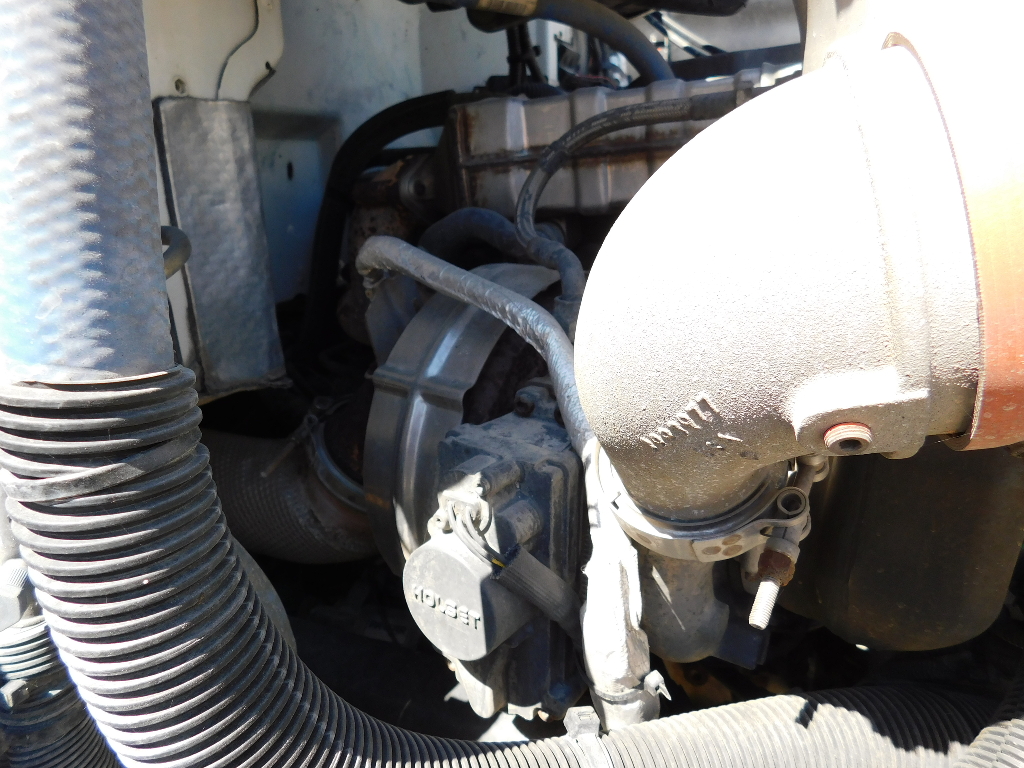

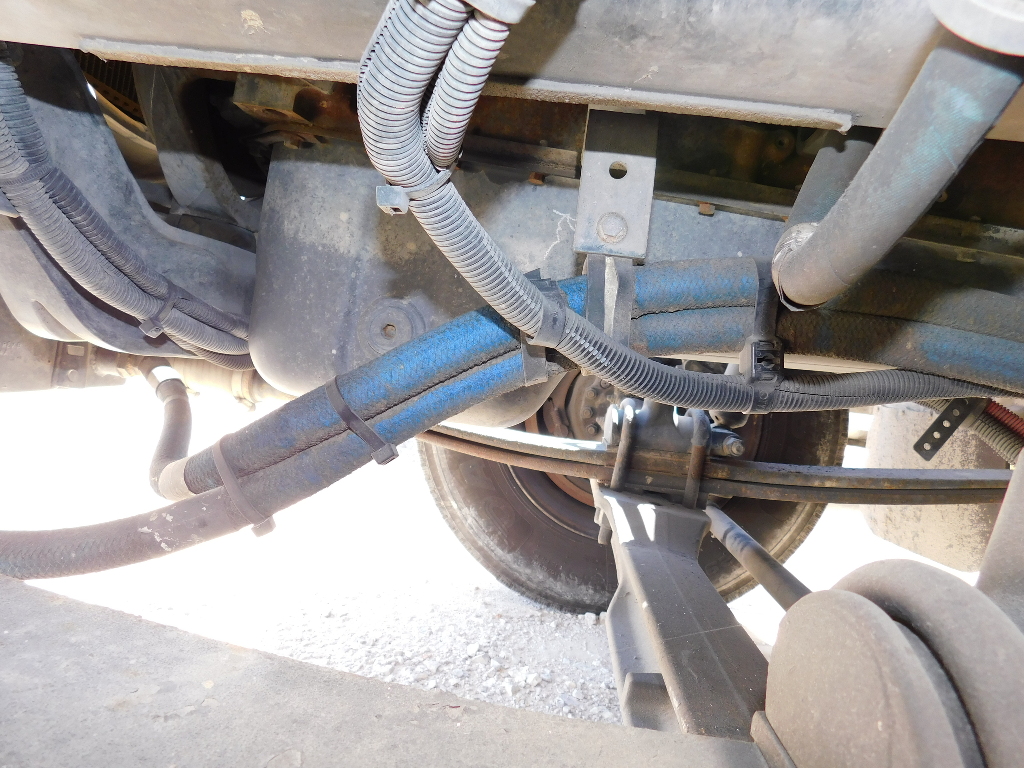

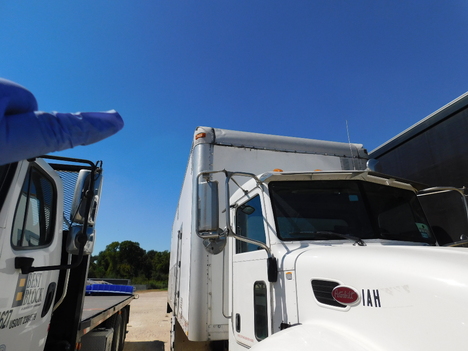

| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
15F
16A
16B
16C
16D
16E
16F
17A
17B
17C
17D
17E
17F
18A
18B
18C
18D
18E
18F
19A
19B
19C
19D
19E
19F
20A
20B
20C
20D
20E
20F
21A
21B
21C
21D
21E
21F
22A
22B
22C
22D
22E
22F
23A
23B
23C
23D
23E
23F
24A
24B
24C
24D
24E
24F
25A
25B
25C
25D
25E
25F
26A
26B
26C
26D
26E
26F
27A
27B
27C
27D
27E
27F
28A
28B
28C
28D
28E
28F
29A
29B
29C
29D
29E
29F
30A
30B
30C
30D
30E
30F
31A
31B
31C
31D
31E
31F
32A
32B
32C
32D
32E
32F
33A
33B
33C
33D
33E
33F
34A
34B
34C
34D
| Report Documents |
|---|
Condition report only. National Inspection Services does not guarantee mechanical reliability.
