National Inspection Services
Report: 261748
04/19/2024
04/19/2024
Custom Truck & Equipment (Rod Dickason)
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
7701 Independence Ave, Kansas City, MO 64125 USA
(816) 241-4888
VIN: 1HTWBAAN9DJ093222
PO #: 2000504947
PO #: 2000504947

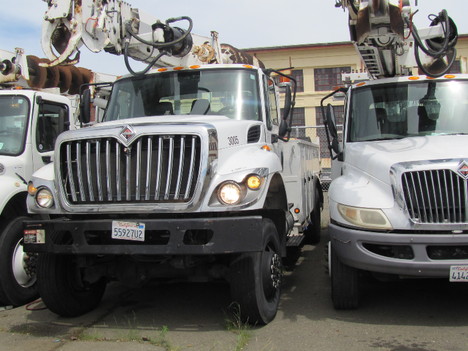

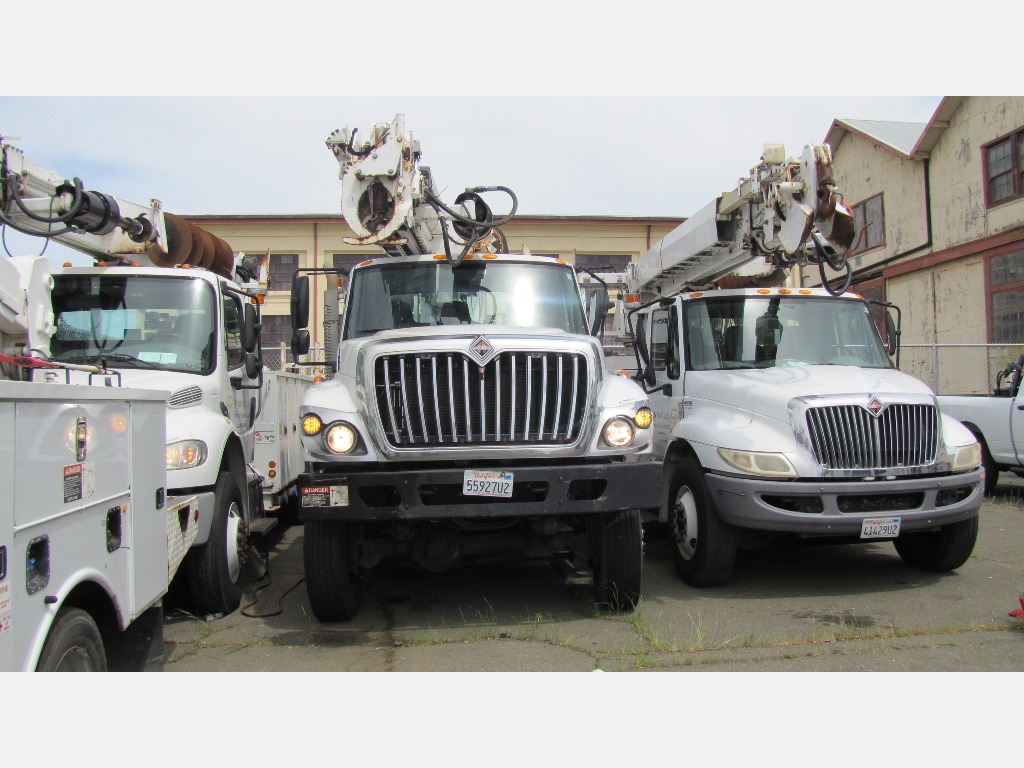

| 2013 INTERNATIONAL 7300 |
|---|
| Specifications | |
|---|---|
| Mileage | 69,071 |
| Engine Hours | 4,750 |
| Engine | INTERNATIONAL DT466 7.6L 245 HP |
| Eng Serial | 3416321 |
| Fuel / Tanks | DIESEL - 1 ALUM 50 GAL TOTAL |

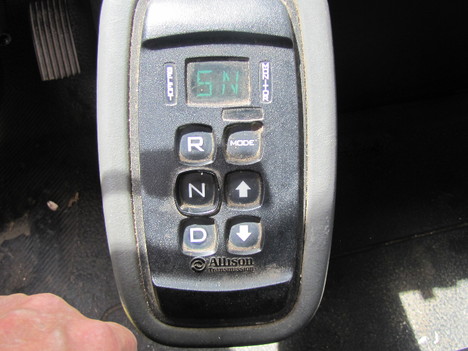

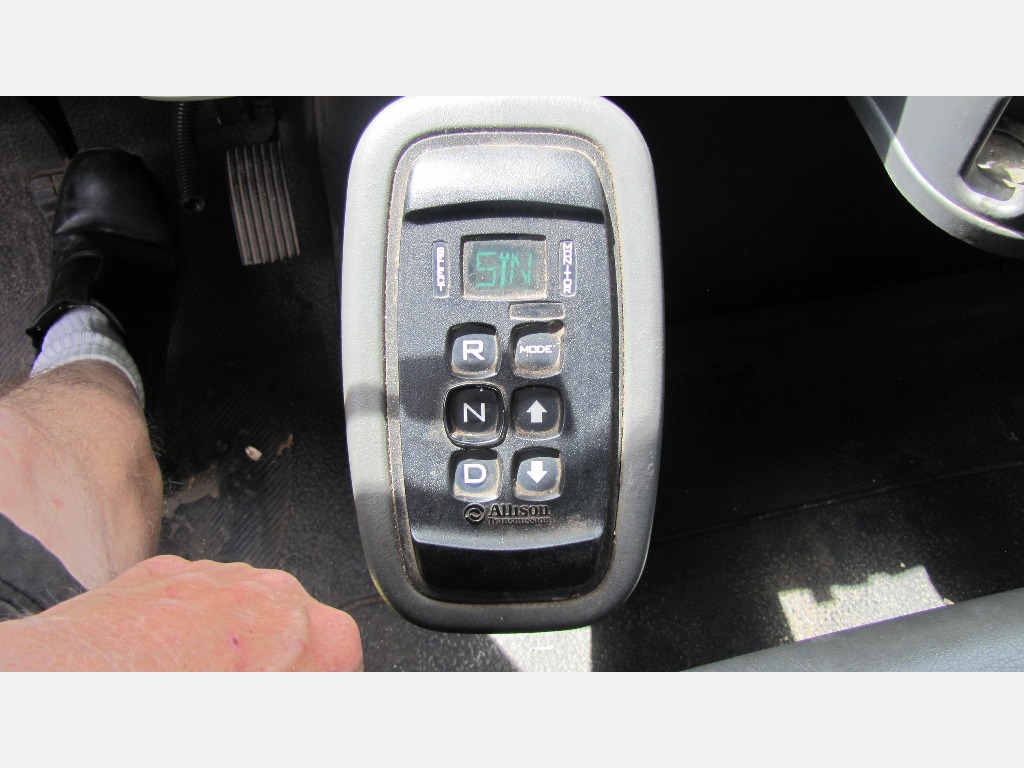

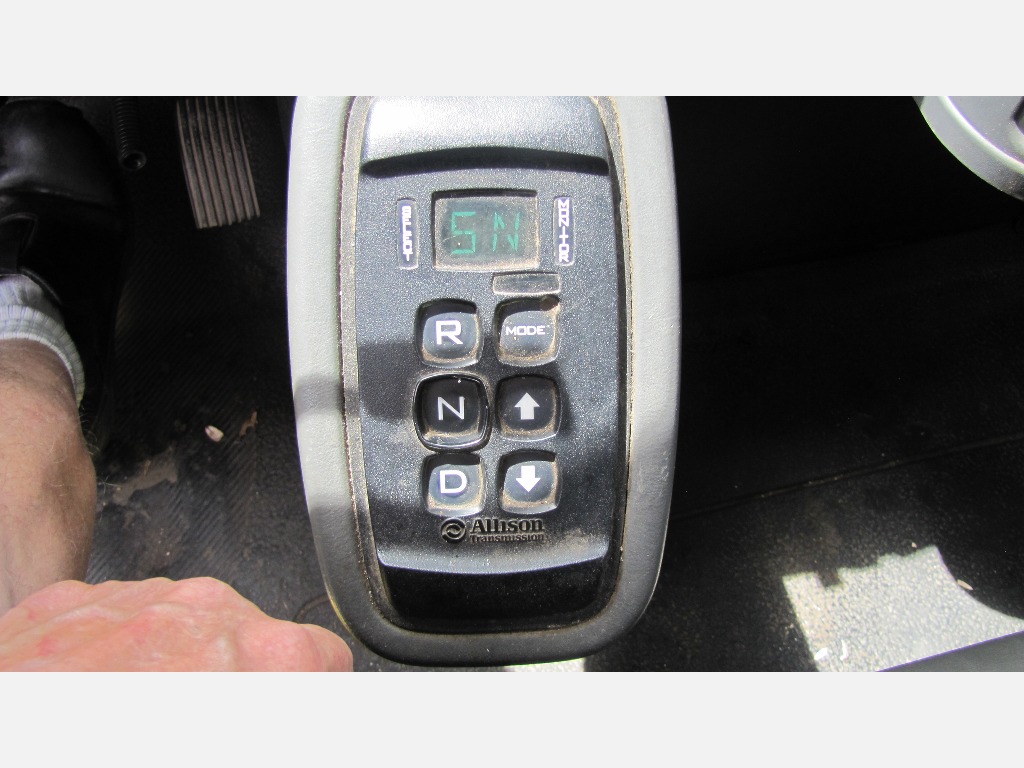

| Transmission | ALLISON 3500 RDS 5 SPD AUTO |
| Drive Opts | POWER STEERING, CRUISE |

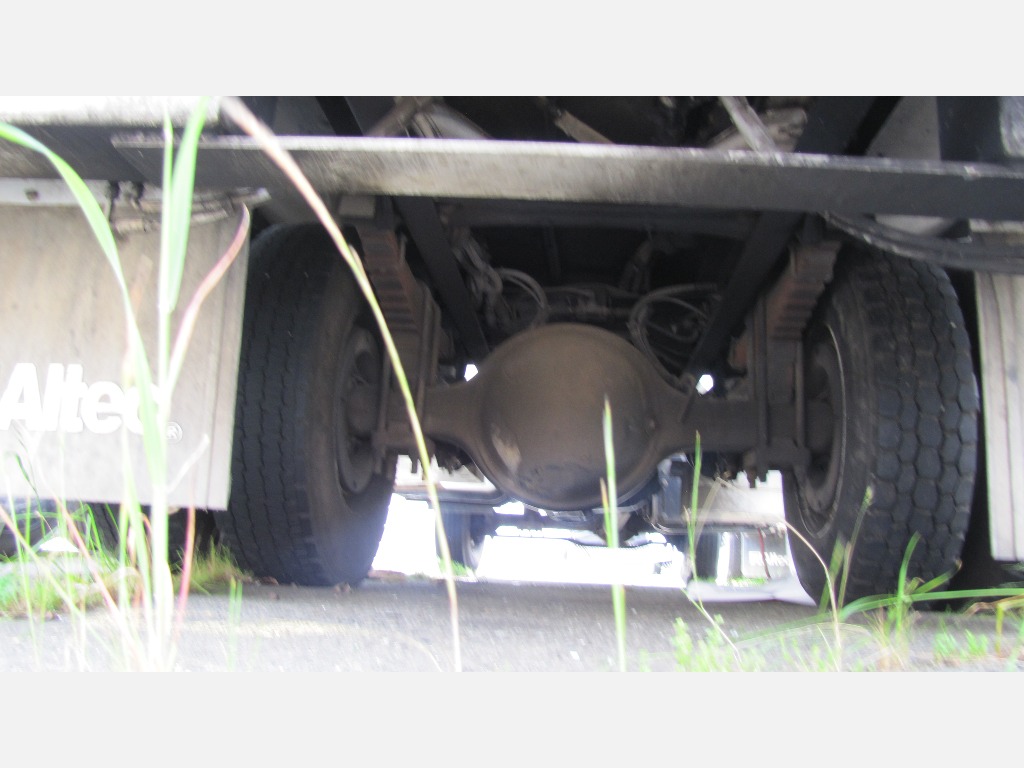

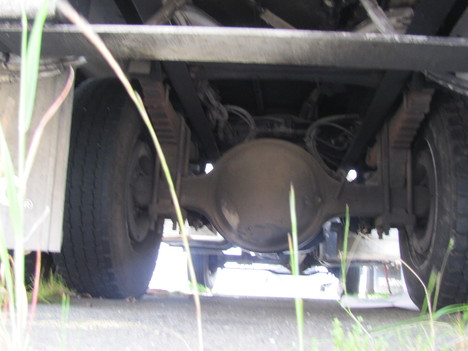

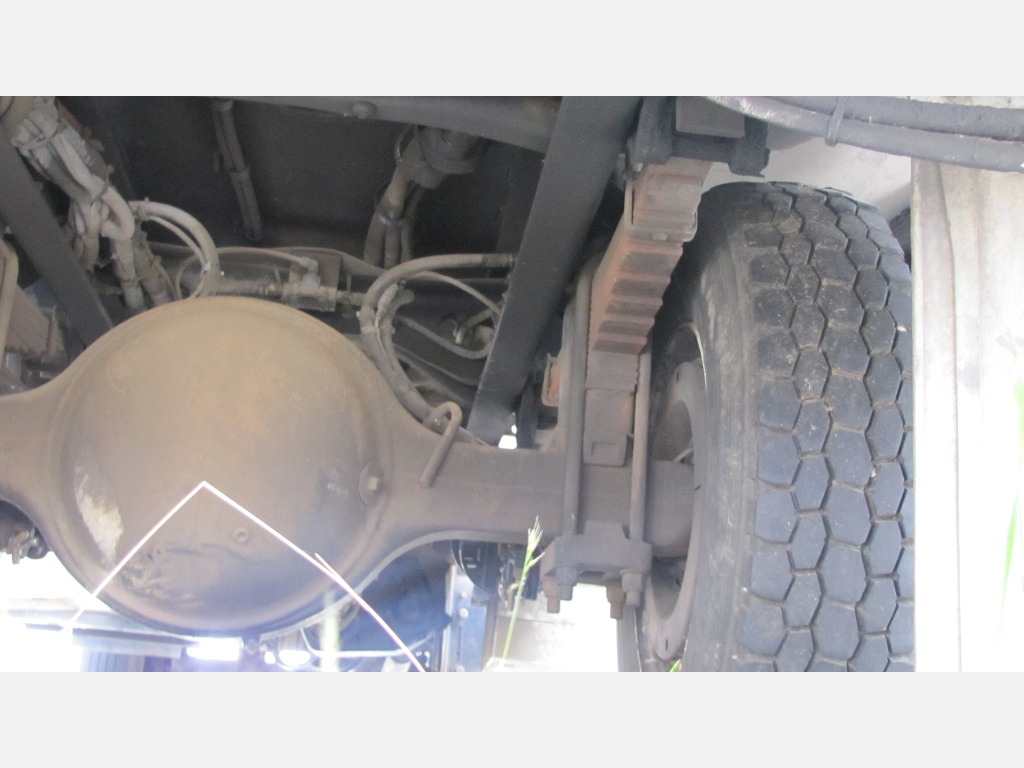

| Rear End | MERITOR 5.63 |
| Axle Type | SINGLE - F 13,000 LB / R 20,000 LB |
| GVWR | 33,000 |
| Frame | STEEL |

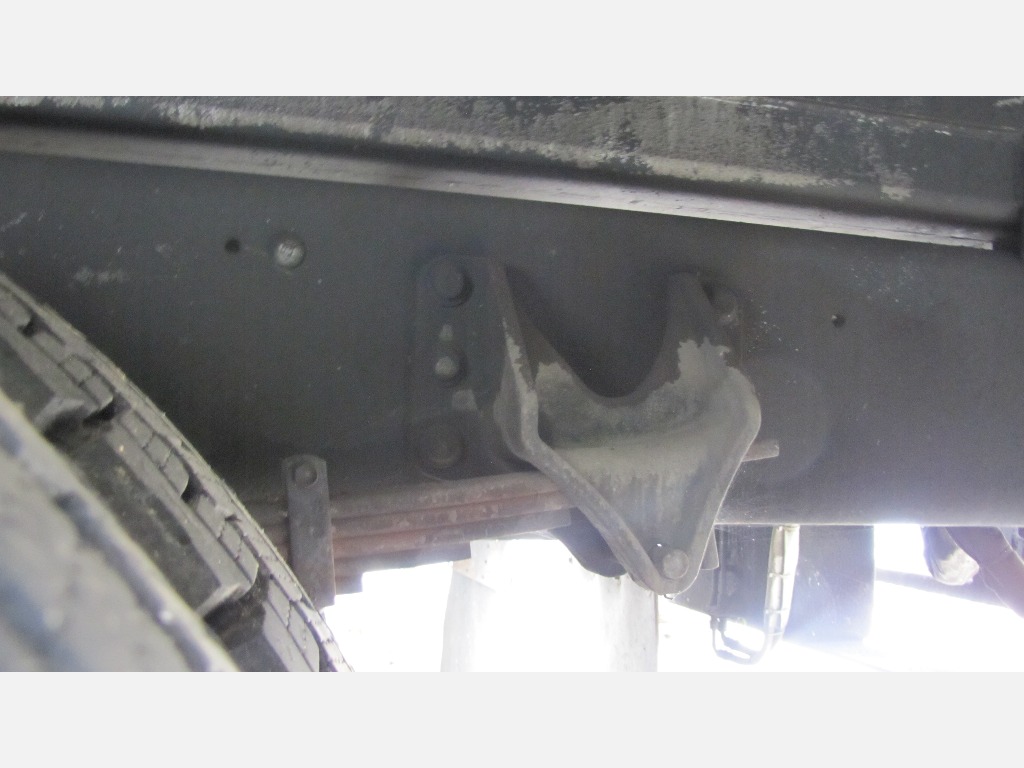

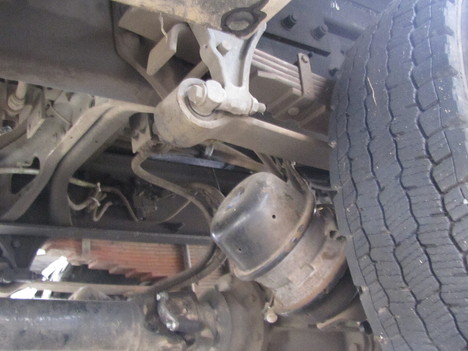

| Suspension | SPRING |
| Wheelbase | 201" |
| Tire Size | 11R-22.5 |
| Wheels | F STEEL / R STEEL |
| Exterior L (Ft) | 16.0 |
| Air Cond | YES, OPERATIONAL |
| Interior Color | GRAY |
| Radio | AM/FM, OPERATIONAL |
| High Back Seats | DUAL |
| Passenger Seat | STATIONARY |
| Exterior Color | WHITE |
| Bumper | PAINTED |

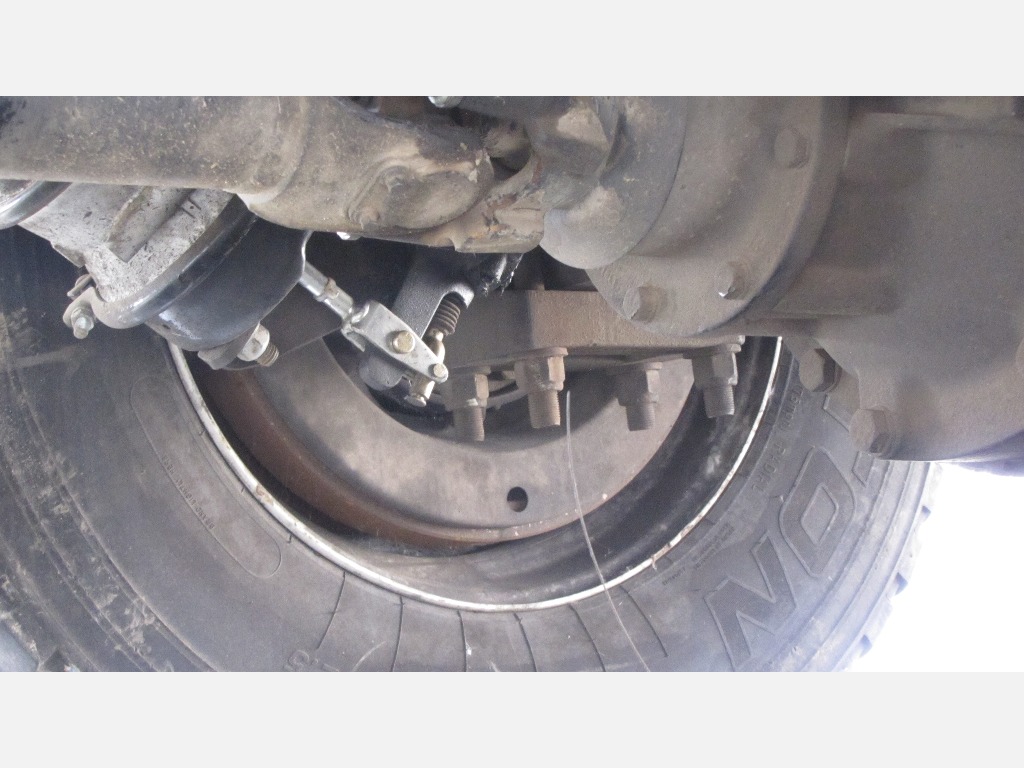

| Brakes | |
|---|---|
| Left FrontCOVERED | Right FrontCOVERED |
| Left Rear 1COVERED | Right Rear 1COVERED |

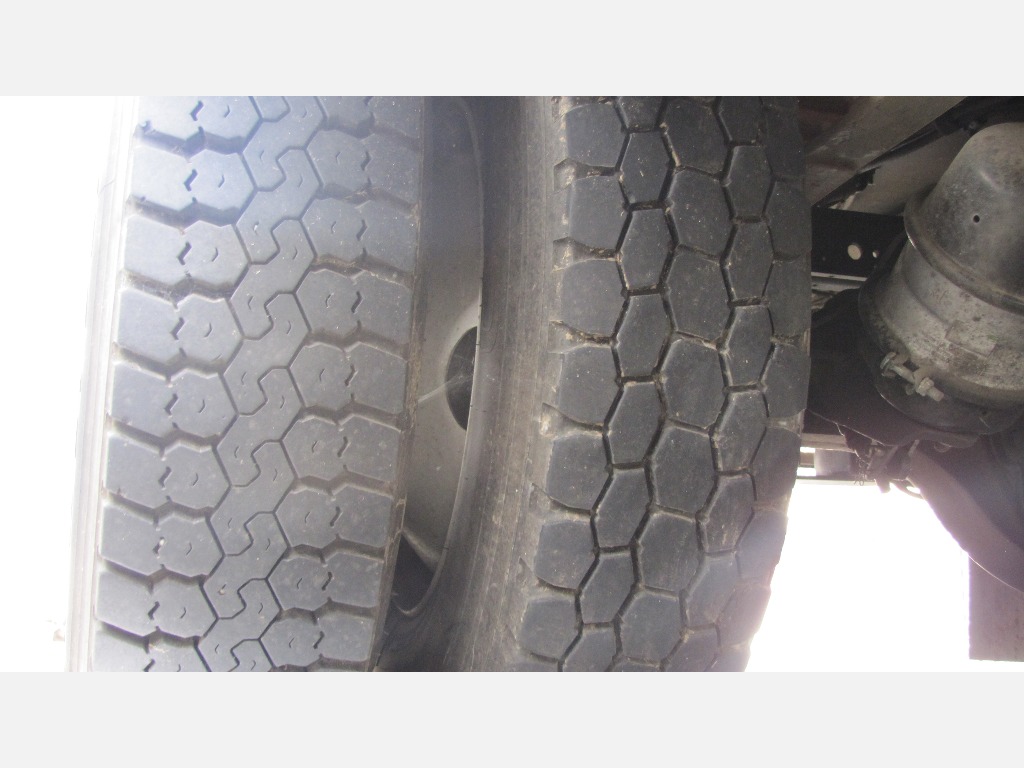

| Tires & Wheels | |||
|---|---|---|---|
|
Left Front11 / 32 Michelin Steel |
Right Front11 / 32 Michelin Steel |
||
|
Left Outer 119 / 32 Michelin Steel |
Left Inner 118 / 32 Michelin Steel |
Right Inner 114 / 32 Michelin Steel |
Right Outer 119 / 32 Firestone Steel |
| FRONT TIRES: 11R-22.5 | REAR TIRES: 11R-22.5 | ||
| Additional Tire Detail |
|---|
| R1#3=DAYTON |
| General Observations |
|---|
| Oil Milky? | No | Oil Leaks? | Yes | Water Leaks? | No | Oil in Coolant? | No | Clutch Play? | NA | Starts? | No | Drives | No |
|---|

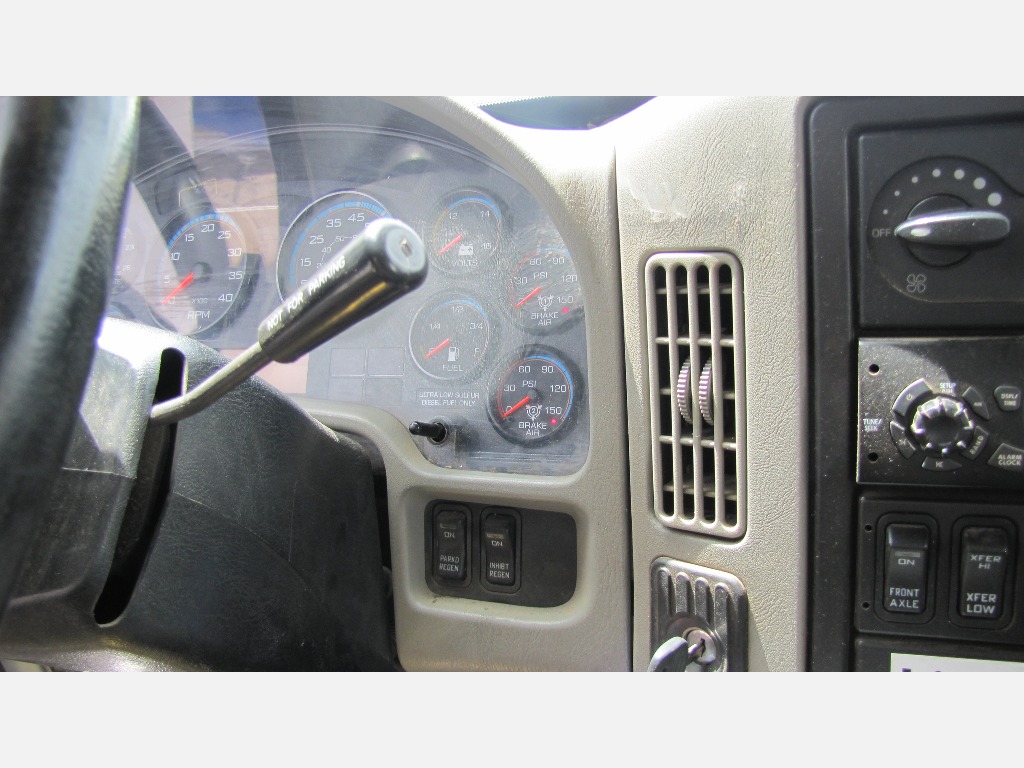

| Lights Work? | Yes - All | Wipers Work? | Yes | Gauges Work? | Yes - All | Air Horn Works? | NA | City Horn Works? | Yes |
|---|
| Additional Observations | |
|---|---|

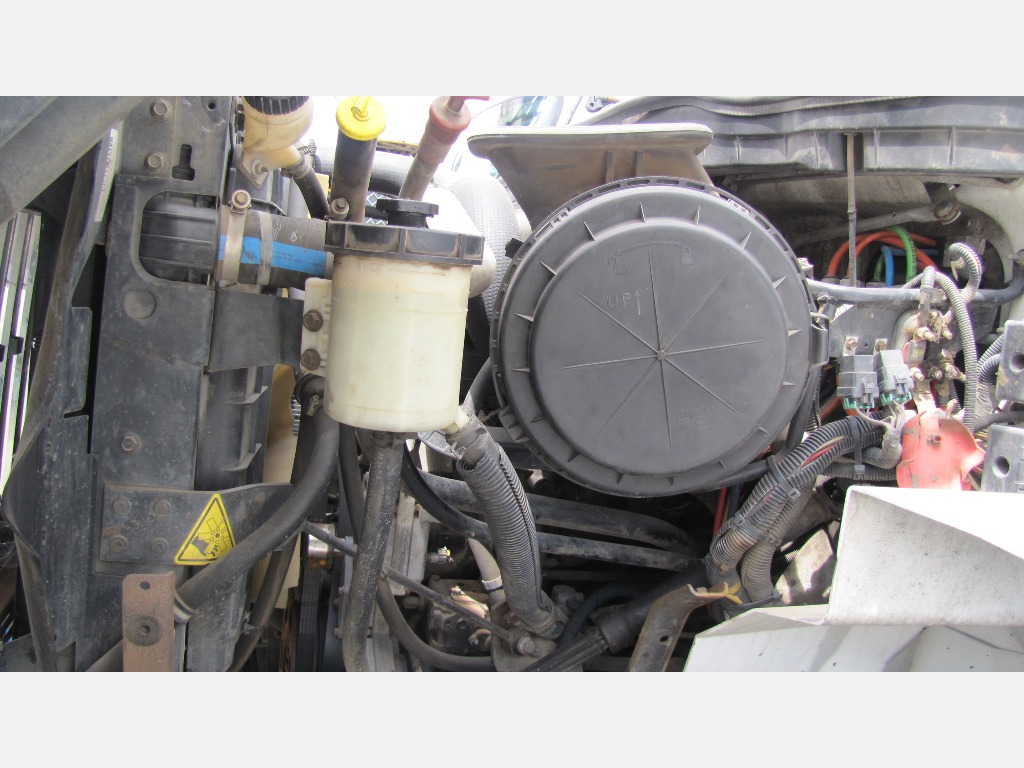

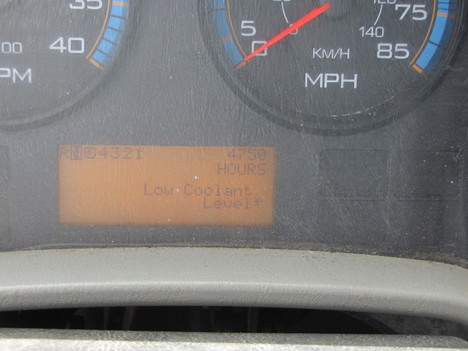

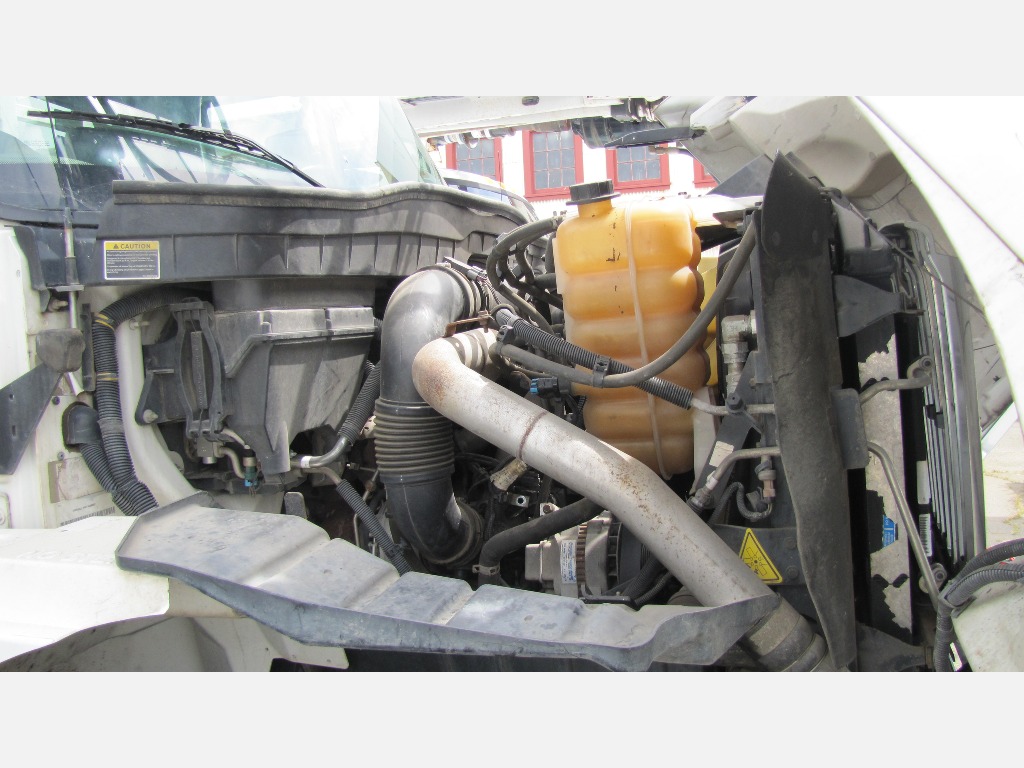

| UNIT WOULD NOT START TRIED JUMP BUT UNIT WOULDN'T START. LOW COOLANT. oil leak at the rear of the engine and along the d/s of the oil pan. | |
| Wear & Tear Detail | |
|---|---|

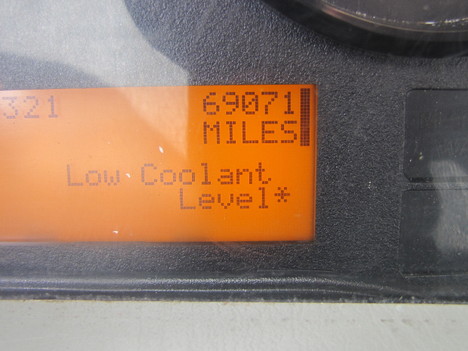

| DIAGNOSTICS | LOW COOLANT LEVEL WARNING 5 INACTIVE FAULTS DETECTED - (SEE ECM REPORT) ATTEMPTED TO JUMP BUT UNIT WOULDN'T START. |

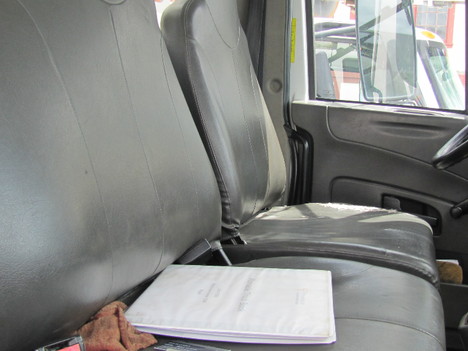

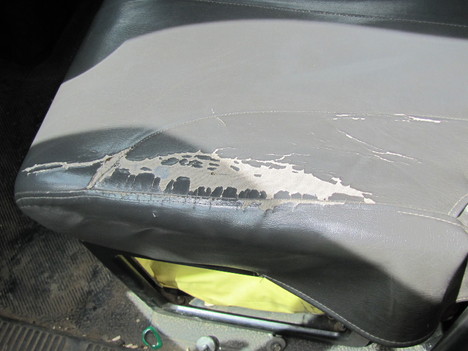

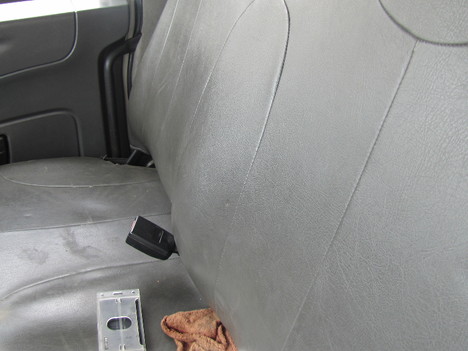

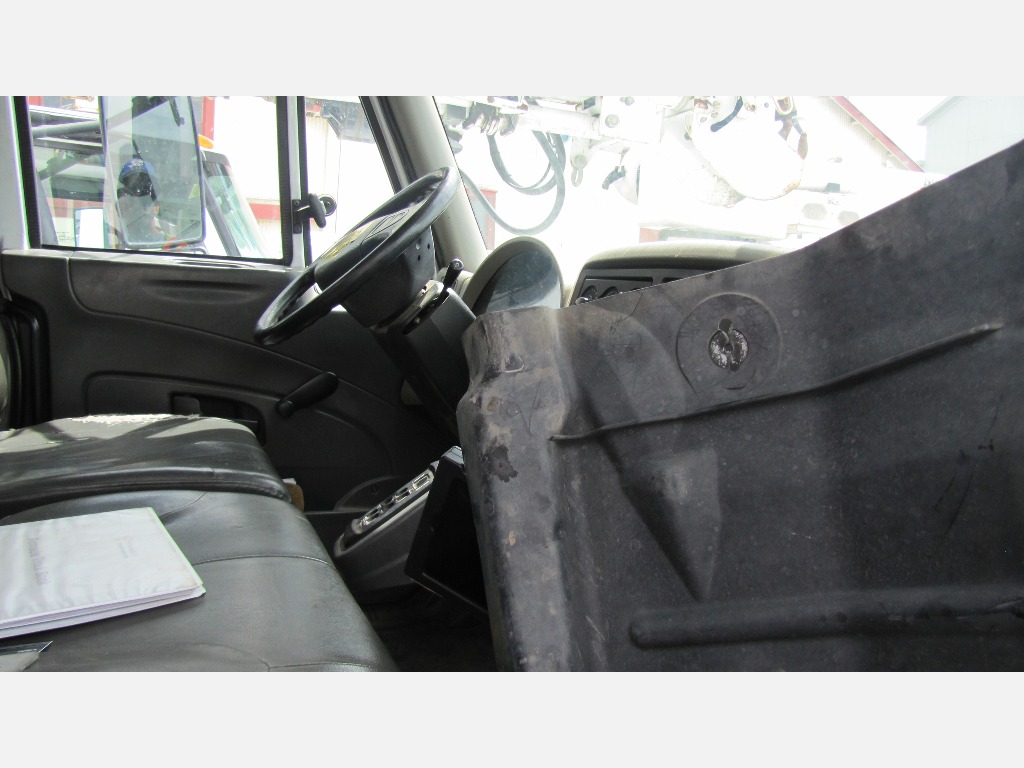

| SEATS | P/S WORN AND HAS STAINS. D/S HAS HOLES AND STAINED. |
| HOOD | PAINT SCRAPED TOP D/S OF HOOD. |

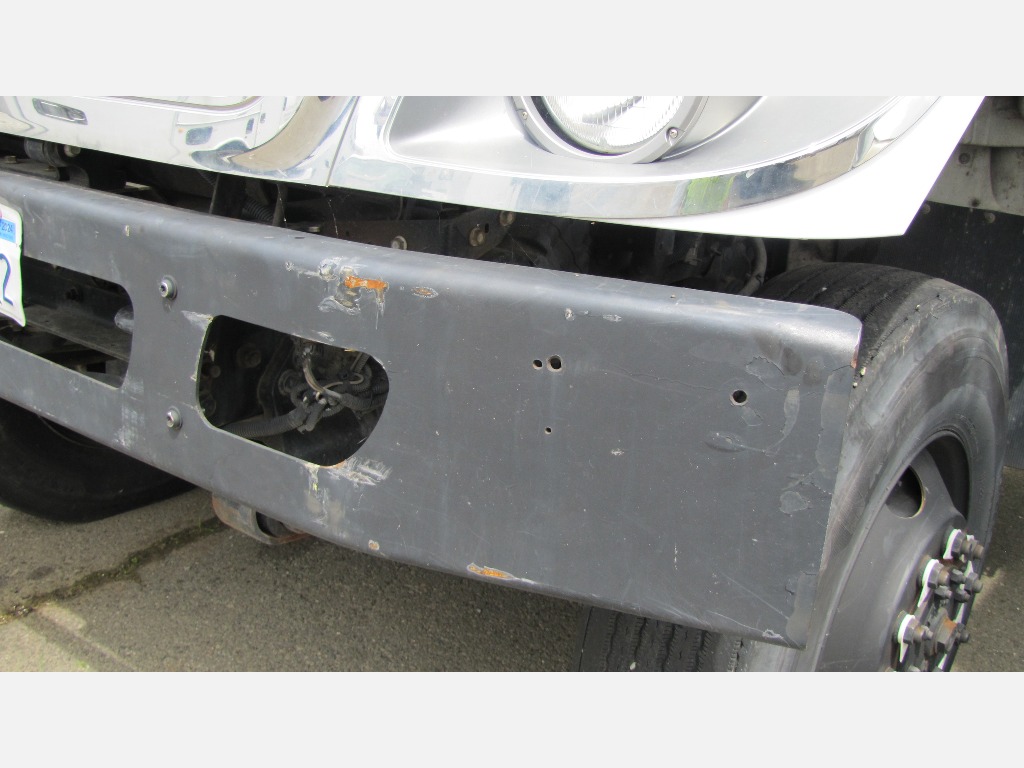

| BUMPER | SCRAPED ON D/S. |

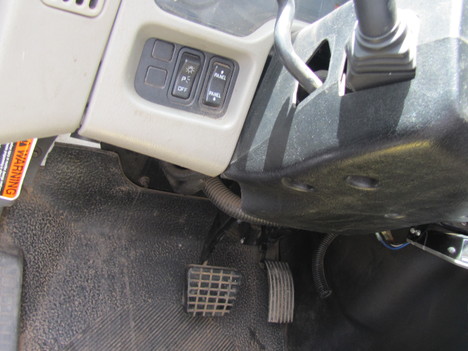

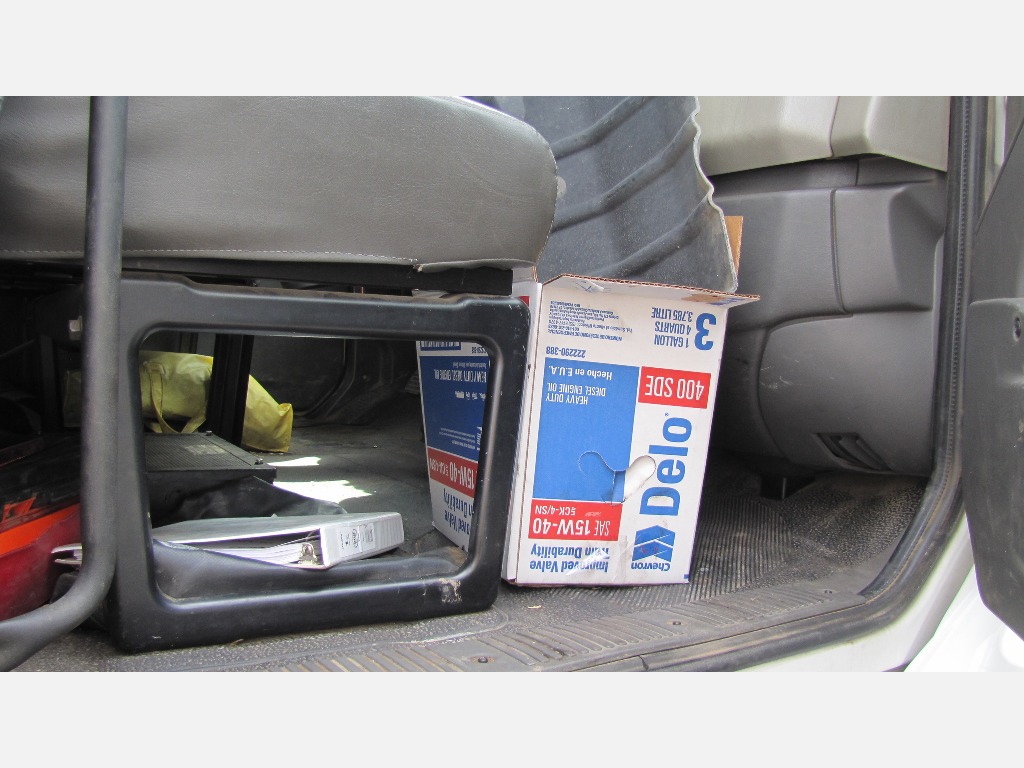

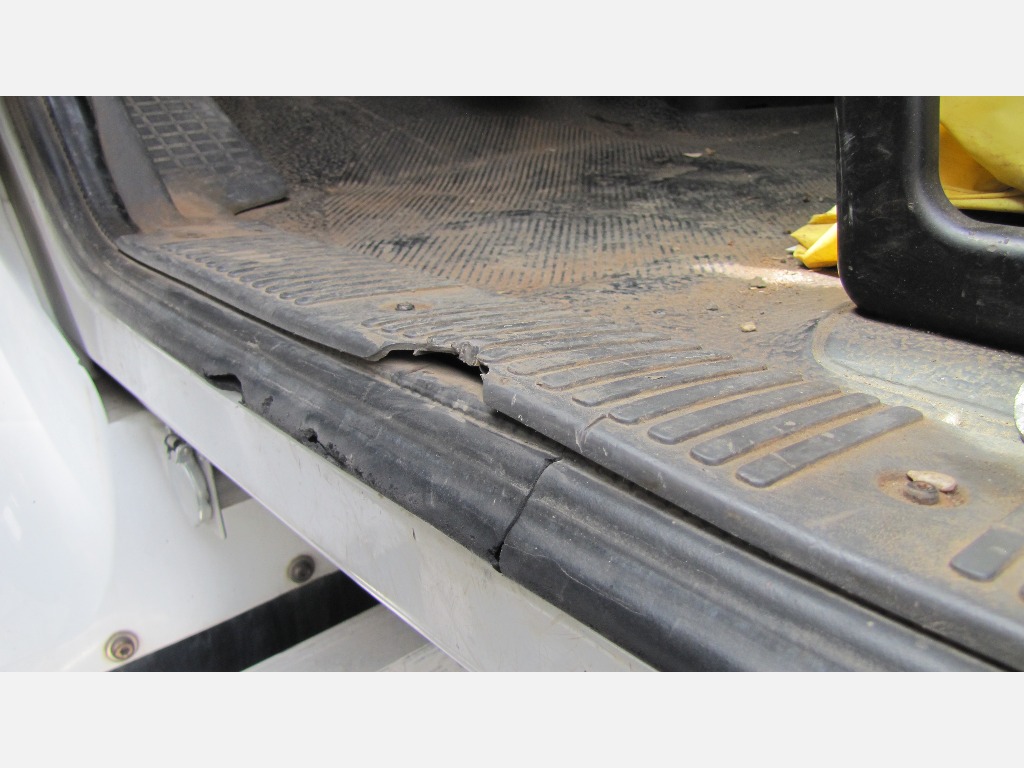

| FLOOR MAT | DAMAGED ON DRIVER'S SIDE. |

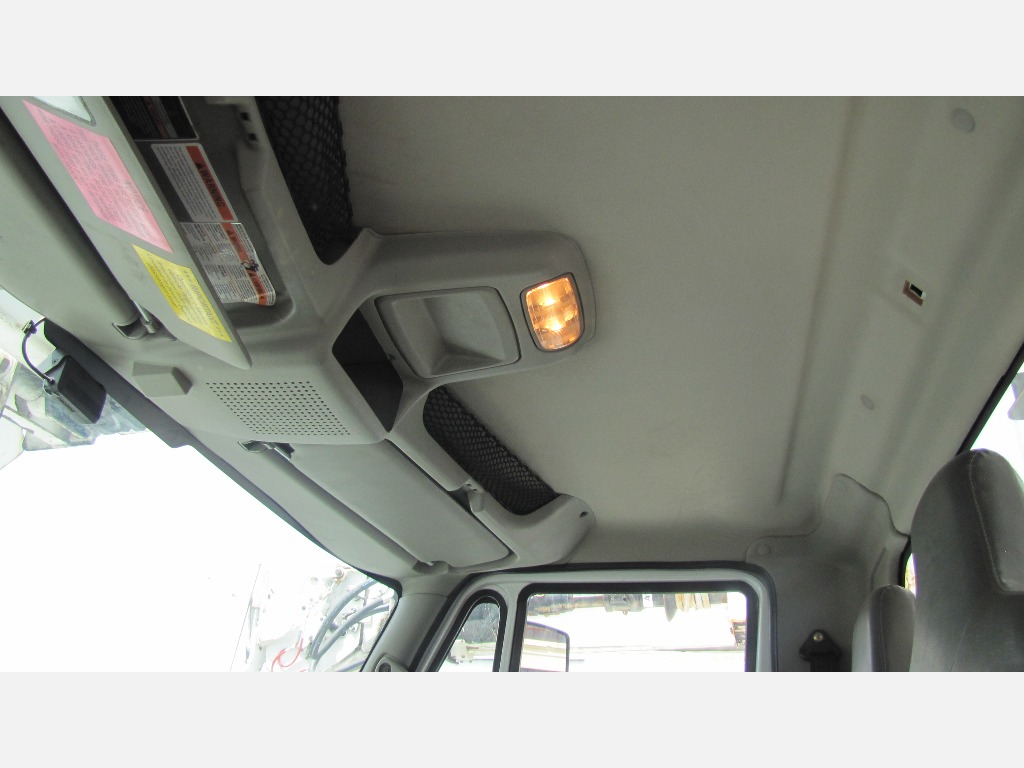

| HEADLINER | STAINED IN VARIOUS AREAS. |

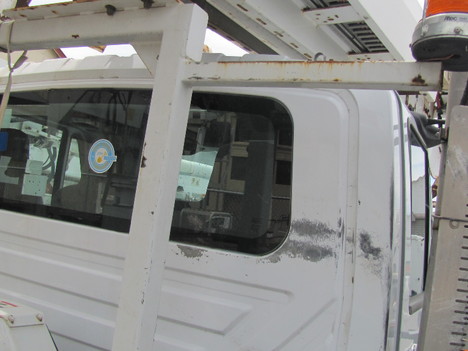

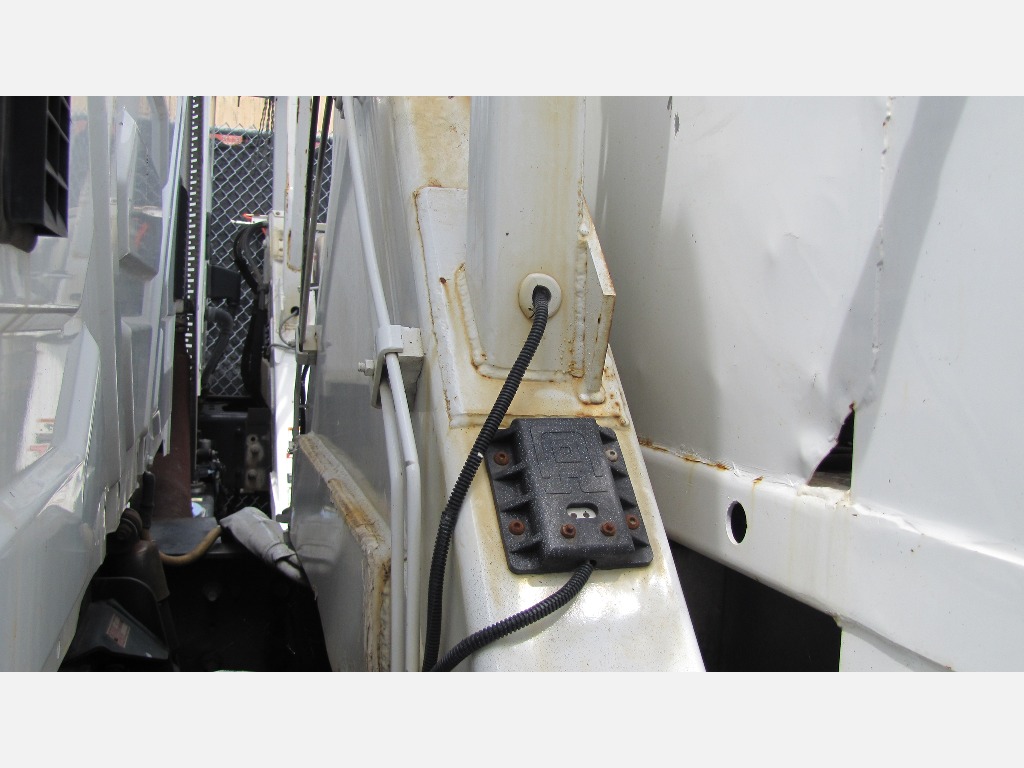

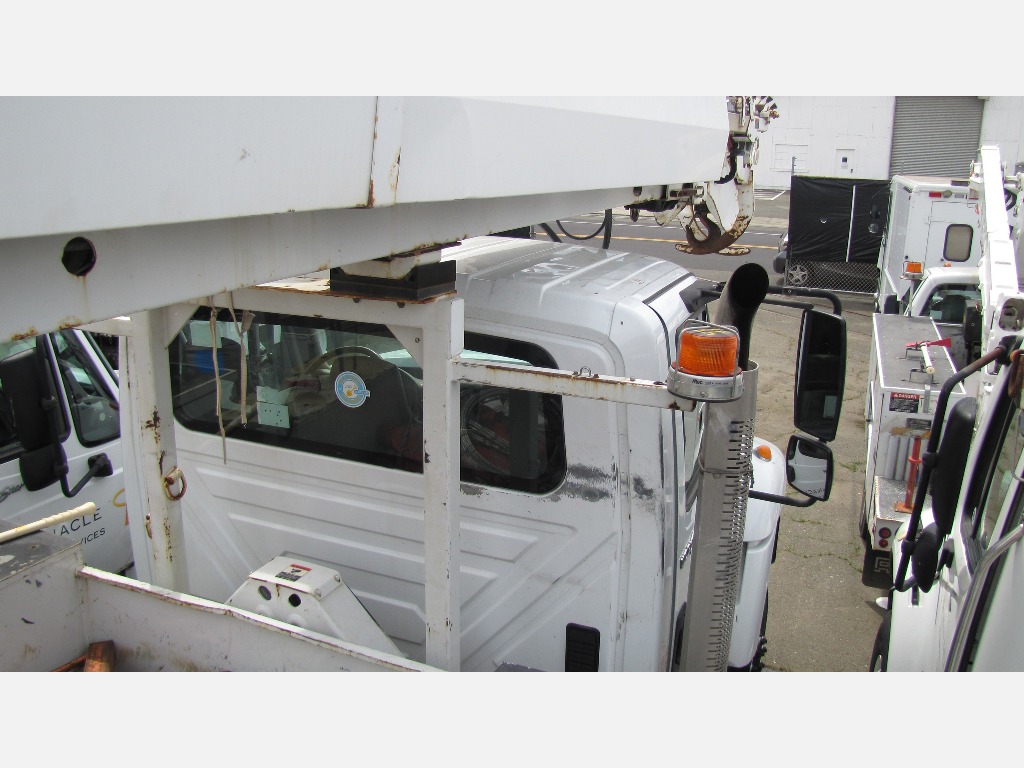

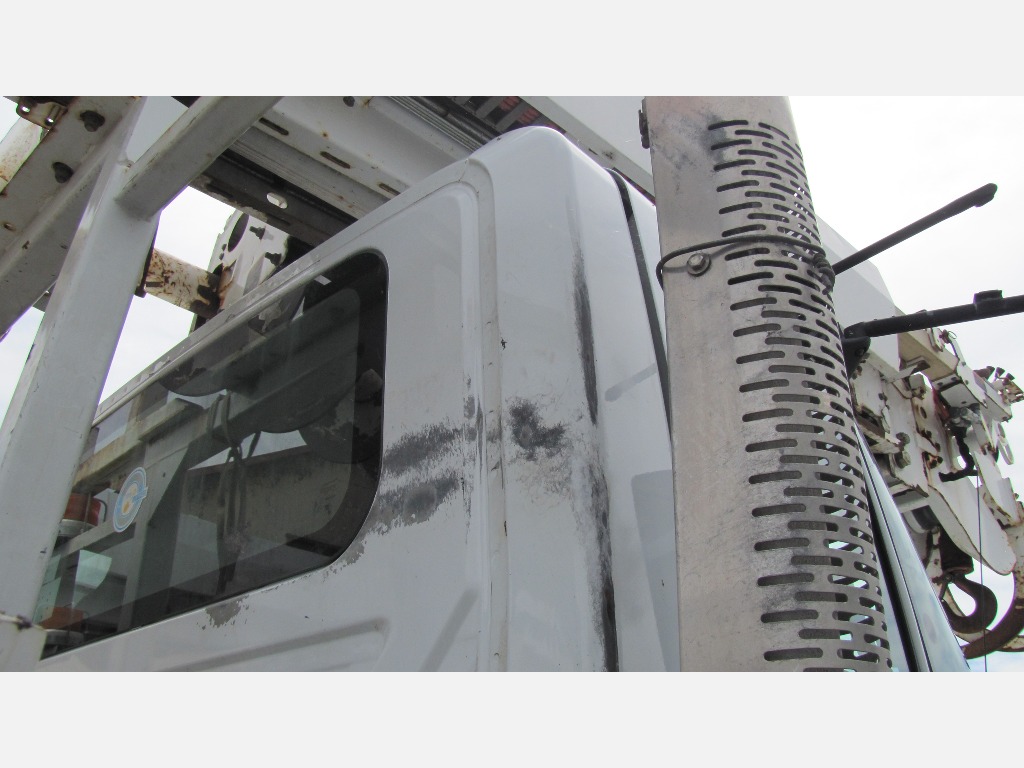

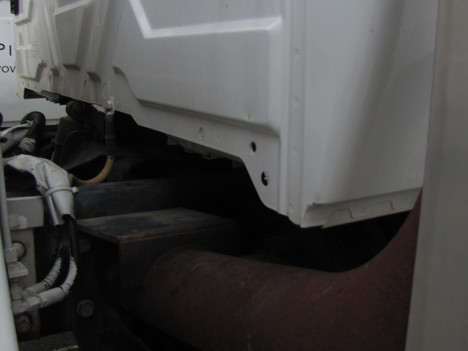

| CAB | SCRAPES ON REAR WALL OF CAB. |

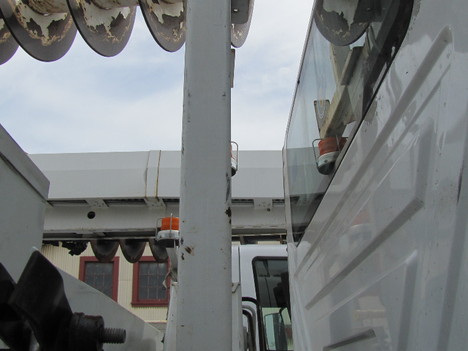

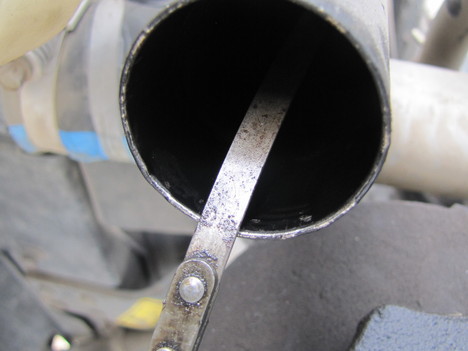

| EXHAUST | WIRE HOLDING THE SHIELD TO THE STACK. |
| Report Photos |
|---|
1A
1B
1C
1D
1E
1F
2A
2B
2C
2D
2E
2F
3A
3B
3C
3D
3E
3F
4A
4B
4C
4D
4E
4F
5A
5B
5C
5D
5E
5F
6A
6B
6C
6D
6E
6F
7A
7B
7C
7D
7E
7F
8A
8B
8C
8D
8E
8F
9A
9B
9C
9D
9E
9F
10A
10B
10C
10D
10E
10F
11A
11B
11C
11D
11E
11F
12A
12B
12C
12D
12E
12F
13A
13B
13C
13D
13E
13F
14A
14B
14C
14D
14E
14F
15A
15B
15C
15D
15E
15F
16A
16B
16C
16D
16E
16F
17A
17B
17C
17D
17E
17F
18A
18B
18C
18D
18E
18F
19A
19B
19C
19D
19E
19F
20A
20B
20C
20D
20E
20F
21A
21B
21C
21D
21E
21F
22A
22B
22C
22D
22E
22F
23A
23B
23C
23D
23E
23F
24A
24B
24C
| Report Documents |
|---|
Condition report only. National Inspection Services does not guarantee mechanical reliability.
